Presentation Transcript
slide1

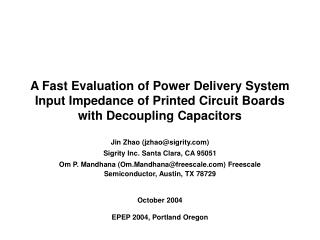

A Fast Evaluation of Power Delivery System Input Impedance of Printed Circuit Boards with Decoupling Capacitors

Jin Zhao (jzhao@sigrity.com)

Sigrity Inc. Santa Clara, CA 95051

Om P. Mandhana (Om.Mandhana@freescale.com) Freescale Semiconductor, Austin, TX 78729

October 2004

EPEP 2004, Portland Oregon

content
Content
  • Introduction
  • Applied Methodology
  • Application Examples
  • Conclusion

EPEP 2004, Portland Oregon

introduction
Introduction
  • A noise-free, stable power delivery system is required for high speed system
  • Hundreds of decoupling capacitors are placed on PCB to satisfy the requirement
  • Efficiently selecting and placing decoupling capacitors on board is a critical task for power integrity analysis and design

EPEP 2004, Portland Oregon

traditional approach

On-die

Interconnection

Package or

Substrate

Printed Circuit Board

VRM

on

PCB

IC

CKTs

On-board

Decaps

On-die

Decaps

On-package

Decaps

Traditional Approach
  • Whole system has been represented as multi-stage lumped circuits
  • As frequency increases, the wave propagation effects within the board structure must be considered in the analysis and design of a PDS

EPEP 2004, Portland Oregon

applied methodology

On-die

Interconnection

Package or

Substrate

Printed Circuit Board

VRM

on

PCB

IC

CKTs

On-board

Decaps

On-die

Decaps

On-package

Decaps

Applied Methodology

Multiple port network

Representing

Printed Circuit Board

Lumped

Circuit

model

Traditional approach

New approach

EPEP 2004, Portland Oregon

applied methodology cont

Commercial

Field Solver

Applied Methodology (cont)

Real physical board with pre-selected locations of VRM, decoupling capacitors, and interested IC chip locations

Multiple port network

Representing

Printed Circuit Board

Multiple ports corresponding to VRM, decoupling capacitors and interested IC chip locations

EPEP 2004, Portland Oregon

applied methodology cont7
Applied Methodology (cont)

Multiple port network

Representing

Printed Circuit Board

An impedance matrix can be used to represent the network

Multiple ports corresponding to VRM, decoupling capacitors and interested IC chip locations

These multiple ports can be divided into two groups:

Ports with no termination (open), and

Ports terminated with loads

EPEP 2004, Portland Oregon

applied methodology cont8
Applied Methodology (cont)

Impedance matrix can be expressed as

For those ports terminated with a loading, one has

The resultant input impedance matrix (at the IC locations) can be calculated as

EPEP 2004, Portland Oregon

applied methodology cont9
Applied Methodology (cont)

Challenges:

  • Involves large matrix inverse with several large matrix multiplications at every frequency point
  • Very time consuming as the number of decoupling capacitors placed on board increases
  • As the impedance of a decoupling capacitor, which depends on the capacitance (C), equivalent series resistance (ESR) and equivalent series inductance (ESL), is included in the matrix operations, ITERATIVELY selecting a decoupling capacitor of appropriate C, ESR and ESL to optimize the power delivery system performance becomes a time consuming process.

EPEP 2004, Portland Oregon

applied methodology cont10
Applied Methodology (cont)

Admittance Matrix Approach

The power ground admittance matrix with some decoupling capacitors mounted on board can be easily calculated by adding the admittance of the decoupling capacitor to the corresponding diagonal entry in the original power ground admittance matrix without any decoupling capacitors mounted on board

If no decoupling capacitor mounted at a port, the corresponding entry in the second matrix is 0.

EPEP 2004, Portland Oregon

application example

U17

Edge Connector

For board power supply

Application Example

A six layer printed circuit board

There are 0.22uF x 8 decoupling capacitors mounted on the upper side

There are 0.01uF x 20 and 0.1uF x 8 decaps mounted on the lower side

EPEP 2004, Portland Oregon

application example cont
Application Example (cont)

Upper side of the board, U17 is the interested location of power and ground.

C21~C28 are eight 0.22 uF decoupling capacitors mounted on board.

EPEP 2004, Portland Oregon

application example cont13
Application Example (cont)

Lower side of the board, C1~C20 are twenty 0.01 uF decoupling capacitors,

C29~C36 are eight 1.0 uF decoupling capacitors mounted on board.

EPEP 2004, Portland Oregon

application example cont14
Application Example (cont)

Input impedance with and without decoupling capacitors mounted on board

EPEP 2004, Portland Oregon

application example cont15
Application Example (cont)

Input impedance obtained from commercial software and admittance approach

EPEP 2004, Portland Oregon

conclusion
Conclusion
  • A fast power ground input impedance evaluation methodology for the printed circuit board with decoupling capacitor placement study is presented.
  • The admittance approach can accurately estimate the power and ground input impedance up to gigahertz frequency range, which is typically high enough for board level power delivery system analysis and design with targeting of decoupling capacitor placement study.

EPEP 2004, Portland Oregon
