Statistical Quality Control/Statistical Process Control

1. Statistical Quality Control/Statistical Process Control • Acceptance Sampling • Operating Characteristic Curve • Process Control Procedures • Variable data • Attribute or Characteristic data • Process Capability 2

2. Basic Forms of Statistical Sampling for Quality Control • Sampling to accept or reject the immediate lot of product at hand (Acceptance Sampling). • Sampling to determine if the process is within acceptable limits (Statistical Process Control) 3

3. Acceptance Sampling • Purposes • Determine quality level • Ensure quality is within predetermined level • Advantages • Economy • Less handling damage • Fewer inspectors • Upgrading of the inspection job • Applicability to destructive testing • Entire lot rejection (motivation for improvement) 4

4. Acceptance Sampling • Disadvantages • Risks of accepting “bad” lots and rejecting “good” lots • Added planning and documentation • Sample provides less information than 100-percent inspection 5

5. Statistical Sampling--Data • Attribute (Go no-go information) • Defectives--refers to the acceptability of product across a range of characteristics. • Defects--refers to the number of unacceptable conditions per unit--may be higher than the number of defectives. • Variable (Continuous) • Usually measured by the mean and the standard deviation. 6

6. Acceptance Sampling--Single Sampling Plan A simple goal Determine (1) how many units, n, to sample from a lot, and (2) the maximum number of defective items, c, that can be found in the sample before the lot is rejected. 7

7. Risk • Acceptable Quality Level (AQL) • Max. acceptable percentage of defectives defined by producer. • (Producer’s risk) • The probability of rejecting a good lot. • Lot Tolerance Percent Defective (LTPD) • Percentage of defectives that defines consumer’s rejection point. •  (Consumer’s risk) • The probability of accepting a bad lot. 8

8. Example: Acceptance Sampling Zypercom, a manufacturer of video interfaces, purchases printed wiring boards from an outside vender, Procard. Procard has set an acceptable quality level of 1% and accepts a 5% risk of rejecting lots at or below this level. Zypercom considers lots with 3% defectives to be unacceptable and will assume a 10% risk of accepting a defective lot. Develop a sampling plan for Zypercom and determine a rule to be followed by the receiving inspection personnel. 10

9. Sorting It Out For this example, how do we determine AQL? ? LTPD? ? 11

10. c LTPD/AQL n AQL c LTPD/AQL n AQL 0 44.890 0.052 5 3.549 2.613 1 10.946 0.355 6 3.206 3.286 2 6.509 0.818 7 2.957 3.981 3 4.890 1.366 8 2.768 4.695 4 4.057 1.970 9 2.618 5.426 Example: Continued n (AQL) = 3.286 How can we determine the value of n? What is our sampling procedure? Exhibit TN 7.10 12

11. Example: Continued c = 6, from Table; c is also called acceptance number n (AQL) = 3.286, from Table AQL = .01, given in problem n(AQL/AQL) = 3.286/.01 = 328.6, or 329 (always round up) Sampling Procedure: Take a random sample of 329 units from a lot. Reject the lot if more than 6 units are defective. 13

12. 1 0.9 = .05 (producer’s risk) 0.8 0.7 n = 99 c = 4 0.6 0.5 Probability of acceptance 0.4 =.10 (consumer’s risk) 0.3 0.2 0.1 0 1 2 3 4 5 6 7 8 9 10 11 12 AQL LTPD Percent defective Operating Characteristic Curve 9

13. Chance Versus Assignable Variation • Chance variation is variability built into the system. • Assignable variation occurs because some element of the system or some operating conditions are out of control. • Quality control seeks to identify when assignable variation is present so that corrective action can be taken.

14. Control Based on Attributes and Variables • Inspection for Variables: measuring a variable that can be scaled such as weight, length, temperature, and diameter. • Inspection of Attributes: determining the existence of a characteristic such as acceptable-defective, timely-late, and right-wrong.

15. Control Charts: Assumptions • Developed in 1920s to distinguish between chance variation in a system and variation caused by the system’s being out of control - assignable variation.

16. Control Charts - Assumptions continued • Repetitive operation will not produce exactly the same outputs. • Pattern of variability often described by normal distribution. • Random samples that fully represent the population being checked are taken. • Sample data plotted on control charts to determine if the process is still under control.

17. Control Chart with Limits Set at Three Standard Deviations

18. x LCL UCL Control Limits If we establish control limits at +/- 3 standard deviations, then we would expect 99.7% of our observations to fall within these limits 15

19. StatisticalProcessControl • The McGraw-Hill Companies, Inc., 1998 What other evidence(s) might prompt investigation?

20. Attribute Data: Constructing a p-Chart 17

21. Statistical Process Control--Attribute Measurements (P-Charts) = [ p ] (Std Deviation) 18

22. 1. Calculate the sample proportion, p, for each sample. 19 • The McGraw-Hill Companies, Inc., 1998 Irwin/McGraw-Hill

23. 2. Calculate the average of the sample proportions. • 3. Calculate the standard deviation of the • sample proportion 20 Irwin/McGraw-Hill • The McGraw-Hill Companies, Inc., 1998

24. 4. Calculate the control limits. UCL = 0.1014 LCL = -0.0214 (or 0) 21 Irwin/McGraw-Hill • The McGraw-Hill Companies, Inc., 1998

25. UCL LCL p-Chart (Continued) 5. Plot the individual sample proportions, the average of the proportions, and the control limits 22

26. Variable Data Example: x-Bar and R Charts 23

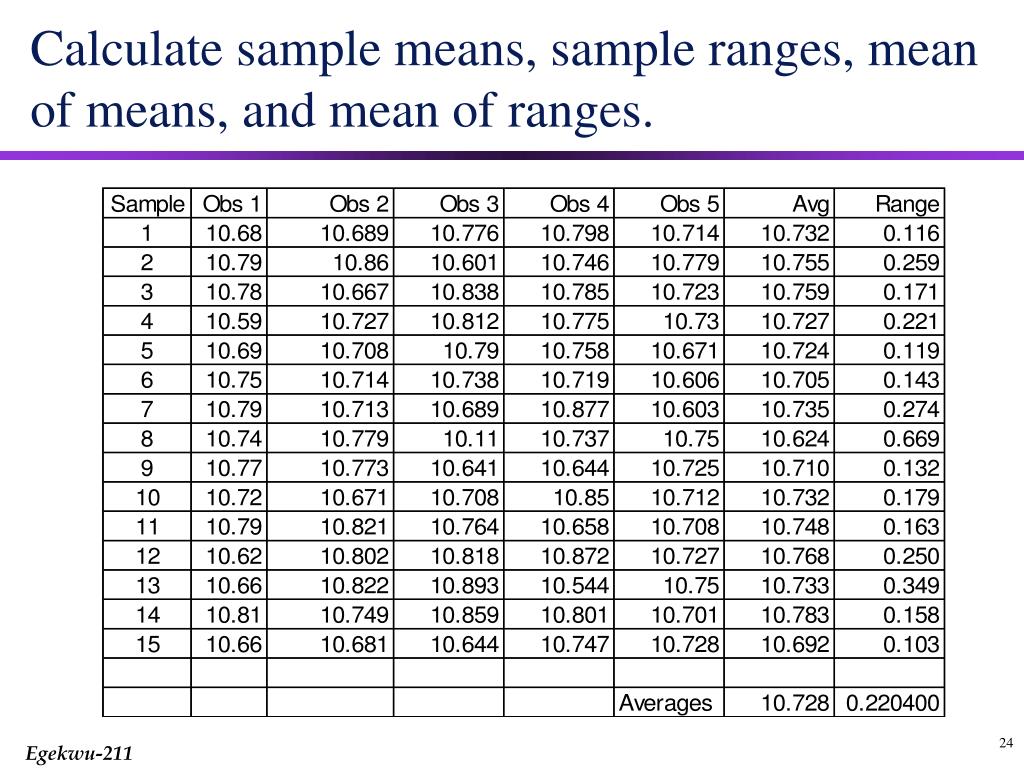

27. Calculate sample means, sample ranges, mean of means, and mean of ranges. 24

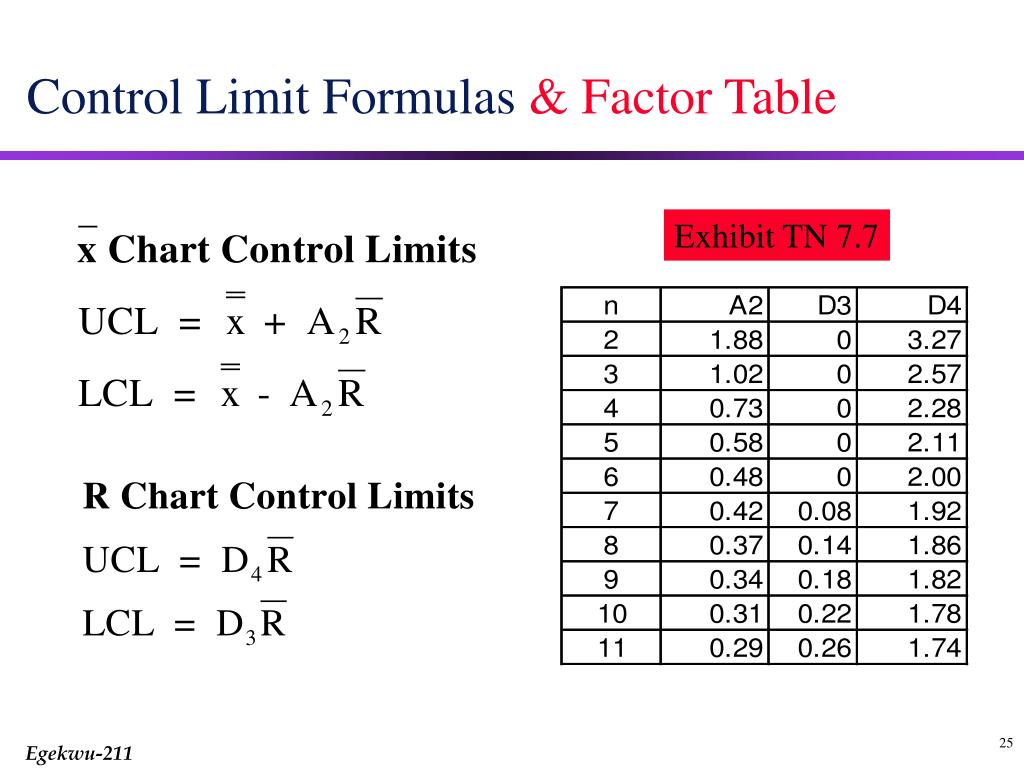

28. Control Limit Formulas & Factor Table Exhibit TN 7.7 25

29. UCL LCL x-Bar Chart 26

30. UCL LCL R-Chart 27

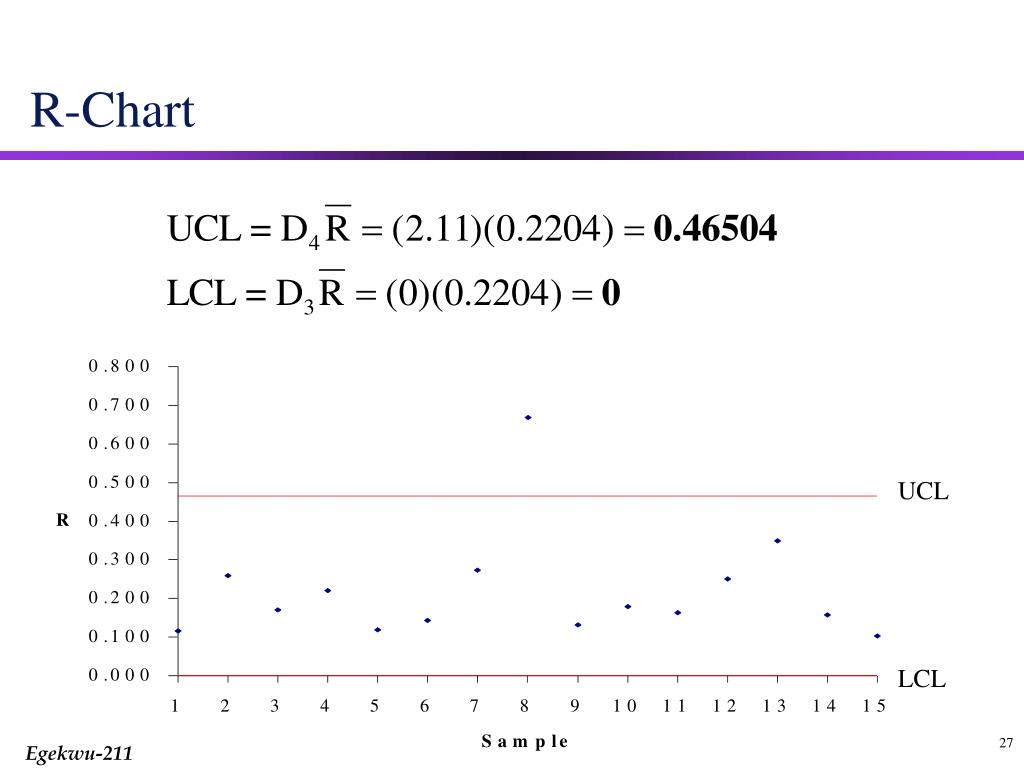

31. Process Capability • Process limits - determined from manufacturing process data. • Tolerance limits - specified in engineering design drawing • How do the limits relate to one another? 28

32. Process Capability • TQM’s emphasis on “making it right the first time” has resulted in organizations emphasizing the ability of a production system to meet design specifications rather than evaluating the quality of outputs after the fact with acceptance sampling. • Process Capability measures the extent to which an organization’s production system can meet design specifications.

33. Engineering Tolerance Versus Process Capability

34. Process Capability Depends On: • Location of the process mean. • Natural variability inherent in the process. • Stability of the process. • Product’s design requirements.

35. Natural Variation Versus Product Design Specifications (Look for more economical means of production) (Mean out of sync.)

36. Process Capability Ratio (Text calls it Index) Cp< 1: process not capable of meeting design specs Cp> 1: process capable of meeting design specs As rule of thumb, many organizations desire a Cpratio of at least 1.5. Six sigma quality(fewer than 3.4 defective parts per million) corresponds to a Cp (index/ratio) of 2.

37. Effect of Production System Variability on Cp

38. Process Capability Index, Cpk Shifts in Process Mean 29
