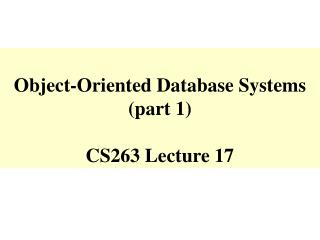

Object-Oriented Database Systems (part 1) CS263 Lecture 17

Loading in 2 Seconds...

play fullscreen
1 / 46

Object-Oriented Database Systems (part 1) CS263 Lecture 17 - PowerPoint PPT Presentation


  • 114 Views
  • Uploaded on

Object-Oriented Database Systems (part 1) CS263 Lecture 17. LECTURE PLAN OBJECT DATABASE SYSTEMS PART ONE Advanced database application areas Problems associated with RDBMSs Third Generation DBMSs What is Object Orientation? What is an OODBMS?. DATABASES

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Object-Oriented Database Systems (part 1) CS263 Lecture 17' - shen


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide2

LECTURE PLAN

OBJECT DATABASE SYSTEMS

PART ONE

      • Advanced database application areas
      • Problems associated with RDBMSs
      • Third Generation DBMSs
      • What is Object Orientation?
      • What is an OODBMS?
slide3

DATABASES

      • Computer-Aided Design (CAD).
      • Computer-Aided Manufacturing (CAM).
      • Computer-Aided Software Engineering (CASE).
      • Office Information Systems (OIS).
      • Multimedia Systems.
      • Digital Publishing.
      • Geographic Information Systems (GIS).
      • Scientific and Medical Systems.

ADVANCED APPLICATION AREAS

slide4

RELATIONAL DBMSs

      • Poor representation of ‘real world’ entities.
      • Semantic overloading.
      • Poor support for integrity and business constraints.
      • Homogeneous data structure.
      • Limited operations.
      • Difficulty handling recursive queries.
      • Impedance mismatch.
      • Difficulty with ‘Long Transactions’.

PROBLEMS

slide5

RELATIONAL DBMSs

      • Poor representation of ‘real world’ entities.
      • Semantic overloading.
      • Poor support for integrity and business constraints.
      • Homogeneous data structure.
      • Limited operations.
      • Difficulty handling recursive queries.
      • Impedance mismatch.
      • Difficulty with ‘Long Transactions’.

PROBLEMS

slide6

RELATIONAL DBMSs

C#

T#

S#

TRIM

SEAT

CAR

Part of

Has

Has

Part of

W#

C#

C#

W#

WHEEL

Part of

Has

PROBLEMS - REAL-WORLD OBJECTS

ER Diagram - Car

slide7

RELATIONAL DBMSs

Car{C#, Chassis#, NoWheels, NoSeats, etc…}

Wheel{W#, C#, Size, Pressure, etc…}

Trim{T#, W#, Material, Cost, etc…}

Seat{S#, C#, Material, Size, Cost,, etc…}

PROBLEMS - REAL-WORLD OBJECTS

NORMALISATION

To find out all details about a Car we would have to carry out a large number of (expensive) JOIN operations.

Select *

From Car, Wheel, Trim, Seat

Where Car.C# = Wheel.C#

And Car.C# = Seat.C#

And Wheel.W# = Trim.W#;

slide8

RELATIONAL DBMSs

      • Poor representation of ‘real world’ entities.
      • Semantic overloading.
      • Poor support for integrity and business constraints.
      • Homogeneous data structure.
      • Limited operations.
      • Difficulty handling recursive queries.
      • Impedance mismatch.
      • Difficulty with ‘Long Transactions’.

PROBLEMS

slide9

RELATIONAL DBMSs

D#

D#

P#

P#

Oversees

Kills

We do not record the nature of the relationship between doctor and patient!

DOCTOR

DOCTOR

PATIENT

PATIENT

Overseen by

Killed by

D#

D#

PROBLEMS - SEMANTIC OVERLOADING

ER Diagram

Doctor{D#, Name, Surgery, etc…}

Patient{P#, D#, Name, Address, DOB, etc…}

slide10

RELATIONAL DBMSs

      • Poor representation of ‘real world’ entities.
      • Semantic overloading.
      • Poor support for integrity and business constraints.
      • Homogeneous data structure.
      • Limited operations.
      • Difficulty handling recursive queries.
      • Impedance mismatch.
      • Difficulty with ‘Long Transactions’.

PROBLEMS

slide11

RELATIONAL DBMSs

      • Poor representation of ‘real world’ entities.
      • Semantic overloading.
      • Poor support for integrity and business constraints.
      • Homogeneous data structure.
      • Limited operations.
      • Difficulty handling recursive queries.
      • Impedance mismatch.
      • Difficulty with ‘Long Transactions’.

PROBLEMS

slide12

RELATIONAL DBMSs

PROBLEMS - HOMOGENEOUS DATA STRUCTURE

ACCOUNT TABLE

BALANCE

ACCOUNT

CUSTOMER

BRANCH

200

JONES

STRATFORD

1000.00

324

GRAY

BARKING

200.00

345

SMITH

STRATFORD

23.17

350

GREEN

BARKING

340.14

400

ONO

BARKING

500.00

456

KHAN

STRATFORD

333.00

ALL ROWS HAVE THE SAME NUMBER OF ATTRIBUTES

ALL VALUES IN A COLUMN ARE OF THE SAME TYPE

ALL ATTRIBUTE VALUES ARE ATOMIC

slide13

RELATIONAL DBMSs

      • Poor representation of ‘real world’ entities.
      • Semantic overloading.
      • Poor support for integrity and business constraints.
      • Homogeneous data structure.
      • Limited operations.
      • Difficulty handling recursive queries.
      • Impedance mismatch.
      • Difficulty with ‘Long Transactions’.

PROBLEMS

slide14

RELATIONAL DBMSs

      • Poor representation of ‘real world’ entities.
      • Semantic overloading.
      • Poor support for integrity and business constraints.
      • Homogeneous data structure.
      • Limited operations.
      • Difficulty handling recursive queries.
      • Impedance mismatch.
      • Difficulty with ‘Long Transactions’.

PROBLEMS

slide15

RELATIONAL DBMSs

Select E2.ENAME From EMP E1, EMP E2

Where E1.MGR = E2.EMPNO And E1.ENAME = “SMITH”;

First Level Answer – SMITH works for FORD

?

KING

JONES

Select E3.ENAME From EMP E1, EMP E2, EMP E3

Where E1.MGR = E2.EMPNO And E2.MGR = E3.EMPNO

And E1.ENAME = “SMITH”;

Second Level Answer - SMITH works for JONES

FORD

SMITH

Select E4.ENAME From EMP E1, EMP E2, EMP E3, EMP E4

Where E1.MGR = E2.EMP And E2.MGR = E3.EMPNO

And E3.MGR = E4.EMPNO And E1.ENAME = “SMITH”;

Third Level Answer – SMITH works for KING

PROBLEMS - RECURSIVE QUERIES

Question - Who does SMITH work for?

slide16

RELATIONAL DBMSs

      • Poor representation of ‘real world’ entities.
      • Semantic overloading.
      • Poor support for integrity and business constraints.
      • Homogeneous data structure.
      • Limited operations.
      • Difficulty handling recursive queries.
      • Impedance mismatch.
      • Difficulty with ‘Long Transactions’.

PROBLEMS

slide17

RELATIONAL DBMSs

PROBLEMS - IMPEDANCE MISMATCH

SQL is a declarative, set-based language that is not computationally complete!

Database applications require the use of a computationally complete, record-based, procedural language such as C, C++, Java, and PL/SQL.

We therefore have to map sets of data into records using memory structures such as cursors.

This is expensive in terms of application processing time

and programming effort, accounting for around 30% of some projects!

slide18

RELATIONAL DBMSs

      • Poor representation of ‘real world’ entities.
      • Semantic overloading.
      • Poor support for integrity and business constraints.
      • Homogeneous data structure.
      • Limited operations.
      • Difficulty handling recursive queries.
      • Impedance mismatch.
      • Difficulty with ‘Long Transactions’.

PROBLEMS

slide20

THIRD GENERATION DBMSs

MAIN AIMS

  • Support Complex Active Objects
  • Allow both data and its associated behaviour to be
  • modelled to any level of complexity.
  • Improve Extensibility
  • Allow for the dynamic extension of both allowable data
  • types and the behaviour associated with these types.
  • Reduce the Impedance Mismatch
  • Ensure that there is a seamless integration between the
  • DBMS data model and that of the programming language
  • accessing the data.
slide22

Object Model

Examples of atomic types and atomic objects

Integer - e.g. 1, 2, 3, -5, -45, etc.....

Float - e.g. 1.52, -0.3456, 2.000, etc...

Boolean - i.e. True or False

Char - e.g. a, b, c, @, #, !, etc...

String - e.g. “Mark”, “Database Systems”

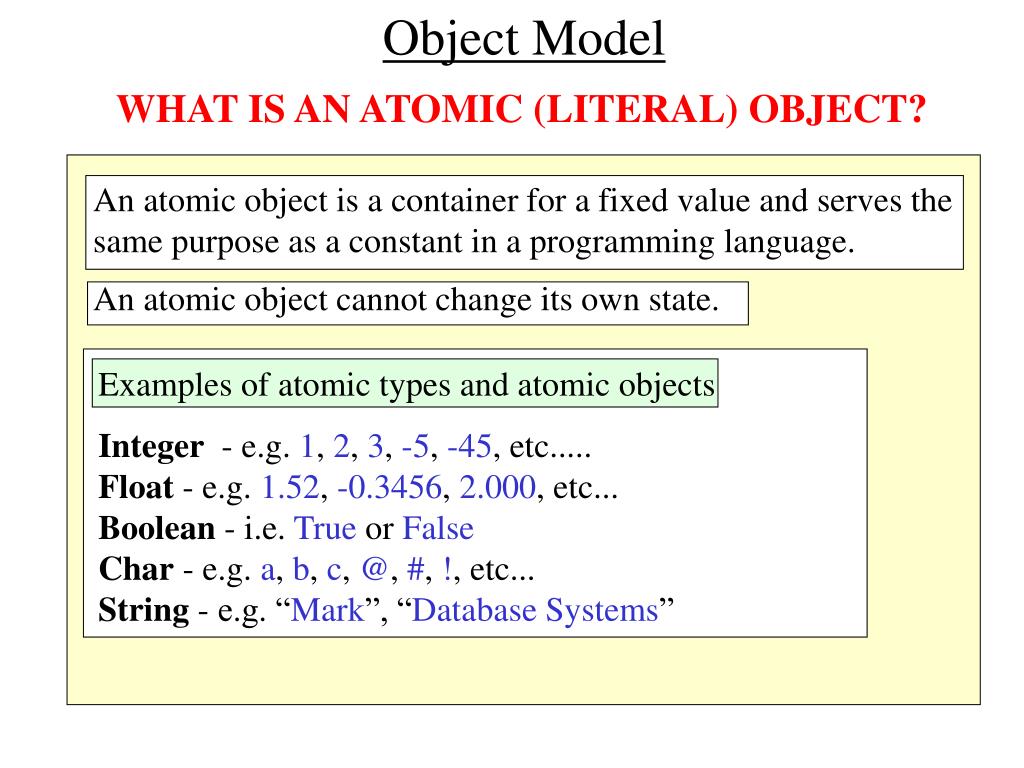

WHAT IS AN ATOMIC (LITERAL) OBJECT?

An atomic object is a container for a fixed value and serves the same purpose as a constant in a programming language.

An atomic object cannot change its own state.

slide23

Object Model

WHAT IS A (MUTABLE) OBJECT?

UNIQUE OBJECT IDENTIFIER (OID)

I am an

object!

ATTRIBUTES

NAME MARK

DOB 14/02/1964

JOB LECTURER

State

RELATIONSHIPS

BEHAVIOUR

CHANGE JOB

GET AGE

Methods

slide24

Object Model

WHAT IS A CLASS?

I am an

object!

MARK

I am also

an object!

IAN

slide25

Object Model

WHAT IS A CLASS?

PERSON CLASS

MARK

IAN

So am I!

PERSON

NAME

DOB

JOB

CHANGE JOB

GET AGE

I am a

Person!

slide26

Object Model

WHAT IS AN OBJECT IDENTIFIER (OID)?

Each object is uniquely identifiable from all other objects. When an object is first created it is assigned a value to identify it. This value is called its Object Identifier.

  • System generated.
  • Unique to that object.
  • Invariant in that it cannot be altered.
  • Independent of its attribute values.
  • Invisible to the user.
slide27

Object Model

WHAT IS ENCAPSULATION?

GET AGE

METHOD

GET AGE

X

CHANGE JOB

OBJECT

NAME: MARK

DOB: 14/02/64

JOB: LECTURER

CHANGE JOB

METHOD

slide28

Object Model

WHAT IS A COMPLEX OBJECT?

Is a Car a Complex Object?

Yes, it’s an object that is made up of other objects!

Wheels, Seats, Chassis, Exhaust, Steering Wheel, etc, etc...

And… a wheel itself is also a complex object!

Tire, Trim, Hub Cap, etc, etc...

slide29

Object Model

TIRE

TIRE

TIRE

TIRE

HUB

CAP

HUB

CAP

HUB

CAP

HUB

CAP

REGISTRATION

NUMBER

WHEEL

WHEEL

TRIM

TRIM

TRIM

TRIM

SEAT

SEAT

WHEEL

CHASSIS

WHEEL

SEAT

SEAT

WHAT IS A COMPLEX OBJECT?

CAR

slide30

Object Model

TIRE

TIRE

TIRE

TIRE

HUB

CAP

HUB

CAP

HUB

CAP

HUB

CAP

WHEEL

WHEEL

TRIM

TRIM

TRIM

TRIM

WHEEL

WHEEL

WHAT IS A COMPLEX OBJECT?

A Wheel IS-PART-OF a Car

REGISTRATION

NUMBER

SEAT

SEAT

CAR

CHASSIS

SEAT

SEAT

A Car has a COLLECTION of Wheels

slide31

Object Model

WHEEL

TIRE: STRING

HUB CAP: STRING

TRIM: STRING

WHEEL

TIRE: STRING

HUB CAP: STRING

TRIM: STRING

WHEEL

TIRE: STRING

HUB CAP: STRING

TRIM: STRING

WHEEL

TIRE: STRING

HUB CAP: STRING

TRIM: STRING

SEAT

TIRE: STRING

HUB CAP: STRING

TRIM: STRING

SEAT

TIRE: STRING

HUB CAP: STRING

TRIM: STRING

SEAT

TIRE: STRING

HUB CAP: STRING

TRIM: STRING

SEAT

TYPE: STRING

COLOUR: STRING

POSITION: STRING

WHAT IS A COMPLEX OBJECT?

CAR

REG-NUMBER: STRING

CHASSIS: STRING

WHEELS:SET<WHEEL>

SEATS: SET<SEAT>

slide32

Object Model

WHAT IS A COLLECTION - SET?

SET - An unordered collection of distinct objects of the same type

e.g, Customers : SET <Customer>;

MARK

BILL

An instance of

CUSTOMERS

HILDA

MARIE

CAROLINE

slide33

Object Model

WHAT IS A COLLECTION - BAG?

BAG - An unordered collection of objects of the same type

e.g, Phone_calls : BAG <TelephoneNumber>;

444-3333

555-9999

An instance of

PHONE_CALLS

555-9999

111-3333

444-3333

slide34

Object Model

WHAT IS A COLLECTION - LIST?

LIST - An ordered collection of objects of the same type

e.g, MachineFaults : LIST <Fault>;

Fault at 11:00:01

Fault at 11:00:20

An instance of

MachineFaults

Fault at 11:31:00

Fault at 11:44:33

Fault at 12:00:00

slide35

Object Model

WHAT IS A COLLECTION - ARRAY?

ARRAY – Each object is stored at a particular position

e.g, StudySchedule : ARRAY <Task>;

An instance of StudySchedule

TASK #1

TASK #4

TASK #3

TASK #2

TASK #1

TASK #3

TASK #1

0 1 2 3 4 5 6 7 8 9 10 11 12 13

slide36

Object Model

WHAT IS A STRUCTURE?

Marie

An instance of

CustomerDetails

Rebecca

9603456

Campbell

Caroline

forenames family_name customer_no

A fixed number of named slots, each of which can contain an object of a particular type.

e.g, CustomersDetails : STRUCTURE <

forenames : List < String>,

family_name : String,

customer_no : Integer >

slide37

Object Model

WHAT IS INHERITANCE?

IS-A

IS-A

IS-A

Person

name

address

telephone_no

change_name (...)

change_address (...)

Employee

Customer

employee_no

customer_no

promote(...)

place_order(...)

pay_employee (...)

make_payment(...)

TradeCustomer

trade_discount%

place_order(...)

make_payment(...)

slide38

Object Model

WHAT IS MULTIPLE INHERITANCE?

IS-A

IS-A

Person

name

address

telephone_no

change_name (...)

change_address (...)

Employee

Customer

employee_no

customer_no

promote(...)

place_order(...)

pay_employee (...)

make_payment(...)

Employee_Customer

TradeCustomer

staff_discount_card

trade_discount%

place_order(...)

place_order(...)

make_payment(...)

make_payment(...)

slide39

Object Model

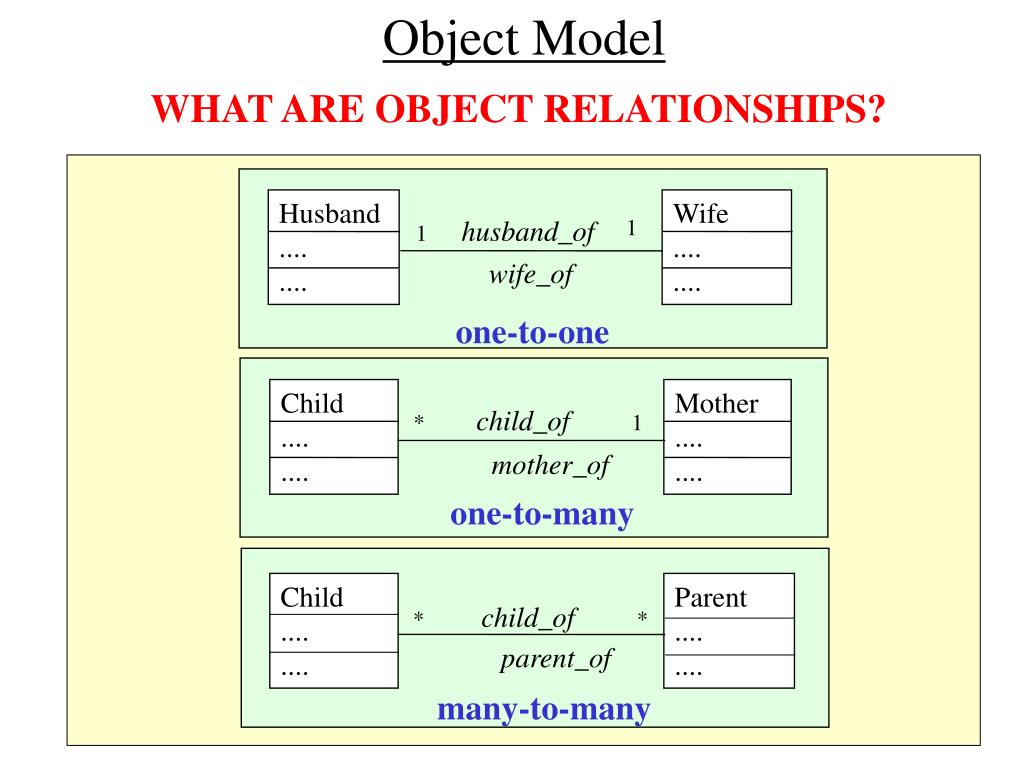

WHAT ARE OBJECT RELATIONSHIPS?

Husband

Wife

....

....

wife_of

....

....

one-to-one

* child_of 1

mother_of

one-to-many

Child

Parent

* child_of *

....

....

parent_of

....

....

many-to-many

1 husband_of

1

Child

Mother

....

....

....

....

slide40

Object Model

WHAT ARE METHODS AND MESSAGES?

OBJECT

GET AGE

METHOD

BODY

GET AGE MESSAGE

NAME: MARK

DOB: 14/02/64

JOB: LECTURER

USER PROGRAM

CHANGE JOB

METHOD

BODY

CHANGE JOB MESSAGE

DISK

slide41

Object Model

WHAT IS POLYMORPHISM?

ANALOGUE

CLOCK

. . .

SetTime ()

SetAlarm ()

ShowTime ()

CLOCK

. . .

SetTime ()

SetAlarm ()

ShowTime ()

DIGITAL

CLOCK

. . .

SetTime ()

SetAlarm ()

ShowTime ()

11:00PM

DIFFERENT TYPES OF

OBJECT RESPOND

DIFFERENTLY TO THE

SAME MESSAGE

slide42

Object Model

WHAT IS OVERIDING?

CUSTOMER

Customer No.

PlaceOrder()

MakePayment()

TRADE CUSTOMER

TradeDiscount%

PlaceOrder()

When a sub-class’s method body is used rather than the body of the super-class’s method it is known as overriding.

METHOD BODY

1. Create order details

2. Calculate total cost

SUPER-CLASS

IS-A

METHOD BODY

1. Create order details

2. Calculate total cost

3. Apply Trade Discount

SUB-CLASS

slide43

Object Model

WHAT IS LATE BINDING?

Customers := SET <Customer>

FOR x IN Customers

DO

x.PLACE_ORDER

END

CUSTOMER

TIRE: STRING

HUB CAP: STRING

TRIM: STRING

Trade Customer

TIRE: STRING

HUB CAP: STRING

TRIM: STRING

CUSTOMER

TIRE:

HUB CAP:

TRIM: STRIN

Trade Customer

CUSTOMER NO

PLACE_ORDER

MAKE_PAYMENT

Where x := an individual

Customer Object!

Late or dynamic binding is the ability of the runtime system to determine which method body to execute depending on the type of an object.

It doesn’t matter if a customer is a trade customer, late binding ensures the appropriate PLACE_ORDER method body is called!

slide45

OODBMS

WHAT IS AN OODBMS?

OOPLsDBMSs

Complex Objects Persistence

Object Identity Disc Management

Methods & Messages Data Sharing

Inheritance Reliability

Polymorphism Security

Extensibility Ad Hoc Querying

Computational Completeness

Object Oriented Database Management Systems (OODBMSs) are an attempt at marrying the power of Object Oriented Programming Languages with the persistence and associated technologies of a DBMS.

OBJECT ORIENTED DATABASE MANAGEMENT SYSTEM

slide46

OODBMS

WHAT AN OODBMS SHOULD SUPPORT?

·     Atomic and complex objects

·     Methods and messages

·     Object Identity

·     Single inheritance

·     Polymorphism - overloading and late-binding

·     Persistence

·     Shared Objects

In addition an OODBMS can optionally support

·     Multiple inheritance

·     Exception messages

·     Distribution

·     Long Transactions

·     Versions
