VoIP Network Diagram. 65643607. Internet. PSTN Network. Router with DMZ WAN IP:58.185.24.135 LAN IP 192.168.0.254. DVG-6004S FXO Gateway Ext:100 (4 ports Trunk) WAN IP:192.168.0.200 WAN GW: 192.168.0.254. DVX-1000 IP:192.168.0.100 GW:192.168.0.254. DPH-140S Ext:102 IP:192.168.0.99.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'VoIP Network Diagram' - shelley-hardin


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
voip network diagram
VoIP Network Diagram

65643607

Internet

PSTN Network

Router with DMZ

WAN IP:58.185.24.135

LAN IP 192.168.0.254

DVG-6004S FXO Gateway

Ext:100 (4 ports Trunk)

WAN IP:192.168.0.200

WAN GW: 192.168.0.254

DVX-1000

IP:192.168.0.100

GW:192.168.0.254

DPH-140S

Ext:102

IP:192.168.0.99

GLV-515SP

Ext:101

IP:192.168.0.101

device configurations
Device Configurations
  • DVX-1000 – IPPBX
  • DVG-6004S – FXO Gateway

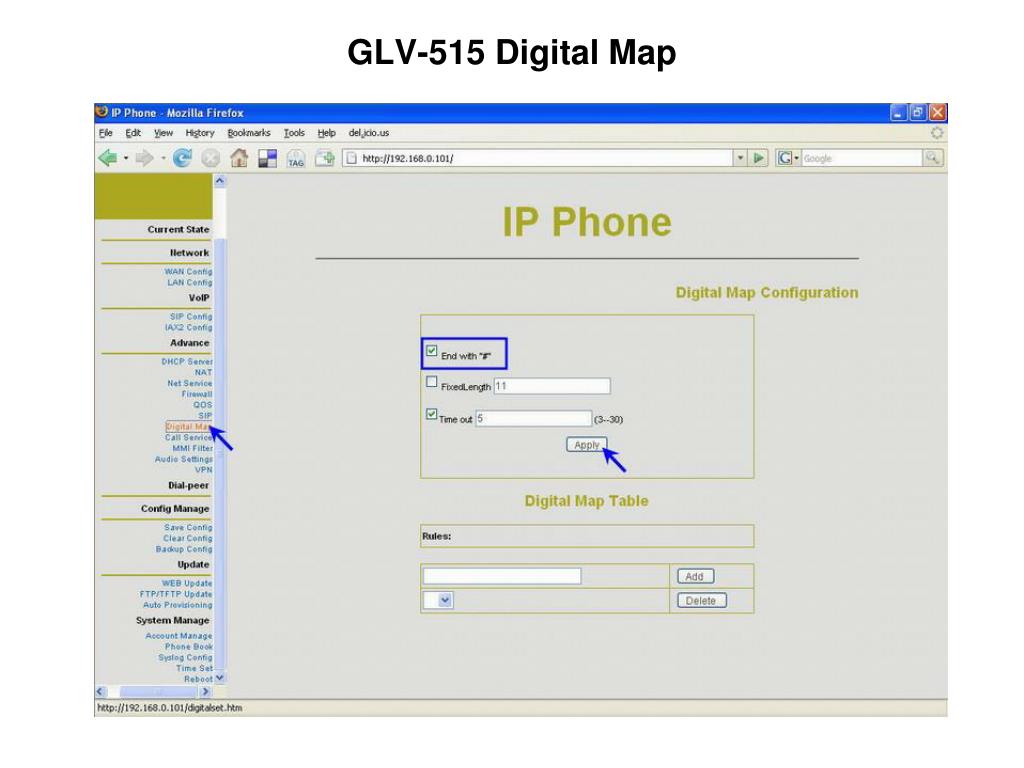

  • GLV-515SP – VoIP Phone
  • DPH-140S – VoIP Phone

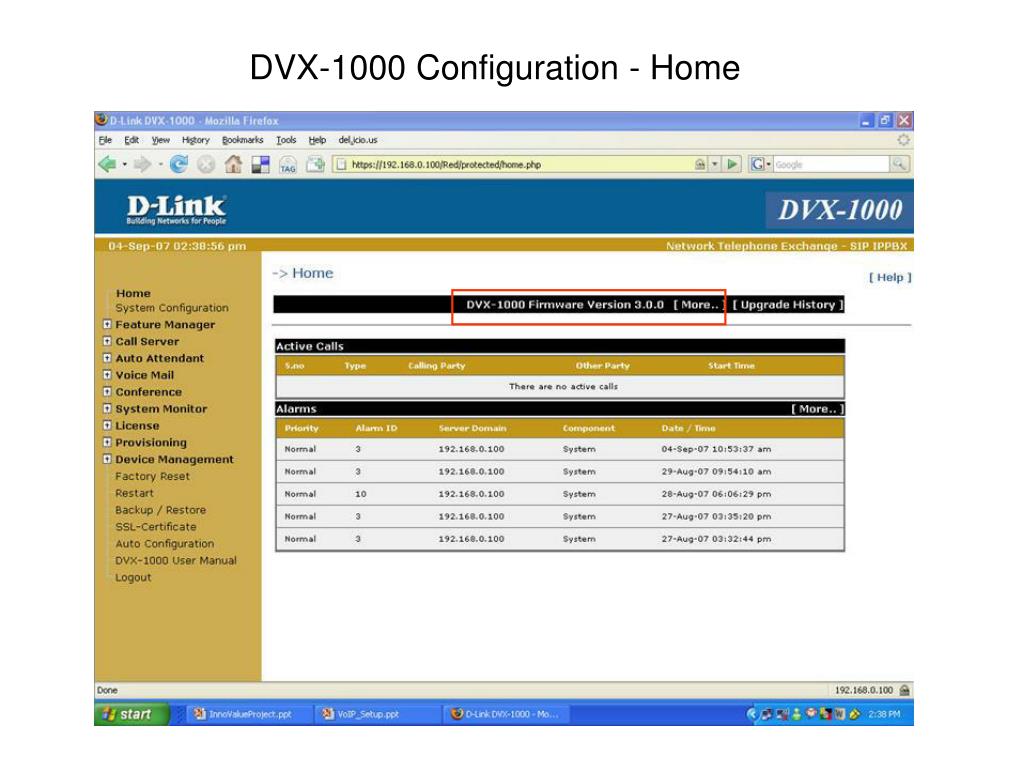

dvx 1000 call server adding user
DVX-1000 - Call Server – Adding User

Add users 100,101,102 in this step

slide11

DVX-1000 – Adding Gateway to SG-PSTN

Any Digit

DVG-6004 IP Address

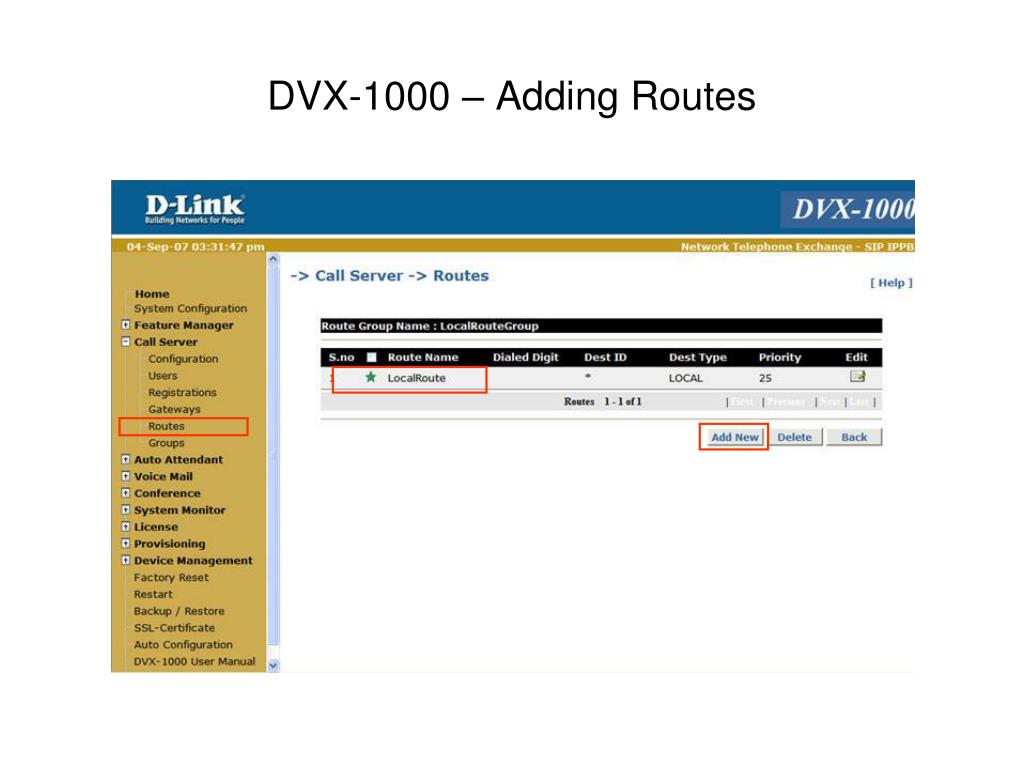

slide43

1

2

3

DPH-140S Network Settings

192.168.0.254

slide44

1

2

DPH-140S SIP Settings

192.168.0.100

slide45

1

2

DPH-140S SIP Account Settings

102

102

102

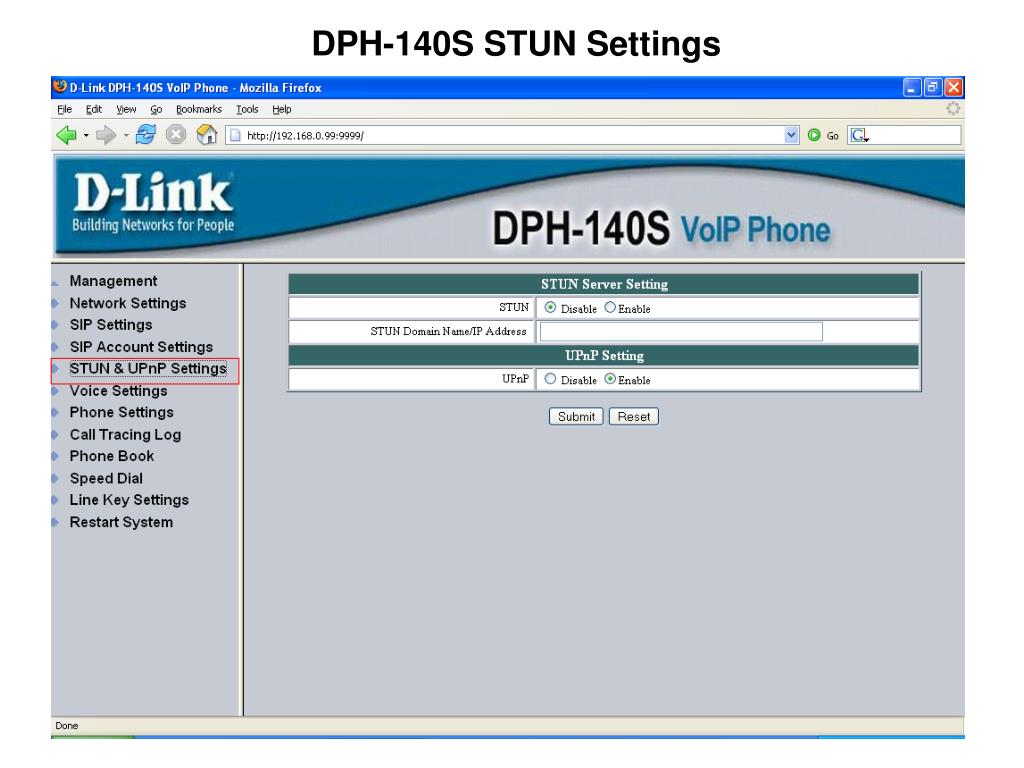

slide48

1

2

3

DPH-140S Phone Settings

slide49

1

2

DPH-140S Restart System
