Presentation Transcript
Nuclear history l.jpg

Nuclear History

Chemistry 332


Seven important eras l.jpg
Seven Important Eras

  • Pre-atomists

  • Early atomists

  • Late atomists

  • Plum pudding model

  • Nuclear model

  • Planetary model

  • Quantum mechanical model

  • For a more complete listing check out the nuclear history page

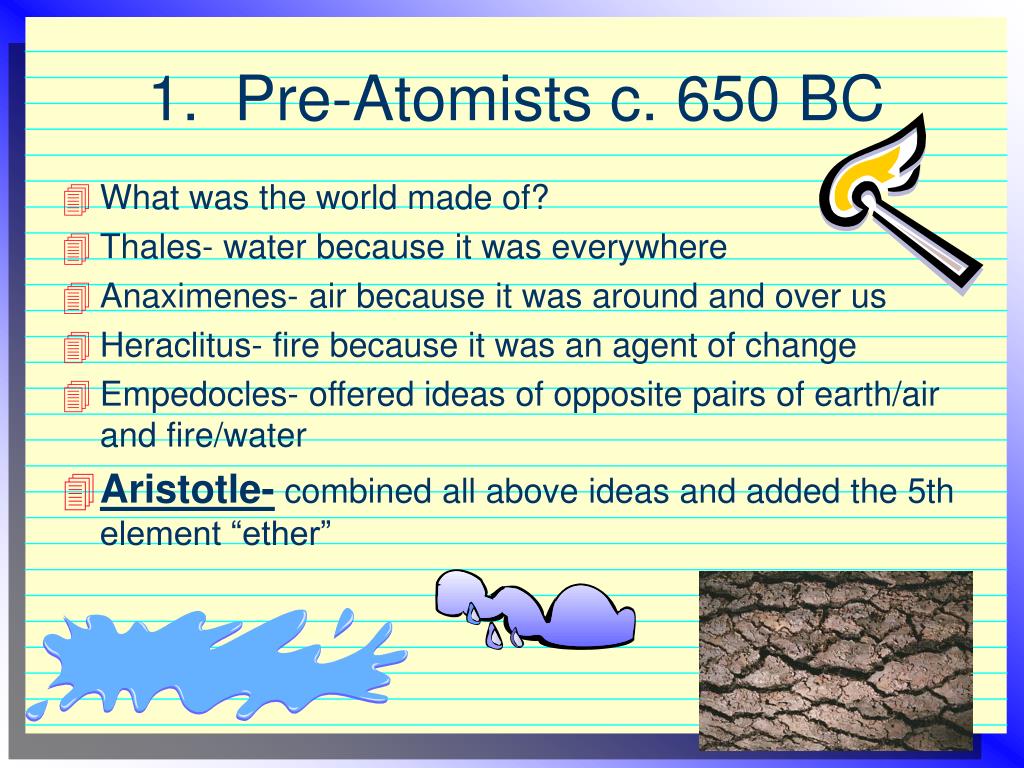

1 pre atomists c 650 bc l.jpg
1. Pre-Atomists c. 650 BC

  • What was the world made of?

  • Thales- water because it was everywhere

  • Anaximenes- air because it was around and over us

  • Heraclitus- fire because it was an agent of change

  • Empedocles- offered ideas of opposite pairs of earth/air and fire/water

  • Aristotle- combined all above ideas and added the 5th element “ether”


2 early atomists c 470 bc 55bc l.jpg

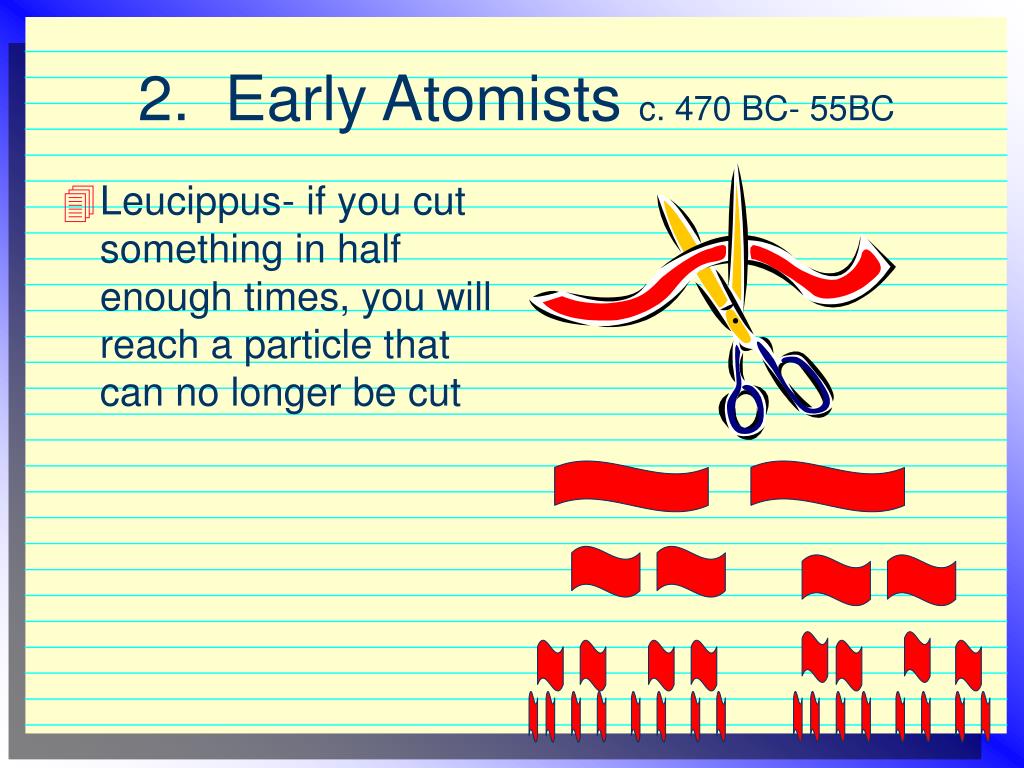

2. Early Atomists c. 470 BC- 55BC

  • Leucippus- if you cut something in half enough times, you will reach a particle that can no longer be cut


Democritus l.jpg
Democritus

  • Indivisible = atomos

  • atoms were distinct in size and shape

  • each element was therefore unique

  • substances of the world were made from combinations of different atoms

  • substances could be changed by altering the mixture of the composition


Atoms or not l.jpg

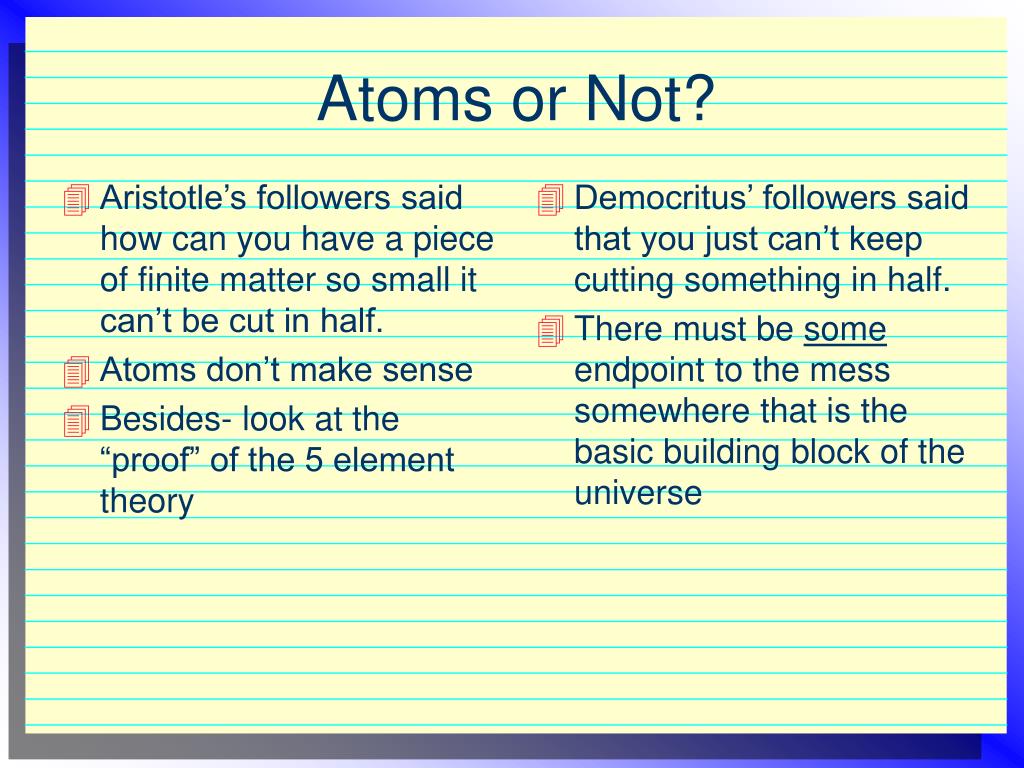

Aristotle’s followers said how can you have a piece of finite matter so small it can’t be cut in half.

Atoms don’t make sense

Besides- look at the “proof” of the 5 element theory

Democritus’ followers said that you just can’t keep cutting something in half.

There must be some endpoint to the mess somewhere that is the basic building block of the universe

Atoms or Not?


Who won l.jpg
Who won? finite matter so small it can’t be cut in half.

  • Aristotle’s theories could be easily understood

  • The four (5) elements could be easily seen and understood

  • Democritus had no proof

Smoke =air

fire

ashes = earth


A little theory goes a long way l.jpg

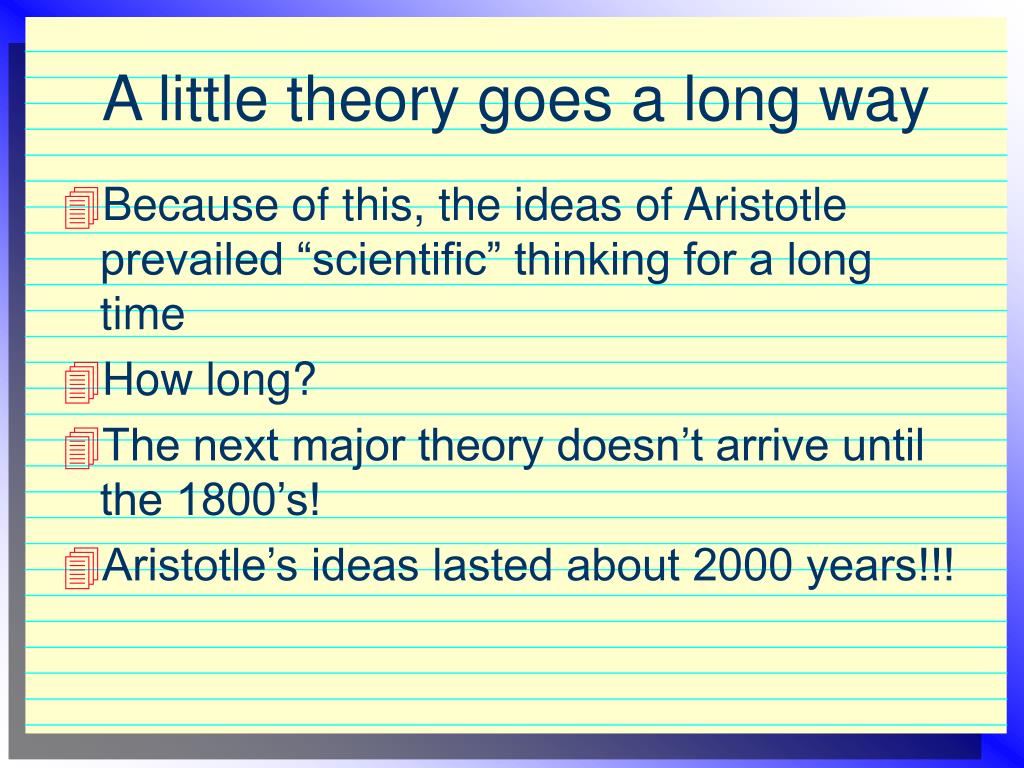

A little theory goes a long way finite matter so small it can’t be cut in half.

  • Because of this, the ideas of Aristotle prevailed “scientific” thinking for a long time

  • How long?

  • The next major theory doesn’t arrive until the 1800’s!

  • Aristotle’s ideas lasted about 2000 years!!!


Were they scientists l.jpg
Were they Scientists? finite matter so small it can’t be cut in half.

  • Were Aristotle and Democritus scientists?

  • What makes a scientist?

  • Performing controlled experiments

  • Since neither could really did any experiments they were not scientists


So what were they l.jpg
So what were they? finite matter so small it can’t be cut in half.

  • What do you call a theorists who does not perform experiments?

  • A Philosopher

um…atoms


3 late atomists l.jpg
3. Late Atomists finite matter so small it can’t be cut in half.

  • John Dalton (1766-1844) reinvents the ideas of atoms

  • Dalton begins to perform experiments with matter which chips away at Aristotle’s theories

  • Multiple proportions- atoms can combine in different whole number ratios to make different substances:

  • CO -carbon monoxide is very different from

  • CO2- carbon dioxide

  • Dalton found that different masses of different elements combined in simple whole number ratios of masses


So what l.jpg
So what? finite matter so small it can’t be cut in half.

  • Two of Dalton’s contemporaries were Nicholson and Carlisle

  • If Aristotle was right, then none of the four elements (earth, air, fire, or water) could be broken down into further elements

  • Right about this time, two Italians, Volta and Galvani each invented an electrical stack which could deliver a constant electrical current

  • Nicholson and Carlisle ran electricity through water and….

  • It decomposed!!!


What did it decompose into l.jpg
What did it decompose into? finite matter so small it can’t be cut in half.

  • They thought:

  • HO --> O + H

  • But it came out in a 2:1 ratio of H:O

  • Therefore (after others’ experiments):

  • 2 H2O --> 2 H2 + O2


And so l.jpg
And So? finite matter so small it can’t be cut in half.

  • Atoms came to be accepted in the general world

  • So what was the next question?

  • What’s inside atoms?


4 plum pudding model l.jpg

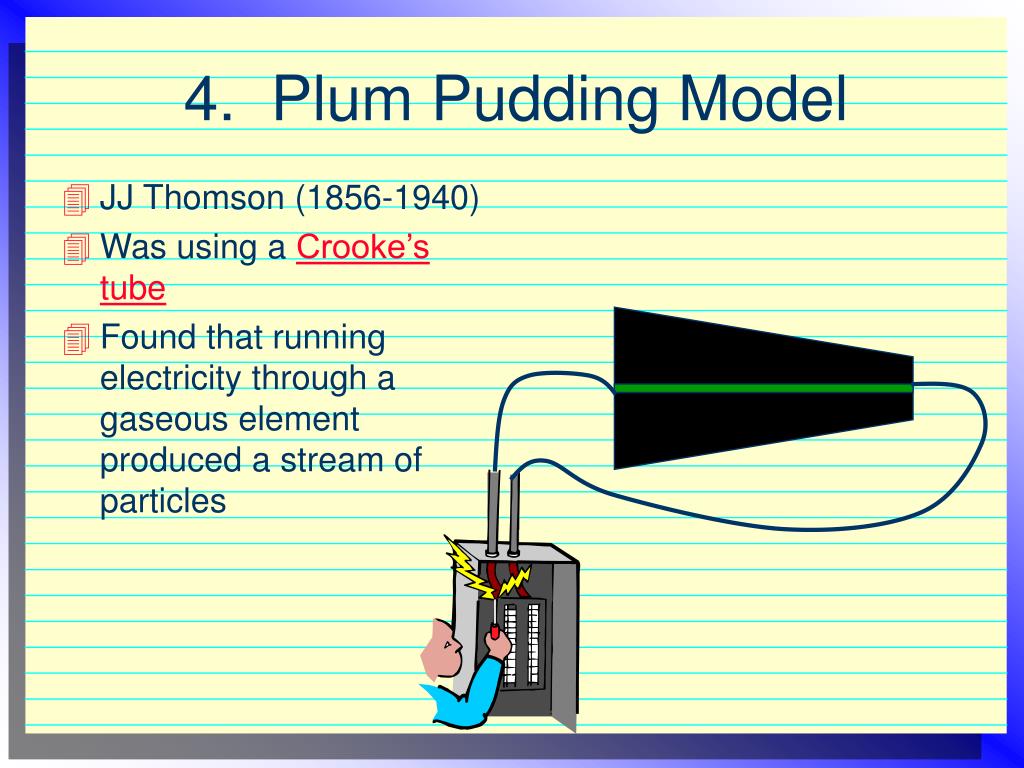

4. Plum Pudding Model finite matter so small it can’t be cut in half.

  • JJ Thomson (1856-1940)

  • Was using a Crooke’s tube

  • Found that running electricity through a gaseous element produced a stream of particles


Experimented with magnets l.jpg
Experimented with magnets finite matter so small it can’t be cut in half.

-


Experiment 2 l.jpg
Experiment #2 finite matter so small it can’t be cut in half.

+


Conclusions l.jpg

The stream of particles was … finite matter so small it can’t be cut in half.

Negative

Conclusions?

  • Overall, atoms are...

  • Neutral

  • Therefore, atoms must also contain charges that are...

  • Positive


Plum pudding model l.jpg
Plum Pudding Model finite matter so small it can’t be cut in half.

  • Thomson figured out that atoms contained positive and negative charges but had no idea how they were arranged.

  • He guessed there was a diffuse positive cloud with negative charges randomly distributed

-

-

-

Diffuse positive cloud

-

-

-


5 nuclear model l.jpg
5. Nuclear Model finite matter so small it can’t be cut in half.

  • Ernest Rutherford (1910)

  • Performed the famous gold foil experiment


Set up l.jpg
Set-up finite matter so small it can’t be cut in half.

Positive particles

Uranium

Gold foil (0.00006 cm thick)

Detection screen

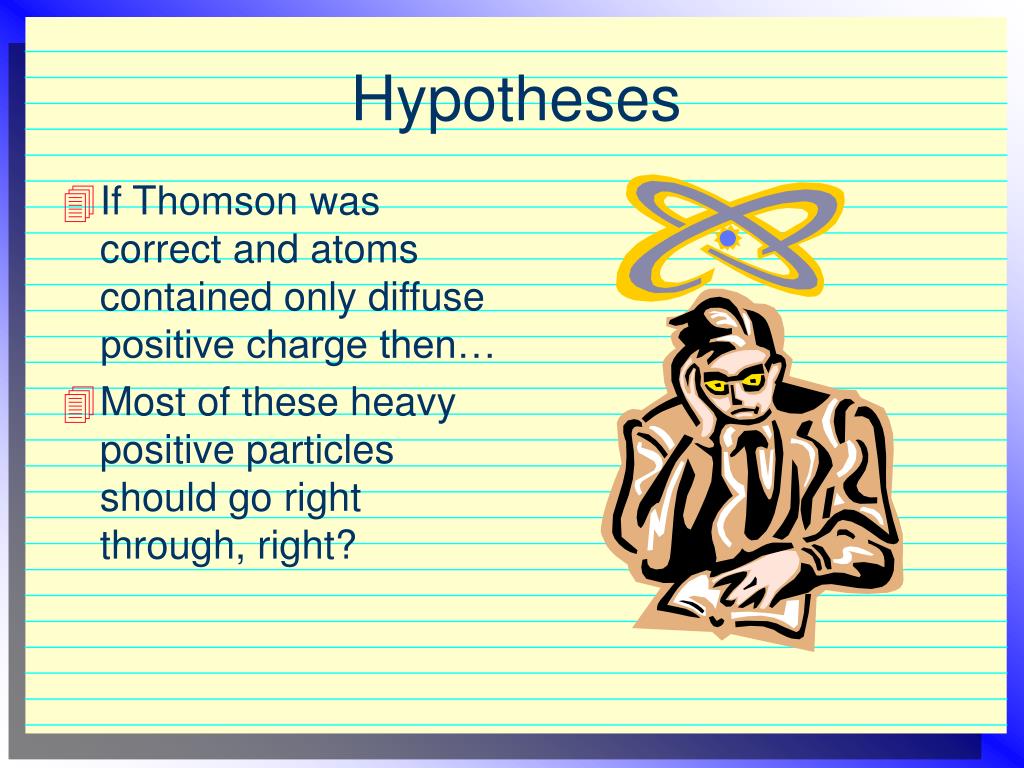

Hypotheses l.jpg
Hypotheses finite matter so small it can’t be cut in half.

  • If Thomson was correct and atoms contained only diffuse positive charge then…

  • Most of these heavy positive particles should go right through, right?


Experiment l.jpg

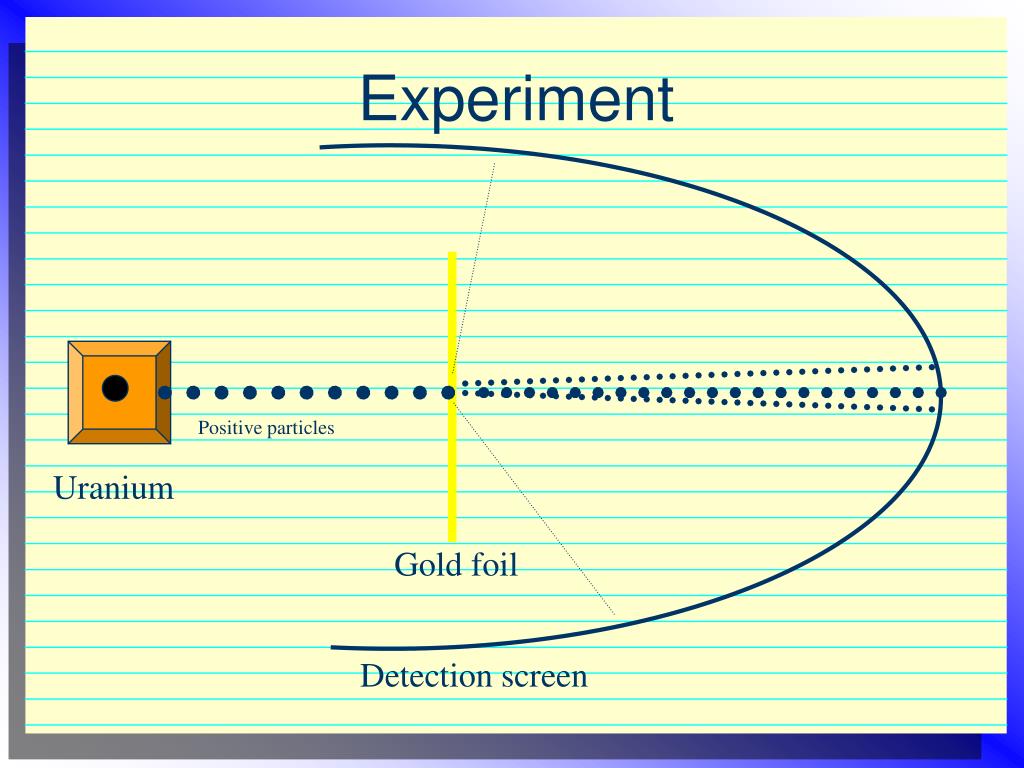

Experiment finite matter so small it can’t be cut in half.

Positive particles

Uranium

Gold foil

Detection screen


What s going on l.jpg
What’s going on? finite matter so small it can’t be cut in half.

  • Most are going straight through

  • But some are being deflected

  • How much can they be deflected?


Continuation l.jpg
Continuation finite matter so small it can’t be cut in half.

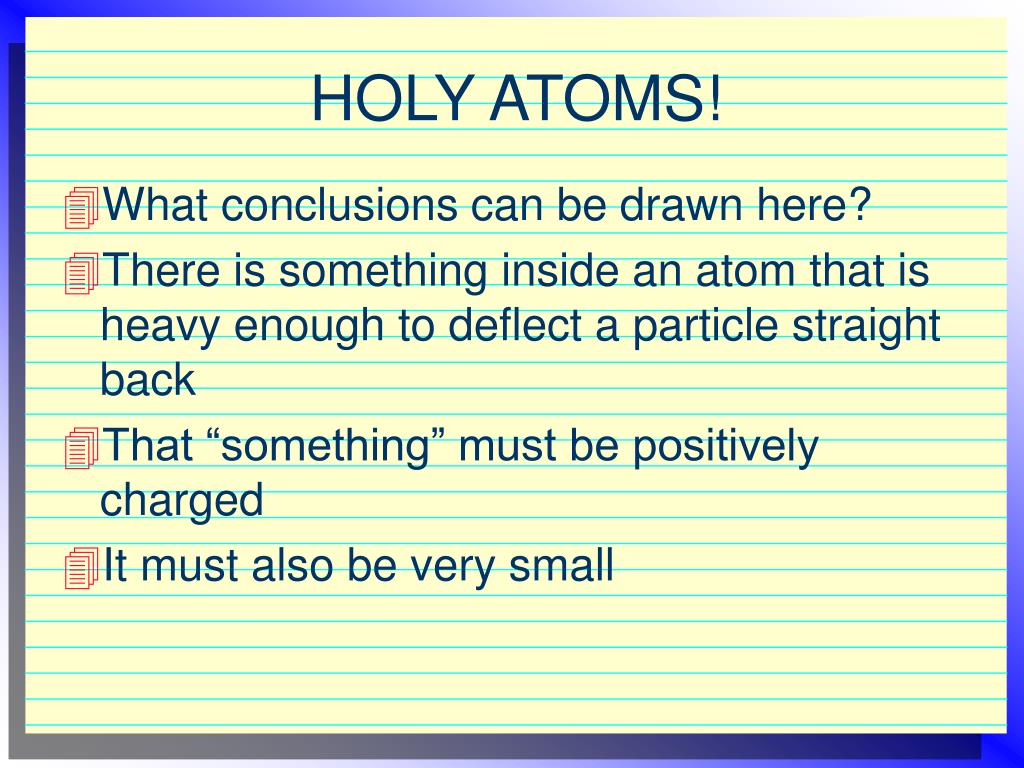

Holy atoms l.jpg
HOLY ATOMS! finite matter so small it can’t be cut in half.

  • What conclusions can be drawn here?

  • There is something inside an atom that is heavy enough to deflect a particle straight back

  • That “something” must be positively charged

  • It must also be very small


Conclusions27 l.jpg

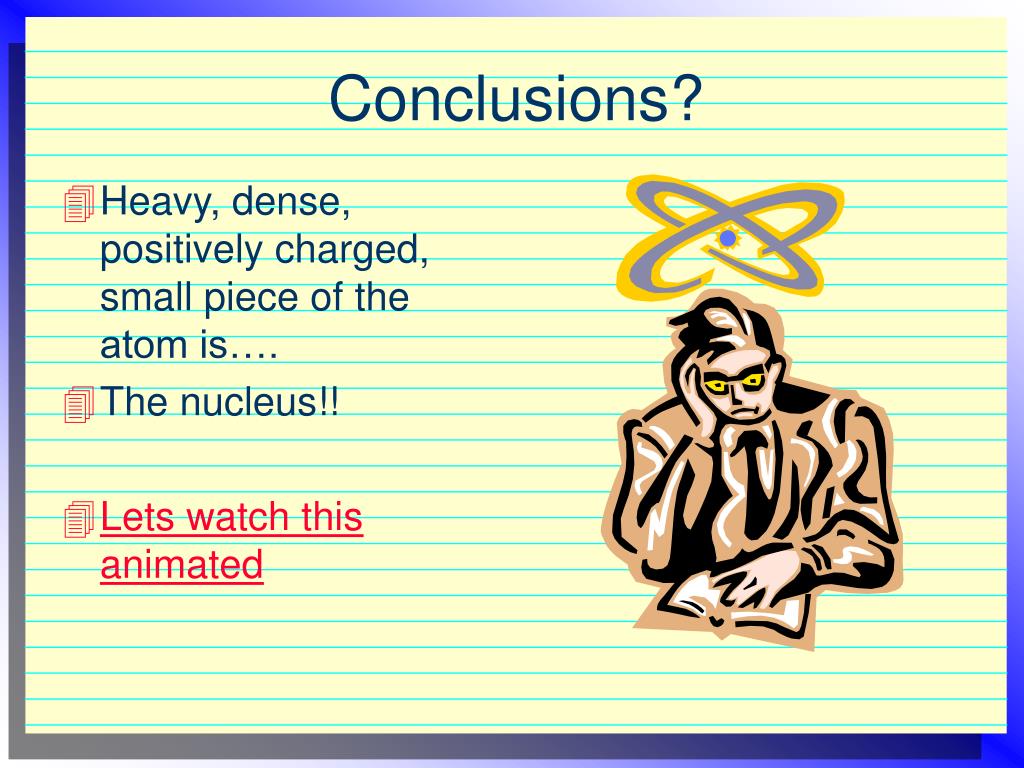

Conclusions? finite matter so small it can’t be cut in half.

  • Heavy, dense, positively charged, small piece of the atom is….

  • The nucleus!!

  • Lets watch this animated


Nuclear theory l.jpg
Nuclear Theory finite matter so small it can’t be cut in half.

  • Nucleus of atom contains @99.9% of the mass of the atom

  • Nucleus is positively charged

  • Electrons orbit the nucleus randomly and take up @99.9% of the space

  • Electrons are negatively charged


Side note l.jpg
Side note finite matter so small it can’t be cut in half.

  • Notice that Rutherford has no mention of the neutron

  • Neutron wasn’t discovered until 1933 by Chadwick


6 planetary model l.jpg
6. Planetary Model finite matter so small it can’t be cut in half.

  • Bohr proved that electrons don’t orbit randomly around the nucleus

  • He postulated that they orbit the nucleus like planets do around the sun

  • They circle in well-defined energy levels

  • Jumping to and from energy levels absorbs or releases energy


Atomic line spectra l.jpg
Atomic Line Spectra finite matter so small it can’t be cut in half.

Expected to see a nice progression of color just like normal BUT…..

Prism or diffraction grating

Gas such as Neon or Hydrogen


Atomic line spectra32 l.jpg

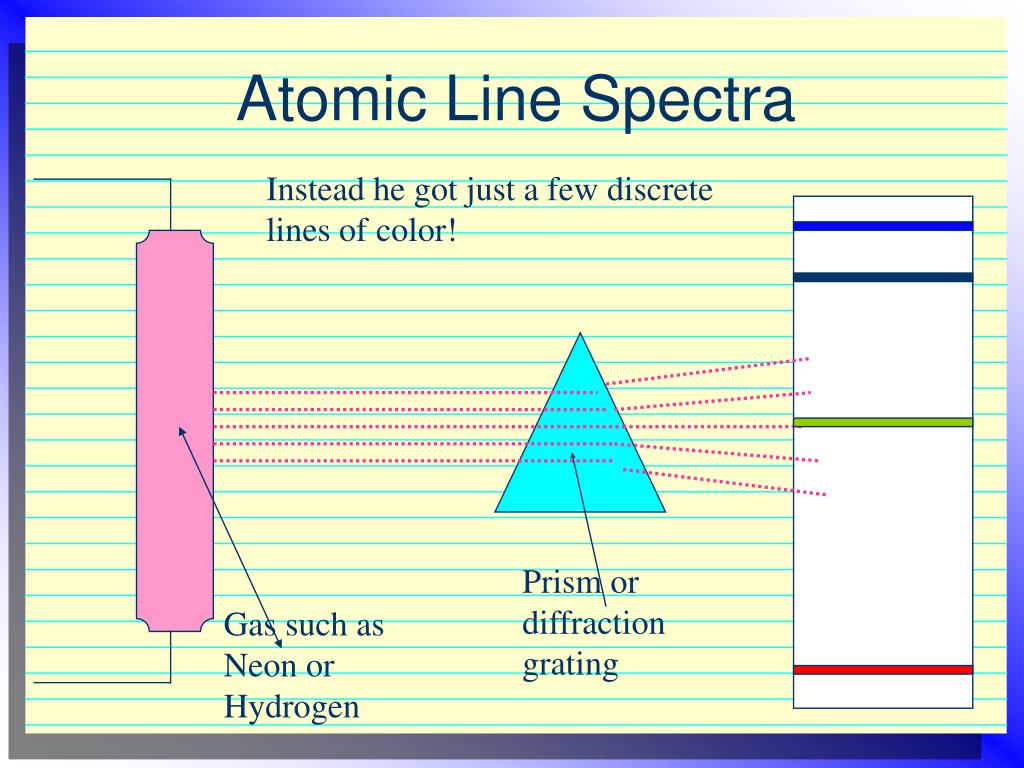

Atomic Line Spectra finite matter so small it can’t be cut in half.

Instead he got just a few discrete lines of color!

Prism or diffraction grating

Gas such as Neon or Hydrogen


What gives l.jpg
WHAT GIVES? finite matter so small it can’t be cut in half.

  • Why are only a few lines of color seen instead of the whole spectrum?

  • Bohr postulated that electrons exist at specific energy levels or quanta.

  • Electrons can only jump from specific energy level to specific energy level and not anywhere in between.


Planetary model l.jpg

Nucleus finite matter so small it can’t be cut in half.

Planetary Model

e-

e-

e-

e-


For example l.jpg
For Example: finite matter so small it can’t be cut in half.

OK

Energy level 2

NO!

OK

Energy level 1

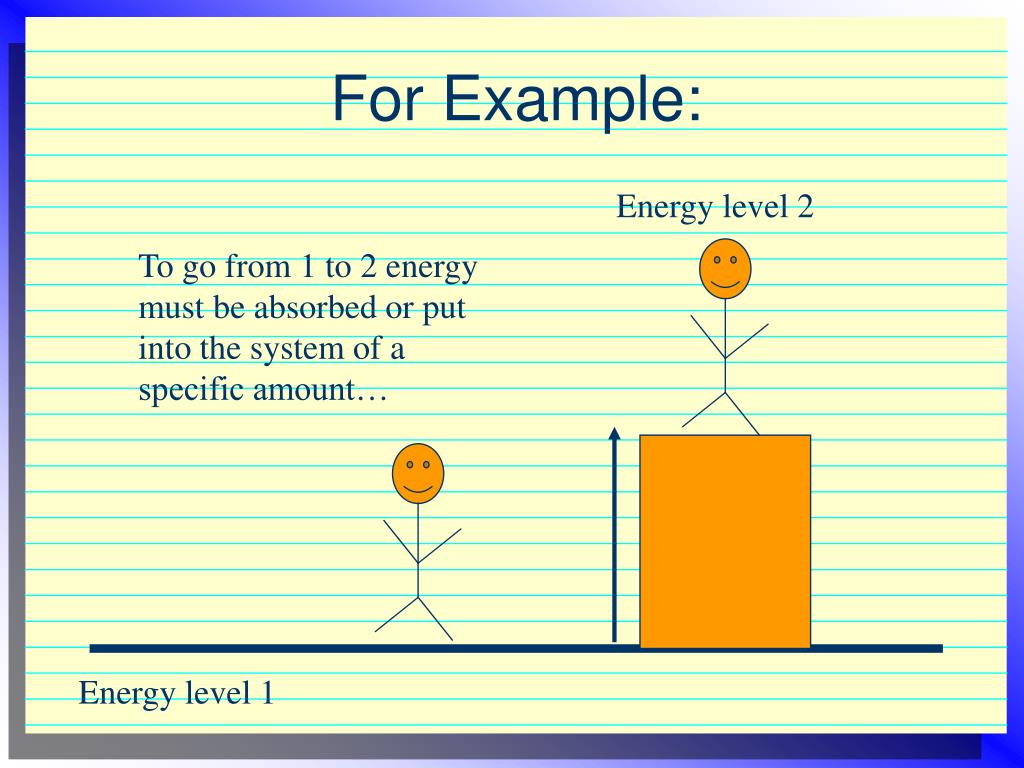

For example36 l.jpg
For Example: finite matter so small it can’t be cut in half.

Energy level 2

To go from 1 to 2 energy must be absorbed or put into the system of a specific amount…

Energy level 1


Slide37 l.jpg

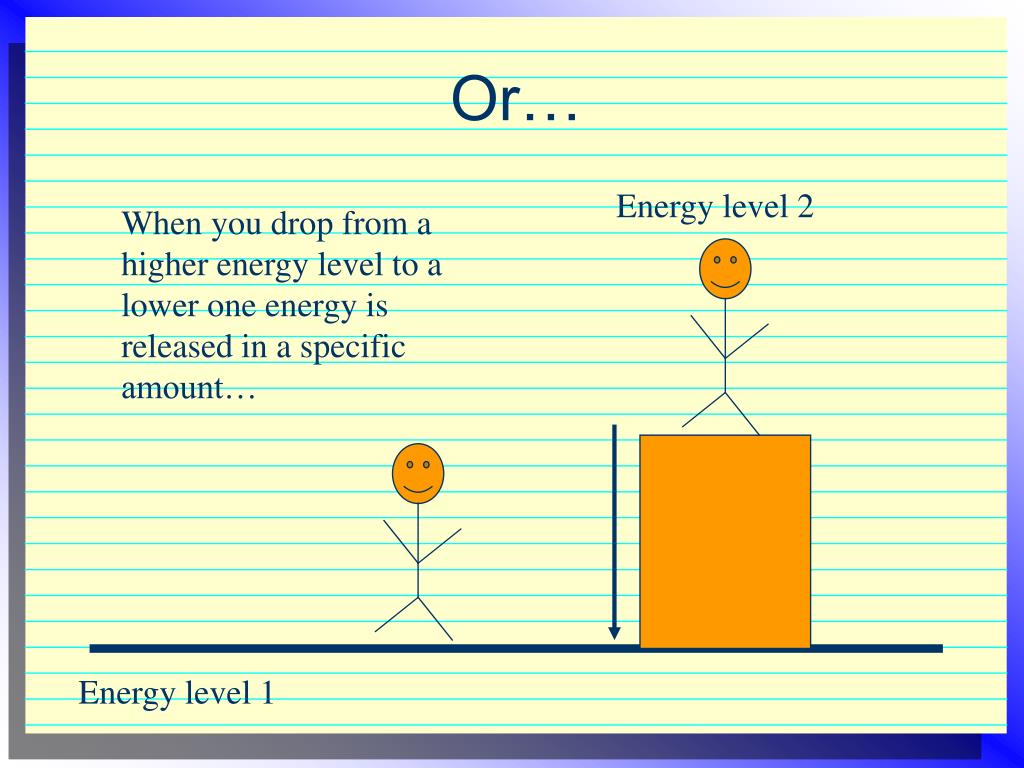

Or… finite matter so small it can’t be cut in half.

Energy level 2

When you drop from a higher energy level to a lower one energy is released in a specific amount…

Energy level 1


For electrons l.jpg
For Electrons finite matter so small it can’t be cut in half.

3  1

2  1

Nucleus

3  2


7 quantum mechanical model l.jpg
7. Quantum Mechanical Model finite matter so small it can’t be cut in half.

  • Heisenberg, Planck, Einstein, etc

  • 1900’s to today

  • The world of the atom is so small that just by us looking for small pieces changes where they are

  • Thus we can’t be sure exactly about these energy levels so….


Electron cloud model l.jpg

Nucleus finite matter so small it can’t be cut in half.

Electron Cloud Model

e-

e-

e-

e-
