  1. Final Lecture Review Step 7 Deliverables Final Course Information

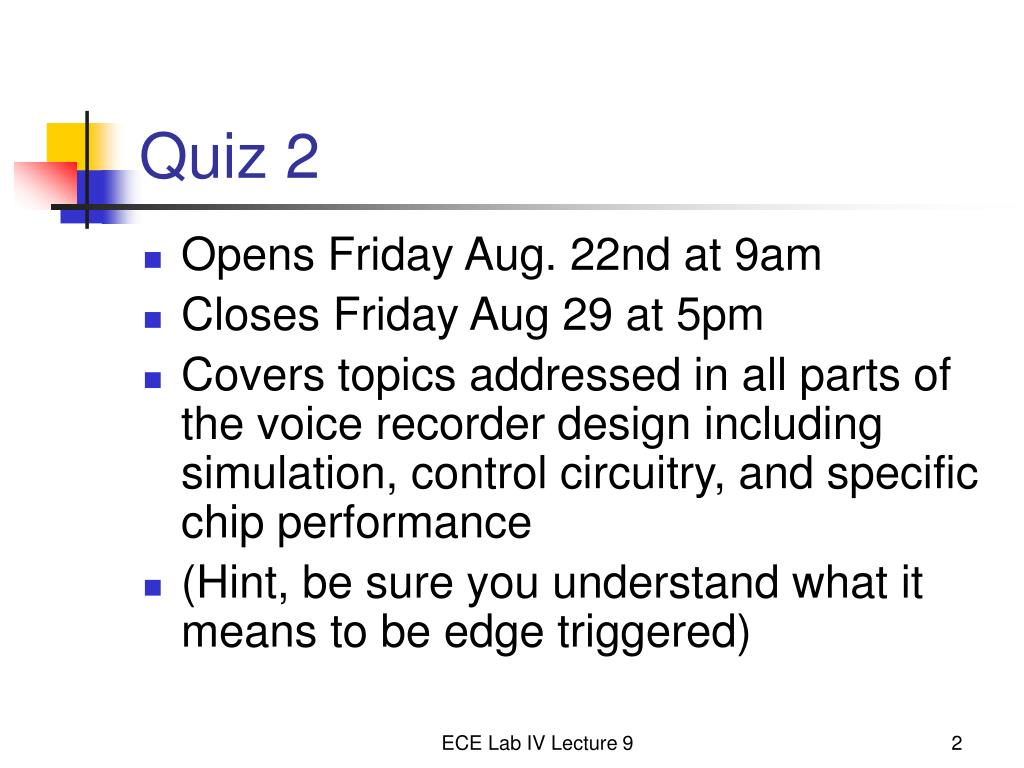

  2. Quiz 2 • Opens Friday Aug. 22nd at 9am • Closes Friday Aug 29 at 5pm • Covers topics addressed in all parts of the voice recorder design including simulation, control circuitry, and specific chip performance • (Hint, be sure you understand what it means to be edge triggered) ECE Lab IV Lecture 9

  3. Extended Lab Hours • Eric will be available for extended lab hours starting this week. • Week 9 and 10 • Monday 12pm-4pm • Wednesday 11am-5pm • Friday 9am-4pm • Finals Week • Tuesday 12pm-4pm • Wednesday 12pm-4pm • Unless discussed with me otherwise all lab reports and disassembled boards are due Wednesday September 3rd by 4pm!!!! ECE Lab IV Lecture 9

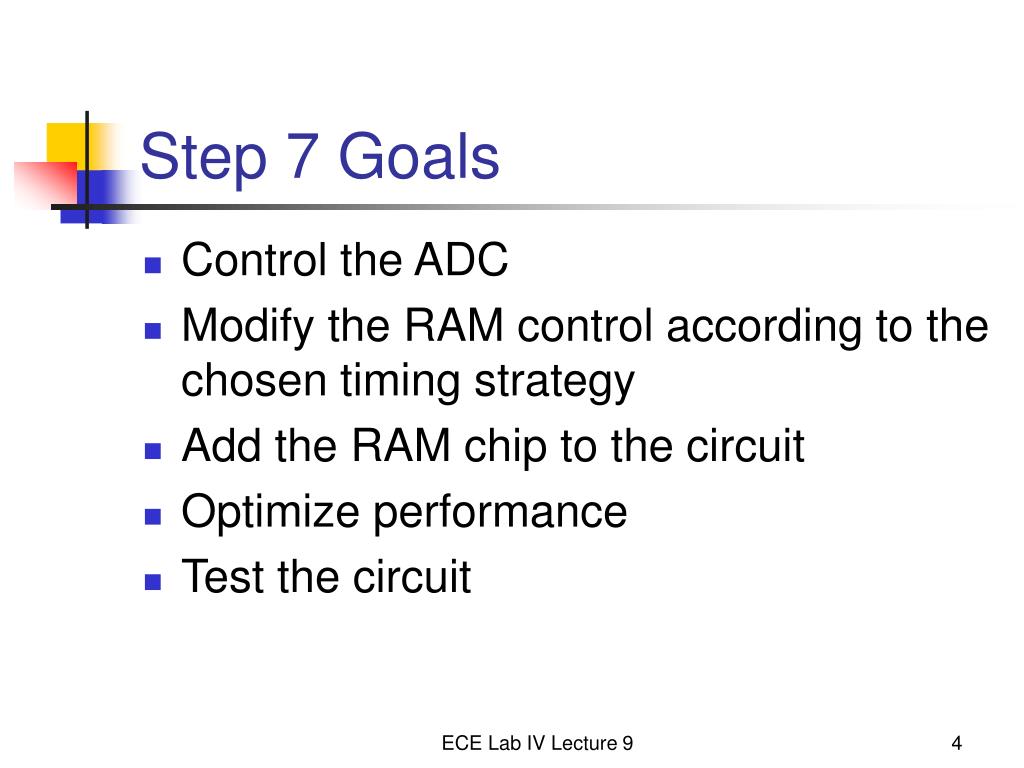

  4. Step 7 Goals • Control the ADC • Modify the RAM control according to the chosen timing strategy • Add the RAM chip to the circuit • Optimize performance • Test the circuit ECE Lab IV Lecture 9

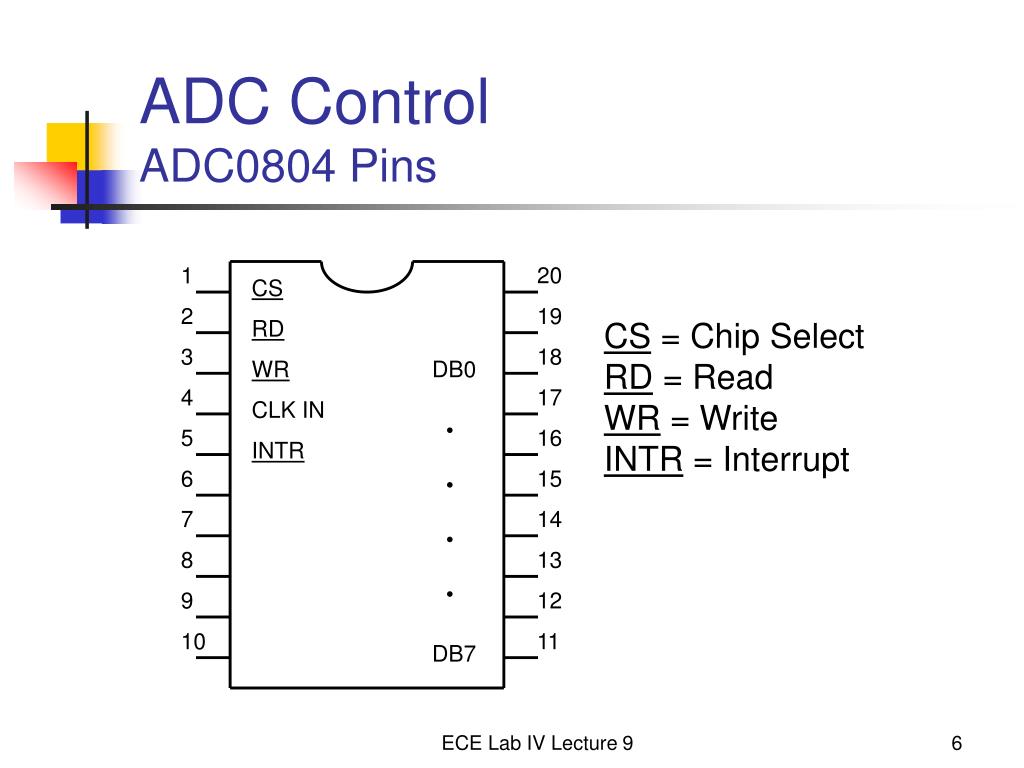

  5. 20 1 CS 2 19 RD 3 18 WR DB0 4 17 CLK IN • • • • 5 16 INTR 6 15 7 14 8 13 9 12 10 11 DB7 ADC ControlADC0804 Pins CS = Chip Select RD = Read WR = Write INTR = Interrupt ECE Lab IV Lecture 9

  6. ADC ControlFree-Running Circuit 100 ns min Rising transition on WR begins the conversion ECE Lab IV Lecture 9

  7. ADC ControlFree-Running Circuit RD must be low for data to appear at outputs. When RD is high, outputs are Hi-Z. ECE Lab IV Lecture 9

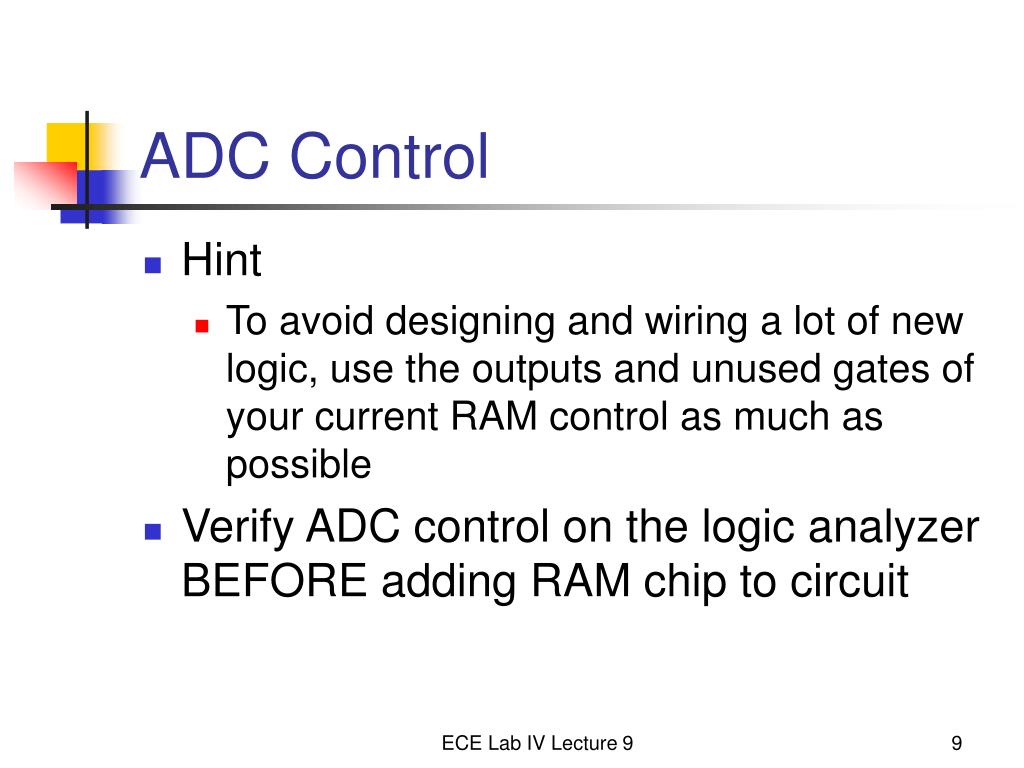

  8. ADC Control • Hint • To avoid designing and wiring a lot of new logic, use the outputs and unused gates of your current RAM control as much as possible • Verify ADC control on the logic analyzer BEFORE adding RAM chip to circuit ECE Lab IV Lecture 9

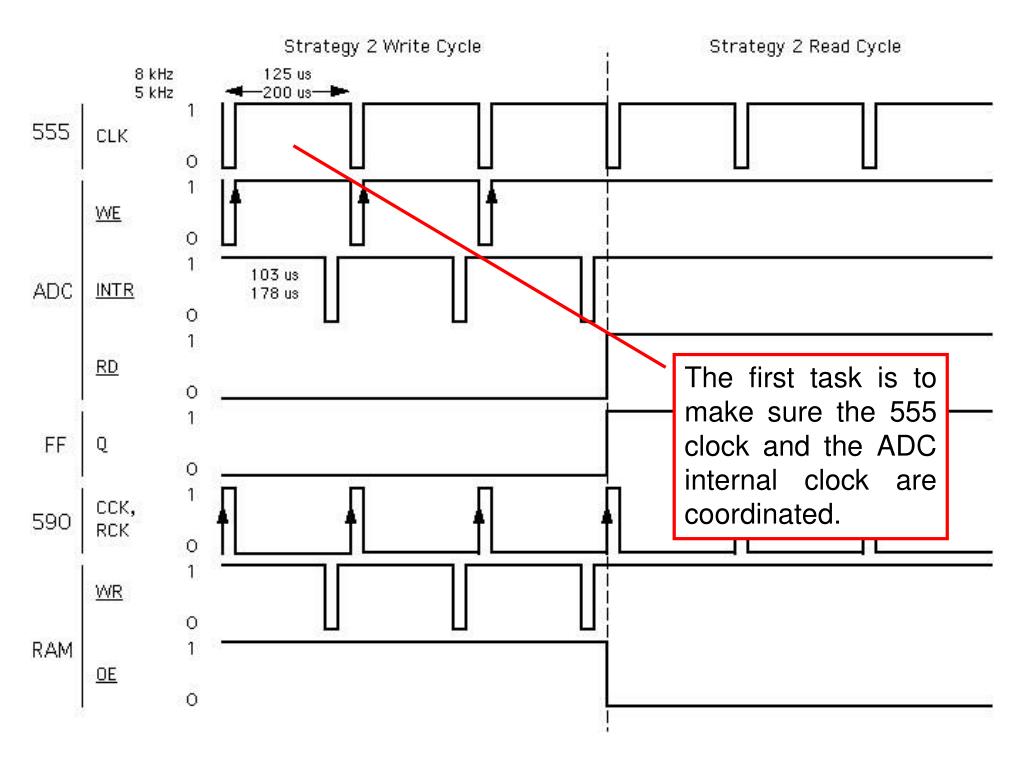

  9. The first task is to make sure the 555 clock and the ADC internal clock are coordinated.

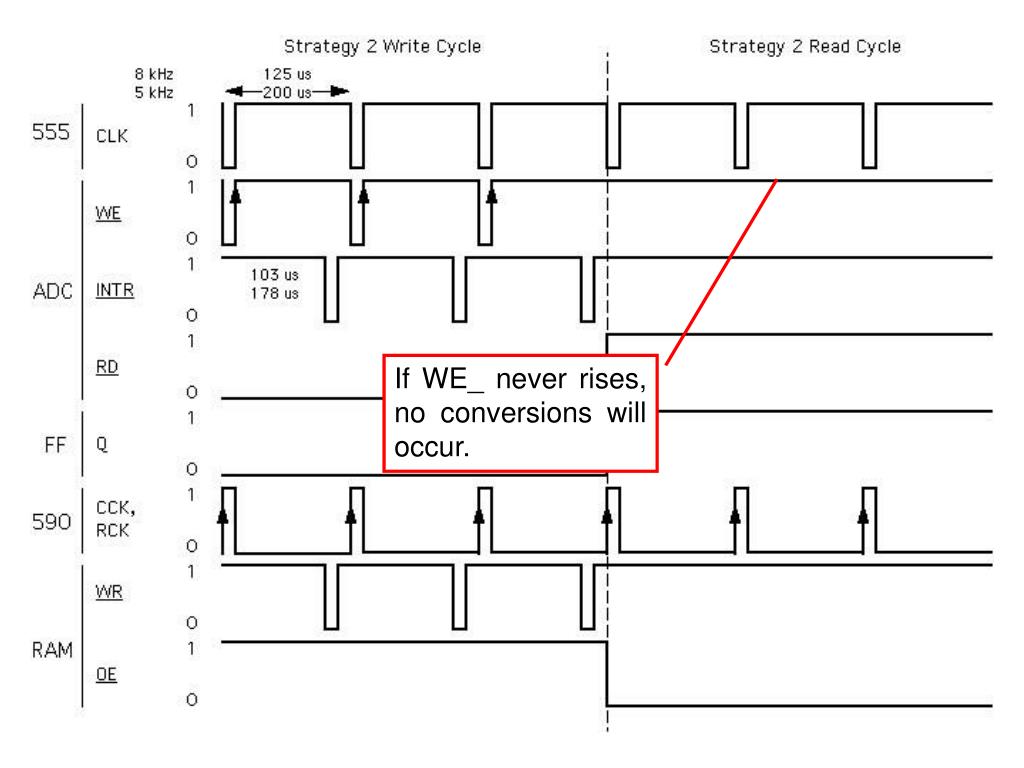

  10. If WE_ never rises, no conversions will occur.

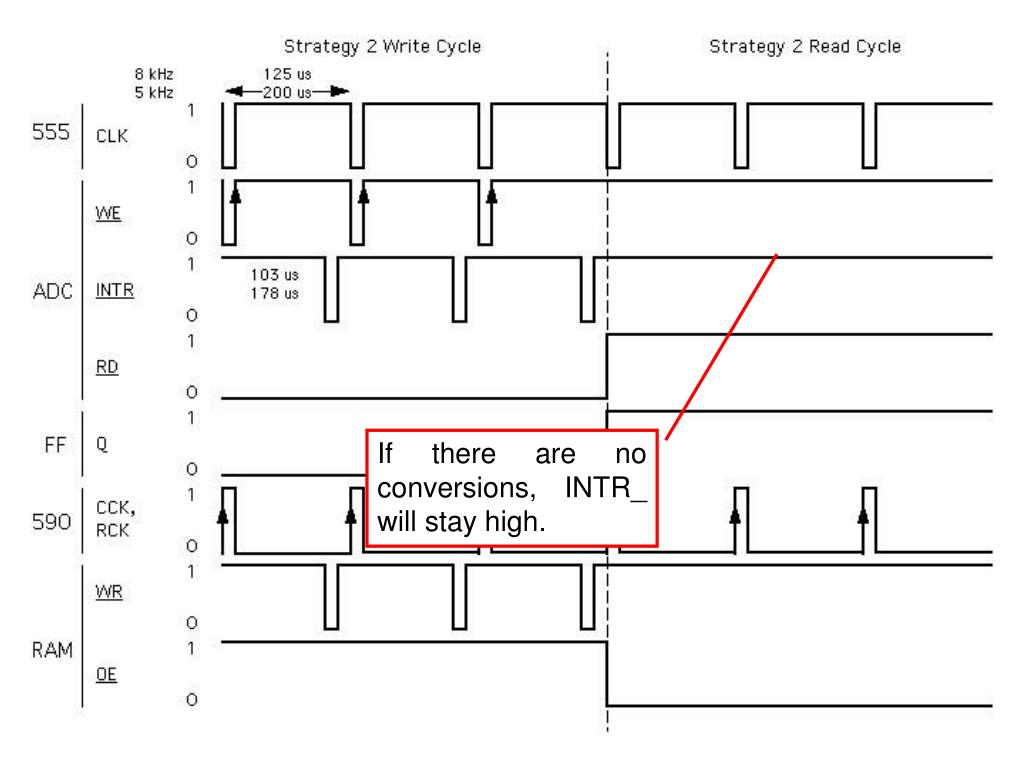

  11. If there are no conversions, INTR_ will stay high.

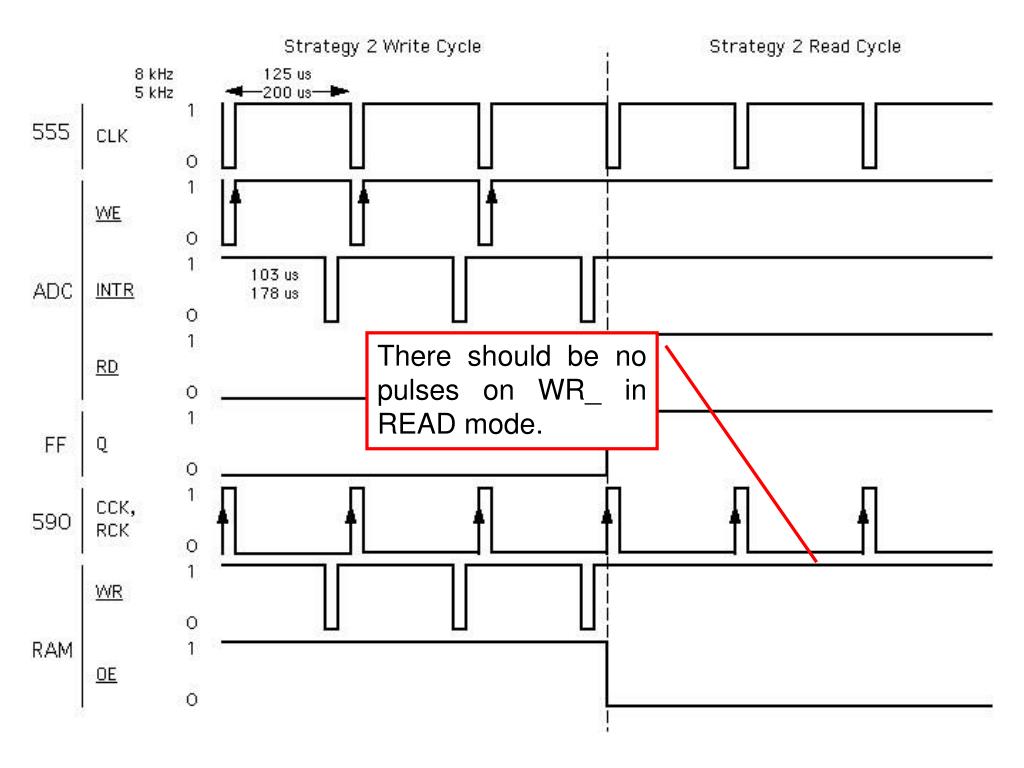

  12. There should be no pulses on WR_ in READ mode.

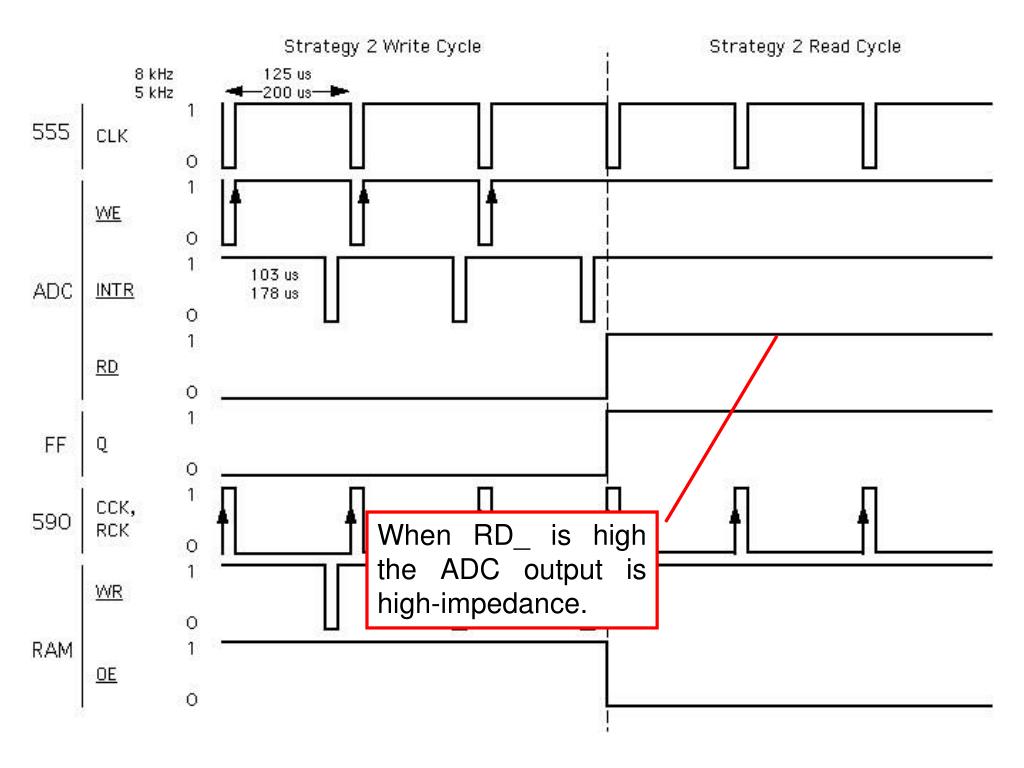

  13. When RD_ is high the ADC output is high-impedance.

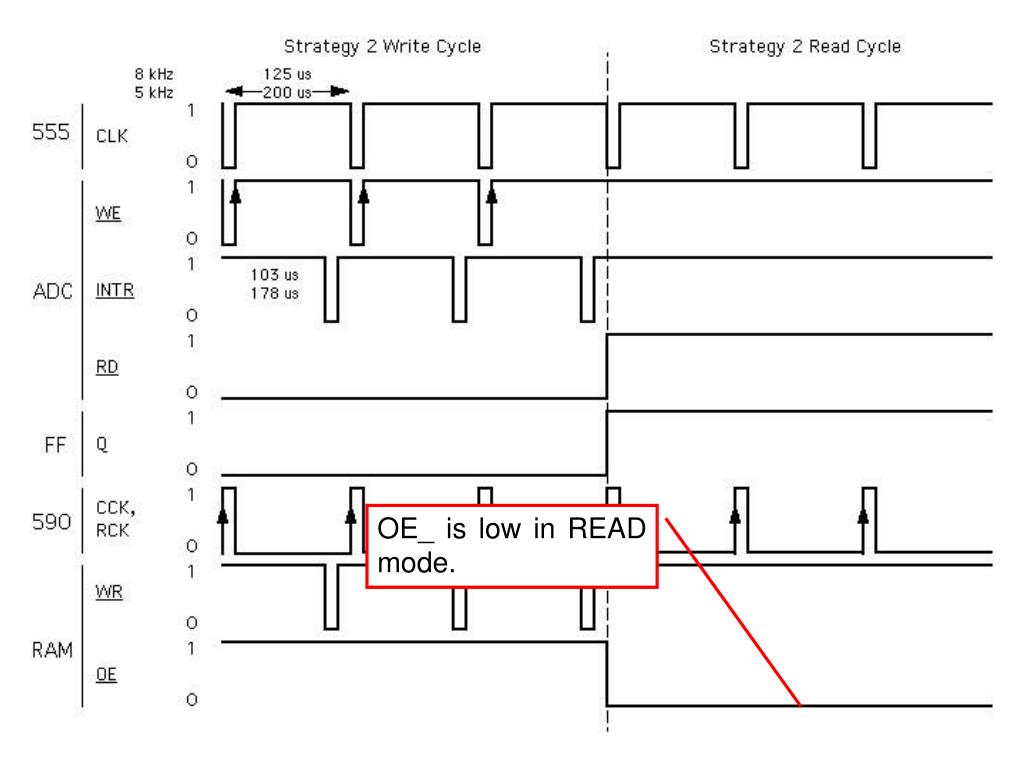

  14. OE_ is low in READ mode.

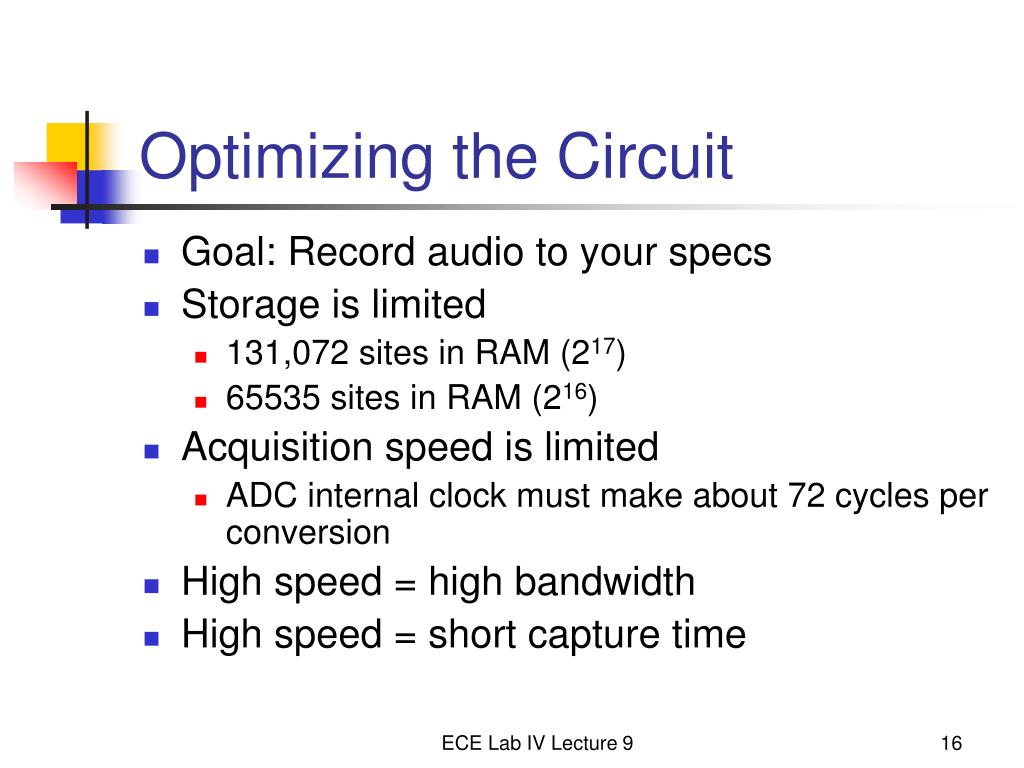

  15. Optimizing the Circuit • Goal: Record audio to your specs • Storage is limited • 131,072 sites in RAM (217) • 65535 sites in RAM (216) • Acquisition speed is limited • ADC internal clock must make about 72 cycles per conversion • High speed = high bandwidth • High speed = short capture time ECE Lab IV Lecture 9

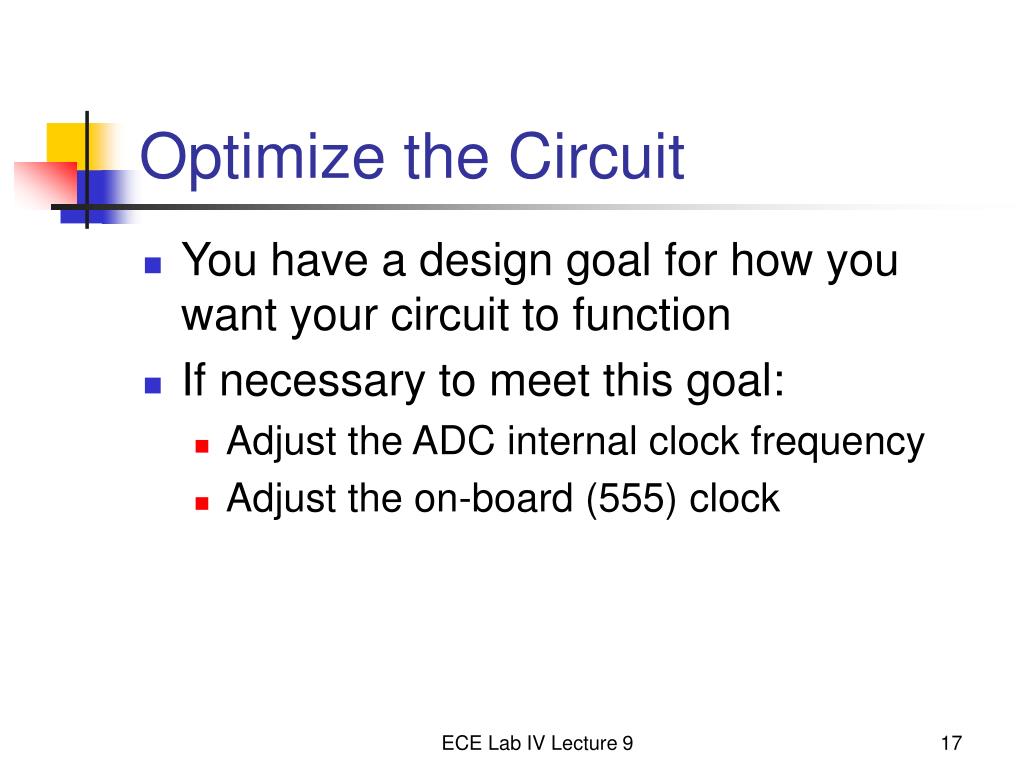

  16. Optimize the Circuit • You have a design goal for how you want your circuit to function • If necessary to meet this goal: • Adjust the ADC internal clock frequency • Adjust the on-board (555) clock ECE Lab IV Lecture 9

  17. Test the Circuit • Display analog input (sine or ramp) and analog output on scope • During the RAM WRITE cycle, the data on the bus comes from the ADC • The DAC automatically converts it back to analog. • At low frequencies, the DAC output should be identical to the analog input ECE Lab IV Lecture 9

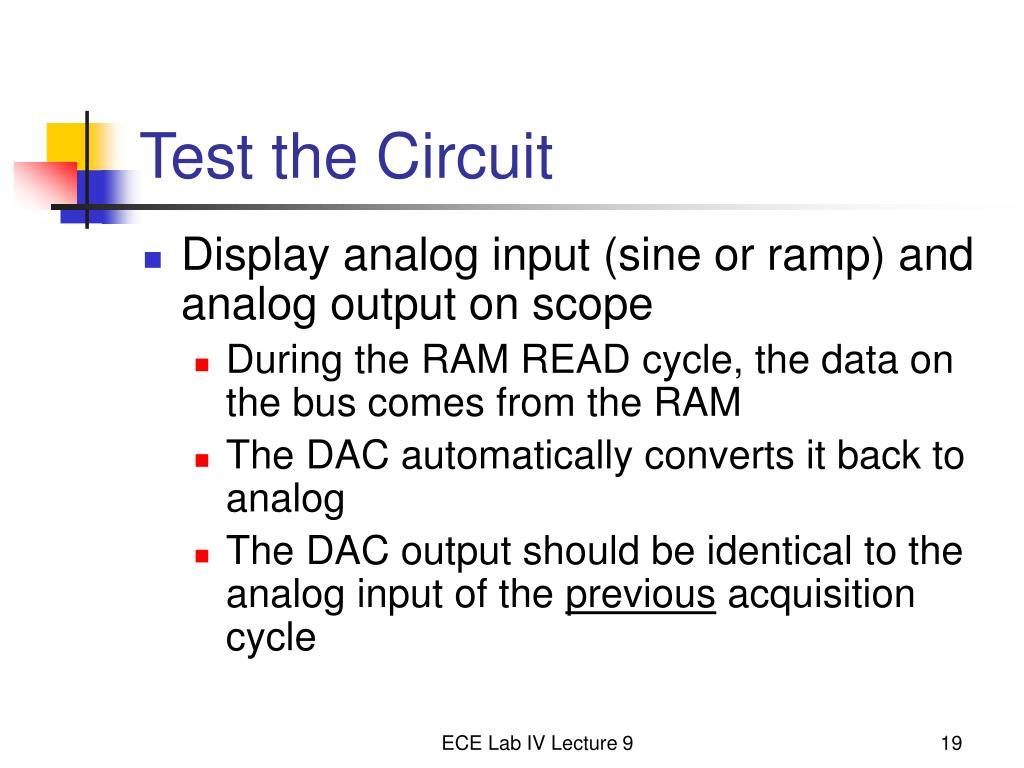

  18. Test the Circuit • Display analog input (sine or ramp) and analog output on scope • During the RAM READ cycle, the data on the bus comes from the RAM • The DAC automatically converts it back to analog • The DAC output should be identical to the analog input of the previous acquisition cycle ECE Lab IV Lecture 9

  19. Test the Circuit • Note the length of the acquisition (WRITE) cycle. Does it equal 131,072 times the period of the on-board clock? • Note the length of the READ cycle. Does it equal 131,072 times the period of the on-board clock? • If you want to see if the circuit is really working, pull the RAM chip • Your output should be 0 during the READ cycle ECE Lab IV Lecture 9

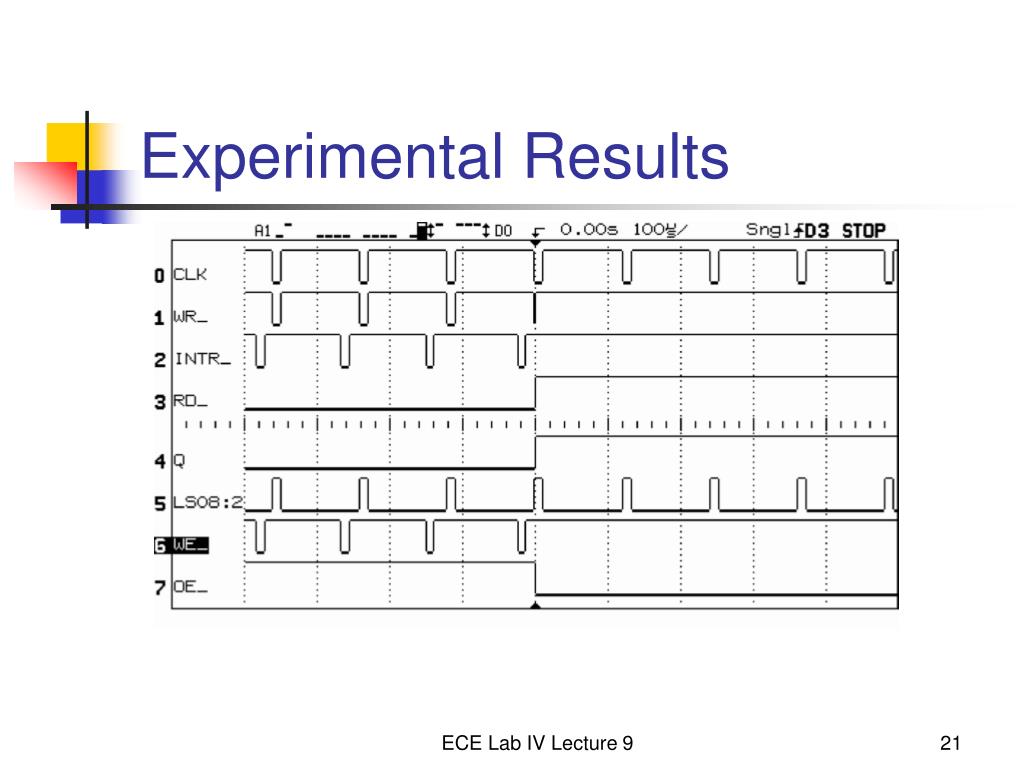

  20. Experimental Results ECE Lab IV Lecture 9

  21. Deliverables • Test 1 - Bandwidth • Analog in, analog out • Determine failure frequency • A = (Goal - Measured)/Goal • A ≤ 0 (measured exceeds goal) 20 pts • 0.95 ≤ A < 1 18 pts • 0.90 ≤ A < 0.95 16 pts • A < 0.90 14 pts ECE Lab IV Lecture 9

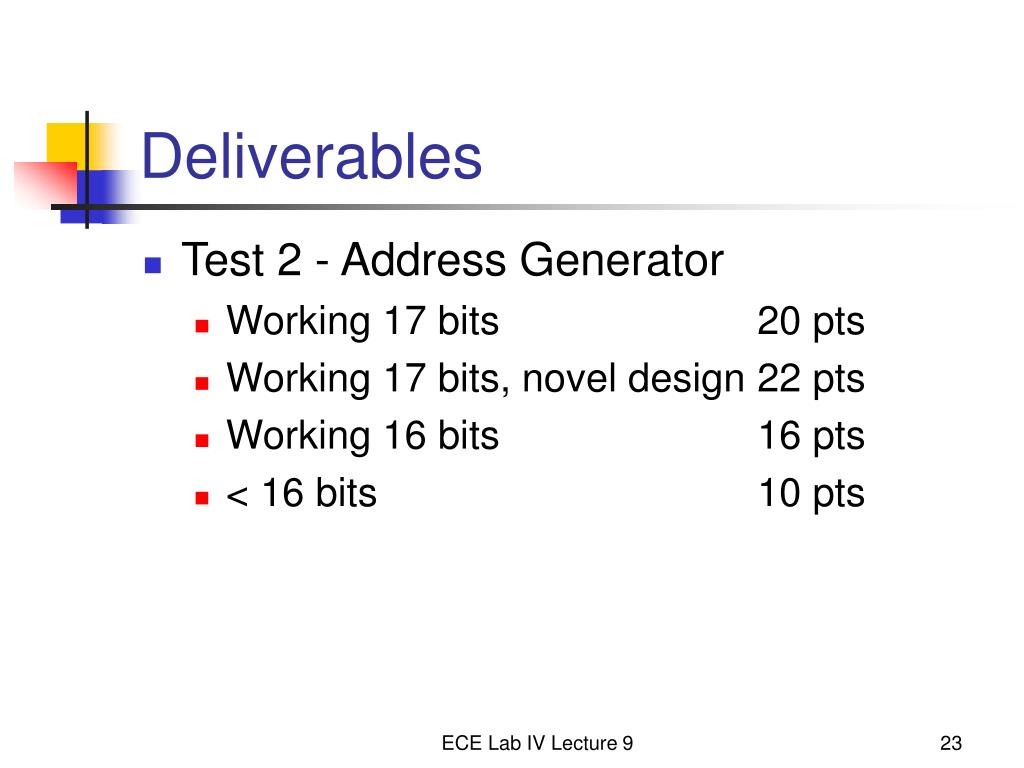

  22. Deliverables • Test 2 - Address Generator • Working 17 bits 20 pts • Working 17 bits, novel design 22 pts • Working 16 bits 16 pts • < 16 bits 10 pts ECE Lab IV Lecture 9

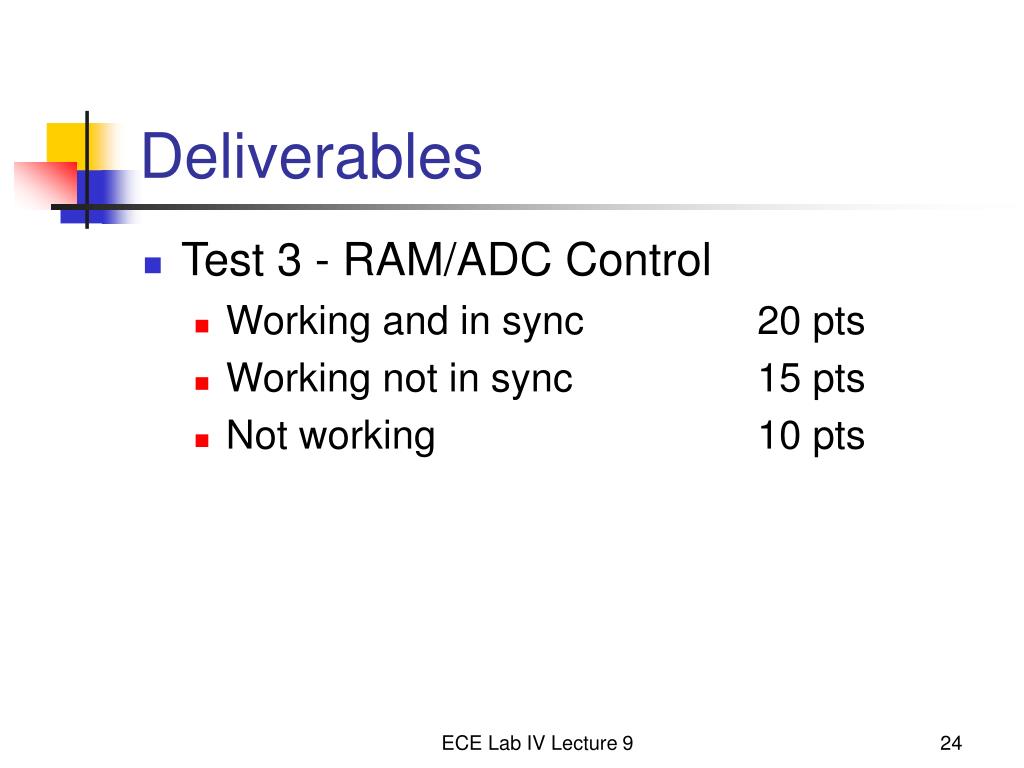

  23. Deliverables • Test 3 - RAM/ADC Control • Working and in sync 20 pts • Working not in sync 15 pts • Not working 10 pts ECE Lab IV Lecture 9

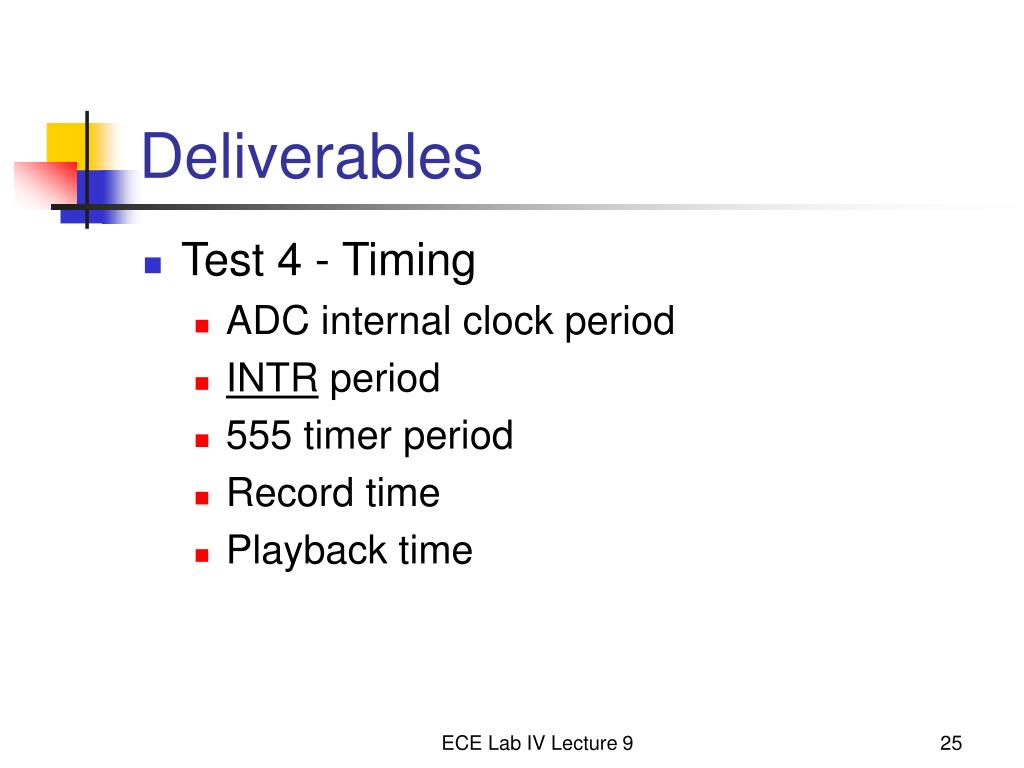

  24. Deliverables • Test 4 - Timing • ADC internal clock period • INTR period • 555 timer period • Record time • Playback time ECE Lab IV Lecture 9

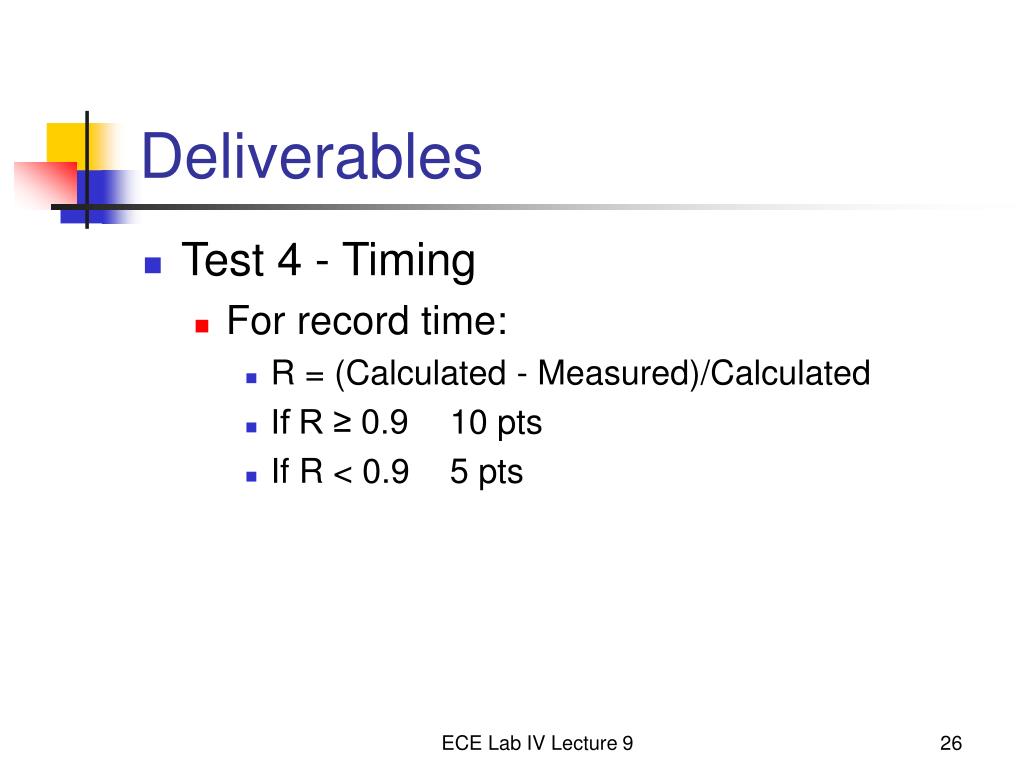

  25. Deliverables • Test 4 - Timing • For record time: • R = (Calculated - Measured)/Calculated • If R ≥ 0.9 10 pts • If R < 0.9 5 pts ECE Lab IV Lecture 9

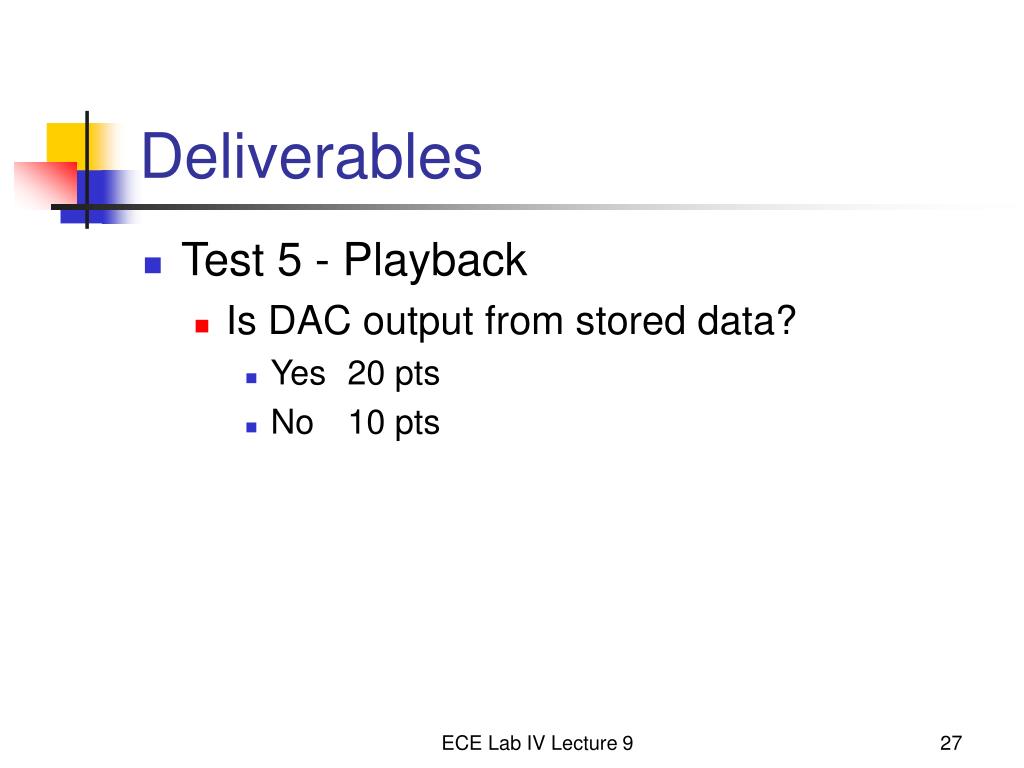

  26. Deliverables • Test 5 - Playback • Is DAC output from stored data? • Yes 20 pts • No 10 pts ECE Lab IV Lecture 9

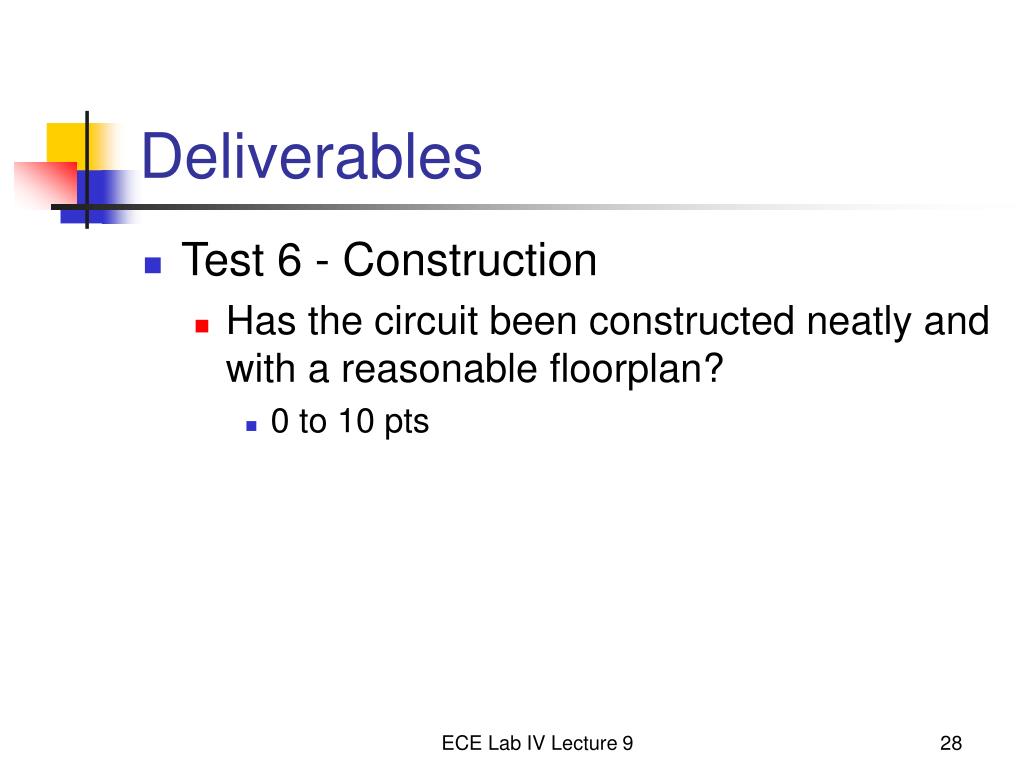

  27. Deliverables • Test 6 - Construction • Has the circuit been constructed neatly and with a reasonable floorplan? • 0 to 10 pts ECE Lab IV Lecture 9

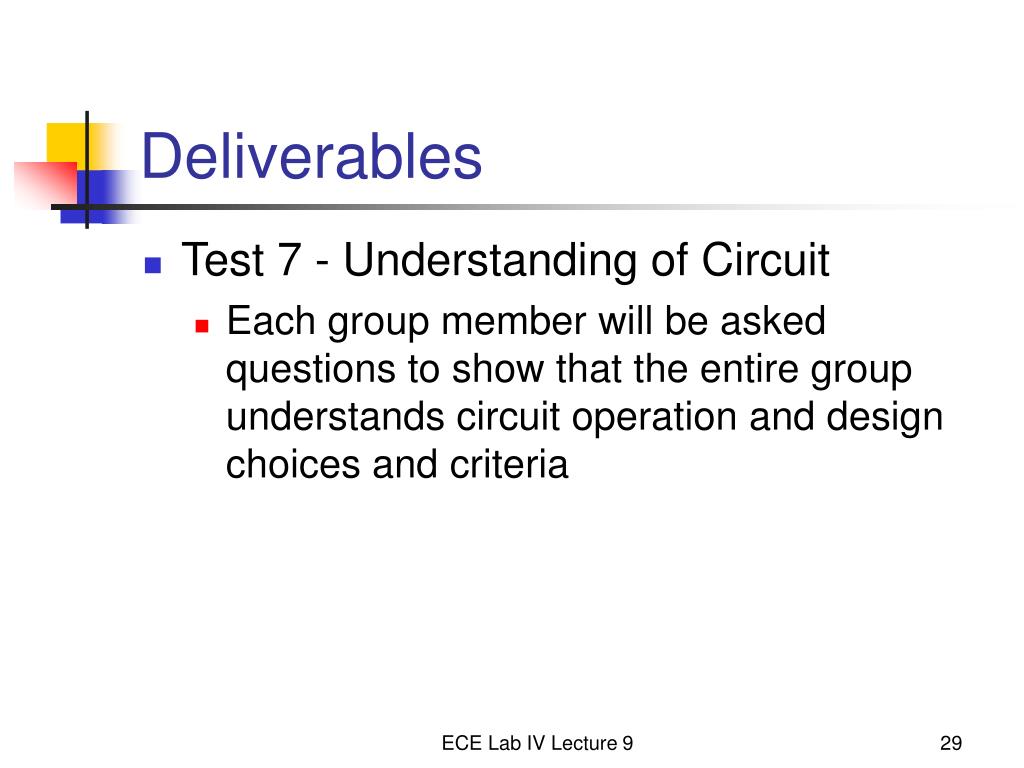

  28. Deliverables • Test 7 - Understanding of Circuit • Each group member will be asked questions to show that the entire group understands circuit operation and design choices and criteria ECE Lab IV Lecture 9

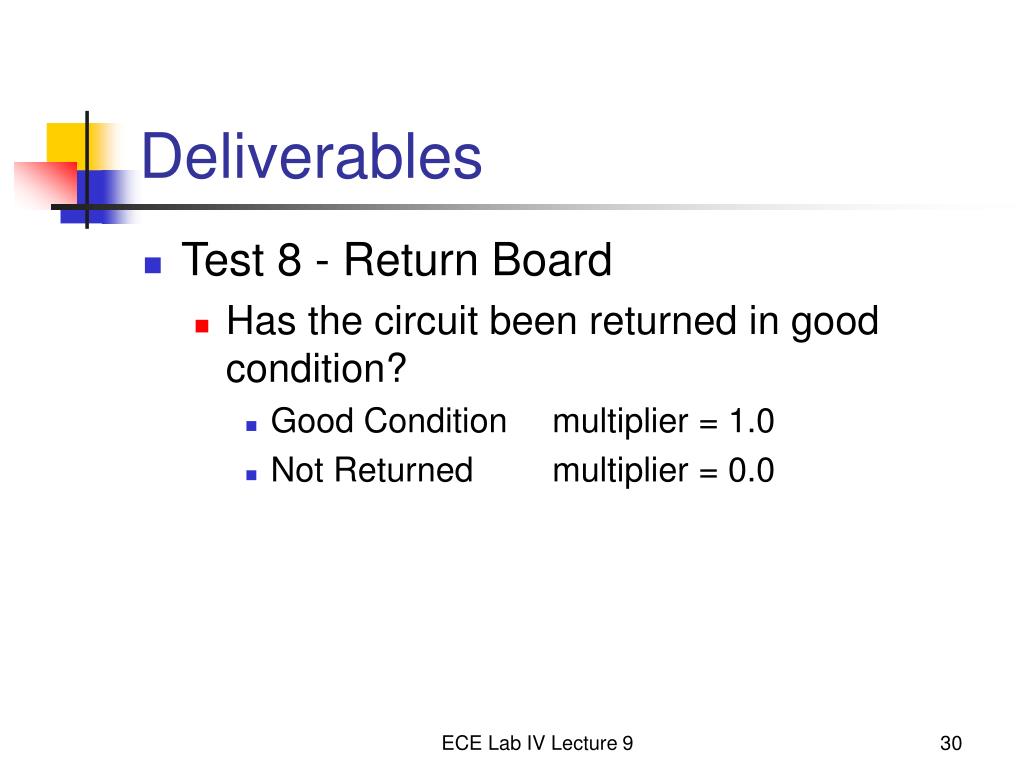

  29. Deliverables • Test 8 - Return Board • Has the circuit been returned in good condition? • Good Condition multiplier = 1.0 • Not Returned multiplier = 0.0 ECE Lab IV Lecture 9

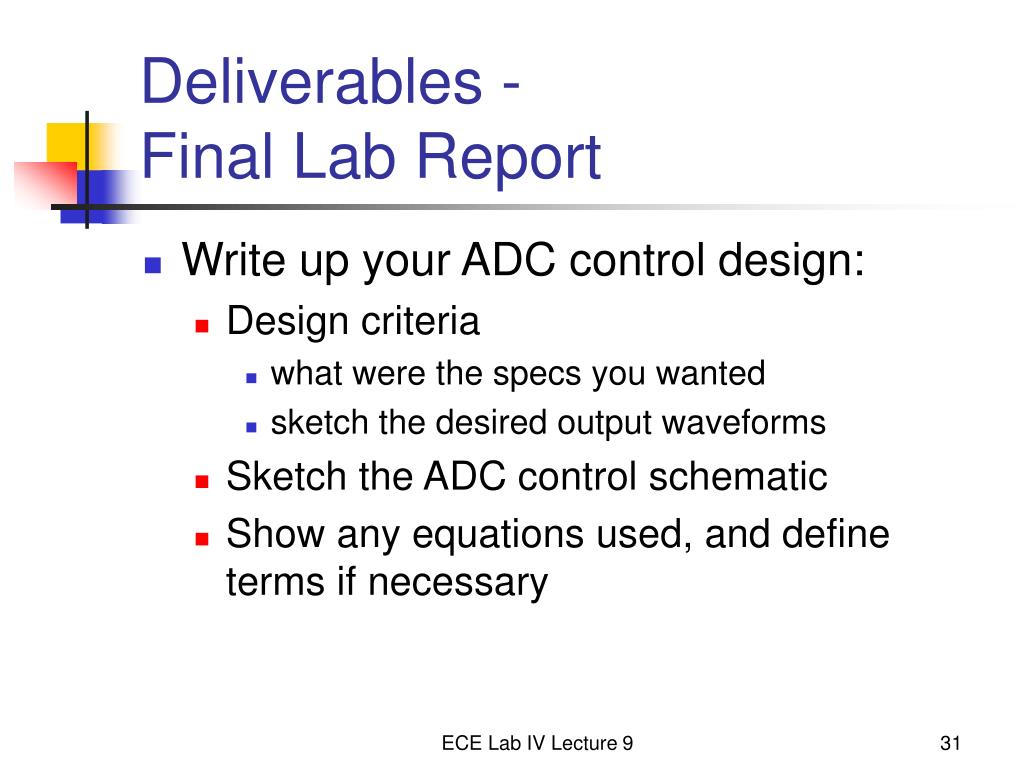

  30. Deliverables - Final Lab Report • Write up your ADC control design: • Design criteria • what were the specs you wanted • sketch the desired output waveforms • Sketch the ADC control schematic • Show any equations used, and define terms if necessary ECE Lab IV Lecture 9

  31. Deliverables-Final Lab Report • Write up your ADC control design: • Discuss what changes were made to the circuit to optimize performance • How effective were they? • Document the performance change ECE Lab IV Lecture 9

  32. Deliverables - Final Lab Report • Have eric verify functionality and quality of work • Comment on your observations and provide conclusions on the entire experiment • Any improvements to this Step? • Any improvement to the lab course? ECE Lab IV Lecture 9
