ECE3801 Note Sheet

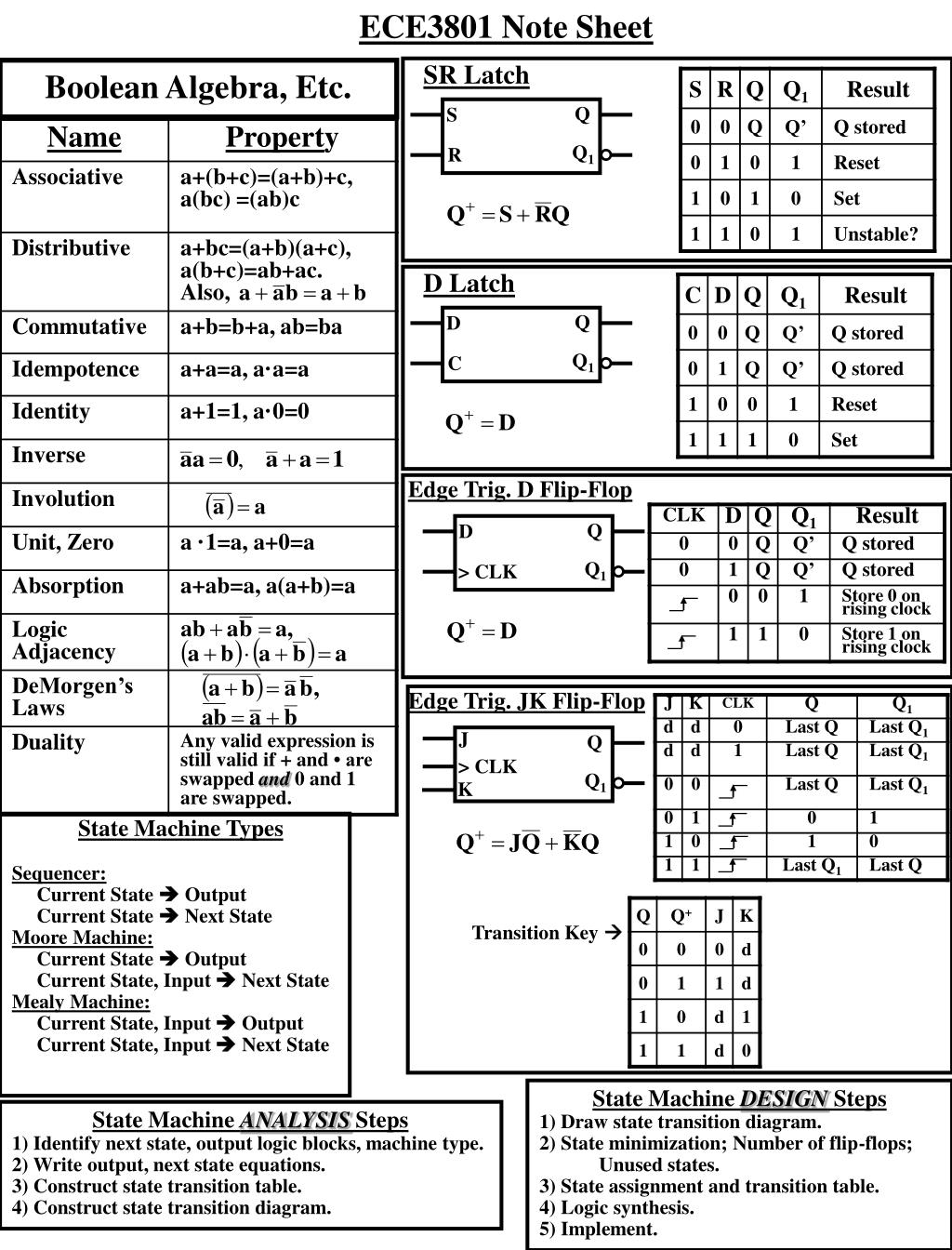

1. ECE3801 Note Sheet SR Latch Q Q S D Q1 Q1 R C Edge Trig. D Flip-Flop Q D Q1 > CLK J Q > CLK Q1 K Boolean Algebra, Etc. D Latch Edge Trig. JK Flip-Flop State Machine Types Sequencer: Current State  Output Current State  Next State Moore Machine: Current State  Output Current State, Input  Next State Mealy Machine: Current State, Input  Output Current State, Input  Next State Transition Key  State Machine DESIGN Steps 1) Draw state transition diagram. 2) State minimization; Number of flip-flops; Unused states. 3) State assignment and transition table. 4) Logic synthesis. 5) Implement. State Machine ANALYSIS Steps 1) Identify next state, output logic blocks, machine type. 2) Write output, next state equations. 3) Construct state transition table. 4) Construct state transition diagram.
