  1. WInCEDevelopment flow Johnny Wu

  2. Platform • hareware • Target board(CPU、RAM、Chipset) • Peripherals(RAM、Storage) • NULL Modem Cable • Ethernet Cable • Software • Board Support Package(BSP) • Application • Peripherals Driver(Audio、Display、Lan)

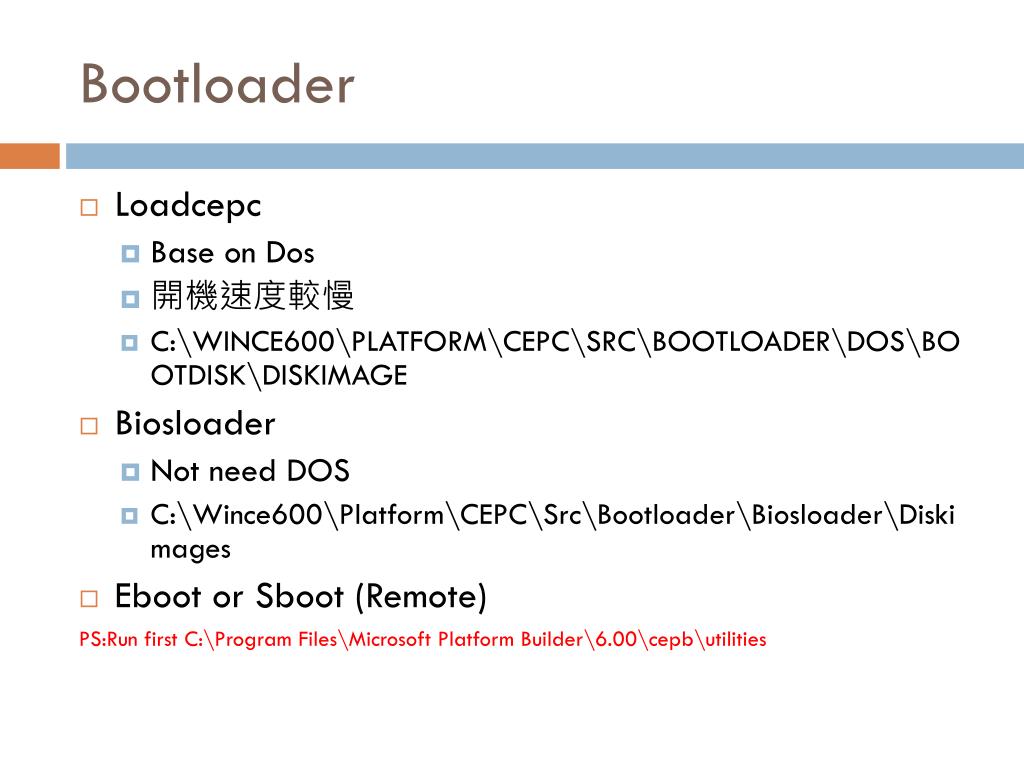

  3. Bootloader • Loadcepc • Base on Dos • 開機速度較慢 • C:\WINCE600\PLATFORM\CEPC\SRC\BOOTLOADER\DOS\BOOTDISK\DISKIMAGE • Biosloader • Not need DOS • C:\Wince600\Platform\CEPC\Src\Bootloader\Biosloader\Diskimages • Eboot or Sboot (Remote) PS:Run first C:\Program Files\Microsoft Platform Builder\6.00\cepb\utilities

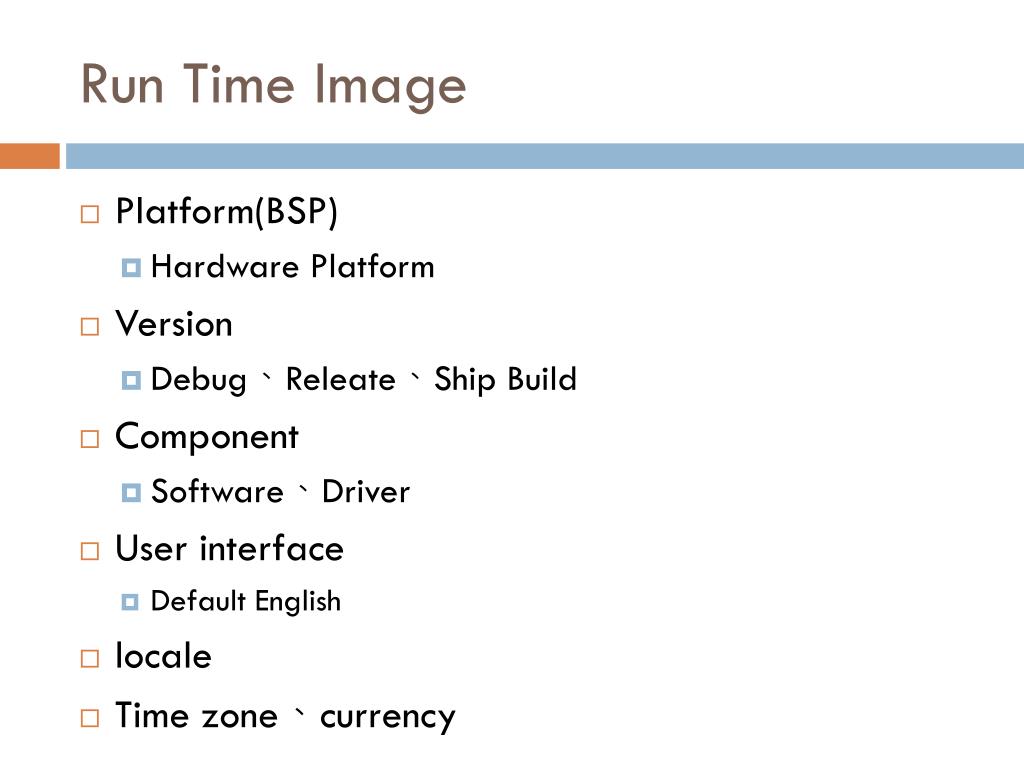

  4. Run Time Image • Platform(BSP) • Hardware Platform • Version • Debug、Releate、Ship Build • Component • Software、Driver • User interface • Default English • locale • Time zone、currency

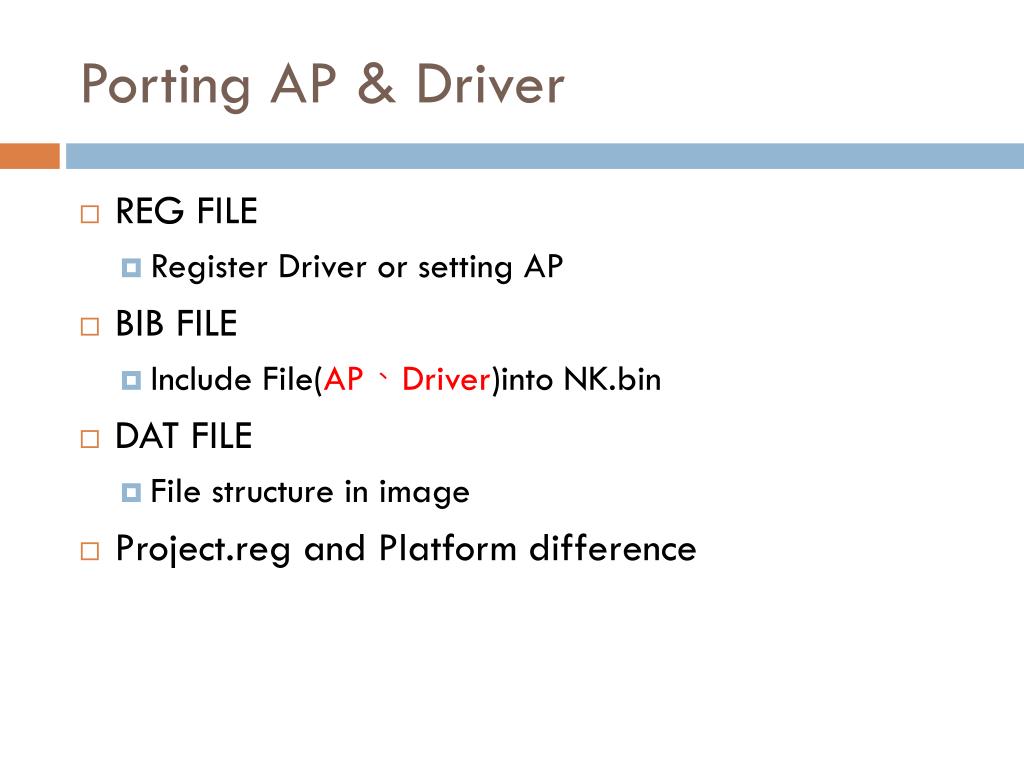

  5. Porting AP & Driver • REG FILE • Register Driver or setting AP • BIB FILE • Include File(AP、Driver)into NK.bin • DAT FILE • File structure in image • Project.reg and Platform difference

  6. CETK • AP Testing • Device Drivers Testing • Burning in Testing • Stree Testing • Performance Testing

  7. 網路架構 RS232 Ethernet USB Load Image Platform Builder 6.0 Target board Boot ME KITL Protocal Ethernet Cable NULL Modem Cable

  8. Samsung 2410 layout J8: Serial Cable USB Cable Reset Button

  9. Steup • Setup you serial cable、USB cable • Install USB driver on you deskotp • Check you DNW is connection.
