  1. Video Data Rate for HEW Date:2013-07-16 Authors: Huai-Rong Shao, et al. (Samsung)

  2. This presentation explains • How to calculate the data rate of uncompressed video • How to estimate the data rate of compressed video Motivation Huai-Rong Shao, et al. (Samsung)

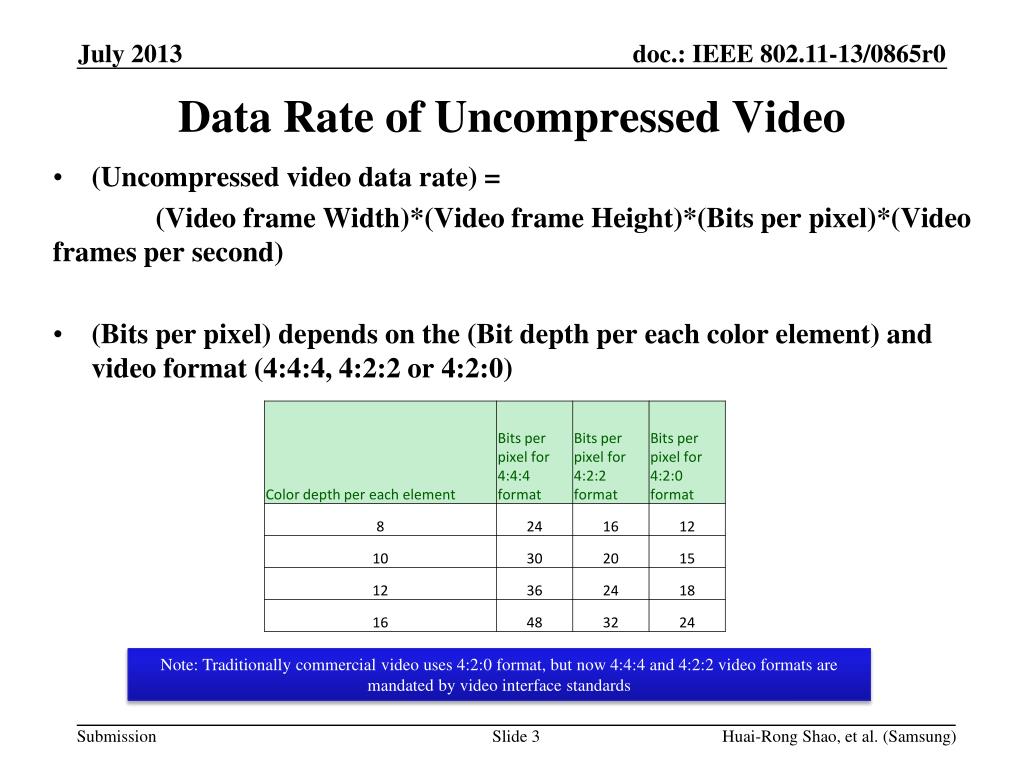

  3. (Uncompressed video data rate) = (Video frame Width)*(Video frame Height)*(Bits per pixel)*(Video frames per second) (Bits per pixel) depends on the (Bit depth per each color element) and video format (4:4:4, 4:2:2 or 4:2:0) Data Rate of Uncompressed Video Note: Traditionally commercial video uses 4:2:0 format, but now 4:4:4 and 4:2:2 video formats are mandated by video interface standards Huai-Rong Shao, et al. (Samsung)

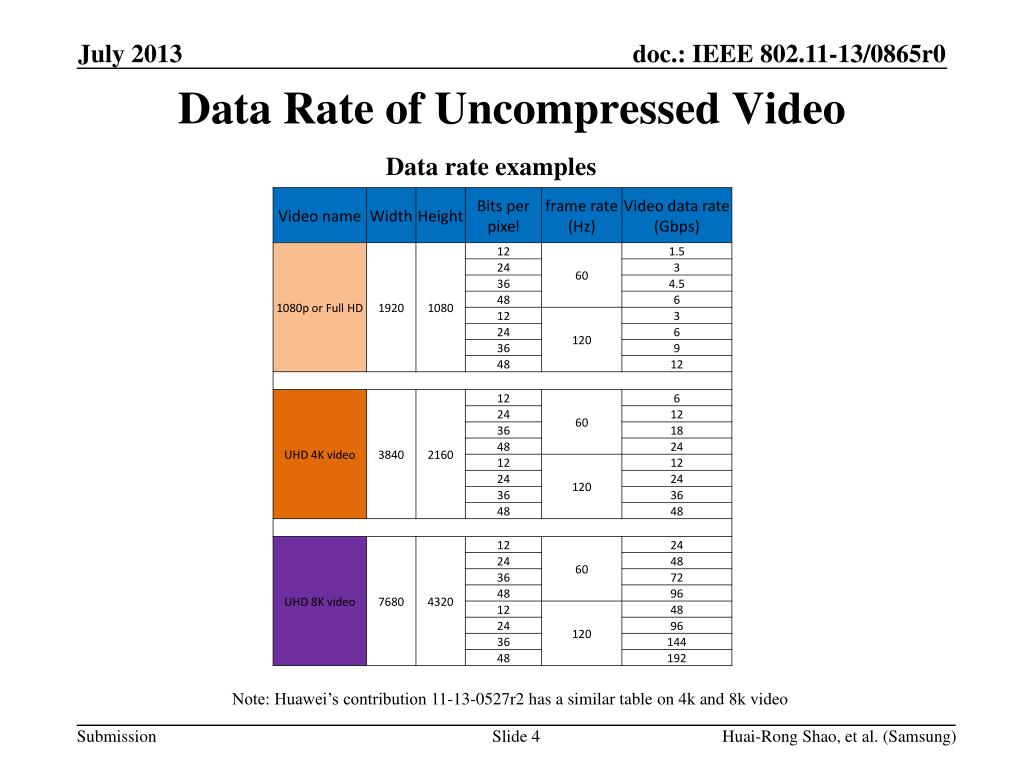

  4. Data rate examples Data Rate of Uncompressed Video Note: Huawei’s contribution 11-13-0527r2 has a similar table on 4k and 8k video Huai-Rong Shao, et al. (Samsung)

  5. Data rate of compressed video depends on the compression ratio • Two major video application areas • Pre-stored video such as TV broadcasting and Blue-ray movies • High compression ratio: can go up to several hundreds (MPEG, H.264 and now HEVC) • Long latency: Both intra-frame and inter-frame video processing, also multi-frame reference schemes • Real-time video such as 60GHz display extension • Low compression ratio: usually at the order of 10 • Low-latency: Mainly intra-frame video processing Data Rate of Compressed Video Huai-Rong Shao, et.al. (Samsung Electronics)

  6. Thank you! Huai-Rong Shao, et.al. (Samsung)
