### CSIS 113A

Lecture 10

Arrays

Glenn Stevenson CSIS 113A MSJC

What is an array
• A contiguous group of homogeneous elements
• Might be easier to think of it as a series of like data that can be accessed using one name ie. Grades, Scores, temperatures
• This our first aggregate type
• Combine atomic types to make a new type
• Atomic, int, float, double, etc

Glenn Stevenson CSIS 113A MSJC

Array Depicted

Glenn Stevenson CSIS 113A MSJC

Declaring Arrays
• Declare the array  allocates memoryint score[5];
• Declares array of 5 integers named ‘score’
• Similar to declaring five variables:int score[0], score[1], score[2], score[3], score[4]
• Individual parts called many things:
• Indexed or subscripted variables
• ‘Elements’ of the array
• Value in brackets called index or subscript
• Numbered from 0 to size - 1

Glenn Stevenson CSIS 113A MSJC

Accessing Arrays
• Access using index/subscript
• cout << score[3];
• Note two uses of brackets:
• In declaration, specifies SIZE of array
• Anywhere else, specifies a subscript
• Size, subscript need not be literal
• int score[MAX_SCORES];
• score[n+1] = 99;
• If n is 2, identical to: score[3]

Glenn Stevenson CSIS 113A MSJC

Access Depicted

Glenn Stevenson CSIS 113A MSJC

Arrays & Memory

Glenn Stevenson CSIS 113A MSJC

Initialize At Declaration
• Just like any other variables, arrays can be initialized at declaration time.
• A little trickier

Glenn Stevenson CSIS 113A MSJC

A simple program

#include <iostream> using namespace std;

int main(){double d[] = {3.44, 2.22, 1.22, 5.55, 1.89, 99.99};

for(int i = 0; i < 6; i++)      cout << d[i] << endl;

}

Glenn Stevenson CSIS 113A MSJC

for-loops with Arrays
• Natural counting loop
• Naturally works well ‘counting thru’ elementsof an array
• Example:for (idx = 0; idx<5; idx++){cout << score[idx] << “off by “ << max – score[idx] << endl;}
• Loop control variable (idx) counts from 0 – 5

Glenn Stevenson CSIS 113A MSJC

Major Array Pitfall
• Zero is ‘first’ number to computerscientists
• C++ will ‘let’ you go beyond range
• Unpredictable results
• Compiler will not detect these errors!
• Up to programmer to ‘stay in range’

Glenn Stevenson CSIS 113A MSJC

Major Array Pitfall Example
• Indexes range from 0 to (array_size – 1)
• Example:double temperature[24]; // 24 is array size// Declares array of 24 double values calledtemperature
• They are indexed as:temperature[0], temperature[1] … temperature[23]
• Common mistake:temperature[24] = 5;
• Index 24 is ‘out of range’!
• No warning, possibly disastrous results

Glenn Stevenson CSIS 113A MSJC

Defined Constant as Array Size
• Should try to use defined/named constant forarray size
• Example:const int NUMBER_OF_STUDENTS = 5;int score[NUMBER_OF_STUDENTS];
• Improves versatility
• Improves maintainability

Glenn Stevenson CSIS 113A MSJC

Uses of Defined Constant
• Use everywhere size of array is needed
• In for-loop for traversal:for (idx = 0; idx < NUMBER_OF_STUDENTS; idx++){ // Manipulate array}
• In calculations involving size:lastIndex = (NUMBER_OF_STUDENTS – 1);
• When passing array to functions (later)
• If size changes  requires only ONEchange in program!

Glenn Stevenson CSIS 113A MSJC

Filling An Array

#include <iostream>#include <ctime>

using namespace std;

int main(){int array[20];

srand(time(0));// Fill the array!!   for(int i = 0; i < 20; i++)      array[i] = rand() % 101;

// print the array   for(int i = 0; i < 20; i+=2)      cout << array[i] << "\t" << array[i+1] << endl;   return 0;}

Glenn Stevenson CSIS 113A MSJC

Indexed Variables as Arguments
• Indexed variable handled same as simplevariable of array base type
• Given this function declaration:void myFunction(double par1);
• And these declarations:inti; double n, a[10];
• Can make these function calls:myFunction(i); // i is converted to doublemyFunction(a[3]); // a[3] is doublemyFunction(n); // n is double

Glenn Stevenson CSIS 113A MSJC

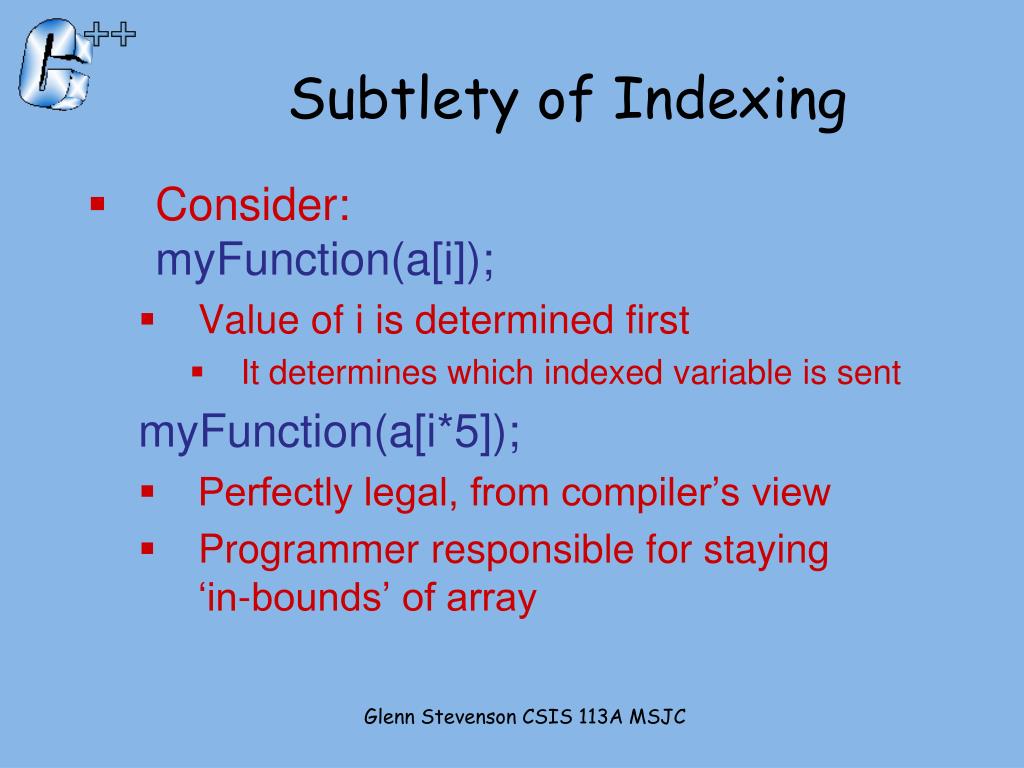

Subtlety of Indexing
• Consider:myFunction(a[i]);
• Value of i is determined first
• It determines which indexed variable is sent

myFunction(a[i*5]);

• Perfectly legal, from compiler’s view
• Programmer responsible for staying‘in-bounds’ of array

Glenn Stevenson CSIS 113A MSJC

Entire Arrays as Arguments
• Formal parameter can be entire array
• Argument then passed in function callis array name
• Called ‘array parameter’
• Formal parameter entire array is placed

void foo(int ar[]){}

Int main(){int myArray[5]; foo(myArray); return 0;}

Glenn Stevenson CSIS 113A MSJC

Arguments To Functions
• Arrays get passed to function by reference.
• In actuality, it is a copy of the base address (Address of Element 0) of the array that gets passed.

Glenn Stevenson CSIS 113A MSJC

#include <iostream>#include <ctime> using namespace std;

void fillArray(int ar[], int size);void printArray(int ar[], int size);

int main(){int array[20];

fillArray(array, 20);   printArray(array, 20);

return 0;}void fillArray(int ar[], int size){   srand(time(0));// Fill the array!!   for(int i = 0; i < size; i++)      ar[i] = rand() % 101;

}void printArray(int ar[], int size){    for(int i = 0; i < size; i+=2)       cout << ar[i] << "\t" << ar[i+1] << endl;

}

Glenn Stevenson CSIS 113A MSJC

Depicted

Glenn Stevenson CSIS 113A MSJC

Passing Array Pitfall
• It is possible to write pass the end of the array
• Compiler will issure NO warnings or errors
• Could cause your program to crash unexpectedly
• Best to see example

Glenn Stevenson CSIS 113A MSJC

#include <iostream>#include <ctime> using namespace std;

void fillArray(int ar[], int size);

int main(){int array[20];

fillArray(array);return 0;}void fillArray(int ar[]){   srand(time(0));// Fill the array!!   for(int i = 0; i < 21; i++)      ar[i] = rand() % 101;

}

Glenn Stevenson CSIS 113A MSJC

Pass the Size
• In C++ when you pass an array, you should also pass the size so the function knows how many it can act on.
• Makes function generic

void fillArray(int ar[], int size){}

Glenn Stevenson CSIS 113A MSJC

#include <iostream>#include <ctime> using namespace std;

void fillArray(int ar[], int size);void printArray(int ar[], int size);

int main(){int array[20];

fillArray(array, 20);   printArray(array, 20);

return 0;}void fillArray(int ar[], int size){   srand(time(0));// Fill the array!!   for(int i = 0; i < size; i++)      ar[i] = rand() % 101;

}void printArray(int ar[], int size){   for(int i = 0; i < size; i+=2)       cout << ar[i] << "\t" << ar[i+1] << endl;

}

Glenn Stevenson CSIS 113A MSJC

Returning Arrays
• As it stands right now arrays cannot be returned from a function
• The are created on the stack and get destroyed when function returns
• We will learn how to do it later on

Glenn Stevenson CSIS 113A MSJC

• Passing arrays can be dangerous because the function they are passed to can always modify them.
• In the previous program, the printArray function only needs the ability to read the variables.
• Since it is only printing the array, it shouldn't be given permission to modify it.
• In these instances, you want to use the const keyword.

Glenn Stevenson CSIS 113A MSJC

#include <iostream>#include <ctime> using namespace std;

void fillArray(int ar[], int size);void printArray(const int ar[], int size);

int main(){int array[20];

fillArray(array, 20);   printArray(array, 20);

return 0;}void fillArray(int ar[], int size){   srand(time(0));// Fill the array!!   for(int i = 0; i < size; i++)      ar[i] = rand() % 101;

}void printArray(const int ar[], int size){   for(int i = 0; i < size; i+=2)       cout << ar[i] << "\t" << ar[i+1] << endl;

}

Glenn Stevenson CSIS 113A MSJC
