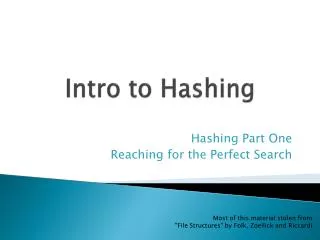

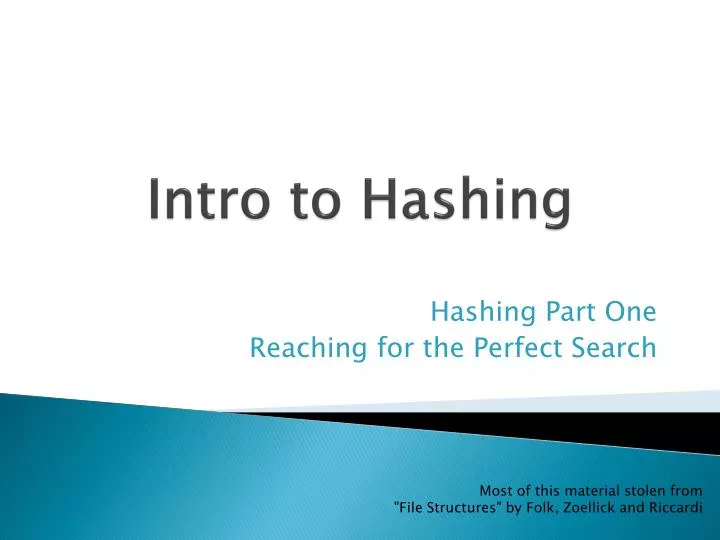

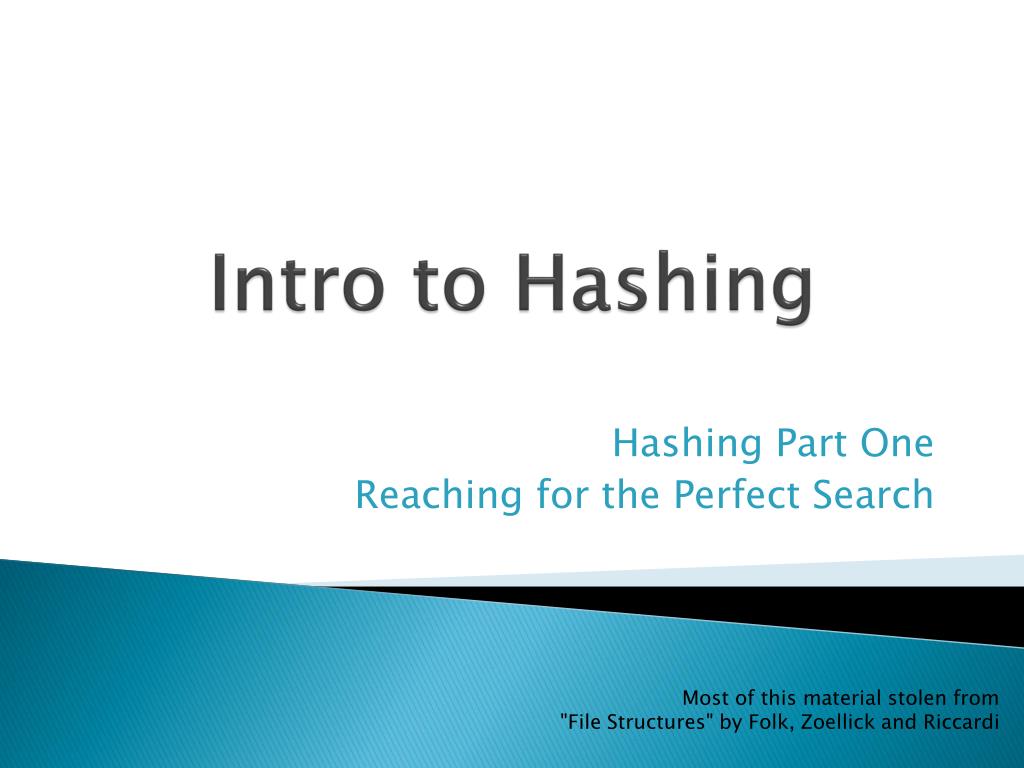

  1. Intro to Hashing Hashing Part One Reaching for the Perfect Search Most of this material stolen from "File Structures" by Folk, Zoellick and Riccardi

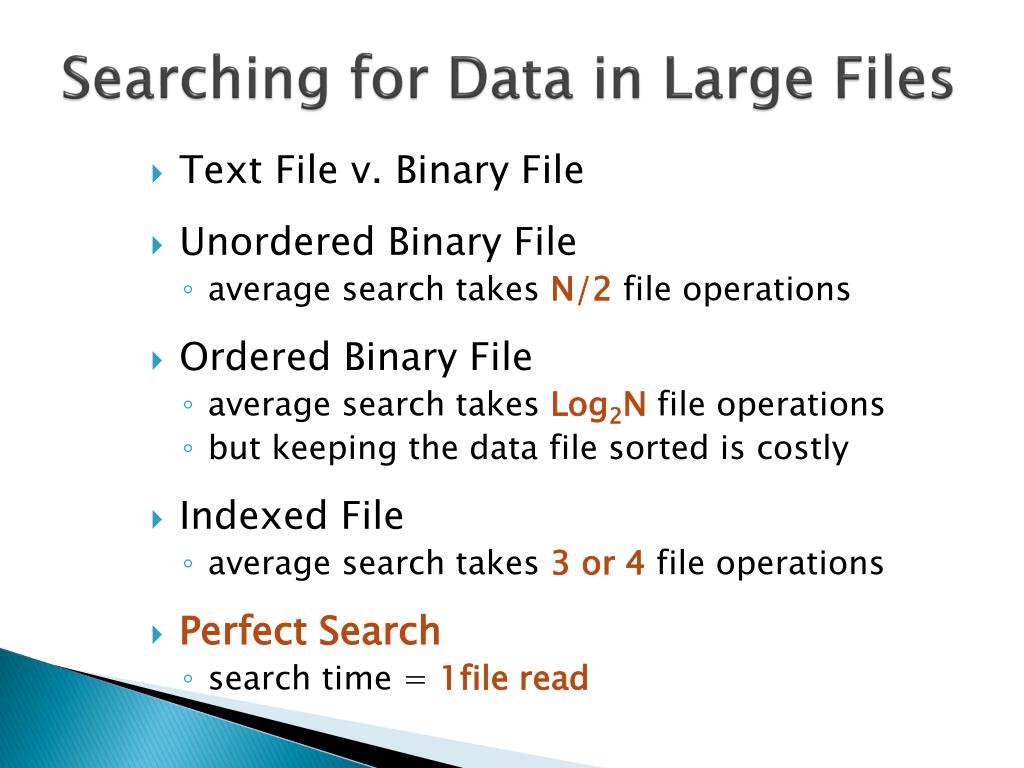

  2. Searching for Data in Large Files • Text File v. Binary File • Unordered Binary File • average search takes N/2 file operations • Ordered Binary File • average search takes Log2N file operations • but keeping the data file sorted is costly • Indexed File • average search takes 3 or 4 file operations • Perfect Search • search time = 1file read

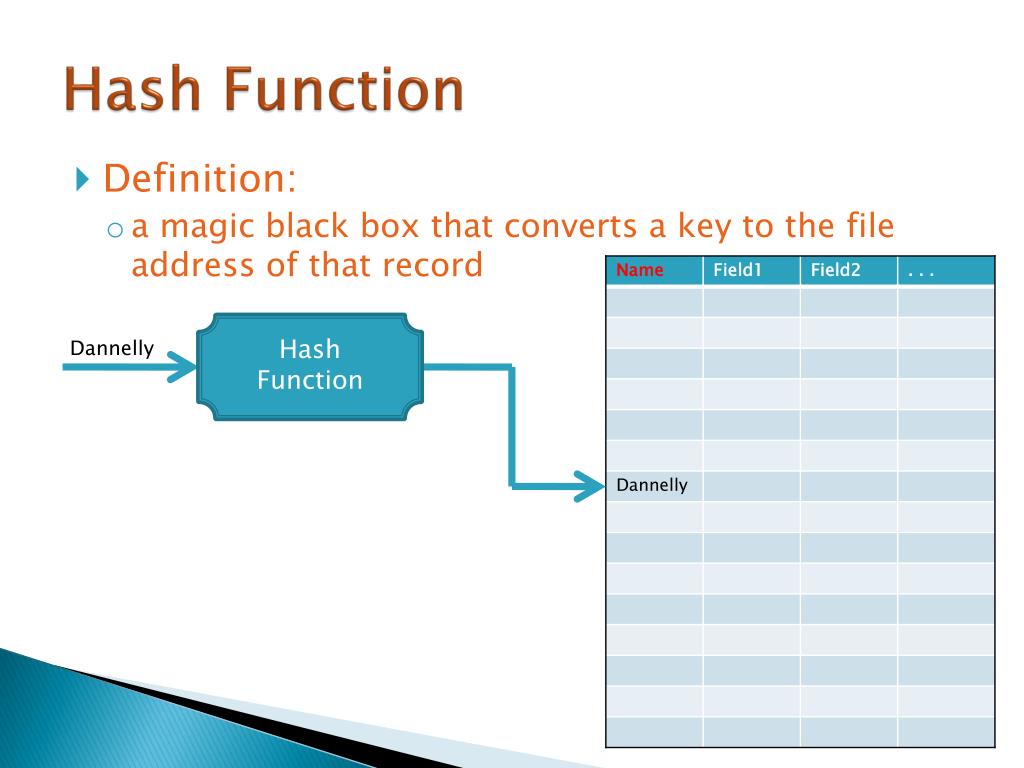

  3. Hash Function • Definition: • a magic black box that converts a key to the file address of that record Hash Function Dannelly

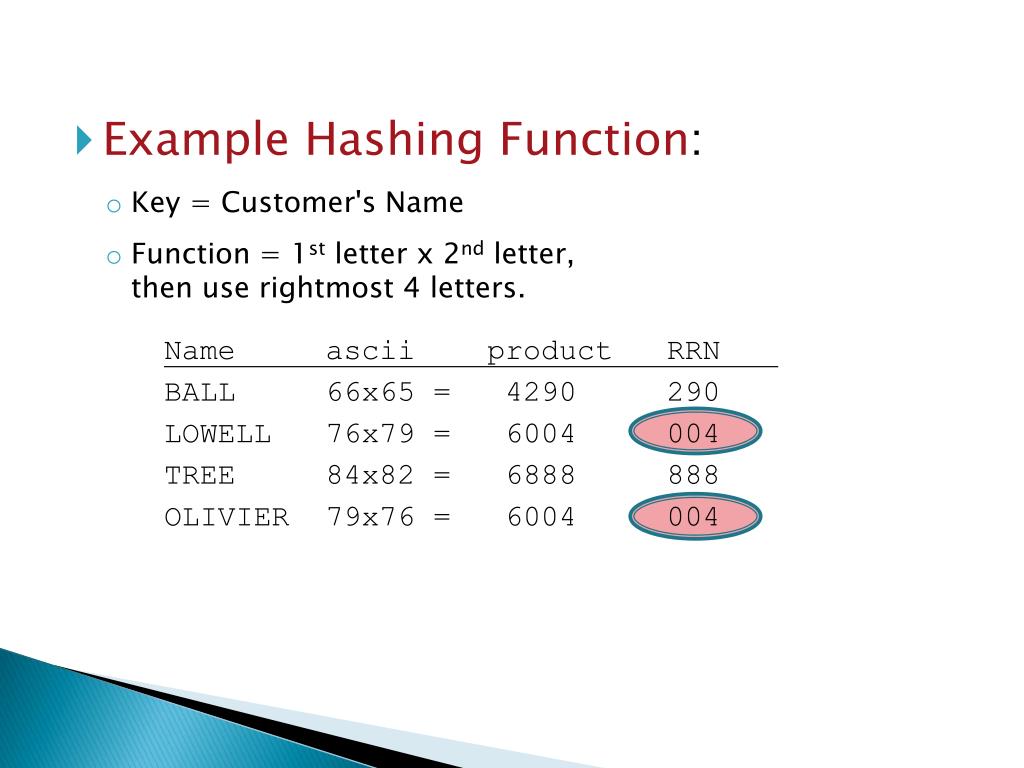

  4. Example Hashing Function: • Key = Customer's Name • Function = 1st letter x 2nd letter, then use rightmost 4 letters. Name ascii product RRN BALL 66x65 = 4290 290 LOWELL 76x79 = 6004 004 TREE 84x82 = 6888 888 OLIVIER 79x76 = 6004 004

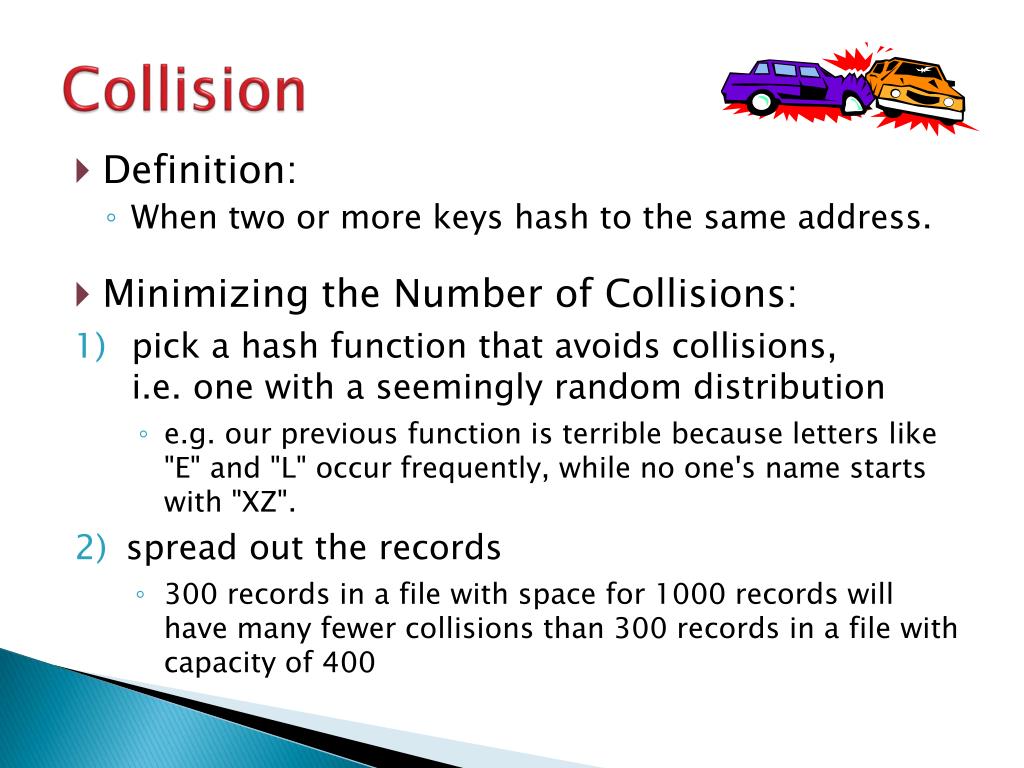

  5. Collision • Definition: • When two or more keys hash to the same address. • Minimizing the Number of Collisions: • pick a hash function that avoids collisions, i.e. one with a seemingly random distribution • e.g. our previous function is terrible because letters like "E" and "L" occur frequently, while no one's name starts with "XZ". • spread out the records • 300 records in a file with space for 1000 records will have many fewer collisions than 300 records in a file with capacity of 400

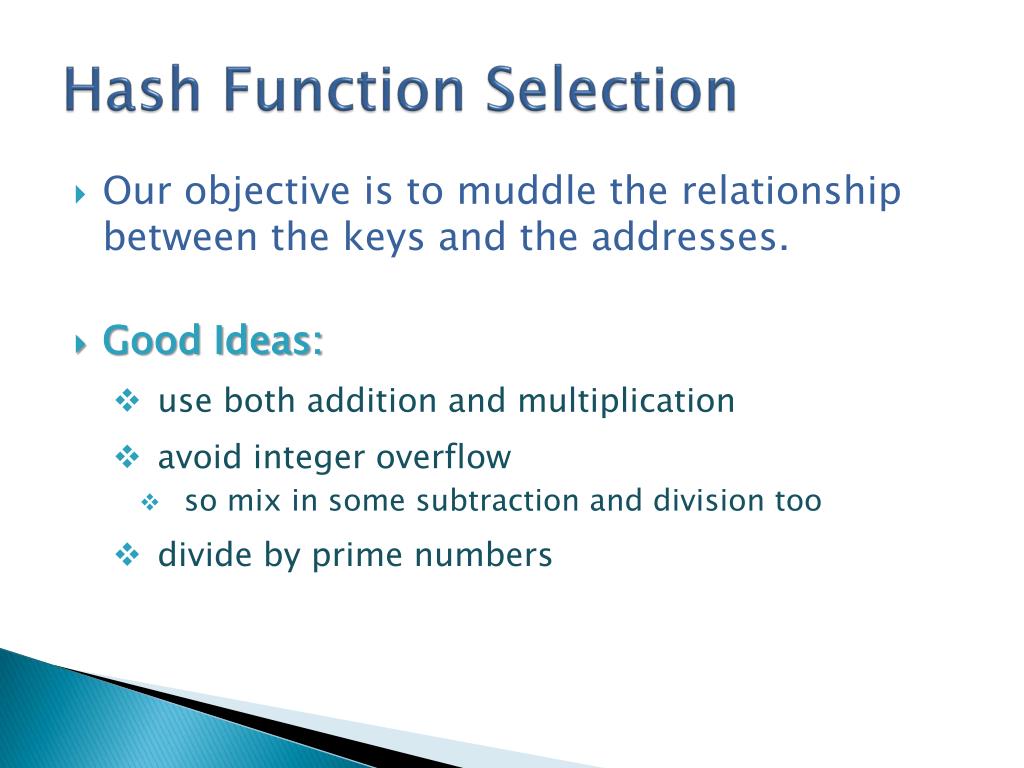

  6. Hash Function Selection • Our objective is to muddle the relationship between the keys and the addresses. • Good Ideas: • use both addition and multiplication • avoid integer overflow • so mix in some subtraction and division too • divide by prime numbers

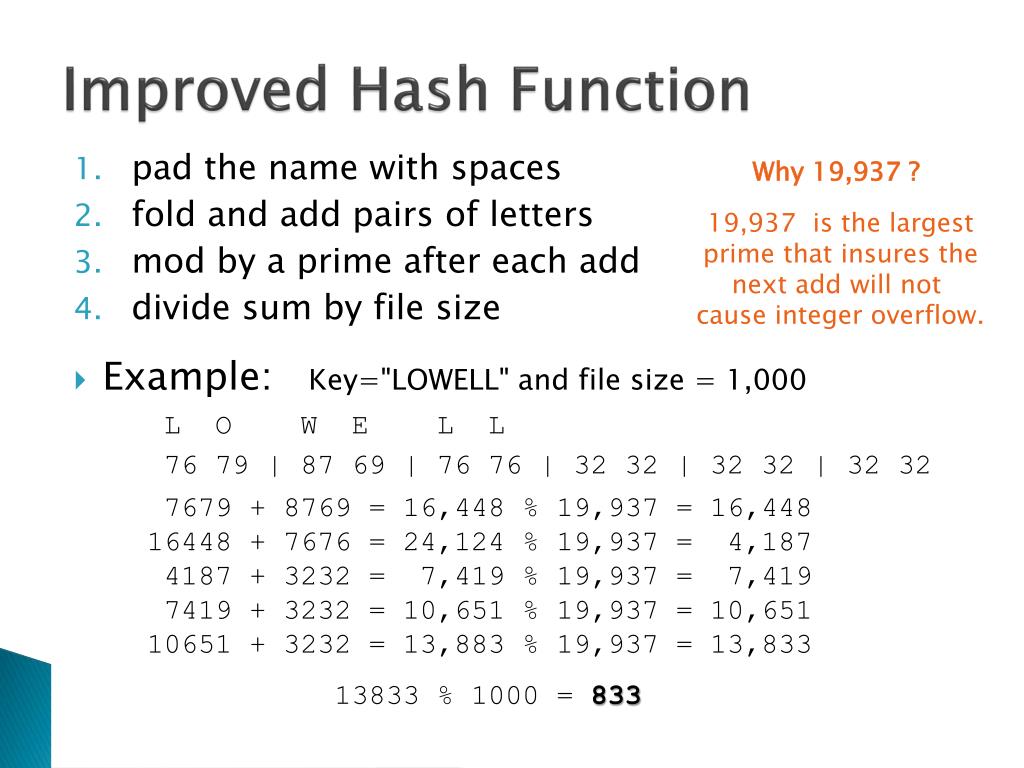

  7. Improved Hash Function Why 19,937 ? • pad the name with spaces • fold and add pairs of letters • mod by a prime after each add • divide sum by file size • Example: Key="LOWELL" and file size = 1,000 L O W E L L 76 79 | 87 69 | 76 76 | 32 32 | 32 32 | 32 32 7679 + 8769 = 16,448 % 19,937 = 16,448 16448 + 7676 = 24,124 % 19,937 = 4,187 4187 + 3232 = 7,419 % 19,937 = 7,419 7419 + 3232 = 10,651 % 19,937 = 10,651 10651 + 3232 = 13,883 % 19,937 = 13,833 13833 % 1000 = 833 19,937 is the largest prime that insures the next add will not cause integer overflow.

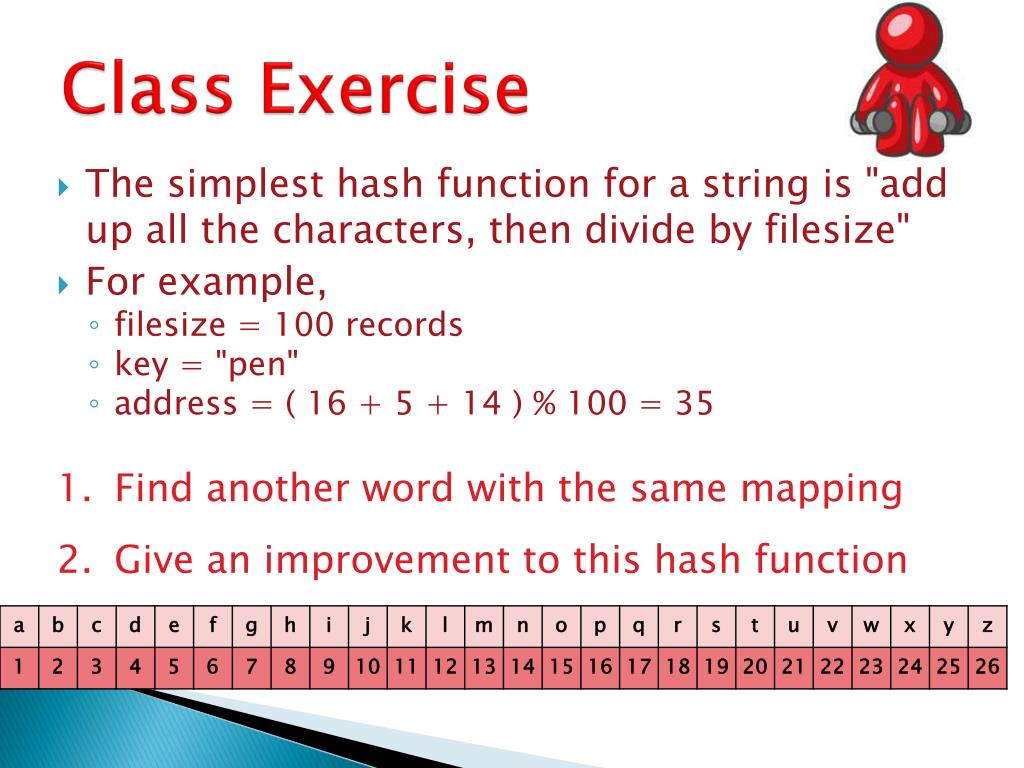

  8. Class Exercise • The simplest hash function for a string is "add up all the characters, then divide by filesize" • For example, • filesize = 100 records • key = "pen" • address = ( 16 + 5 + 14 ) % 100 = 35 • Find another word with the same mapping • Give an improvement to this hash function

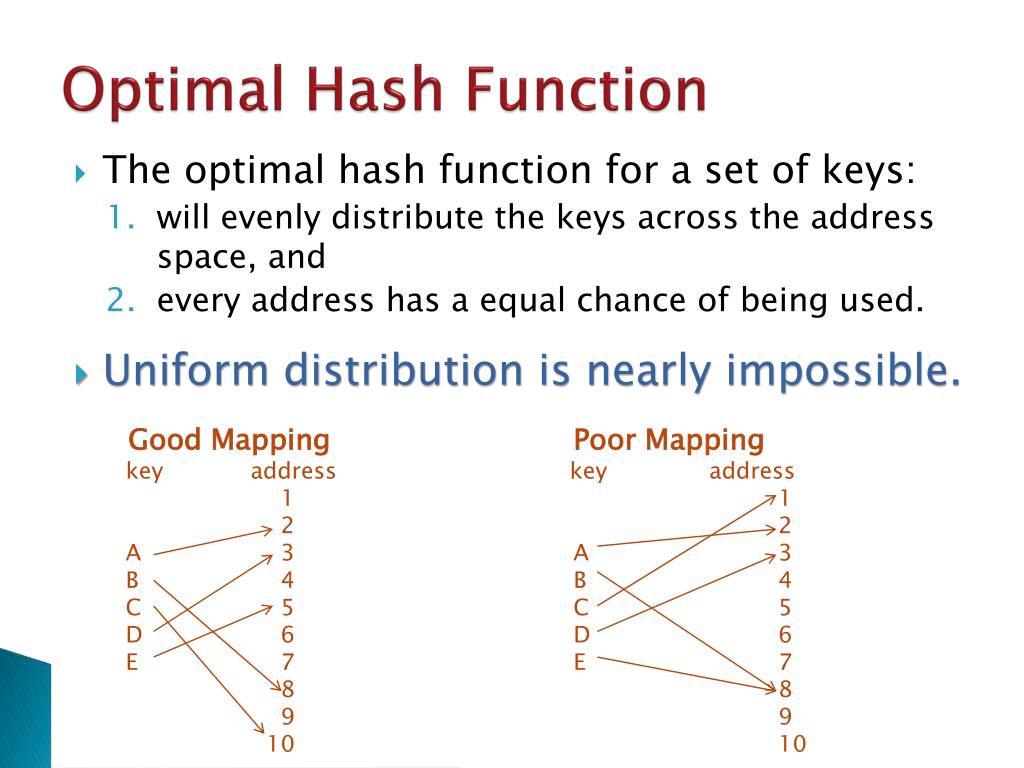

  9. Optimal Hash Function • The optimal hash function for a set of keys: • will evenly distribute the keys across the address space, and • every address has a equal chance of being used. • Uniform distribution is nearly impossible. Good Mapping Poor Mapping key address key address 1 1 2 2 A 3 A 3 B 4 B 4 C 5 C 5 D 6 D 6 E 7 E 7 8 8 9 9 10 10

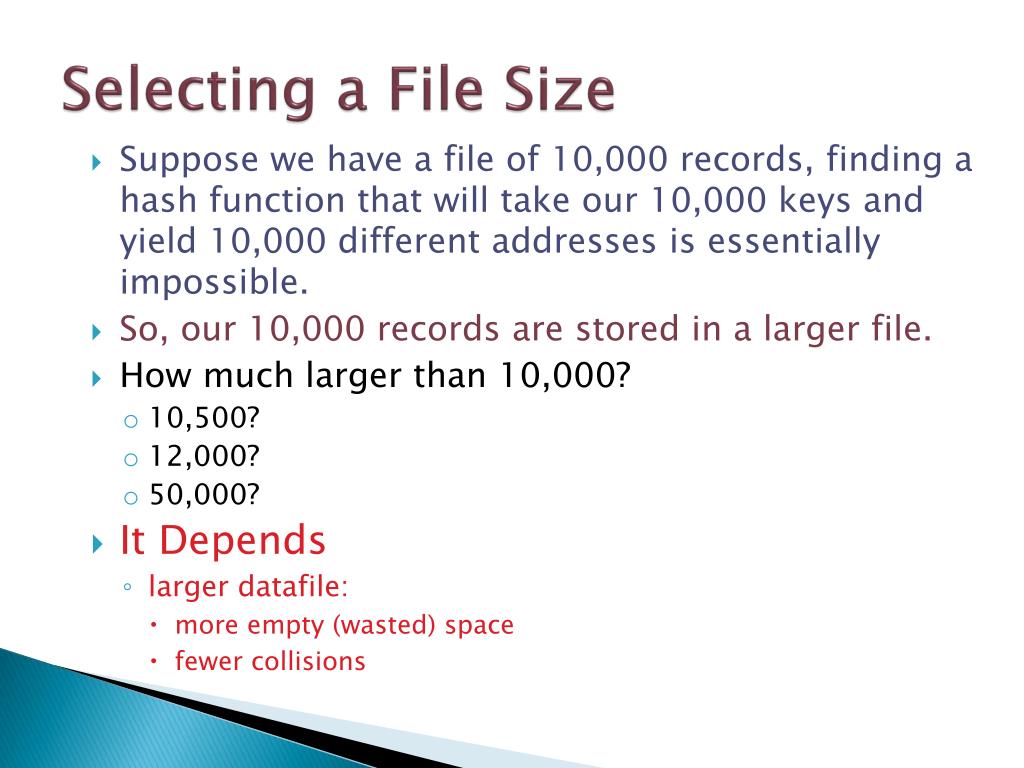

  10. Selecting a File Size • Suppose we have a file of 10,000 records, finding a hash function that will take our 10,000 keys and yield 10,000 different addresses is essentially impossible. • So, our 10,000 records are stored in a larger file. • How much larger than 10,000? • 10,500? • 12,000? • 50,000? • It Depends • larger datafile: • more empty (wasted) space • fewer collisions

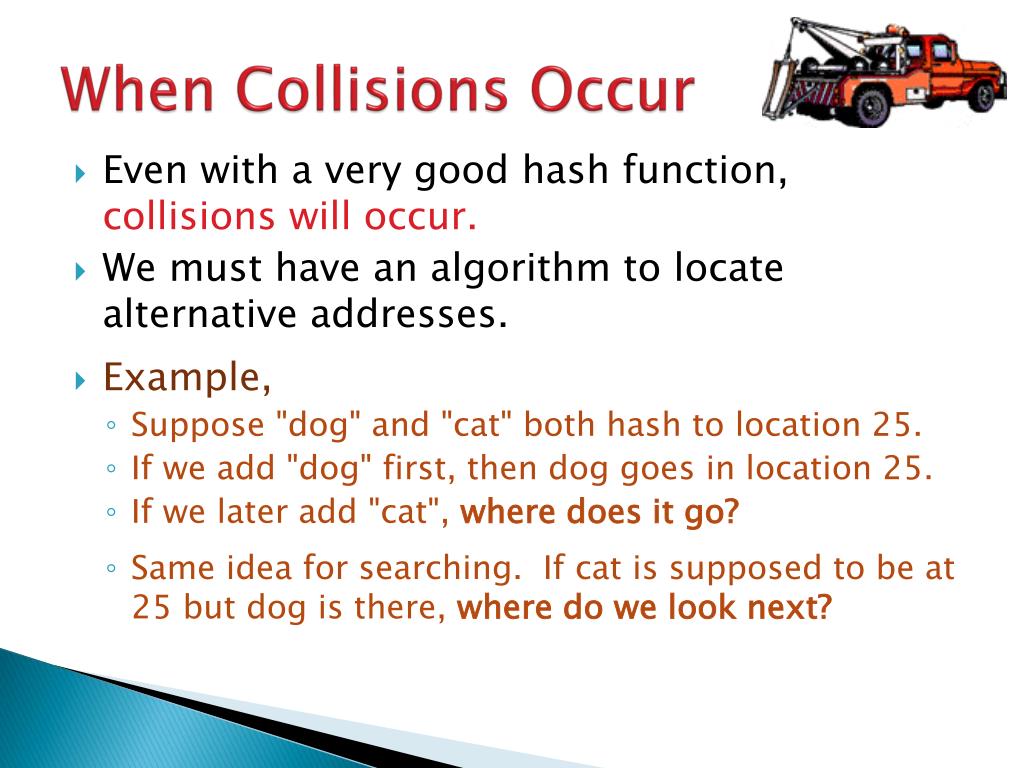

  11. When Collisions Occur • Even with a very good hash function, collisions will occur. • We must have an algorithm to locate alternative addresses. • Example, • Suppose "dog" and "cat" both hash to location 25. • If we add "dog" first, then dog goes in location 25. • If we later add "cat", where does it go? • Same idea for searching. If cat is supposed to be at 25 but dog is there, where do we look next?

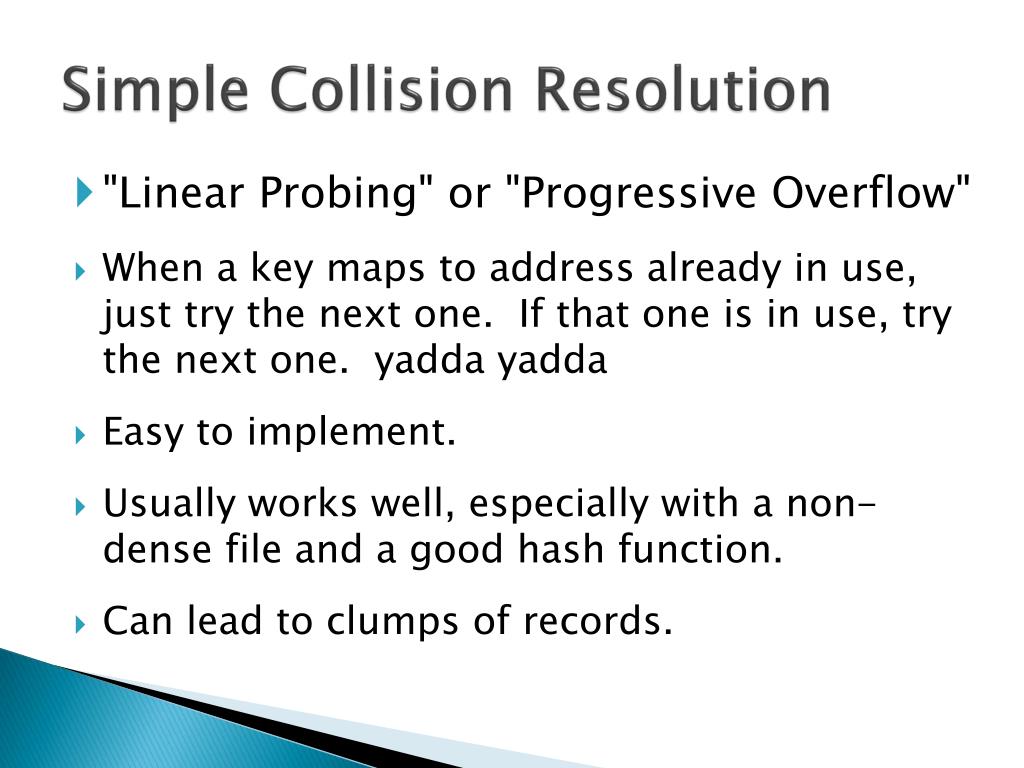

  12. Simple Collision Resolution • "Linear Probing" or "Progressive Overflow" • When a key maps to address already in use, just try the next one. If that one is in use, try the next one. yaddayadda • Easy to implement. • Usually works well, especially with a non-dense file and a good hash function. • Can lead to clumps of records.

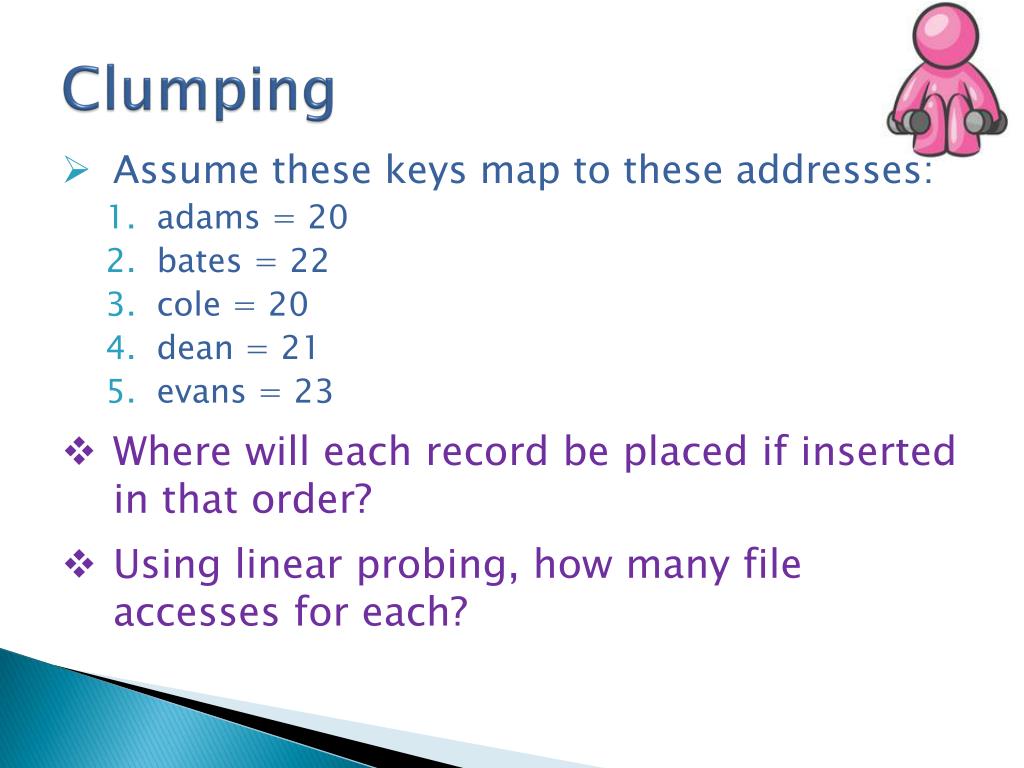

  13. Clumping • Assume these keys map to these addresses: • adams = 20 • bates = 22 • cole = 20 • dean = 21 • evans = 23 • Where will each record be placed if inserted in that order? • Using linear probing, how many file accesses for each?

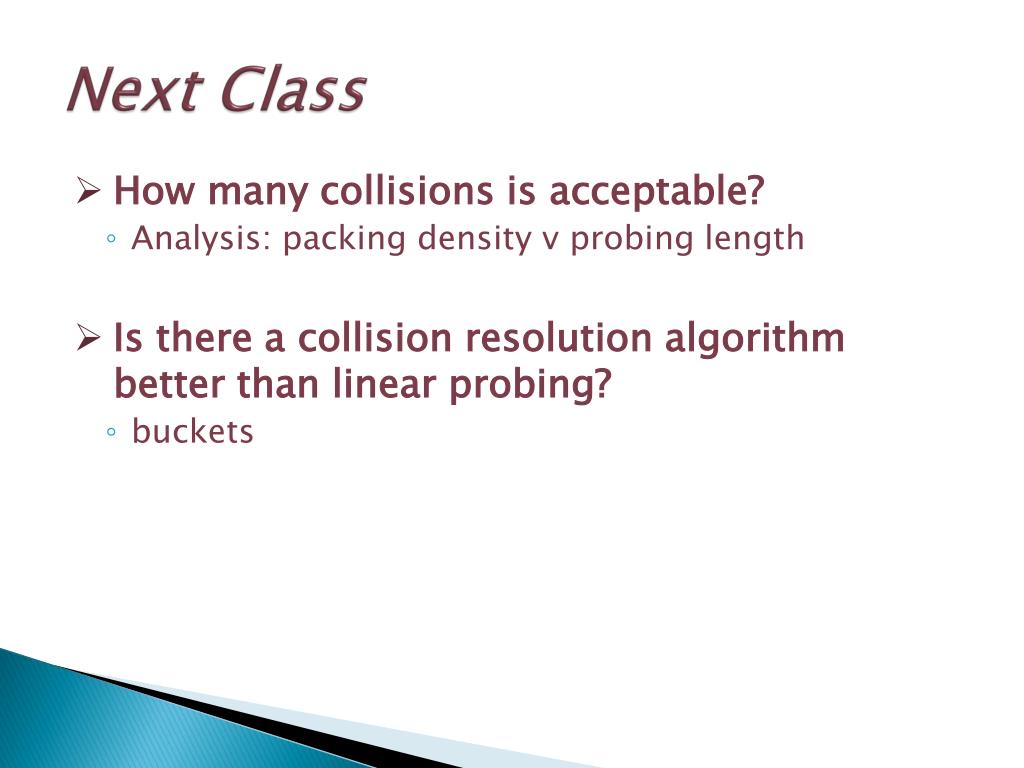

  14. Next Class • How many collisions is acceptable? • Analysis: packing density v probing length • Is there a collision resolution algorithm better than linear probing? • buckets
