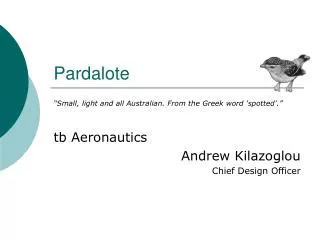

  1. Pardalote “Small, light and all Australian. From the Greek word ‘spotted’.” tb Aeronautics Andrew Kilazoglou Chief Design Officer

  2. TBA Team • Tony Denham • Carl Fester • Sarah FitzGerald • Derrick Ho • Jeremy Sequeira • Nick Thompson • Chak Yu

  3. Mission Requirements

  4. Pardalote

  5. Pardalote Design

  6. Internal Layout

  7. Weight

  8. Performance

  9. Performance • Normal Mission • Take Off Weight= 660kg (MTOW); 90kg Pilot, 90kg Observer, 50kg payload, Full Fuel. • Range Covered= 251.53 km, Elapsed Time= 2.19hrs • Fuel Consumed= 46.23kg

  10. Propulsion • Jabiru 2200 H/O 4 Cylinder • 80 HP @ 3300 RPM • 59 kg • Clockwise Rotation • Maximum Torque 210 Nm @ 2500 RPM

  11. Custom Fixed Pitch Propeller • 1.2 m diameter • Laminated Wood Construction • 8.5 kg (over estimated) • Blade Twist: 70°-26° (Root to Tip) • Pitch: 0° • Ideal Max Operating Speed imposed: 2700 RPM • Aerofoil Section: Clark Y

  12. Idealisation and Criteria • Idealised for Cruise Conditions: • Reach Search Area faster and with less fuel • Loiter flight is still relatively fuel efficient • Enables more fuel for loiter and or better range

  13. Critical Conditions • Mt Hotham Aerodrome at 4260ft • Loiter Observation Flight at 1500ft AGL

  14. Drag Estimates

  15. Propeller Results

  16. Best Range Condition • Best range speed • Low RPM: 13L/hr • T ≈ D (ideal for cruise) • Qprop< Qengine • Operates at near ideal J • High efficiency • Idealised successfully

  17. Flight Conditions • Cruise flight = high efficiency • Takeoff/Climb conditions have high excess thrust • Flight possible at high altitude (Mt Hotham) • Powered descent (hence glide descent) possible • Sufficient loiter excess thrust = manoeuvring possible • Highest RPM = 2700 RPM (15L/hr)

  18. Engine Torque and Required Propeller Torque Comparison

  19. Fuel System • AVGAS100/130LL (ρ = 0.7) or MOGAS (ρ =0.73) • Fuel: 74 kg (104 L) in 0.10404 m3 • Fuel to be stored within the central wing cavity, above and aft of the cockpit, forward of the engine

  20. Fuel Cell • 0.17 x 0.7 x 0.848 m • 2.5mm nitrile rubber fuel cell • Autoclave cured seams for durability and strength • Externally reinforced nitrile rubber nipples • Aluminium retaining shell 0.201 x 0.76 x 0.95 m

  21. Fuel tank • Fuel sump 0.25% of fuel cell volume • Drainage nozzle • Fuel engine line

  22. Fuel Inlet • 0.05 m diameter • Also acts as ventilation shaft

  23. Engine Feed • Mechanical fuel pump • Fuel intake nozzle fitted with a weighted flop tube

  24. Fuel System Layout

  25. THE MODEL

  26. Any Questions?

  27. Extra Mission • High Altitude, payload drop • Take Off Weight= 660kg MTOW; 90kg Pilot, 90kg Observer, 100kg payload, Full Fuel. • Range Covered= 519.34 km, Elapsed Time= 3.96hrs

  28. Folding Wing

  29. Mission Contours • Specific Excess Power

  30. Mission Contours • Range

  31. Mission Contours • Endurance
