  1. Cookie Board Designed by Officially sold on

  2. Agenda Cookie Overview Product Differentiation Cooperative Marketing Cookie Arduino-compatible ARM Prototyping Platform 2

  3. What is Cookie? Arduino-compatible • Open source and Arduino form-factor fully compatible ARM • 32-bit ARM Cortex MCU based Cookie Prototyping • Hardware / Software building blocks based on a standard form Platform • A community for sharing & using the building blocks Cookie Arduino-compatible ARM Prototyping Platform 3

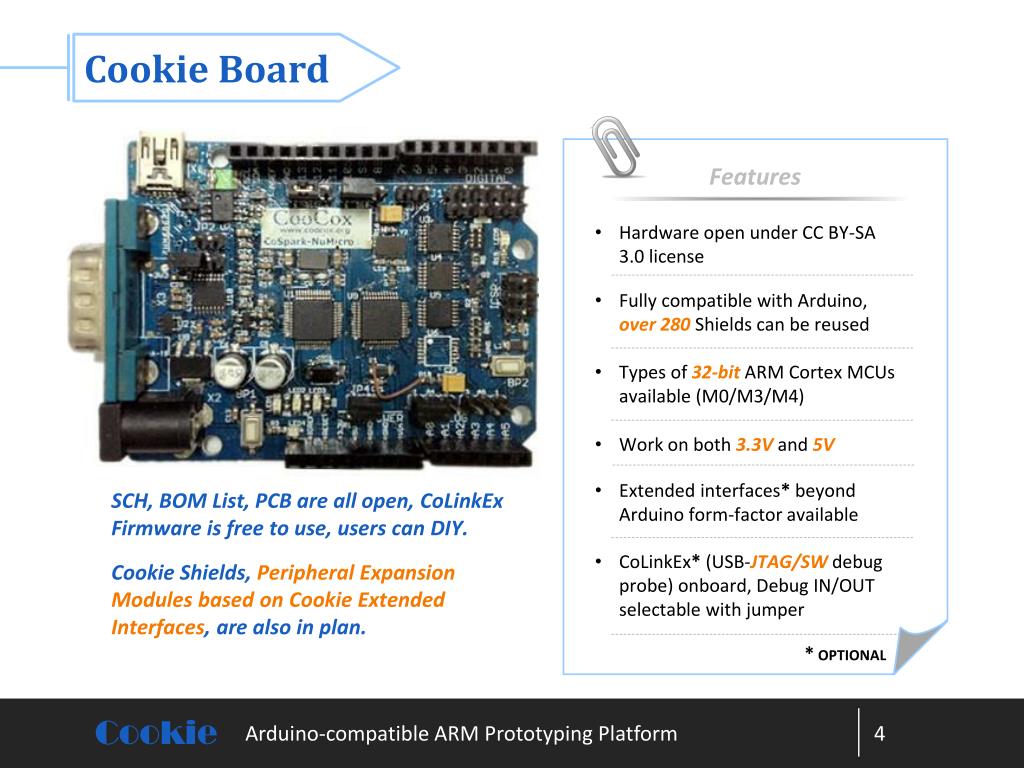

  4. Cookie Board Features • Hardware open under CC BY-SA 3.0 license • Fully compatible with Arduino, over 280 Shields can be reused • Types of 32-bit ARM Cortex MCUs available (M0/M3/M4) • Work on both 3.3V and 5V • Extended interfaces* beyond Arduino form-factor available SCH, BOM List, PCB are all open, CoLinkEx Firmware is free to use, users can DIY. Cookie Shields, Peripheral Expansion Modules based on Cookie Extended Interfaces, are also in plan. • CoLinkEx*(USB-JTAG/SW debug probe) onboard, Debug IN/OUT selectable with jumper * OPTIONAL Cookie Arduino-compatible ARM Prototyping Platform 4

  5. Highlights of Cookie DIY < 20USD Low-cost Easy to learn for beginners; Reduce time-to-market for product developers Enormous building blocks Easy-to-use Rapid Prototyping CooCox users from all over the world to communicate & share Com-munity Cookie Arduino-compatible ARM Prototyping Platform 5

  6. What Makes Cookie Excellent & Different?

  7. Product Differentiation 7 Raspberry Pi Toys for linuxplayers Cookie Entrance of Embedded Development Arduino Toys for everybody Orientation Hardware Software Applications Community

  8. Product Differentiation 8 MCU Raspberry Pi Cookie 32-bit ARM11 700MHz Arduino 32-bit ARM Cortex MCU ≥ 50MHz 8-bit AVR MCU 8MHz / 16MHz Orientation HardwareSoftware Applications Community

  9. Product Differentiation 9 Interfaces beyond Arduino form-factor like Ethernet, CAN, etc. Arduino Extended Interfaces (OPTIONAL) Cookie CoLinkEx(OPTIONAL) USB-JTAG/SWdebug probe onboard, Debug IN/OUT selectable with jumper Over 280 Shields availablebased on the unified Arduino form-factor Orientation HardwareSoftware Applications Community

  10. Product Differentiation 10 Arduino Cookie Raspberry Pi Programming language Development tools Reusable code Orientation Hardware SoftwareApplications Community

  11. CooCoxTool kit is more adequate for developing products! CoIDE CoCenter CoOS Full-functional IDE Software Manager RTOS • CooCox tool kit is a complete set of tool chain. • CoIDEsupports debugging while Arduino does not. CooCox Drivers & Examples CoLinkEx JTAG/SW Debug adapter CoAssistant CoFlash Register Assistant Flash Programmer CoX Unified Peripheral Interface Orientation Hardware SoftwareApplications Community

  12. CoX expands the application field of peripheral drivers! • Standard: • USB 2.0 • Standard: • CoX Fan Plug and play via USB interface Standard Interface Drivers Code MCU Reusable across different MCUs via CoX interface Orientation Hardware SoftwareApplications Community

  13. Product Differentiation 13 Arduino Applications (can also be realized with Cookie): Click the pictures to see the videos on YouTube. Arduino Air Drums LED cube 8x8x8 demo Wireless Arduino Powered Chess Vehicle with a wireless steering wheel Orientation Hardware Software ApplicationsCommunity

  14. Product Differentiation 14 Cookie Application --- using Hardware Building Blocks in Arduino form-factor ❶ ❷ ❺ ❹ ❸ Cookie NuMicro Board Arduino Ethernet Shield Motor Control Shield for Arduino LCD Keypad Shield Two motors connected to Shield 3 Keypad controlled motor demo Press the ‘UP’ key, motor speed will increase. Orientation Hardware Software ApplicationsCommunity

  15. Just 4 steps to build the Cookie application! 1. Select Device 2. Add&configurecode components 3. Build 4. Debug or download Orientation Hardware Software ApplicationsCommunity

  16. Product Differentiation 16 General accesses of sharing Photos Videos Posts Forum Official promoters / Users Blog Orientation Hardware Software Applications Community

  17. CoIDE has a more efficient way of sharing within it. Component Platform – Upload with just 5 steps Next version >>>>>>>>>>>>> Simpler sharing by uploading selected files within a compiled CoIDE project directly Orientation Hardware Software Applications Community

  18. A sound management system with no need of secondary handle. Component Platform Click to enter components page and… Comments Share Favorite Orientation Hardware Software Applications Community

  19. Get whatever you need for development from the community! Abundant documents & reusable code from CooCox as well as community members Experts & Hobbyists around the world to communicate and share Free & Timely technical support through Forum and E-mail Orientation Hardware Software Applications Community

  20. Element14 – A Global Online Shopfor Cookie

  21. Development Roadmap for Cookie Boards • September • Later on • July • Cookie TI (M4) • Cookie More • Cookie Shields • Cookie NXP (LPC1100) • Cookie ST (STM32F103RbT6) • Cookie NuMicro (M051) • Cookie NuMicro Board is in production; • Cookie ST Board is in design. Cookie Arduino-compatible ARM Prototyping Platform 21

  22. Cookie NuMicro Board Features • MCU: • M0516LBNLQFP48 • operates at a 50 MHzfrequency • Flash memory up to 64 Kbytes and SRAM up to 4 Kbytes • CoLinkExonboard: • JTAG/SW debug and power supply via one USB port • External debug supported • ARM Cortex-M0/M3/M4 chips supported * Cookie NuMicro Board has no Extended Interfaces. Cookie Arduino-compatible ARM Prototyping Platform 22

  23. Take Pre-orders Now! • Reference: • Arduino UNO – $25 • Raspberry Pi – $25 for Model A, $35 for Model B • A stand-alone CoLinkEx – $19.9 • Take pre-orders with less money and half freight! Cookie Arduino-compatible ARM Prototyping Platform 24

  24. Come take a bite! www.coocox.org Market@coocox.com forum.coocox.org
