Presentation Transcript
mitochondria
Mitochondria
  • outer membrane relatively permeable
  • inner membrane permeable only to those things with specific transporters
    • Impermeable to NADH and FADH2
    • Permeable to pyruvate
  • Compartmentalization
    • Kreb's and β-oxidation in matrix
    • Glycolysis in cytosol
most energy from redox
Most energy from Redox
  • electrons during metabolic reactions sent to NAD and FAD
    • Glycolysis
      • In cytosol
      • produces 2 NADH
    • Pyruvate dehydrogenase reaction
      • In mitochondrial matrix
      • 2 NADH / glucose
    • Krebs
      • In mitochondrial matrix
      • 6 NADH and 2 FADH2 / glucose
electron transport chain

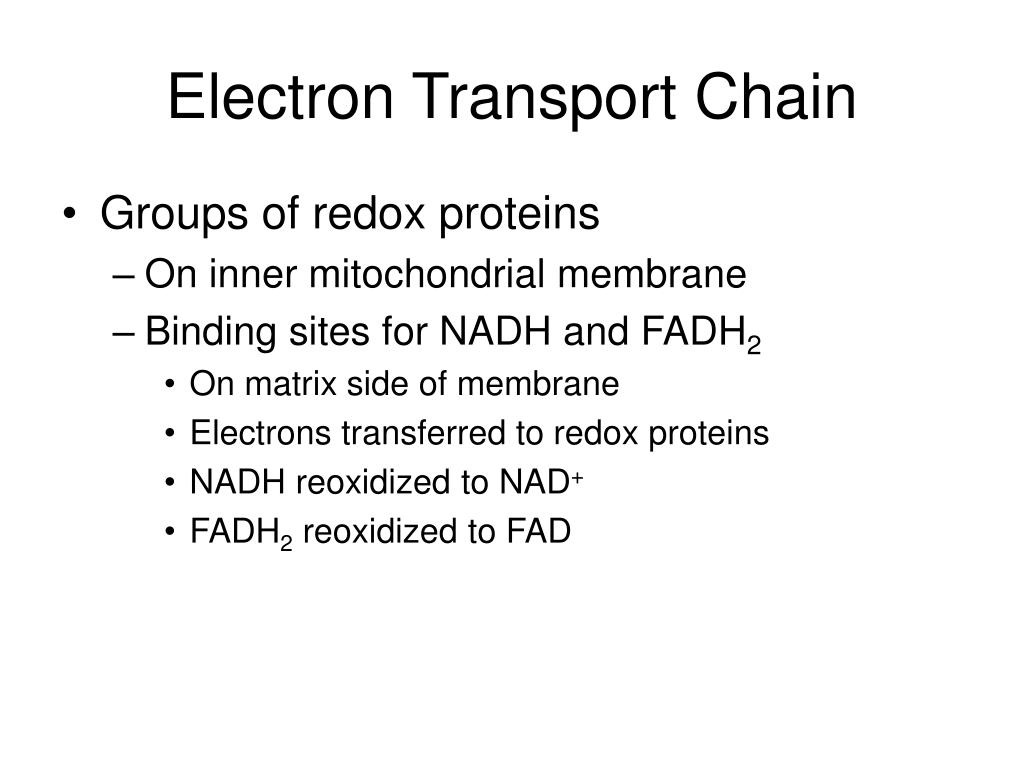

Electron Transport Chain
  • Groups of redox proteins
    • On inner mitochondrial membrane
    • Binding sites for NADH and FADH2
      • On matrix side of membrane
      • Electrons transferred to redox proteins
      • NADH reoxidized to NAD+
      • FADH2 reoxidized to FAD
4 complexes
4 Complexes
  • proteins in specific order
  • Transfers 2 electrons in specific order
    • Proteins localized in complexes
      • Embedded in membrane
      • Ease of electron transfer
    • Electrons ultimately reduce oxygen to water
      • 2 H+ + 2 e- + ½ O2 -- H2O
complex 1
Complex 1
  • Has NADH binding site
    • NADH reductase activity
      • NADH - NAD+
    • NADH ---> FMN--->FeS---> ubiquinone
    • ubiquinone ---> ubiquinone H2
    • 4 H+ pumped/NADH
complex ii

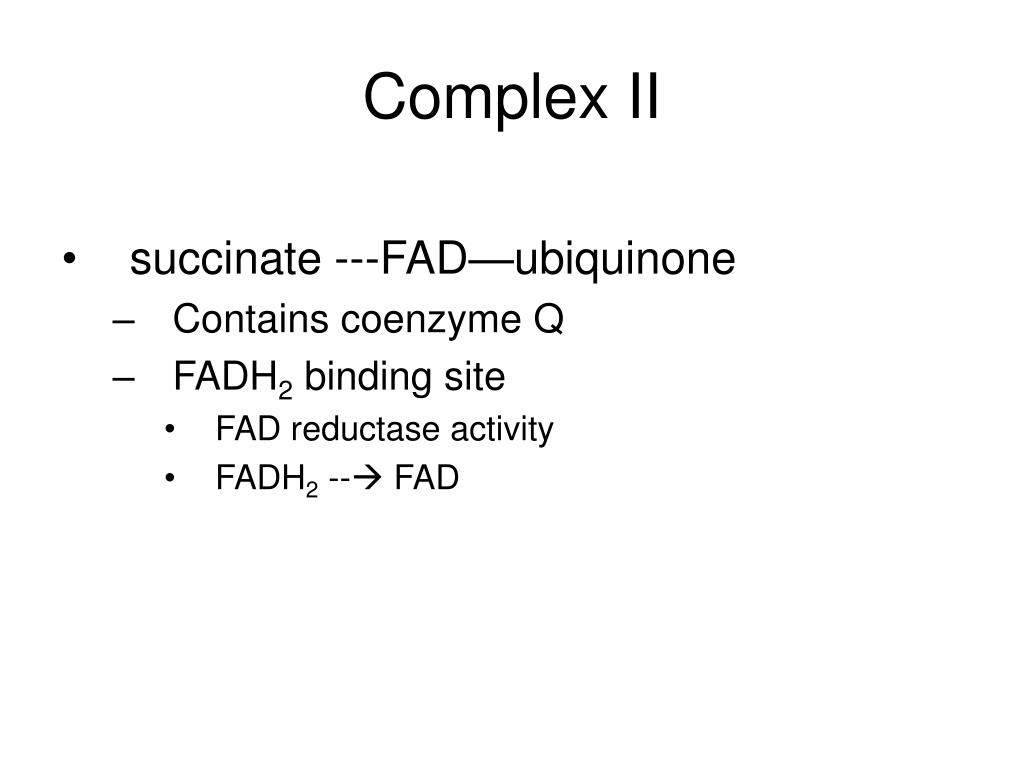

Complex II
  • succinate ---FAD—ubiquinone
    • Contains coenzyme Q
    • FADH2 binding site
      • FAD reductase activity
      • FADH2 -- FAD
complex iii

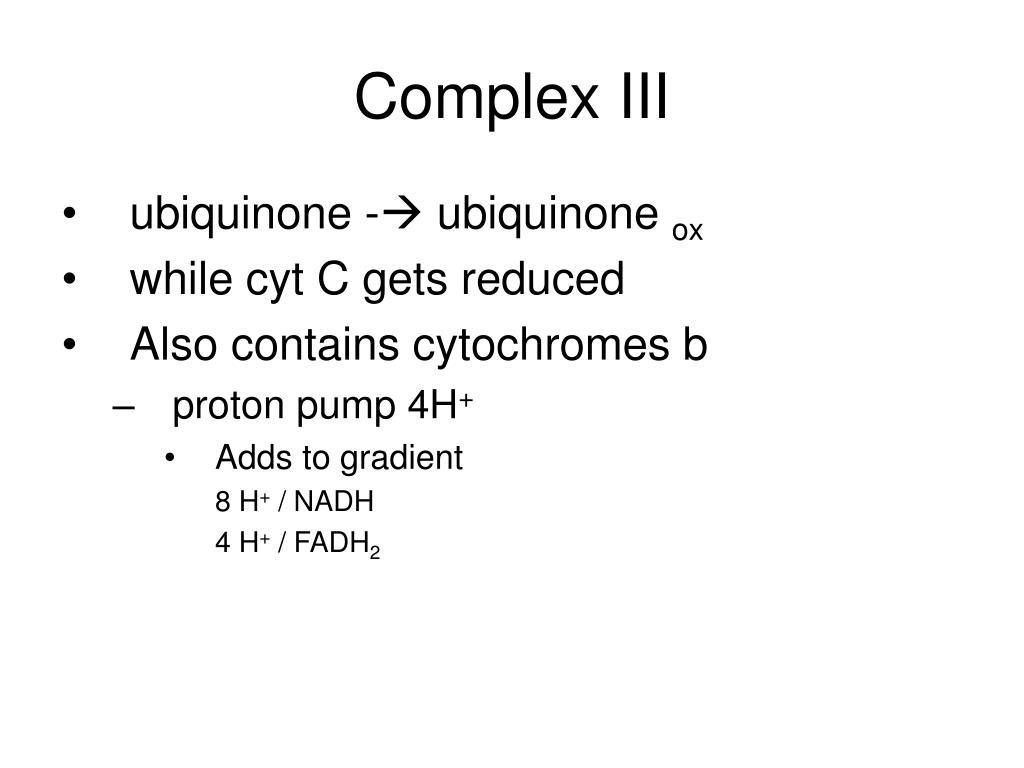

Complex III
  • ubiquinone - ubiquinone ox
  • while cyt C gets reduced
  • Also contains cytochromes b
    • proton pump 4H+
      • Adds to gradient

8 H+ / NADH

4 H+ / FADH2

complex iv
Complex IV
  • reduction of oxygen
  • cytochrome oxidase
  • cyt a+a3 red ---> oxidized state
  • oxygen ---> water
    • 2 H+ + 2 e- + ½ O2 -- 2 H2O
    • transfers e- one at a time to oxygen
  • Pumps 2H+ out
    • Total of 10 H+ / NADH
    • Total of 6 H+ / FADH2
totals
Totals
  • Proton gradient created as electrons transferred to oxygen forming water

10 H+ / NADH

6 H+ / FADH2

generation of atp

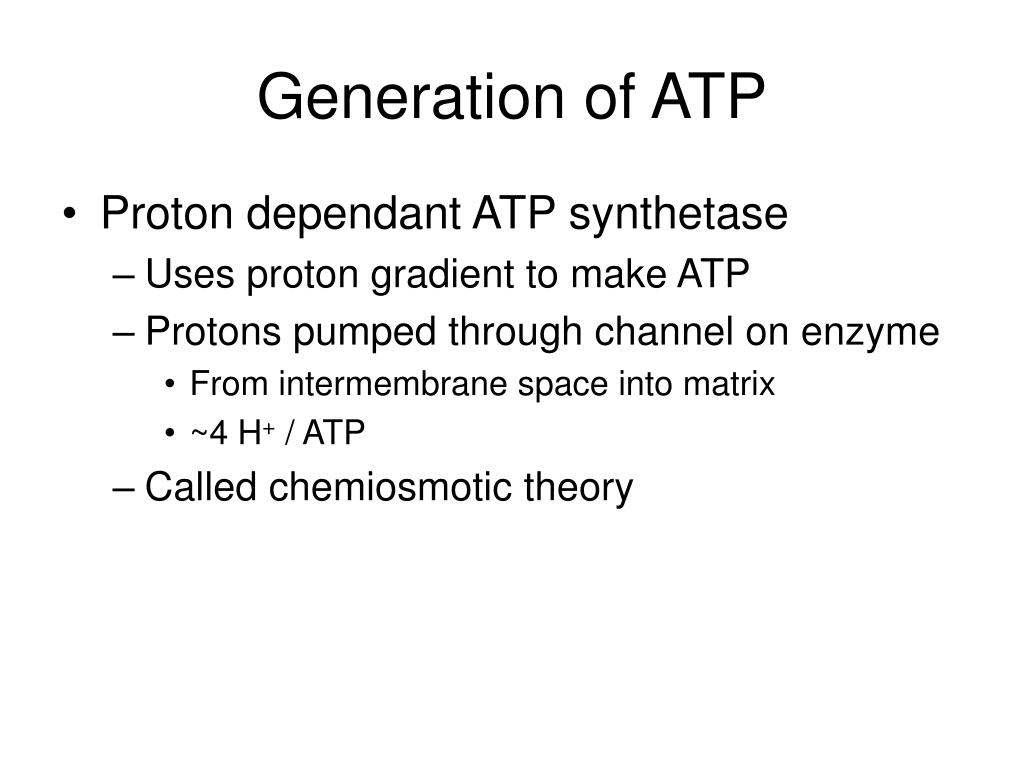

Generation of ATP
  • Proton dependant ATP synthetase
    • Uses proton gradient to make ATP
    • Protons pumped through channel on enzyme
      • From intermembrane space into matrix
      • ~4 H+ / ATP
    • Called chemiosmotic theory
totals17

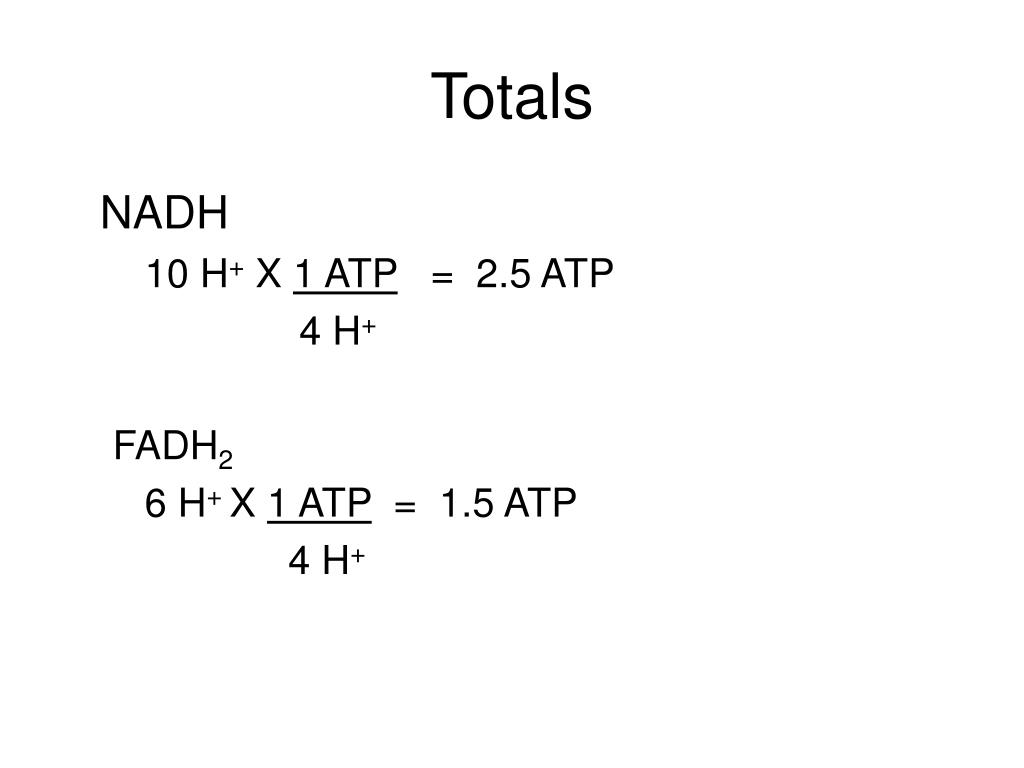

Totals

NADH

10 H+ X 1 ATP = 2.5 ATP

4 H+

FADH2

6 H+ X 1 ATP = 1.5 ATP

4 H+

total atp from mitochondrial matrix
Total ATP from mitochondrial matrix
  • Pyruvate dehydrogenase
    • NADH ……………………………….2.5 ATP
  • Krebs

3 NADH X 2.5 ATP/NADH ……….7.5 ATP

FADH2 X 1.5 ATP / FADH2……….1.5 ATP

GTP X 1 ATP / GTP ……………..1.0 ATP

(from a separate reaction)

Total …………….12.5 ATP

(Per glucose = X 2 = 25 ATP)

what about nadh from glycolysis
What about NADH from glycolysis?
  • NADH made in cytosol
  • Can’t get into matrix of mitochondrion
  • 2 mechanisms
    • In muscle and brain
      • Glycerol phosphate shuttle
    • In liver and heart
      • Malate / aspartate shuttle
glycerol phosphate shuttle
Glycerol Phosphate shuttle
  • http://courses.cm.utexas.edu/jrobertus/ch339k/overheads-3/ch19_glycerol-shuttle.jpg
glycerol phosphate shuttle21
Glycerol phosphate shuttle
  • In muscle and brain
  • Each NADH converted to FADH2 inside mitochondrion
    • FADH2 enters later in the electron transport chain
    • Produces 1.5 ATP
total atp per glucose in muscle and brain
Total ATP per glucose in muscle and brain
  • Gycerol phosphate shuttle
    • 2 NADH per glucose - 2 FADH2
    • 2 FADH2 X 1.5 ATP / FADH2……….3.0 ATP
    • 2 ATP in glycoysis ……………………2.0 ATP
    • From pyruvate and Krebs
      • 12.5 ATP X 2 per glucose ……………..25.0 ATP

Total = 30.0 ATP/ glucose

malate aspartate shuttle
Malate – Aspartate Shuttle
  • http://courses.cm.utexas.edu/emarcotte/ch339k/fall2005/Lecture-Ch19-2/Slide14.JPG
malate aspartate shuttle in cytosol
Malate – Aspartate Shuttlein cytosol
  • In liver and heart
  • NADH oxidized while reducing oxaloacetate to malate
    • Malate dehydrogenase
  • Malate crosses membrane
malate aspartate shuttle in matrix
Malate – Aspartate Shuttlein matrix
  • Malate reoxidized to oxaloacetate
    • Malate dehydrogenase
    • NAD+ reduced to NADH
  • NADH via electron transport yields 2.5 ATP

Mlate – Aspartate Shuttlein cytosol

total atp per glucose in liver and heart
Total ATP per glucose in liver and heart
  • Malate – Aspartate Shuttle
    • 2 NADH per glucose - 2 NADH
    • 2 NADH X 2.5 ATP / NADH…………5.0 ATP
    • 2 ATP from glycolysis………………..2.0 ATP
    • From pyruvate and Krebs
      • 12.5 ATP X 2 per glucose ……………..25.0 ATP

Total = 32.0 ATP/ glucose

summary

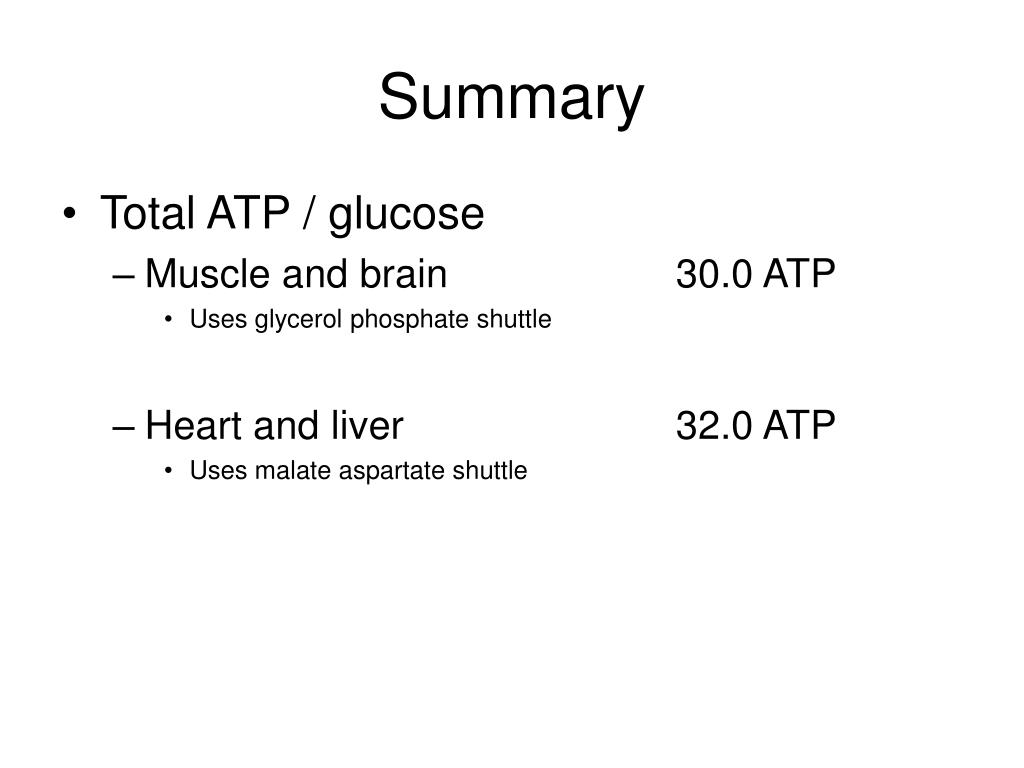

Summary
  • Total ATP / glucose
    • Muscle and brain 30.0 ATP
      • Uses glycerol phosphate shuttle
    • Heart and liver 32.0 ATP
      • Uses malate aspartate shuttle
