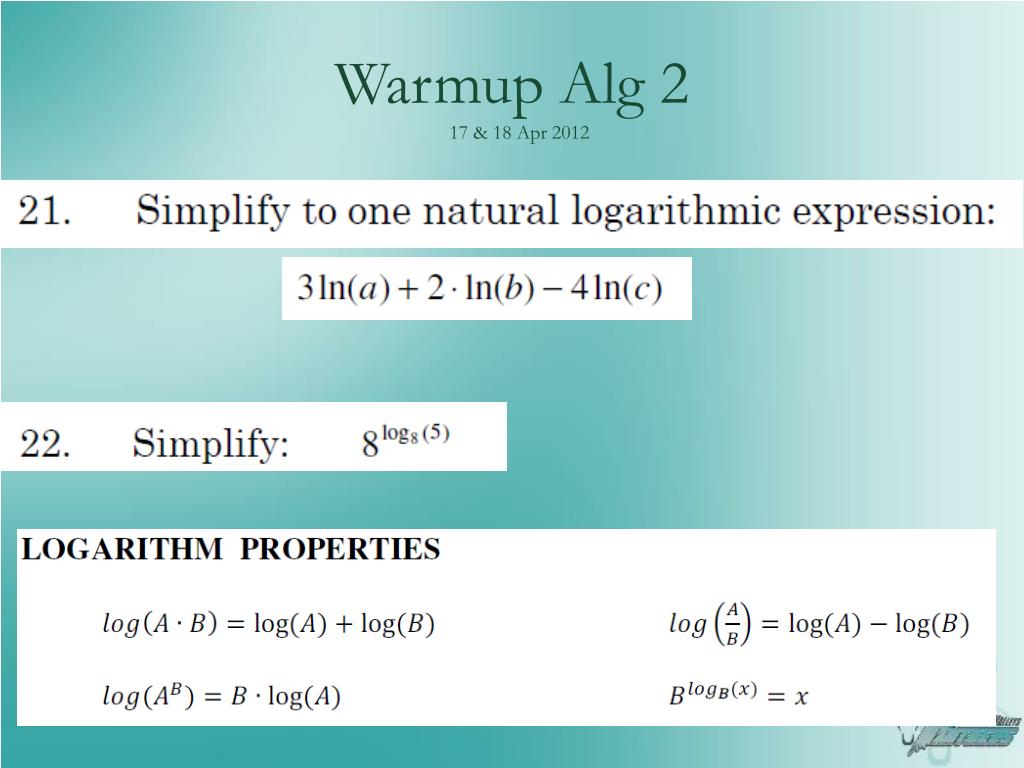

WarmupAlg 2 17 & 18 Apr 2012

• Don't forget about resources on mrwaddell.net

• Section 9.2: Parabolas again!

• Vertex

• Axis of symmetry

• Directrix

• Up, down, left and right

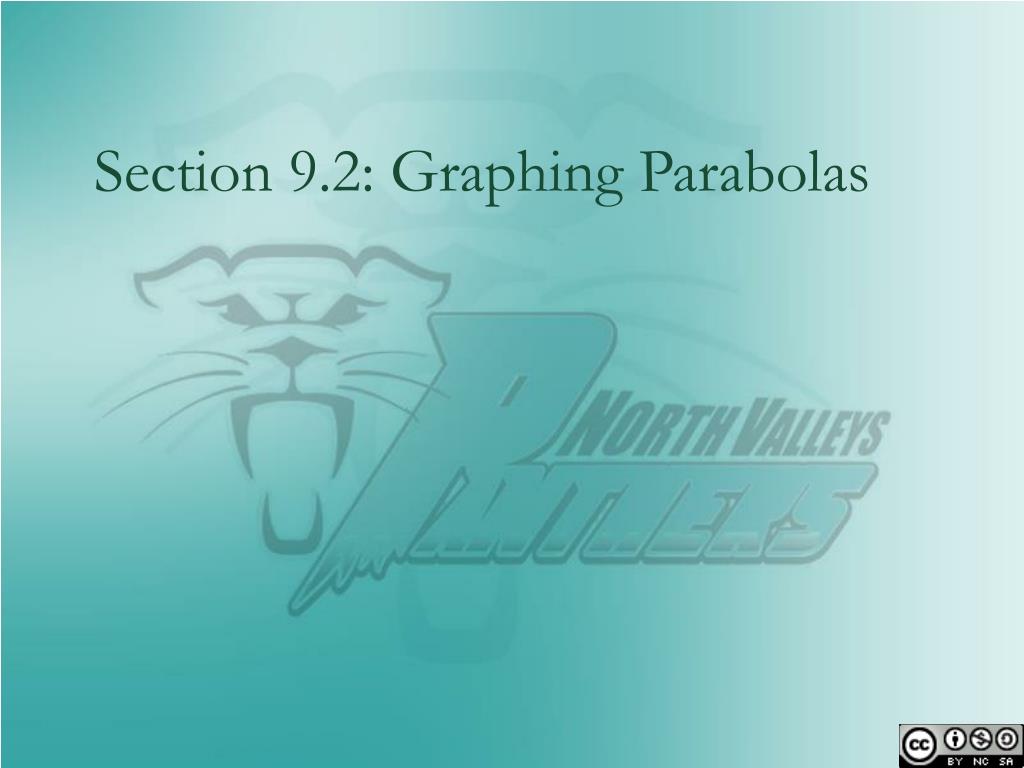

### Section 9.2: Graphing Parabolas

A function with a SINGLE “squared” term

• Parabola

• Focus

• Directrix

• Vertex

• Axis of symmetry

Axis of Symmetry

Focus

Distances are

the same!

Vertex

Directrix

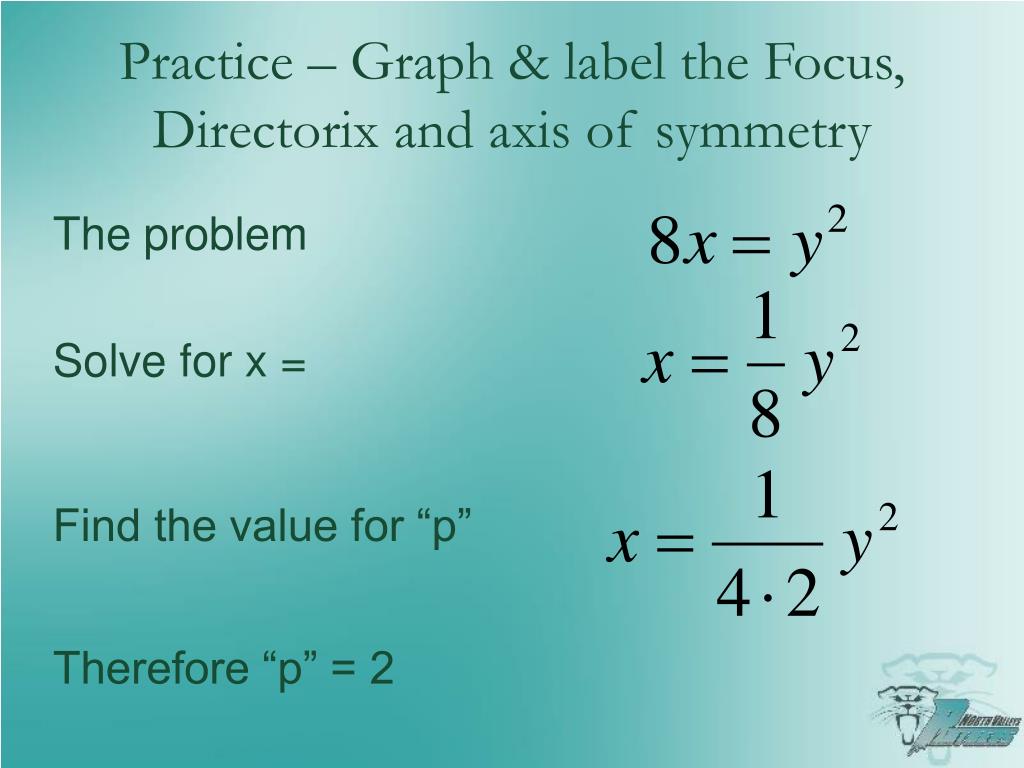

Practice – Graph & label the Focus, Directorix and axis of symmetry

The problem

Solve for x =

Find the value for “p”

Therefore “p” = 2

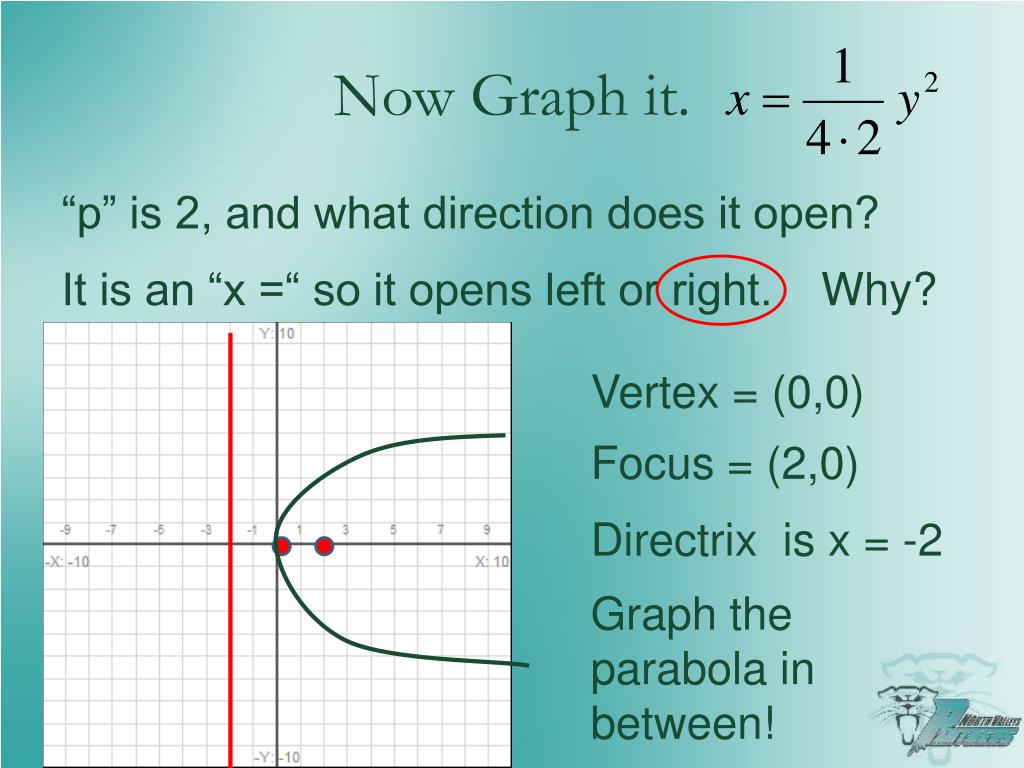

• “p” is 2, and what direction does it open?

It is an “x =“ so it opens left or right.

Why?

Vertex = (0,0)

Focus = (2,0)

Directrixis x = -2

Graph the parabola in between!

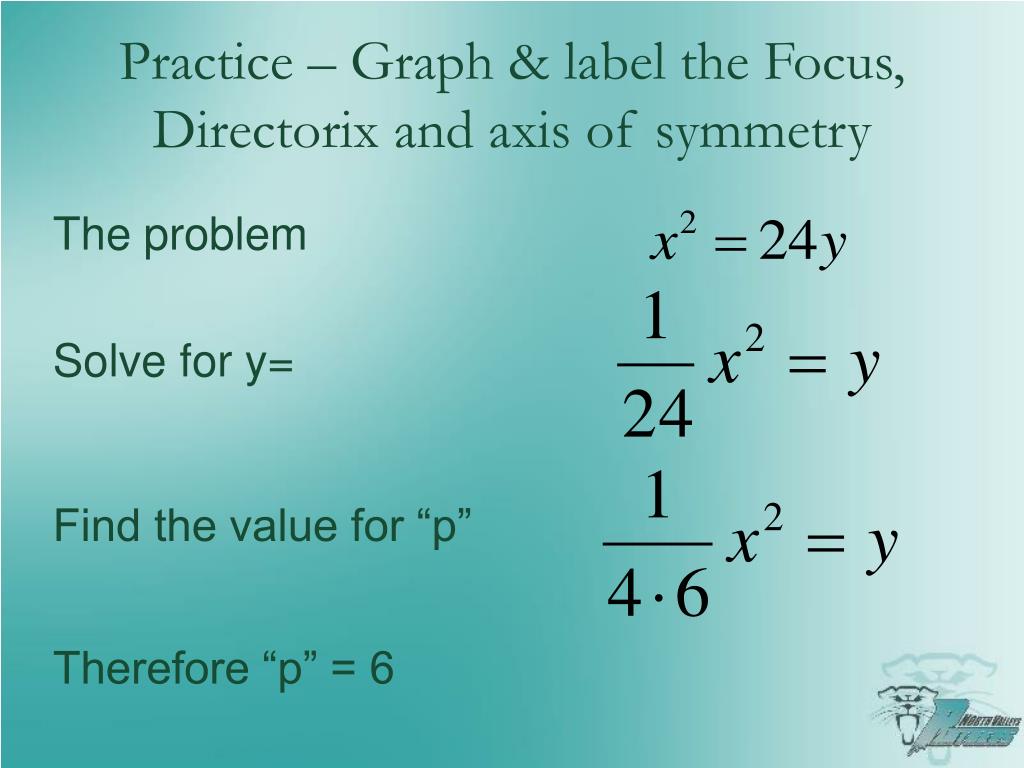

Practice – Graph & label the Focus, Directorix and axis of symmetry

The problem

Solve for y=

Find the value for “p”

Therefore “p” = 6

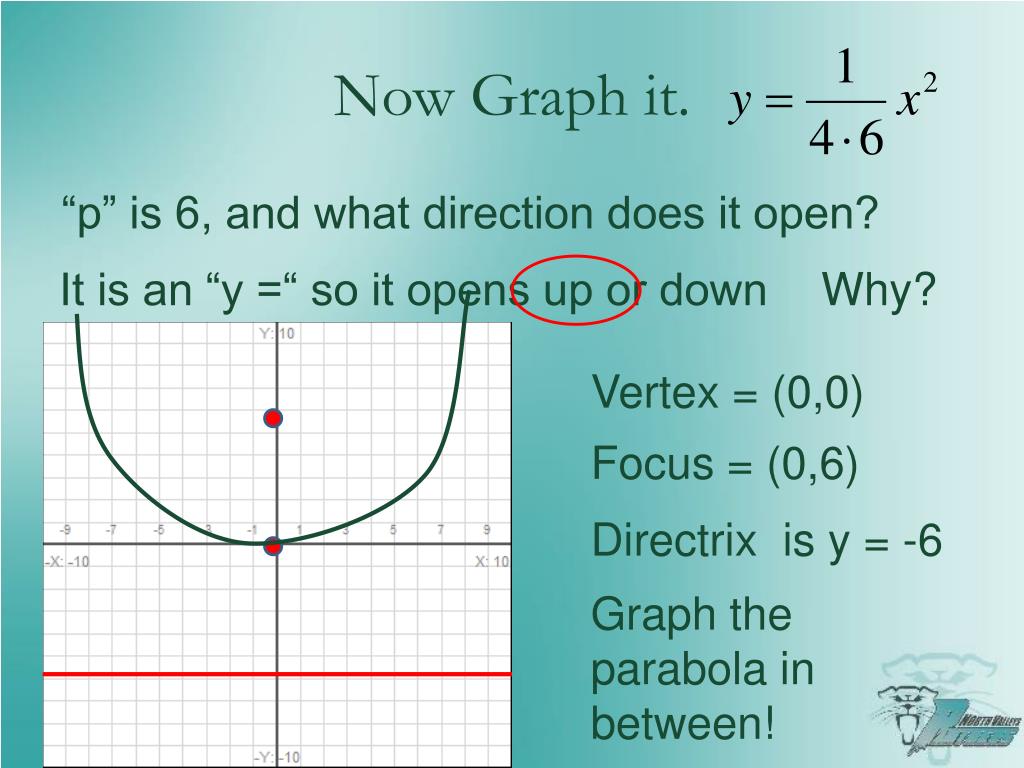

• “p” is 6, and what direction does it open?

It is an “y =“ so it opens up or down

Why?

Vertex = (0,0)

Focus = (0,6)

Directrixis y = -6

Graph the parabola in between!

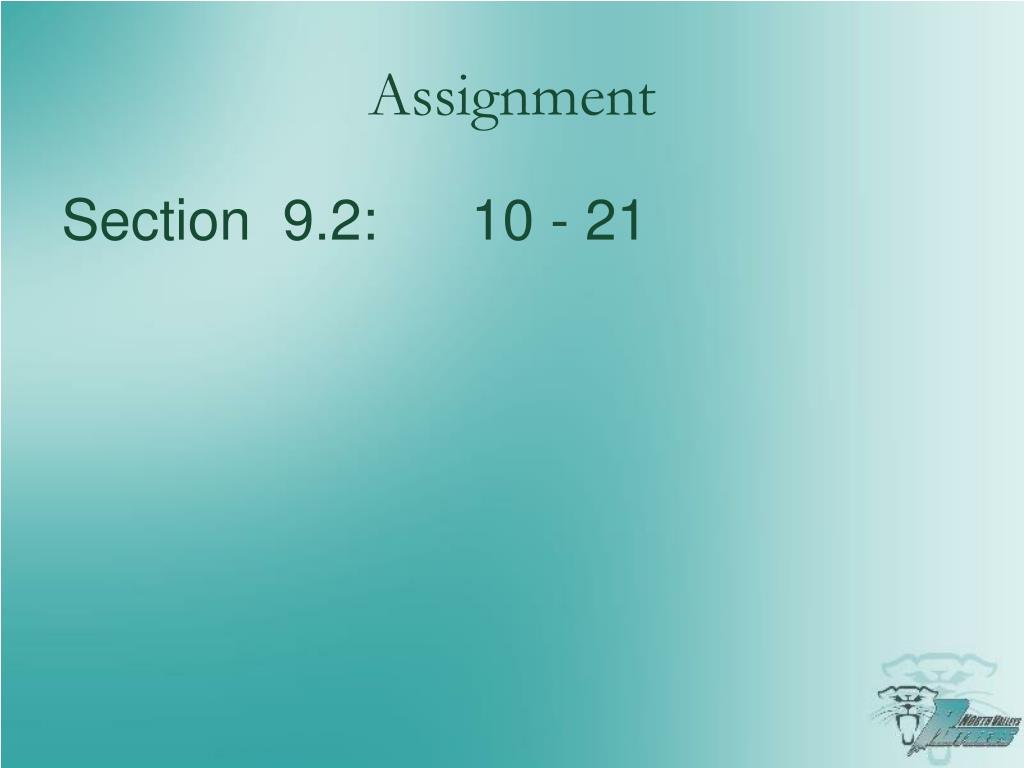

• Section 9.2: 10 - 21
