By the end of this lecture you will be able to:

LEARNING OBJECTIVES. By the end of this lecture you will be able to: Understand that ENERGY can be transformed from one form to another. Know that energy exist in two forms; free energy - available for doing work or as heat - a form unavailable for doing work.

Download Presentation

By the end of this lecture you will be able to:

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. LEARNING OBJECTIVES • By the end of this lecture you will be able to: • Understand that ENERGY can be transformed from one form to another. • Know that energy exist in two forms; free energy - available for doing work or as heat - a form unavailable for doing work. • Appreciate that the Sun provides most of the energy needed for life on Earth. • Explain why photosynthesis is so important to energy and material flow for life on earth. • Know why plants tend to be green in appearance. • Equate the organelle of photosynthesis in eukaryotes with the chloroplast. • Describe the organization of the chloroplast. • Understand that photosynthesis is a two fold process composed of the light-dependent reactions (i.e., light reactions) and the light independent reactions (i.e. Calvin Cycle or Dark Reactions). • Tell where the light reactions and the CO2 fixation reactions occur in the chloroplast. • Define chlorophylls giving their basic composition and structure. • Draw the absorption spectrum of chlorophyll and compare it to the action spectrum of photosynthesis. • Define the Reaction Centers and Antennae and describe how it operates. • Describe cyclic photophosphorylation of photosynthesis. • Describe noncyclic photophosphorylation of photosynthesis.

  2. Energy can be transformed from one form to another FREE ENERGY (available for work) vs. HEAT (not available for work)

  3. THE SUN: MAIN SOURCE OF ENERGY FOR LIFE ON EARTH

  4. THE BASICS OF PHOTOSYNTHESIS • Almost all plants are photosynthetic autotrophs, as are some bacteria and protists • Autotrophs generate their own organic matter through photosynthesis • Sunlight energy is transformed to energy stored in form of chemical bonds (c) Euglena (d) Cyanobacteria (b) Kelp (a) Mosses, ferns, and flowering plants

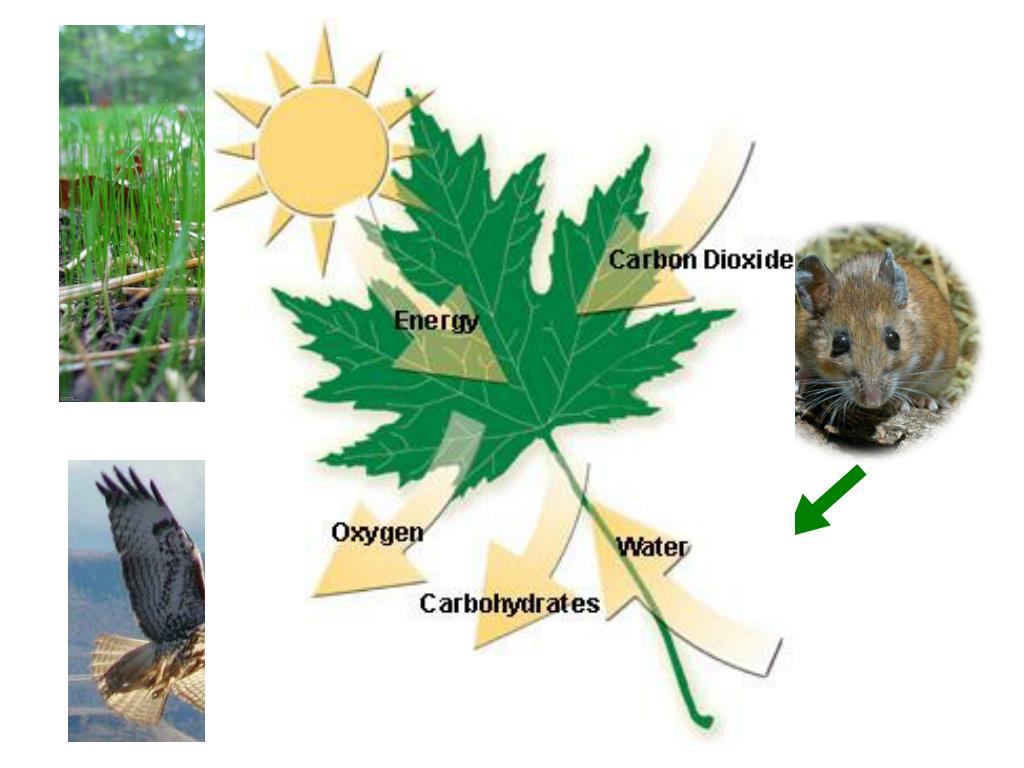

  5. Light Energy Harvested by Plants & Other Photosynthetic Autotrophs 6 CO2 + 6 H2O + light energy → C6H12O6 + 6 O2

  6. Food Chain

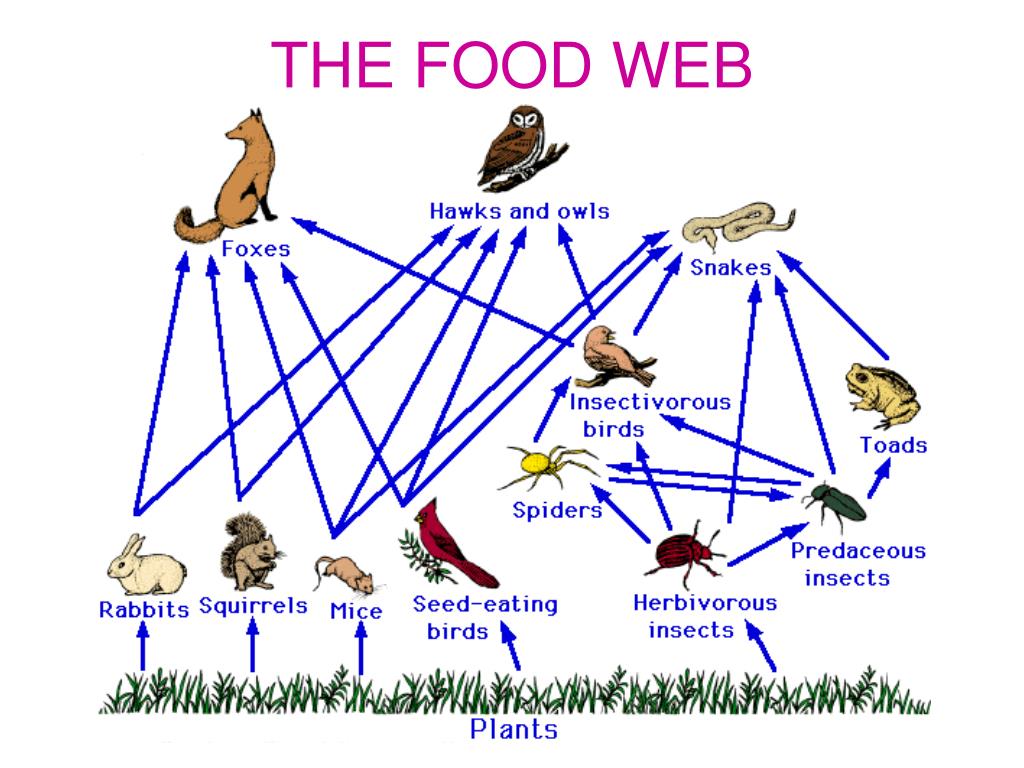

  7. THE FOOD WEB

  8. WHY ARE PLANTS GREEN? It's not that easy bein' green Having to spend each day the color of the leaves When I think it could be nicer being red or yellow or gold Or something much more colorful like that… Kermit the Frog

  9. Electromagnetic Spectrum and Visible Light Gammarays Infrared & Microwaves X-rays UV Radio waves Visible light Wavelength (nm)

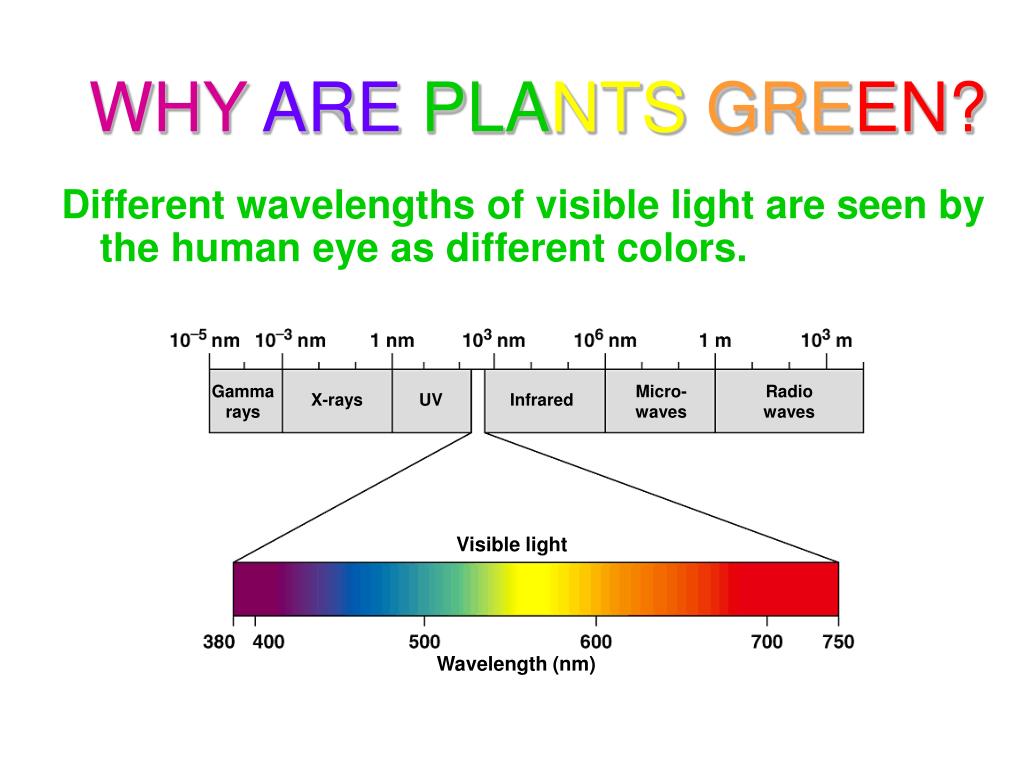

  10. WHY ARE PLANTS GREEN? Different wavelengths of visible light are seen by the human eye as different colors. Gammarays Micro-waves Radio waves X-rays UV Infrared Visible light Wavelength (nm)

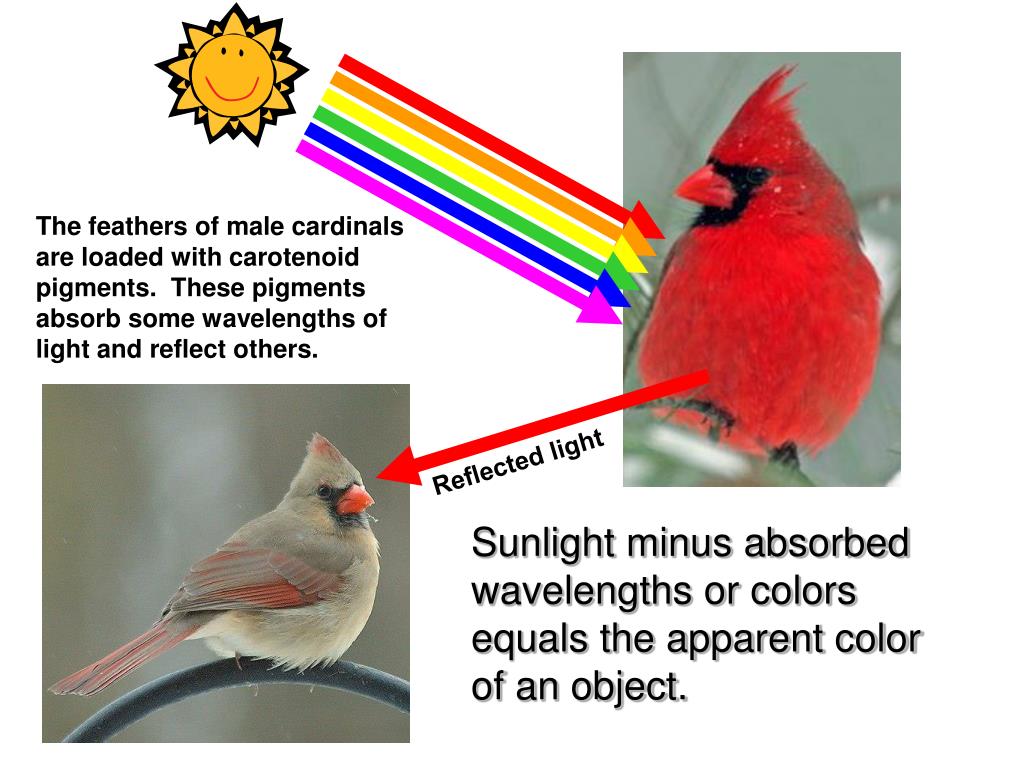

  11. The feathers of male cardinals are loaded with carotenoid pigments. These pigments absorb some wavelengths of light and reflect others. Reflected light Sunlight minus absorbed wavelengths or colors equals the apparent color of an object.

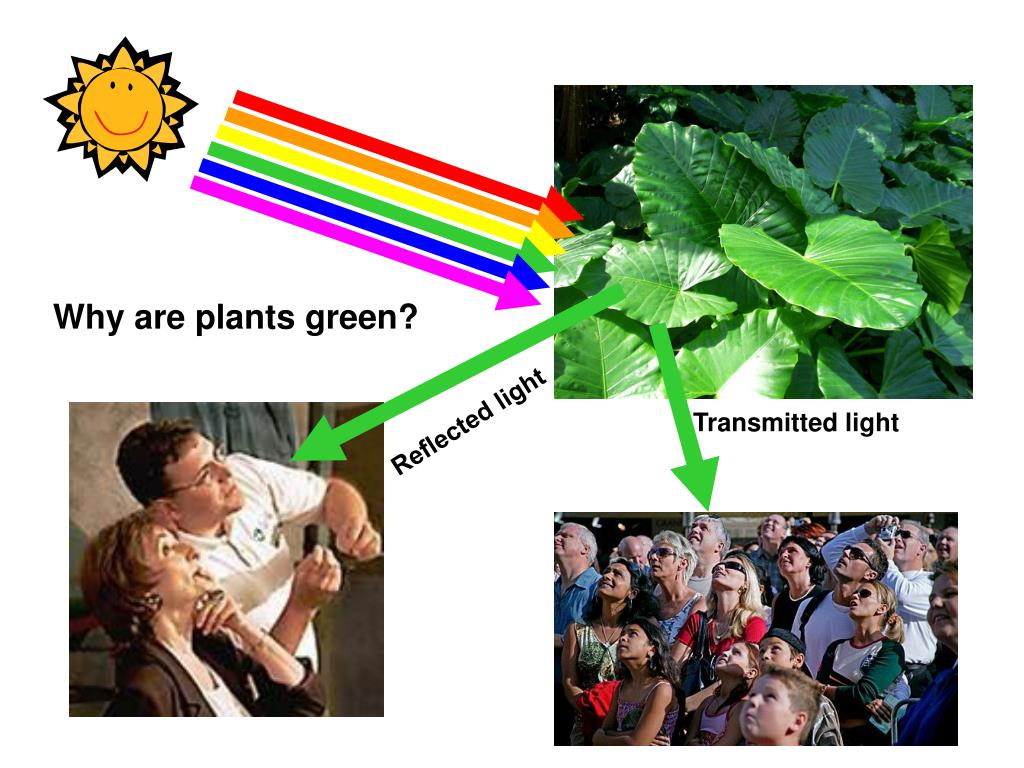

  12. Why are plants green? Reflected light Transmitted light

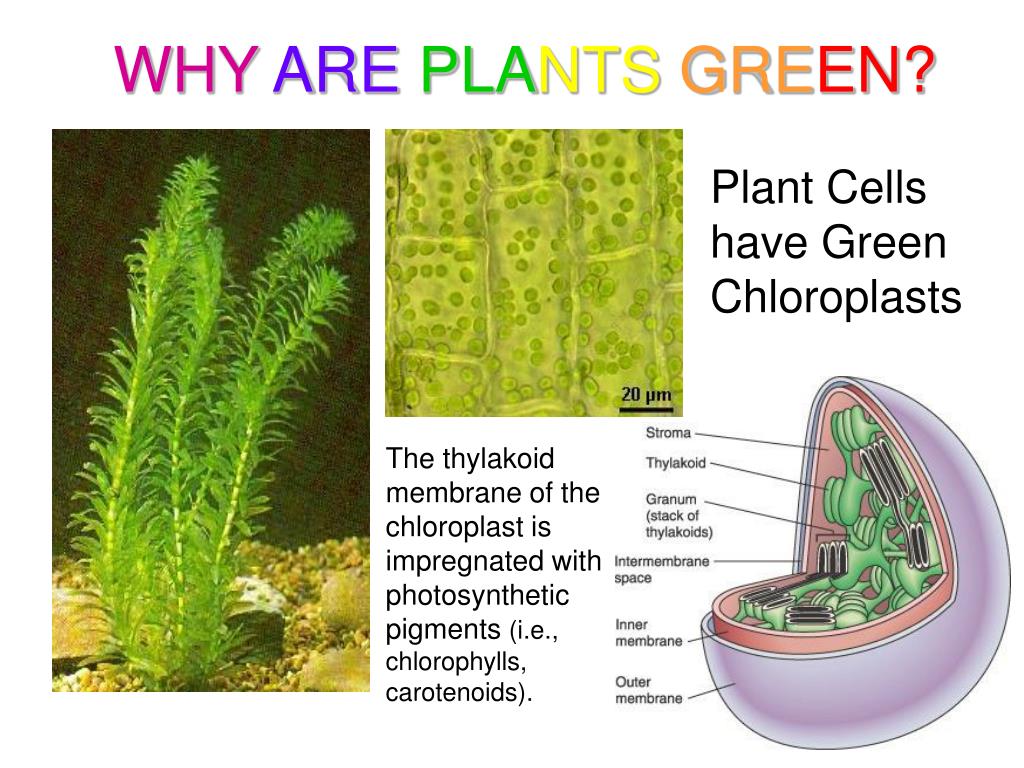

  13. WHY ARE PLANTS GREEN? Plant Cells have Green Chloroplasts The thylakoid membrane of the chloroplast is impregnated with photosynthetic pigments (i.e., chlorophylls, carotenoids).

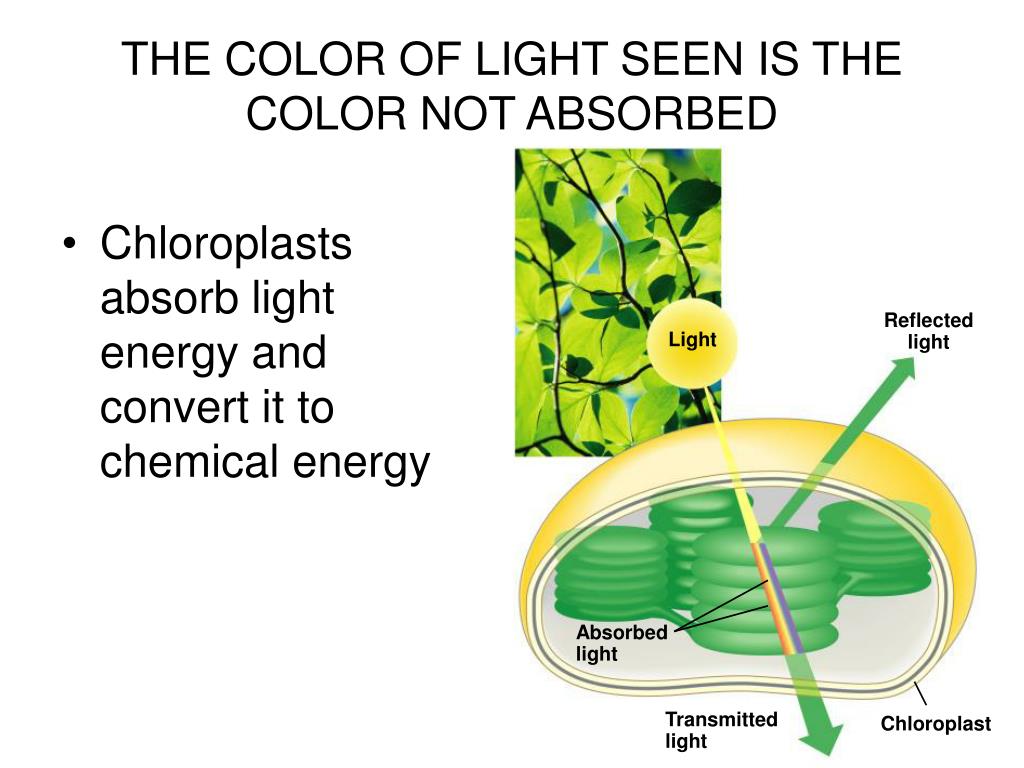

  14. THE COLOR OF LIGHT SEEN IS THE COLOR NOT ABSORBED • Chloroplasts absorb light energy and convert it to chemical energy Reflected light Light Absorbed light Transmitted light Chloroplast

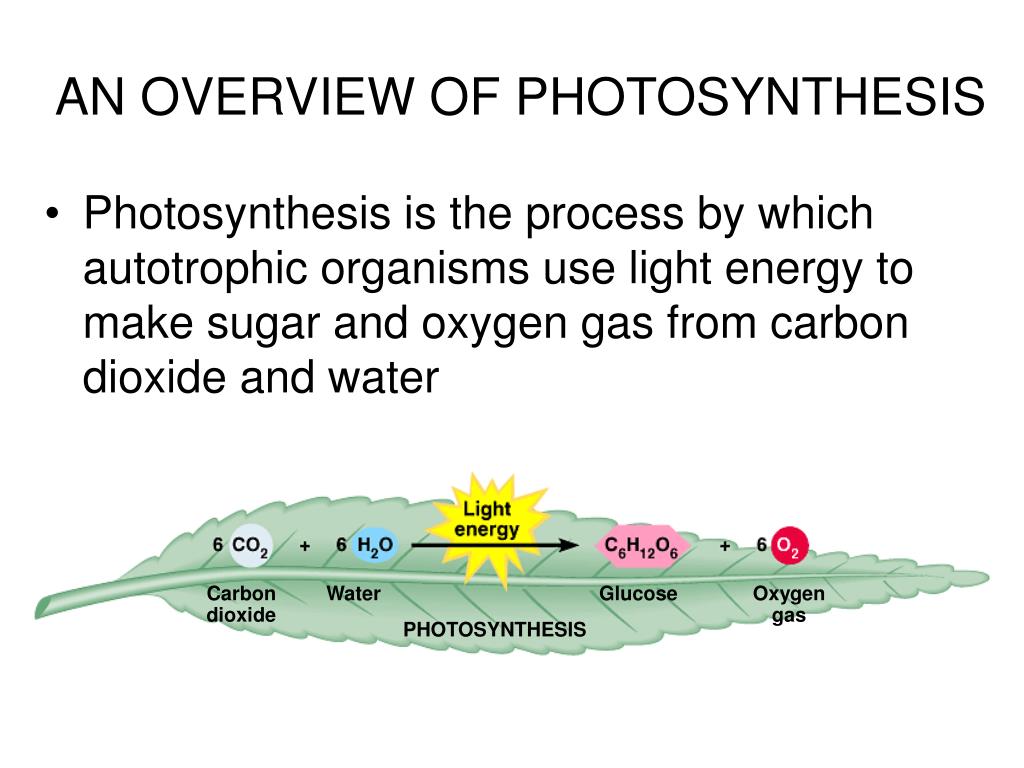

  15. AN OVERVIEW OF PHOTOSYNTHESIS • Photosynthesis is the process by which autotrophic organisms use light energy to make sugar and oxygen gas from carbon dioxide and water Carbondioxide Water Glucose Oxygengas PHOTOSYNTHESIS

  16. AN OVERVIEW OF PHOTOSYNTHESIS Light • The light reactions convert solar energy to chemical energy • Produce ATP & NADPH Chloroplast NADP ADP + P Calvin cycle • The Calvin cycle makes sugar from carbon dioxide • ATP generated by the light reactions provides the energy for sugar synthesis • The NADPH produced by the light reactions provides the electrons for the reduction of carbon dioxide to glucose Light reactions

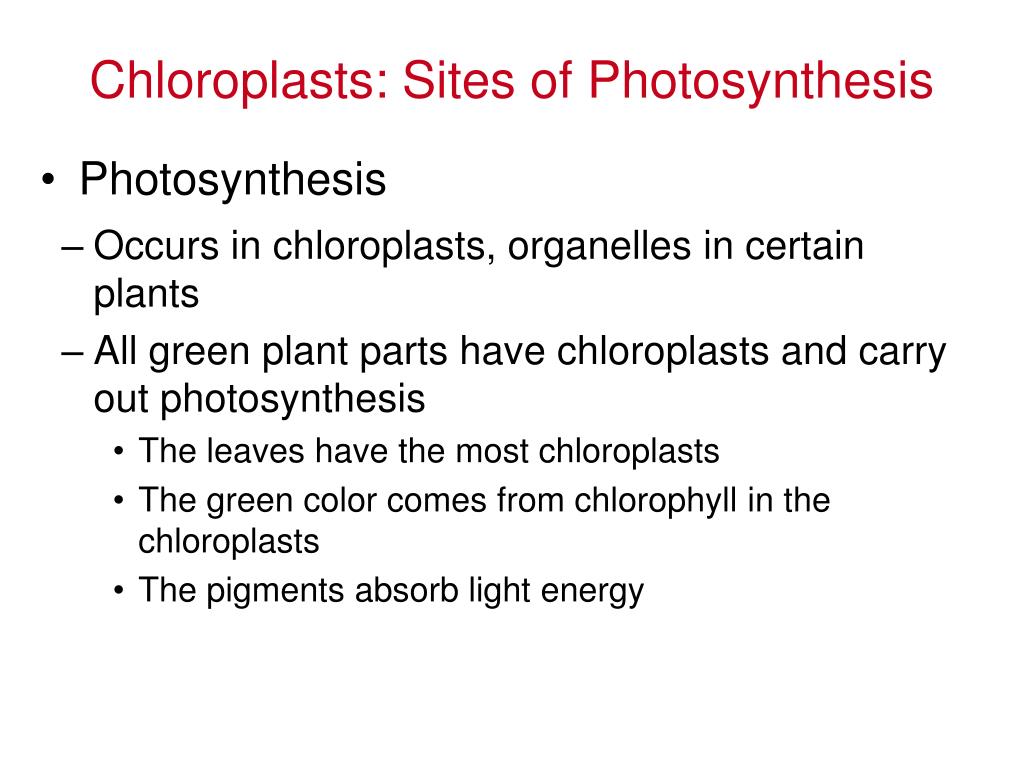

  17. Chloroplasts: Sites of Photosynthesis • Photosynthesis • Occurs in chloroplasts, organelles in certain plants • All green plant parts have chloroplasts and carry out photosynthesis • The leaves have the most chloroplasts • The green color comes from chlorophyll in the chloroplasts • The pigments absorb light energy

  18. Photosynthesis occurs in chloroplasts • In most plants, photosynthesis occurs primarily in the leaves, in the chloroplasts • A chloroplast contains: • stroma, a fluid • grana, stacks of thylakoids • The thylakoids contain chlorophyll • Chlorophyll is the green pigment that captures light for photosynthesis

  19. Chloroplast LEAF CROSS SECTION MESOPHYLL CELL • The location and structure of chloroplasts LEAF Mesophyll Intermembrane space CHLOROPLAST Outer membrane Granum Innermembrane Grana Stroma Thylakoidcompartment Stroma Thylakoid

  20. Chloroplast Pigments • Chloroplasts contain several pigments • Chlorophyll a • Chlorophyll b • Carotenoids Figure 7.7

  21. Porphyrin ring delocalized e- Phytol tail Chlorophyll a & b • Chl a has a methyl group • Chl b has a carbonyl group

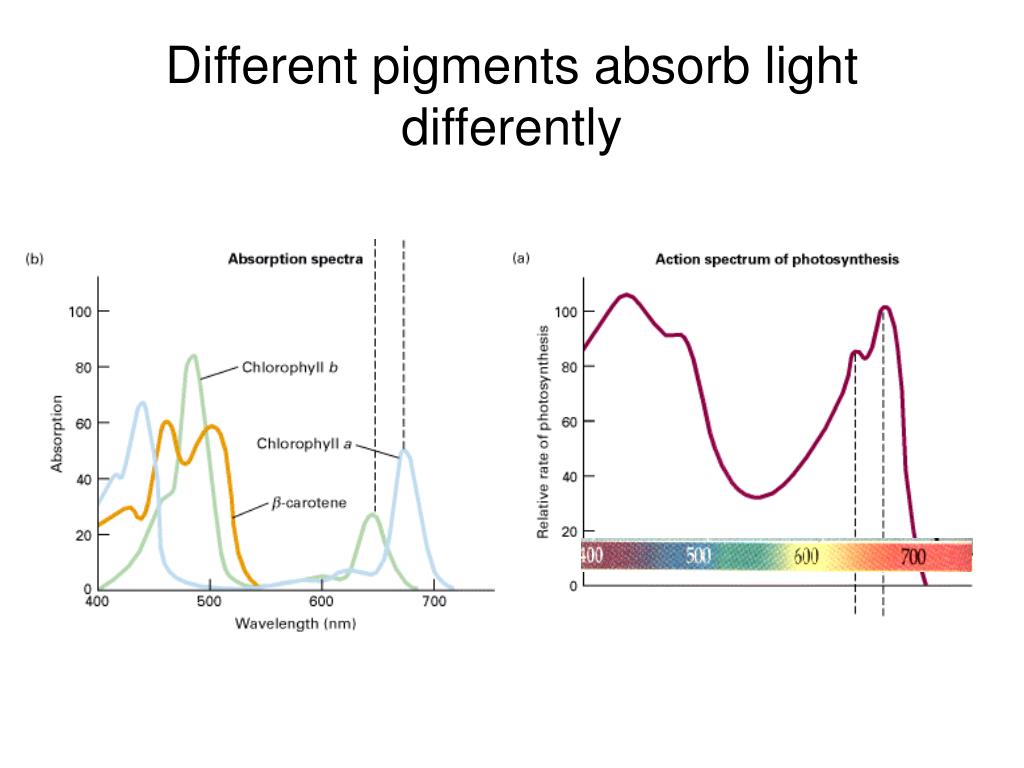

  22. Different pigments absorb light differently

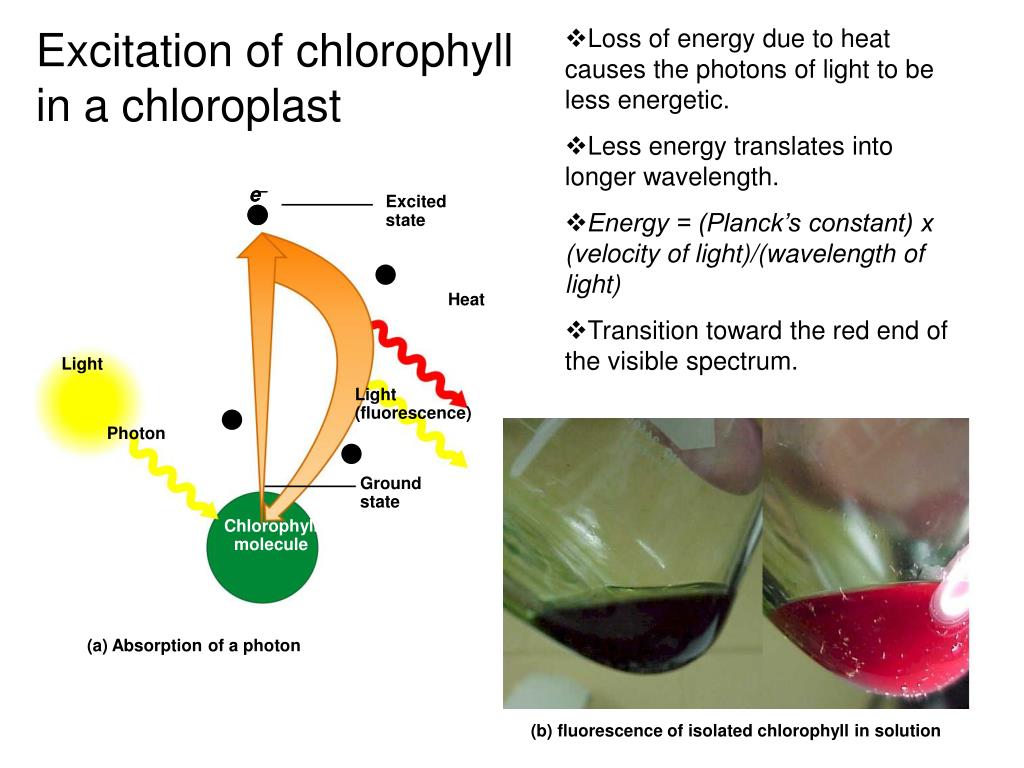

  23. Excitation of chlorophyll in a chloroplast • Loss of energy due to heat causes the photons of light to be less energetic. • Less energy translates into longer wavelength. • Energy = (Planck’s constant) x (velocity of light)/(wavelength of light) • Transition toward the red end of the visible spectrum. e e Excited state 2 Heat Light Light (fluorescence) Photon Ground state Chlorophyll molecule (a) Absorption of a photon (b) fluorescence of isolated chlorophyll in solution

  24. Primaryelectron acceptor Photon PHOTOSYSTEM Reaction center Pigmentmoleculesof antenna Molecular Game of “Hot Potato”

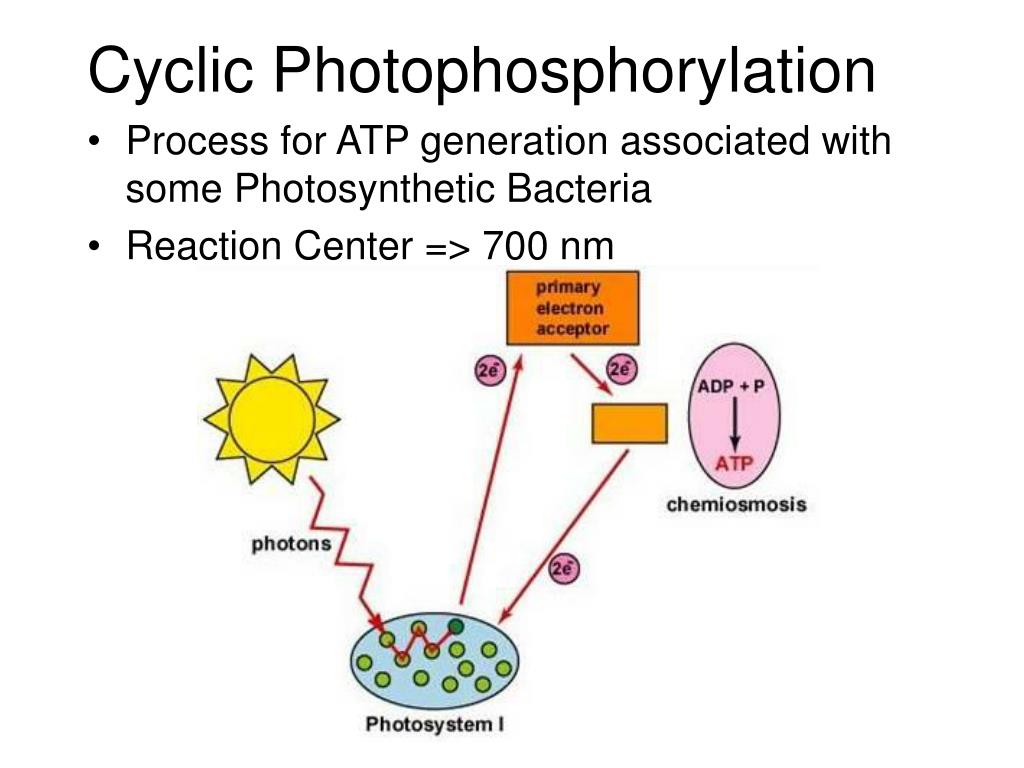

  25. Cyclic Photophosphorylation • Process for ATP generation associated with some Photosynthetic Bacteria • Reaction Center => 700 nm

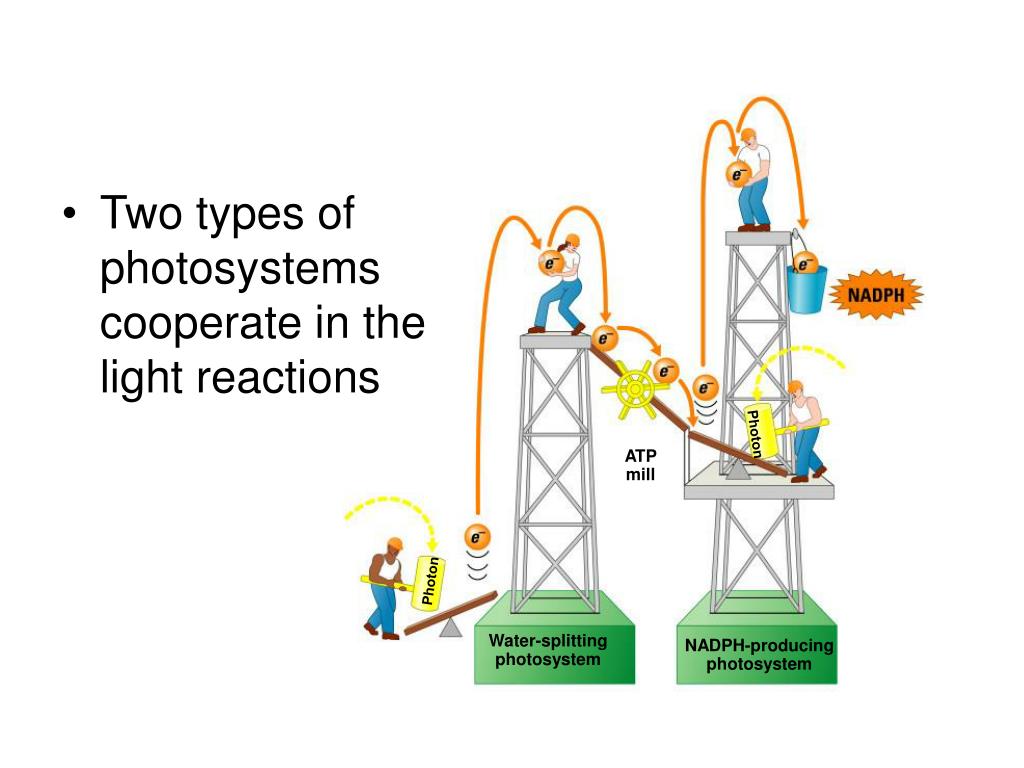

  26. Two types of photosystems cooperate in the light reactions Photon ATP mill Photon Water-splitting photosystem NADPH-producing photosystem

  27. Primaryelectron acceptor Electron transport Primaryelectron acceptor Electron transport chain Photons Energy forsynthesis of PHOTOSYSTEM I PHOTOSYSTEM II by chemiosmosis Noncyclic Photophosphorylation • Photosystem II regains electrons by splitting water, leaving O2 gas as a by-product

  28. Plants produce O2 gas by splitting H2O • The O2 liberated by photosynthesis is made from the oxygen in water (H+ and e-)

  29. How the Light Reactions Generate ATP and NADPH Primary electron acceptor NADP Energy to make Primary electron acceptor 3 2 Light Electron transport chain Light Primary electron acceptor Reaction- center chlorophyll NADPH-producing photosystem 1 Water-splitting photosystem 2 H + 1/2

  30. In the light reactions, electron transport chains generate ATP, NADPH, & O2 • Two connected photosystems collect photons of light and transfer the energy to chlorophyll electrons • The excited electrons are passed from the primary electron acceptor to electron transport chains • Their energy ends up in ATP and NADPH

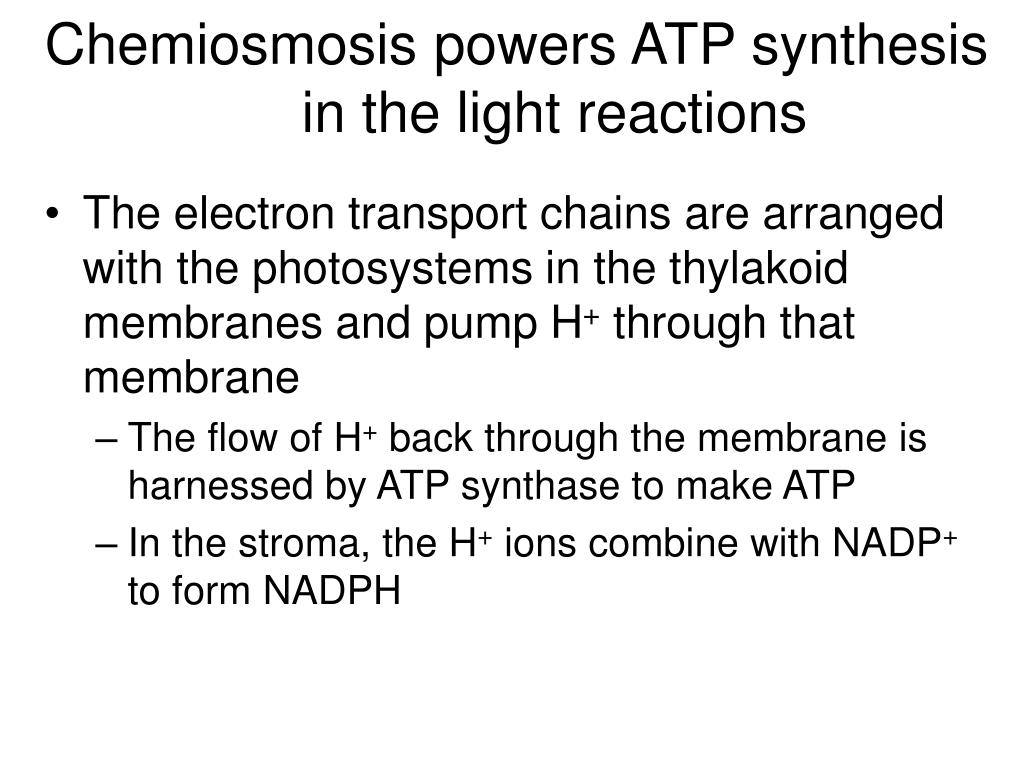

  31. Chemiosmosis powers ATP synthesis in the light reactions • The electron transport chains are arranged with the photosystems in the thylakoid membranes and pump H+ through that membrane • The flow of H+ back through the membrane is harnessed by ATP synthase to make ATP • In the stroma, the H+ ions combine with NADP+ to form NADPH

  32. The production of ATP by chemiosmosis in photosynthesis Thylakoidcompartment(high H+) Light Light Thylakoidmembrane Antennamolecules Stroma(low H+) ELECTRON TRANSPORT CHAIN PHOTOSYSTEM II PHOTOSYSTEM I ATP SYNTHASE

  33. Chloroplast • A Photosynthesis Road Map Light Stroma NADP Stack of thylakoids ADP + P Light reactions Calvin cycle Sugar used for  Cellular respiration  Cellulose  Starch  Other organic compounds

  34. Review: Photosynthesis uses light energy to make food molecules • A summary of the chemical processes of photosynthesis Chloroplast Light Photosystem IIElectron transport chains Photosystem I CALVIN CYCLE Stroma Electrons Cellular respiration Cellulose Starch Other organic compounds LIGHT REACTIONS CALVIN CYCLE

  35. It's not that easy bein' green… but it is essential for life on earth!
