Hour 7: Business Intelligence ERP

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

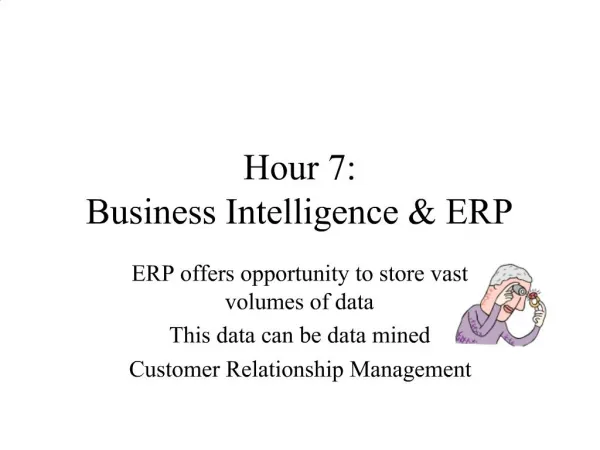

    1. Hour 7: Business Intelligence & ERP ERP offers opportunity to store vast volumes of data This data can be data mined Customer Relationship Management

    2. Data Storage Systems Data Warehousing Orderly & accessible repository of known facts & related data Subject-oriented, integrated, time-variant, non-volatile Massive data storage Efficient data retrieval CRM one data mining application Can use all of this data Common ERP add-on

    3. Granularity Definition – level of detail Most granular – each transaction stored Averaging & aggregation loses granularity Data warehouses usually store data at fine levels of granularity You can’t undo averages & aggregates

    4. Data Marts Different definitions Small version of data warehouse Temporary storage of data possibly from multiple sources for a specific study

    5. On-Line Analytic Processing OLAP Multidimensional databases Display data on selected dimensions Time Region Product Department Customer Etc.

    6. Data Quality Problem causes Data corrupted or missing Failure of software transferring data into or out of data warehouse Failure of data cleansing process

    7. Data Integrity No meaningless, corrupt, or redundant data Part of data warehousing function to clean data Data standardization Remove ambiguity (different ways to abbreviate) Matching Associating variables (unique mapping)

    8. Database Product Comparison

    9. Data Mining Analysis of large quantities of data by computer Micromarketing Versatile Apply to a wide variety of models Scalable Can analyze very large data sets

    10. Types of data mining Hypothesis Testing Traditional statistics Knowledge Discovery No predetermined expectation of relationships

    11. Business Data Mining Applications

    12. Customer Relationship Management Determine value of customer Identify what they want Package products (services) to keep them Maximize expected net present value of customer

    13. Data Warehouse Use Wal-Mart Fingerhut

    14. Wal-Mart Data Warehouse Foote & Krishnamurthi [2001] Wal-Mart dominates retail market Heavy user of information technology Supply chain distribution to 2,900 outlets A critical success factor Data warehouse of 101 terabytes Possibly world’s largest Investment over $1 billion Can handle 35,000 queries per week Benefits over $12,000 per query

    15. Wal-Mart Initial data warehouse point-of-sale & shipment data Added data Inventory Forecast Demongraphic Markdown Return Market basket information

    16. Wal-Mart Data Warehouse Process 65 million transactions per week 65 weeks of data per item By store By day Support decision making Many users have access Including 3,500 vendor partners

    17. FINGERHUT Founded 1948 today sends out 130 different catalogs to over 65 million customers 6 terabyte data warehouse 3000 variables of 12 million most active customers over 300 predictive models Focused marketing

    18. Fingerhut Purchased by Federated Department Stores for $1.7 billion in 1999 (for database) 2002 – more recent developments Fingerhut had $1.6 to $2 billion business per year, targeted at lower-income households Can mail 400,000 packages per day Each product line has its own catalog

    19. Fingerhut Used segmentation, decision tree, regression, neural network tools from SAS and SPSS Segmentation - combined order & demographic data with product offerings could target mailings to greatest payoff customers who recently had moved tripled their purchasing 12 weeks after the move send furniture, telephone, decoration catalogs

    20. Advanced Technology & ERP Bolt-ons Middleware Security

    21. Technology & ERP Manetti [2001] Mobile commerce & other IT makes ERP extensions possible, attractive Broader use of web-enabled systems Greater AI-driven applications Greater use of ERP in mid-sized manufacturing Flexible modular systems More bolt-ons (3rd party applications) Creates security issue

    22. Conflict: ERP & Open Systems Original concept of ERP closed Easy to control access Openness creates security issues But there are too many good things to do with open systems ERP vendors also provide such products

    23. Example Bolt-Ons Mabert et al. [2000]

    24. Middleware ERP interfaces to external applications difficult to program Middleware is an enabling engine to allow such external applications eto ERP Data oriented products - shared data sources Messaging-oriented - direct data sharing

    25. Web ERP J.D. Edwards OneWorld SAP mySAP.com Trends More web links More functionality

    26. Middleware & Data Acquisition Bar-code data collection Radio frequency data collection Web portals

    27. Portals of Major ERP Vendors Stein & Davis [1999]; Stein [1999]

    28. Other Vendor Portals Stein & Davis [1999]

    29. ERP Security Threats

    30. Summary ERP security originally was not problematic Only few internal users could access Open systems driven by external applications Creates security issues Web access especially problematic Special ERP Security aspects Data quality Control over data access

    31. Bolt-On/Middleware Examples Kellogg Company Brown et al. [2001] Dow Corning Teresko [1999]

    32. Kellogg Company Bolt-On Kellogg developed their own ERP Forecast demand Take customer orders Coordinate raw material purchasing Coordinate production of over 100 food products Coordinate distribution Added linear programming Kellogg Planning System (KPS) Production, inventory, distribution planning Budgeting & capacity expansion

    33. History Long user of MRP, DRP (distribution resource planning) 1987 realized product line growth, international expansion led to need for more computer support Developed KPS in 1989, modified over time By 1994 strong cost system in place Saved $4.5 million in 1995

    34. Kellogg LP Minimized total cost Purchasing, manufacturing, inventory, distribution Variables: product, package size, case size 30 week planning horizon Constraints: Line, packaging capacities, flow constraints, inventories, safety stocks 700,000 variables, 100,000 constraints, 4 million non-zero coefficients

    35. Kellogg LP Continuous model took several hours to run Generated starting solution for managers Probabilistic features dealt with through safety stock Example of bolt-on to ERP Linear programming generated better plans

    36. Dow Corning System Integration 1995 adopted SAP R/3 to integrate global business practices Also adopted SAP data warehouse Consolidated information generated internally, externally Internal: plant-floor data, patent information, benchmarking Allowed deeper data analysis

    37. Dow Corning System Over 4,000 users had access Integration & data compatibility problems dealt with by data warehouse Added automated data collection system Required middleware Middleware allowed expansion into supply chain management

    38. Summary Customer Relationship Management very promising Has not reached all expectations as ERP add-on Quite expensive to get needed data storage capability Still an opportunity to use all the data generated by an ERP Many other useful bolt-ons
