  1. The Pulse Motor Proof-of-Concept Experiments Lawrence Tseung Feb 26, 2009

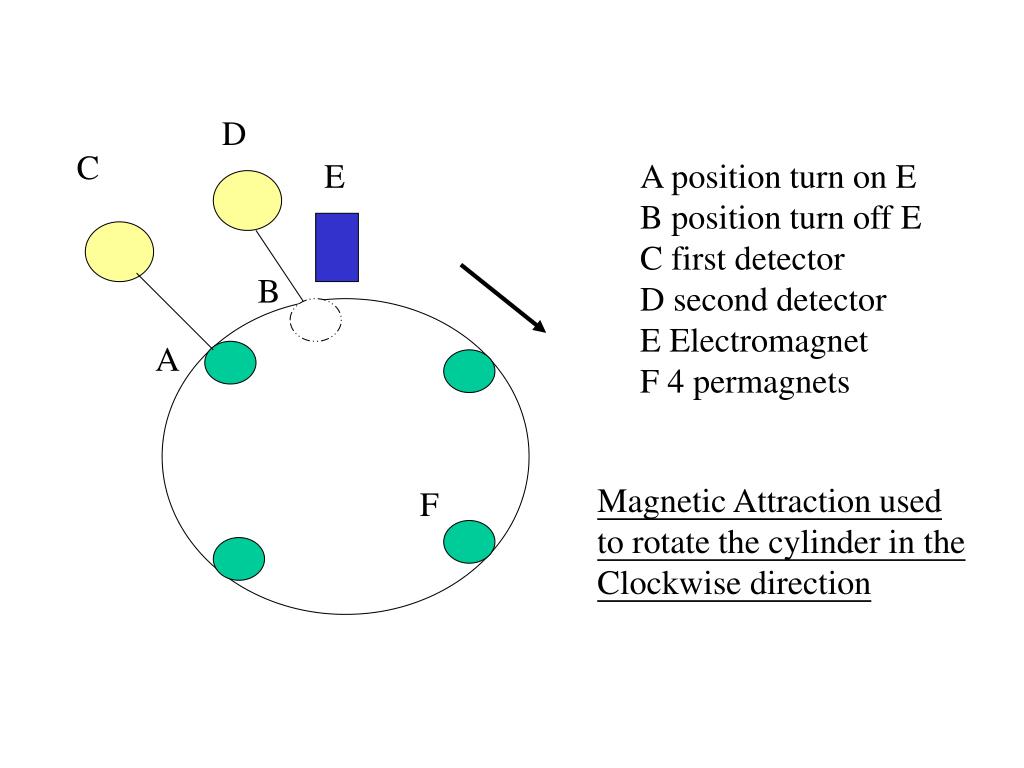

  2. D C E A position turn on E B position turn off E C first detector D second detector E Electromagnet F 4 permagnets B A Magnetic Attraction used to rotate the cylinder in the Clockwise direction F

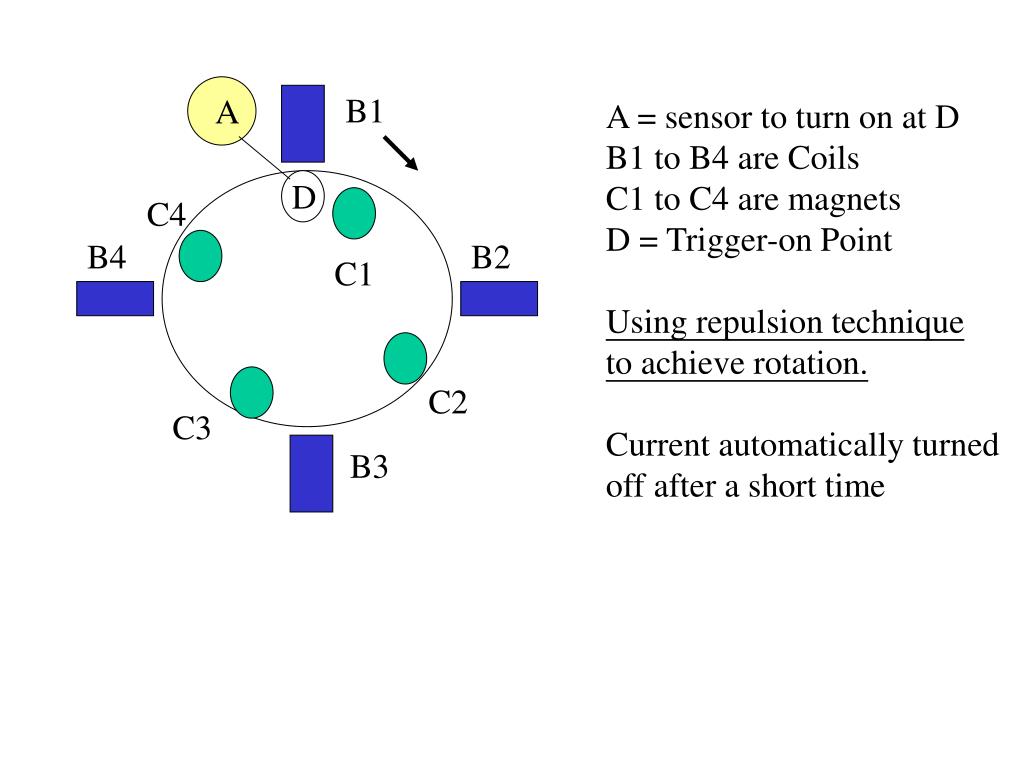

  3. B1 A A = sensor to turn on at D B1 to B4 are Coils C1 to C4 are magnets D = Trigger-on Point Using repulsion technique to achieve rotation. Current automatically turned off after a short time D C4 B4 B2 C1 C2 C3 B3
