  1. 電腦輔助驗證 Computer-Aided Verification

  2. Other names Formal methods Formal verification Automated verification

  3. Class Web Page • www.ee.ntu.edu.tw/~yen/courses/cav02 • E-mail: yen@ee.ntu.edu.tw • Phone: 2363 5251 ext. 540 • Office Hours: By appointment

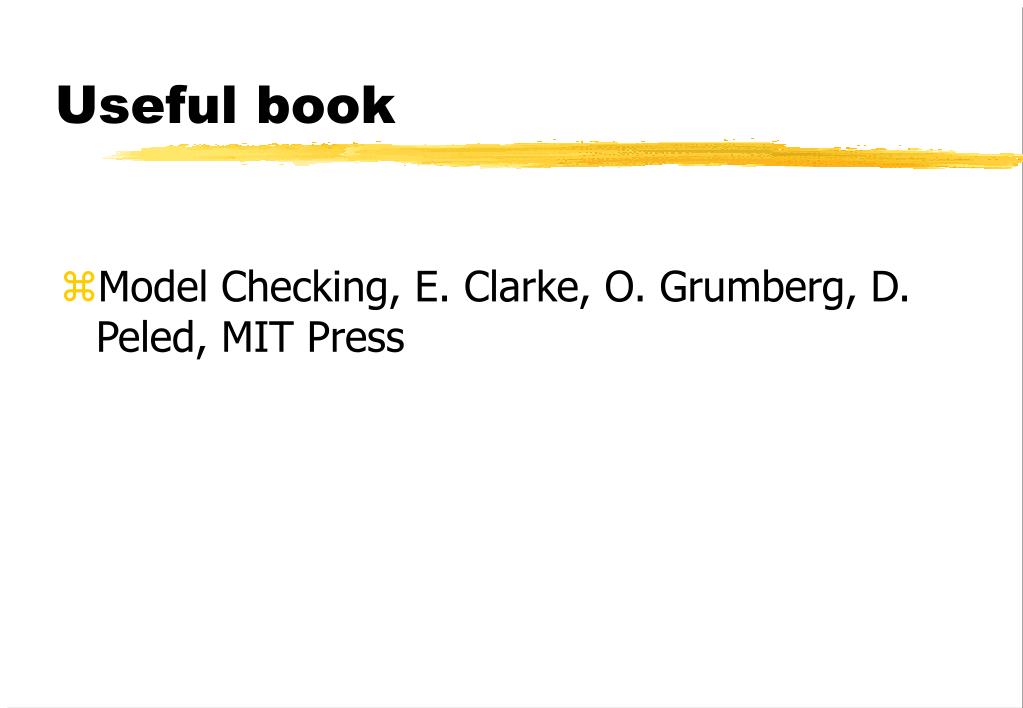

  4. Useful book • Model Checking, E. Clarke, O. Grumberg, D. Peled, MIT Press

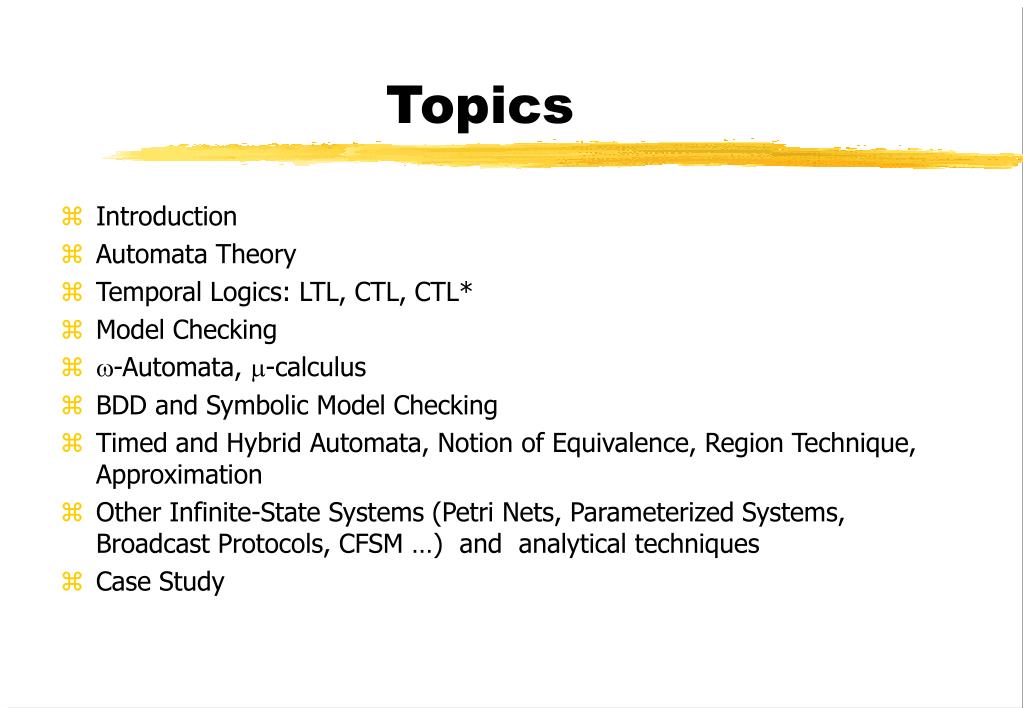

  5. Topics • Introduction • Automata Theory • Temporal Logics: LTL, CTL, CTL* • Model Checking • w-Automata, m-calculus • BDD and Symbolic Model Checking • Timed and Hybrid Automata, Notion of Equivalence, Region Technique, Approximation • Other Infinite-State Systems (Petri Nets, Parameterized Systems, Broadcast Protocols, CFSM …) and analytical techniques • Case Study

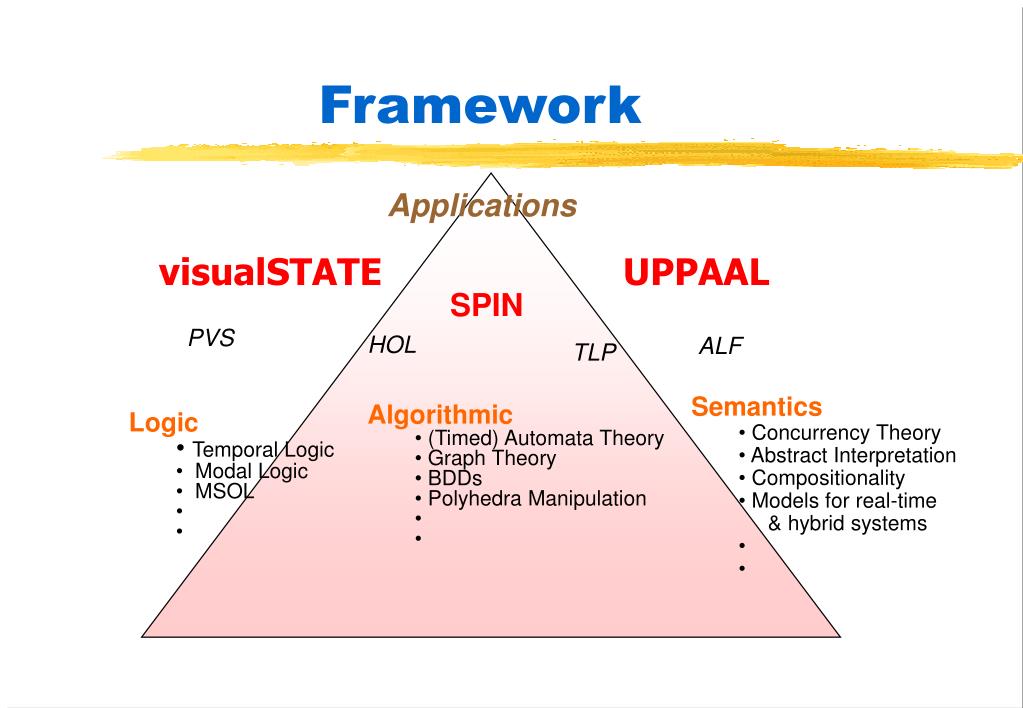

  6. Framework Applications visualSTATE UPPAAL SPIN PVS HOL ALF TLP • Semantics • Concurrency Theory • Abstract Interpretation • Compositionality • Models for real-time • & hybrid systems • Algorithmic • (Timed) Automata Theory • Graph Theory • BDDs • Polyhedra Manipulation • Logic • Temporal Logic • Modal Logic • MSOL

  7. What? Validation and Verification of software and hardwareDESIGNS! (E.g., real time systems, embedded systems, communication protocols)

  8. A REAL real time system Klaus Havelund, NASA

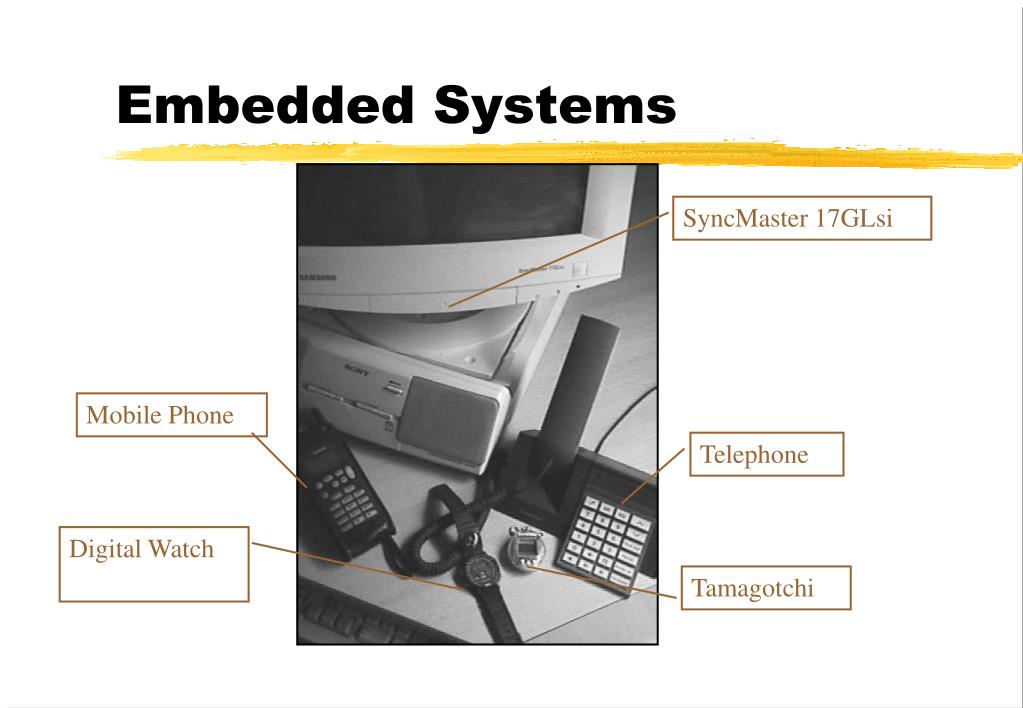

  9. Embedded Systems SyncMaster 17GLsi Mobile Phone Telephone Digital Watch Tamagotchi

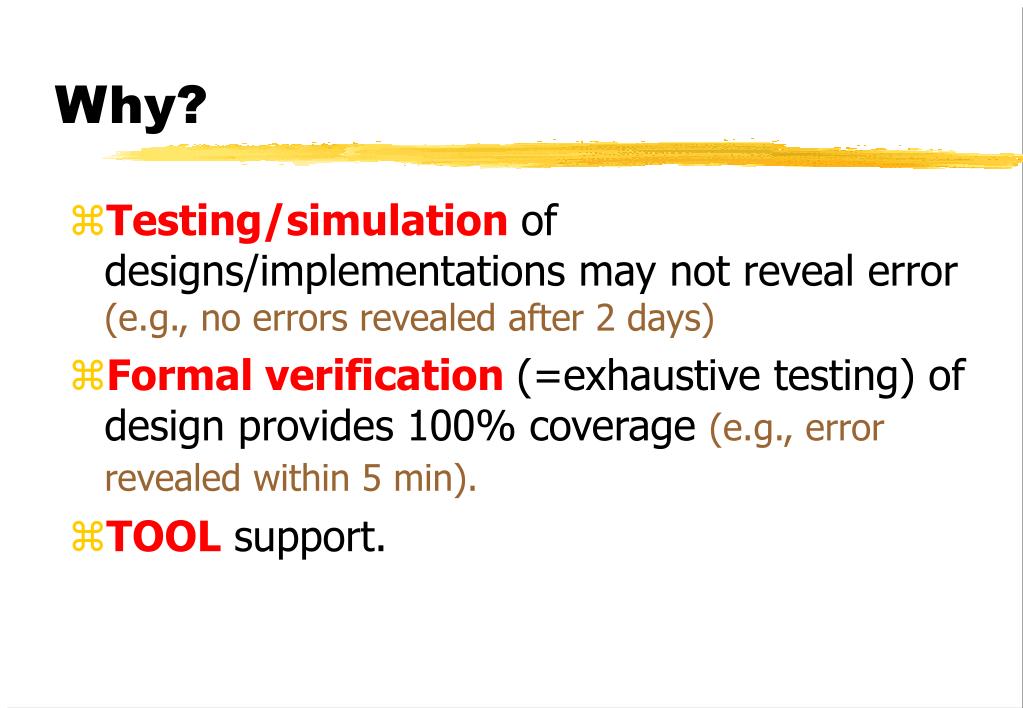

  10. Why? • Testing/simulation of designs/implementations may not reveal error (e.g., no errors revealed after 2 days) • Formal verification (=exhaustive testing) of design provides 100% coverage (e.g., error revealed within 5 min). • TOOL support.

  11. Traditional Software Development The Waterfall Model REVIEWS Problem Area Analysis Design REVIEWS Implementation Testing • Costly in time-to-market and money • Errors are detected late or never • Application of FM’s as early as possible Running System

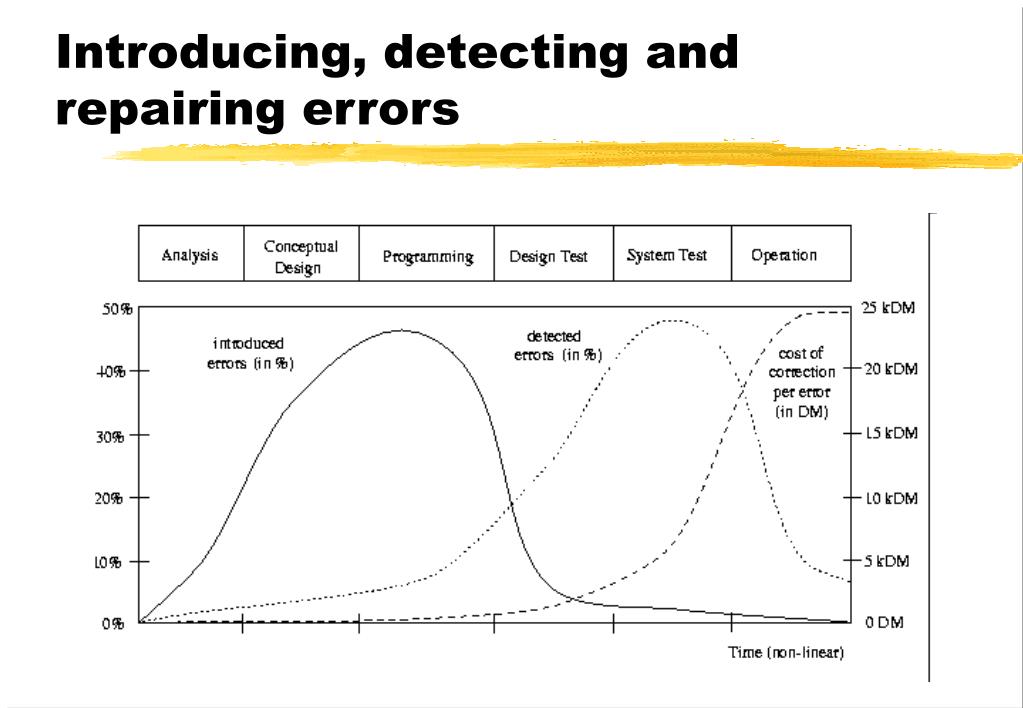

  12. Introducing, detecting and repairing errors

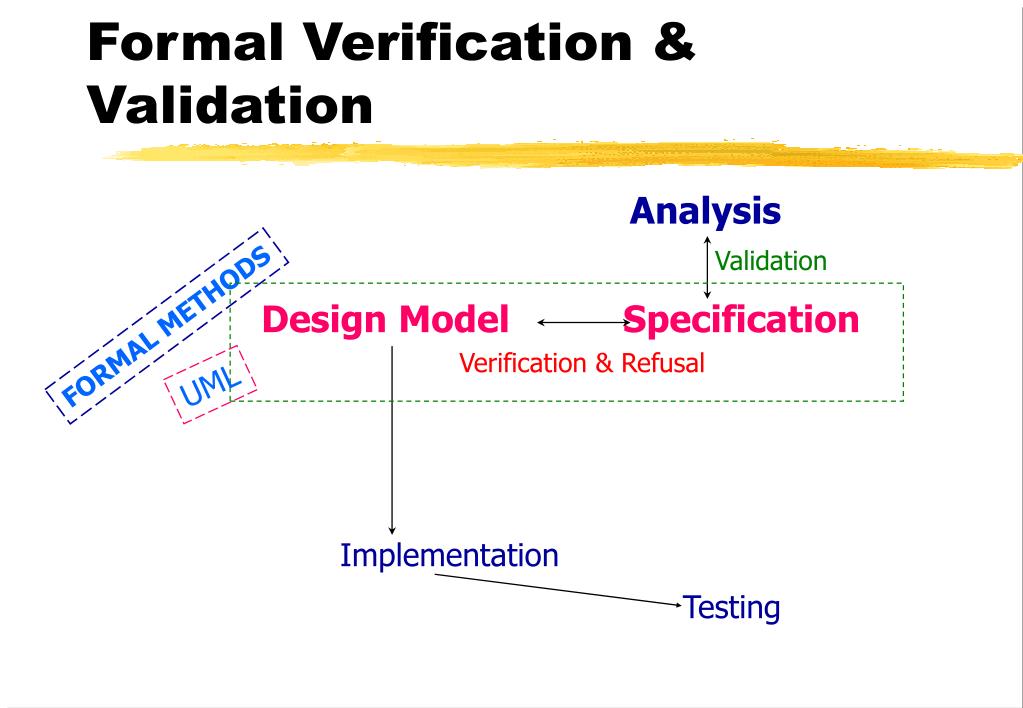

  13. Formal Verification & Validation Analysis Validation Design Model • Specification FORMAL METHODS Verification & Refusal UML Implementation Testing

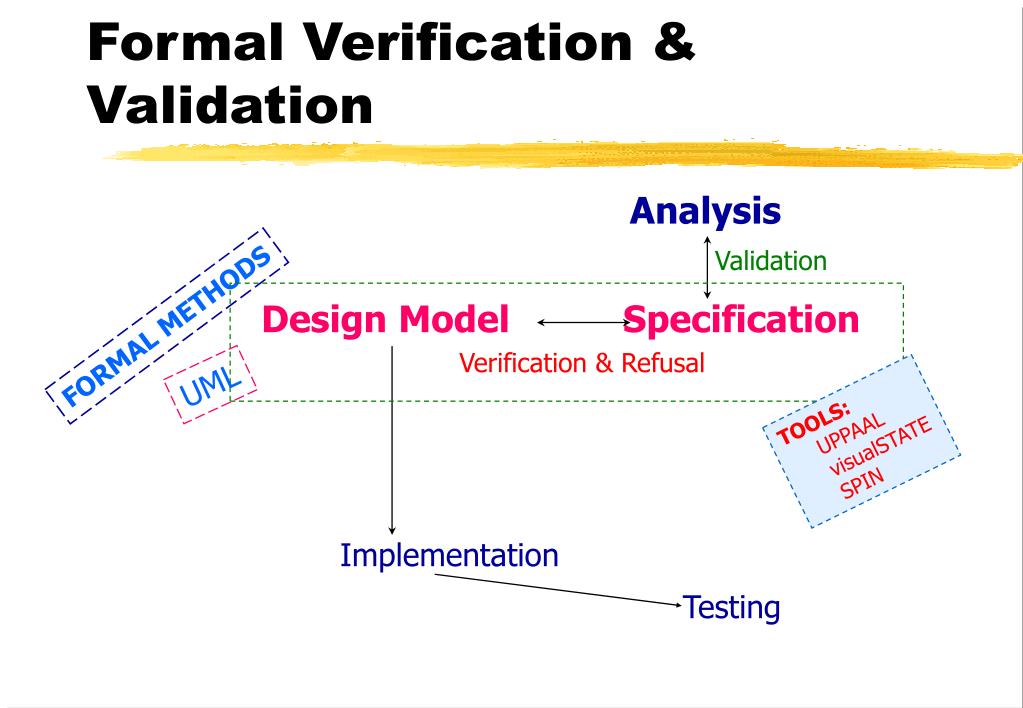

  14. Formal Verification & Validation Analysis Validation Design Model • Specification FORMAL METHODS Verification & Refusal UML TOOLS: UPPAAL visualSTATE SPIN Implementation Testing

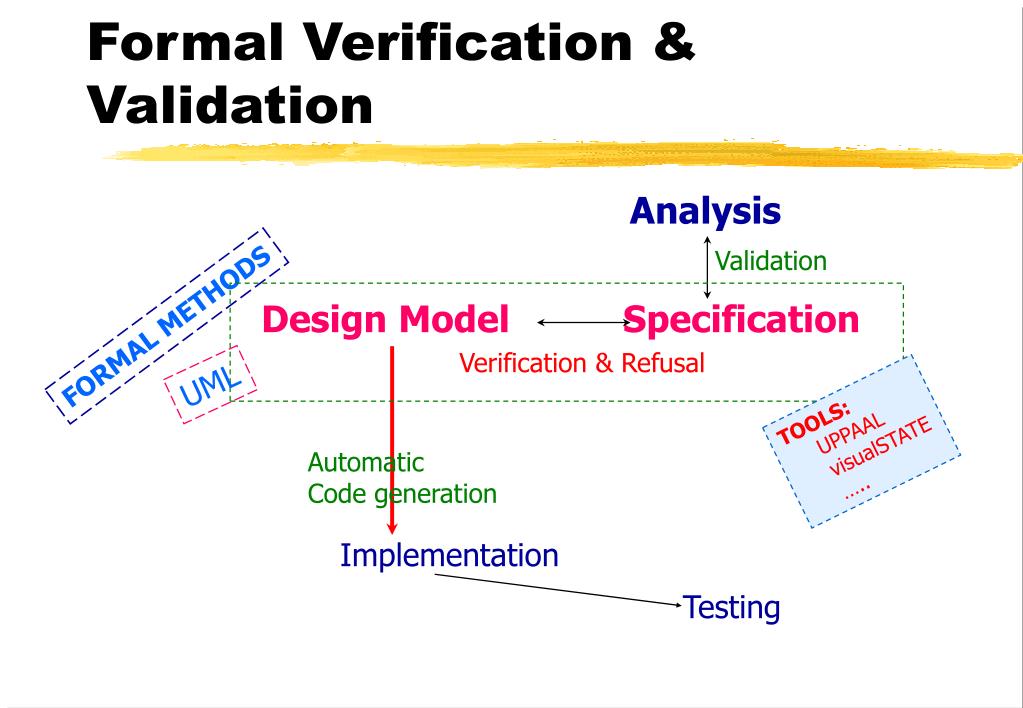

  15. Formal Verification & Validation Analysis Validation Design Model • Specification FORMAL METHODS Verification & Refusal UML TOOLS: UPPAAL visualSTATE ….. Automatic Code generation Implementation Testing

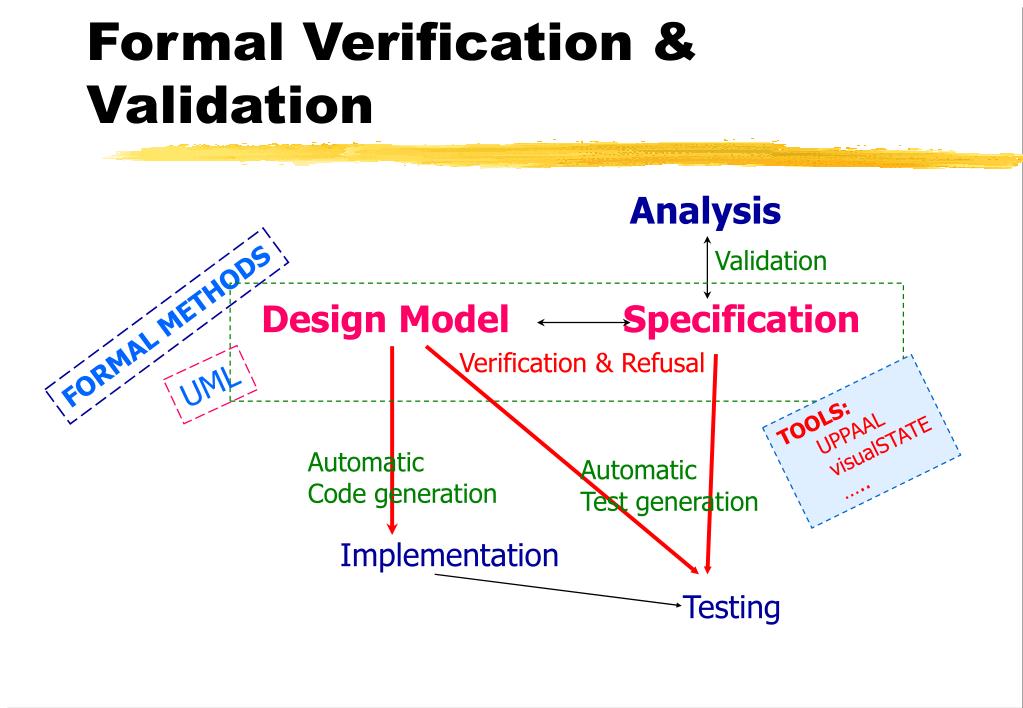

  16. Formal Verification & Validation Analysis Validation Design Model • Specification FORMAL METHODS Verification & Refusal UML TOOLS: UPPAAL visualSTATE ….. Automatic Code generation Automatic Test generation Implementation Testing

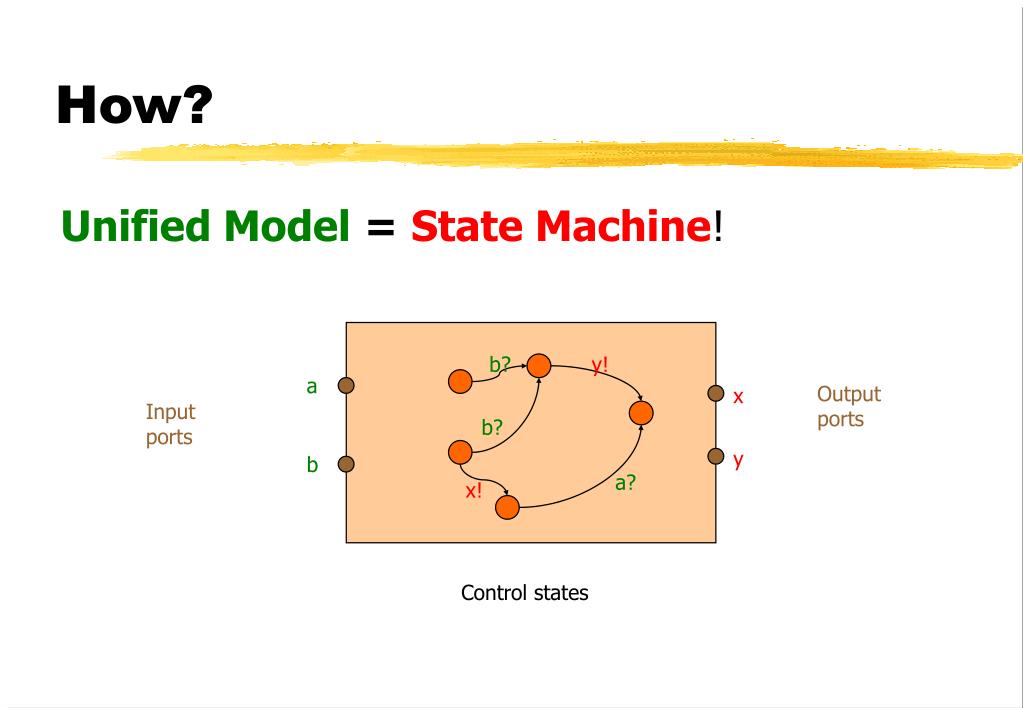

  17. How? Unified Model=State Machine! b? y! a Output ports x Input ports b? y b a? x! Control states

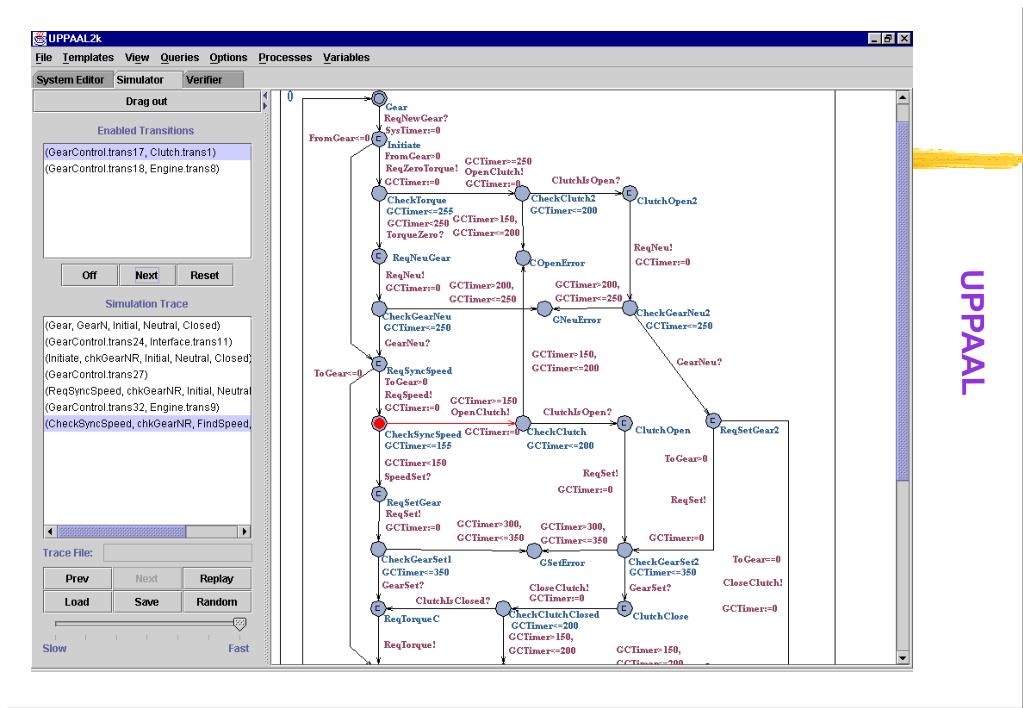

  18. UPPAAL

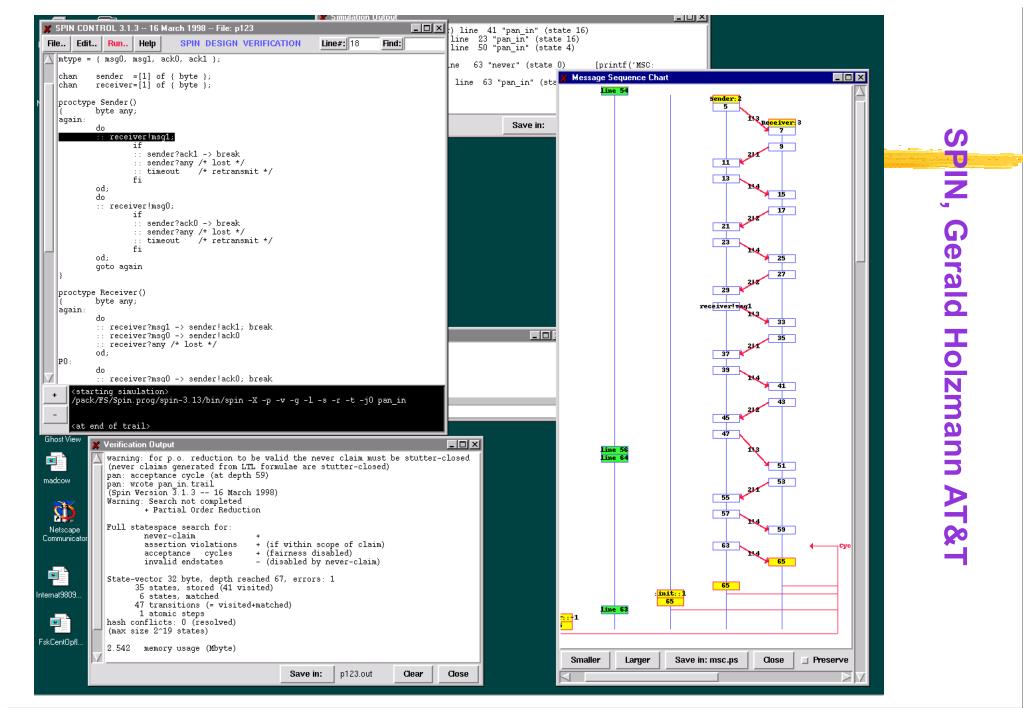

  19. SPIN, Gerald Holzmann AT&T

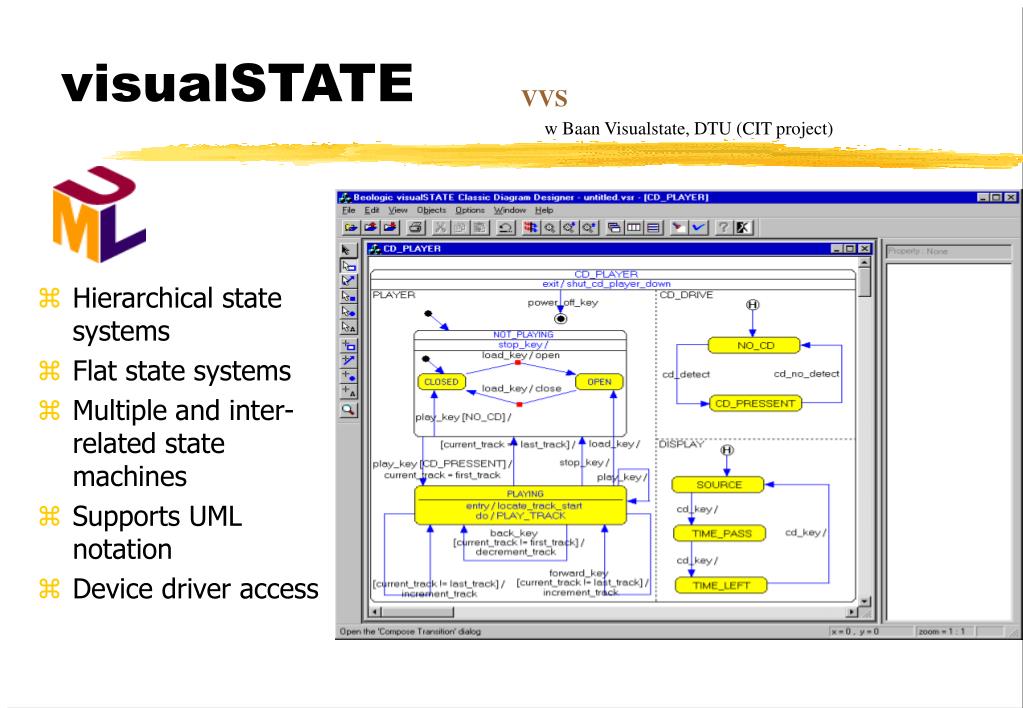

  20. visualSTATE VVS w Baan Visualstate, DTU (CIT project) • Hierarchical state systems • Flat state systems • Multiple and inter-related state machines • Supports UML notation • Device driver access

  21. Train Simulator VVS visualSTATE 1421 machines 11102 transitions 2981 inputs 2667 outputs 3204 local states Declare state sp.: 10^476 BUGS ? Our techniuqes has reduced verification time with several orders of magnitude (ex 14 days to 6 sec)

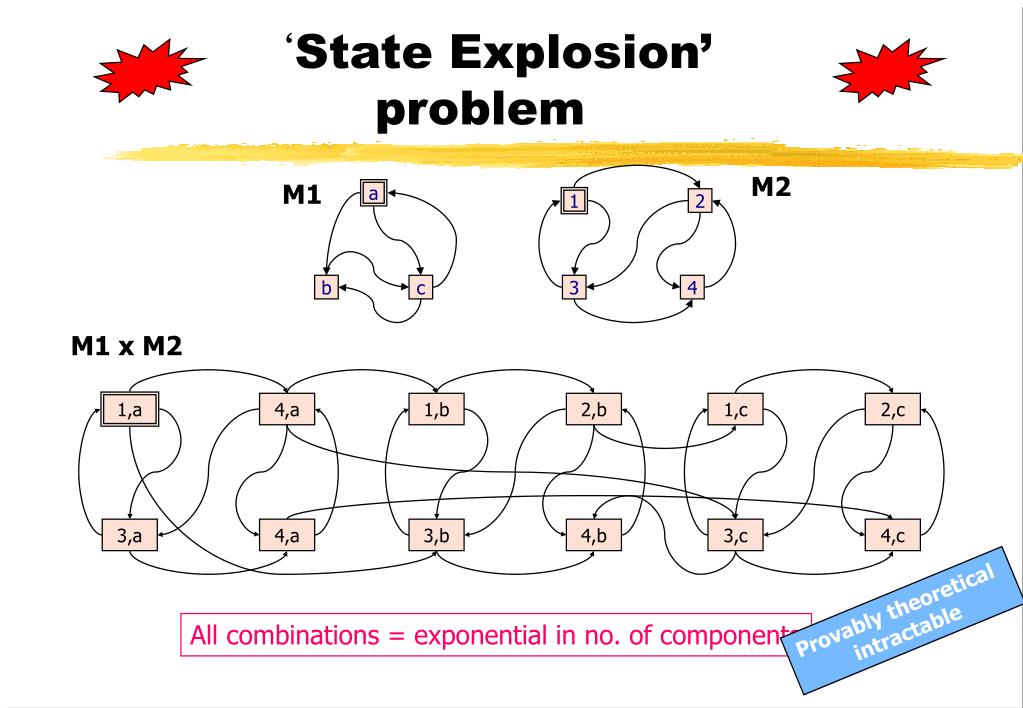

  22. ‘State Explosion’ problem M2 M1 a 1 2 b c 3 4 M1 x M2 1,a 4,a 1,b 2,b 1,c 2,c 3,a 4,a 3,b 4,b 3,c 4,c Provably theoretical intractable All combinations = exponential in no. of components

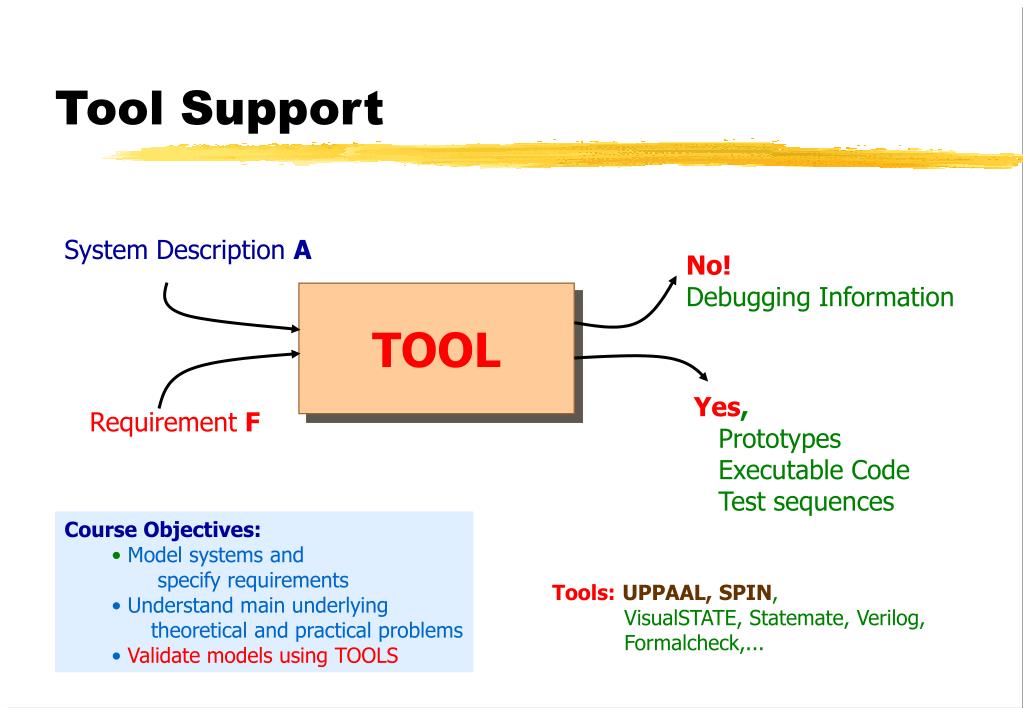

  23. Tool Support System DescriptionA No! Debugging Information TOOL Yes, Prototypes Executable Code Test sequences RequirementF • Course Objectives: • Model systems and specify requirements • Understand main underlying theoretical and practical problems • Validate models using TOOLS Tools:UPPAAL, SPIN, VisualSTATE, Statemate, Verilog, Formalcheck,...

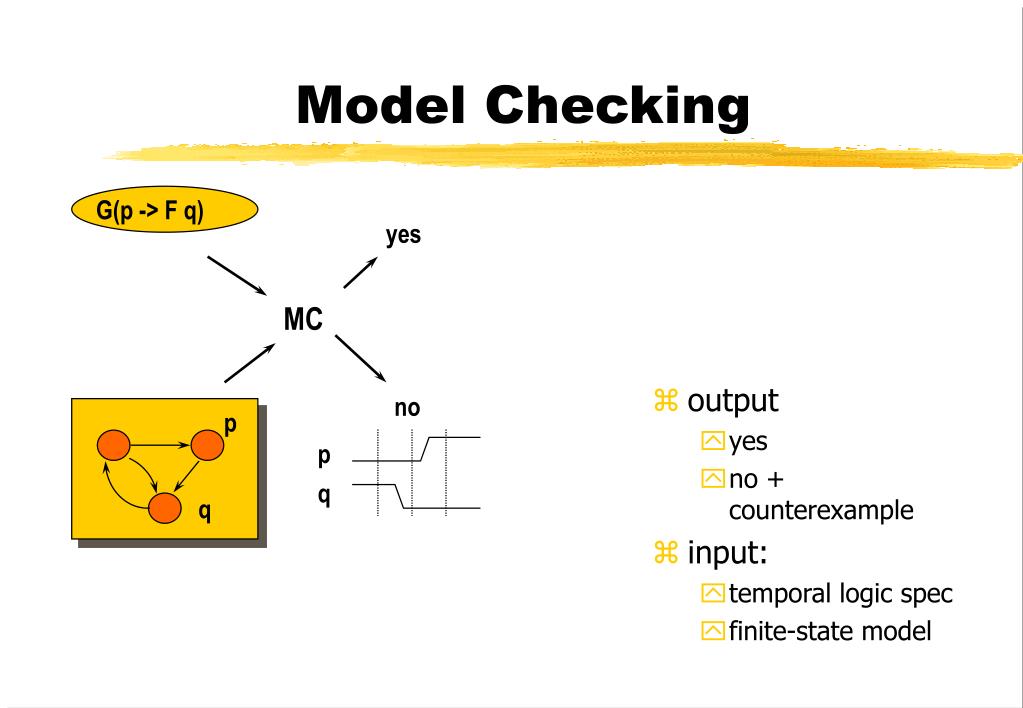

  24. output yes no + counterexample input: temporal logic spec finite-state model Model Checking G(p -> F q) yes MC no p p q q

  25. Linear temporal logic (LTL) • A logical notation that allows to: • specify relations in time • conveniently express finite control properties • Temporal operators • G p “henceforth p” • F p “eventually p” • X p “p at the next time” • p U q “p until q”

  26. Types of temporal properties • Safety (nothing bad happens) G ~(ack1 & ack2)“mutual exclusion” G (req -> (req W ack))“req must hold until ack” • Liveness (something good happens) G (req -> F ack) “if req, eventually ack” • Fairness GF req -> GF ack “if infinitely often req, infinitely often ack”

  27. Example: traffic light controller S • Guarantee no collisions • Guarantee eventual service E N

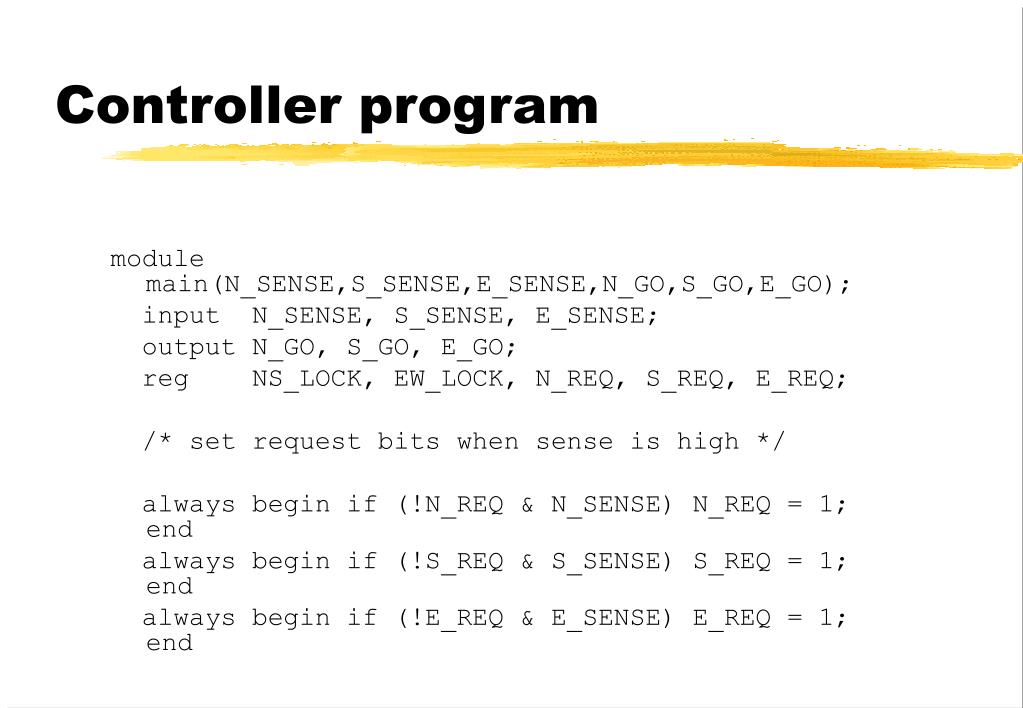

  28. module main(N_SENSE,S_SENSE,E_SENSE,N_GO,S_GO,E_GO); input N_SENSE, S_SENSE, E_SENSE; output N_GO, S_GO, E_GO; reg NS_LOCK, EW_LOCK, N_REQ, S_REQ, E_REQ; /* set request bits when sense is high */ always begin if (!N_REQ & N_SENSE) N_REQ = 1; end always begin if (!S_REQ & S_SENSE) S_REQ = 1; end always begin if (!E_REQ & E_SENSE) E_REQ = 1; end Controller program

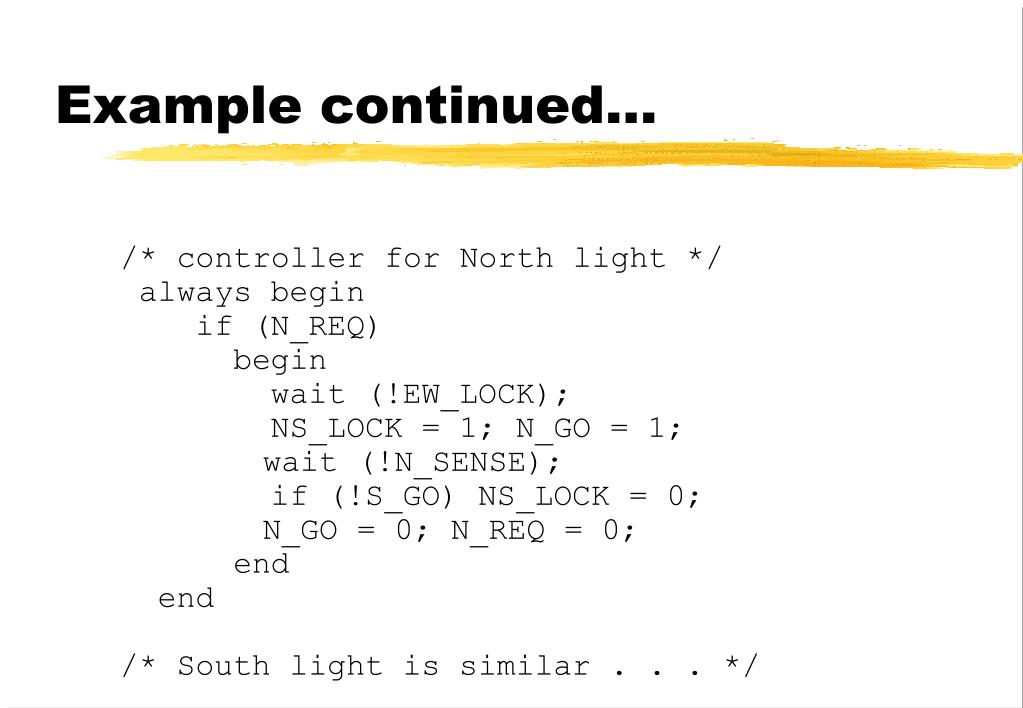

  29. Example continued... /* controller for North light */ always begin if (N_REQ) begin wait (!EW_LOCK); NS_LOCK = 1; N_GO = 1; wait (!N_SENSE); if (!S_GO) NS_LOCK = 0; N_GO = 0; N_REQ = 0; end end /* South light is similar . . . */

  30. Example code, cont… /* Controller for East light */ always begin if (E_REQ) begin EW_LOCK = 1; wait (!NS_LOCK); E_GO = 1; wait (!E_SENSE); EW_LOCK = 0; E_GO = 0; E_REQ = 0; end end

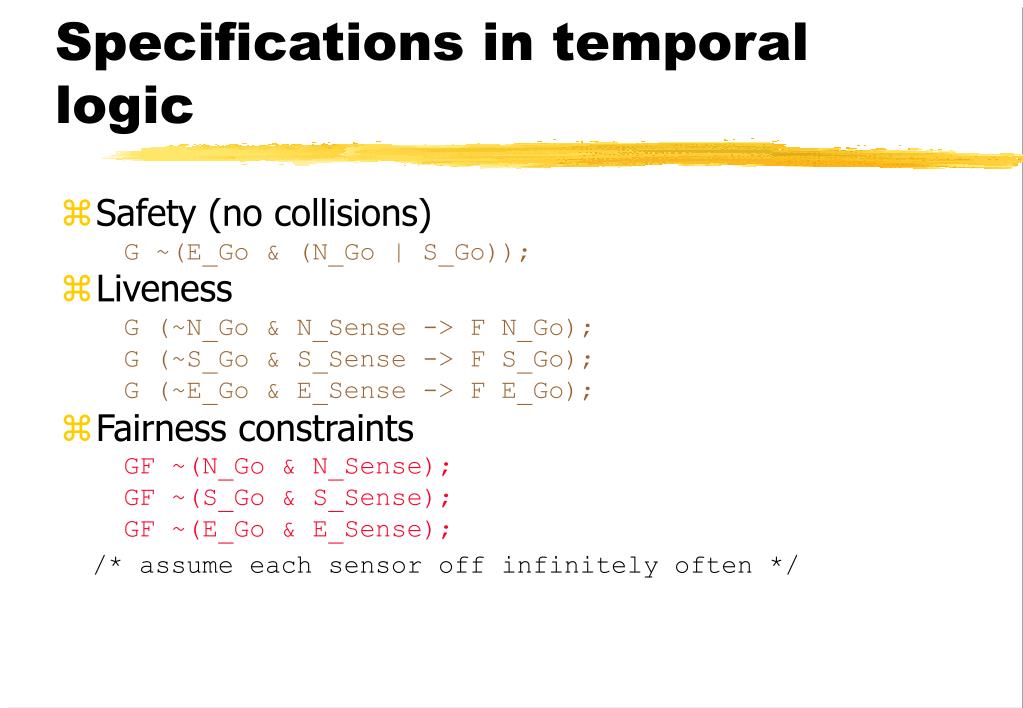

  31. Specifications in temporal logic • Safety (no collisions) G ~(E_Go & (N_Go | S_Go)); • Liveness G (~N_Go & N_Sense -> F N_Go); G (~S_Go & S_Sense -> F S_Go); G (~E_Go & E_Sense -> F E_Go); • Fairness constraints GF ~(N_Go & N_Sense); GF ~(S_Go & S_Sense); GF ~(E_Go & E_Sense); /* assume each sensor off infinitely often */

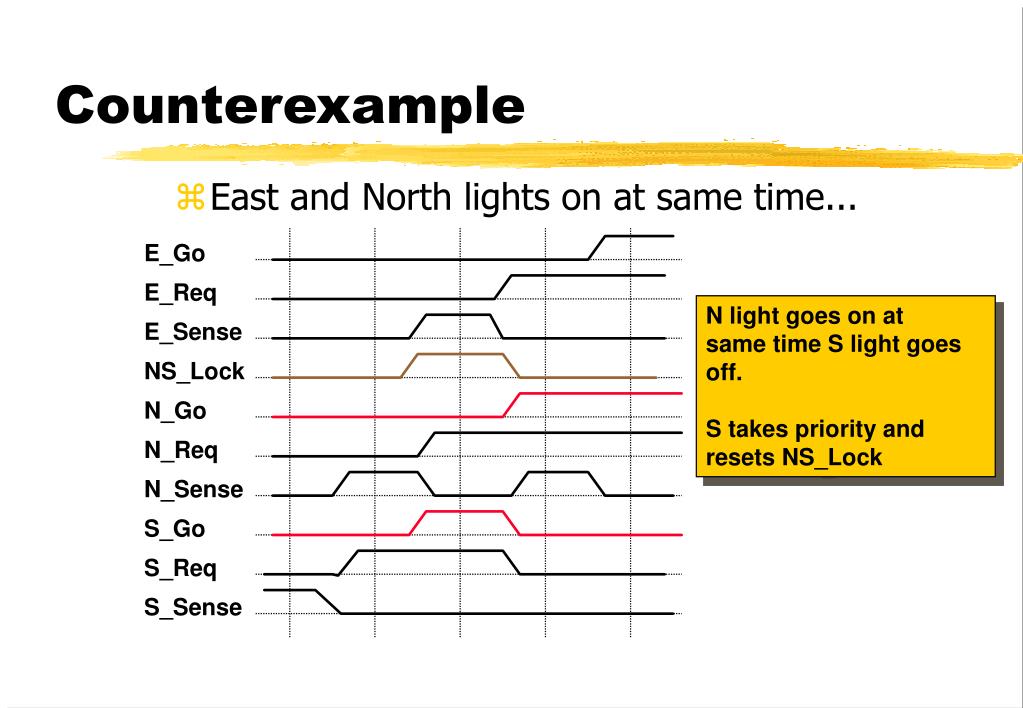

  32. Counterexample • East and North lights on at same time... E_Go E_Req N light goes on at same time S light goes off. S takes priority and resets NS_Lock E_Sense NS_Lock N_Go N_Req N_Sense S_Go S_Req S_Sense

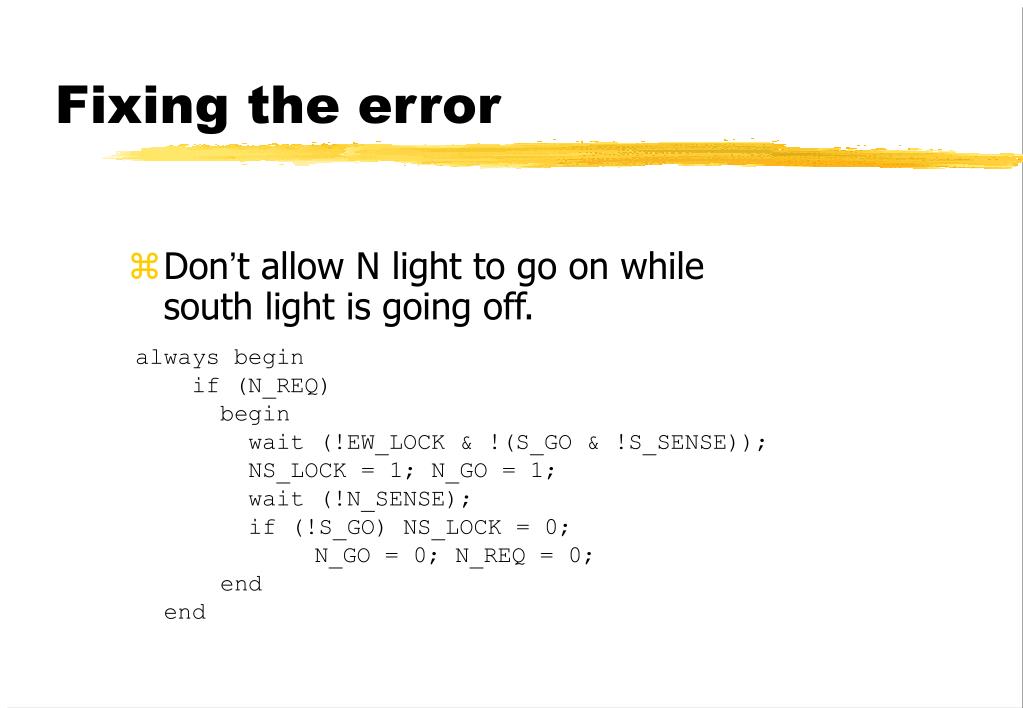

  33. Fixing the error • Don’t allow N light to go on while south light is going off. always begin if (N_REQ) begin wait (!EW_LOCK & !(S_GO & !S_SENSE)); NS_LOCK = 1; N_GO = 1; wait (!N_SENSE); if (!S_GO) NS_LOCK = 0; N_GO = 0; N_REQ = 0; end end

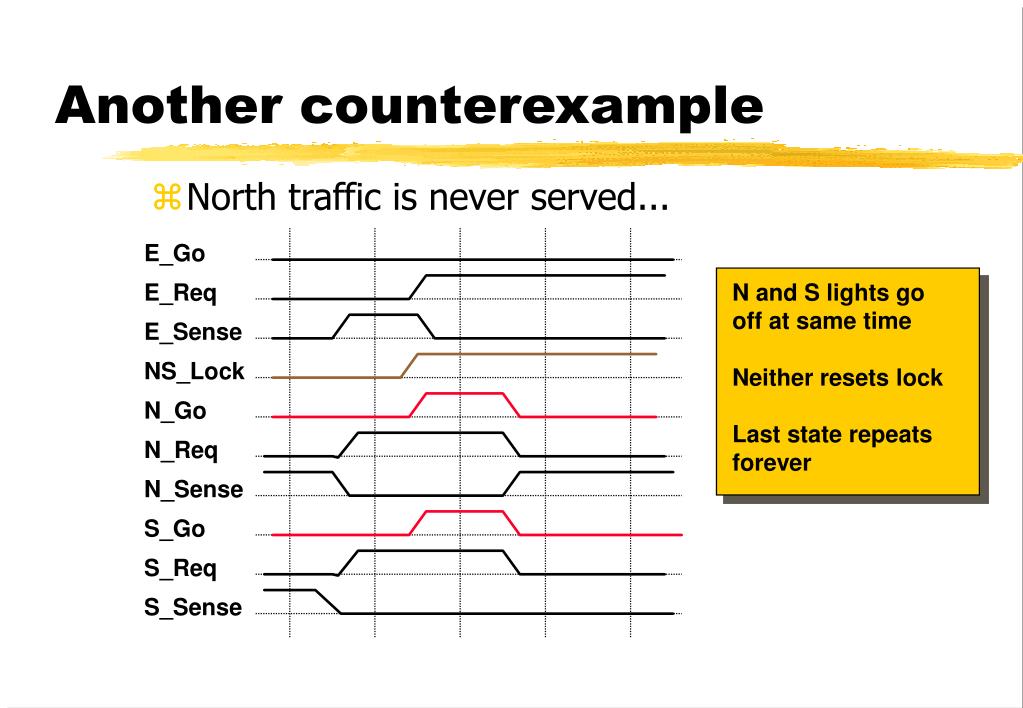

  34. Another counterexample • North traffic is never served... E_Go E_Req N and S lights go off at same time Neither resets lock Last state repeats forever E_Sense NS_Lock N_Go N_Req N_Sense S_Go S_Req S_Sense

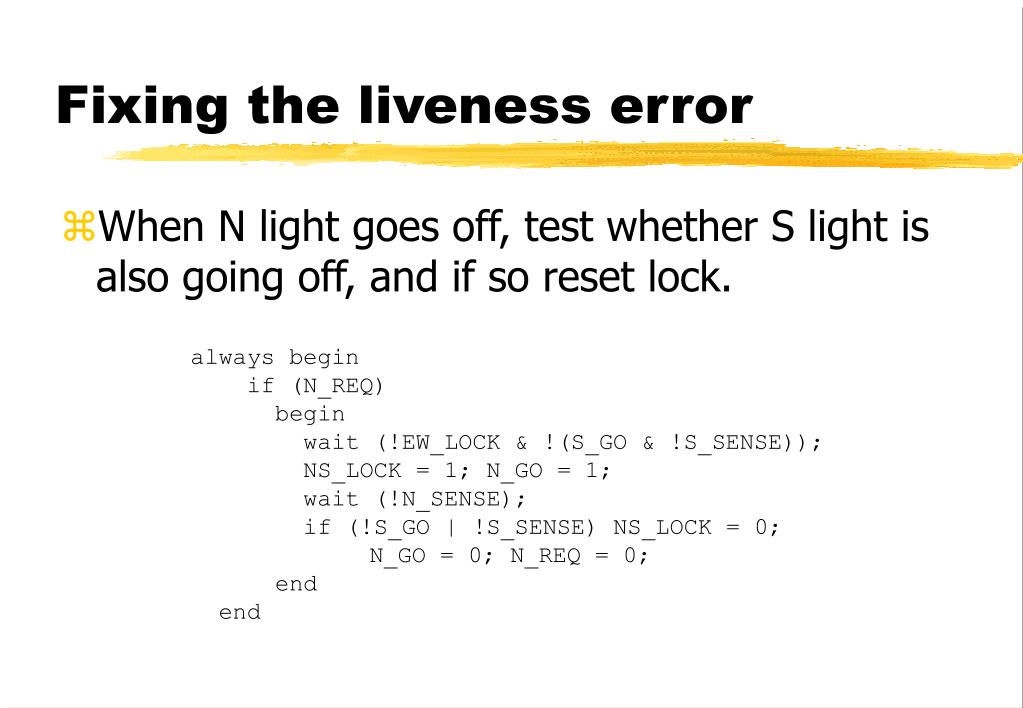

  35. Fixing the liveness error • When N light goes off, test whether S light is also going off, and if so reset lock. always begin if (N_REQ) begin wait (!EW_LOCK & !(S_GO & !S_SENSE)); NS_LOCK = 1; N_GO = 1; wait (!N_SENSE); if (!S_GO | !S_SENSE) NS_LOCK = 0; N_GO = 0; N_REQ = 0; end end

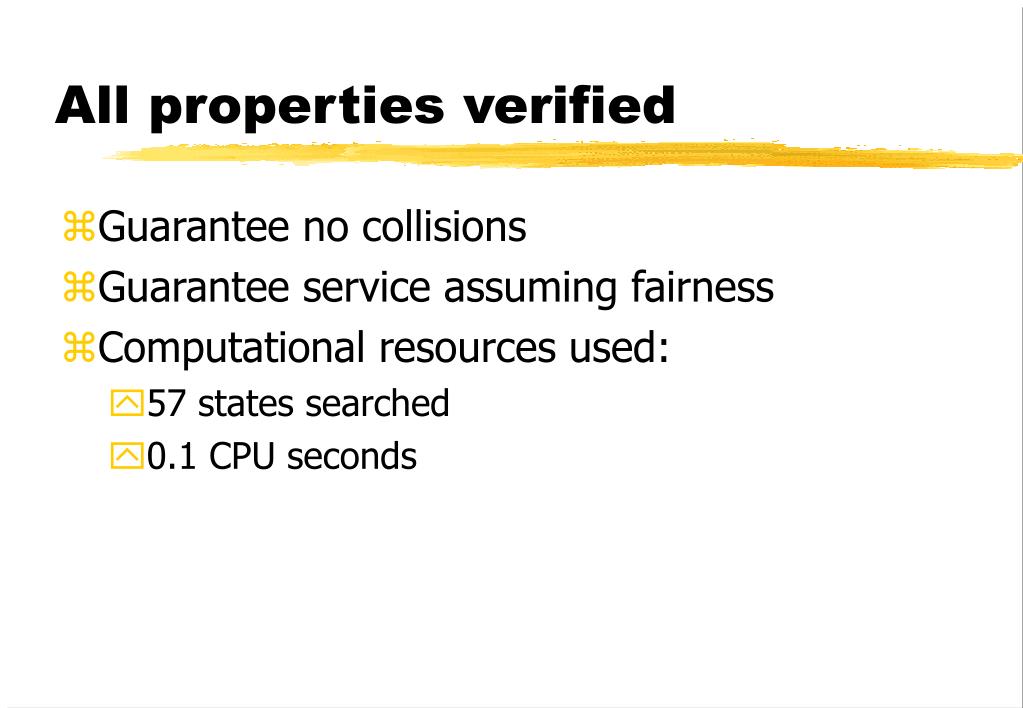

  36. All properties verified • Guarantee no collisions • Guarantee service assuming fairness • Computational resources used: • 57 states searched • 0.1 CPU seconds

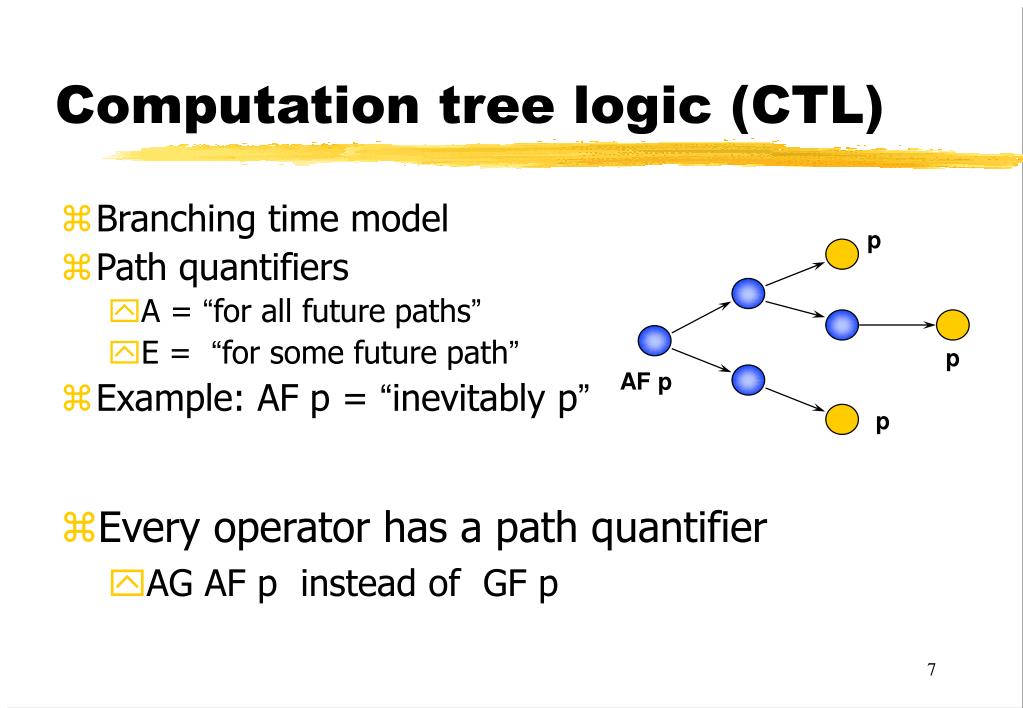

  37. Computation tree logic (CTL) • Branching time model • Path quantifiers • A = “for all future paths” • E = “for some future path” • Example: AF p = “inevitably p” p p AF p p • Every operator has a path quantifier • AG AF p instead of GF p 7

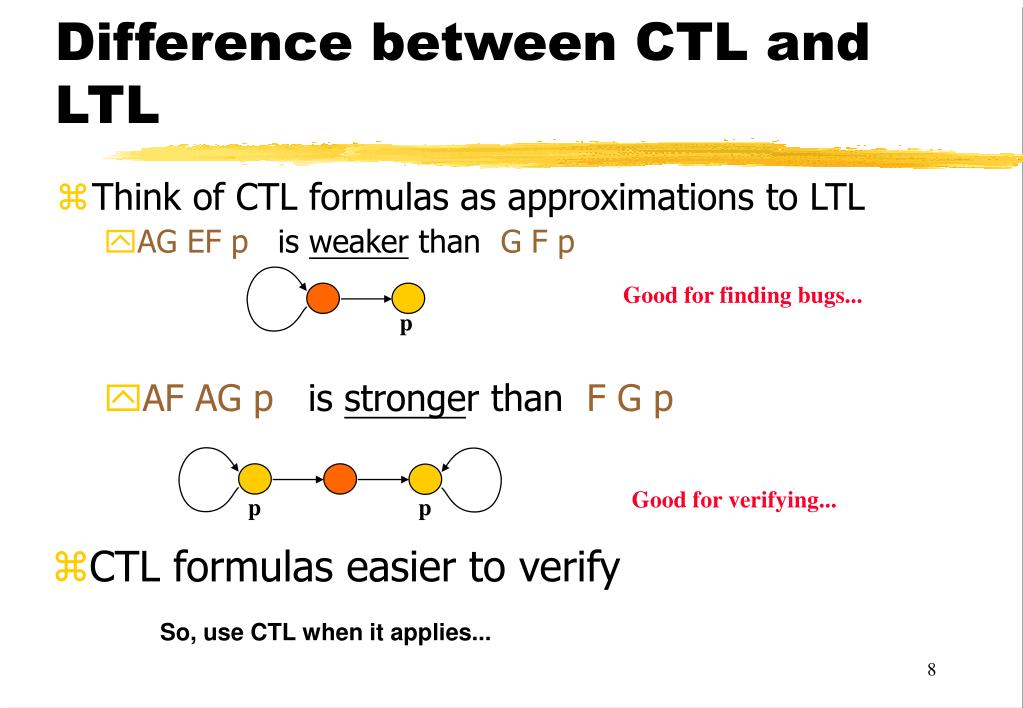

  38. Difference between CTL and LTL • Think of CTL formulas as approximations to LTL • AG EF p is weaker than G F p Good for finding bugs... p • AF AG p is stronger than F G p Good for verifying... p p • CTL formulas easier to verify So, use CTL when it applies... 8

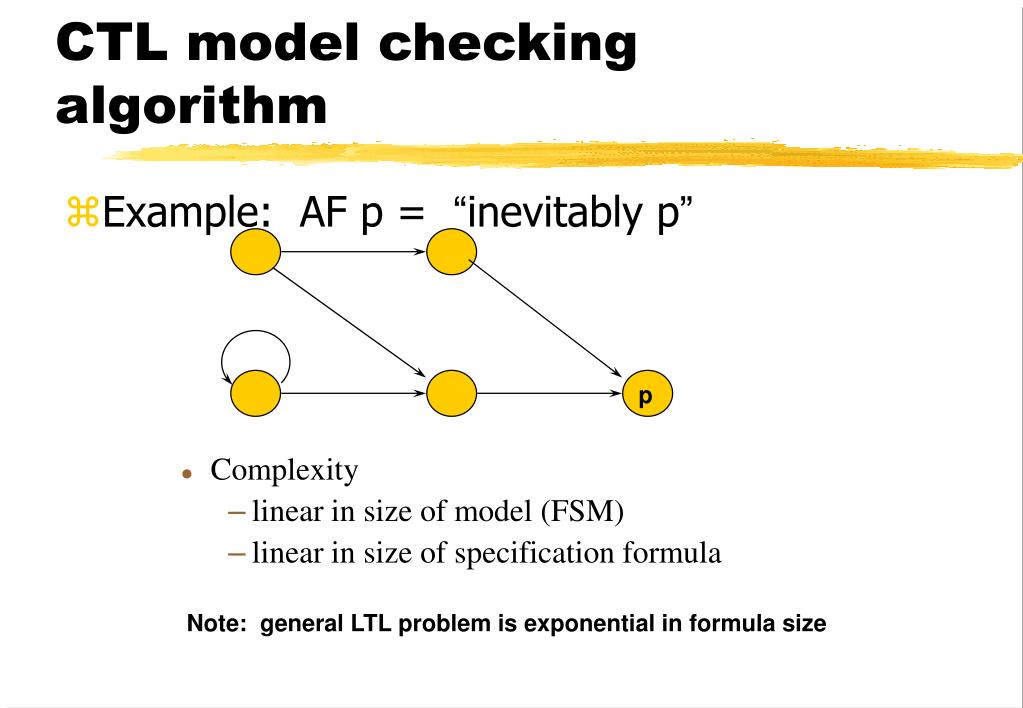

  39. CTL model checking algorithm • Example: AF p = “inevitably p” p • Complexity • linear in size of model (FSM) • linear in size of specification formula Note: general LTL problem is exponential in formula size

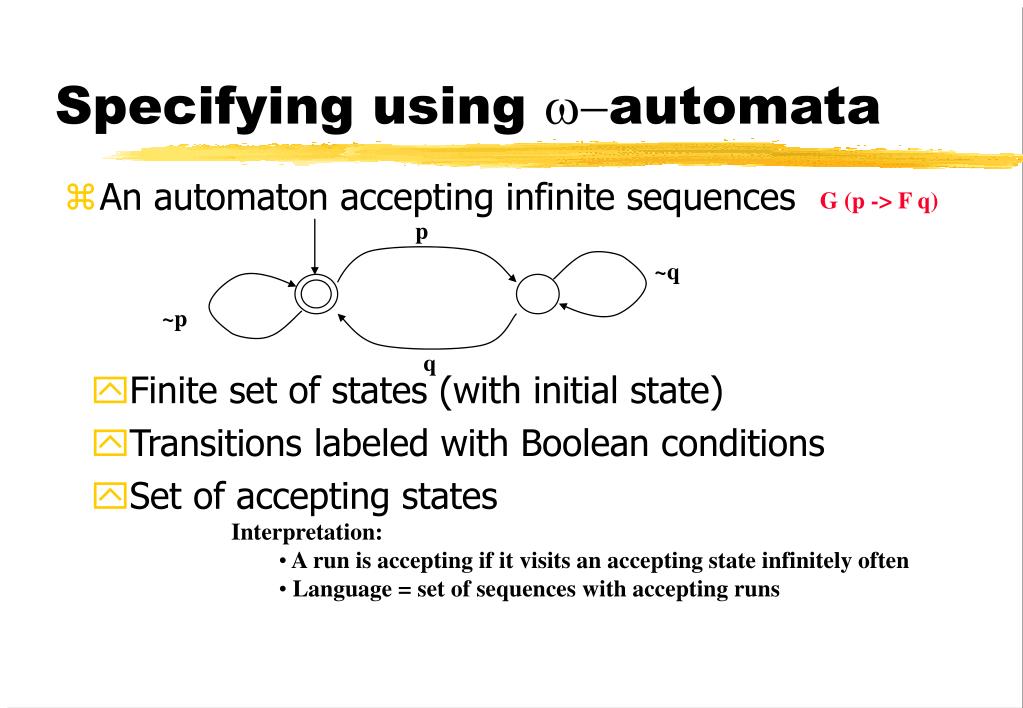

  40. Specifying using w-automata G (p -> F q) • An automaton accepting infinite sequences p ~q ~p q • Finite set of states (with initial state) • Transitions labeled with Boolean conditions • Set of accepting states • Interpretation: • A run is accepting if it visits an accepting state infinitely often • Language = set of sequences with accepting runs

  41. Verifying using w-automata • Construct parallel product of model and automaton • Search for “bad cycles” • Very similar algorithm to temporal logic model checking • Complexity (deterministic automaton) • Linear in model size • Linear in number of automaton states • Complexity in number of acceptance conditions varies

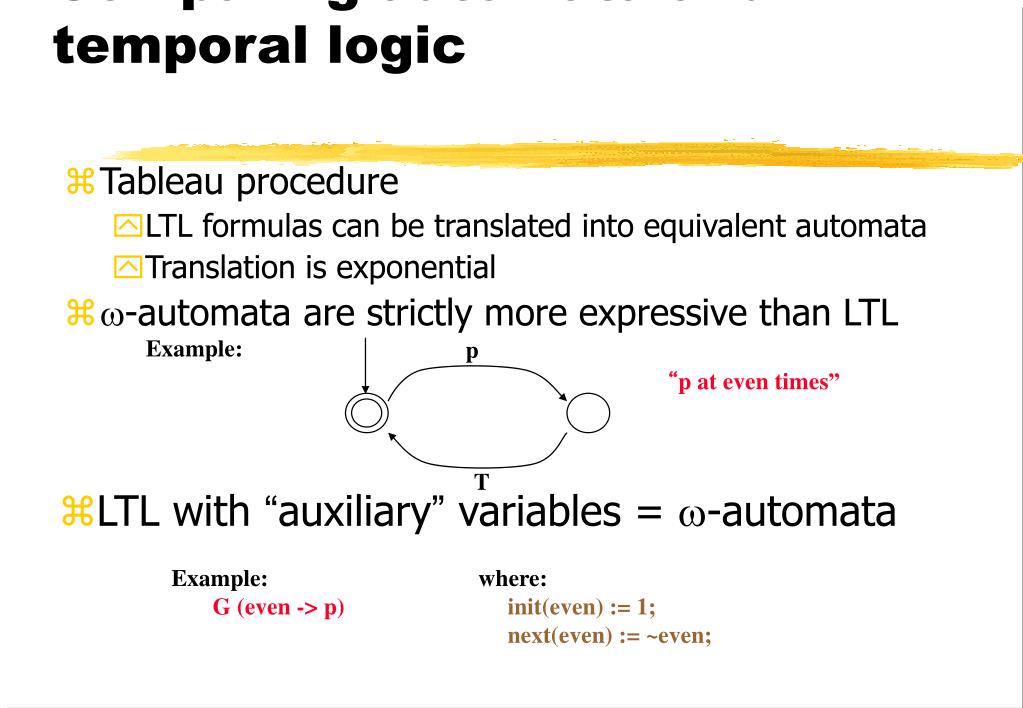

  42. Comparing automata and temporal logic • Tableau procedure • LTL formulas can be translated into equivalent automata • Translation is exponential • w-automata are strictly more expressive than LTL Example: p “p at even times” T • LTL with “auxiliary” variables = w-automata Example: G (even -> p) where: init(even) := 1; next(even) := ~even;

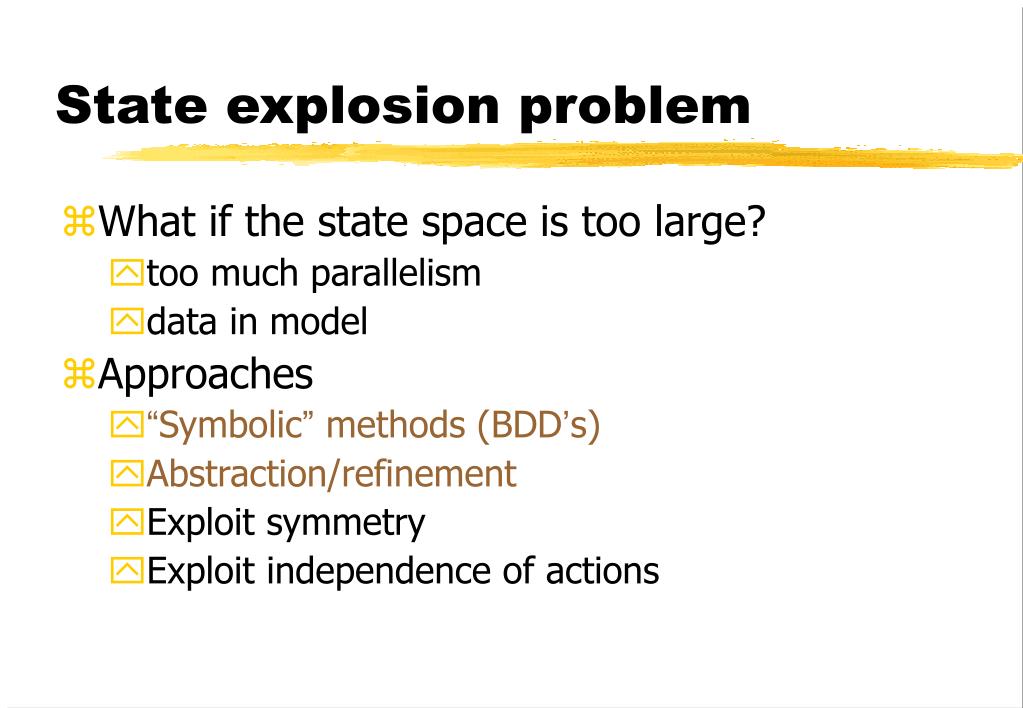

  43. State explosion problem • What if the state space is too large? • too much parallelism • data in model • Approaches • “Symbolic” methods (BDD’s) • Abstraction/refinement • Exploit symmetry • Exploit independence of actions

  44. 0 0 0 1 0 0 0 1 0 0 0 1 1 1 1 1 Binary Decision Diagrams (Bryant) • Ordered decision tree for f = ab + cd a 0 1 b b 1 0 1 0 c c c c 1 0 1 0 1 0 1 0 d d d d d d d d

  45. OBDD reduction • Reduced (OBDD) form: a 1 0 b 0 1 c 1 1 0 d 0 0 1 • Key idea: combine equivalent sub-cases

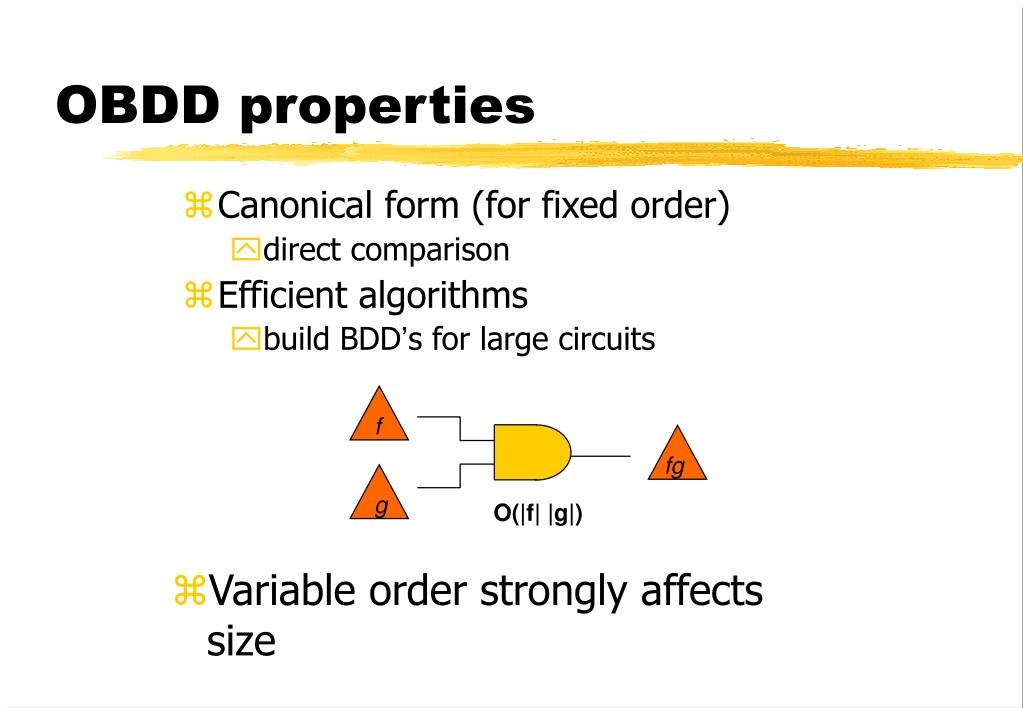

  46. OBDD properties • Canonical form (for fixed order) • direct comparison • Efficient algorithms • build BDD’s for large circuits f fg g O(|f| |g|) • Variable order strongly affects size

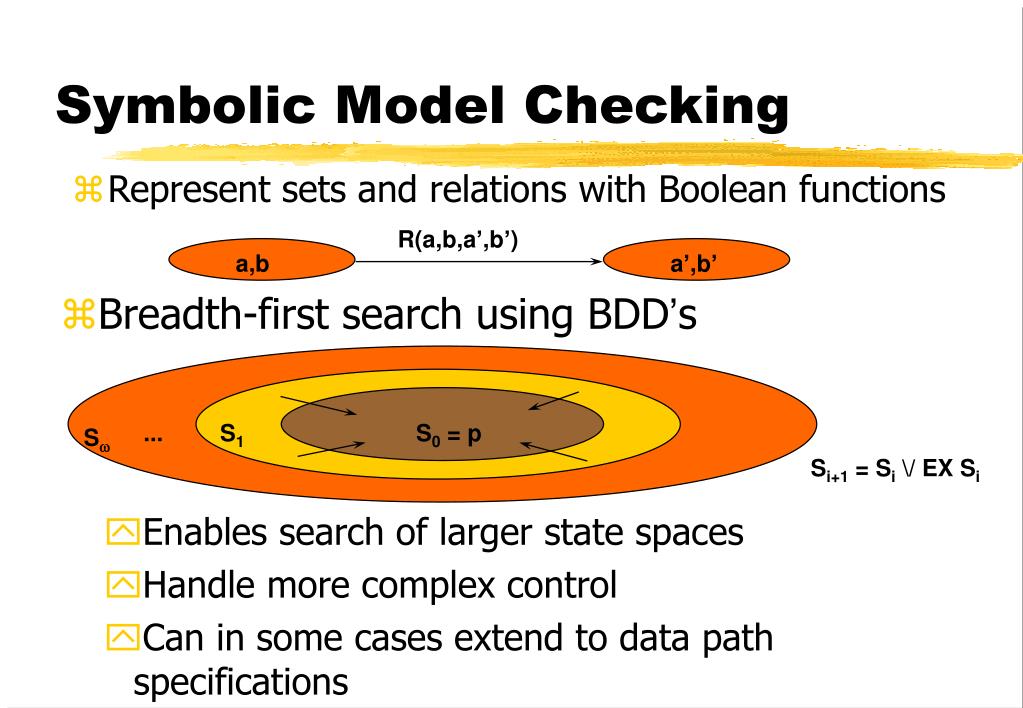

  47. Symbolic Model Checking • Represent sets and relations with Boolean functions R(a,b,a’,b’) a,b a’,b’ • Breadth-first search using BDD’s ... S1 S0 = p Sw Si+1 = Si \/ EX Si • Enables search of larger state spaces • Handle more complex control • Can in some cases extend to data path specifications

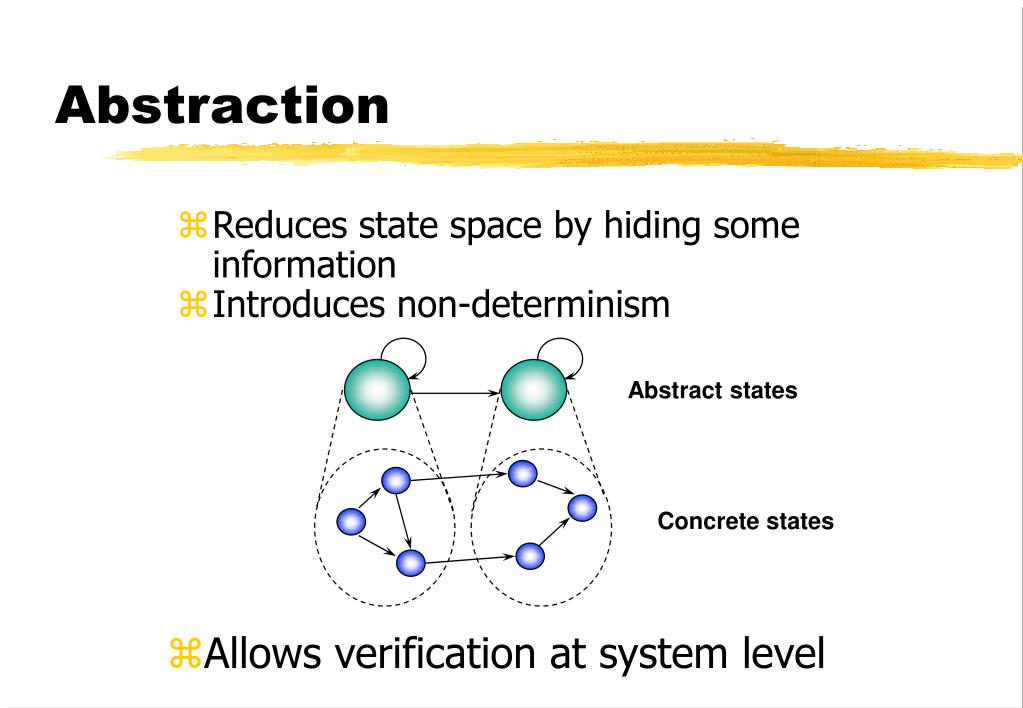

  48. Abstract states Concrete states Abstraction • Reduces state space by hiding some information • Introduces non-determinism • Allows verification at system level

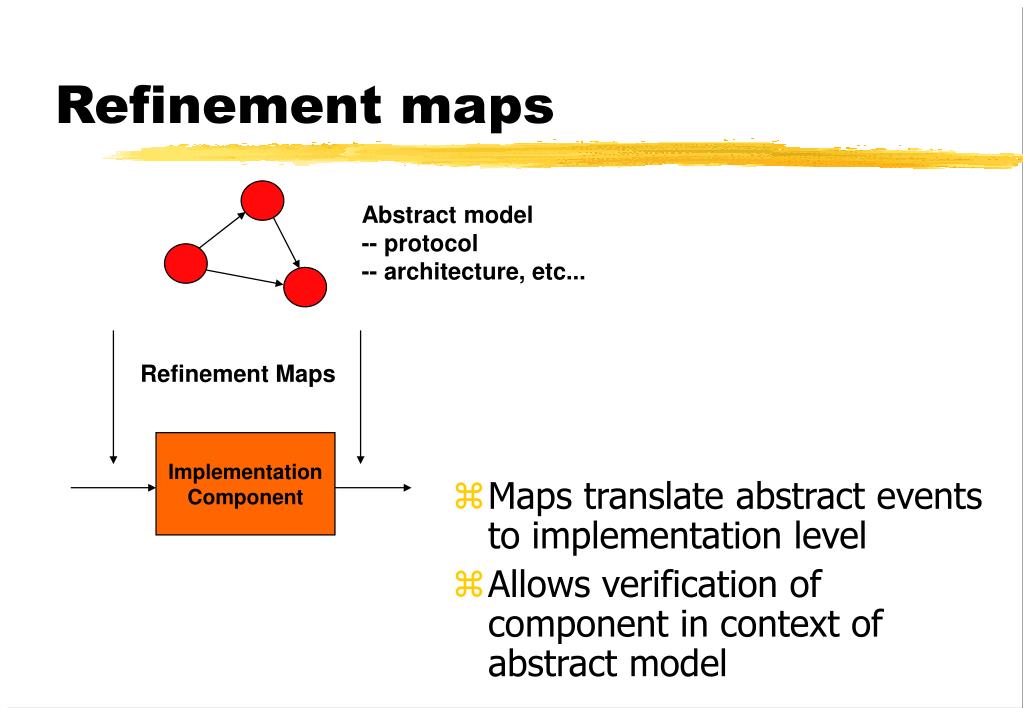

  49. Abstract model -- protocol -- architecture, etc... Refinement Maps Implementation Component Refinement maps • Maps translate abstract events to implementation level • Allows verification of component in context of abstract model

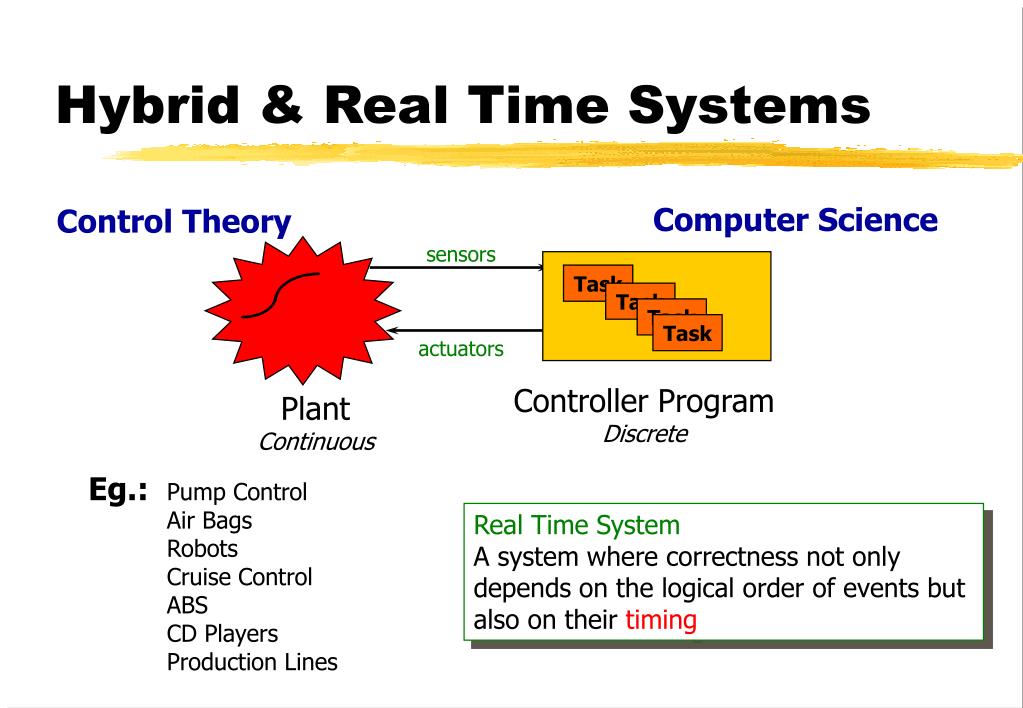

  50. Hybrid & Real Time Systems Computer Science Control Theory sensors Task Task Task Task actuators Controller Program Discrete Plant Continuous Eg.: Pump Control Air Bags Robots Cruise Control ABS CD Players Production Lines Real Time System A system where correctness not only depends on the logical order of events but also on their timing
