Relational string verification using multi track automata

Relational String Verification Using Multi-track Automata

Fang Yu, Tevfik Bultan, and Oscar Ibarra

Department of Computer Science

University of California, Santa Barbara


Web software
Web software

  • Web software is becoming increasingly dominant

  • Web applications are used extensively in many areas:

    • Commerce: online banking, online shopping, …

    • Entertainment: online music & videos, …

    • Interaction: social networks

  • We will rely on web applications more in the future:

    • Health records

      • Google Health, Microsoft HealthVault

    • Controlling and monitoring of national infrastructures:

      • Google Powermeter

  • Web software is also rapidly replacing desktop applications

    • Could computing + software-as-service

      • Google Docs, Google …


One major road block
One Major Road Block

  • Web applications are not secure!

  • Web applications are notorious for security vulnerabilities

    • Their global accessibility makes them a target for many malicious users

  • As web applications are becoming increasingly dominant and as their use in safety critical areas is increasing

    • Their security is becoming a critical issue


Web applications are not secure
Web applications are not secure

  • There are many well-known security vulnerabilities that exist in many web applications. Here are some examples:

    • Malicious file execution: where a malicious user causes the server to execute malicious code

    • SQL injection: where a malicious user executes SQL commands on the back-end database by providing specially formatted input

    • Cross site scripting (XSS):causes the attacker to execute a malicious script at a user’s browser

  • These vulnerabilities are typically due to

    • errors in user input validation or

    • lack of user input validation



Web application vulnerabilities1
Web Application Vulnerabilities

  • The top two vulnerabilities of the Open Web Application Security Project (OWASP)’s top ten list in 2007

    • Cross Site Scripting (XSS)

    • Injection Flaws (such as SQL Injection)

  • The top two vulnerabilities of the OWASPs top ten list in 2010

    • Injection Flaws (such as SQL Injection)

    • Cross Site Scripting (XSS)


Why are web applications error prone
Why are web applications error prone?

  • Extensive string manipulation:

    • Web applications use extensive string manipulation

      • To construct html pages, to construct database queries in SQL, etc.

    • The user input comes in string form and must be validated and sanitized before it can be used

      • This requires the use of complex string manipulation functions such as string-replace

    • String manipulation is error prone


String related vulnerabilities
String Related Vulnerabilities

  • String related web application vulnerabilities occur when:

    • a sensitive function is passed a malicious string input from the user

    • This input contains an attack

    • User input is not properly sanitized before it reaches the sensitive function

  • String analysis: Discover these vulnerabilities automatically


Xss vulnerability
XSS Vulnerability

  • A PHP Example:

    1:<?php

    2: $www = $_GET[”www”];

    3: $l_otherinfo = ”URL”;

    4: echo ”<td>” . $l_otherinfo . ”: ” . $www . ”</td>”;

    5:?>

  • The echo statement in line 4 is a sensitive function

  • It contains a Cross Site Scripting (XSS) vulnerability

<script ...


String analysis
String Analysis

  • String analysis determines all possible values that a string expression can take during any program execution

  • Using string analysis we can identify all possible input values of the sensitive functions

    • Then we can check if inputs of sensitive functions can contain attack strings

  • How can we characterize attack strings?

    • Use regular expressions to specify the attack patterns

    • Attack pattern for XSS: Σ∗<scriptΣ∗

  • If string analysis determines that the intersection of the attack pattern and possible inputs of the sensitive function is empty

    • then we can conclude that the program is secure

  • If the intersection is not empty, then we conclude that the program might be vulnerable


String systems
String Systems

stmt ::= id := sexp; |

id := call id (sexp);

if exp then goto l; | (where l is a stmt label)

goto L; | (where L is a set of stmt labels)

inputid; |

outputexp; |

assert exp;

exp ::= bexp | exp and exp | exp and exp | not exp

bexp ::= atom = sexp

sexp ::= sexp . atom | atom | suffix(id) | prefix(id)

atom ::= id | c (where c is a string constant)


Basic string system categorization
Basic String System Categorization

We use the following categorization

  • N/D: nondeterministic or deterministic

  • U/B/K: unary, binary or arbitrary alphabet

  • The set of variables

  • The types of statements

  • The types of branch conditions

    Example: NB(X1, X2) Xi := Xi.c; X1 = X2

    Nondeterministic, binary alphabet, variables X1, X2, statements of the form Xi := Xi.c, branch conditions of the form X1 = X2

    Define the reachability problem for the string systems as:

    Given a string system and a configuration (an instruction label and values for the variables) is that configuration reachable?


Decidability results
Decidability Results

Reachability problem for:

  • NB(X1,X2) Xi := Xi.c; X1 = X2 is undecidable

    • Reduction from Post Correspondence Problem

  • DU(X1,X2,X3) Xi := Xi.c; X1 = X3, X2 = X3 is undecidable

    • Can simulate 2-counter machines

  • NK(X1, . . . ,Xk) Xi := d.Xi.c; c = Xi, c = prefix(Xi), c=suffix(Xi) is decidable

    • Reduction to emptiness check for multi-tape automaton

  • DK(X1, . . . ,Xk) Xi := Xi . a, Xi := a . Xi; X1 = X2, c = Xi, c = prefix(Xi), c = suffix(Xi) is decidable.

    • Can bound the execution steps if there is no infinite loop


Automata based string analysis
Automata-based String Analysis

  • Finite State Automata can be used to characterize sets of string values

  • We use automata based string analysis

    • Associate each string expression in the program with an automaton

    • The automaton accepts an over approximation of all possible values that the string expression can take during program execution

  • Using this automata representation we symbolically execute the program, only paying attention to string manipulation operations


String analysis stages
String Analysis Stages

  • Convert PHP programs to dependency graphs

  • Use symbolic reachability analysis to compute an over-approximation of reachable configurations

  • Forward analysis

    • Assume that the user input can be any string

    • Propagate this information on the dependency graph

    • When a sensitive function is reached, intersect with attack pattern

  • Result

    • If the intersection is not empty, there might be a vulnerability

    • If the intersection is empty the program is not vulnerable (wrt attack pattern)

Reachability

Analysis

Front

End

Vulnerability

Report

PHP

Program

Attack

patterns


Dependency graphs
Dependency Graphs

Given a PHP program,

first construct the:

Dependency graph

1:<?php

2: $www = $ GET[”www”];

3: $l_otherinfo = ”URL”;

4: echo $l_otherinfo .

”: ” . $www;

5:?>

“URL”, 3

$l_otherinfo, 3

$_GET[www], 2

“: “, 4

str_concat, 4

$www, 2

str_concat, 4

echo, 4

Dependency Graph


Symbolic reachability analysis
Symbolic Reachability Analysis

  • Using the dependency graph we conduct symbolic reachability analysis

  • Automata-based forward fixpoint computation that identifies the possible string values of each node

    • Each node in the dependency graph is associated with a DFA

      • DFA accepts an over-approximation of the strings values that the string expression represented by that node can take at runtime

      • The DFAs for the input nodes acceptΣ∗

    • Intersecting the DFA for the sink nodes with the DFA for the attack pattern identifies the vulnerabilities


Forward analysis
Forward Analysis

Attack Pattern = Σ*<Σ*

Forward = Σ*

“URL”, 3

$_GET[www], 2

URL

“: “, 4

$www, 2

$l_otherinfo, 3

:

Σ*

URL

str_concat, 4

str_concat, 4

URL:

URL: Σ*

echo, 4

URL: Σ*

≠ Ø

= L(URL: Σ*< Σ*)

L(URL: Σ*)

L(Σ*<Σ*)


Relational string analysis
Relational String Analysis

  • Earlier work on string analysis use multiple single-track DFAs during symbolic reachability analysis

    • One DFA per variable per program location

  • Our approach: Use one multi-track DFA per program location

    • Each track represents the values of one string variable

  • Using multi-track DFAs:

    • Identifies the relations among string variables

    • Improves the precision of the path-sensitive analysis

    • Can be used to prove properties that depend on relations among string variables, e.g., $file = $usr.txt


Multi track automata
Multi-track Automata

  • Let X (the first track), Y (the second track), be two string variables

  • λ is the padding symbol

  • A multi-track automaton that encodes the word equation:

    X = Y.txt

(λ,t)

(λ,x)

(λ,t)

(a,a), (b,b) …


Alignment
Alignment

  • To conduct relational string analysis, we need to compute ”intersection” of multi-track automata

    • Intersection is closed under aligned multi-track automata

      • In an aligned multi-track automaton λs are right justified in all tracks, e.g., abλλ instead of aλbλ

  • However, there exist unaligned multi-track automata that are not equivalent to any aligned multi-track automata

    • We propose an alignment algorithm that constructs aligned automata which over or under approximates unaligned ones

      • Over approximation: Generates an aligned multi-track automaton that accepts a super set of the language recognized by the unaligned multi-track automaton

      • Under approximation: Generates an aligned multi-track automaton that accepts a subset of the language recognized by the unaligned multi-track automaton


Symbolic reachability analysis1
Symbolic Reachability Analysis

  • Transitions and configurations of a string system can be represented using word equations

  • Word equations can be represented/approximated using aligned multi-track automata which are closed under intersection, union, complement and projection

  • Operations required for reachability analysis (such as equivalence checking) can be computed on DFAs


Word equations
Word Equations

  • Word equations: Equality of two expressions that consist of concatenation of a set of variables and constants

    • Example: X = Y . txt

  • Word equations and their combinations (using Boolean connectives) can be expressed using only equations of the form X = Y . c, X = c . Y, c = X . Y, X = Y. Z, Boolean connectives and existential quantification

  • Our goal:

    • Construct multi-track automata from basic word equations

      • The automata should accept tuples of strings that satisfy the equation

    • Boolean connectives can be handled using intersection, union and complement

    • Existential quantification can be handled using projection


Word equations to automata
Word Equations to Automata

  • Basic equations X = Y . c, X = c . Y, c = X . Y and their Boolean combinations can be represented precisely using multi-track automata

  • The size of the aligned multi-track automaton for X = c . Y is exponential in the length of c

  • The nonlinear equation X = Y . Z cannot be represented precisely using an aligned multi-track automaton


Word equations to automata1
Word Equations to Automata

  • When we cannot represent an equation precisely, we can generate an over or under-approximation of it

    • Over-approximation: The automaton accepts all string tuples that satisfy the equation and possibly more

    • Under-approximation: The automaton accepts only the string tuples that satify the equation but possibly not all of them

  • We implement a function CONSTRUCT(equation, sign)

    • Which takes a word equation and a sign and creates a multi-track automata that over or under-approximation of the equation based on the input sign


Post condition computation
Post condition computation

  • During symbolic reachability analysis we compute the post-conditions of statements using the function CONSTRUCT

    Given a multi-track automata M and

    an assignment statement: X := sexp

    Post(M, X := sexp) denotes the post-condition of X := sexp with respect to M

    Post(M, X := sexp)

    = ( X , M ∩ CONSTRUCT(X’ = sexp, +))[X/X’]

  • We implement a symbolic forward reachability computation using the post-condition operations

    • It is a least fixpoint computation

    • We use widening to achieve convergence


Widening
Widening

  • String verification problem is undecidable

  • The forward fixpoint computation is not guaranteed to converge in the presence of loops and recursion

  • We compute a sound approximation

    • During fixpoint we compute an over approximation of the least fixpoint that corresponds to the reachable states

  • We use an automata based widening operation to over-approximate the fixpoint

    • Widening operation over-approximates the union operations and accelerates the convergence of the fixpoint computation


Summarization
Summarization

  • We developed techniques for handling function calls using summarization

  • We generate a transducer that is the summary of a function

    • It represents a relation between the arguments of the function and the value it returns

    • We generate a multi-track automaton for the function summary

    • We generate the function summary also using forward fixpoint computation and widening

  • We use the function summaries during reachability analysis to handle function calls


Symbolic automata representation

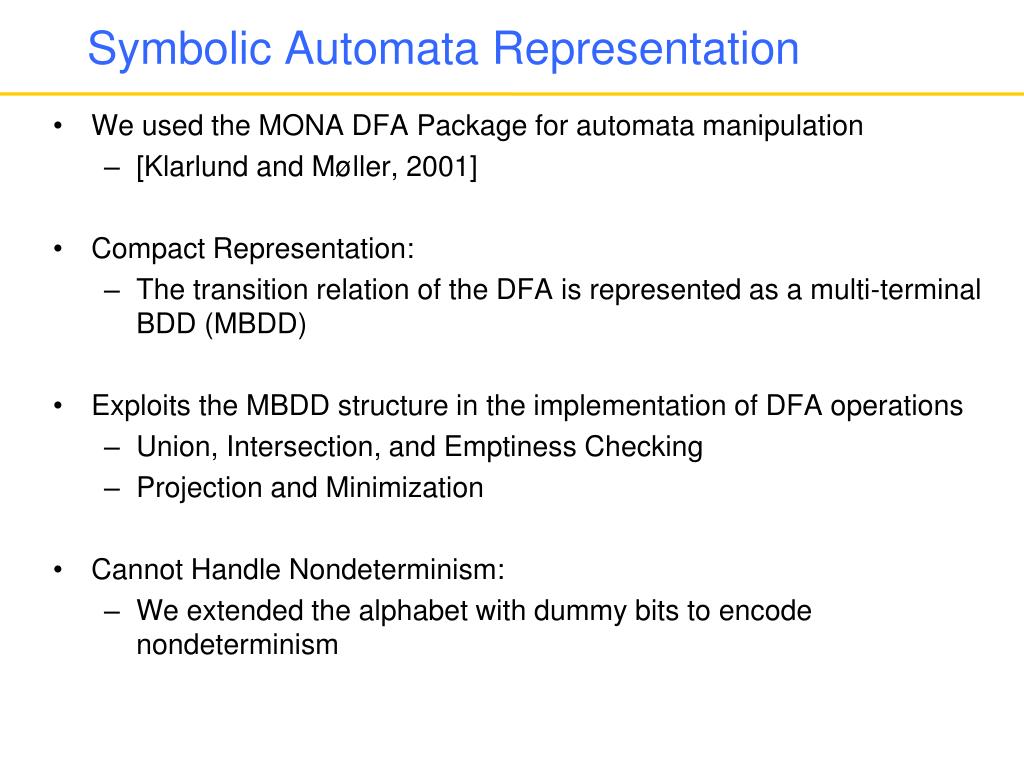

Symbolic Automata Representation

  • We used the MONA DFA Package for automata manipulation

    • [Klarlund and Møller, 2001]

  • Compact Representation:

    • The transition relation of the DFA is represented as a multi-terminal BDD (MBDD)

  • Exploits the MBDD structure in the implementation of DFA operations

    • Union, Intersection, and Emptiness Checking

    • Projection and Minimization

  • Cannot Handle Nondeterminism:

    • We extended the alphabet with dummy bits to encode nondeterminism


Symbolic automata representation1
Symbolic Automata Representation

Explicit DFA

representation

Symbolic DFA

representation


Stranger a string analysis tool
Stranger: A String Analysis Tool

Stranger is available at:

www.cs.ucsb.edu/~vlab/stranger

  • Uses Pixy [Jovanovic et al., 2006] as a PHP front end

  • Uses MONA [Klarlund and Møller, 2001] automata package for automata manipulation

Attack

patterns

Pixy Front End

Symbolic String Analysis

String/Automata Operations

Automata Based

String Manipulation

Library

Parser

String

Analyzer

Dependency

Graphs

Stranger Automata

PHP

program

CFG

DFAs

Dependency

Analyzer

String Analysis

Report

(Vulnerability

Signatures)

MONA Automata

Package


Experiments
Experiments

  • XSS (Cross-Site Scripting) benchmarks (contain vulnerability)

  • We check whether the input to a sensitive function can contain the string <script

    • S1: MyEasyMarket-4.1, trans.php (218)

    • S2: PBLguestbook-1.32, pblguestbook.php(1210)

    • S3: Aphpkb-0.71, saa.php(87)

    • S4: BloggIT 1.0, admin.php(23)

  • MFE (Malicious File Execution) benchmarks (do not contain vulnerability):

  • We check whether the retrieved files and the external inputs are consistent with the security policy

    • M1: PBLguestbook-1.32, pblguestbook.php(536)

    • M2, M3: MyEasyMarket-4.1, prod.php (94, 189)

    • M4, M5: php-fusion-6.01, db backup.php (111), forums prune.php (28).



Case study
Case Study

  • Schoolmate 1.5.4

    • Number of PHP files: 63

    • Lines of code: 8181

  • Forward Analysis results

  • After manual inspection we found the following:


Case study false positives
Case Study – False Positives

  • Why false positives?

    • Path insensitivity: 39

      • Path to vulnerable program point is not feasible

    • Un-modeled built in PHP functions : 6

    • Unfound user written functions: 3

      • PHP programs have more than one execution entry point

  • We can remove all these false positives by extending our analysis to a path sensitive analysis and modeling more PHP functions


Case study sanitization
Case Study - Sanitization

  • We patched all actual vulnerabilities by adding sanitization routines

  • We ran stranger the second time

    • Stranger proved that our patches are correct with respect to the attack pattern we are using


Related work string analysis
Related Work: String Analysis

  • String analysis based on context free grammars: [Christensen et al., SAS’03] [Minamide, WWW’05]

  • String analysis based on symbolic/concolic execution: [Bjorner et al., TACAS’09]

  • Bounded string analysis : [Kiezun et al., ISSTA’09]

  • Automata based string analysis: [Xiang et al., COMPSAC’07] [Shannon et al., MUTATION’07]

  • Application of string analysis to web applications: [Wassermann and Su, PLDI’07, ICSE’08] [Halfond and Orso, ASE’05, ICSE’06]


Related work
Related Work

  • Size Analysis

    • Size analysis: [Hughes et al., POPL’96] [Chin et al., ICSE’05] [Yu et al., FSE’07] [Yang et al., CAV’08]

    • Composite analysis: [Bultan et al., TOSEM’00] [Xu et al., ISSTA’08] [Gulwani et al., POPL’08] [Halbwachs et al., PLDI’08]

  • Vulnerability Signature Generation

    • Test input/Attack generation: [Wassermann et al., ISSTA’08] [Kiezun et al., ICSE’09]

    • Vulnerability signature generation: [Brumley et al., S&P’06] [Brumley et al., CSF’07] [Costa et al., SOSP’07]


Our other string analysis publications
Our Other String Analysis Publications

  • Yu et al. Stranger: An Automata-based String Analysis Tool for PHP [TACAS’10]

  • Yu et al. Generating Vulnerability Signatures for String Manipulating Programs Using Automata-based Forward and Backward Symbolic Analyses [ASE’09]

  • Yu et al. Symbolic String Verification: Combining String Analysis and Size Analysis [TACAS’09]

  • Yu et al. Symbolic String Verification: An Automata-based Approach [SPIN’08]


Current and future work
Current and Future Work

  • Vulnerability signature generation

    • A characterization of all the inputs that might exploit a vulnerability

  • Automated sanitization generation

    • Automatically fixing a vulnerability by modifying the input in a minimal way

  • Client side string analysis

    • Javascript
