netlogo

NetLogo

Uri Wilensky

Tutorial by Bin-Tzong Chie

AI-Econ Research Center, National Chengchi University

Department of Industrial Economics, Tamkang University

outline
Outline
  • Introduction
  • Build a Model
  • Applets
  • HubNet
netlogo1
NetLogo
  • NetLogo is a programmable modeling environment for simulating natural and social phenomena. It was authored by Uri Wilensky in 1999 and is in continuous development at the Center for Connected Learning and Computer-Based Modeling.
  • More Information
    • http://ccl.northwestern.edu/netlogo/docs/

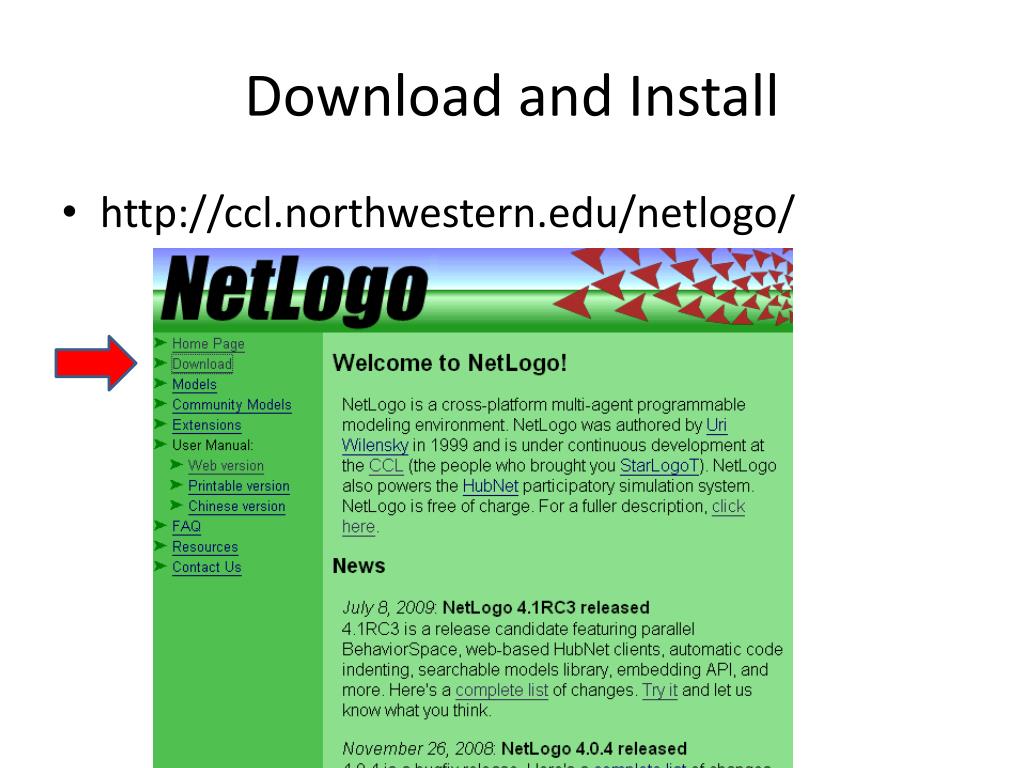

download and install
Download and Install
  • http://ccl.northwestern.edu/netlogo/

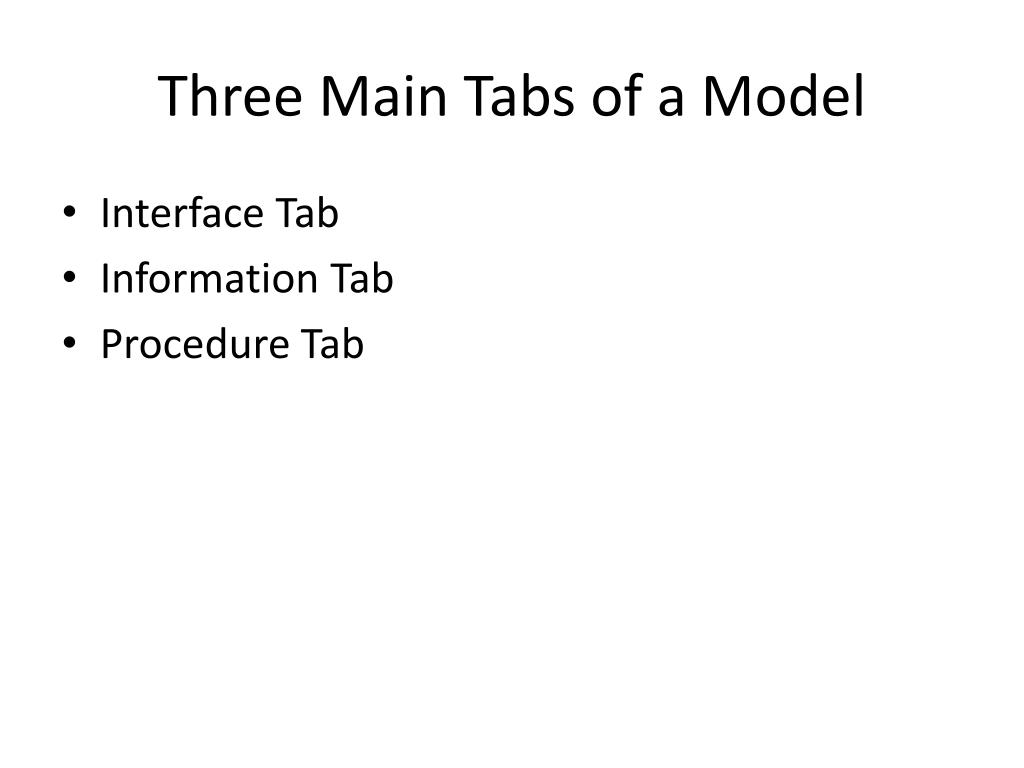

three main tabs of a model
Three Main Tabs of a Model
  • Interface Tab

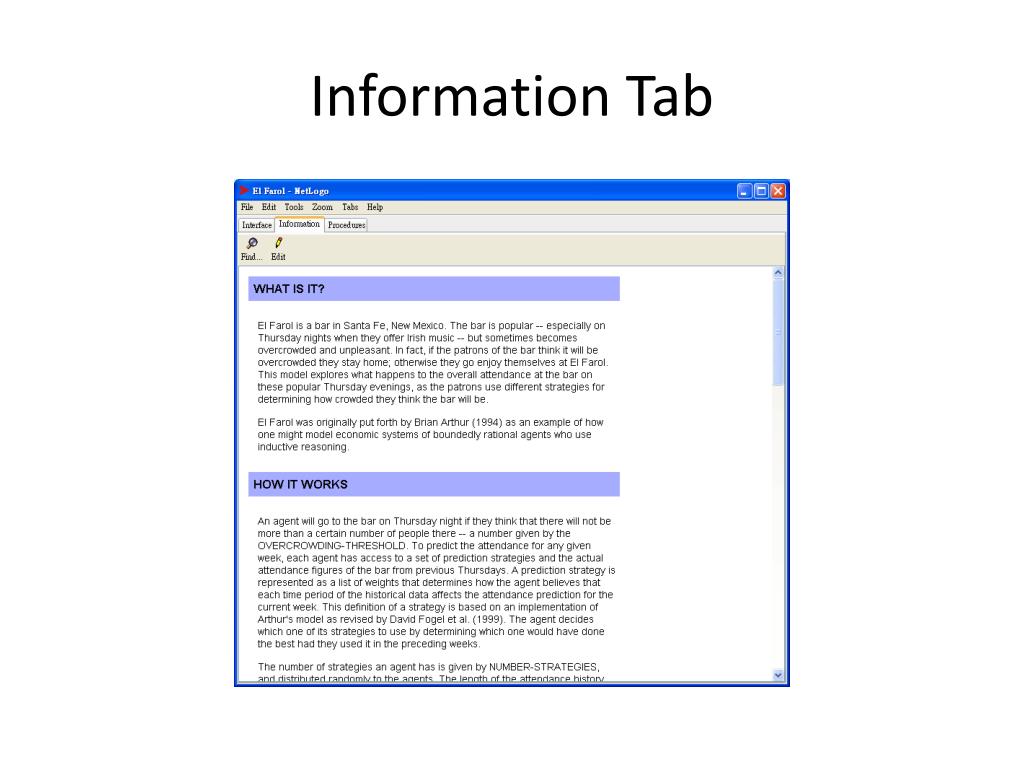

  • Information Tab

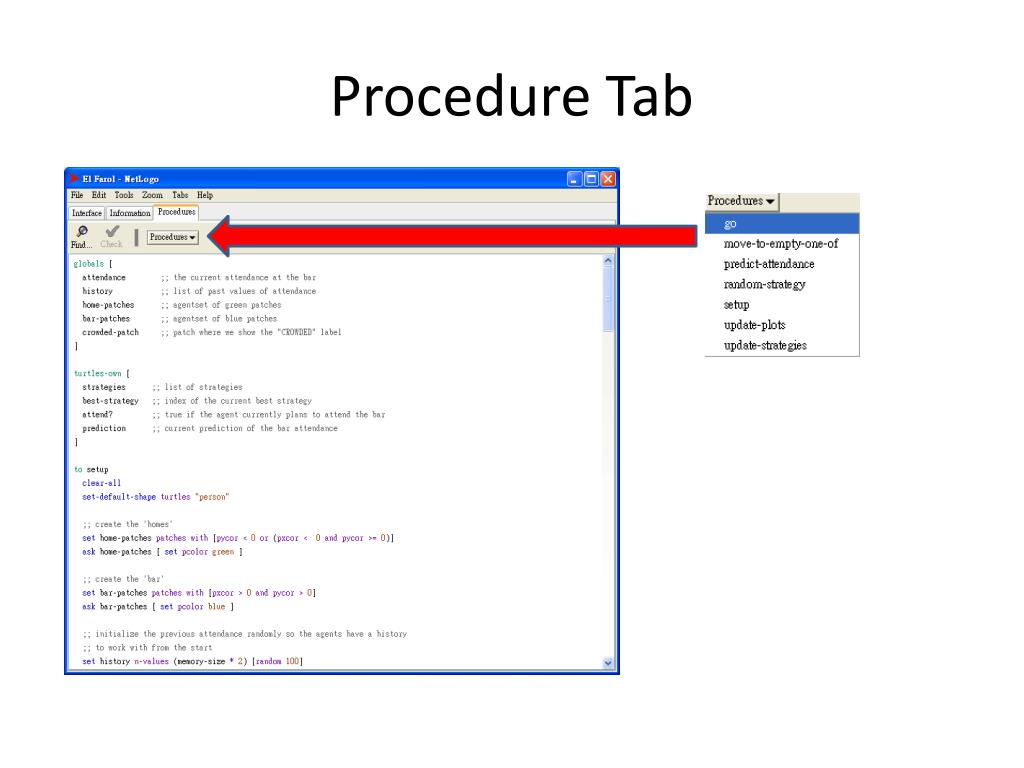

  • Procedure Tab

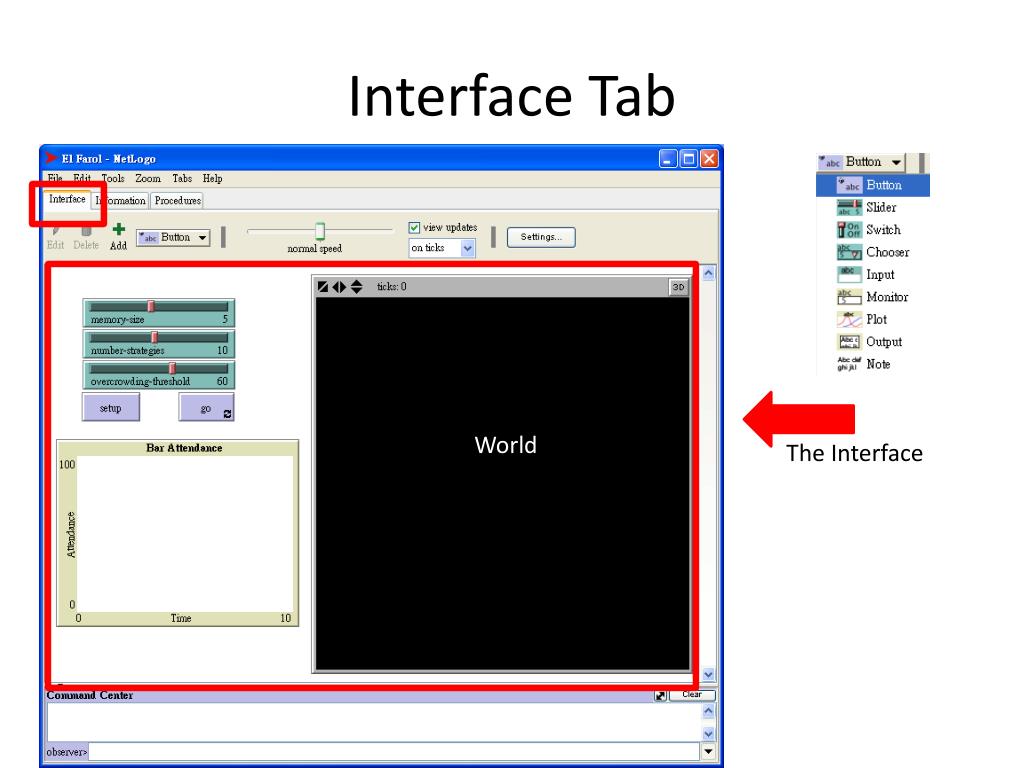

interface tab
Interface Tab

World

The Interface

how does the model work
How does the Model work?
  • Global Variables
  • Agent’s Variables
  • Defined Procedures
    • Linked with Interface
    • Sub procedure
      • Without return values
      • With return values

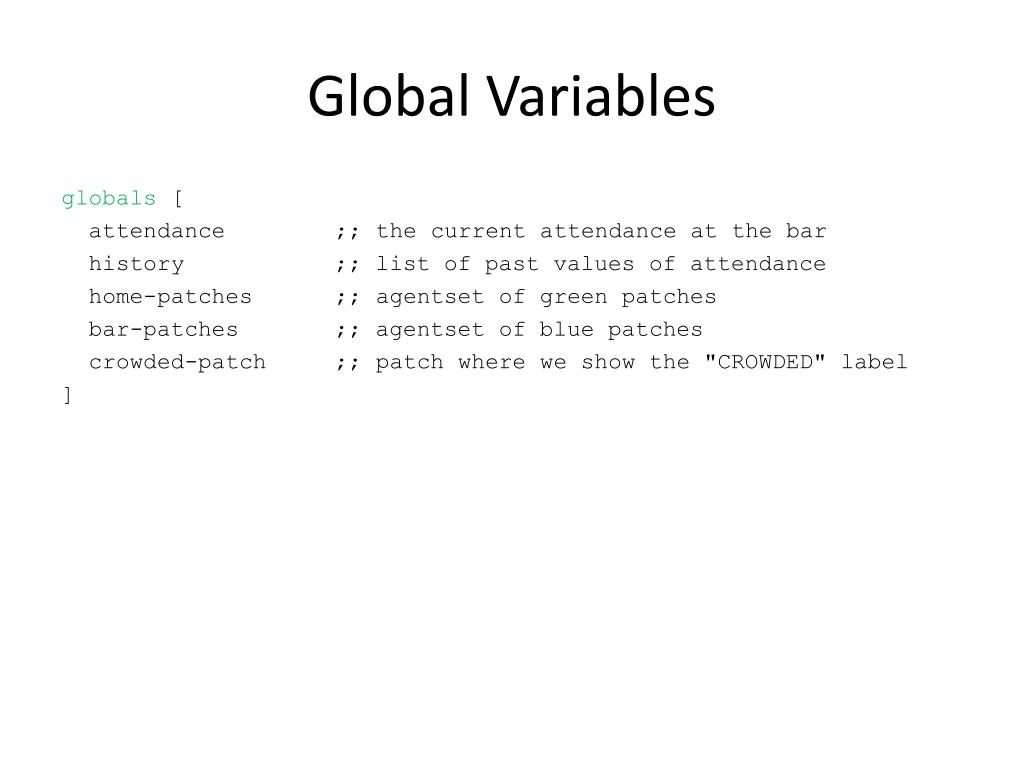

global variables
Global Variables

globals [

attendance ;; the current attendance at the bar

history ;; list of past values of attendance

home-patches ;; agentset of green patches

bar-patches ;; agentset of blue patches

crowded-patch ;; patch where we show the "CROWDED" label

]

agent s variables
Agent’s Variables

turtles-own [

strategies ;; list of strategies

best-strategy ;; index of the current best strategy

attend? ;; true if the agent currently plans to attend the bar

prediction ;; current prediction of the bar attendance

]

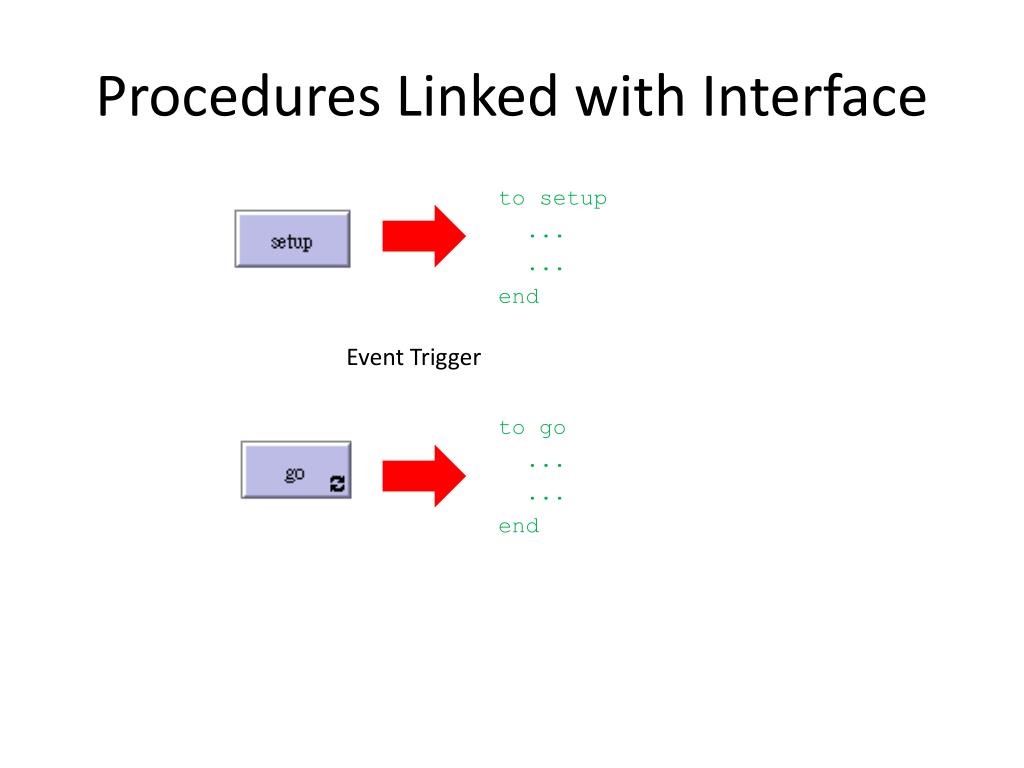

procedures linked with interface
Procedures Linked with Interface

to setup

...

...

end

to go

...

...

end

Event Trigger

procedures as sub procedures without return values
Procedures as Sub-Procedureswithout return values

to move-to-empty-one-of

...

end

to update-plots

...

end

to update-strategies

...

end

procedures as sub procedures with return values
Procedures as Sub-Procedures with return values

to-report predict-attendance

...

report ...

end

to-report random-strategy

...

report ...

end

how to apply hubnet
How to apply HubNet

to startup

setup

hubnet-set-client-interface "COMPUTER" []

hubnet-reset

end

to go

every 0.1

[

listen-clients

display

]

end

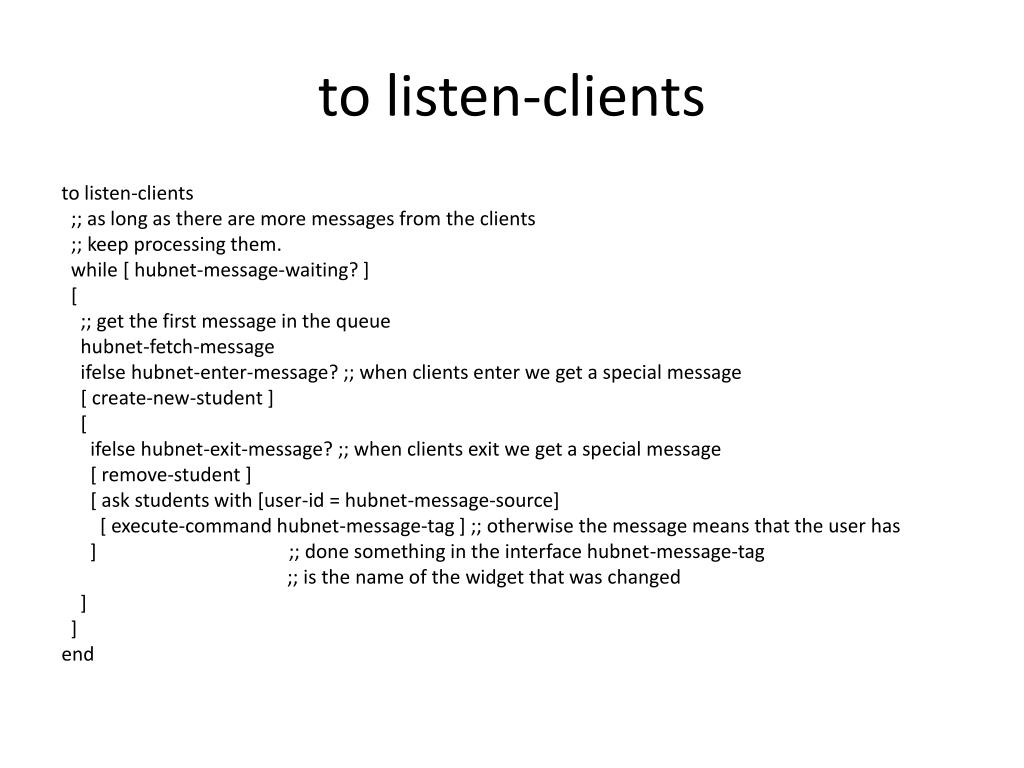

to listen clients
to listen-clients

to listen-clients

;; as long as there are more messages from the clients

;; keep processing them.

while [ hubnet-message-waiting? ]

[

;; get the first message in the queue

hubnet-fetch-message

ifelse hubnet-enter-message? ;; when clients enter we get a special message

[ create-new-student ]

[

ifelse hubnet-exit-message? ;; when clients exit we get a special message

[ remove-student ]

[ ask students with [user-id = hubnet-message-source]

[ execute-command hubnet-message-tag ] ;; otherwise the message means that the user has

] ;; done something in the interface hubnet-message-tag

;; is the name of the widget that was changed

]

]

end
