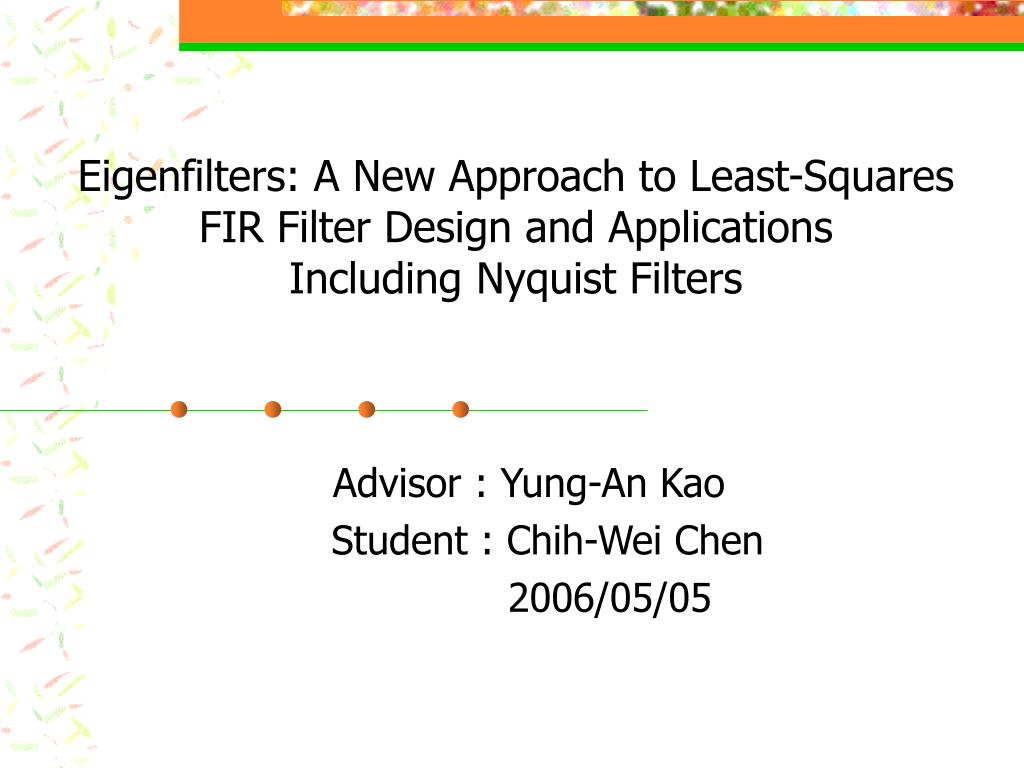

### Eigenfilters: A New Approach to Least-SquaresFIR Filter Design and ApplicationsIncluding Nyquist Filters

Student : Chih-Wei Chen

2006/05/05

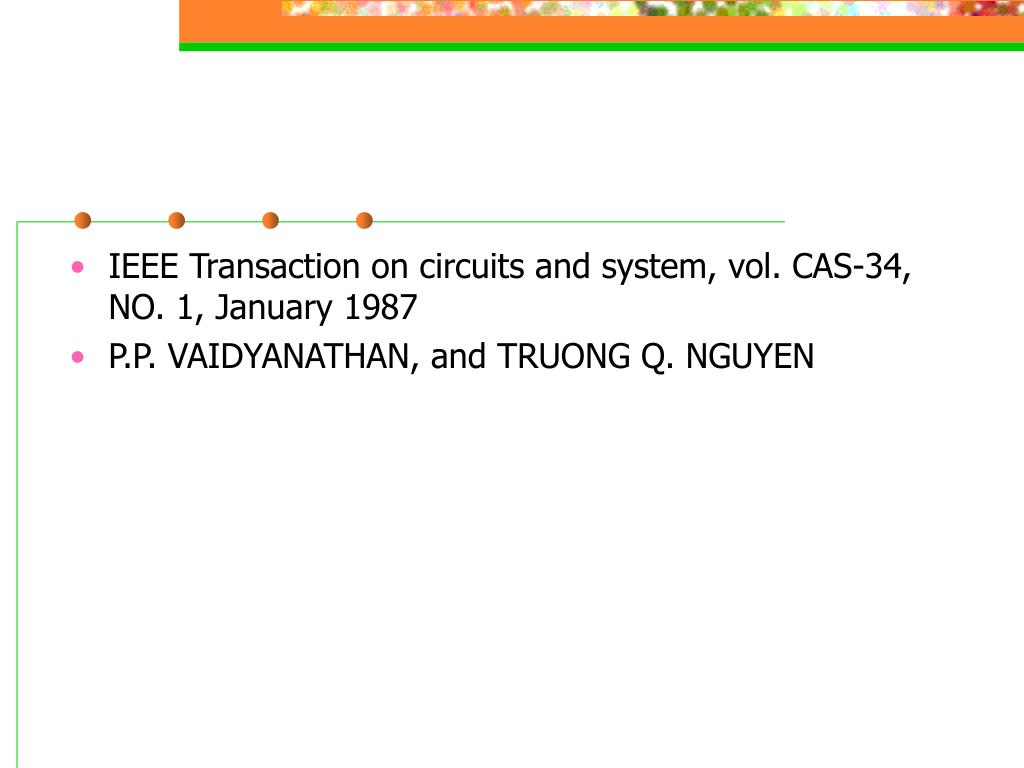

• P.P. VAIDYANATHAN, and TRUONG Q. NGUYEN
Outline
• Introduction
• Linear phase FIR Low-Pass eigenfilters

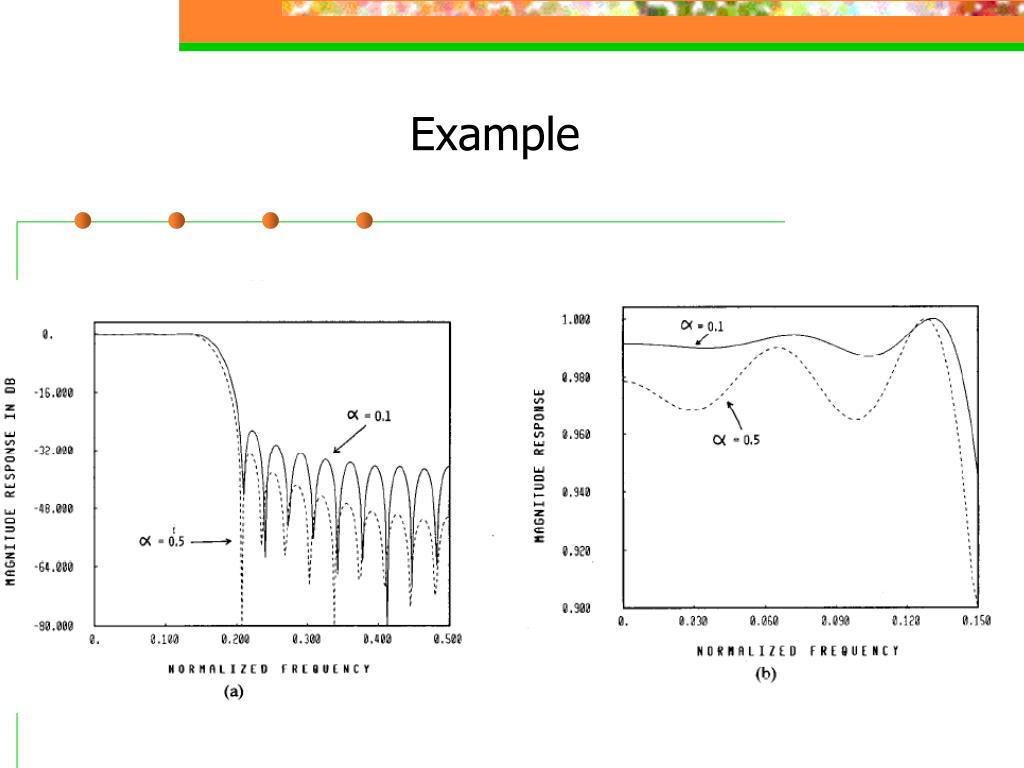

• Example
Introduction

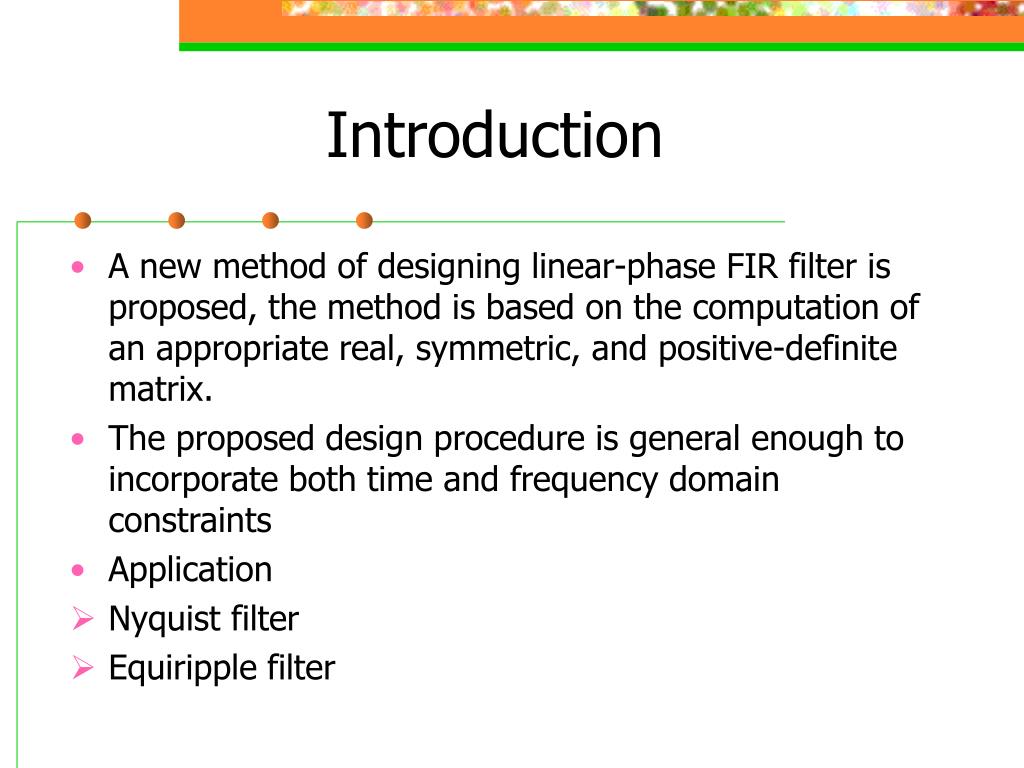

• A new method of designing linear-phase FIR filter is proposed, the method is based on the computation of an appropriate real, symmetric, and positive-definite matrix.
• The proposed design procedure is general enough to incorporate both time and frequency domain constraints
• Application
• Nyquist filter
• Equiripple filter
Introduction

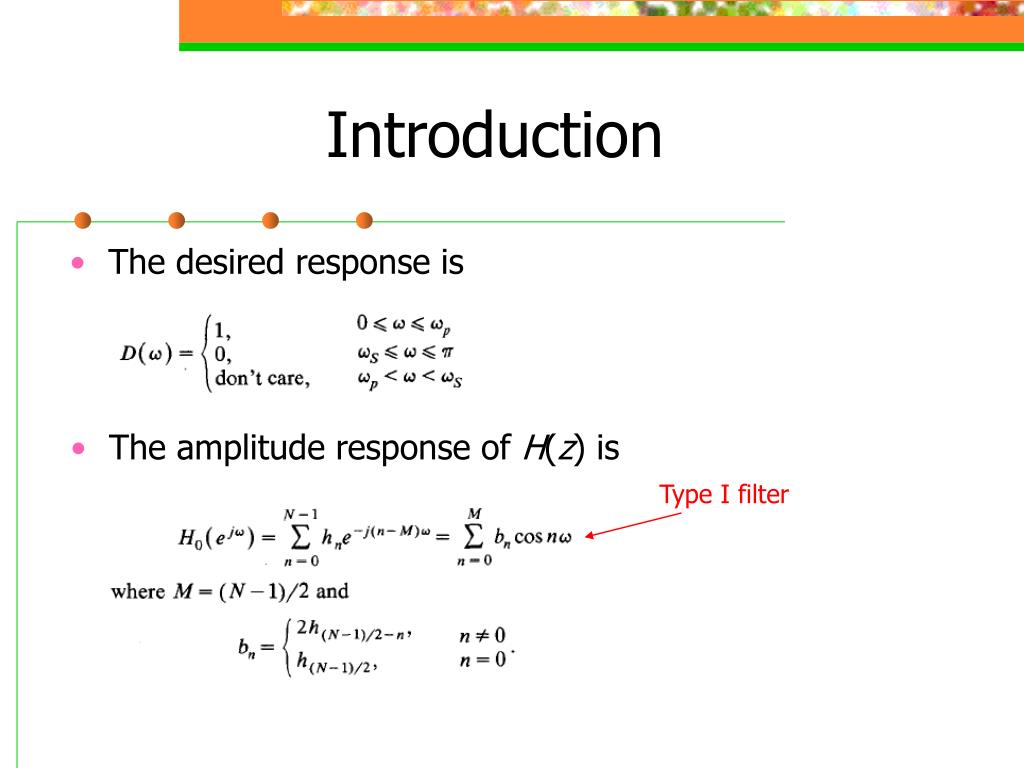

• The desired response is
• The amplitude response of H(z) is

Type I filter

Introduction
• The least-squares (LS) approach
• Linear equation , LSE solution can be express matrix from
Linear phase FIR Low-Pass eigenfilters
• We wish minimizing an error measure using another method
• If error measure can be expressed the from
Linear phase FIR Low-Pass eigenfilters
• The FIR linear phase filter frequency response

Type I filter

Type II filter

Linear phase FIR Low-Pass eigenfilters
• Passband error

It cannot be written in the form

Change, derive zero-frequency response is given by

Linear phase FIR Low-Pass eigenfilters
• Total measure to be minimized is
Linear phase FIR Low-Pass eigenfilters
• The solution
• Step1:Given ωp、 ωs、αcomputeP
• Step2: Compute the eigenvalue and eigenvector of P
• Step3: Find smallest eigenvalue corresponding eigenvector
