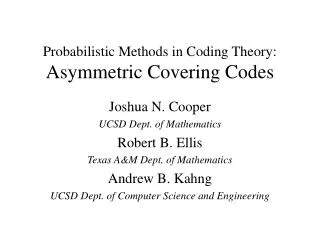

Probabilistic Methods in Coding Theory:Asymmetric Covering Codes

Joshua N. Cooper

UCSD Dept. of Mathematics

Robert B. Ellis

Texas A&M Dept. of Mathematics

Andrew B. Kahng

UCSD Dept. of Computer Science and Engineering

Definition: A code is a subset of the set of binary n-strings. The (Hamming) distance d(S,T) between two strings S and T is the number of coordinates at which they differ.

Definition: A covering code of radius R is a code C such that, for any binary n-string S, d(S,c) <= R for some element c in C. We use the convention that R will always be as small as possible.

USE: 1110

ID: 00

00

01

10

11

Compression

WANT: 1010

Definition: An asymmetric covering code of radius R is a code C such that, for any binary n-string S, there is some element c of C which can be turned into S by flipping at most R 0’s to 1’s.

Asymmetric Loss

What if only certain types of loss are allowed? For example, we can prohibit changes from 1’s to 0’s -- invalidating the 1010 -> 1110 change from before.

Define the (asymmetric) ball of radius R about the vector (string) x to be the set of strings reachable from the vector x by changing at most R ones to zeroes.

A set of vectors is a asymmetric covering code of radius R iff the

balls centered at the codewords cover the n-cube (and R is the

smallest integer so that this is true).

• R is constant.

3. Everything else.

Questions

How large is the smallest possible asymmetric covering code of radius R on n bits? Call this number K+(n,R).

Interesting cases:

-

-

-

V3 (3;1) = 4

V3 (2;1) = 3

V3 (1;1) = 2

V3 (0;1) = 1

Sphere-Covering Lower Bound: Ball Sizes

Size of symmetric ball: independent of ball center

Size of asymmetric ball: determined by weight of ball center

Definition. Vn(R): size of symmetric ball of radius R in Qn

Vn (k;R): size of asymmetric ball of radius R about a point of weight k

-

-

Vn(R) =

Vn (k;R) =

Proof. There are vertices of weight k. Fix such a vertex.

Largest ball containing such a vertex is centered at level k+R

The vertex contributes at least 1/ to the size of K+(n,R).

n

k

( )

K+(n,R)

-

Vn (k+R;R)

Theorem (Symmetric Sphere-Covering Bound).

K(n,R)

How close can we come to the sphere-covering lower bound?

Theorem: The size of a minimal (symmetric) covering code of

The construction is linear, i.e., produces a code which is a linear

subspace of GF(2)n.

This is a problem, because the algebraic structure of Hamming

space shows no respect at all for the asymmetric covering relation.

In fact, minimal linear asymmetric covering codes turn out to be

HUGE, like θ(2n).

Let’s try choosing a set of codewords randomly. Let the

probability of picking a point x be proportional to log n divided by

the number of points which x covers.

Then, throw in anything we missed.

Result: A code of size θ(2n log n/nR). Close, but no cigar.

R+S if C1 and C2 are asymmetric covering codes of radius R

and S, respectively, so, in particular,

K+(n+m,R+S) <= K+(n,R) K+(m,S).

A Tool

For asymmetric covering codes C1 and C2, define the direct sum to be all concatenations of strings from C1 and C2:

Write the cube as a product of two cubes of about the same

dimension.

1. Perform the previous random process on the first factor.

2. For each red point, put a full copy of the second factor in.

3. For each blue point, put an asymmetric covering code of

the second factor in. (I.e., induction!)

Next question: What’s the constant?

Define μ*(R) = lim inf (K(n,R) * volume of R-ball / 2n)

= min symmetric “redundancy” factor.

Define μ0*(R) = lim inf (K+(n,R) * average vol. of R-ball / 2n)

= min asymmetric “redundancy” factor.

Did it help?

???

Open Questions

This construction gives an exponential upper bound for μ0*(R) and

μ*(R). Van Vu has given an upper bound of cR log R for both.

Conjecture. μ*(R) = 1 for all R.

But what is μ0*(R)?

Question: Are there efficiently computable minimal asymmetric

covering codes?

Question: What is the order of K+(n,R) where R is not constant?

Question: What about the non-binary case?
