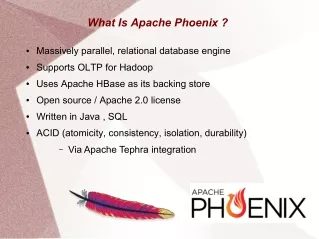

  1. What Is Apache Phoenix ? ● Massively parallel, relational database engine ● Supports OLTP for Hadoop ● Uses Apache HBase as its backing store ● Open source / Apache 2.0 license ● Written in Java , SQL ● ACID (atomicity, consistency, isolation, durability) – Via Apache Tephra integration

  2. Phoenix SQL Support ● Accepts SQL queries ● Compiles them to HBase scans ● Orchestrates running of scans ● Produces regular JDBC result sets ● Creates performance gains by using – HBase API/coprocessors/custom filters ● Results in query response times – Milliseconds for small queries – Seconds for tens of millions of rows

  3. Phoenix SQL Support ● See phoenix.apache.org for full syntax support

  4. Phoenix Environment

  5. Phoenix Bulk Loading ● Bulk load data via ● Single-threaded for CSV via psql i.e. – bin/psql.py -t EXAMPLE localhost data.csv – Load for EXAMPLE table – For HBase on local machine ● MapReduce-based for CSV and JSON – See next slide

  6. Phoenix Bulk Loading ●Bulk load example for MapReduce – For CSV and JSON loads – Using Phoenix MapReduce library – Against the EXAMPLE table

  7. Phoenix Performance

  8. Phoenix User-defined functions(UDFs) ● Create temporary/permanent UDF's – Temporary for session only ● Use UDF's in SQL and Indexes ● Permanent UDF's stored in SYSTEM.FUNCTION ● Tenant specific UDF usage supported ● UDF jar files must be placed on HDFS ● UDF jar updates not currently possible – (without cluster bounce)

  9. Phoenix Transactions ● Cross row/table/ACID support using Apache Tephra ● Transactional functionality currently beta ● Enable transactions and snapshot dir in hbase-site.xml ● Also set a transational timeout value ● Start Tephra ● Create tables with flag TRANSACTIONAL=true ● Then transactions act as follows – Start with statement against table – End with commit or rollback

  10. Available Books ● See “Big Data Made Easy” Apress Jan 2015 – See “Mastering Apache Spark” ● Packt Oct 2015 – See “Complete Guide to Open Source Big Data Stack ● “Apress Jan 2018” – ● Find the author on Amazon www.amazon.com/Michael-Frampton/e/B00NIQDOOM/ – Connect on LinkedIn ● www.linkedin.com/in/mike-frampton-38563020 –

  11. Connect ● Feel free to connect on LinkedIn –www.linkedin.com/in/mike-frampton-38563020 ● See my open source blog at open-source-systems.blogspot.com/ – ● I am always interested in – New technology – Opportunities – Technology based issues – Big data integration
