Understanding SOC-OCV Curves in Lithium-ion Battery Management Systems

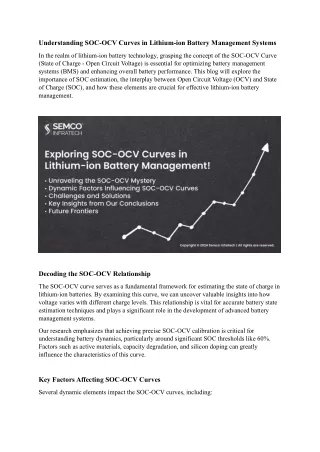

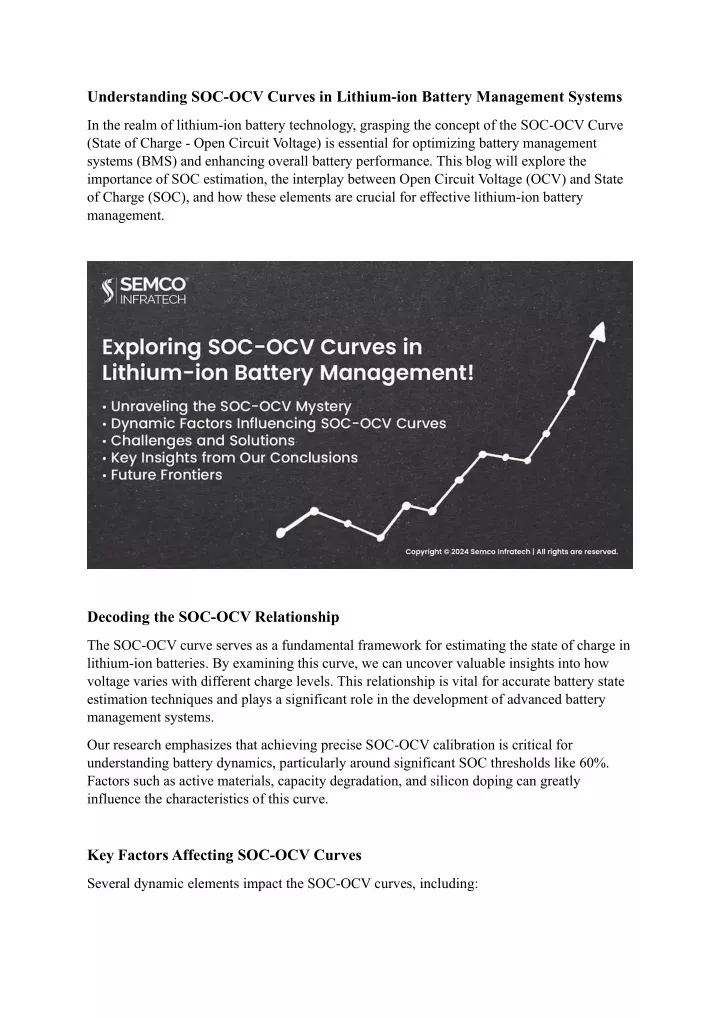

1. Understanding SOC-OCV Curves in Lithium-ion Battery Management Systems In the realm of lithium-ion battery technology, grasping the concept of the SOC-OCV Curve (State of Charge - Open Circuit Voltage) is essential for optimizing battery management systems (BMS) and enhancing overall battery performance. This blog will explore the importance of SOC estimation, the interplay between Open Circuit Voltage (OCV) and State of Charge (SOC), and how these elements are crucial for effective lithium-ion battery management. Decoding the SOC-OCV Relationship The SOC-OCV curveserves as a fundamental framework for estimating the state of charge in lithium-ion batteries. By examining this curve, we can uncover valuable insights into how voltage varies with different charge levels. This relationship is vital for accurate battery state estimation techniques and plays a significant role in the development of advanced battery management systems. Our research emphasizes that achieving precise SOC-OCV calibration is critical for understanding battery dynamics, particularly around significant SOC thresholds like 60%. Factors such as active materials, capacity degradation, and silicon doping can greatly influence the characteristics of this curve. Key Factors Affecting SOC-OCV Curves Several dynamic elements impact the SOC-OCV curves, including:

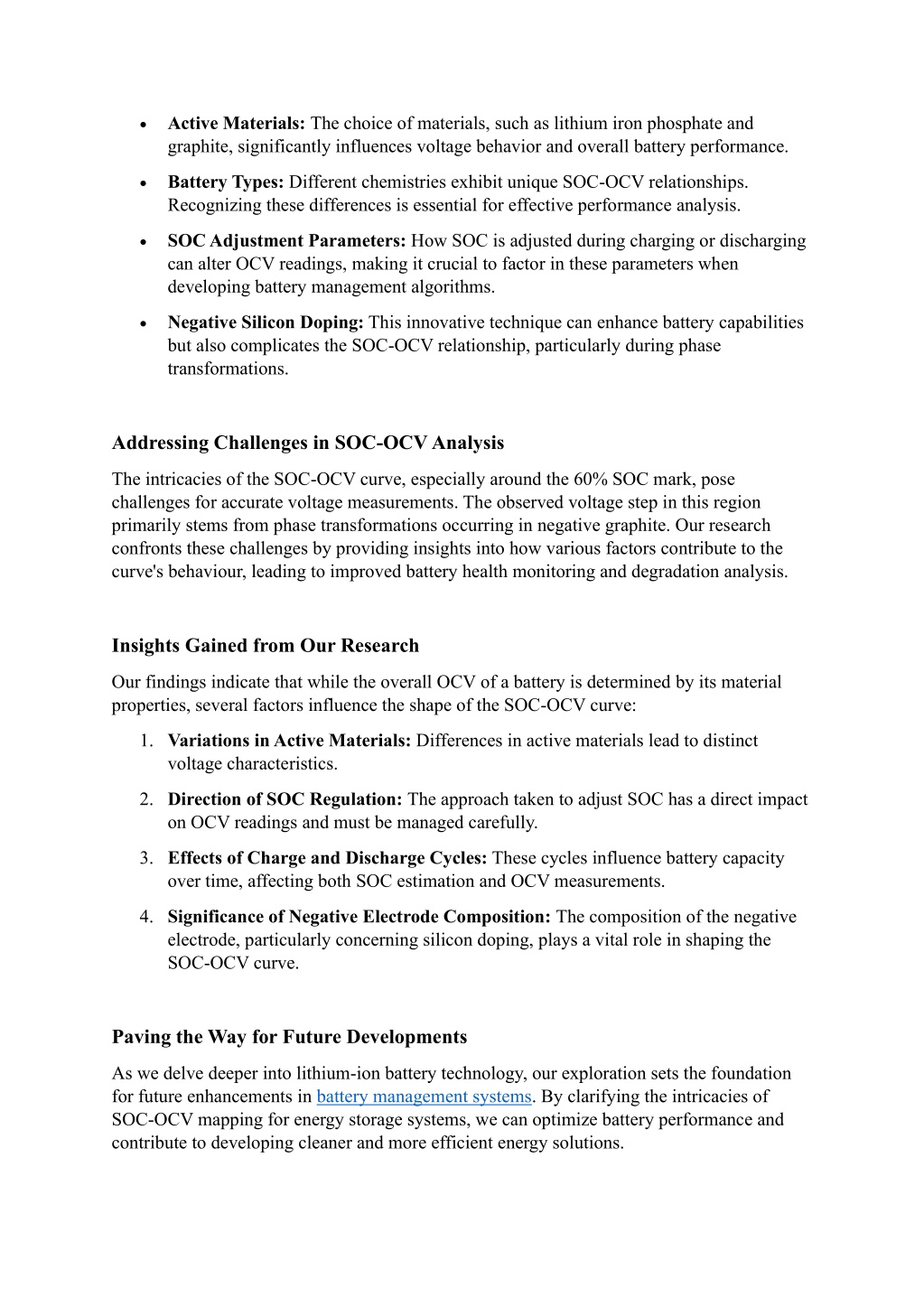

2. •Active Materials: The choice of materials, such as lithium iron phosphate and graphite, significantly influences voltage behavior and overall battery performance. •Battery Types: Different chemistries exhibit unique SOC-OCV relationships. Recognizing these differences is essential for effective performance analysis. •SOC Adjustment Parameters: How SOC is adjusted during charging or discharging can alter OCV readings, making it crucial to factor in these parameters when developing battery management algorithms. •Negative Silicon Doping: This innovative technique can enhance battery capabilities but also complicates the SOC-OCV relationship, particularly during phase transformations. Addressing Challenges in SOC-OCV Analysis The intricacies of the SOC-OCV curve, especially around the 60% SOC mark, pose challenges for accurate voltage measurements. The observed voltage step in this region primarily stems from phase transformations occurring in negative graphite. Our research confronts these challenges by providing insights into how various factors contribute to the curve's behaviour, leading to improved battery health monitoring and degradation analysis. Insights Gained from Our Research Our findings indicate that while the overall OCV of a battery is determined by its material properties, several factors influence the shape of the SOC-OCV curve: 1.Variations in Active Materials: Differences in active materials lead to distinct voltage characteristics. 2.Direction of SOC Regulation: The approach taken to adjust SOC has a direct impact on OCV readings and must be managed carefully. 3.Effects of Charge and Discharge Cycles: These cycles influence battery capacity over time, affecting both SOC estimation and OCV measurements. 4.Significance of Negative Electrode Composition: The composition of the negative electrode, particularly concerning silicon doping, plays a vital role in shaping the SOC-OCV curve. Paving the Way for Future Developments As we delve deeper into lithium-ion battery technology, our exploration sets the foundation for future enhancements in battery management systems. By clarifying the intricacies of SOC-OCV mapping for energy storage systems, we can optimize battery performance and contribute to developing cleaner and more efficient energy solutions.

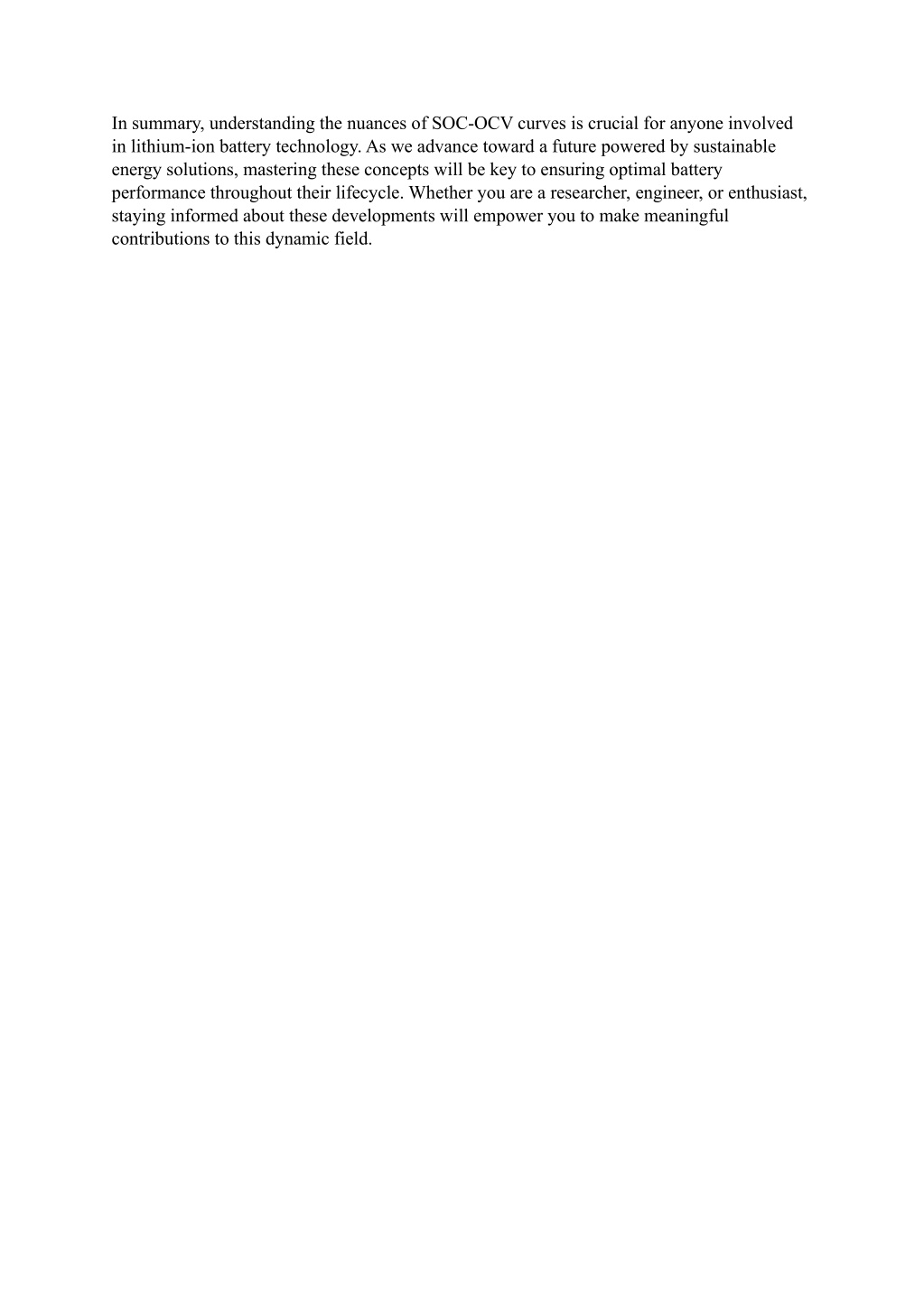

3. In summary, understanding the nuances of SOC-OCV curvesis crucial for anyone involved in lithium-ion battery technology. As we advance toward a future powered by sustainable energy solutions, mastering these concepts will be key to ensuring optimal battery performance throughout their lifecycle. Whether you are a researcher, engineer, or enthusiast, staying informed about these developments will empower you to make meaningful contributions to this dynamic field.
