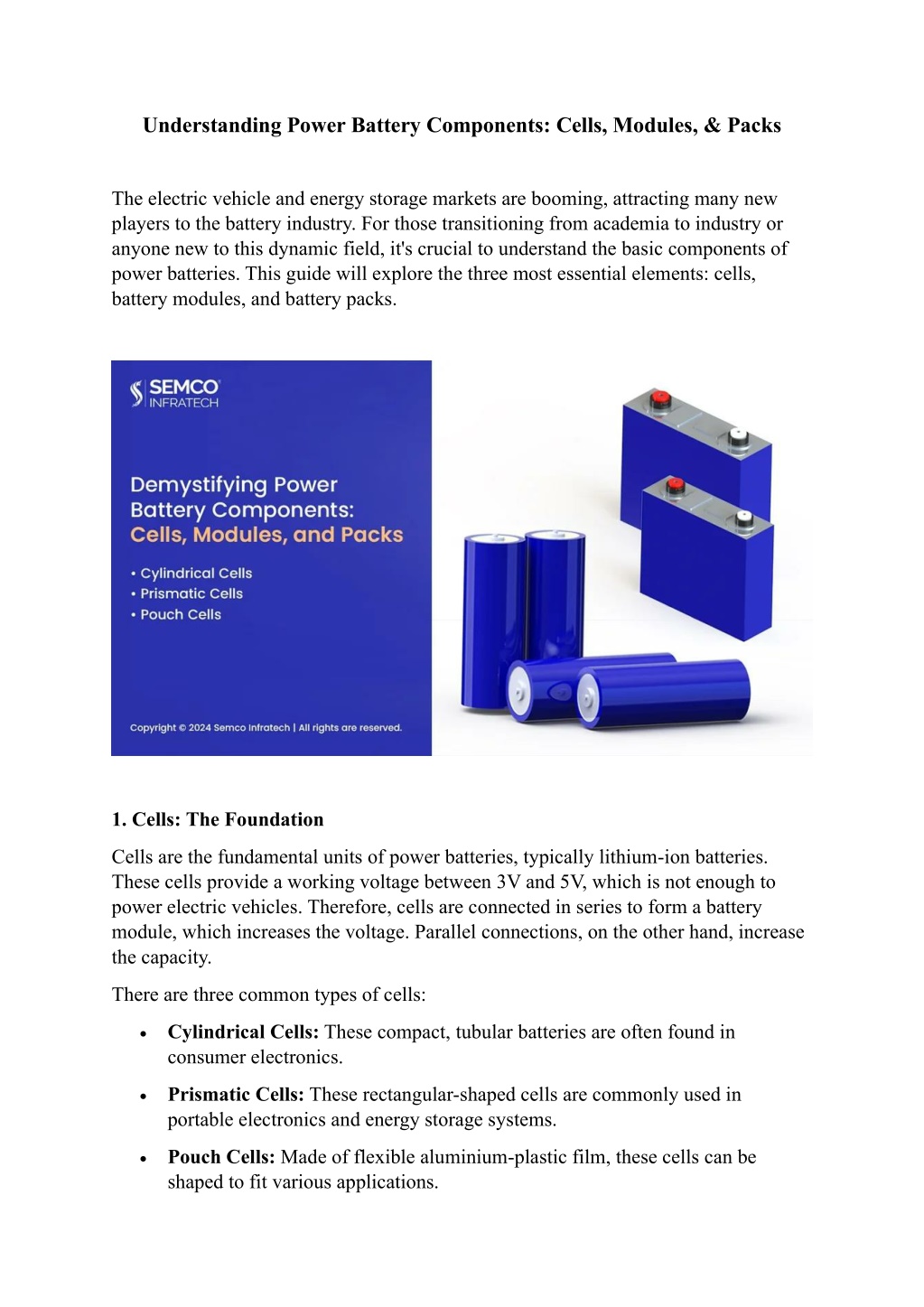

1. Understanding Power Battery Components: Cells, Modules, & Packs The electric vehicle and energy storage markets are booming, attracting many new players to the battery industry. For those transitioning from academia to industry or anyone new to this dynamic field, it's crucial to understand the basic components of power batteries. This guide will explore the three most essential elements: cells, battery modules, and battery packs. 1. Cells: The Foundation Cells are the fundamental units of power batteries, typically lithium-ion batteries. These cells provide a working voltage between 3V and 5V, which is not enough to power electric vehicles. Therefore, cells are connected in series to form a battery module, which increases the voltage. Parallel connections, on the other hand, increase the capacity. There are three common types of cells: •Cylindrical Cells: These compact, tubular batteries are often found in consumer electronics. •Prismatic Cells: These rectangular-shaped cells are commonly used in portable electronics and energy storage systems. •Pouch Cells: Made of flexible aluminium-plastic film, these cells can be shaped to fit various applications.

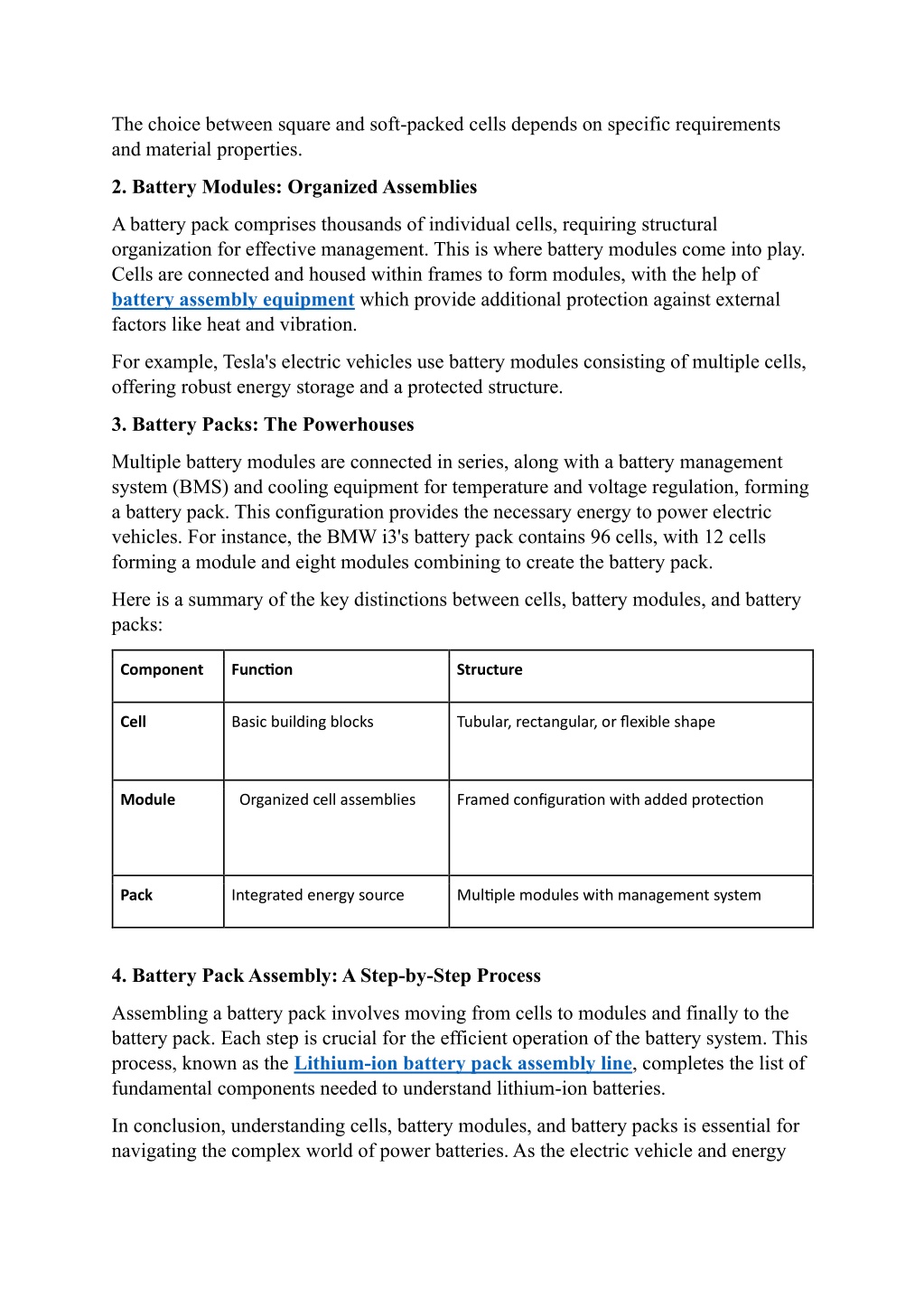

2. The choice between square and soft-packed cells depends on specific requirements and material properties. 2. Battery Modules: Organized Assemblies A battery pack comprises thousands of individual cells, requiring structural organization for effective management. This is where battery modules come into play. Cells are connected and housed within frames to form modules, with the help of battery assembly equipment which provide additional protection against external factors like heat and vibration. For example, Tesla's electric vehicles use battery modules consisting of multiple cells, offering robust energy storage and a protected structure. 3. Battery Packs: The Powerhouses Multiple battery modules are connected in series, along with a battery management system (BMS) and cooling equipment for temperature and voltage regulation, forming a battery pack. This configuration provides the necessary energy to power electric vehicles. For instance, the BMW i3's battery pack contains 96 cells, with 12 cells forming a module and eight modules combining to create the battery pack. Here is a summary of the key distinctions between cells, battery modules, and battery packs: Component Function Structure Cell Basic building blocks Tubular, rectangular, or flexible shape Module Organized cell assemblies Framed configuration with added protection Pack Integrated energy source Multiple modules with management system 4. Battery Pack Assembly: A Step-by-Step Process Assembling a battery pack involves moving from cells to modules and finally to the battery pack. Each step is crucial for the efficient operation of the battery system. This process, known as the Lithium-ion battery pack assembly line, completes the list of fundamental components needed to understand lithium-ion batteries. In conclusion, understanding cells, battery modules, and battery packs is essential for navigating the complex world of power batteries. As the electric vehicle and energy

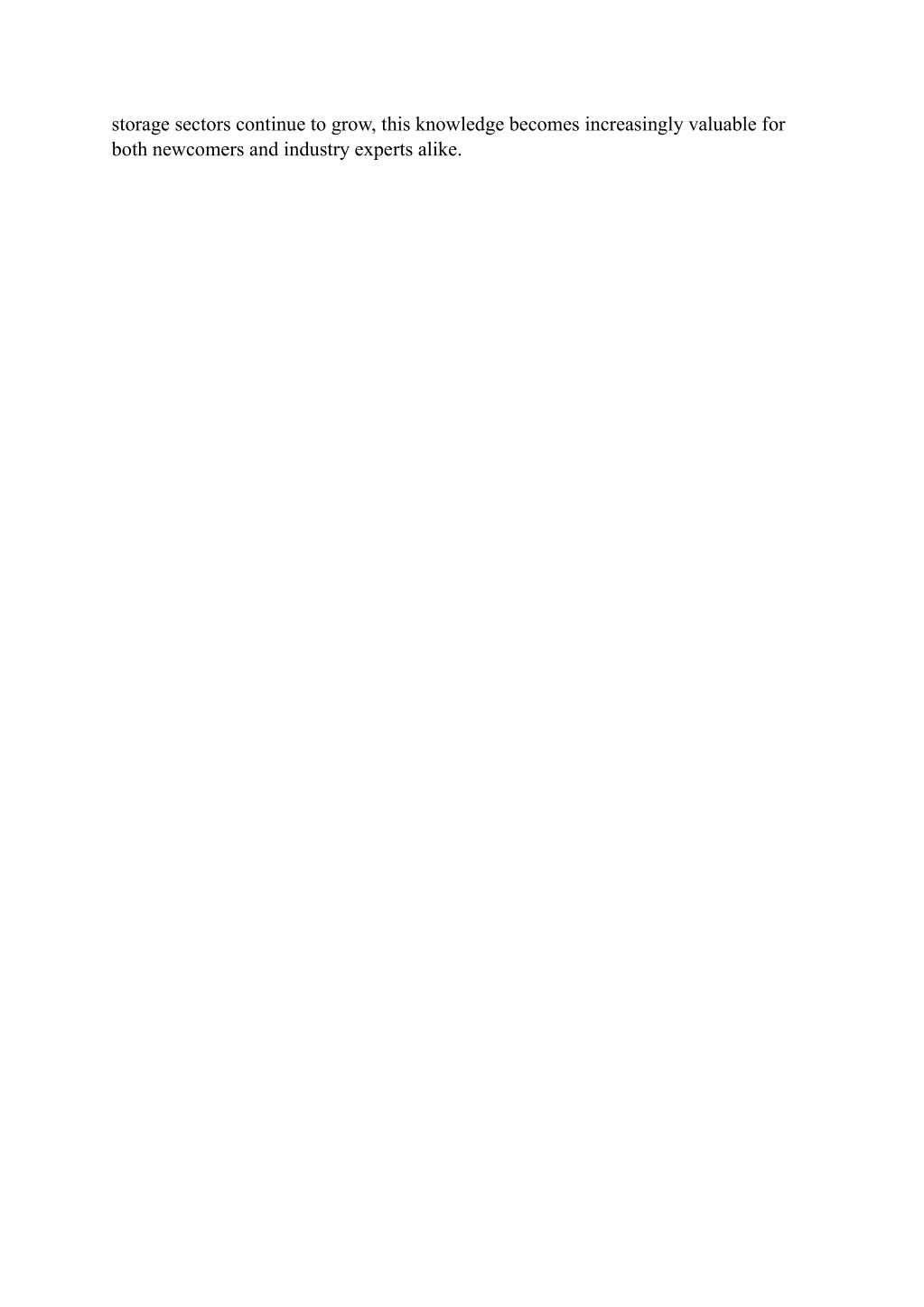

3. storage sectors continue to grow, this knowledge becomes increasingly valuable for both newcomers and industry experts alike.
