Understanding OCV Testing for Lithium Battery Cells

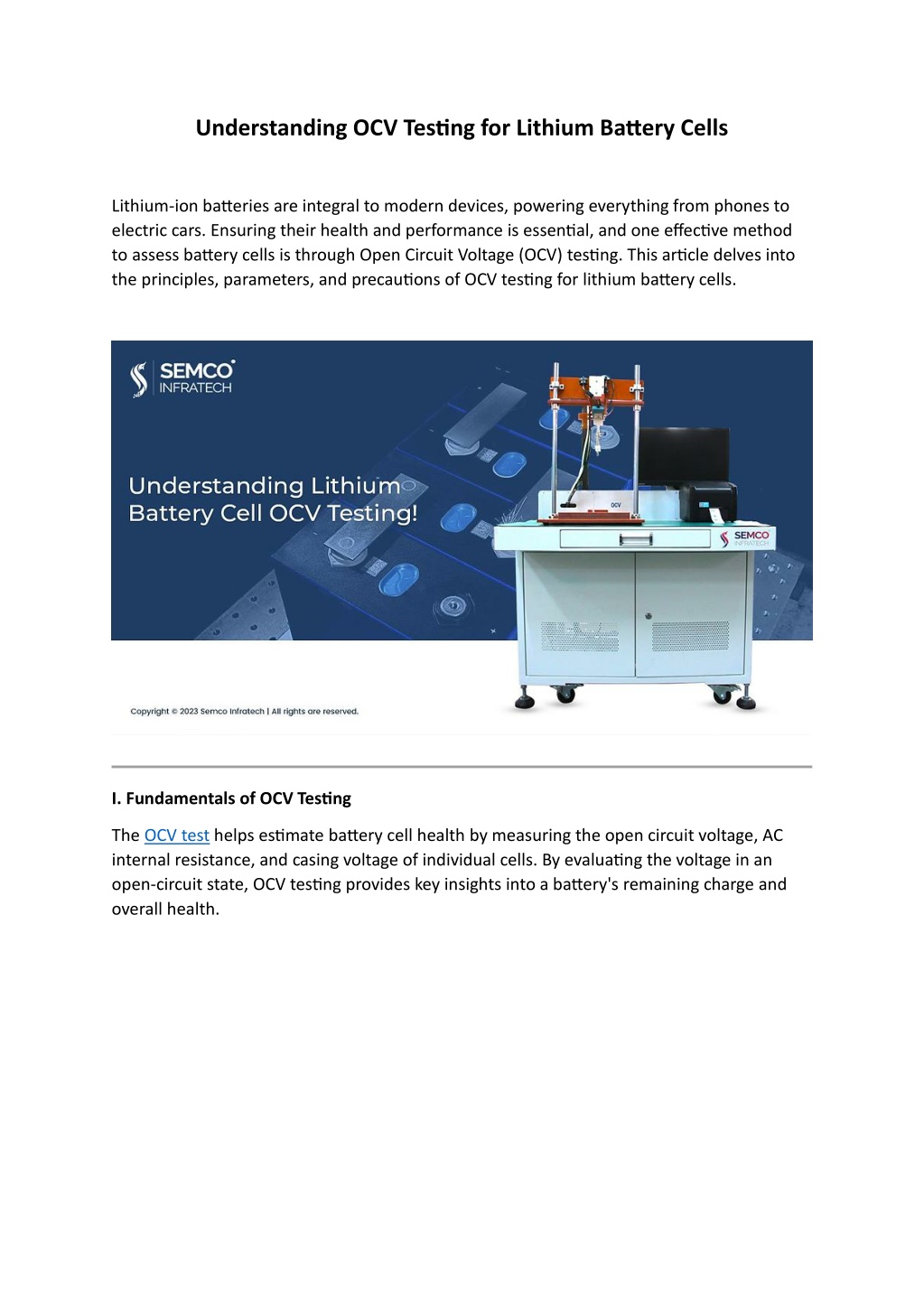

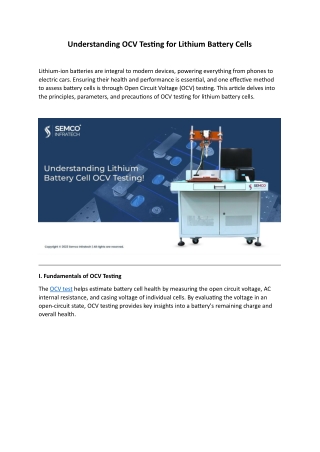

1. Understanding OCV Testing for Lithium Battery Cells Lithium-ion batteries are integral to modern devices, powering everything from phones to electric cars. Ensuring their health and performance is essential, and one effective method to assess battery cells is through Open Circuit Voltage (OCV) testing. This article delves into the principles, parameters, and precautions of OCV testing for lithium battery cells. I. Fundamentals of OCV Testing The OCV test helps estimate battery cell health by measuring the open circuit voltage, AC internal resistance, and casing voltage of individual cells. By evaluating the voltage in an open-circuit state, OCV testing provides key insights into a battery's remaining charge and overall health.

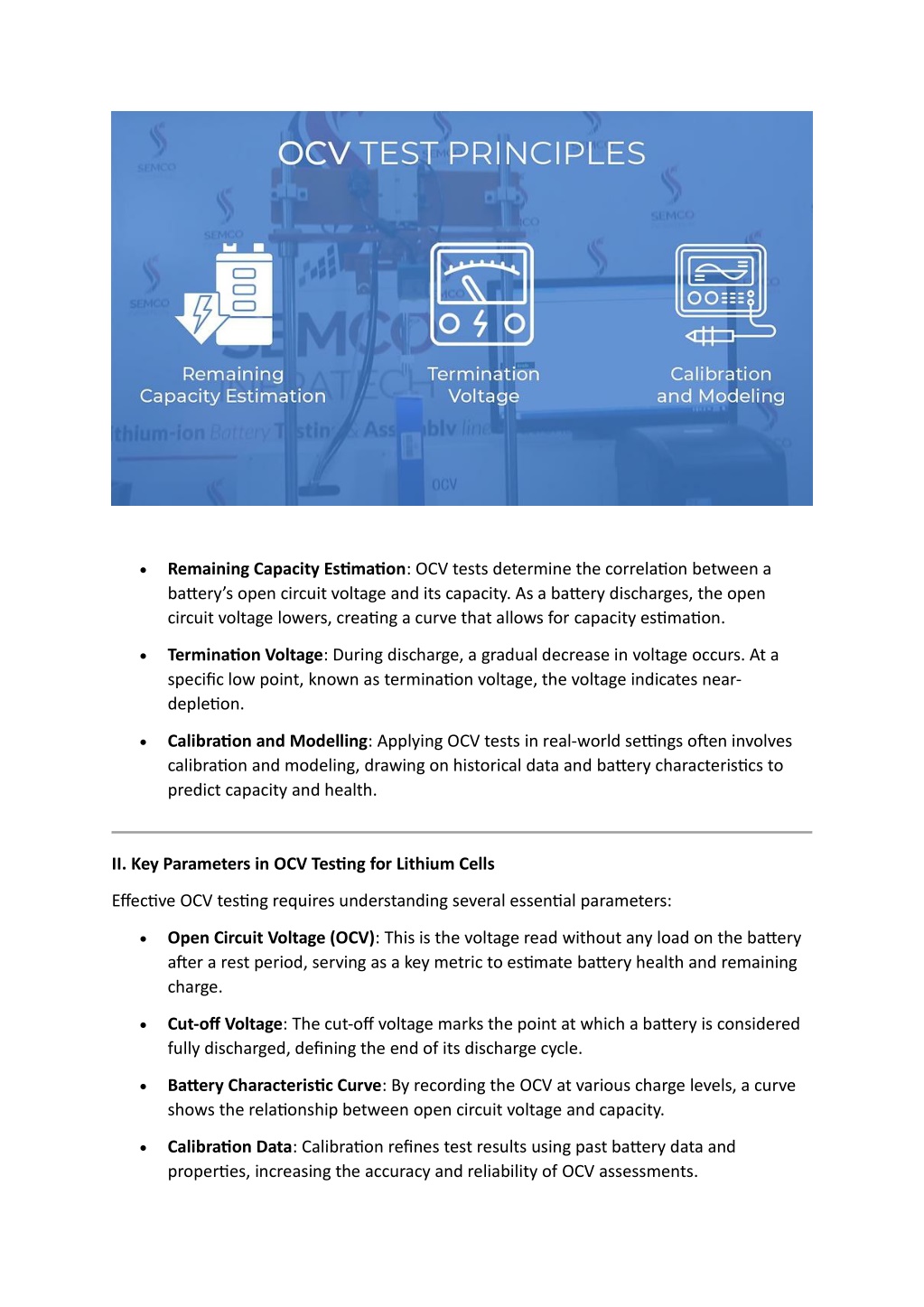

2. •Remaining Capacity Estimation: OCV tests determine the correlation between a battery’s open circuit voltage and its capacity. As a battery discharges, the open circuit voltage lowers, creating a curve that allows for capacity estimation. •Termination Voltage: During discharge, a gradual decrease in voltage occurs. At a specific low point, known as termination voltage, the voltage indicates near- depletion. •Calibration and Modelling: Applying OCV tests in real-world settings often involves calibration and modeling, drawing on historical data and battery characteristics to predict capacity and health. II. Key Parameters in OCV Testing for Lithium Cells Effective OCV testing requires understanding several essential parameters: •Open Circuit Voltage (OCV): This is the voltage read without any load on the battery after a rest period, serving as a key metric to estimate battery health and remaining charge. •Cut-off Voltage: The cut-off voltage marks the point at which a battery is considered fully discharged, defining the end of its discharge cycle. •Battery Characteristic Curve: By recording the OCV at various charge levels, a curve shows the relationship between open circuit voltage and capacity. •Calibration Data: Calibration refines test results using past battery data and properties, increasing the accuracy and reliability of OCV assessments.

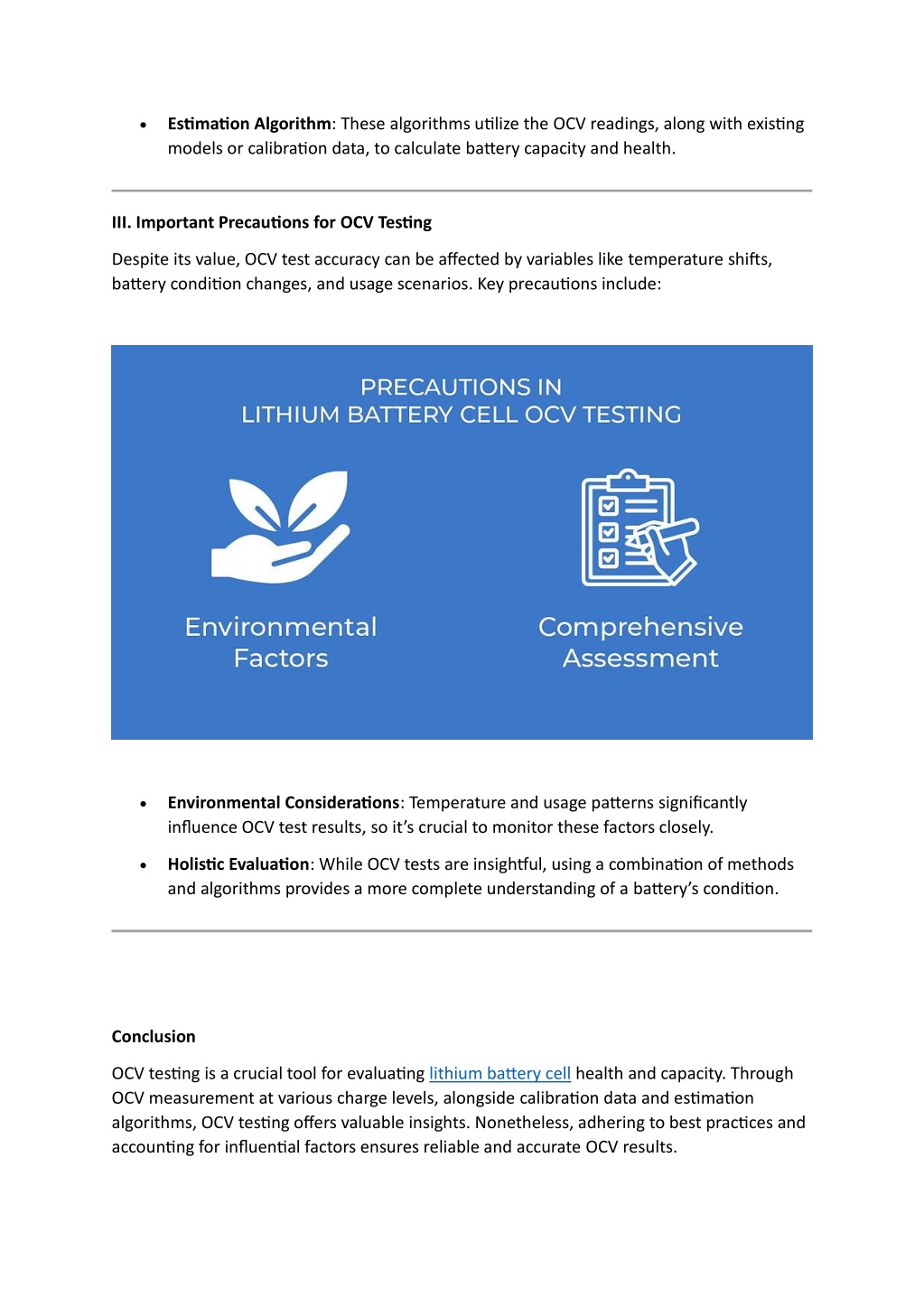

3. •Estimation Algorithm: These algorithms utilize the OCV readings, along with existing models or calibration data, to calculate battery capacity and health. III. Important Precautions for OCV Testing Despite its value, OCV test accuracy can be affected by variables like temperature shifts, battery condition changes, and usage scenarios. Key precautions include: •Environmental Considerations: Temperature and usage patterns significantly influence OCV test results, so it’s crucial to monitor these factors closely. •Holistic Evaluation: While OCV tests are insightful, using a combination of methods and algorithms provides a more complete understanding of a battery’s condition. Conclusion OCV testing is a crucial tool for evaluating lithium battery cell health and capacity. Through OCV measurement at various charge levels, alongside calibration data and estimation algorithms, OCV testing offers valuable insights. Nonetheless, adhering to best practices and accounting for influential factors ensures reliable and accurate OCV results.
