Revolutionizing Module Manufacturing with Robotic Welding

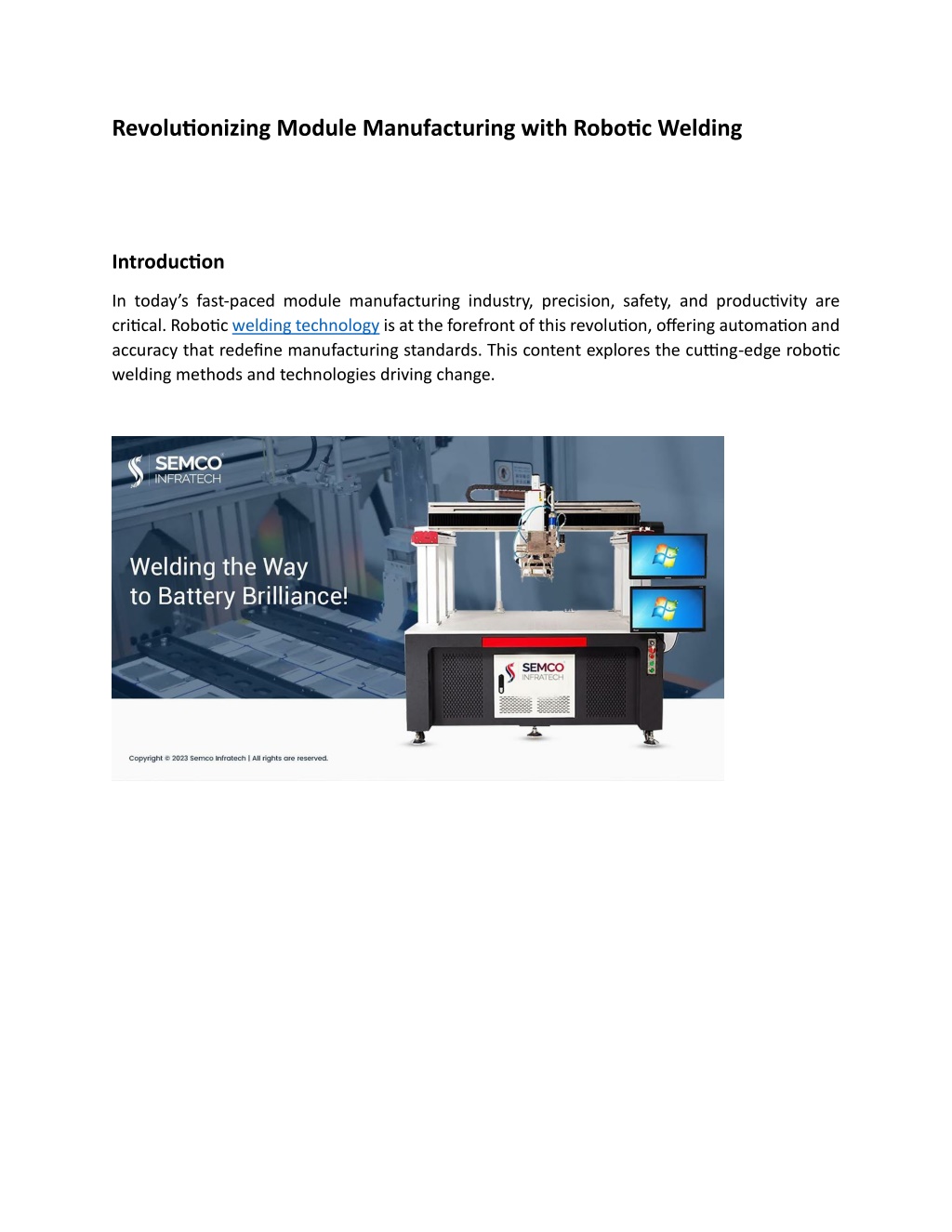

1. Revolutionizing Module Manufacturing with Robotic Welding Introduction In today’s fast-paced module manufacturing industry, precision, safety, and productivity are critical. Robotic welding technology is at the forefront of this revolution, offering automation and accuracy that redefine manufacturing standards. This content explores the cutting-edge robotic welding methods and technologies driving change.

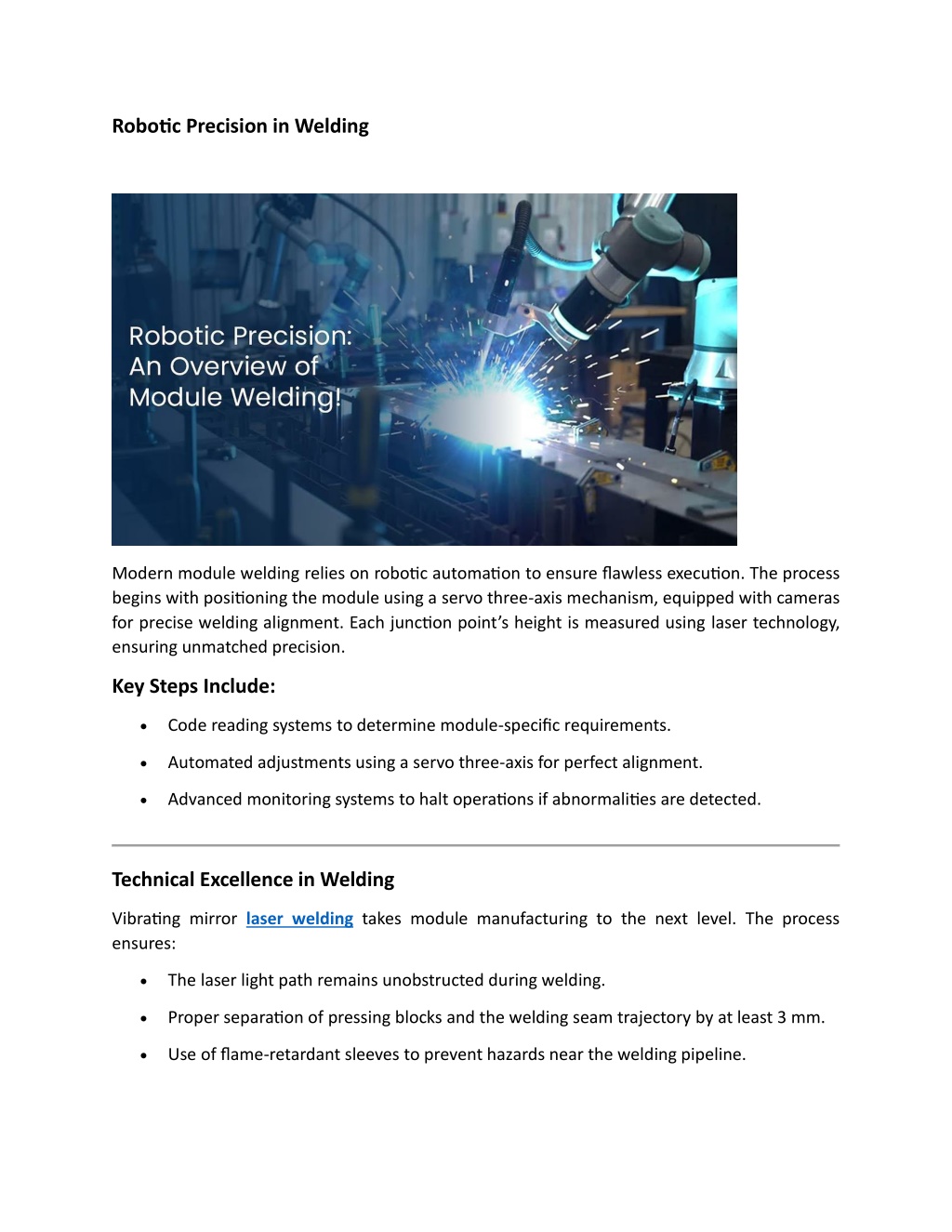

2. Robotic Precision in Welding Modern module welding relies on robotic automation to ensure flawless execution. The process begins with positioning the module using a servo three-axis mechanism, equipped with cameras for precise welding alignment. Each junction point’s height is measured using laser technology, ensuring unmatched precision. Key Steps Include: •Code reading systems to determine module-specific requirements. •Automated adjustments using a servo three-axis for perfect alignment. •Advanced monitoring systems to halt operations if abnormalities are detected. Technical Excellence in Welding Vibrating mirror laser welding takes module manufacturing to the next level. The process ensures: •The laser light path remains unobstructed during welding. •Proper separation of pressing blocks and the welding seam trajectory by at least 3 mm. •Use of flame-retardant sleeves to prevent hazards near the welding pipeline.

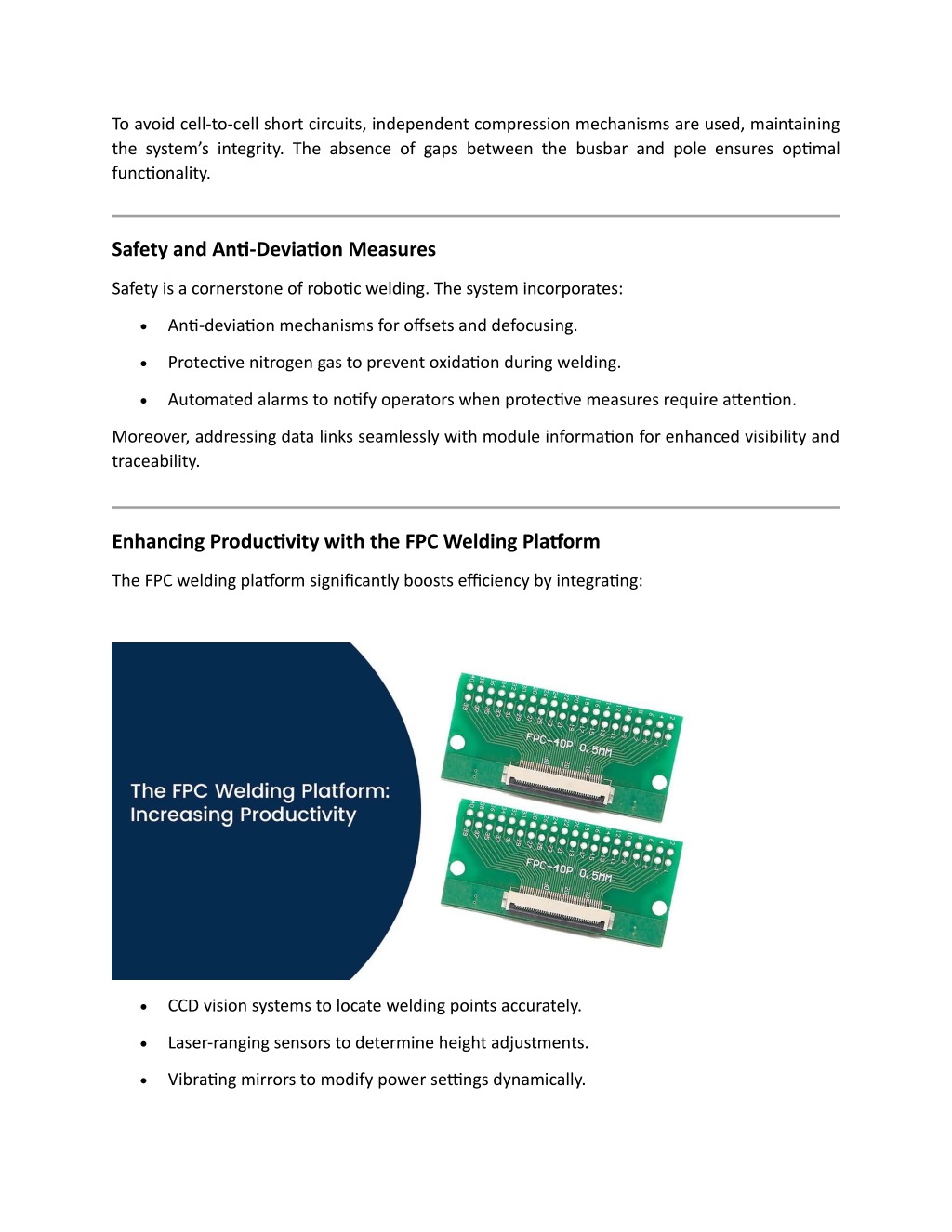

3. To avoid cell-to-cell short circuits, independent compression mechanisms are used, maintaining the system’s integrity. The absence of gaps between the busbar and pole ensures optimal functionality. Safety and Anti-Deviation Measures Safety is a cornerstone of robotic welding. The system incorporates: •Anti-deviation mechanisms for offsets and defocusing. •Protective nitrogen gas to prevent oxidation during welding. •Automated alarms to notify operators when protective measures require attention. Moreover, addressing data links seamlessly with module information for enhanced visibility and traceability. Enhancing Productivity with the FPC Welding Platform The FPC welding platform significantly boosts efficiency by integrating: •CCD vision systems to locate welding points accurately. •Laser-ranging sensors to determine height adjustments. •Vibrating mirrors to modify power settings dynamically.

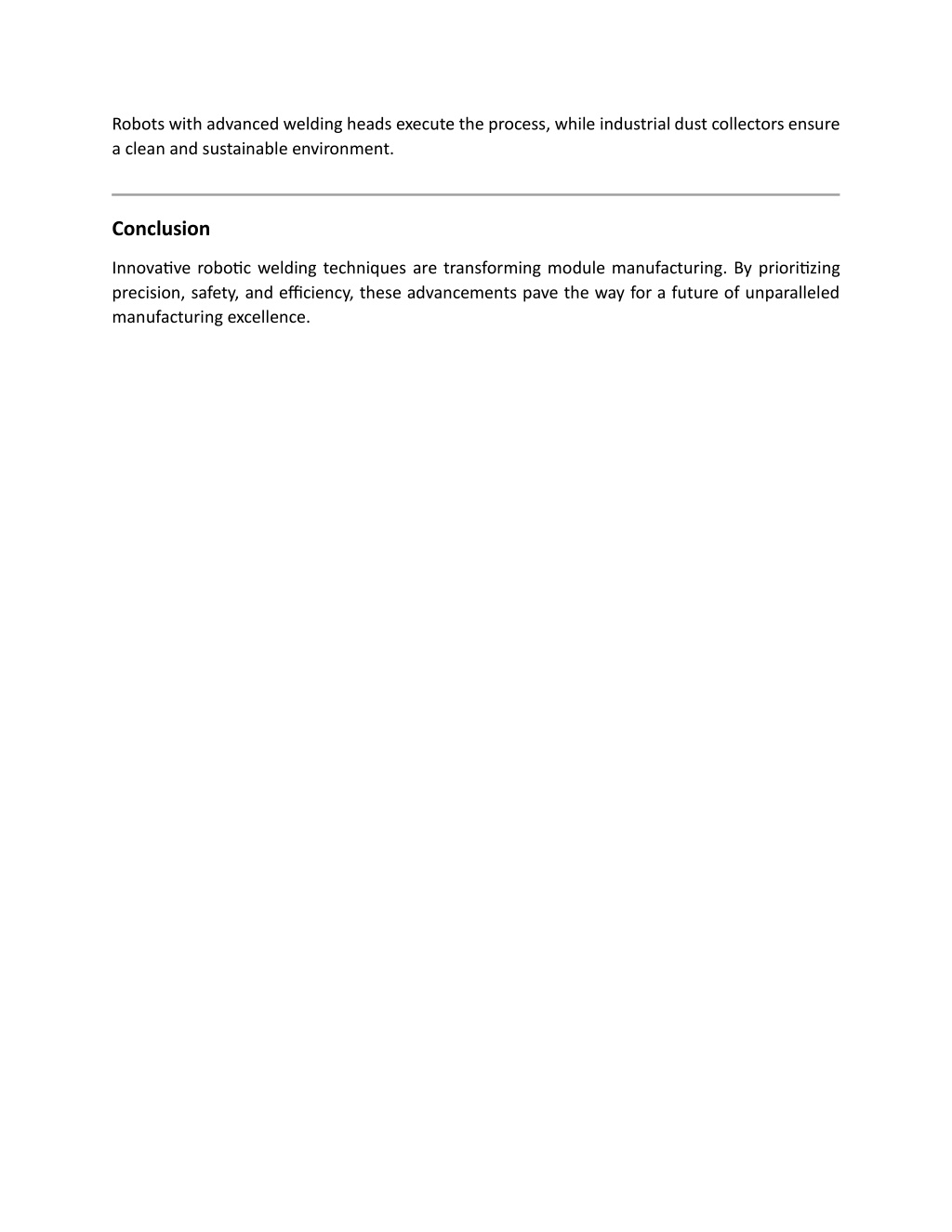

4. Robots with advanced welding heads execute the process, while industrial dust collectors ensure a clean and sustainable environment. Conclusion Innovative robotic welding techniques are transforming module manufacturing. By prioritizing precision, safety, and efficiency, these advancements pave the way for a future of unparalleled manufacturing excellence.
