Prismatic vs. Cylindrical Batteries What's the Difference

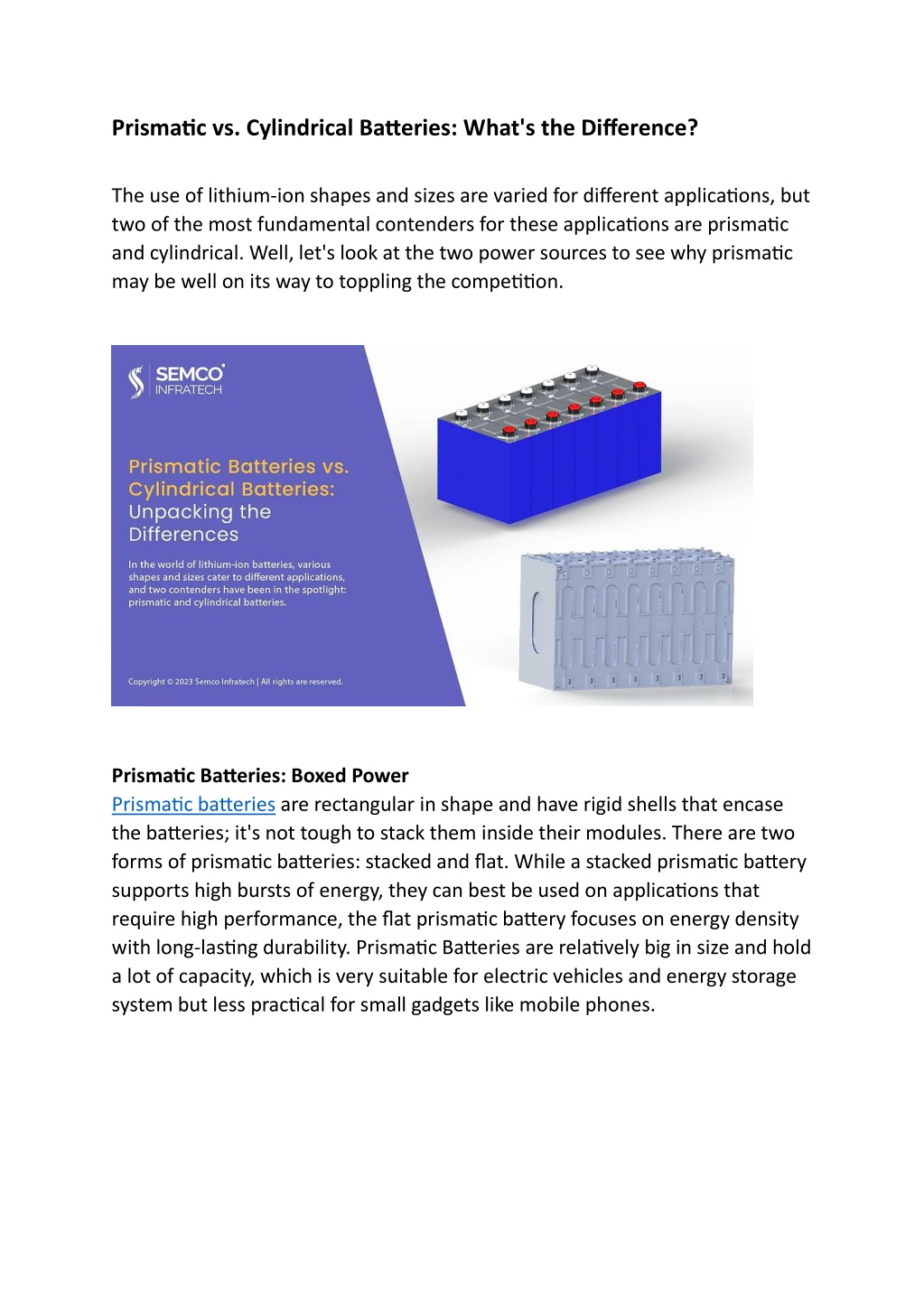

1. Prismatic vs. Cylindrical Batteries: What's the Difference? The use of lithium-ion shapes and sizes are varied for different applications, but two of the most fundamental contenders for these applications are prismatic and cylindrical. Well, let's look at the two power sources to see why prismatic may be well on its way to toppling the competition. Prismatic Batteries: Boxed Power Prismatic batteries are rectangular in shape and have rigid shells that encase the batteries; it's not tough to stack them inside their modules. There are two forms of prismatic batteries: stacked and flat. While a stacked prismatic battery supports high bursts of energy, they can best be used on applications that require high performance, the flat prismatic battery focuses on energy density with long-lasting durability. Prismatic Batteries are relatively big in size and hold a lot of capacity, which is very suitable for electric vehicles and energy storage system but less practical for small gadgets like mobile phones.

2. Cylindrical Batteries: Flexible and Compact Cylindrical batteries take the form of a round cylindrical shape. Their compact shapes provide easy fitment into various-sized devices. One of the notable features of these cells is prevention of expansion, which is a common challenge that faces the batteries. Such an expansion may fill gas inside the casing. This cylindrical battery emerged from laptops and found wide application in electric vehicles, e-bikes, medical devices, and even in space exploration. Their resistance to pressure changes becomes very essential for such applications, as observed during the Mars rover missions.

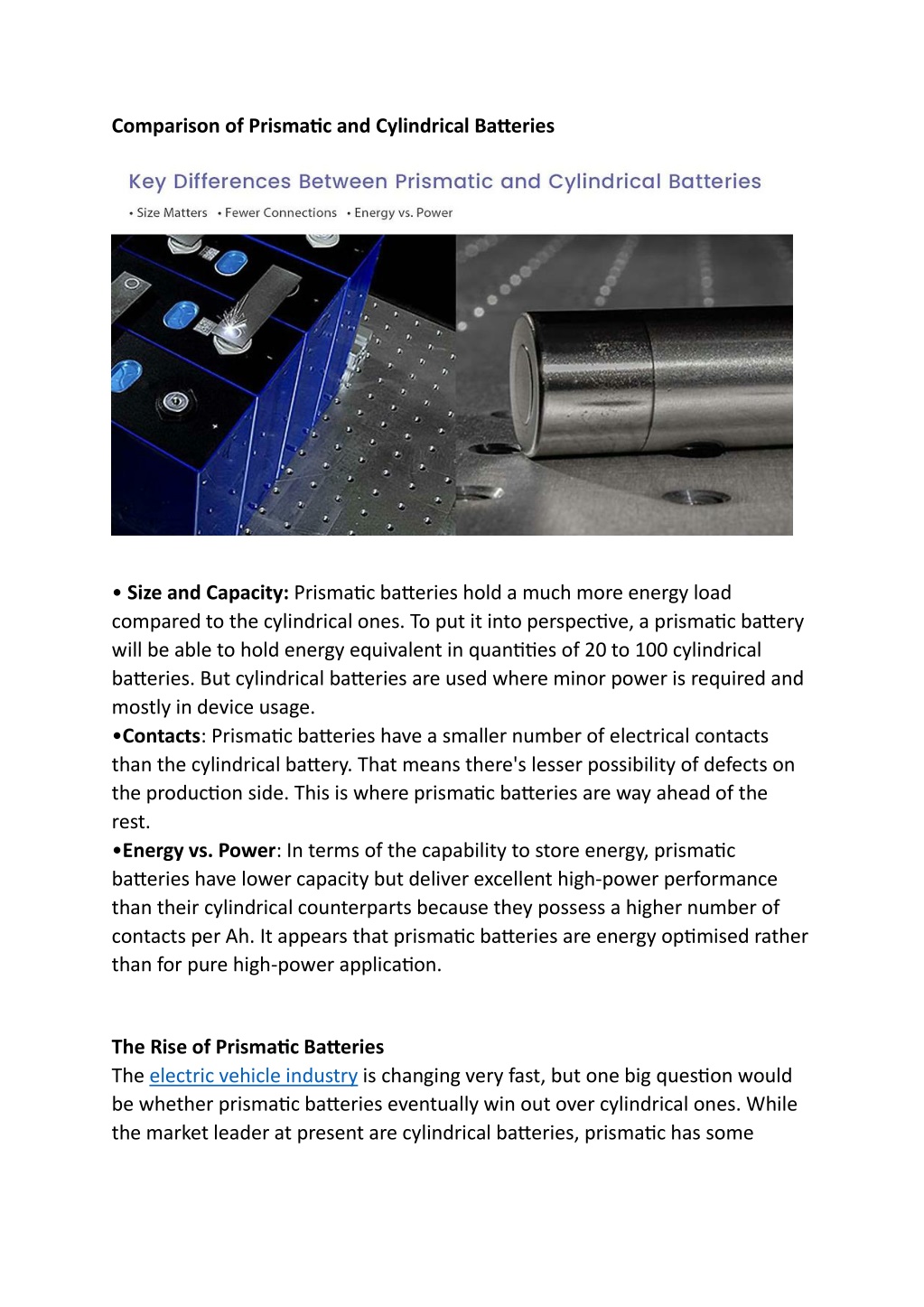

3. Comparison of Prismatic and Cylindrical Batteries • Size and Capacity: Prismatic batteries hold a much more energy load compared to the cylindrical ones. To put it into perspective, a prismatic battery will be able to hold energy equivalent in quantities of 20 to 100 cylindrical batteries. But cylindrical batteries are used where minor power is required and mostly in device usage. •Contacts: Prismatic batteries have a smaller number of electrical contacts than the cylindrical battery. That means there's lesser possibility of defects on the production side. This is where prismatic batteries are way ahead of the rest. •Energy vs. Power: In terms of the capability to store energy, prismatic batteries have lower capacity but deliver excellent high-power performance than their cylindrical counterparts because they possess a higher number of contacts per Ah. It appears that prismatic batteries are energy optimised rather than for pure high-power application. The Rise of Prismatic Batteries The electric vehicle industry is changing very fast, but one big question would be whether prismatic batteries eventually win out over cylindrical ones. While the market leader at present are cylindrical batteries, prismatic has some

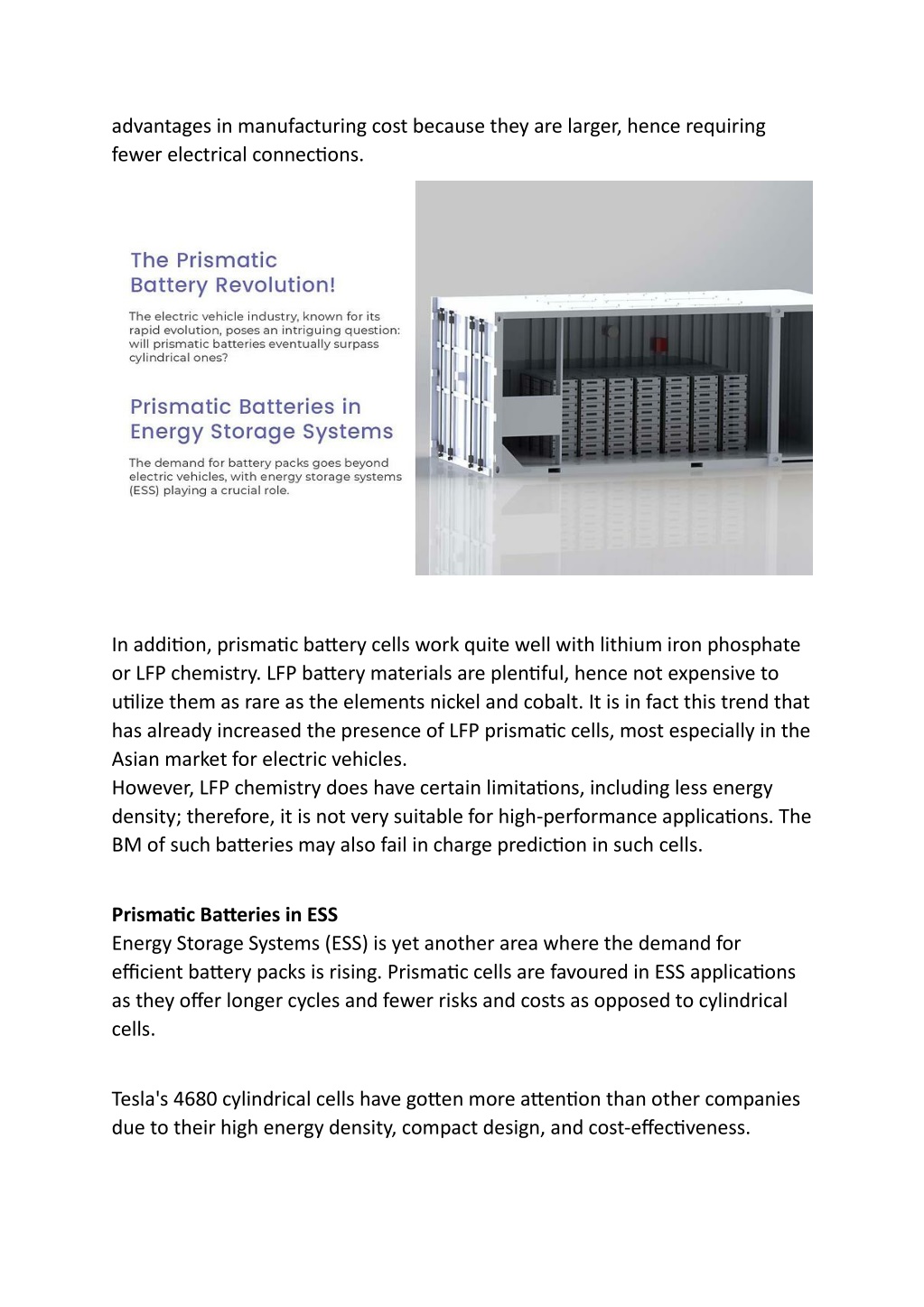

4. advantages in manufacturing cost because they are larger, hence requiring fewer electrical connections. In addition, prismatic battery cells work quite well with lithium iron phosphate or LFP chemistry. LFP battery materials are plentiful, hence not expensive to utilize them as rare as the elements nickel and cobalt. It is in fact this trend that has already increased the presence of LFP prismatic cells, most especially in the Asian market for electric vehicles. However, LFP chemistry does have certain limitations, including less energy density; therefore, it is not very suitable for high-performance applications. The BM of such batteries may also fail in charge prediction in such cells. Prismatic Batteries in ESS Energy Storage Systems (ESS) is yet another area where the demand for efficient battery packs is rising. Prismatic cells are favoured in ESS applications as they offer longer cycles and fewer risks and costs as opposed to cylindrical cells. Tesla's 4680 cylindrical cells have gotten more attention than other companies due to their high energy density, compact design, and cost-effectiveness.

5. Though prismatic cells haven't dethroned cylindrical cells just yet, Tesla's future might be the game-changer here. Will Tesla use LFP chemistry and transfer prismatic battery cells? If so, it will have to pay - worldwide the cost of raw materials, and this can break all the prospects. Finally, prismatic and cylindrical batteries began to compete with each other, and only time will show which one triumphs in the future.
