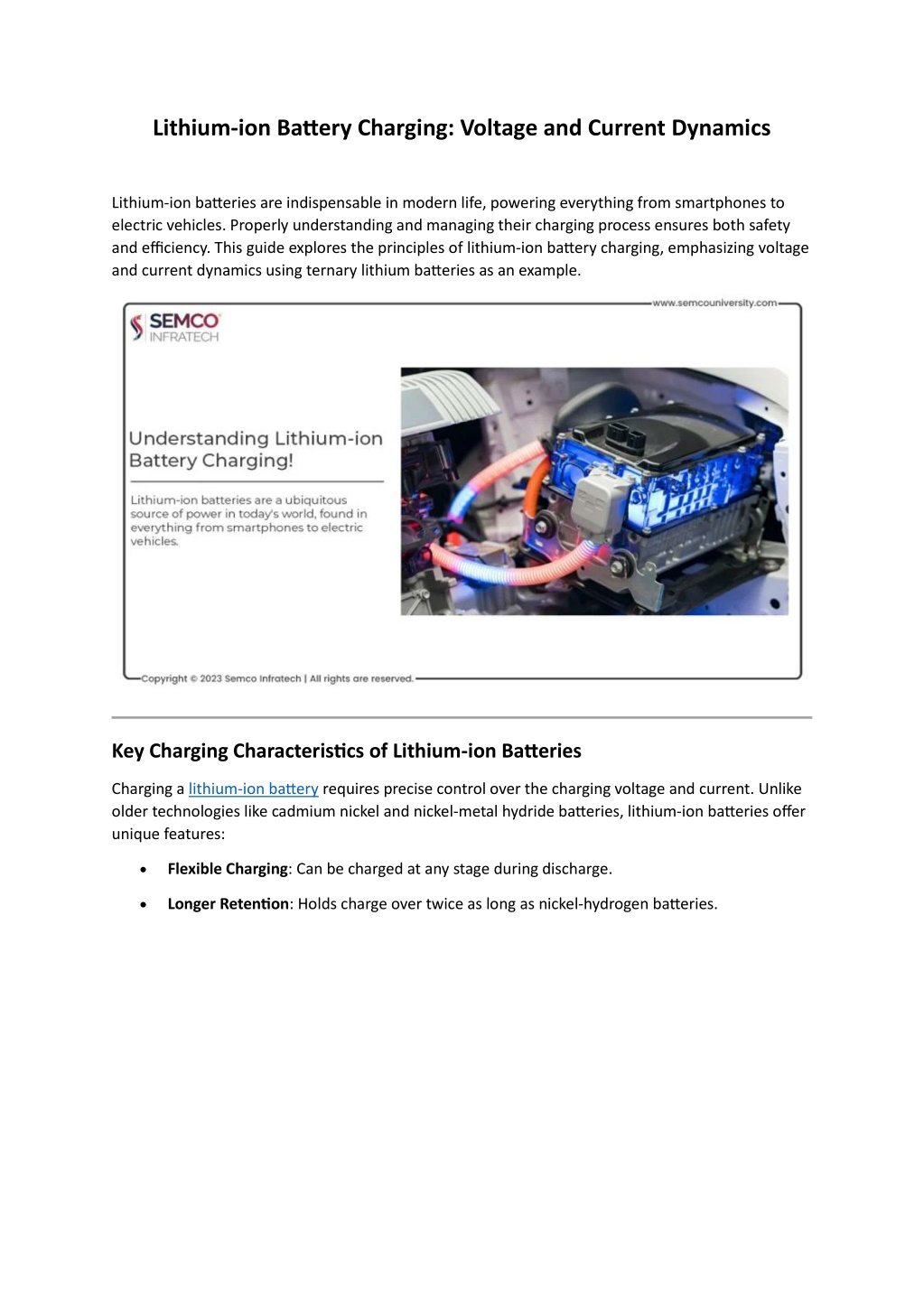

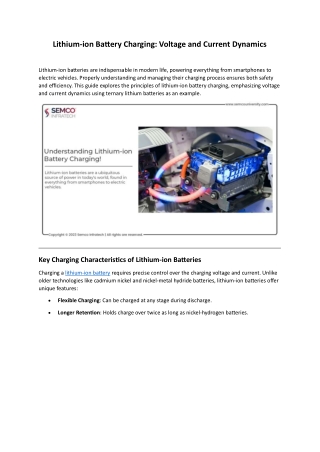

  1. Lithium-ion Battery Charging: Voltage and Current Dynamics Lithium-ion batteries are indispensable in modern life, powering everything from smartphones to electric vehicles. Properly understanding and managing their charging process ensures both safety and efficiency. This guide explores the principles of lithium-ion battery charging, emphasizing voltage and current dynamics using ternary lithium batteries as an example. Key Charging Characteristics of Lithium-ion Batteries Charging a lithium-ion battery requires precise control over the charging voltage and current. Unlike older technologies like cadmium nickel and nickel-metal hydride batteries, lithium-ion batteries offer unique features: • Flexible Charging: Can be charged at any stage during discharge. • Longer Retention: Holds charge over twice as long as nickel-hydrogen batteries.

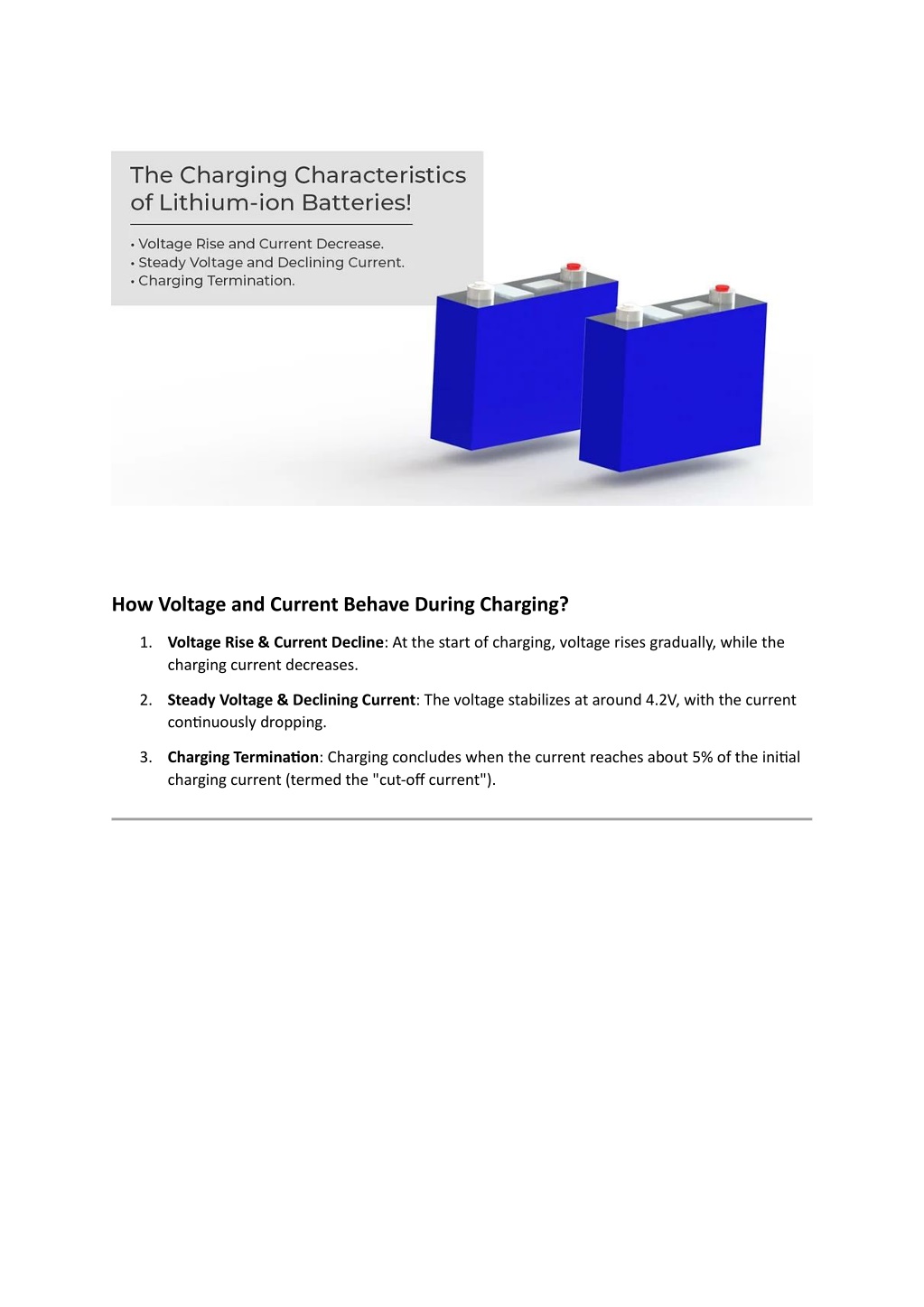

  2. How Voltage and Current Behave During Charging? 1.Voltage Rise & Current Decline: At the start of charging, voltage rises gradually, while the charging current decreases. 2.Steady Voltage & Declining Current: The voltage stabilizes at around 4.2V, with the current continuously dropping. 3.Charging Termination: Charging concludes when the current reaches about 5% of the initial charging current (termed the "cut-off current").

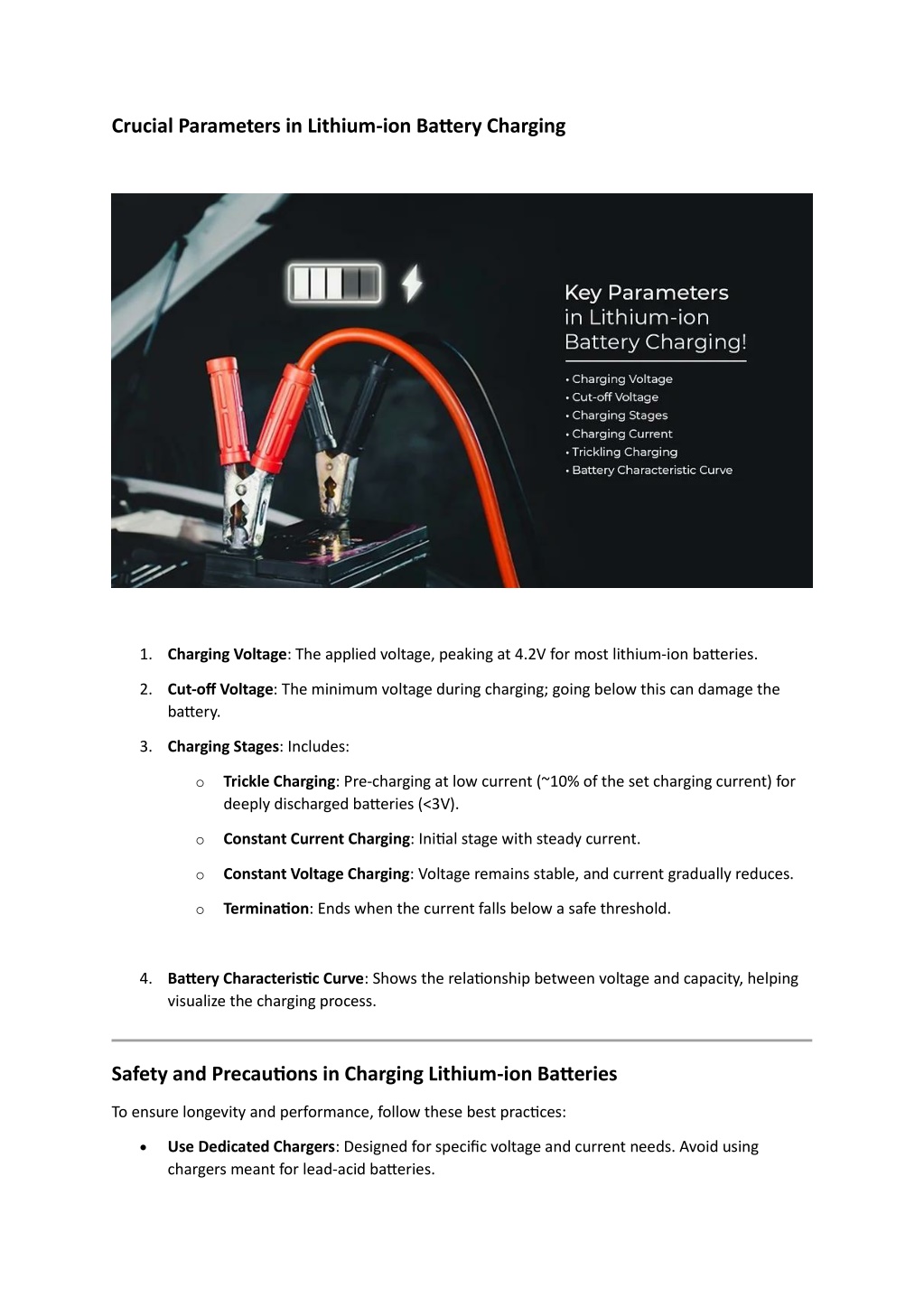

  3. Crucial Parameters in Lithium-ion Battery Charging 1.Charging Voltage: The applied voltage, peaking at 4.2V for most lithium-ion batteries. 2.Cut-off Voltage: The minimum voltage during charging; going below this can damage the battery. 3.Charging Stages: Includes: oTrickle Charging: Pre-charging at low current (~10% of the set charging current) for deeply discharged batteries (<3V). oConstant Current Charging: Initial stage with steady current. oConstant Voltage Charging: Voltage remains stable, and current gradually reduces. oTermination: Ends when the current falls below a safe threshold. 4.Battery Characteristic Curve: Shows the relationship between voltage and capacity, helping visualize the charging process. Safety and Precautions in Charging Lithium-ion Batteries To ensure longevity and performance, follow these best practices: • Use Dedicated Chargers: Designed for specific voltage and current needs. Avoid using chargers meant for lead-acid batteries.

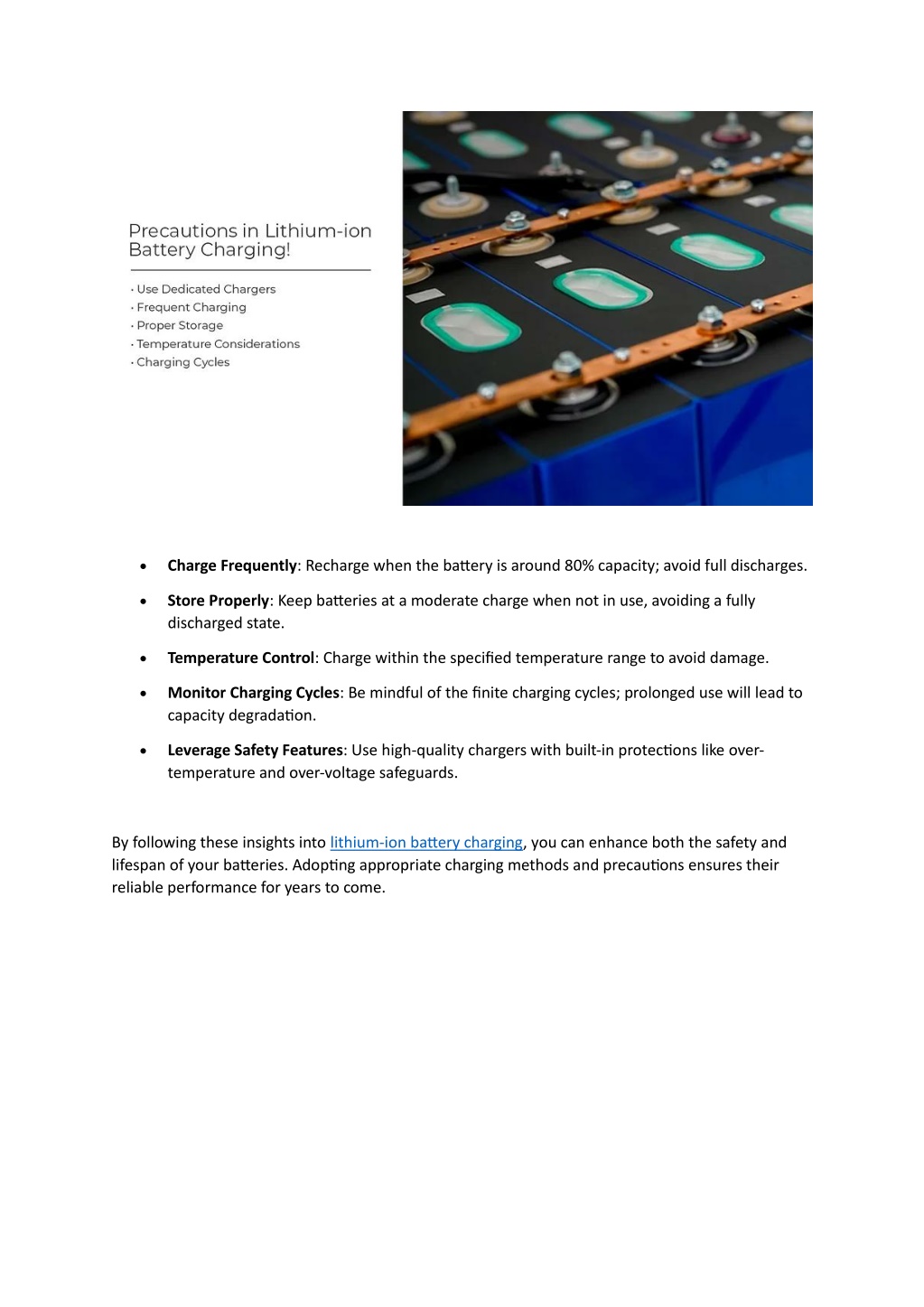

  4. • Charge Frequently: Recharge when the battery is around 80% capacity; avoid full discharges. • Store Properly: Keep batteries at a moderate charge when not in use, avoiding a fully discharged state. • Temperature Control: Charge within the specified temperature range to avoid damage. • Monitor Charging Cycles: Be mindful of the finite charging cycles; prolonged use will lead to capacity degradation. • Leverage Safety Features: Use high-quality chargers with built-in protections like over- temperature and over-voltage safeguards. By following these insights into lithium-ion battery charging, you can enhance both the safety and lifespan of your batteries. Adopting appropriate charging methods and precautions ensures their reliable performance for years to come.
