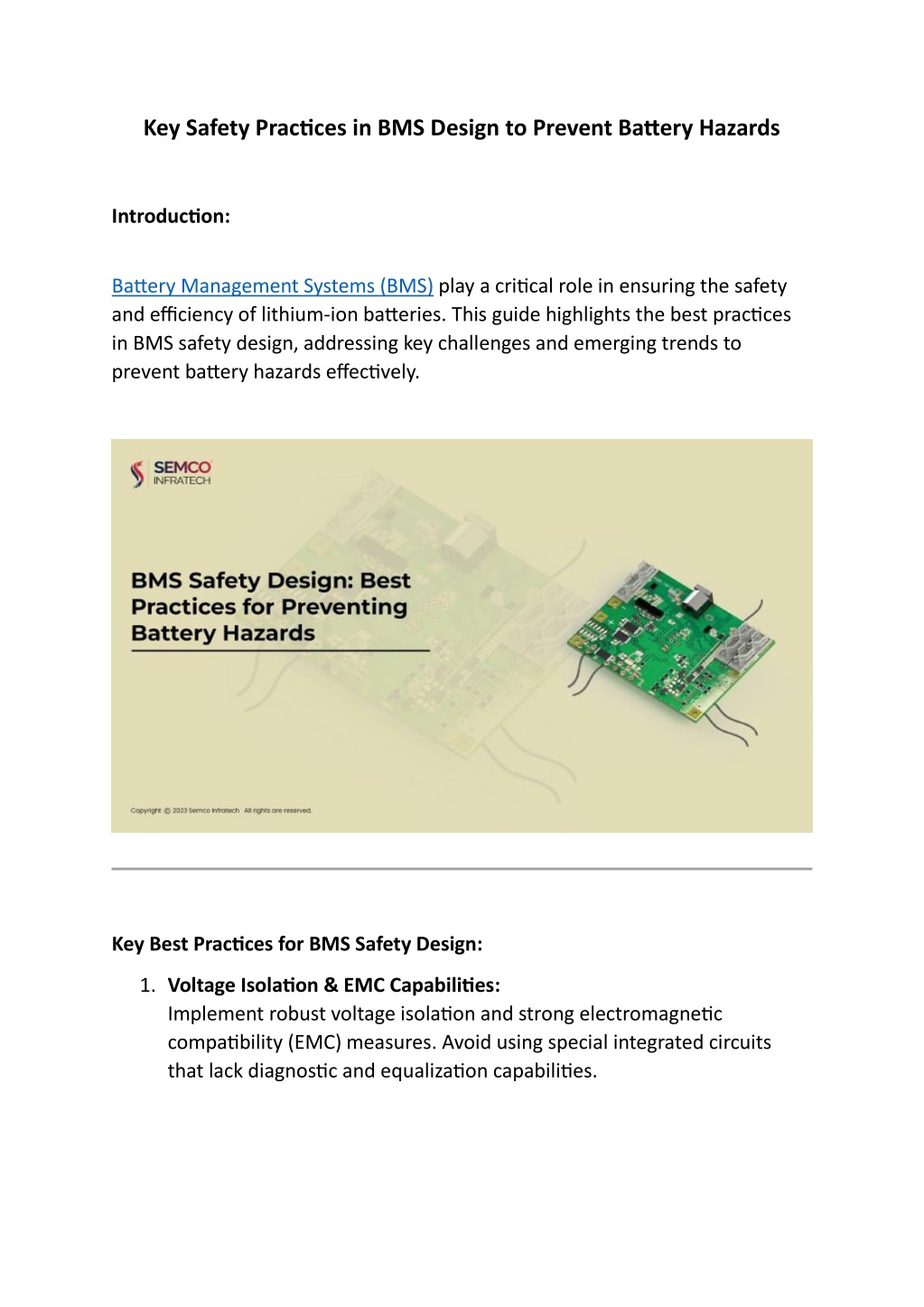

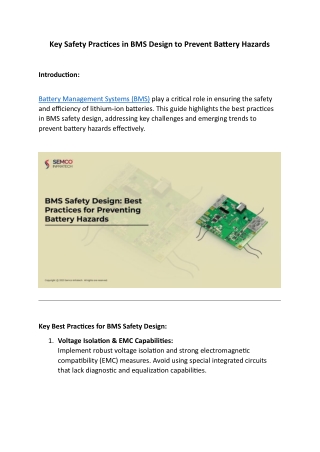

  1. Key Safety Practices in BMS Design to Prevent Battery Hazards Introduction: Battery Management Systems (BMS) play a critical role in ensuring the safety and efficiency of lithium-ion batteries. This guide highlights the best practices in BMS safety design, addressing key challenges and emerging trends to prevent battery hazards effectively. Key Best Practices for BMS Safety Design: 1.Voltage Isolation & EMC Capabilities: Implement robust voltage isolation and strong electromagnetic compatibility (EMC) measures. Avoid using special integrated circuits that lack diagnostic and equalization capabilities.

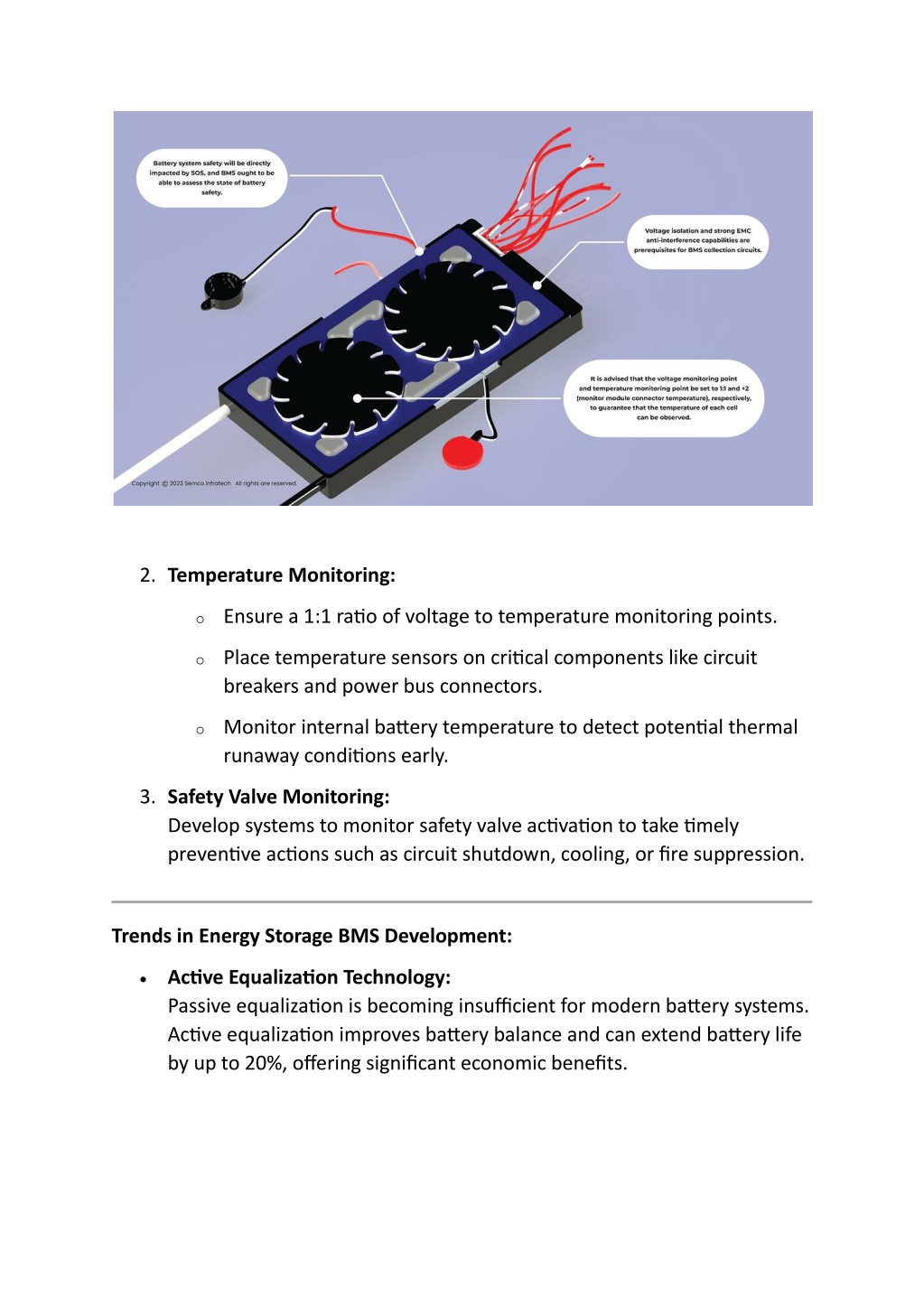

  2. 2.Temperature Monitoring: oEnsure a 1:1 ratio of voltage to temperature monitoring points. oPlace temperature sensors on critical components like circuit breakers and power bus connectors. oMonitor internal battery temperature to detect potential thermal runaway conditions early. 3.Safety Valve Monitoring: Develop systems to monitor safety valve activation to take timely preventive actions such as circuit shutdown, cooling, or fire suppression. Trends in Energy Storage BMS Development: •Active Equalization Technology: Passive equalization is becoming insufficient for modern battery systems. Active equalization improves battery balance and can extend battery life by up to 20%, offering significant economic benefits.

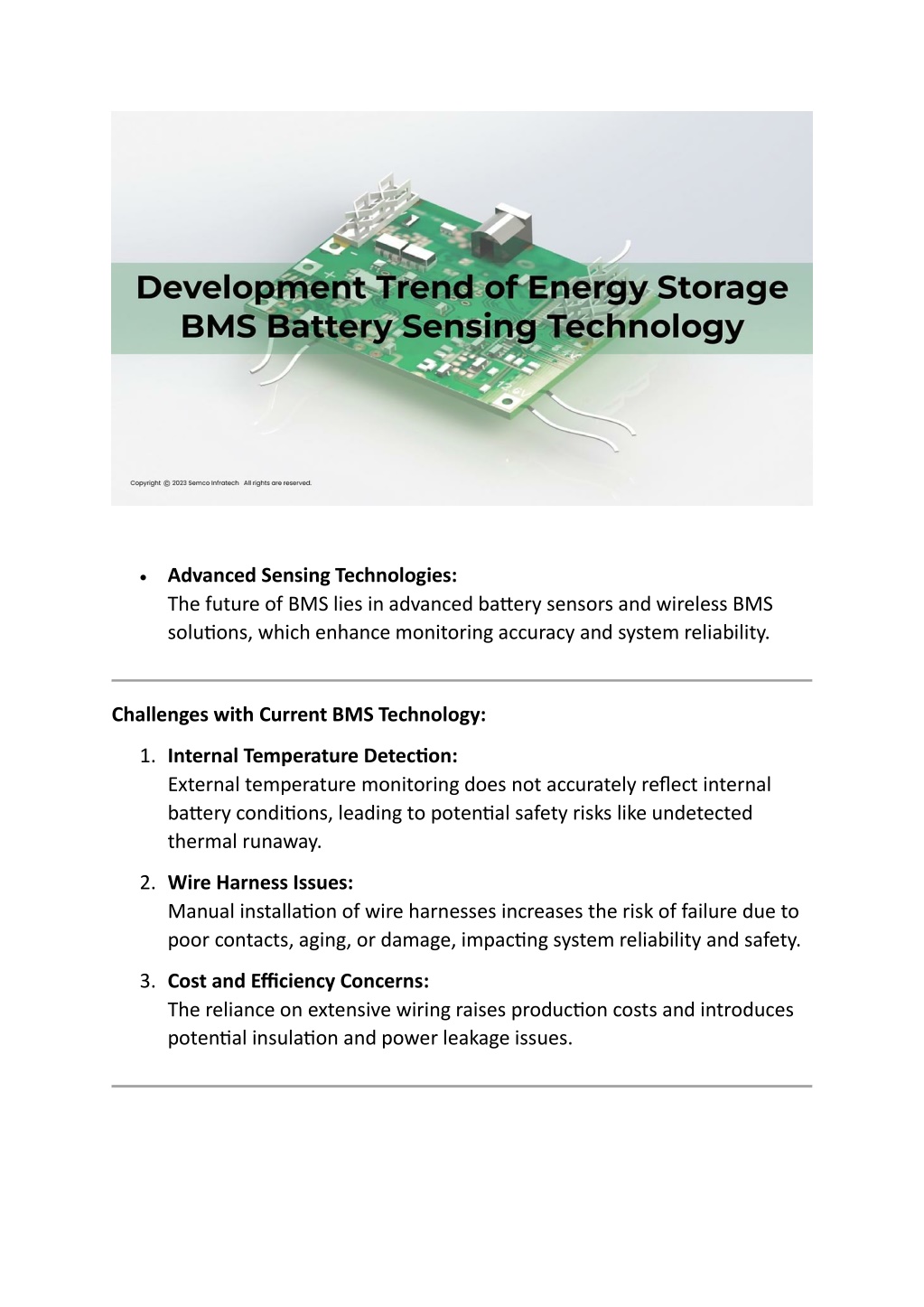

  3. •Advanced Sensing Technologies: The future of BMS lies in advanced battery sensors and wireless BMS solutions, which enhance monitoring accuracy and system reliability. Challenges with Current BMS Technology: 1.Internal Temperature Detection: External temperature monitoring does not accurately reflect internal battery conditions, leading to potential safety risks like undetected thermal runaway. 2.Wire Harness Issues: Manual installation of wire harnesses increases the risk of failure due to poor contacts, aging, or damage, impacting system reliability and safety. 3.Cost and Efficiency Concerns: The reliance on extensive wiring raises production costs and introduces potential insulation and power leakage issues.

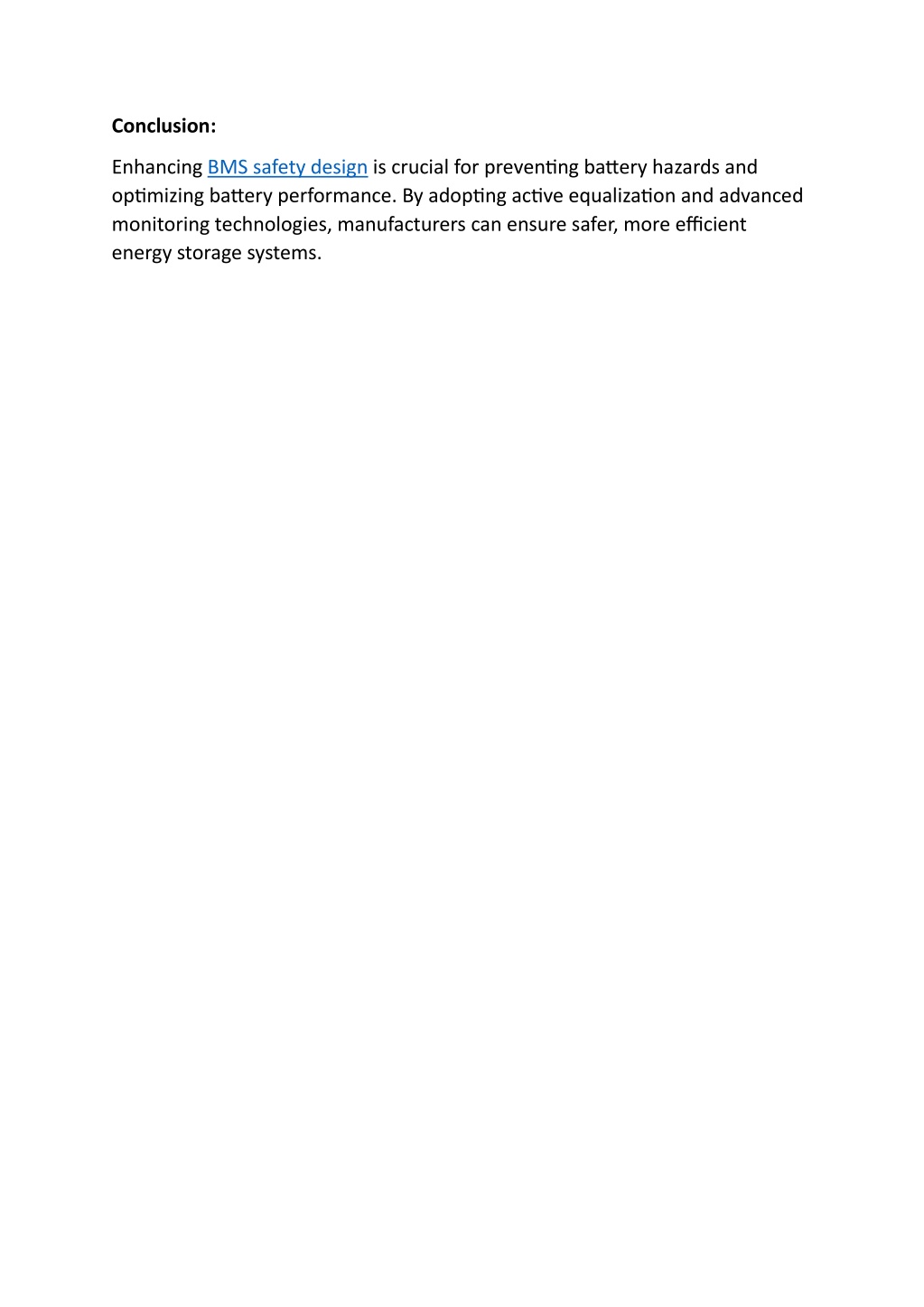

  4. Conclusion: Enhancing BMS safety design is crucial for preventing battery hazards and optimizing battery performance. By adopting active equalization and advanced monitoring technologies, manufacturers can ensure safer, more efficient energy storage systems.
