Battery Testing Parameters with Neware Testing System

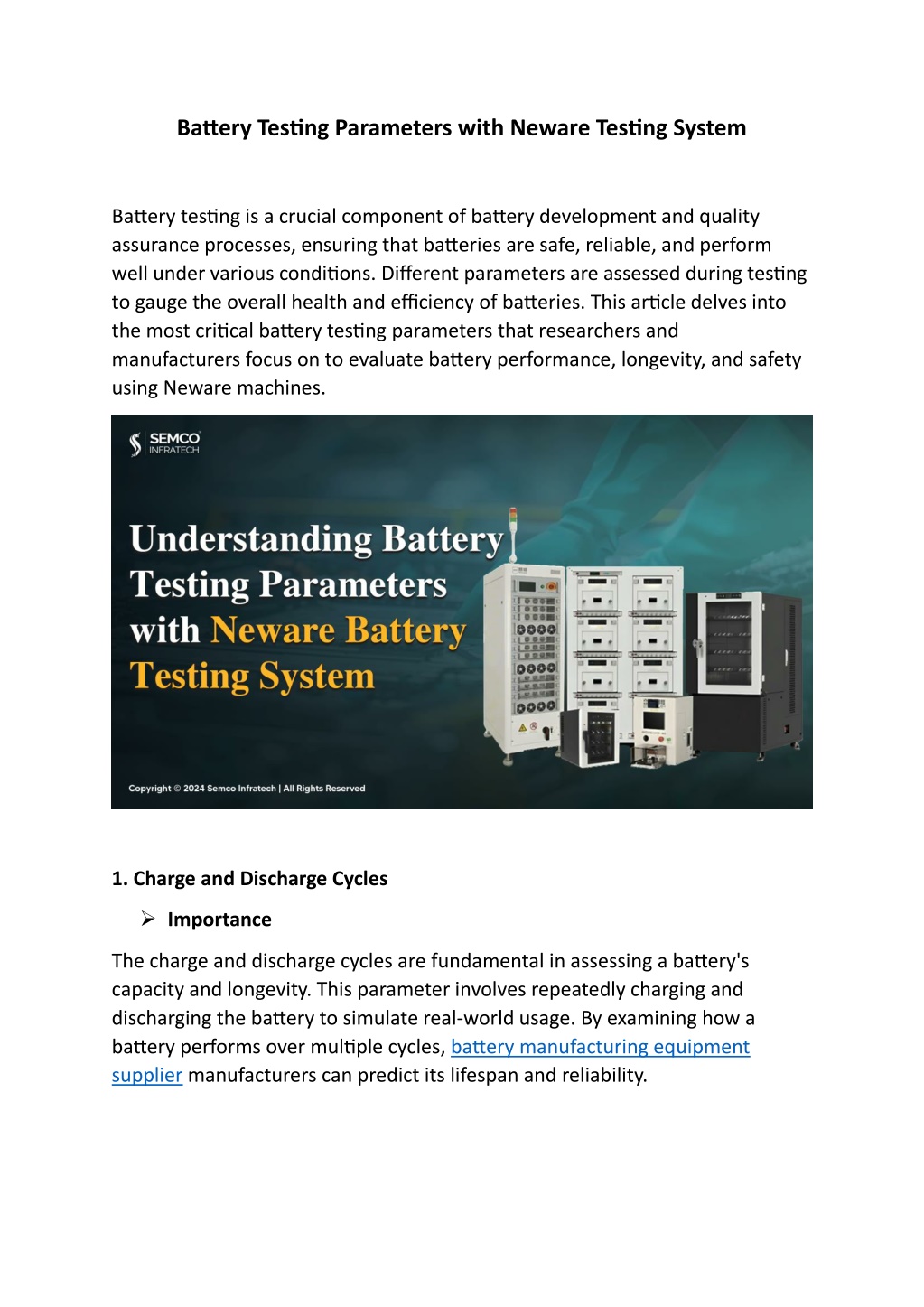

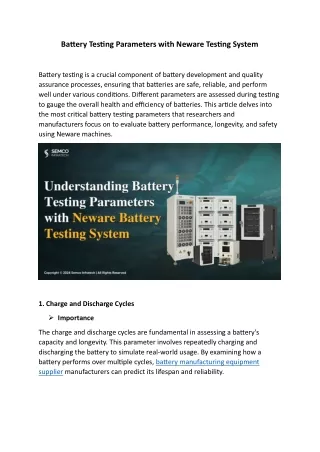

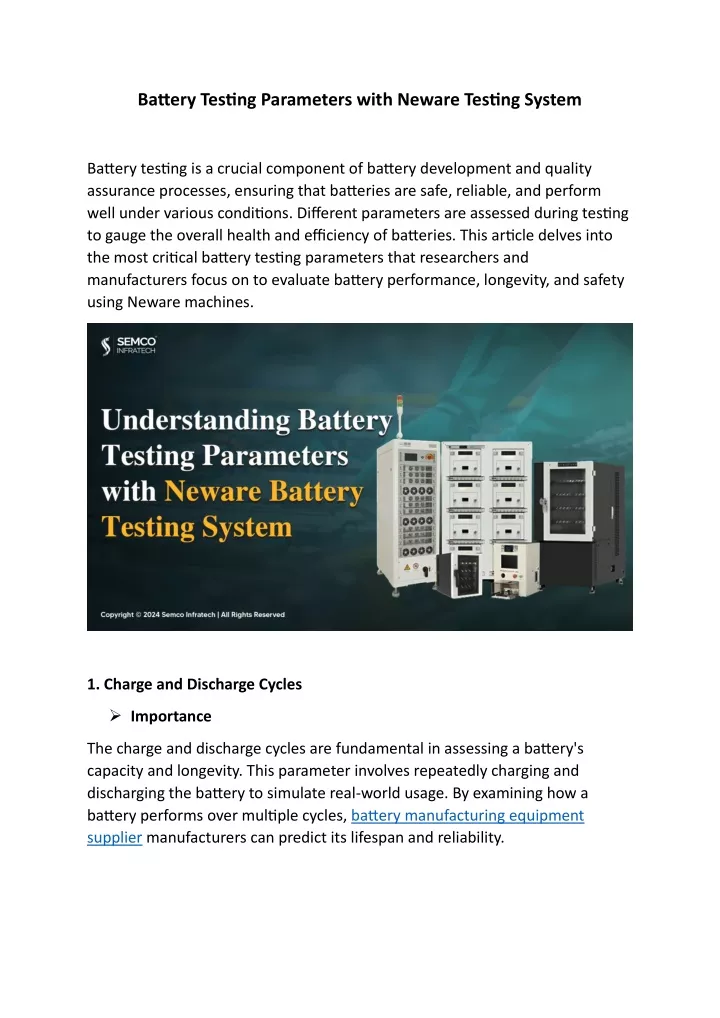

1. Battery Testing Parameters with Neware Testing System Battery testing is a crucial component of battery development and quality assurance processes, ensuring that batteries are safe, reliable, and perform well under various conditions. Different parameters are assessed during testing to gauge the overall health and efficiency of batteries. This article delves into the most critical battery testing parameters that researchers and manufacturers focus on to evaluate battery performance, longevity, and safety using Neware machines. 1. Charge and Discharge Cycles ➢Importance The charge and discharge cycles are fundamental in assessing a battery's capacity and longevity. This parameter involves repeatedly charging and discharging the battery to simulate real-world usage. By examining how a battery performs over multiple cycles, battery manufacturing equipment supplier manufacturers can predict its lifespan and reliability.

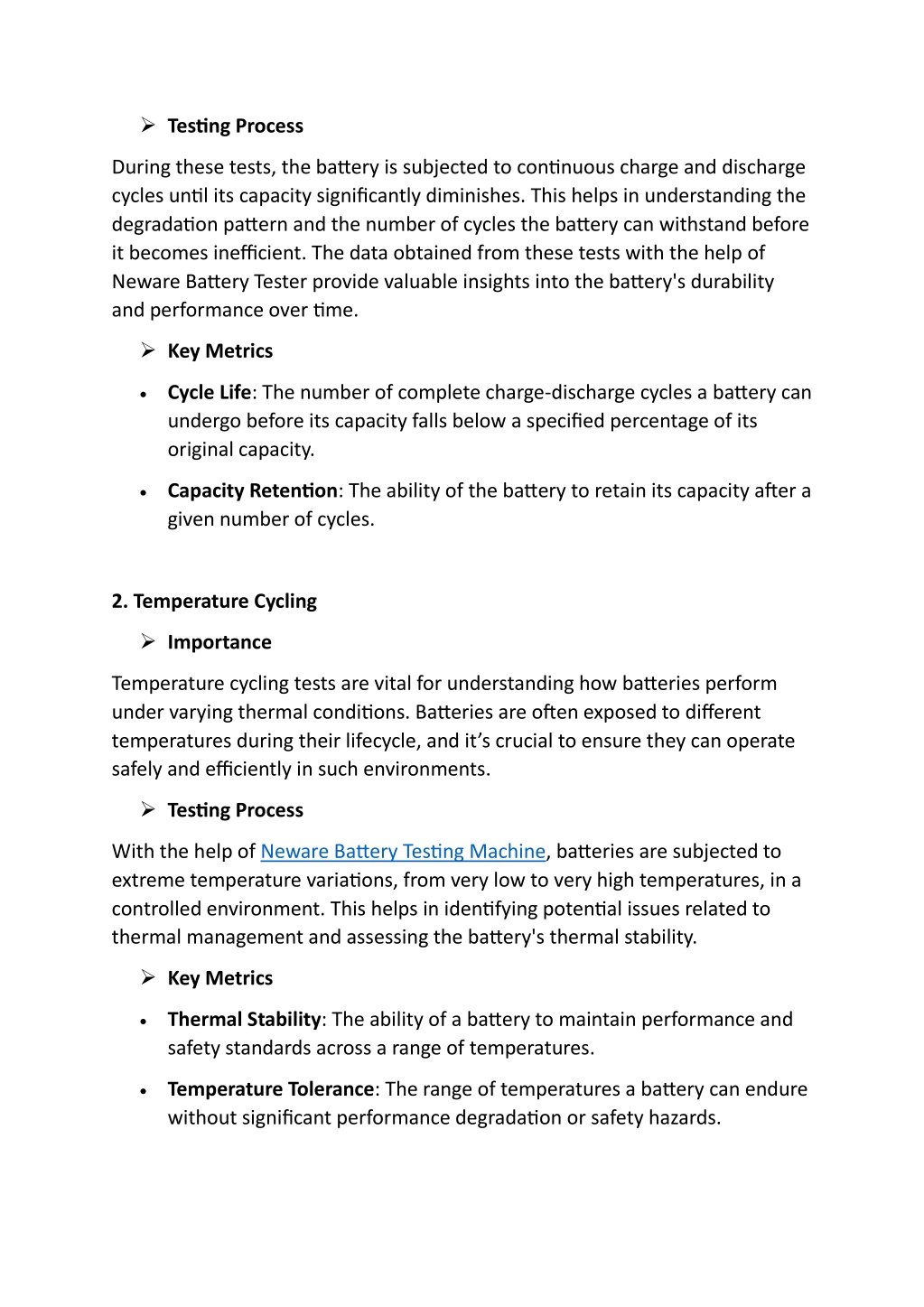

2. ➢Testing Process During these tests, the battery is subjected to continuous charge and discharge cycles until its capacity significantly diminishes. This helps in understanding the degradation pattern and the number of cycles the battery can withstand before it becomes inefficient. The data obtained from these tests with the help of Neware Battery Tester provide valuable insights into the battery's durability and performance over time. ➢Key Metrics •Cycle Life: The number of complete charge-discharge cycles a battery can undergo before its capacity falls below a specified percentage of its original capacity. •Capacity Retention: The ability of the battery to retain its capacity after a given number of cycles. 2. Temperature Cycling ➢Importance Temperature cycling tests are vital for understanding how batteries perform under varying thermal conditions. Batteries are often exposed to different temperatures during their lifecycle, and it’s crucial to ensure they can operate safely and efficiently in such environments. ➢Testing Process With the help of Neware Battery Testing Machine, batteries are subjected to extreme temperature variations, from very low to very high temperatures, in a controlled environment. This helps in identifying potential issues related to thermal management and assessing the battery's thermal stability. ➢Key Metrics •Thermal Stability: The ability of a battery to maintain performance and safety standards across a range of temperatures. •Temperature Tolerance: The range of temperatures a battery can endure without significant performance degradation or safety hazards.

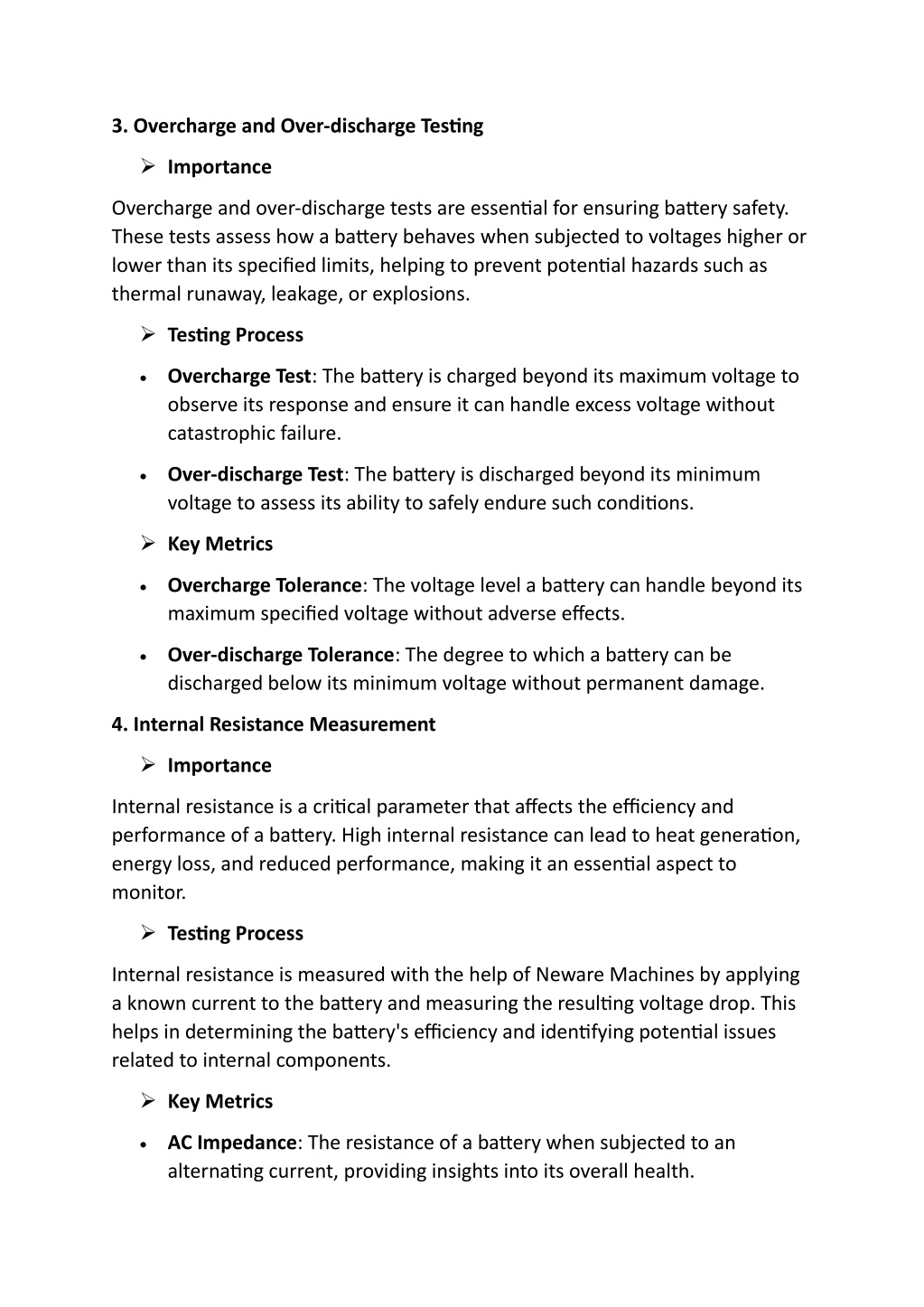

3. 3. Overcharge and Over-discharge Testing ➢Importance Overcharge and over-discharge tests are essential for ensuring battery safety. These tests assess how a battery behaves when subjected to voltages higher or lower than its specified limits, helping to prevent potential hazards such as thermal runaway, leakage, or explosions. ➢Testing Process •Overcharge Test: The battery is charged beyond its maximum voltage to observe its response and ensure it can handle excess voltage without catastrophic failure. •Over-discharge Test: The battery is discharged beyond its minimum voltage to assess its ability to safely endure such conditions. ➢Key Metrics •Overcharge Tolerance: The voltage level a battery can handle beyond its maximum specified voltage without adverse effects. •Over-discharge Tolerance: The degree to which a battery can be discharged below its minimum voltage without permanent damage. 4. Internal Resistance Measurement ➢Importance Internal resistance is a critical parameter that affects the efficiency and performance of a battery. High internal resistance can lead to heat generation, energy loss, and reduced performance, making it an essential aspect to monitor. ➢Testing Process Internal resistance is measured with the help of Neware Machines by applying a known current to the battery and measuring the resulting voltage drop. This helps in determining the battery's efficiency and identifying potential issues related to internal components. ➢Key Metrics •AC Impedance: The resistance of a battery when subjected to an alternating current, providing insights into its overall health.

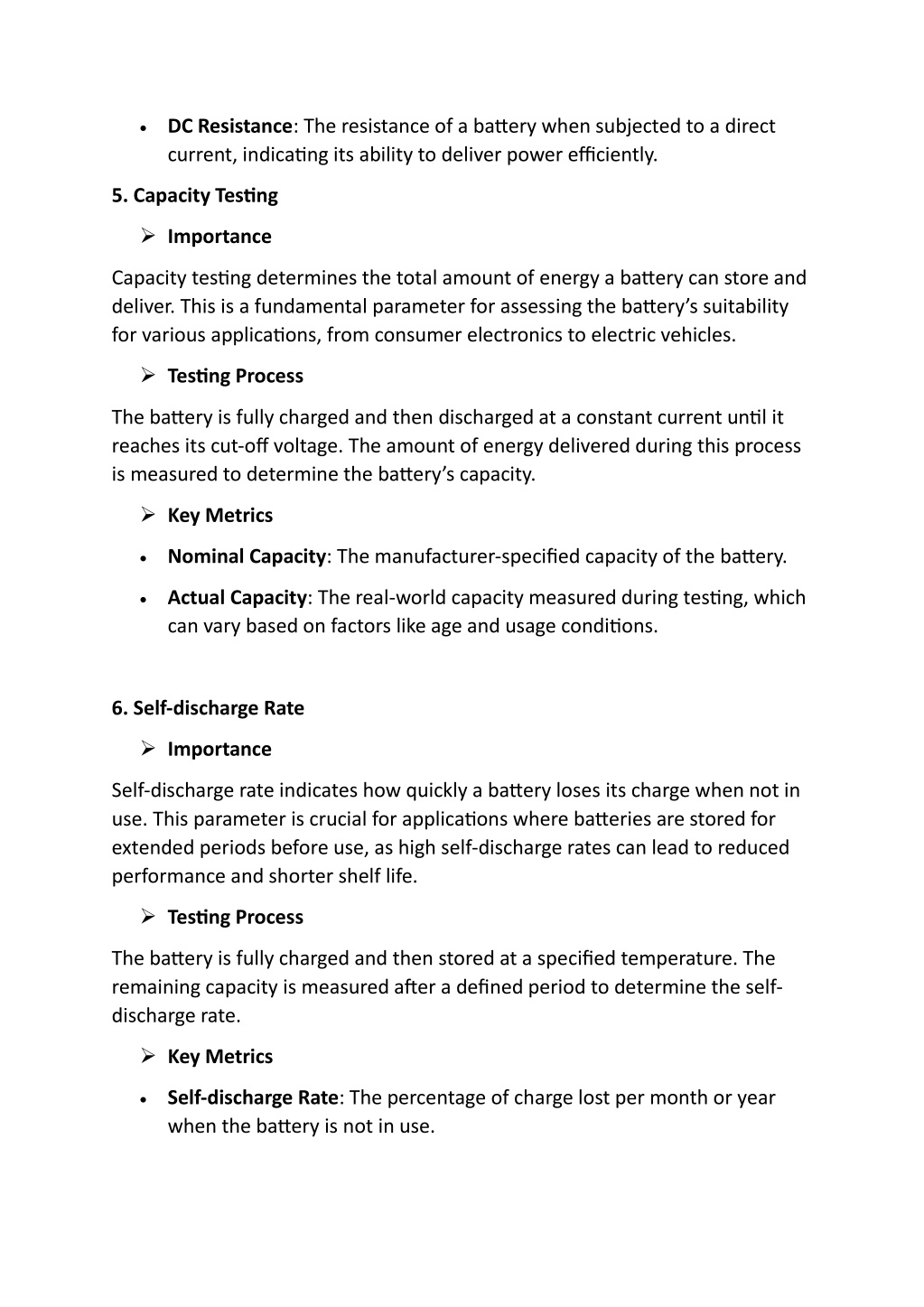

4. •DC Resistance: The resistance of a battery when subjected to a direct current, indicating its ability to deliver power efficiently. 5. Capacity Testing ➢Importance Capacity testing determines the total amount of energy a battery can store and deliver. This is a fundamental parameter for assessing the battery’s suitability for various applications, from consumer electronics to electric vehicles. ➢Testing Process The battery is fully charged and then discharged at a constant current until it reaches its cut-off voltage. The amount of energy delivered during this process is measured to determine the battery’s capacity. ➢Key Metrics •Nominal Capacity: The manufacturer-specified capacity of the battery. •Actual Capacity: The real-world capacity measured during testing, which can vary based on factors like age and usage conditions. 6. Self-discharge Rate ➢Importance Self-discharge rate indicates how quickly a battery loses its charge when not in use. This parameter is crucial for applications where batteries are stored for extended periods before use, as high self-discharge rates can lead to reduced performance and shorter shelf life. ➢Testing Process The battery is fully charged and then stored at a specified temperature. The remaining capacity is measured after a defined period to determine the self- discharge rate. ➢Key Metrics •Self-discharge Rate: The percentage of charge lost per month or year when the battery is not in use.

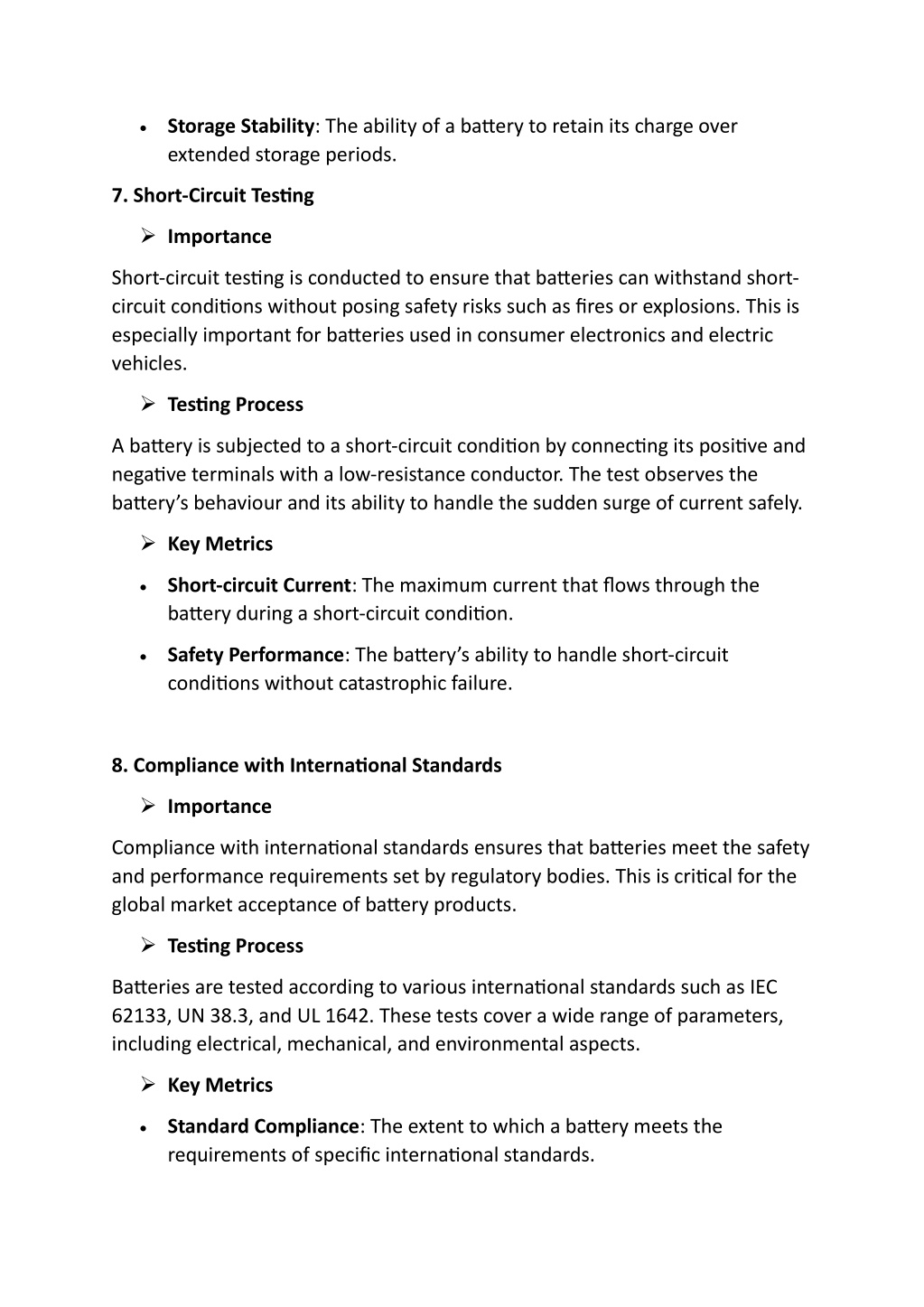

5. •Storage Stability: The ability of a battery to retain its charge over extended storage periods. 7. Short-Circuit Testing ➢Importance Short-circuit testing is conducted to ensure that batteries can withstand short- circuit conditions without posing safety risks such as fires or explosions. This is especially important for batteries used in consumer electronics and electric vehicles. ➢Testing Process A battery is subjected to a short-circuit condition by connecting its positive and negative terminals with a low-resistance conductor. The test observes the battery’s behaviour and its ability to handle the sudden surge of current safely. ➢Key Metrics •Short-circuit Current: The maximum current that flows through the battery during a short-circuit condition. •Safety Performance: The battery’s ability to handle short-circuit conditions without catastrophic failure. 8. Compliance with International Standards ➢Importance Compliance with international standards ensures that batteries meet the safety and performance requirements set by regulatory bodies. This is critical for the global market acceptance of battery products. ➢Testing Process Batteries are tested according to various international standards such as IEC 62133, UN 38.3, and UL 1642. These tests cover a wide range of parameters, including electrical, mechanical, and environmental aspects. ➢Key Metrics •Standard Compliance: The extent to which a battery meets the requirements of specific international standards.

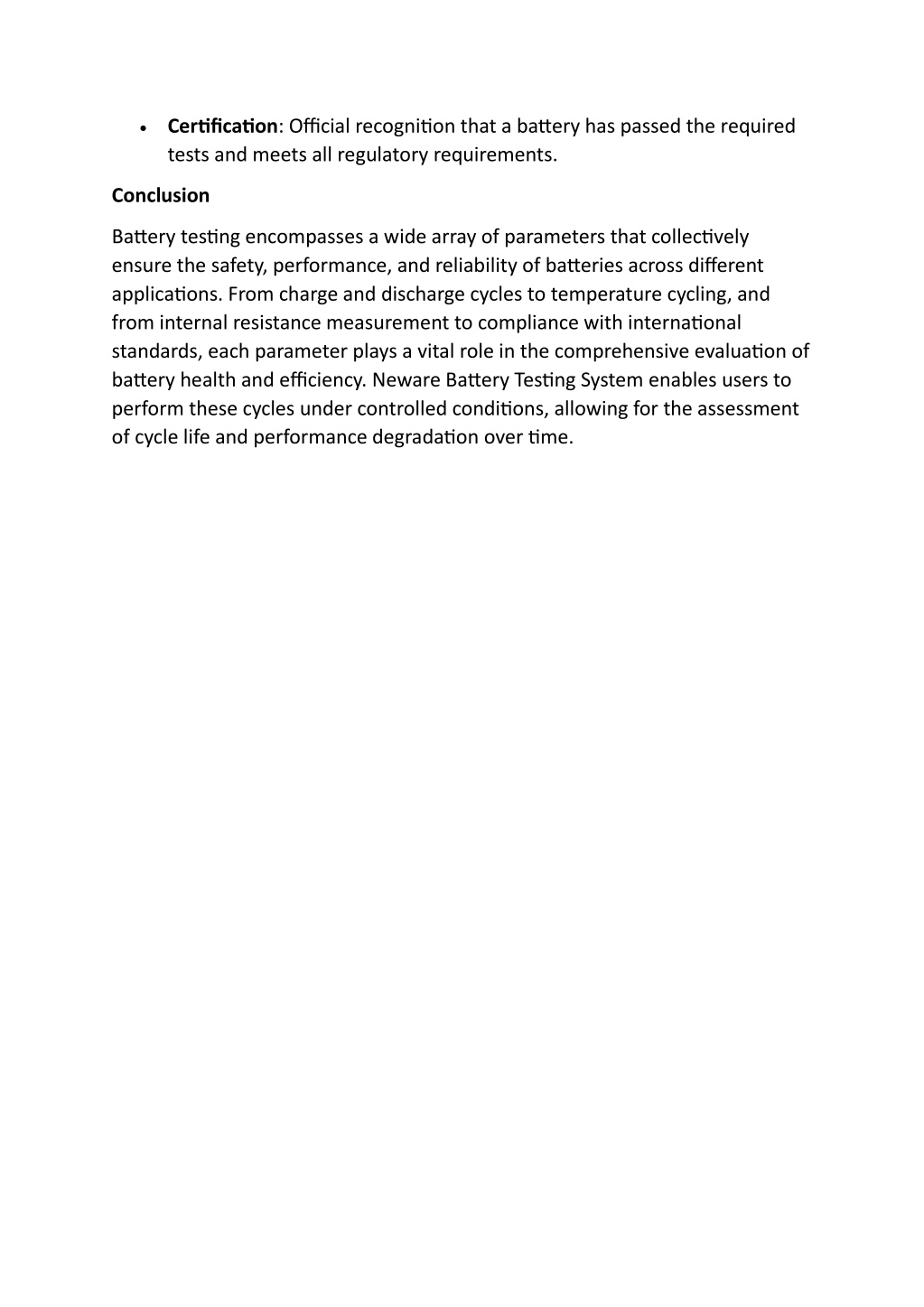

6. •Certification: Official recognition that a battery has passed the required tests and meets all regulatory requirements. Conclusion Battery testing encompasses a wide array of parameters that collectively ensure the safety, performance, and reliability of batteries across different applications. From charge and discharge cycles to temperature cycling, and from internal resistance measurement to compliance with international standards, each parameter plays a vital role in the comprehensive evaluation of battery health and efficiency. Neware Battery Testing System enables users to perform these cycles under controlled conditions, allowing for the assessment of cycle life and performance degradation over time.
