  1. A Study of High Temperature Superconductivity With Chemical Substitutions in the 123 and 2223 Systems Josiah Austin, Renee Catalano, Logan Finger, Robert Haag, Noah Huffman, Timothy Keebler, Madison Kratzer PGSS 31 July 2014 Background courtesy of: http://3.bp.blogspot.com/-ClOaNjbUPg8/TxBearSJARI/AAAAAAAAAbs/OwFK67eamHY/s1600/electricity.jpg

  2. History of Superconductors • 1911- Mercury superconductor • 1933- Meissner effect • 1957- BCS theory • 1987- First high-Tc superconductor (YBa2Cu3O7) • Modern applications • MRI (Magnetic Resonance Imaging) • MagLev (Magnetic Levitation) Train • Particle accelerators Meissner effect

  3. BCS Theory Explained • Interaction of electrons with the lattice structure - Cooper pairs • Condensation of electron velocity-space - Bose-Einstein Condensate • Energy gap - Transition temperature - Lattice vibrations • Type I vs Type II Cooper pairs interacting webs.mn.catholic.edu.au

  4. Tested Compounds • Yttrium compounds • YBa2Cu3O7-x • Rare Earth metal substitutions • Other substitutions YBa2Cu3O7-x (courtesy of B. Mills)

  5. Bismuth compounds • Bi2Sr2Ca2Cu3O10+x • Bi2Sr2Ca1Cu2Ox Bi2Sr2Ca2Cu3O10+x (courtesy of James Slezak)

  6. Substitutions • Dy and Sm complete substitutions for Y in Y-123 • Sr substitutions (complete and 1 mol : 1 mol) in Y-123 • Cu doping at 90% Cu and 80% Cu using Co and Ni in Y-123 • Synthesis of Bi2Ba2Ca2Cu3Ox and Bi2Ba2CaCu2Ox using multi-phased base compound

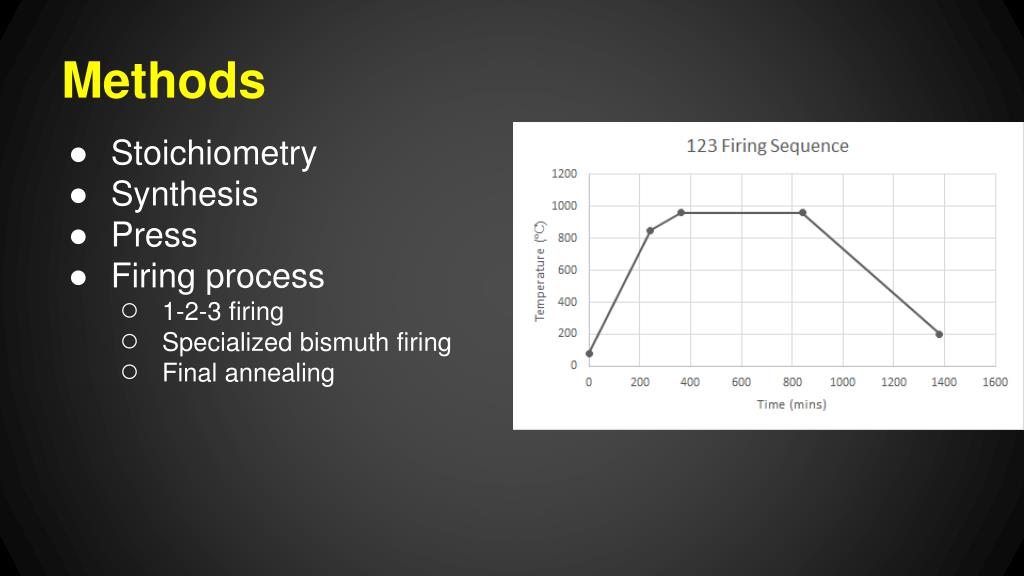

  7. Methods • Stoichiometry • Synthesis • Press • Firing process • 1-2-3 firing • Specialized bismuth firing • Final annealing

  8. X-Ray Diffraction • Cathode rays • Pattern of diffraction Image courtesy of http://web.pdx.edu/~pmoeck/phy381/Topic5a-XRD.pdf

  9. Diffraction Process https://fys.kuleuven.be/iks/nvsf/experimental-facilities/x-ray-diffraction-2013-bruker-d8-discover

  10. X-Ray Diffractor

  11. Important Structures Orthorhombic Tetragonal

  12. Resistivity • Resistivity • The ability of a substance to oppose the flow of electrons • Resistance vs. Resistivity ρ = R A/L • Resistance testing in the lab

  13. Results (X-Ray Diffraction) • Several 1,2,3 orthorhombic structures observed • Multi-phase barium precursors formed into single phase bismuth compounds

  14. Initial Results

  15. YBa(2)Cu(3)O(7-x)

  16. DyBa(2)Cu(3)O(7-x)

  17. Ba(2)Ca(2)Cu(3)O(x)

  18. Comparison of Compounds

  19. Tetragonal Decomposition YBa(2)Cu(2.7)Co(0.3)O(7) & YBa(2)Cu(2.7)Ni(0.3)O(7)

  20. Results (Resistivity) • Compounds that superconducted: • YBa2Cu3O7,DyBa2Cu3O7, YSrBaCu3O7 • Effects of substitutions on resistivity • Changes its critical temperature • In conducted tests, temperatures were lowered • Effects on current carrying capacity

  21. mV

  22. Discussion • Successes: • Parent compound • Dysprosium substitute • Strontium (1 mol: 1 mol) doped compound • Failures: • Nickel and Cobalt partially doped for Copper • Strontium and Samarium full substitutes • Radius/Charge disparity • Bismuth substitutes • Heating problems • Sr vs. Ba http://www.berkeley.edu/news/media/releases/2004/08/16_Lanzara.shtml

  23. Conclusions • The experiment succeeded in producing two new high-Tc superconductors, YSrBaCu3O7 and DyBa2Cu3O7. • Sources of error and limitations

  24. Any Questions?

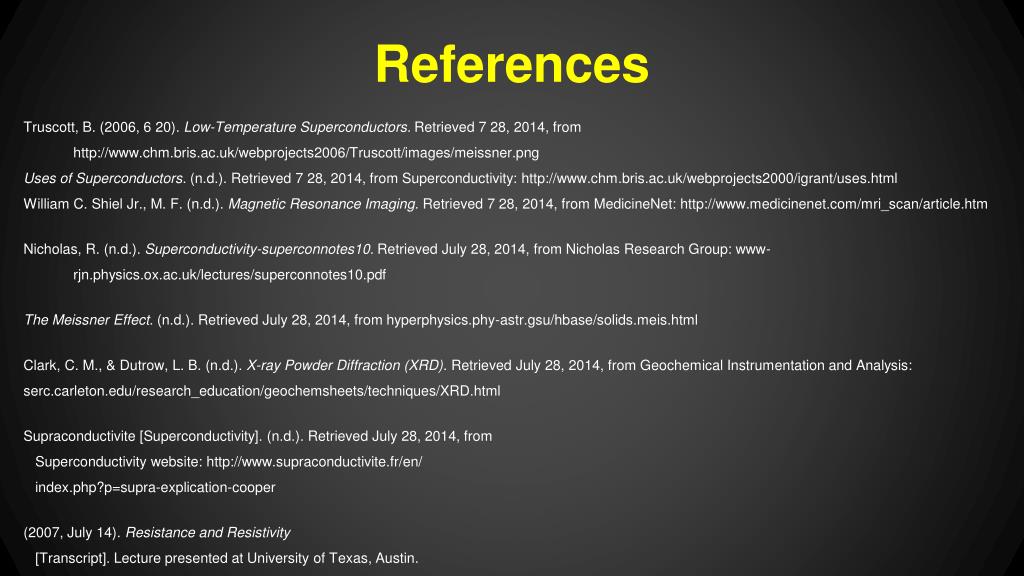

  25. References (n.d.). Retrieved 7 28, 2014, from Science in School : http://www.scienceinschool.org/repository/images/issue10lhchow23_large.jpg Bobroff, J. (2011). Resistance in Superconductors. (P. Szczeciner, Trans.) Retrieved 7 28, 2014, from http://www.supraconductivite.fr/en/index.php?p=supra-resistance-supra Coalition for the Commercial Applications of Superconductors. (n.d.). Superconductivity . Retrieved 7 28, 2014, from http://www.ccas-web.org/pdf/ccas_brochure_web.pdf Current Carrying Capacity of Copper Conductors. (n.d.). Retrieved 7 28, 2014, from http://www.google.com/url?q=http%3A%2F%2Fwww.seas.gwu.edu%2F~ecelabs%2Fappnotes%2FPDF%2Ftechdat%2FCCCofCC.pdf&sa=D&sntz=1&usg=AFQjCNGDyL0t1o9b_KEuhQFAEit_ia-cDw Guire, E. D. (2012, 1 31). Historic January 1987: YBCO superconductors discovered and Super Bowl XXI. Retrieved 7 28, 2014, from The American Ceramic Society: (http://ceramics.org/ceramic-tech-today/characterization-1/historic-january-1987-ybco-superconductors-discovered-and-super-bowl-xxi) Likharev, K. (1996, 5). RSFQ: Concept, Status, and Prospects. Retrieved 7 28, 2014, from http://pavel.physics.sunysb.edu/RSFQ/Research/WhatIs/rsfqwte1.html National High Magnetic Field Laboratory. (n.d.). Maglev Trains: On Track with Superconductivity. Retrieved 7 28, 2014, from Magnet Lab: http://www.magnet.fsu.edu/education/tutorials/magnetacademy/superconductivity101/maglev.html Nave, R. (n.d.). Superconductor Applications. Retrieved 7 28, 2014, from http://hyperphysics.phy-astr.gsu.edu/hbase/solids/scapp.html#c5 Slichter, C. (n.d.). Introduction to the History of Superconductivity. Retrieved 7 28, 2014, from http://www.aip.org/history/mod/superconductivity/01.html
