Presentation Transcript
multi source edit system requirements

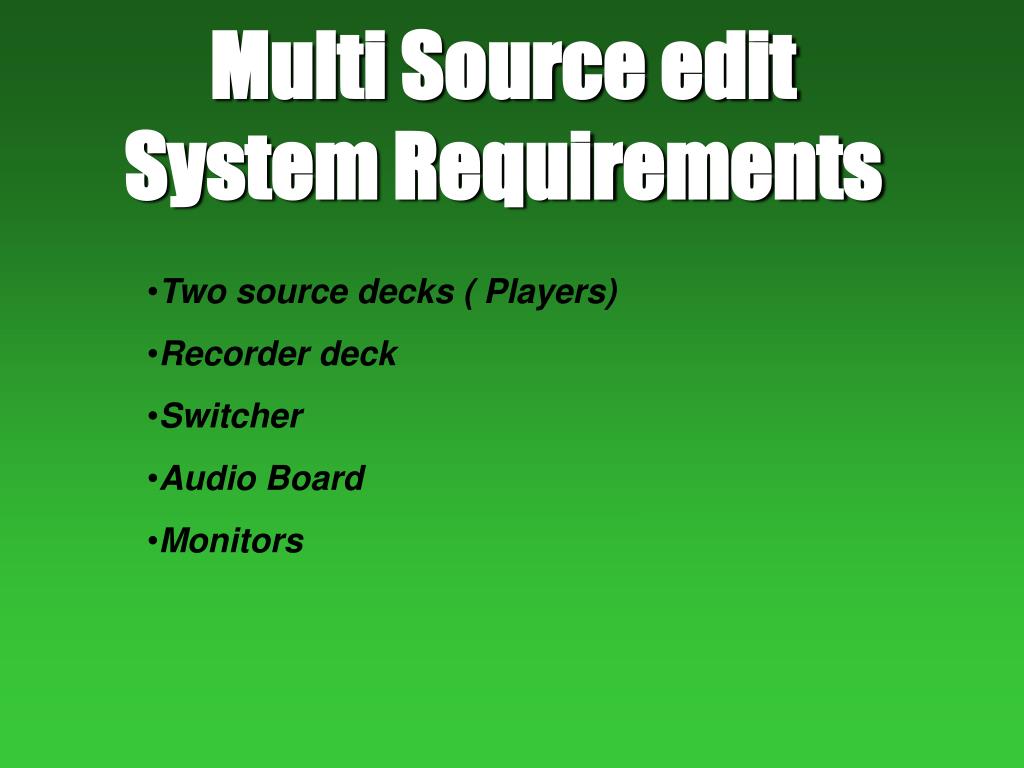

Multi Source edit System Requirements

Two source decks ( Players)

Recorder deck

Switcher

Audio Board

Monitors

multi source edit systems

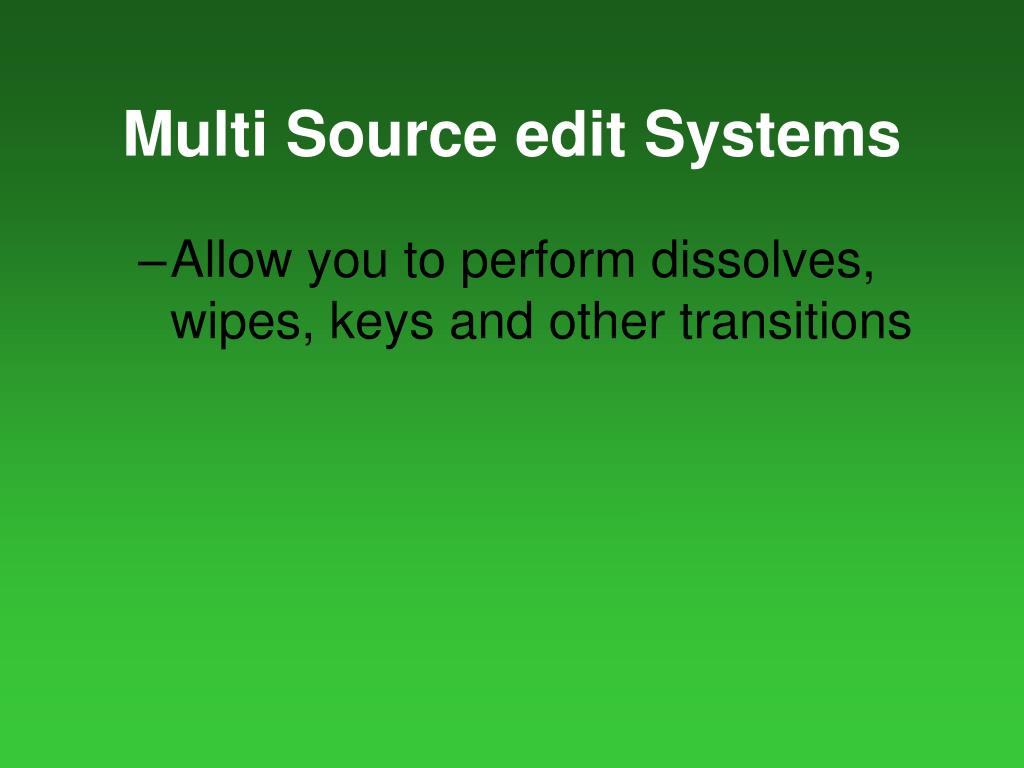

Multi Source edit Systems
  • Allow you to perform dissolves, wipes, keys and other transitions
slide3
Fade
  • Gradual transition of an image to or from black
kissing black dip to black
Kissing Black/ Dip to Black
  • A quick Fade to black and back up.
dissolve
Dissolve
  • A gradual transition from one image into another
dissolves

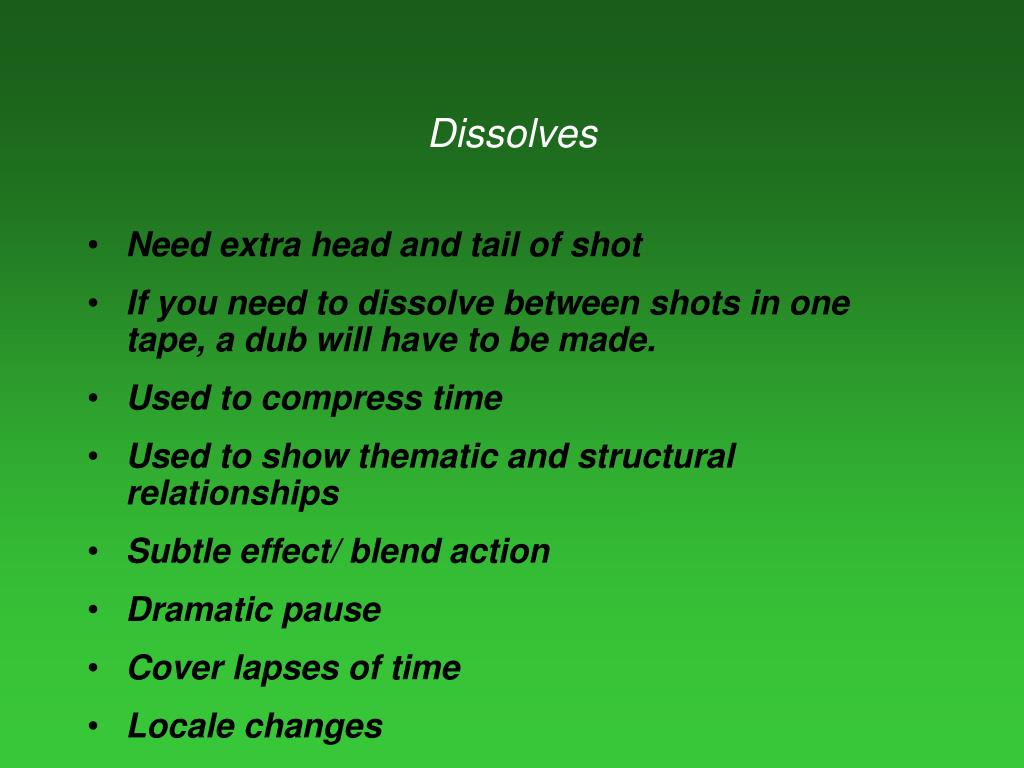

Dissolves
  • Need extra head and tail of shot
  • If you need to dissolve between shots in one tape, a dub will have to be made.
  • Used to compress time
  • Used to show thematic and structural relationships
  • Subtle effect/ blend action
  • Dramatic pause
  • Cover lapses of time
  • Locale changes
soft cut

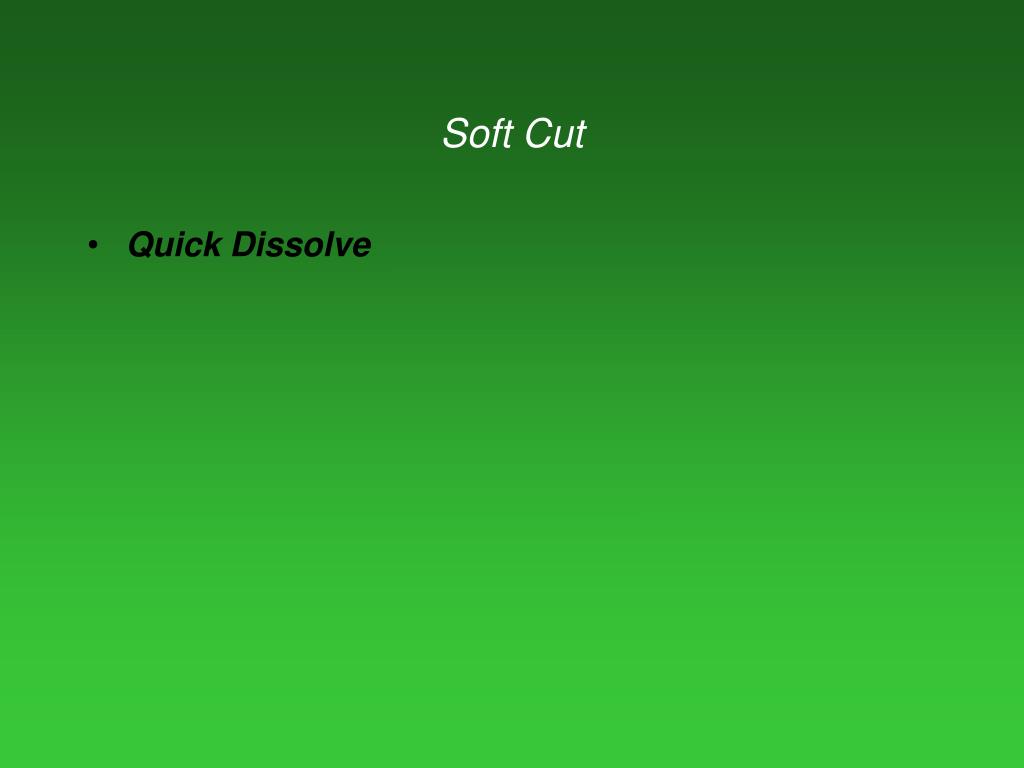

Soft Cut
  • Quick Dissolve
superimpostion
Superimpostion
  • Half of both pictures are seen simultaneously
slide9
Wipe
  • When one image pushes the other off the screen.
split screen
Split Screen
  • shots share parts of the screen
digital video effects

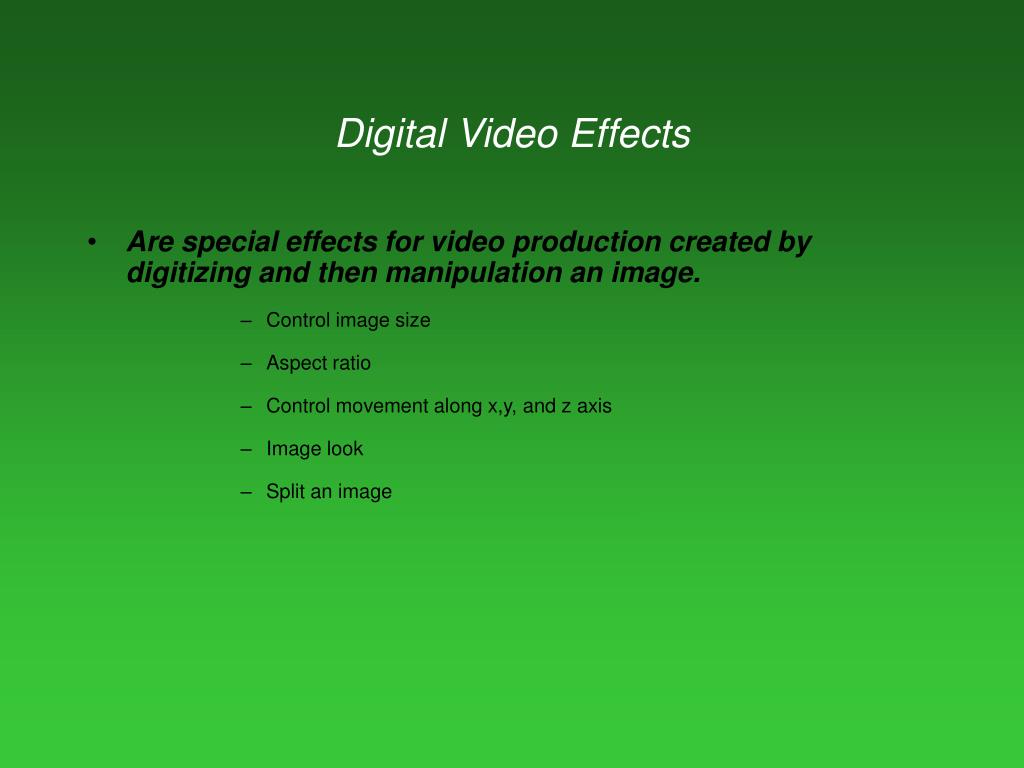

Digital Video Effects
  • Are special effects for video production created by digitizing and then manipulation an image.
        • Control image size
        • Aspect ratio
        • Control movement along x,y, and z axis
        • Image look
        • Split an image
slide12

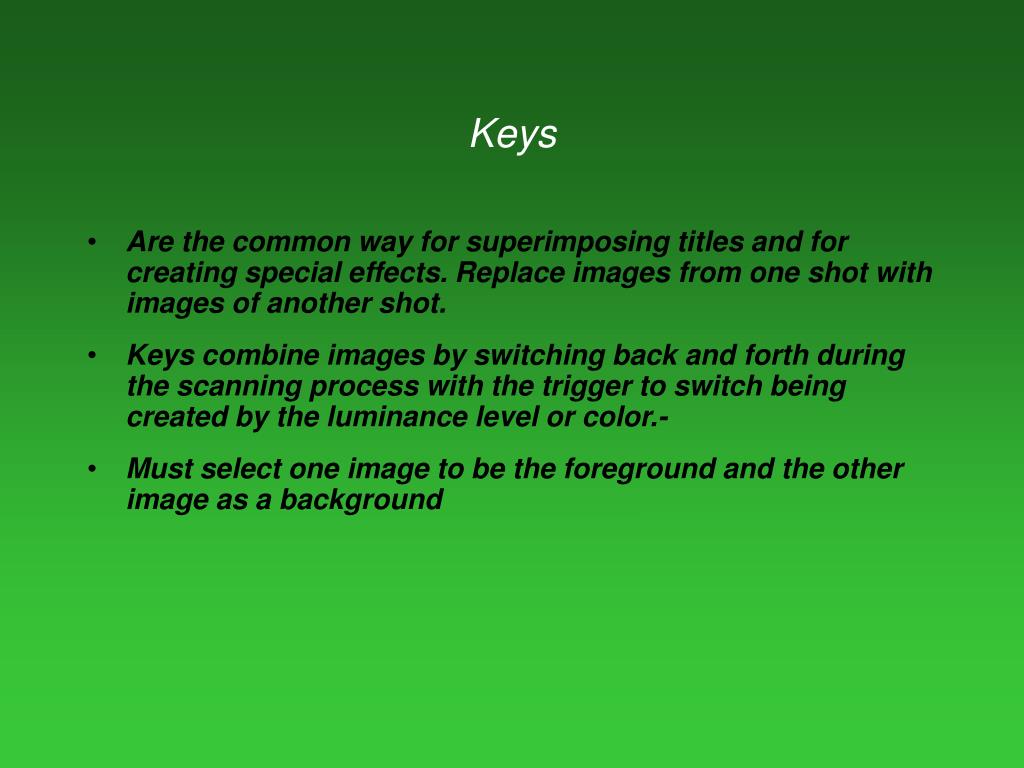

Keys
  • Are the common way for superimposing titles and for creating special effects. Replace images from one shot with images of another shot.
  • Keys combine images by switching back and forth during the scanning process with the trigger to switch being created by the luminance level or color.-
  • Must select one image to be the foreground and the other image as a background
chroma

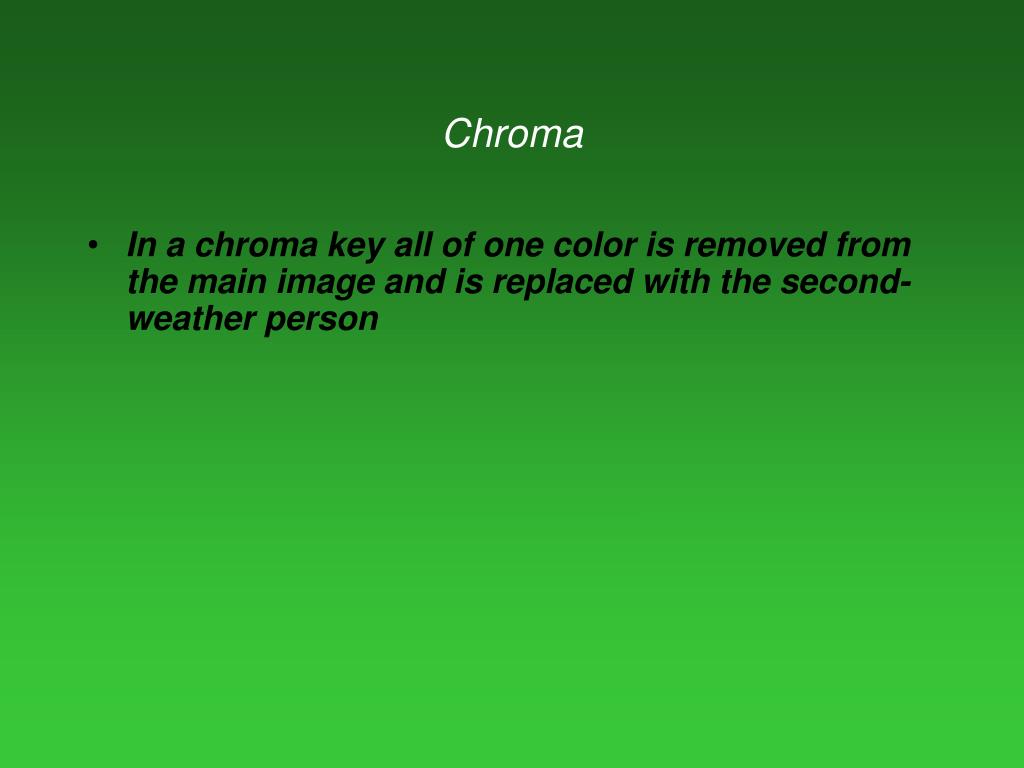

Chroma
  • In a chroma key all of one color is removed from the main image and is replaced with the second- weather person
graphics
Graphics
  • Plan for graphics before shooting
  • Make sure that they fit the screen correctly, by monitoring.
  • Stay away from highly saturated colors and fine lines-generation loss shows
  • Font should be consistent throughout program
  • Use Drop shadows
slide15

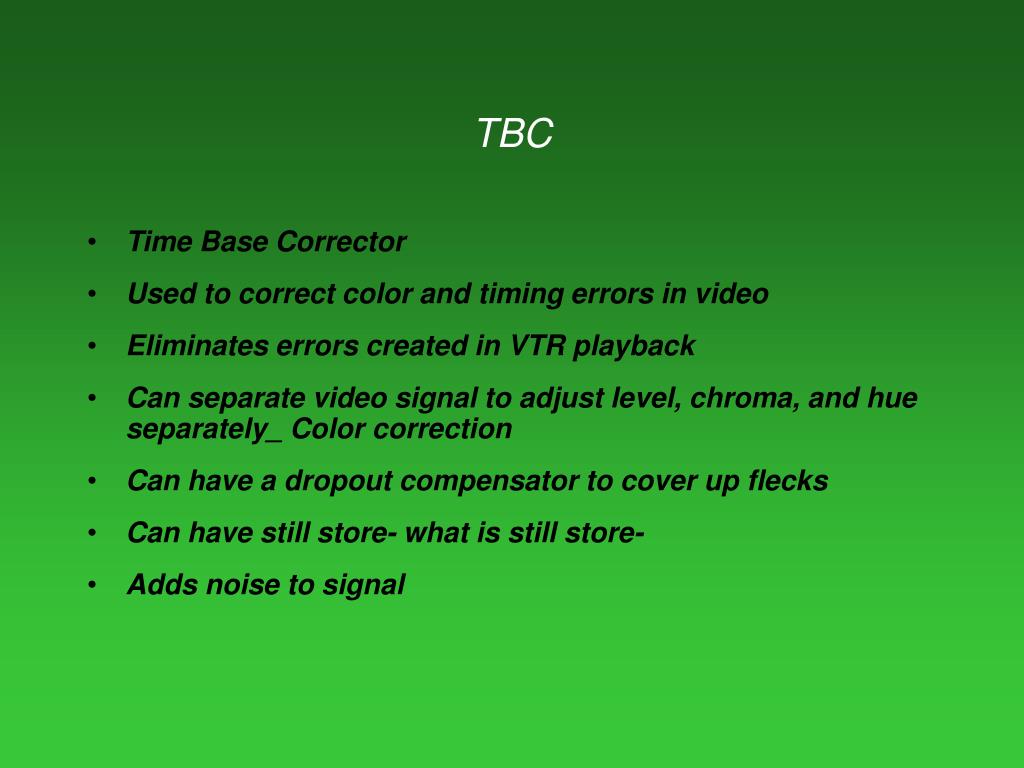

TBC
  • Time Base Corrector
  • Used to correct color and timing errors in video
  • Eliminates errors created in VTR playback
  • Can separate video signal to adjust level, chroma, and hue separately_ Color correction
  • Can have a dropout compensator to cover up flecks
  • Can have still store- what is still store-
  • Adds noise to signal
waveform monitor

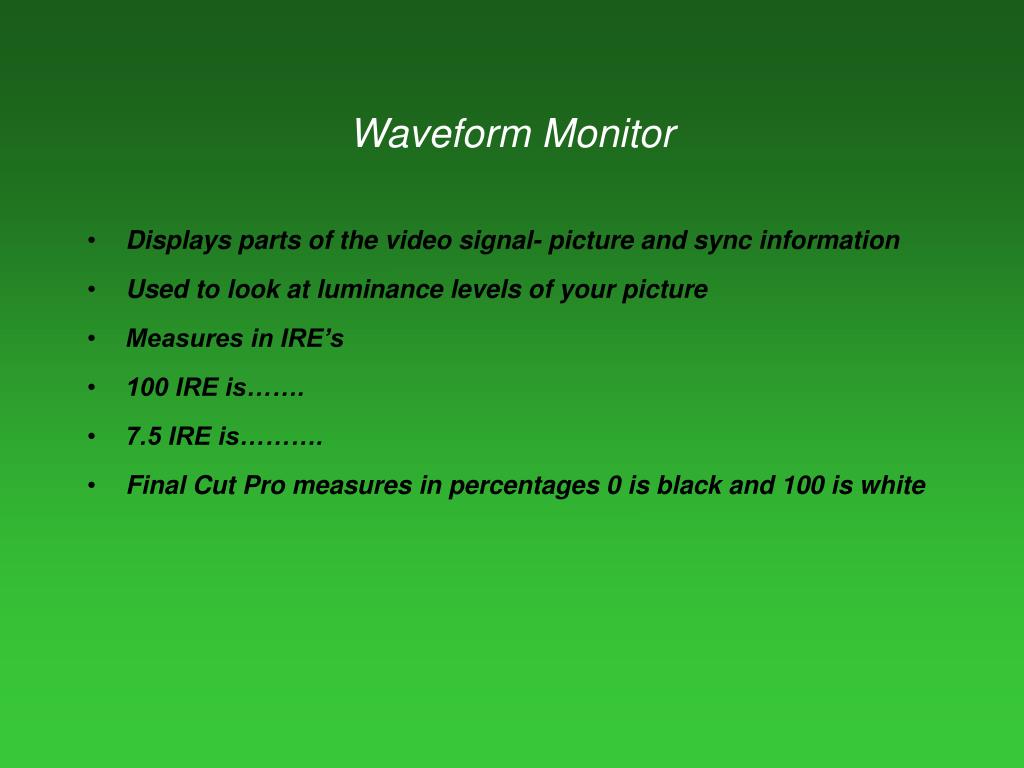

Waveform Monitor
  • Displays parts of the video signal- picture and sync information
  • Used to look at luminance levels of your picture
  • Measures in IRE’s
  • 100 IRE is…….
  • 7.5 IRE is……….
  • Final Cut Pro measures in percentages 0 is black and 100 is white
vectorscope

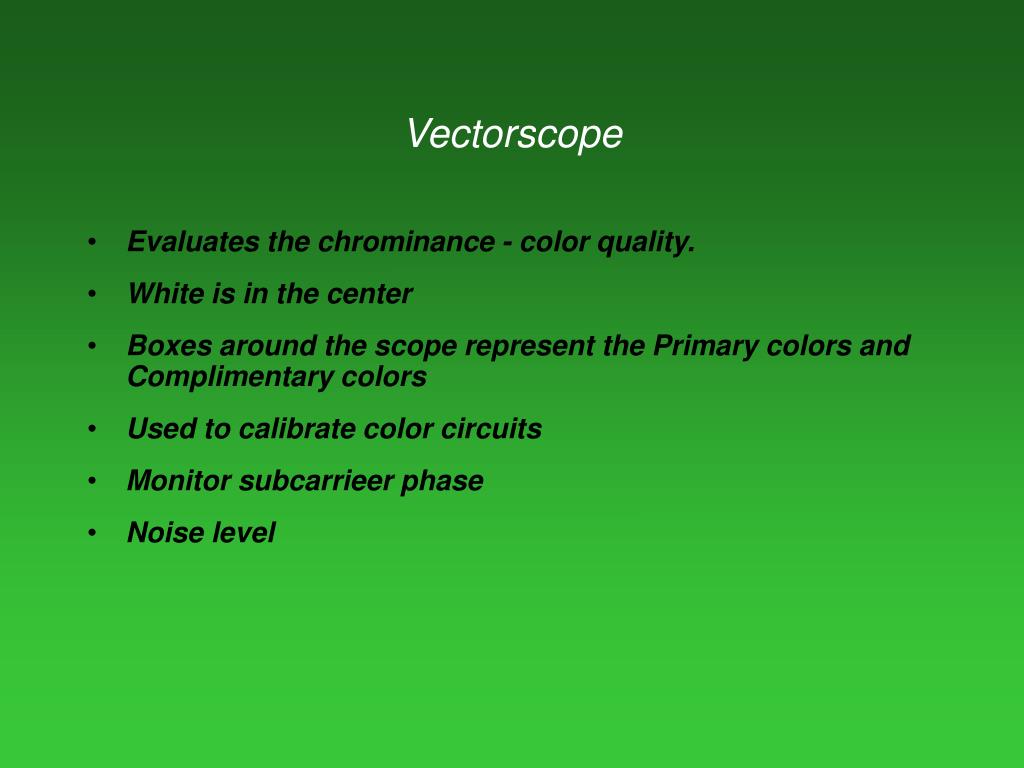

Vectorscope
  • Evaluates the chrominance - color quality.
  • White is in the center
  • Boxes around the scope represent the Primary colors and Complimentary colors
  • Used to calibrate color circuits
  • Monitor subcarrieer phase
  • Noise level
underscan mode
Underscan mode
  • Mode on monitor that allows the picture to shrink so that the edges of the signal can be viewed
