Presentation Transcript


  1. BCrouter @ K.U.Leuven

  2. BCrouter: Overview • How did it start... • Main features • Authentication • Quota & Bandwidth • Examples of user & IP limiting • Exceptions • Examples • Routing • Implementation overview • Performance in real world • Future plans

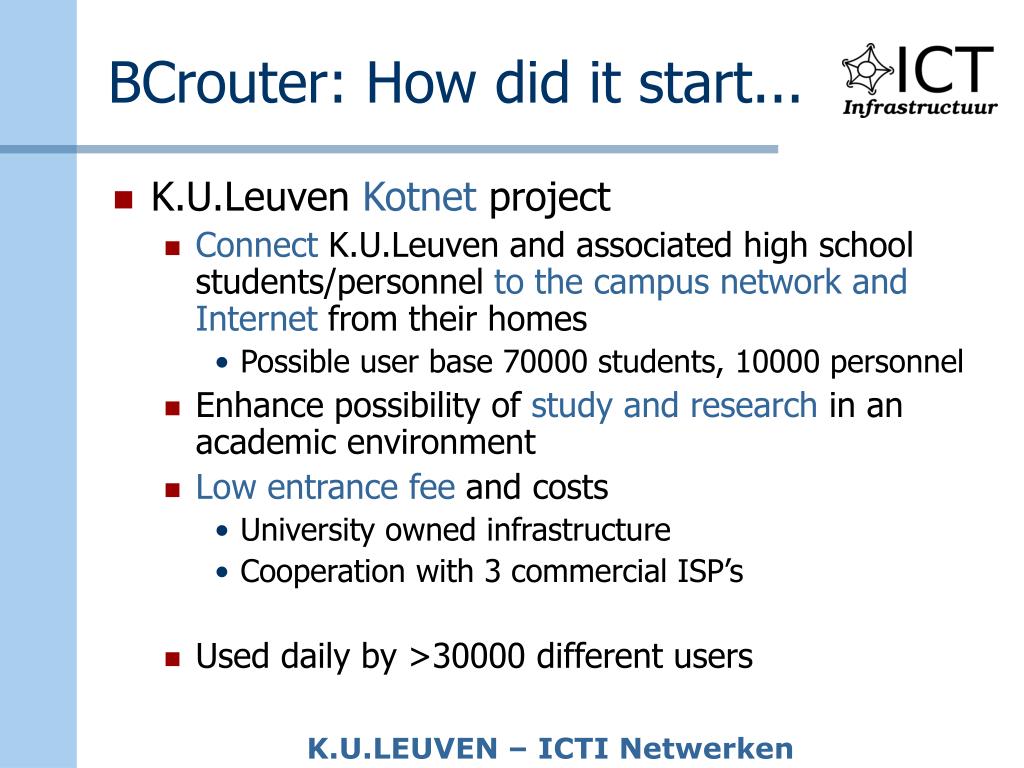

  3. BCrouter: How did it start... • K.U.Leuven Kotnet project • Connect K.U.Leuven and associated high school students/personnel to the campus network and Internet from their homes • Possible user base 70000 students, 10000 personnel • Enhance possibility of study and research in an academic environment • Low entrance fee and costs • University owned infrastructure • Cooperation with 3 commercial ISP’s • Used daily by >30000 different users

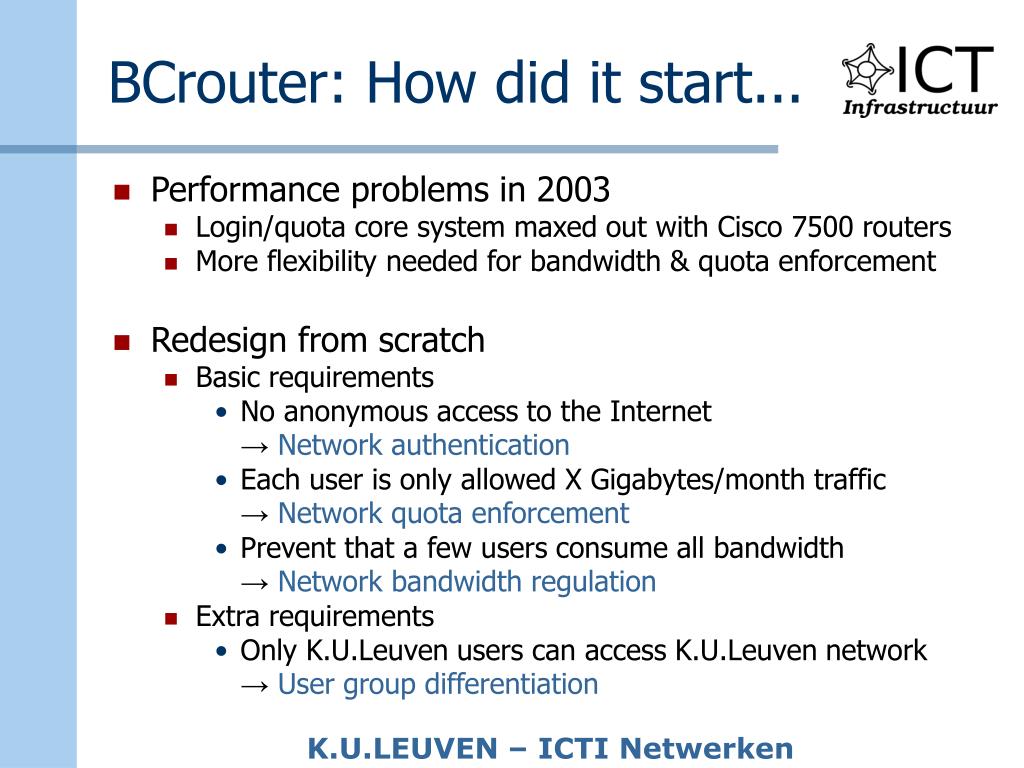

  4. BCrouter: How did it start... • Performance problems in 2003 • Login/quota core system maxed out with Cisco 7500 routers • More flexibility needed for bandwidth & quota enforcement • Redesign from scratch • Basic requirements • No anonymous access to the Internet →Network authentication • Each user is only allowed X Gigabytes/month traffic →Network quota enforcement • Prevent that a few users consume all bandwidth →Network bandwidth regulation • Extra requirements • Only K.U.Leuven users can access K.U.Leuven network →User group differentiation

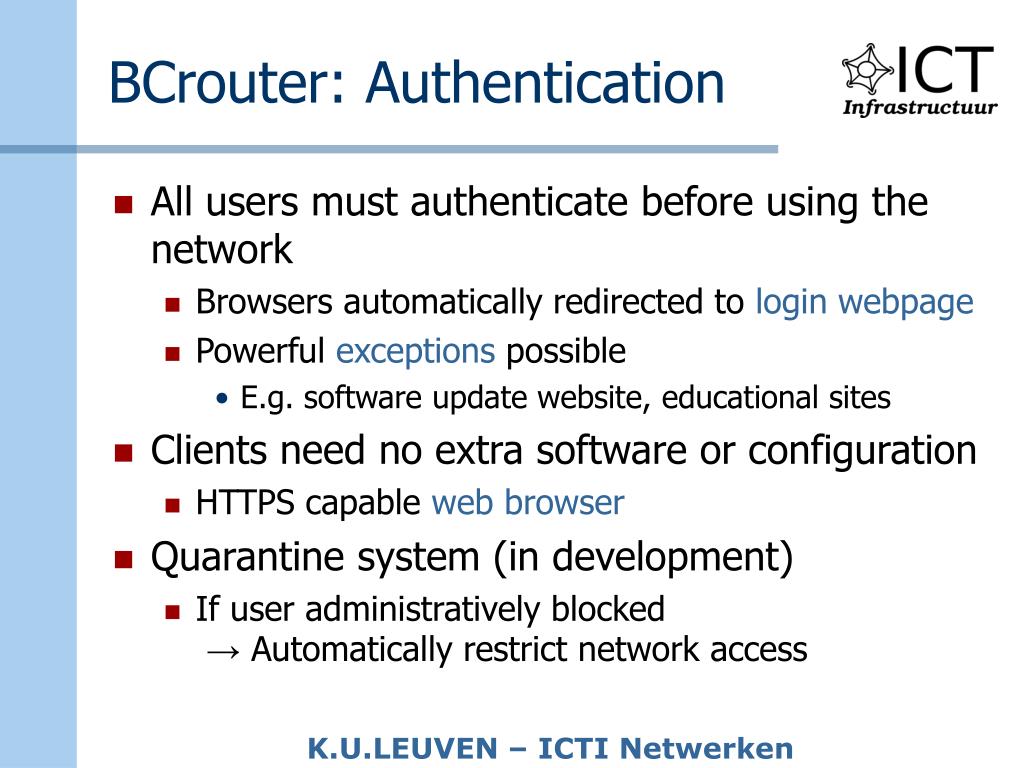

  5. BCrouter: Authentication • All users must authenticate before using the network • Browsers automatically redirected to login webpage • Powerful exceptions possible • E.g. software update website, educational sites • Clients need no extra software or configuration • HTTPS capable web browser • Quarantine system (in development) • If user administratively blocked→ Automatically restrict network access

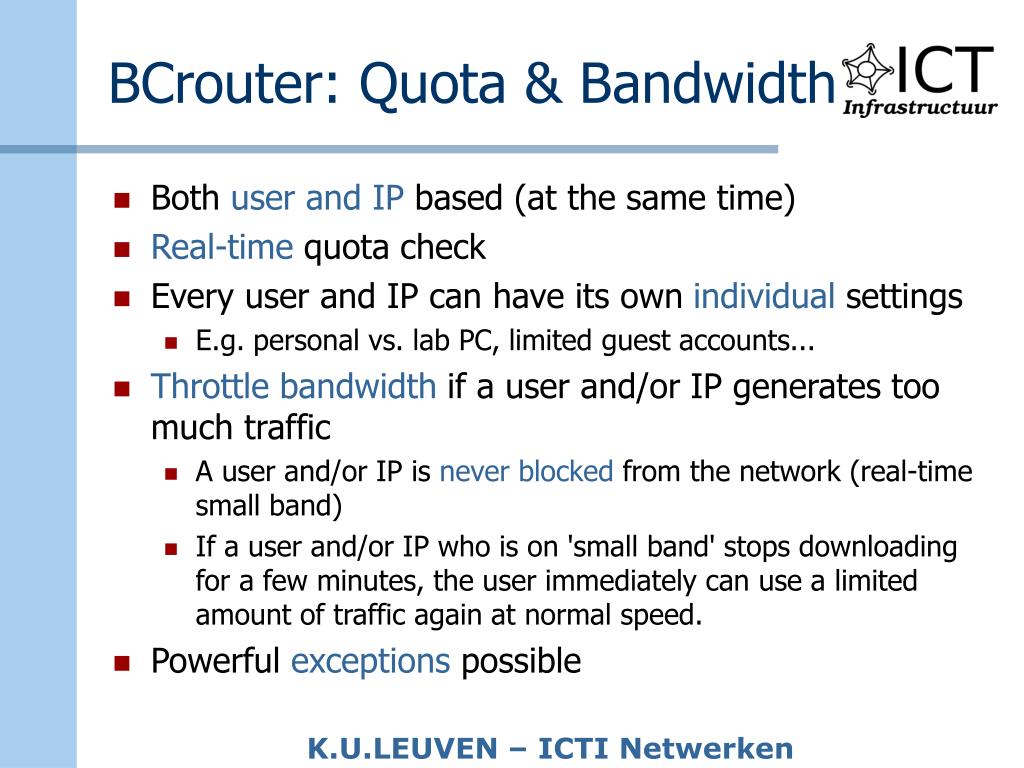

  6. BCrouter: Quota & Bandwidth • Both user and IP based (at the same time) • Real-time quota check • Every user and IP can have its own individual settings • E.g. personal vs. lab PC, limited guest accounts... • Throttle bandwidth if a user and/or IP generates too much traffic • A user and/or IP is never blocked from the network (real-time small band) • If a user and/or IP who is on 'small band' stops downloading for a few minutes, the user immediately can use a limited amount of traffic again at normal speed. • Powerful exceptions possible

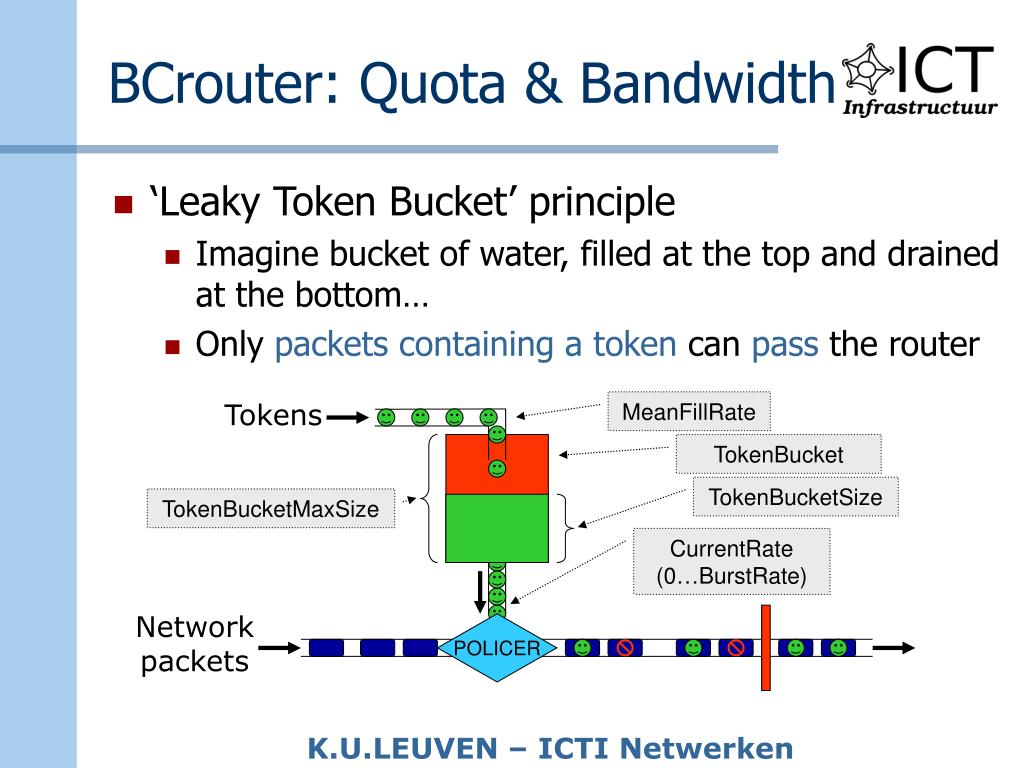

  7. BCrouter: Quota & Bandwidth • ‘Leaky Token Bucket’ principle • Imagine bucket of water, filled at the top and drained at the bottom… • Only packets containing a token can pass the router MeanFillRate Tokens TokenBucket TokenBucketSize TokenBucketMaxSize CurrentRate (0…BurstRate) Network packets POLICER

  8. BCrouter: Quota & Bandwidth • Normal case: 1 token = 1 byte on the network • Configurable options per bucket • TokenBucket maximum size • Max. number of tokens the bucket can contain • Equivalent to ‘quota’ in bytes • Mean fill rate • Number of tokens/sec entering the bucket (=constant) • Equivalent to ‘refill speed’ of quota • Burst rate • Max. tokens/sec that can be extracted from the bucket • Equivalent to ‘maximum speed’ in bytes

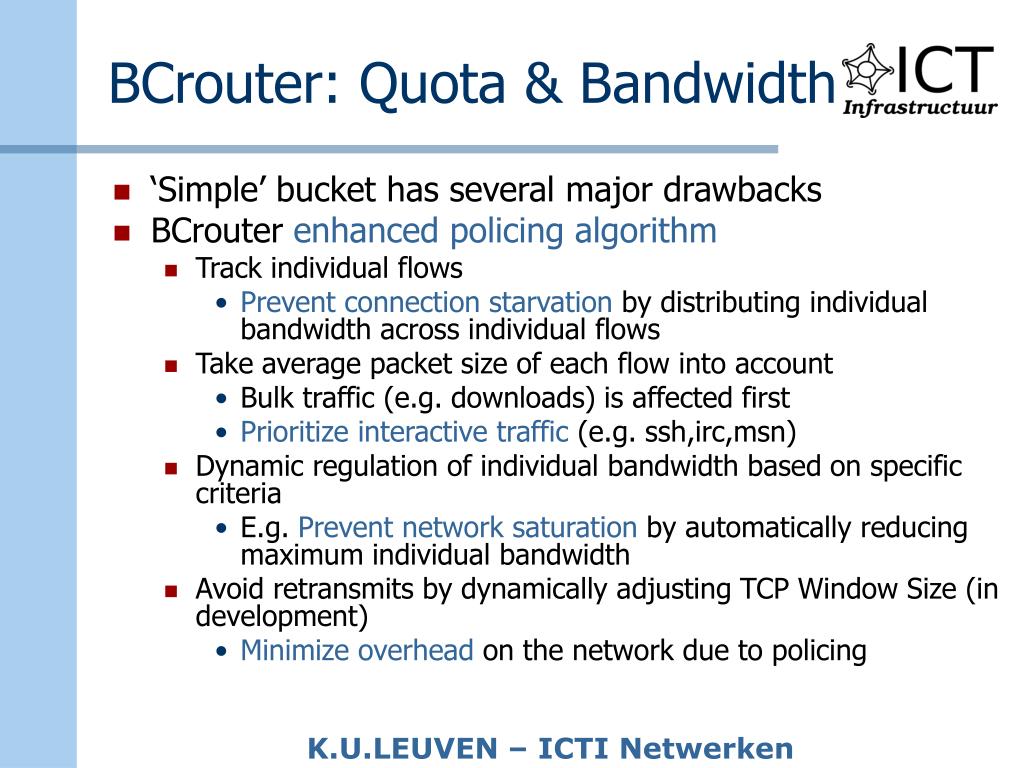

  9. BCrouter: Quota & Bandwidth • ‘Simple’ bucket has several major drawbacks • BCrouter enhanced policing algorithm • Track individual flows • Prevent connection starvation by distributing individual bandwidth across individual flows • Take average packet size of each flow into account • Bulk traffic (e.g. downloads) is affected first • Prioritize interactive traffic (e.g. ssh,irc,msn) • Dynamic regulation of individual bandwidth based on specific criteria • E.g. Prevent network saturation by automatically reducing maximum individual bandwidth • Avoid retransmits by dynamically adjusting TCP Window Size (in development) • Minimize overhead on the network due to policing

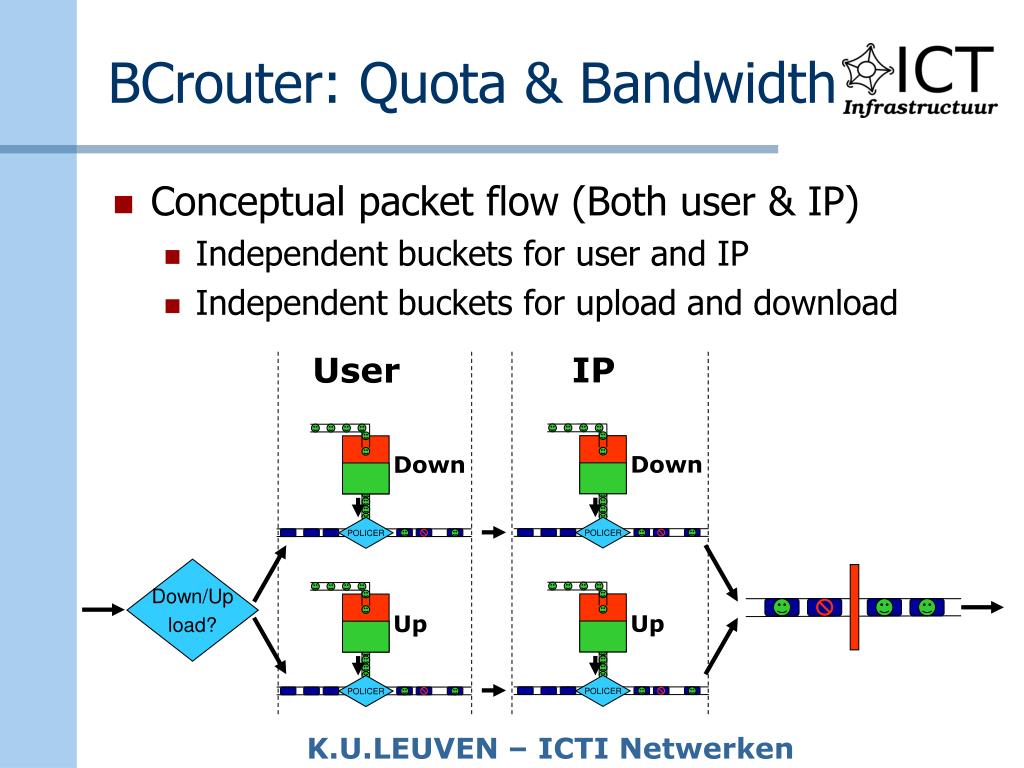

  10. POLICER POLICER POLICER POLICER BCrouter: Quota & Bandwidth • Conceptual packet flow (Both user & IP) • Independent buckets for user and IP • Independent buckets for upload and download IP User Down Down Down/Up load? Up Up

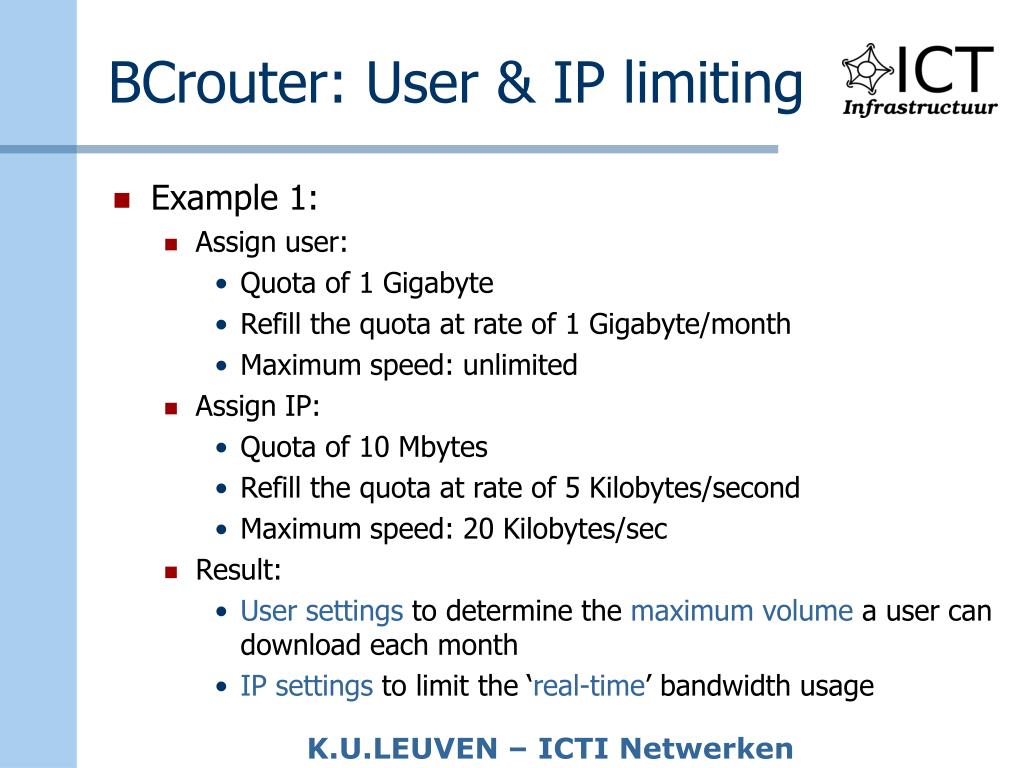

  11. BCrouter: User & IP limiting • Example 1: • Assign user: • Quota of 1 Gigabyte • Refill the quota at rate of 1 Gigabyte/month • Maximum speed: unlimited • Assign IP: • Quota of 10 Mbytes • Refill the quota at rate of 5 Kilobytes/second • Maximum speed: 20 Kilobytes/sec • Result: • Usersettings to determine the maximum volume a user can download each month • IPsettings to limit the ‘real-time’ bandwidth usage

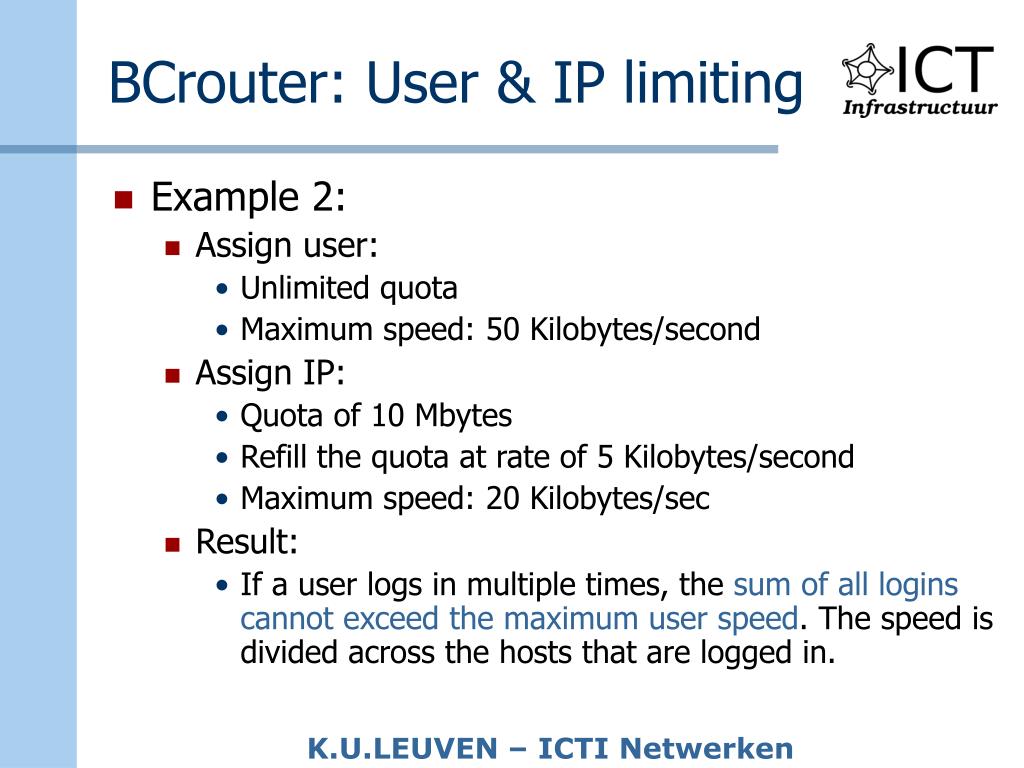

  12. BCrouter: User & IP limiting • Example 2: • Assign user: • Unlimited quota • Maximum speed: 50 Kilobytes/second • Assign IP: • Quota of 10 Mbytes • Refill the quota at rate of 5 Kilobytes/second • Maximum speed: 20 Kilobytes/sec • Result: • If a user logs in multiple times, the sum of all logins cannot exceed the maximum user speed. The speed is divided across the hosts that are logged in.

  13. BCrouter: Exceptions • Exception flags • IP speed limit • User speed limit • IP accounting • User accounting • No login required • Exceptions can be made for hosts or even entire networks (both local and/or internet)

  14. BCrouter: Exceptions • Quota/bandwidth exceptions examples: • Default: • Login required • Accounting to both user and local IP • Obey both user and local IP speed limits • Local host A does not have to login to access the Internet, but still uses IP quota and speed settings • E.g. Embedded devices that can’t login and need network access • Traffic from Internet host B is always possible from any local host and is never accounted, but local host IP speed limits are obeyed • E.g. Website with security patches • Any combination of exception flags ispossible in either direction for any host/network

  15. BCrouter: Routing • DHCP helper • Allow forwarding of DHCP broadcasts to DHCP server • DHCP auto logout (in development) • If no DHCP renew packets within DHCP renew interval, logout user automatically→ If user forgets to logout • User group based routing • Different routing tables for each user group and user statusE.g. normal user, quarantined user, visitor…

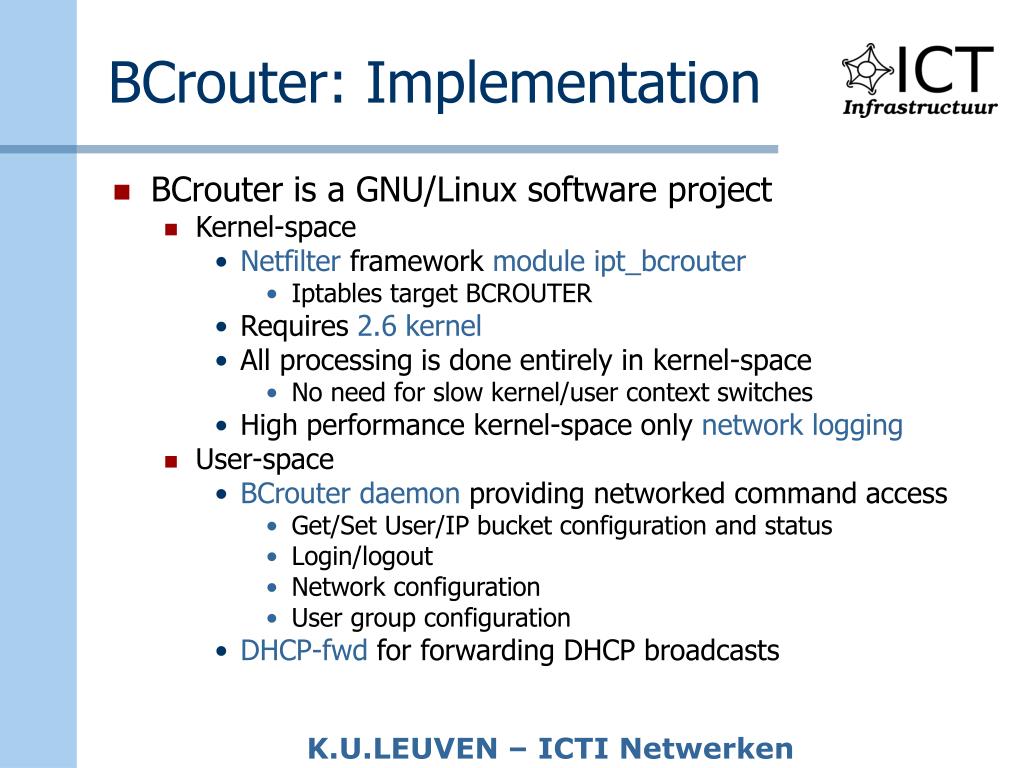

  16. BCrouter: Implementation • BCrouter is a GNU/Linux software project • Kernel-space • Netfilter framework module ipt_bcrouter • Iptables target BCROUTER • Requires 2.6 kernel • All processing is done entirely in kernel-space • No need for slow kernel/user context switches • High performance kernel-space only network logging • User-space • BCrouter daemon providing networked command access • Get/Set User/IP bucket configuration and status • Login/logout • Network configuration • User group configuration • DHCP-fwd for forwarding DHCP broadcasts

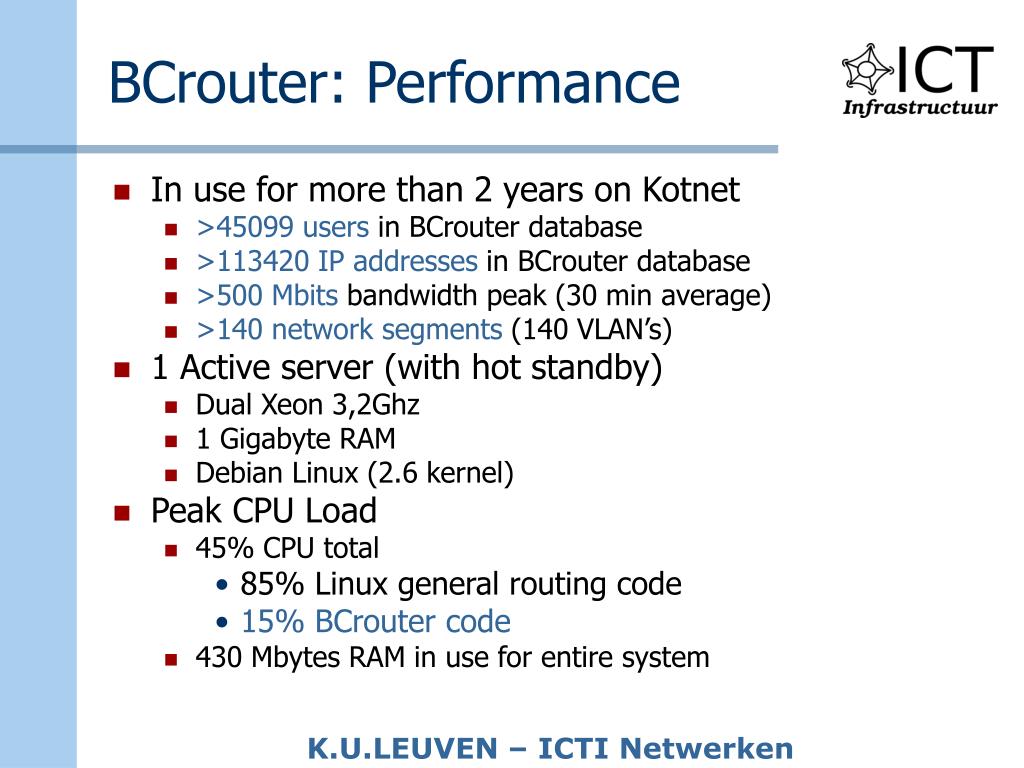

  17. BCrouter: Performance • In use for more than 2 years on Kotnet • >45099 users in BCrouter database • >113420 IPaddresses in BCrouter database • >500 Mbits bandwidth peak (30 min average) • >140 network segments (140 VLAN’s) • 1 Active server (with hot standby) • Dual Xeon 3,2Ghz • 1 Gigabyte RAM • Debian Linux (2.6 kernel) • Peak CPU Load • 45% CPU total • 85% Linux general routing code • 15% BCrouter code • 430 Mbytes RAM in use for entire system

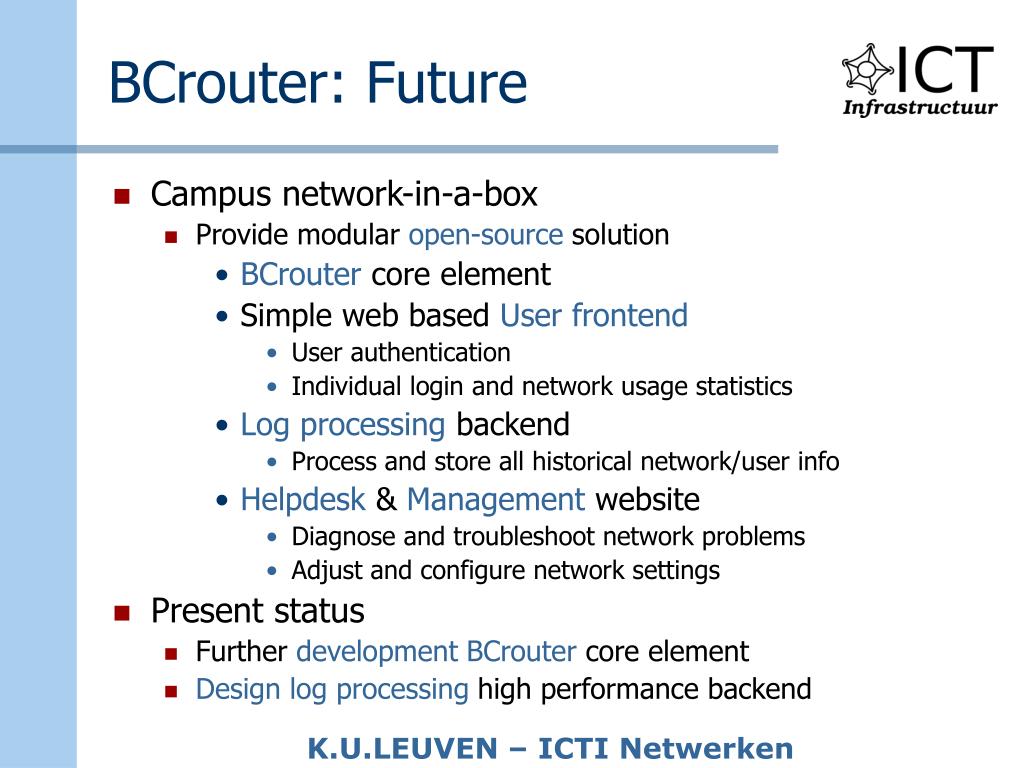

  18. BCrouter: Future • Campus network-in-a-box • Provide modular open-source solution • BCrouter core element • Simple web based User frontend • User authentication • Individual login and network usage statistics • Log processing backend • Process and store all historical network/user info • Helpdesk & Management website • Diagnose and troubleshoot network problems • Adjust and configure network settings • Present status • Further development BCrouter core element • Design log processing high performance backend

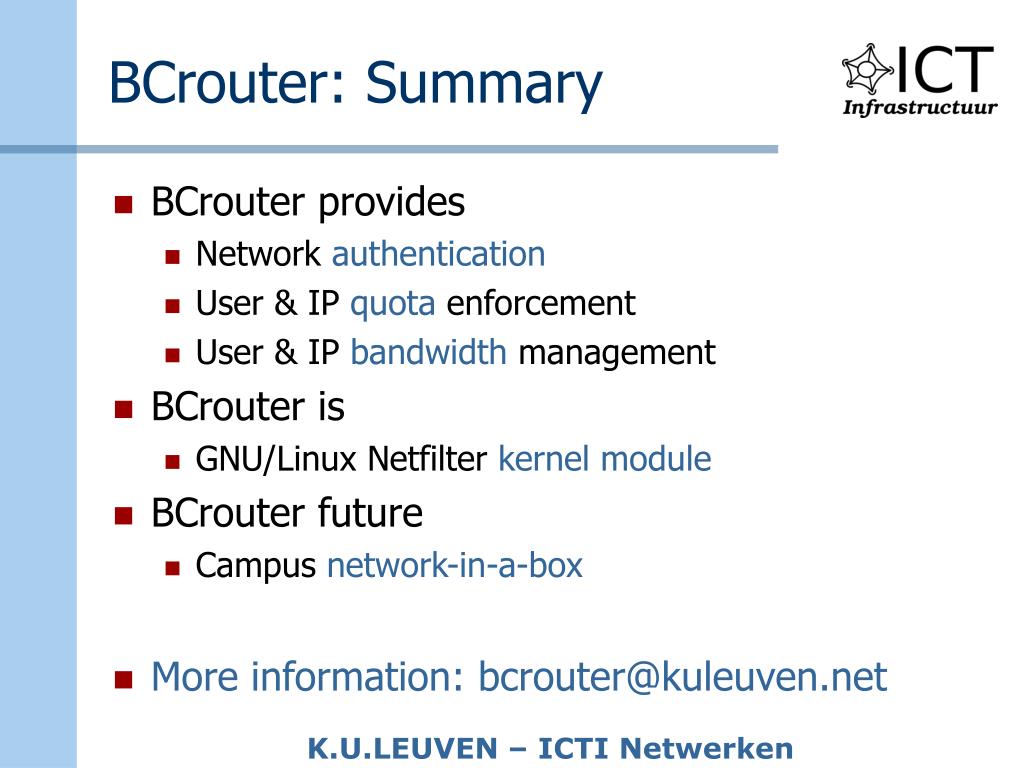

  19. BCrouter: Summary • BCrouter provides • Network authentication • User & IP quota enforcement • User & IP bandwidth management • BCrouter is • GNU/Linux Netfilter kernel module • BCrouter future • Campus network-in-a-box • More information: bcrouter@kuleuven.net
