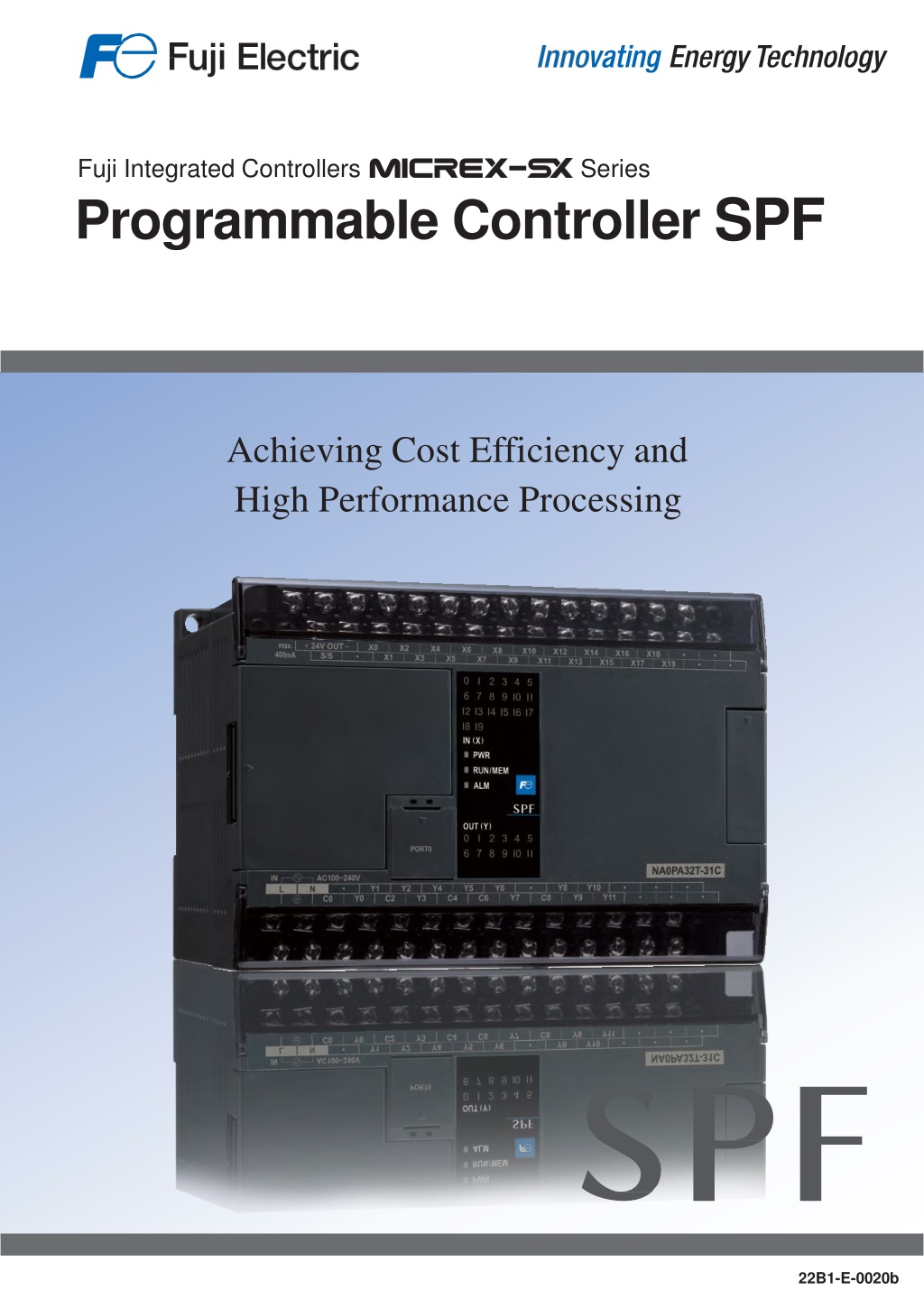

1. FujiIntegratedControllersSeries ProgrammableControllerSPF AchievingCostEfficiencyand HighPerformanceProcessing 22B1-E-0020b

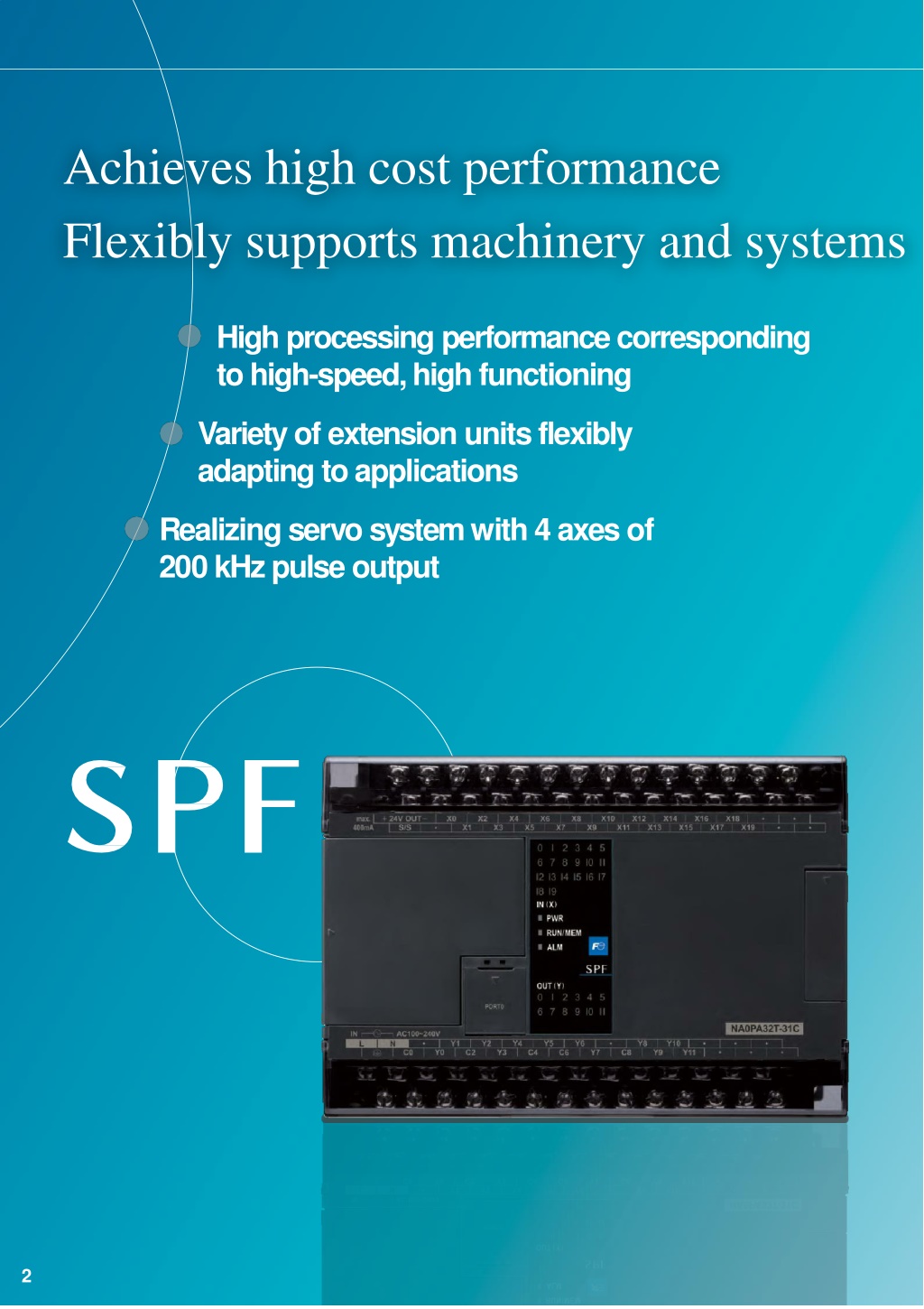

2. Achieveshigh costperformance Flexibly supportsmachineryandsystems Highprocessingperformancecorresponding tohigh-speed,highfunctioning Varietyofextensionunitsflexibly adaptingtoapplications Realizingservosystemwith4axesof 200kHzpulseoutput 2

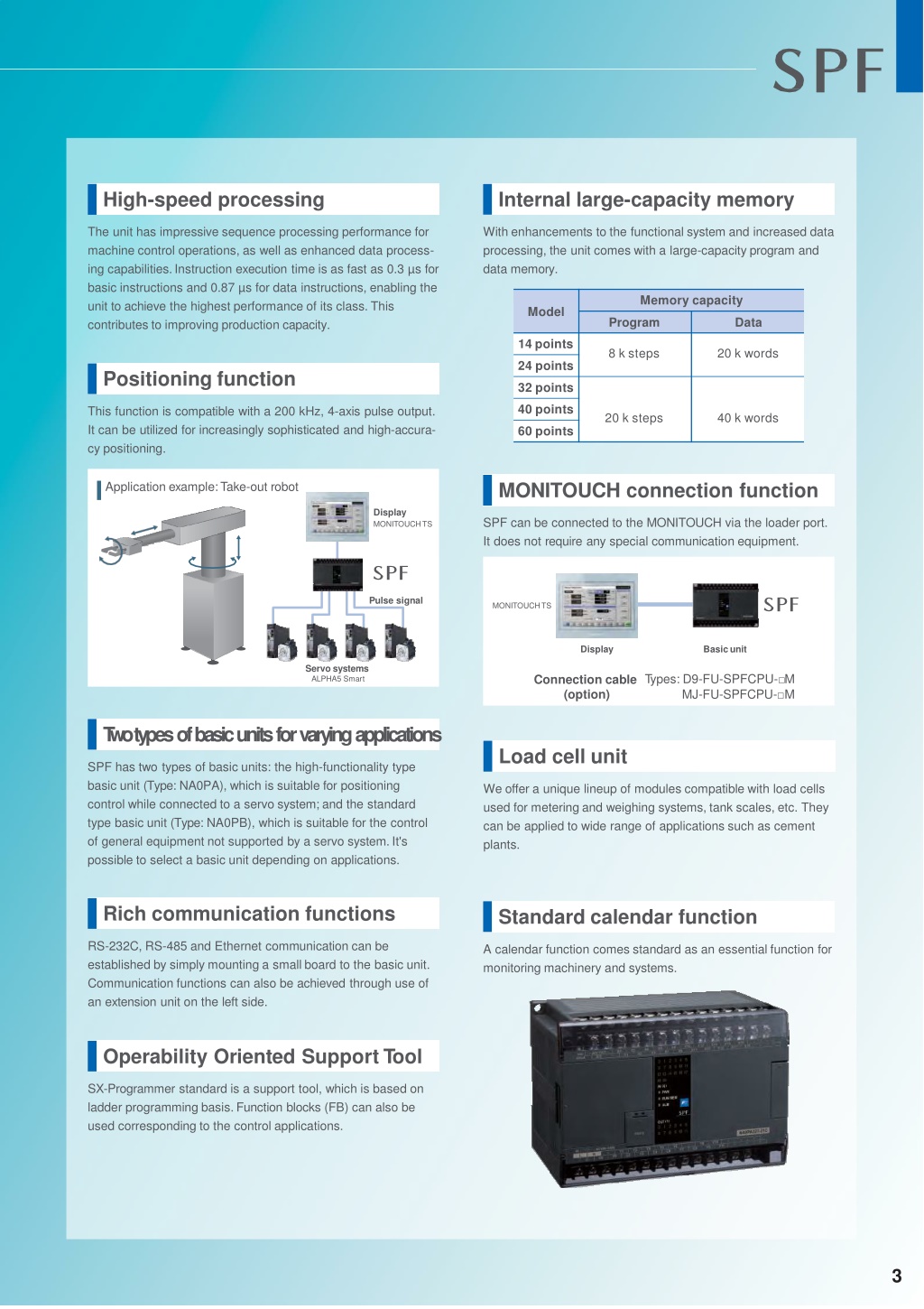

3. High-speedprocessing Internallarge-capacitymemory Theunithasimpressivesequenceprocessingperformancefor machinecontroloperations,aswellasenhanceddataprocess- ingcapabilities.Instructionexecutiontimeisasfastas0.3µsfor basicinstructionsand0.87µsfordatainstructions,enablingthe unit to achieve the highest performance of its class. This contributes toimprovingproductioncapacity. Withenhancementstothefunctionalsystemandincreaseddata processing,theunitcomeswithalarge-capacityprogramand data memory. Positioningfunction This function is compatible with a 200 kHz, 4-axis pulse output. It can be utilized for increasingly sophisticated and high-accura- cy positioning. MONITOUCHconnectionfunction Applicationexample:Take-outrobot Display MONITOUCHTS SPF canbeconnectedtothe MONITOUCHviathe loader port. Itdoesnotrequireanyspecialcommunicationequipment. Pulse signal MONITOUCHTS Display Basicunit Connection cable Types:D9-FU-SPFCPU-□M (option) MJ-FU-SPFCPU-□M Servosystems ALPHA5 Smart Twotypesofbasicunitsforvaryingapplications Loadcellunit SPF has two types of basic units: the high-functionality type basicunit(Type:NA0PA),whichissuitableforpositioning controlwhileconnectedtoaservosystem;andthe standard type basicunit(Type:NA0PB),whichissuitableforthecontrol of generalequipmentnot supported byaservosystem.It's possibletoselectabasicunitdependingonapplications. Weofferauniquelineupofmodulescompatiblewithloadcells used for metering and weighing systems, tank scales, etc. They canbeappliedtowiderangeofapplicationssuchascement plants. Richcommunicationfunctions Standardcalendarfunction RS-232C,RS-485andEthernet communicationcanbe establishedbysimplymountingasmallboardtothebasicunit. Communicationfunctionscanalsobeachievedthroughuseof anextension uniton the leftside. A calendarfunctioncomesstandardasanessentialfunctionfor monitoring machinery andsystems. Operability Oriented SupportTool SX-Programmerstandardisasupporttool,whichisbasedon ladderprogrammingbasis.Functionblocks(FB)canalsobe usedcorrespondingto the controlapplications. 3

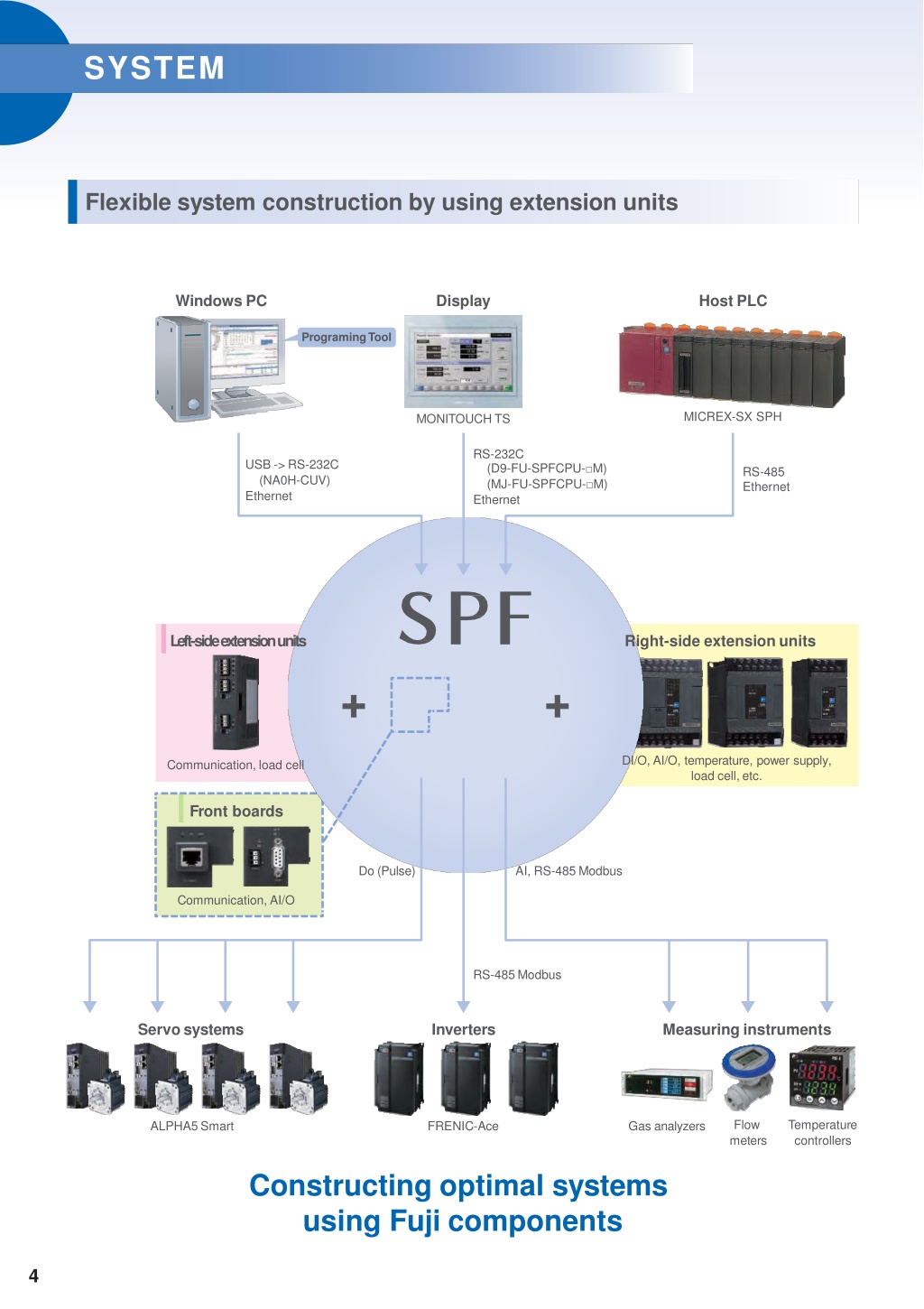

4. SYSTEM Flexible system constructionbyusingextension units WindowsPC Display HostPLC ProgramingTool MICREX-SX SPH MONITOUCHTS RS-232C (D9-FU-SPFCPU-□M) (MJ-FU-SPFCPU-□M) Ethernet USB->RS-232C (NA0H-CUV) Ethernet RS-485 Ethernet Left-sideextensionunits Right-sideextensionunits + + DI/O,AI/O,temperature,powersupply, Communication,load cell loadcell,etc. Front boards Do(Pulse) AI,RS-485Modbus Communication,AI/O RS-485Modbus Servosystems Inverters Measuringinstruments ALPHA5Smart FRENIC-Ace Gasanalyzers Flow meters Temperature controllers Constructingoptimal systems usingFujicomponents 4

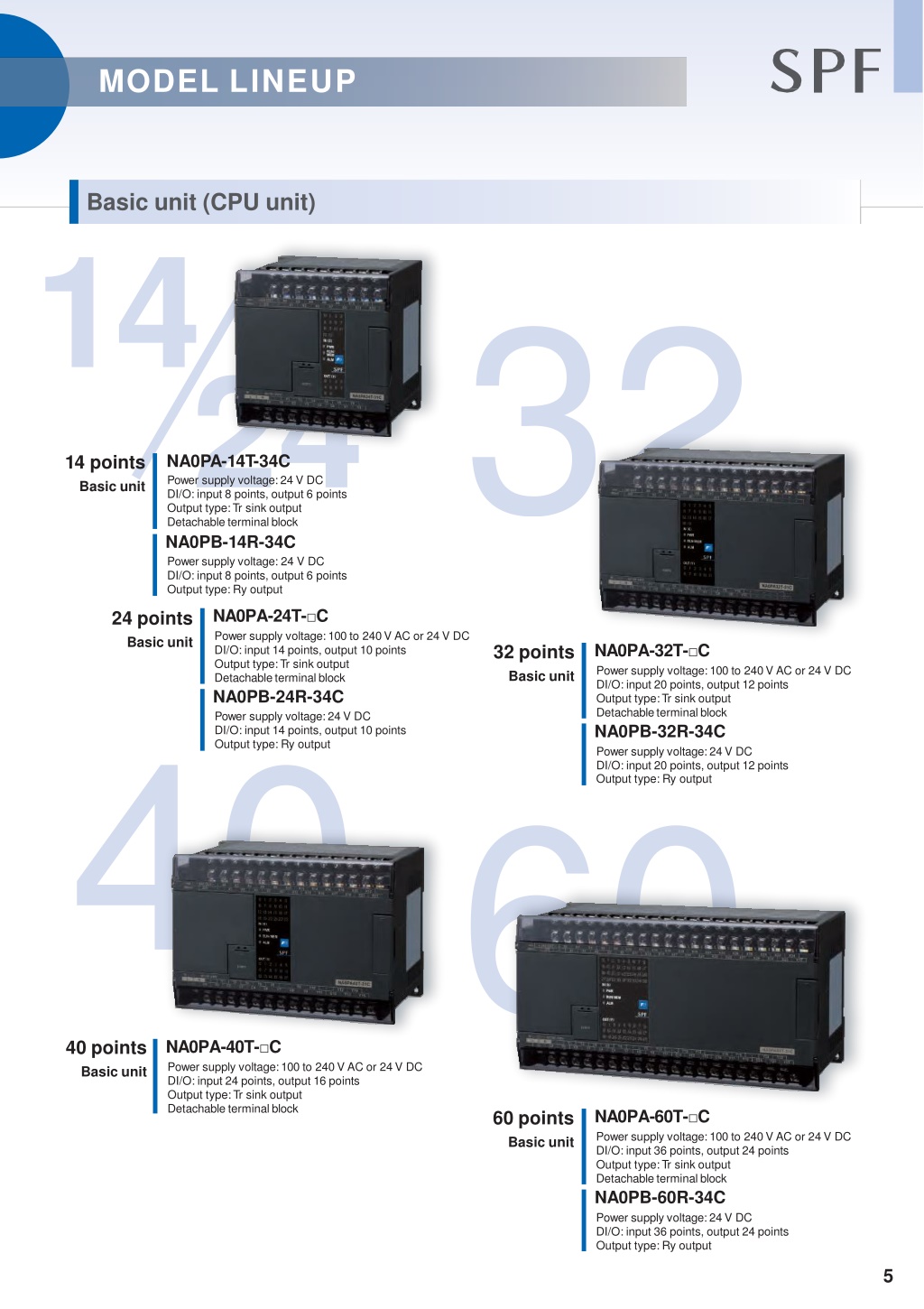

5. MODELLINEUP Basicunit(CPUunit) 14 24 32 14points Basicunit NA0PA-14T-34C Powersupply voltage:24V DC DI/O:input8 points, output 6points Output type:Tr sink output Detachableterminalblock NA0PB-14R-34C Power supply voltage: 24 V DC DI/O:input8 points, output 6 points Outputtype:Ryoutput 24points Basicunit NA0PA-24T-□C Powersupplyvoltage:100to240VACor24V DC DI/O:input14points, output 10points Output type:Tr sink output Detachableterminalblock NA0PB-24R-34C 32points Basicunit NA0PA-32T-□C Powersupplyvoltage:100to240VACor24V DC DI/O:input20points, output 12points Output type:Tr sink output Detachableterminalblock NA0PB-32R-34C Powersupplyvoltage:24VDC DI/O:input20points, output 12points 40 Powersupply voltage:24V DC DI/O:input14points, output 10points Output type:Ry output 60 Output type:Ry output 40points Basicunit NA0PA-40T-□C Powersupplyvoltage:100to240VACor24V DC DI/O:input24points, output 16points Output type:Tr sink output Detachableterminalblock 60points Basicunit NA0PA-60T-□C Powersupplyvoltage:100to240VACor24V DC DI/O:input36points, output 24points Output type:Tr sink output Detachableterminalblock NA0PB-60R-34C Powersupplyvoltage:24VDC DI/O:input36points, output 24 points Outputtype:Ry output 5

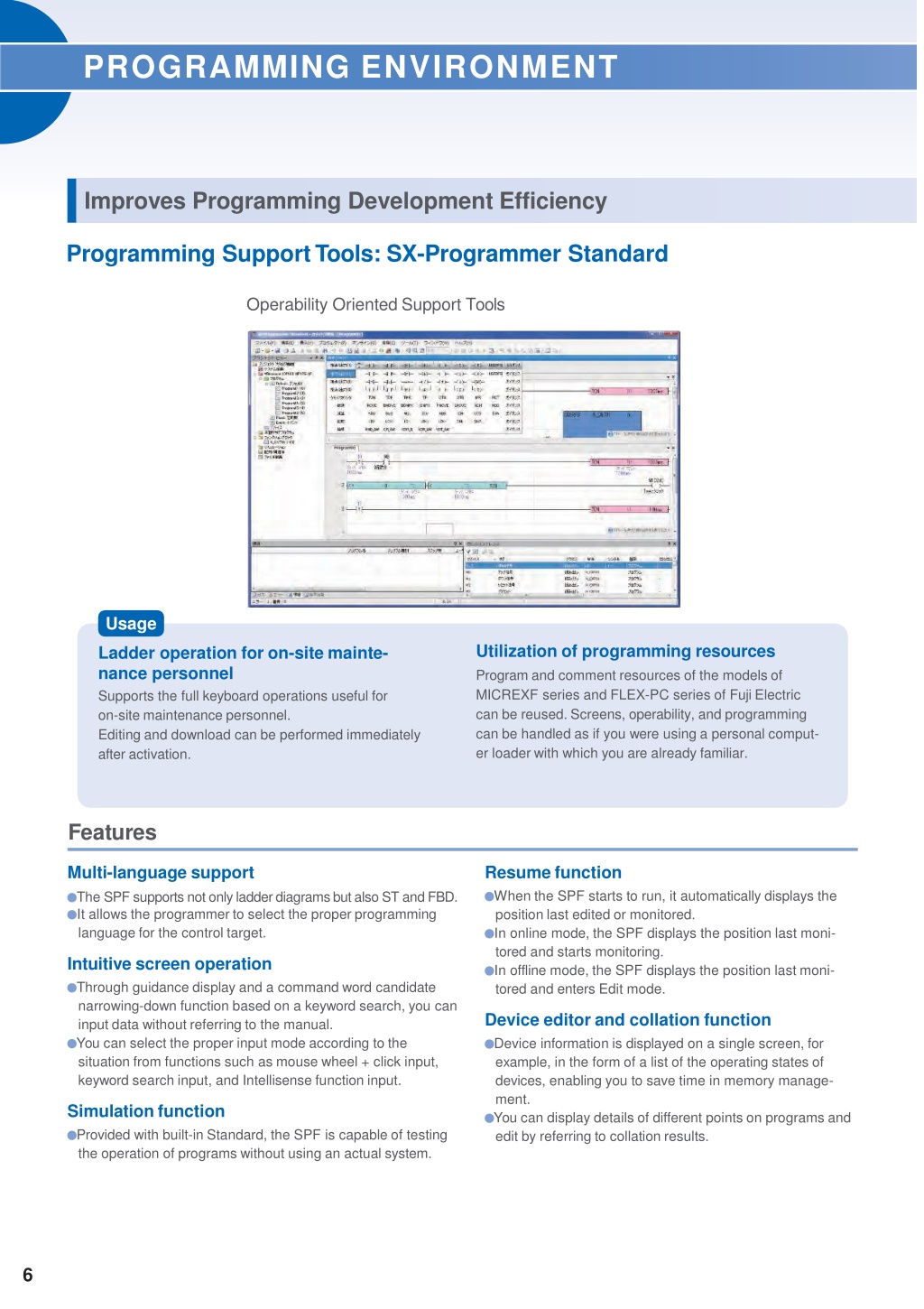

6. PROGRAMMINGENVIRONMENT Improves Programming DevelopmentEfficiency Programming SupportTools:SX-ProgrammerStandard OperabilityOrientedSupportTools Usage Ladder operation for on-site mainte- nance personnel Supportsthefullkeyboardoperationsusefulfor on-site maintenancepersonnel. Editinganddownloadcanbeperformedimmediately after activation. Utilizationofprogramming resources Program and comment resources ofthe models of MICREXF series and FLEX-PC series of Fuji Electric can be reused. Screens, operability, and programming canbehandledas ifyouwereusingapersonalcomput- erloaderwithwhichyouarealreadyfamiliar. Features Multi-languagesupport TheSPFsupportsnotonlyladderdiagramsbutalsoSTandFBD. Itallows the programmer toselecttheproper programming language for the controltarget. Intuitivescreenoperation Through guidancedisplayandacommandwordcandidate narrowing-downfunctionbasedonakeywordsearch,youcan input datawithoutreferringto the manual. Youcan select the properinputmodeaccordingto the situationfromfunctions suchasmousewheel+ clickinput, keywordsearch input,andIntellisensefunction input. Simulationfunction Providedwithbuilt-inStandard,the SPFiscapable oftesting theoperationofprogramswithoutusinganactualsystem. Resumefunction Whenthe SPF starts to run, it automaticallydisplays the position last editedormonitored. Inonlinemode,the SPFdisplaysthe positionlastmoni- tored and starts monitoring. Inofflinemode,the SPF displaysthe positionlast moni- tored andenters Edit mode. Deviceeditorandcollationfunction Deviceinformationisdisplayedonasinglescreen,for example, in the form of a list ofthe operatingstates of devices,enablingyoutosavetimeinmemorymanage- ment. Youcandisplaydetails of differentpointsonprogramsand edit byreferringtocollationresults. 6

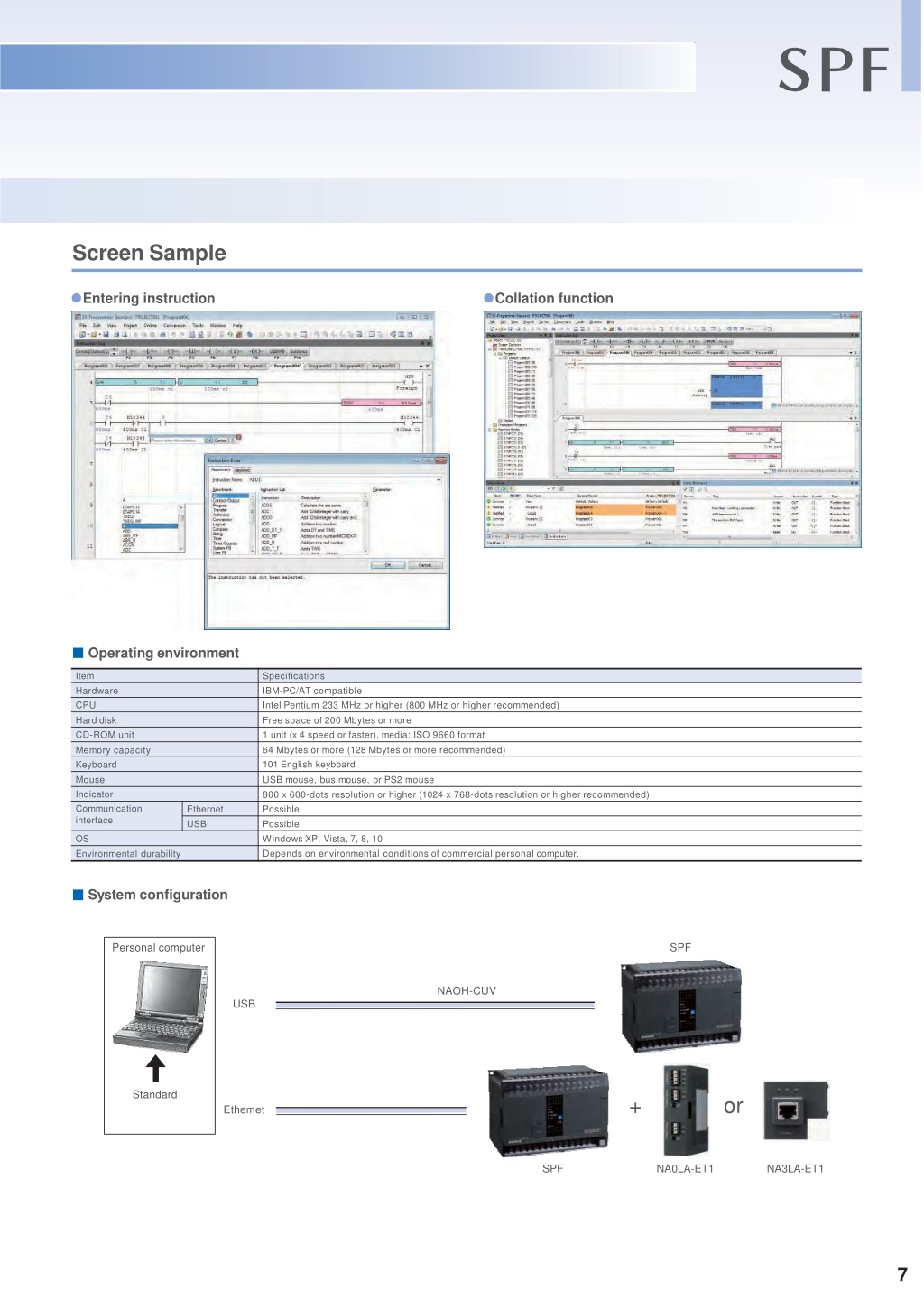

7. ScreenSample Entering instruction Collationfunction Operatingenvironment Systemconfiguration Personalcomputer Standard SPF NAOH-CUV USB + or Ethemet SPF NA0LA-ET1 NA3LA-ET1 7

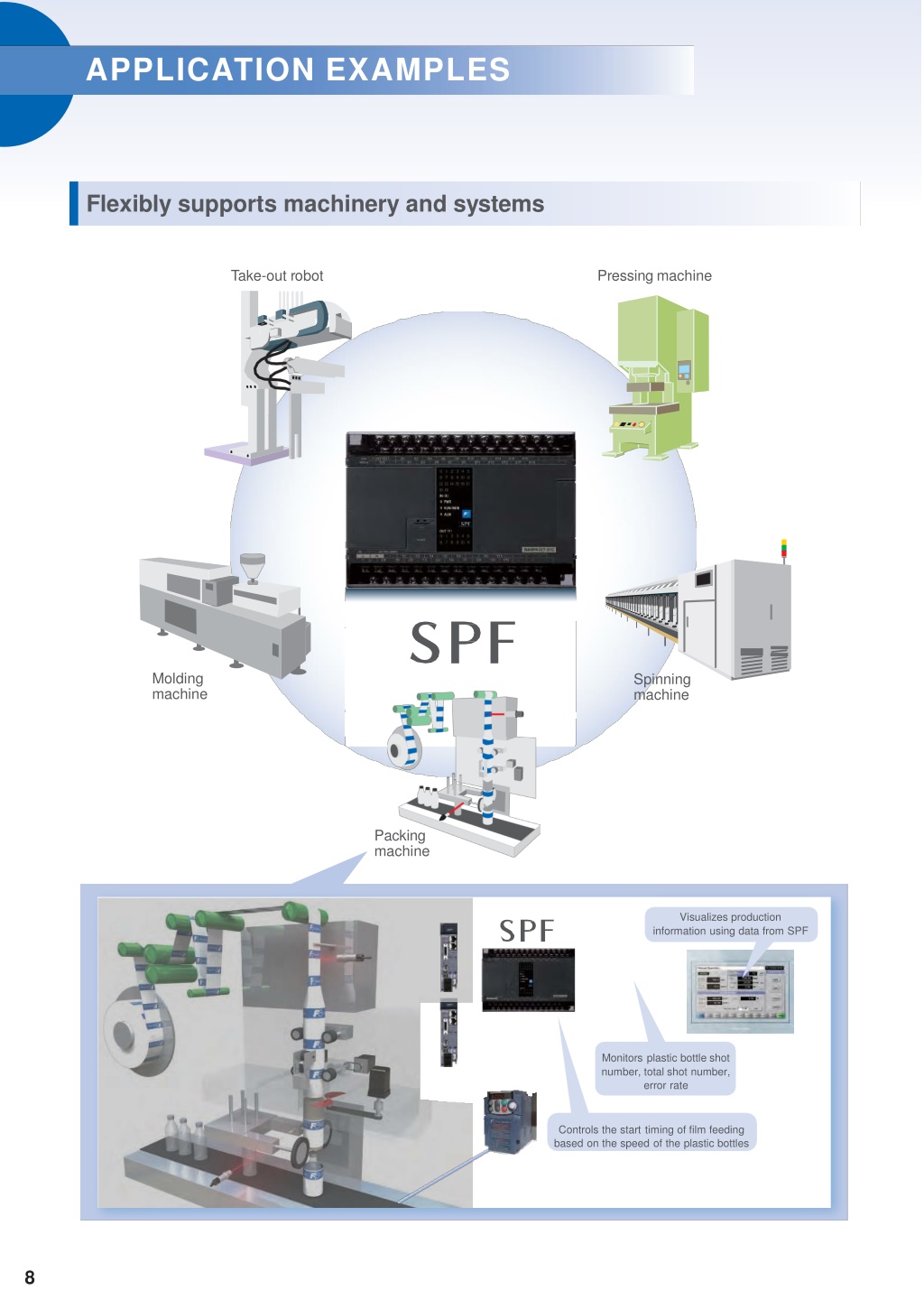

8. APPLICATIONEXAMPLES Flexibly supports machinery and systems Take-outrobot Pressingmachine Molding machine Spinning machine Packing machine Visualizes production informationusingdatafromSPF Monitors plastic bottle shot number, total shot number, error rate Controls the start timing of film feeding basedon the speed of the plastic bottles 8

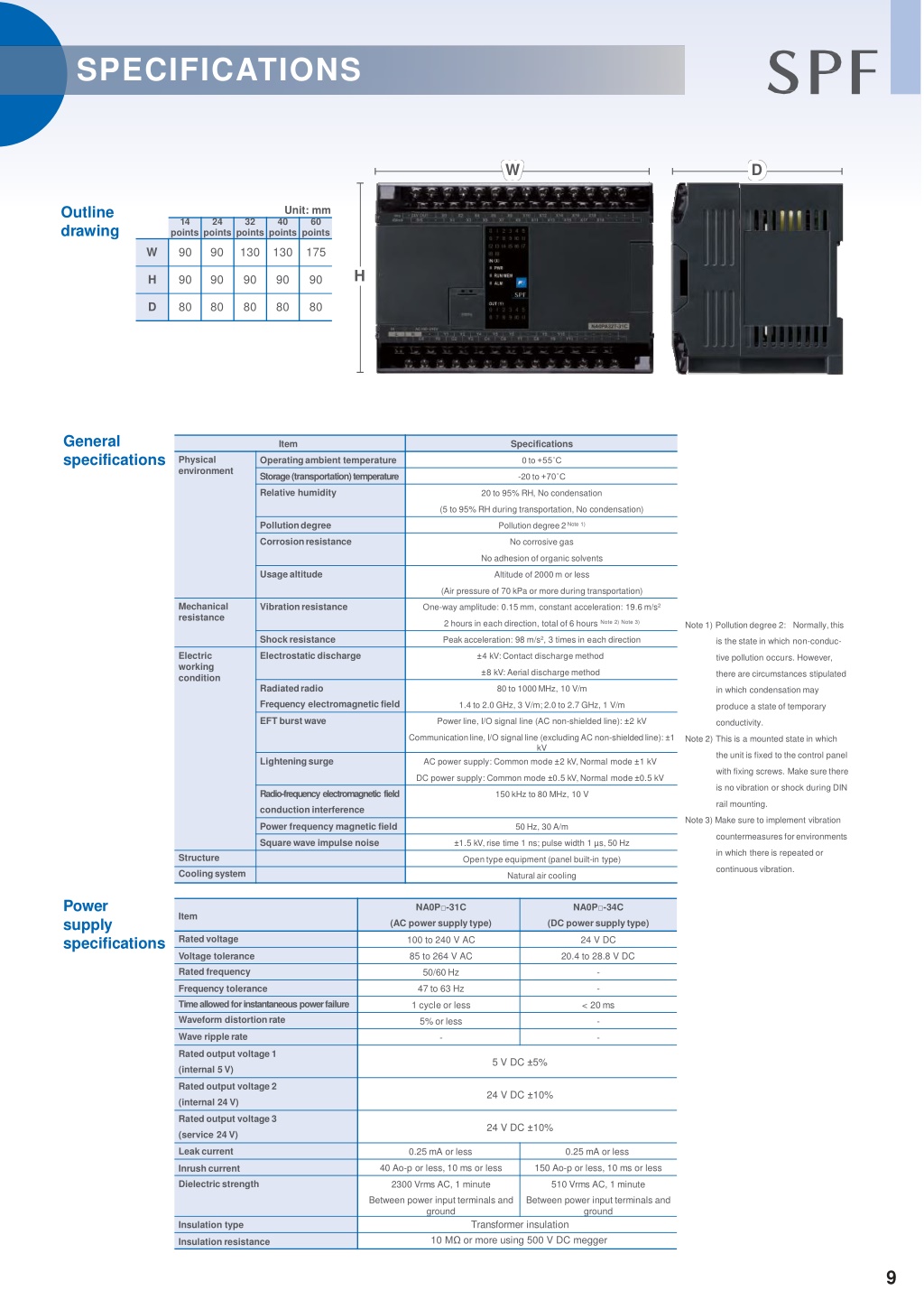

9. SPECIFICATIONS W D Outline Unit:mm drawing H General specifications Note 1)Pollutiondegree 2: Normally, this is the state in which non-conduc- tive pollution occurs. However, there are circumstancesstipulated in which condensation may produce a state of temporary conductivity. Note2)Thisisamountedstateinwhich theunit isfixed tothecontrolpanel withfixingscrews.Make sure there is no vibration or shock during DIN railmounting. Note 3) Make sure to implement vibration countermeasuresforenvironments in which there is repeated or continuousvibration. Power supply specifications 9

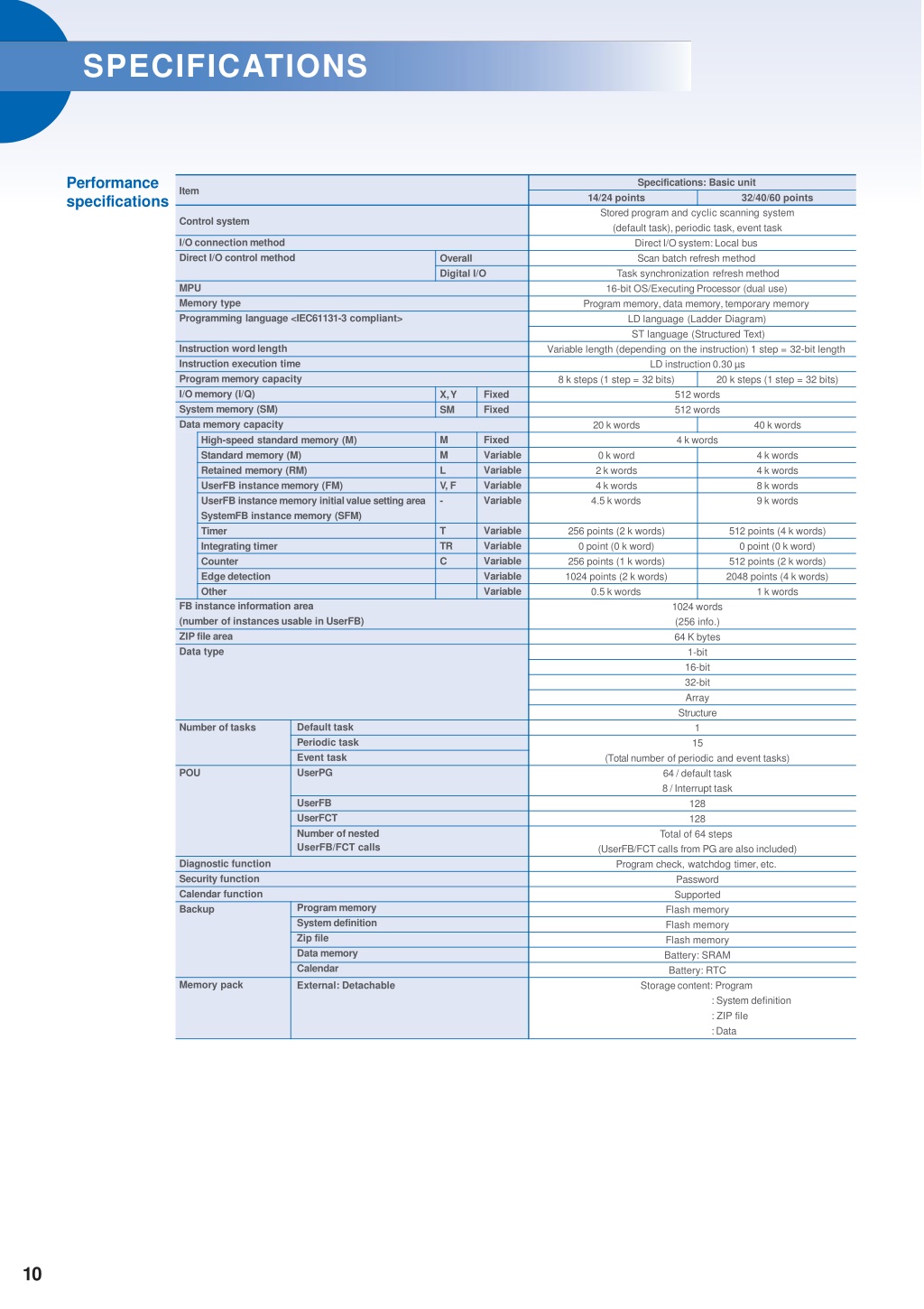

10. SPECIFICATIONS Performance specifications 10

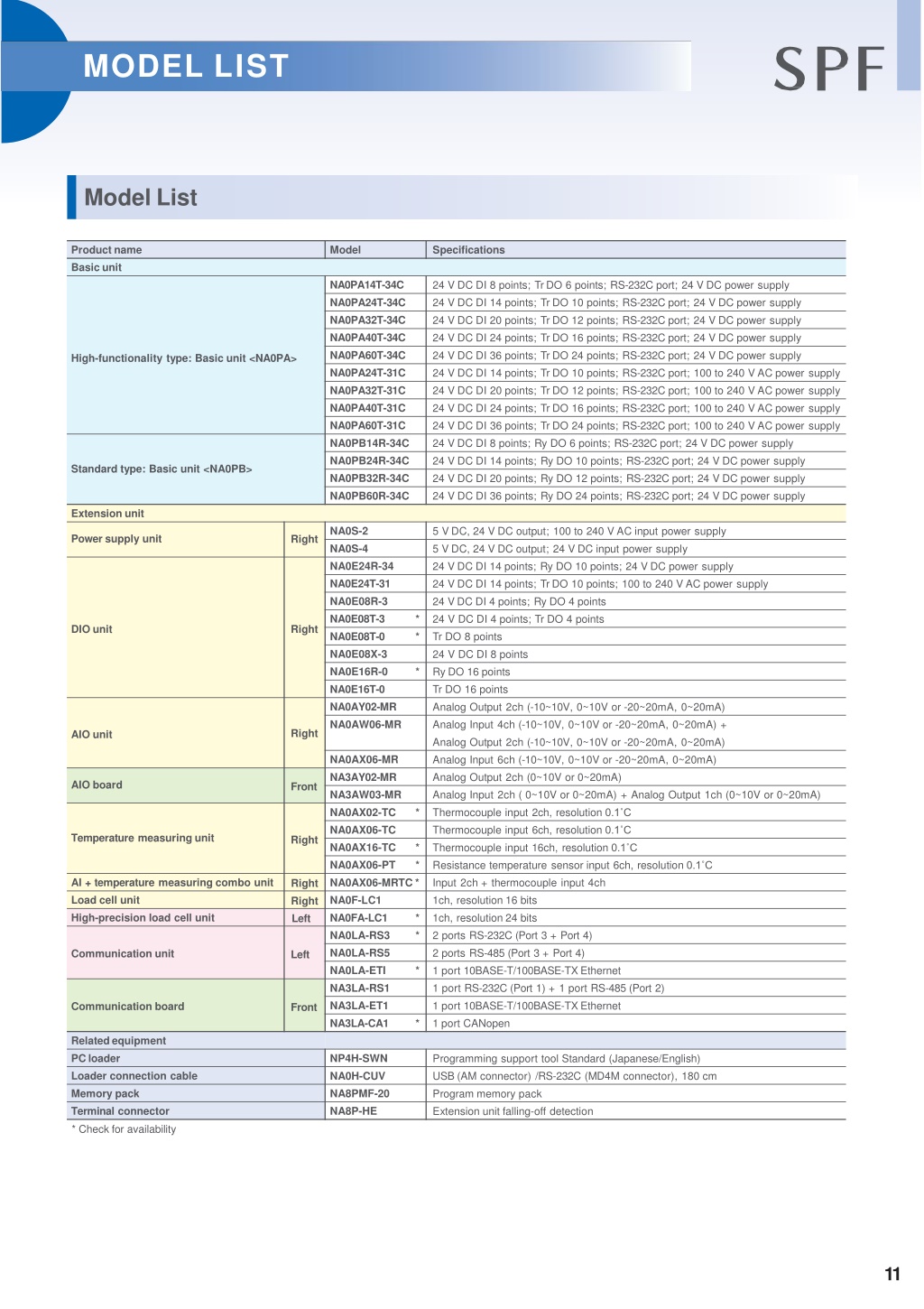

11. MODELLIST ModelList *Checkfor availability 11

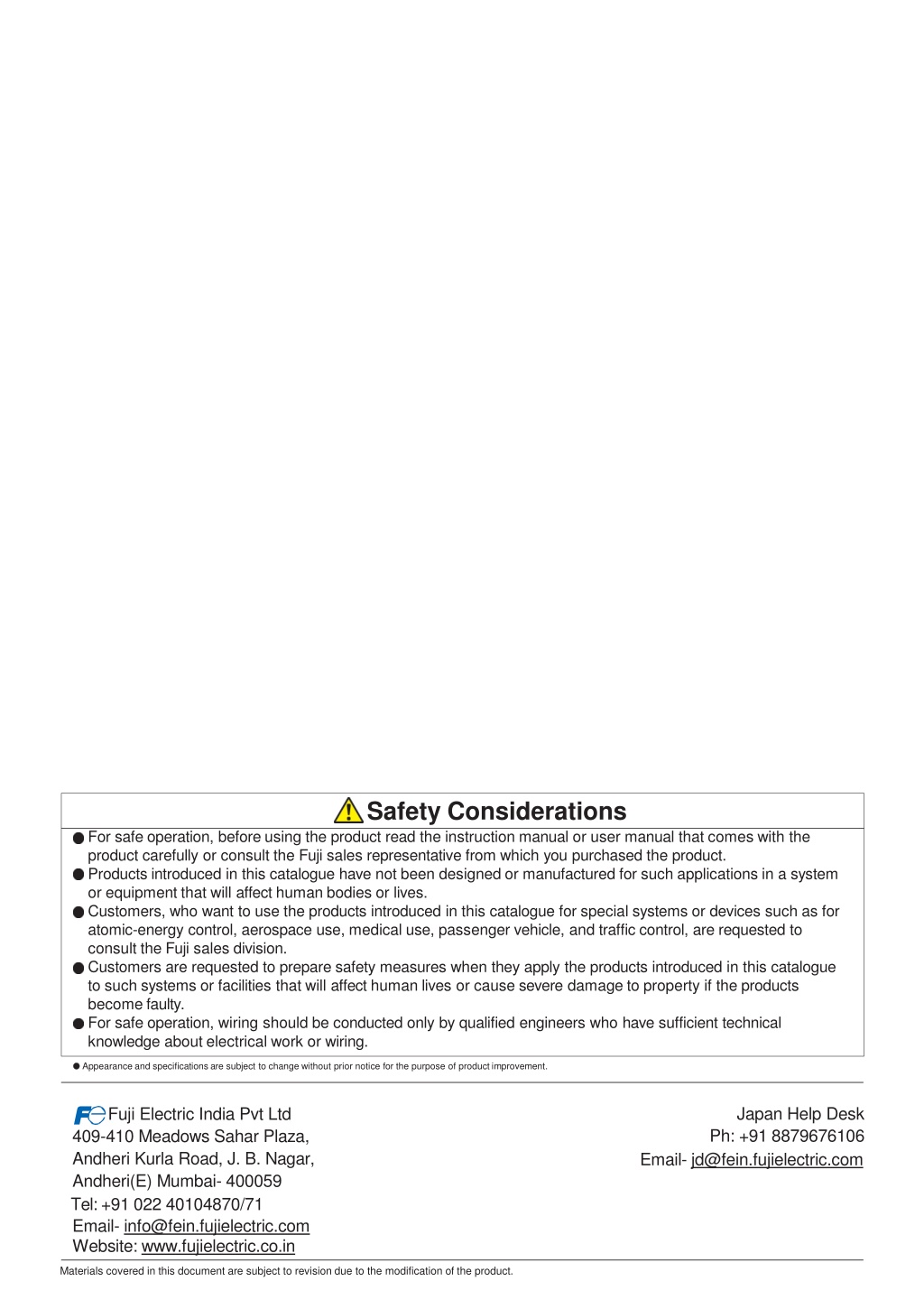

12. SafetyConsiderations Forsafeoperation,beforeusingtheproductreadtheinstructionmanualorusermanualthatcomeswiththe productcarefullyorconsulttheFujisalesrepresentativefromwhichyoupurchasedtheproduct. Productsintroducedinthis cataloguehavenot beendesignedor manufacturedforsuch applicationsina system orequipment that will affect human bodies or lives. Customers, whowanttousetheproductsintroducedin thiscatalogueforspecialsystemsordevicessuchas for atomic-energycontrol,aerospaceuse, medicaluse,passengervehicle, andtrafficcontrol,arerequestedto consultthe Fuji sales division. Customersarerequestedtopreparesafetymeasureswhentheyapplytheproductsintroducedinthiscatalogue to suchsystems or facilitiesthat willaffect humanlives orcause severedamage to property ifthe products becomefaulty. Forsafeoperation,wiringshouldbeconductedonlybyqualifiedengineerswhohavesufficienttechnical knowledge about electrical work or wiring. Appearanceandspecificationsaresubjecttochangewithoutpriornoticeforthepurposeofproductimprovement. Fuji Electric India Pvt Ltd 409-410 Meadows Sahar Plaza, Andheri Kurla Road, J. B. Nagar, Andheri(E) Mumbai-400059 Tel:+9102240104870/71 Email-info@fein.fujielectric.com Website:www.fujielectric.co.in Japan Help Desk Ph:+918879676106 Email-jd@fein.fujielectric.com Materialscovered inthis document aresubject to revisiondue to themodification of theproduct.
