  1. Mr. Thilakde Silva. BSc. Eng., MSc, CEng, FIE(SL), FIET(UK), CITP(UK), MBCS(UK), MIEEE (USA) Communication Networks – II Lecture 12Advanced Computer Networks (ACN) 545 M.Sc. in IT - Year 1 Semester II - 2012

  2. Today's Agenda • Networks • Transmission Networks • LTE • Multiplexes M.Sc. in IT - Year 1 Semester II - 2012

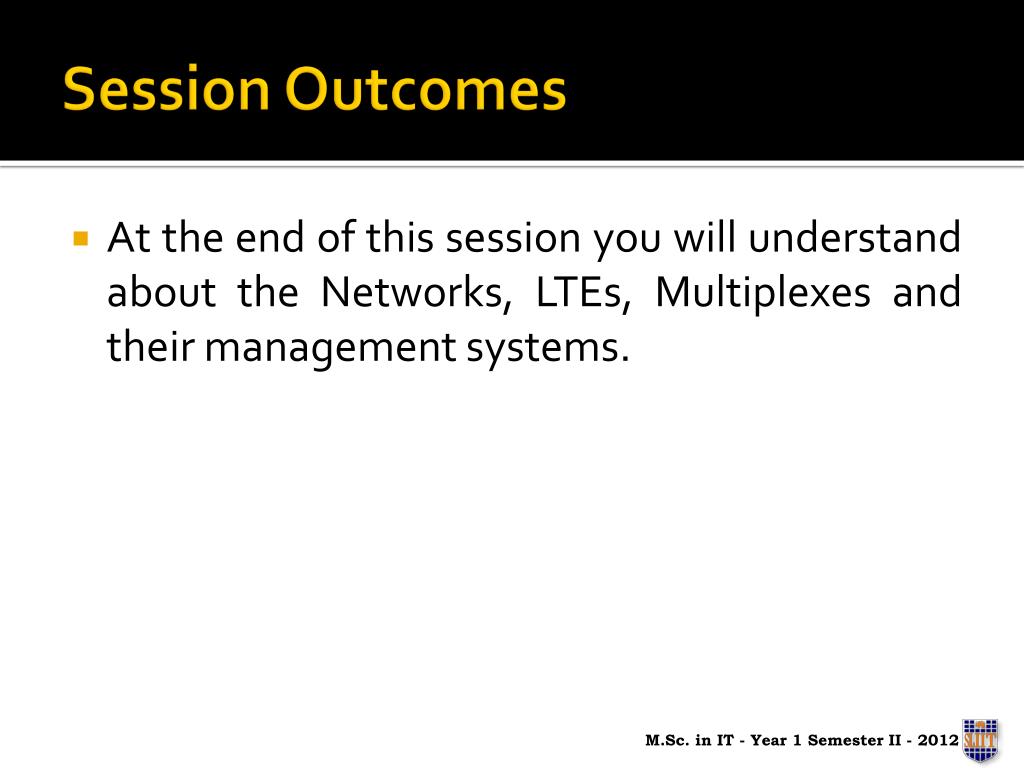

  3. Session Outcomes • At the end of this session you will understand about the Networks, LTEs, Multiplexes and their management systems. M.Sc. in IT - Year 1 Semester II - 2012

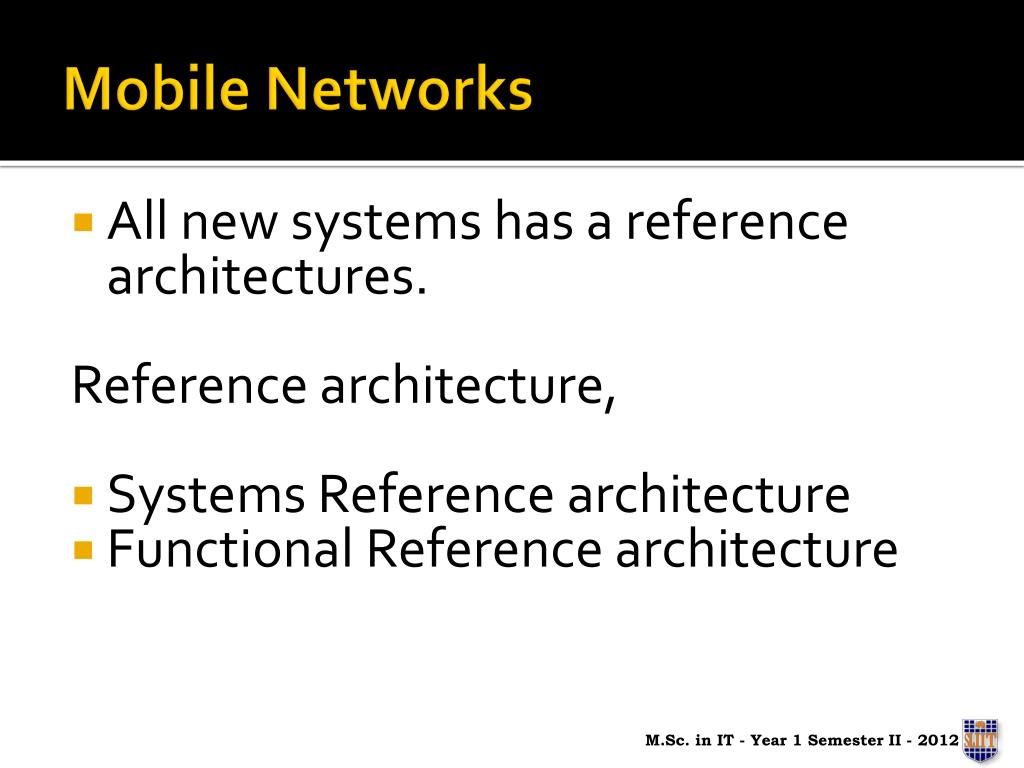

  4. Mobile Networks • All new systems has a reference architectures. Reference architecture, • Systems Reference architecture • Functional Reference architecture M.Sc. in IT - Year 1 Semester II - 2012

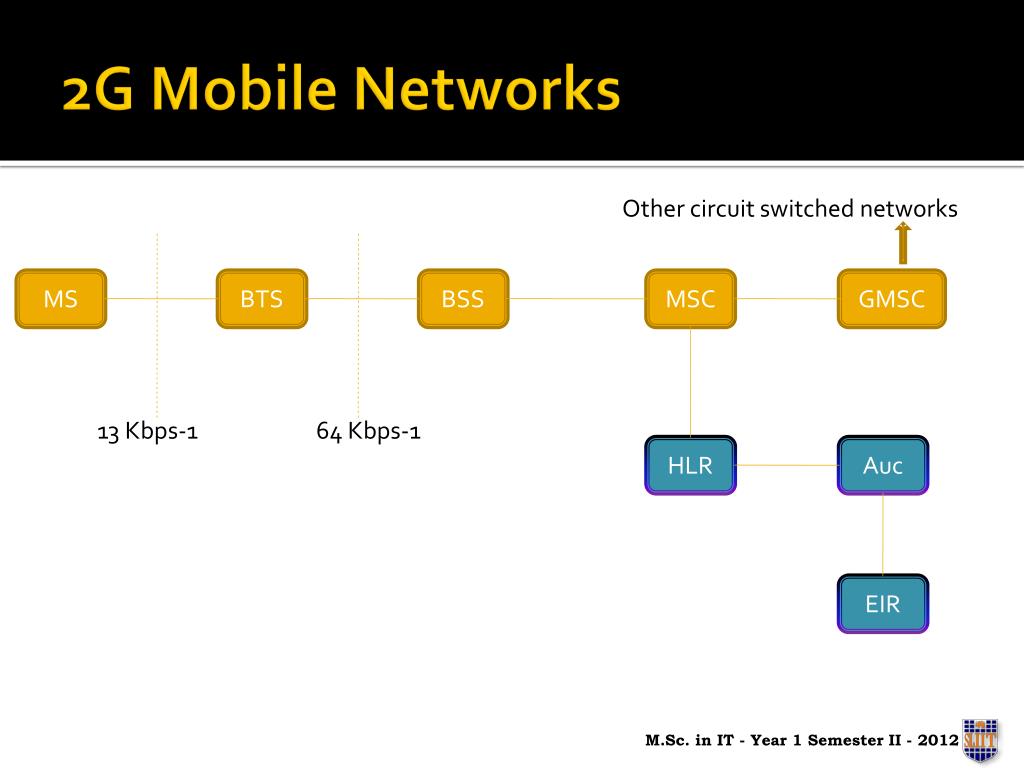

  5. 2G MobileNetworks Other circuit switched networks MS BTS BSS MSC GMSC 13 Kbps-1 64 Kbps-1 HLR Auc EIR M.Sc. in IT - Year 1 Semester II - 2012

  6. 2G Mobile Networks M.Sc. in IT - Year 1 Semester II - 2012

  7. Responsibilities of LTEs, • Including supervisory signals to supervise the end to end line. • Eg:- if a repeater is faulty it should be identified. Repeater Repeater LTE LTE Fiber Line M.Sc. in IT - Year 1 Semester II - 2012

  8. Responsibilities of LTEs, • Suitable encoding of bit patterns. • Eg:- Manchester Encoding AMI CMI • Media Conversion (if necessary) • Eg:-Electrical to Optical Conversion M.Sc. in IT - Year 1 Semester II - 2012

  9. LTEs – The network LET LET LET LET LET LET LET M.Sc. in IT - Year 1 Semester II - 2012

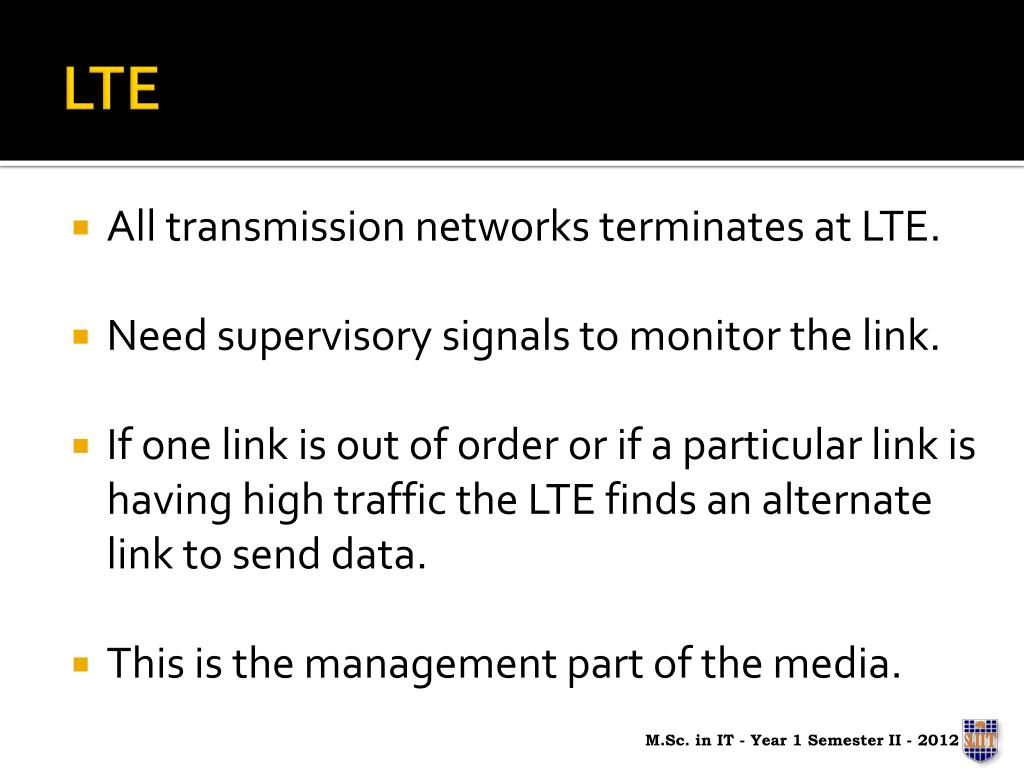

  10. LTE • All transmission networks terminates at LTE. • Need supervisory signals to monitor the link. • If one link is out of order or if a particular link is having high traffic the LTE finds an alternate link to send data. • This is the management part of the media. M.Sc. in IT - Year 1 Semester II - 2012

  11. LTE – Transmission Media Management System • Graphically represents all the LTEs and respective links between LETs. • Transmission media management can be done in a separate, central location. • This is for fiber optics. • Most of these software are pro-priority. M.Sc. in IT - Year 1 Semester II - 2012

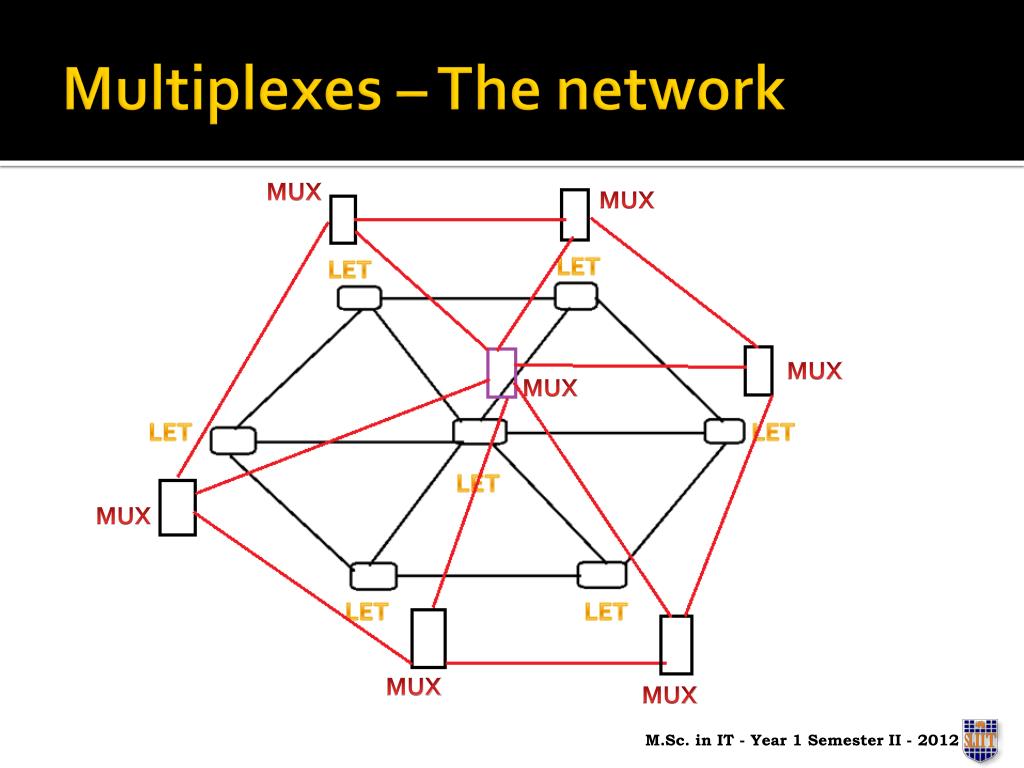

  12. Multiplexes – The network MUX MUX MUX MUX MUX MUX MUX M.Sc. in IT - Year 1 Semester II - 2012

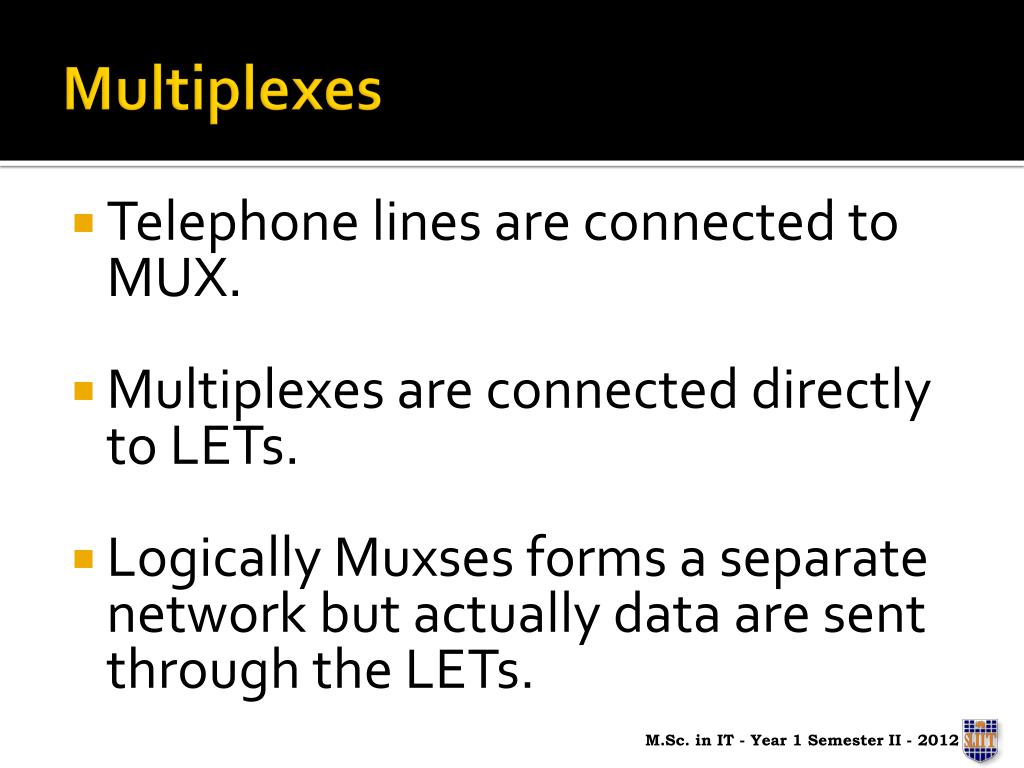

  13. Multiplexes • Telephone lines are connected to MUX. • Multiplexes are connected directly to LETs. • Logically Muxses forms a separate network but actually data are sent through the LETs. M.Sc. in IT - Year 1 Semester II - 2012

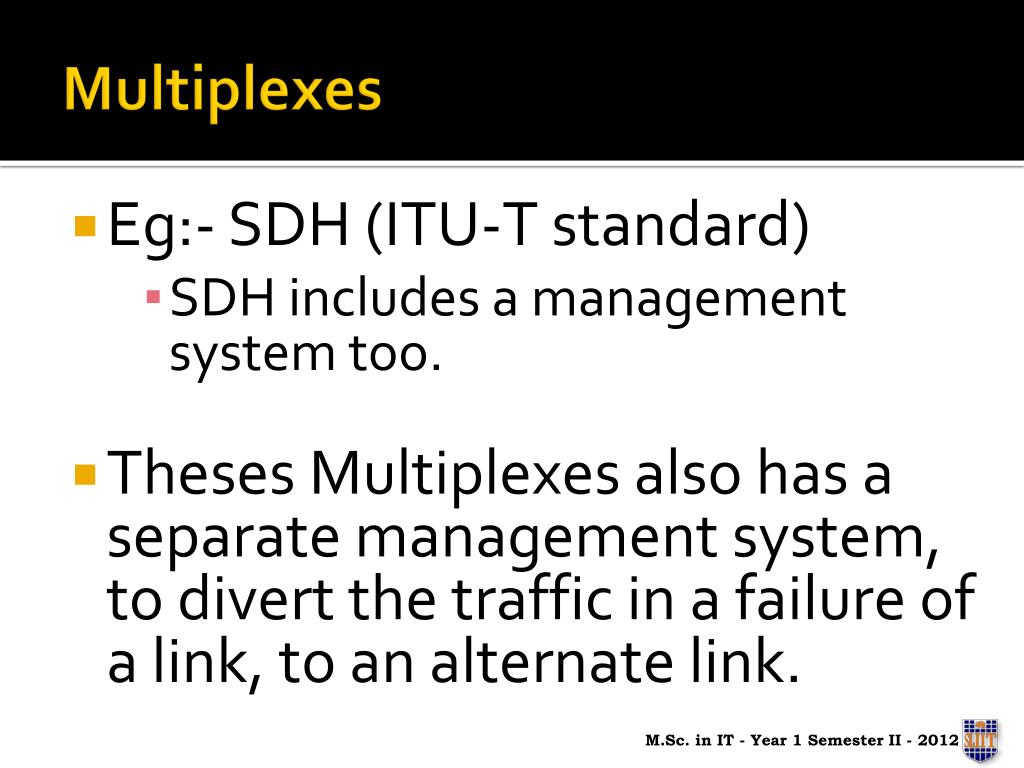

  14. Multiplexes • Eg:- SDH (ITU-T standard) • SDH includes a management system too. • Theses Multiplexes also has a separate management system, to divert the traffic in a failure of a link, to an alternate link. M.Sc. in IT - Year 1 Semester II - 2012

  15. LTE Restoration Vs Multiplexes Restoration • From these two fiber restoration is done immediately. (LTE Restoration) • Only if the fiber is slow, SDH will do the restoration. (Multiplexes Restoration.) • But Fiber management software is expensive and not used in countries like Sri Lanka. M.Sc. in IT - Year 1 Semester II - 2012

  16. Switches • Similar concept is used in switches. • Physical Layer, SDH layer and switches has separate management systems. M.Sc. in IT - Year 1 Semester II - 2012

  17. Thank You… M.Sc. in IT - Year 1 Semester II - 2012
