RAD hardening

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

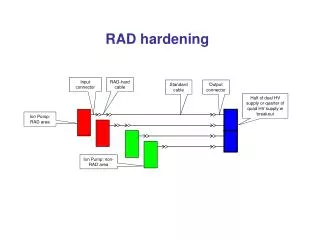

  1. RAD hardening Input connector RAD-hard cable Standard cable Output connector Half of dual HV supply or quarter of quad HV supply w breakout Ion Pump: RAD area Ion Pump: non-RAD area

  2. Notes • The Standard cable is the long cable from the rack-mounted HV supply to the area near the ion pump; it is plenum rated. • Where RAD-hard is not a requirement, the short segment is not used; alternatively, a full length RAD-hard cable can be used.

  3. Break-out Standard HV cable Half of dual HV supply or quarter of quad HV supply w breakout Ion Pump Direct-to-pump using controller-provided break-out

  4. Break-out 1:2 Breakout Box Half of dual HV supply or quarter of quad HV supply w/o breakout Standard HV cable Standard HV cable Ion Pump Indirect-to-pump using inline break-out box
