Comprehensive Guide to Conveyor Components

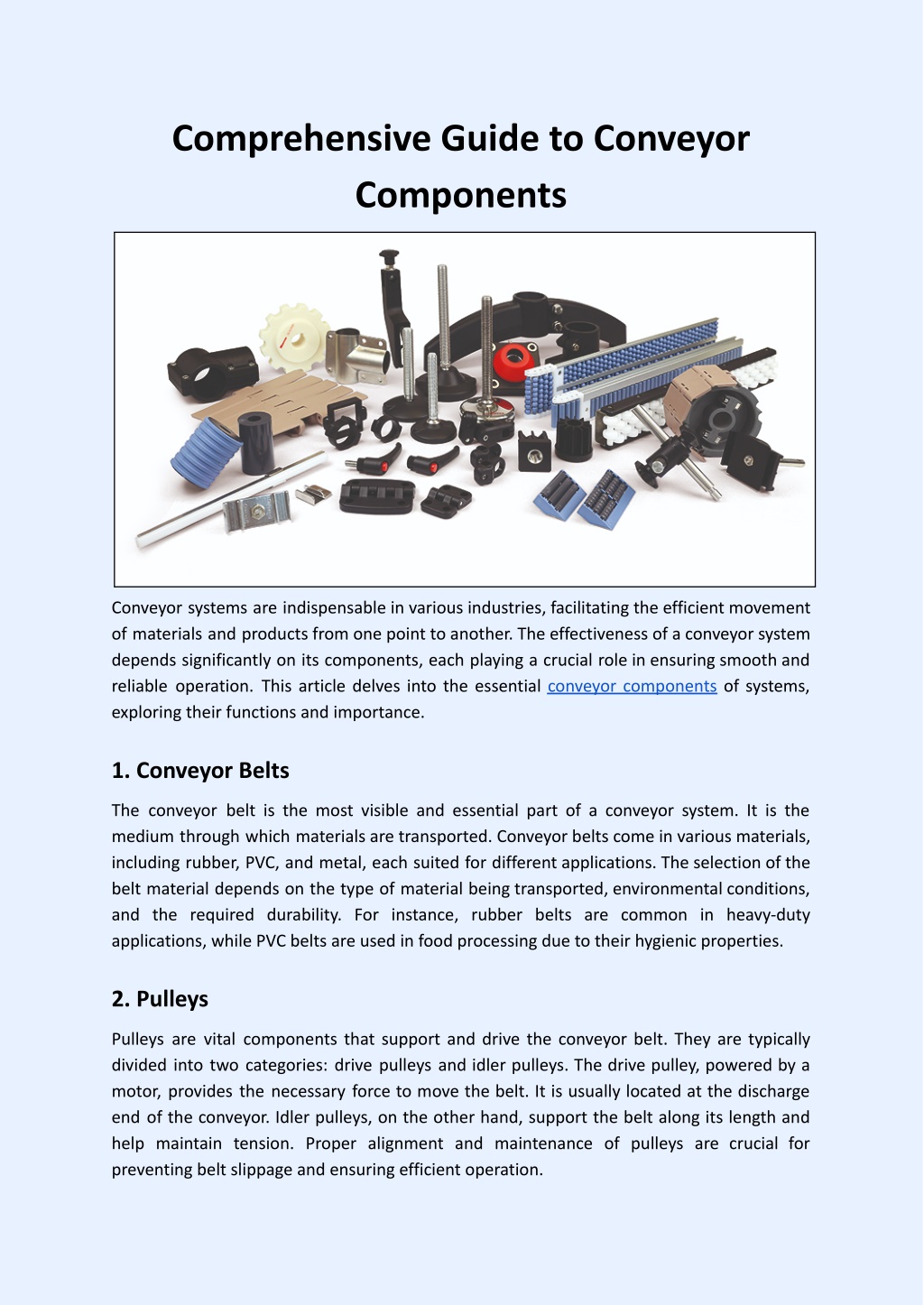

1. Comprehensive Guide to Conveyor Components Conveyor systems are indispensable in various industries, facilitating the efficient movement of materials and products from one point to another. The effectiveness of a conveyor system depends significantly on its components, each playing a crucial role in ensuring smooth and reliable operation. This article delves into the essential conveyor components of systems, exploring their functions and importance. 1. Conveyor Belts The conveyor belt is the most visible and essential part of a conveyor system. It is the medium through which materials are transported. Conveyor belts come in various materials, including rubber, PVC, and metal, each suited for different applications. The selection of the belt material depends on the type of material being transported, environmental conditions, and the required durability. For instance, rubber belts are common in heavy-duty applications, while PVC belts are used in food processing due to their hygienic properties. 2. Pulleys Pulleys are vital components that support and drive the conveyor belt. They are typically divided into two categories: drive pulleys and idler pulleys. The drive pulley, powered by a motor, provides the necessary force to move the belt. It is usually located at the discharge end of the conveyor. Idler pulleys, on the other hand, support the belt along its length and help maintain tension. Proper alignment and maintenance of pulleys are crucial for preventing belt slippage and ensuring efficient operation.

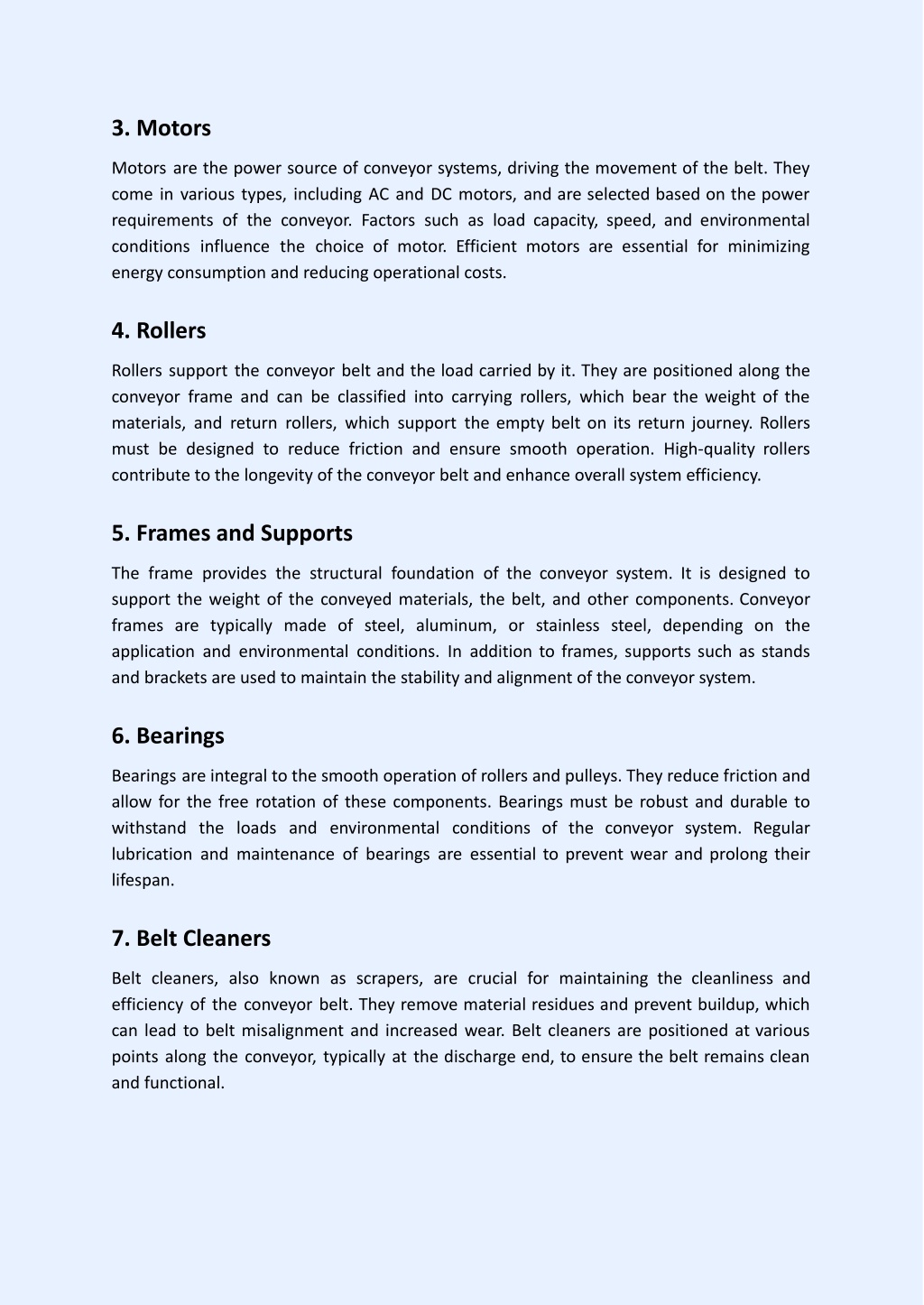

2. 3. Motors Motors are the power source of conveyor systems, driving the movement of the belt. They come in various types, including AC and DC motors, and are selected based on the power requirements of the conveyor. Factors such as load capacity, speed, and environmental conditions influence the choice of motor. Efficient motors are essential for minimizing energy consumption and reducing operational costs. 4. Rollers Rollers support the conveyor belt and the load carried by it. They are positioned along the conveyor frame and can be classified into carrying rollers, which bear the weight of the materials, and return rollers, which support the empty belt on its return journey. Rollers must be designed to reduce friction and ensure smooth operation. High-quality rollers contribute to the longevity of the conveyor belt and enhance overall system efficiency. 5. Frames and Supports The frame provides the structural foundation of the conveyor system. It is designed to support the weight of the conveyed materials, the belt, and other components. Conveyor frames are typically made of steel, aluminum, or stainless steel, depending on the application and environmental conditions. In addition to frames, supports such as stands and brackets are used to maintain the stability and alignment of the conveyor system. 6. Bearings Bearings are integral to the smooth operation of rollers and pulleys. They reduce friction and allow for the free rotation of these components. Bearings must be robust and durable to withstand the loads and environmental conditions of the conveyor system. Regular lubrication and maintenance of bearings are essential to prevent wear and prolong their lifespan. 7. Belt Cleaners Belt cleaners, also known as scrapers, are crucial for maintaining the cleanliness and efficiency of the conveyor belt. They remove material residues and prevent buildup, which can lead to belt misalignment and increased wear. Belt cleaners are positioned at various points along the conveyor, typically at the discharge end, to ensure the belt remains clean and functional.

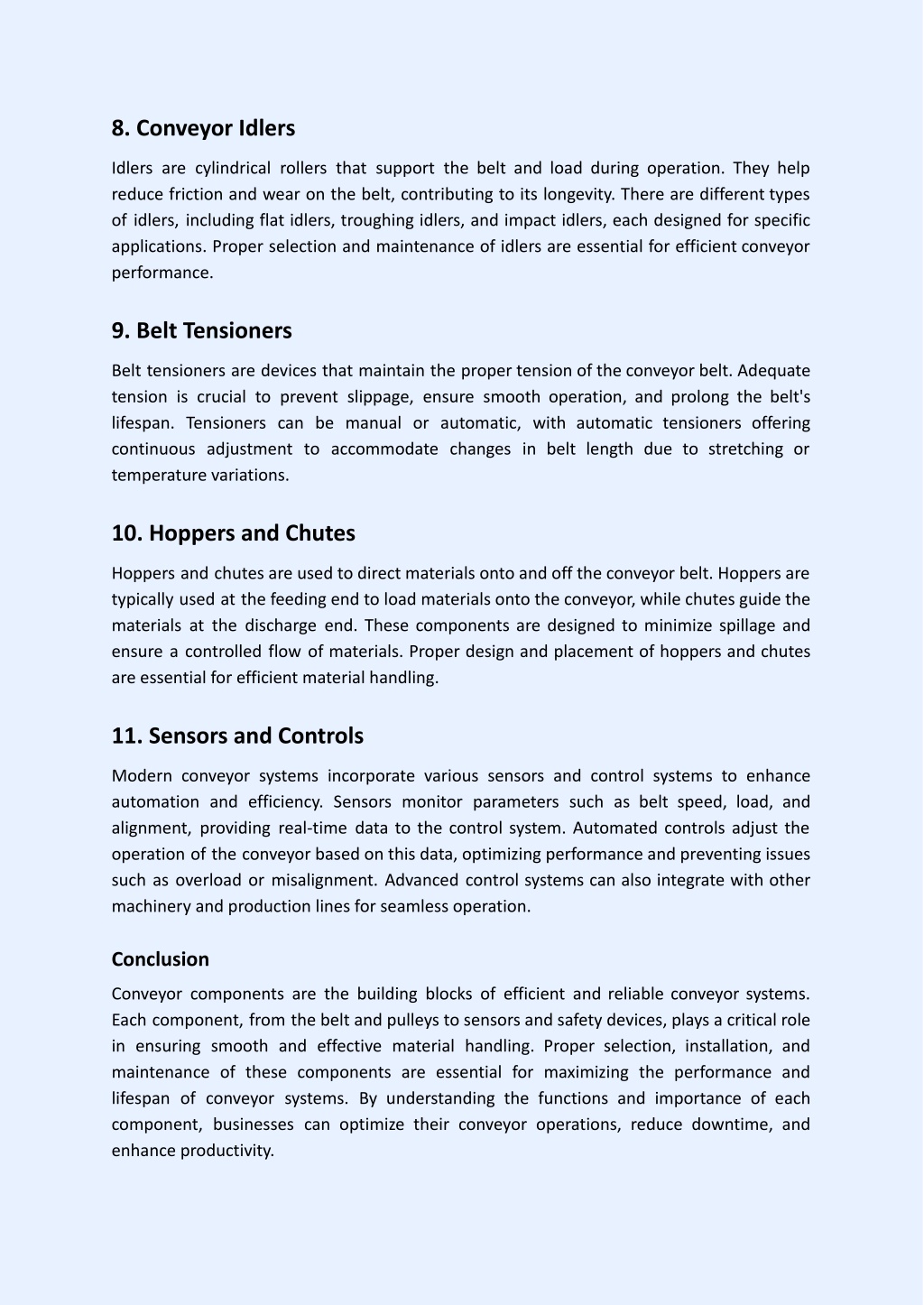

3. 8. Conveyor Idlers Idlers are cylindrical rollers that support the belt and load during operation. They help reduce friction and wear on the belt, contributing to its longevity. There are different types of idlers, including flat idlers, troughing idlers, and impact idlers, each designed for specific applications. Proper selection and maintenance of idlers are essential for efficient conveyor performance. 9. Belt Tensioners Belt tensioners are devices that maintain the proper tension of the conveyor belt. Adequate tension is crucial to prevent slippage, ensure smooth operation, and prolong the belt's lifespan. Tensioners can be manual or automatic, with automatic tensioners offering continuous adjustment to accommodate changes in belt length due to stretching or temperature variations. 10. Hoppers and Chutes Hoppers and chutes are used to direct materials onto and off the conveyor belt. Hoppers are typically used at the feeding end to load materials onto the conveyor, while chutes guide the materials at the discharge end. These components are designed to minimize spillage and ensure a controlled flow of materials. Proper design and placement of hoppers and chutes are essential for efficient material handling. 11. Sensors and Controls Modern conveyor systems incorporate various sensors and control systems to enhance automation and efficiency. Sensors monitor parameters such as belt speed, load, and alignment, providing real-time data to the control system. Automated controls adjust the operation of the conveyor based on this data, optimizing performance and preventing issues such as overload or misalignment. Advanced control systems can also integrate with other machinery and production lines for seamless operation. Conclusion Conveyor components are the building blocks of efficient and reliable conveyor systems. Each component, from the belt and pulleys to sensors and safety devices, plays a critical role in ensuring smooth and effective material handling. Proper selection, installation, and maintenance of these components are essential for maximizing the performance and lifespan of conveyor systems. By understanding the functions and importance of each component, businesses can optimize their conveyor operations, reduce downtime, and enhance productivity.
