Presentation Transcript
sialography

Sialography

Spring 2009

DRAFT

salivary glands
Salivary Glands
  • Parotid Gland
  • Sublingual gland
  • Submandibular gland
parotid gland

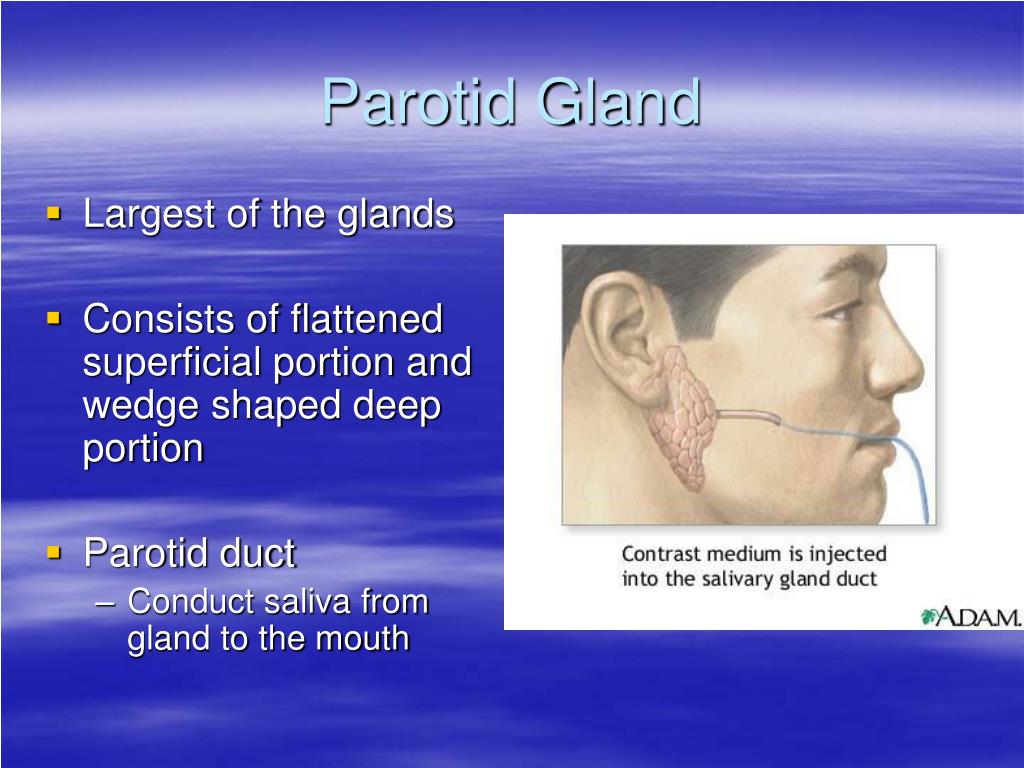

Parotid Gland
  • Largest of the glands
  • Consists of flattened superficial portion and wedge shaped deep portion
  • Parotid duct
    • Conduct saliva from gland to the mouth

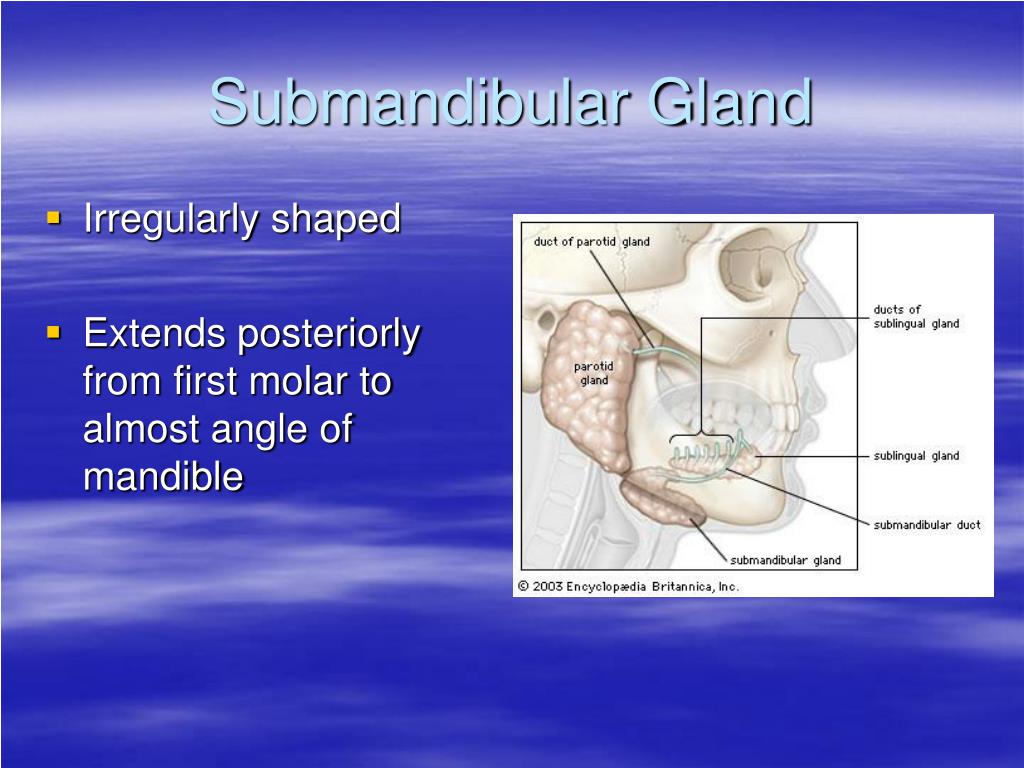

submandibular gland
Submandibular Gland
  • Irregularly shaped
  • Extends posteriorly from first molar to almost angle of mandible

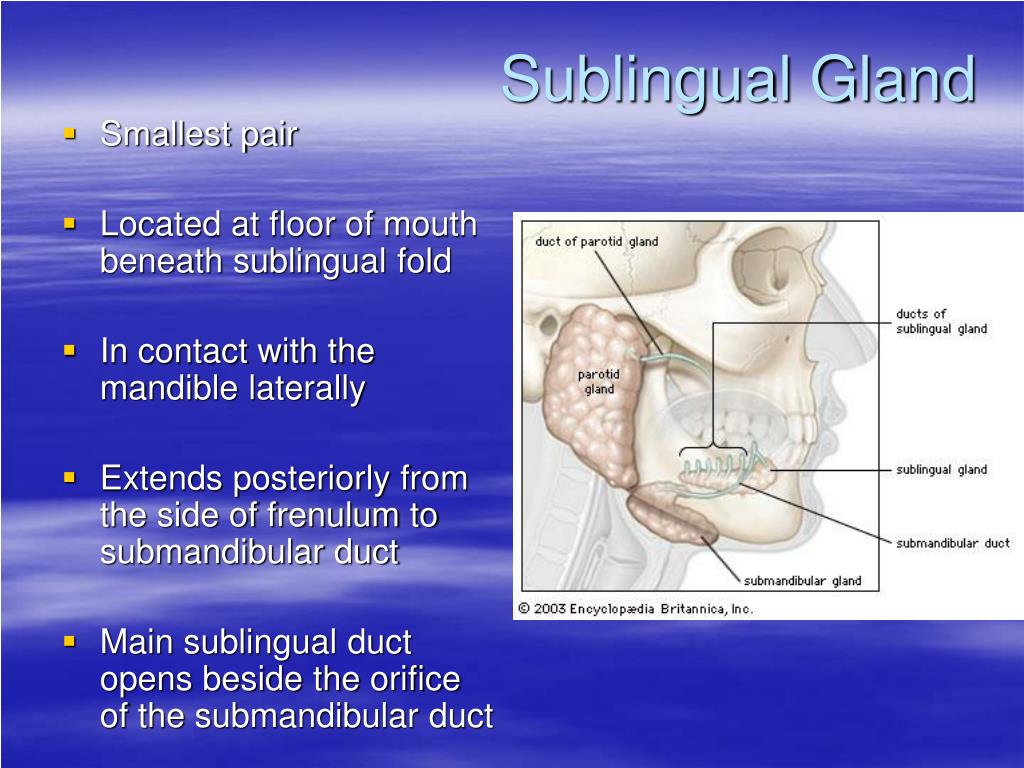

sublingual gland
Sublingual Gland
  • Smallest pair
  • Located at floor of mouth beneath sublingual fold
  • In contact with the mandible laterally
  • Extends posteriorly from the side of frenulum to submandibular duct
  • Main sublingual duct opens beside the orifice of the submandibular duct
sialography6

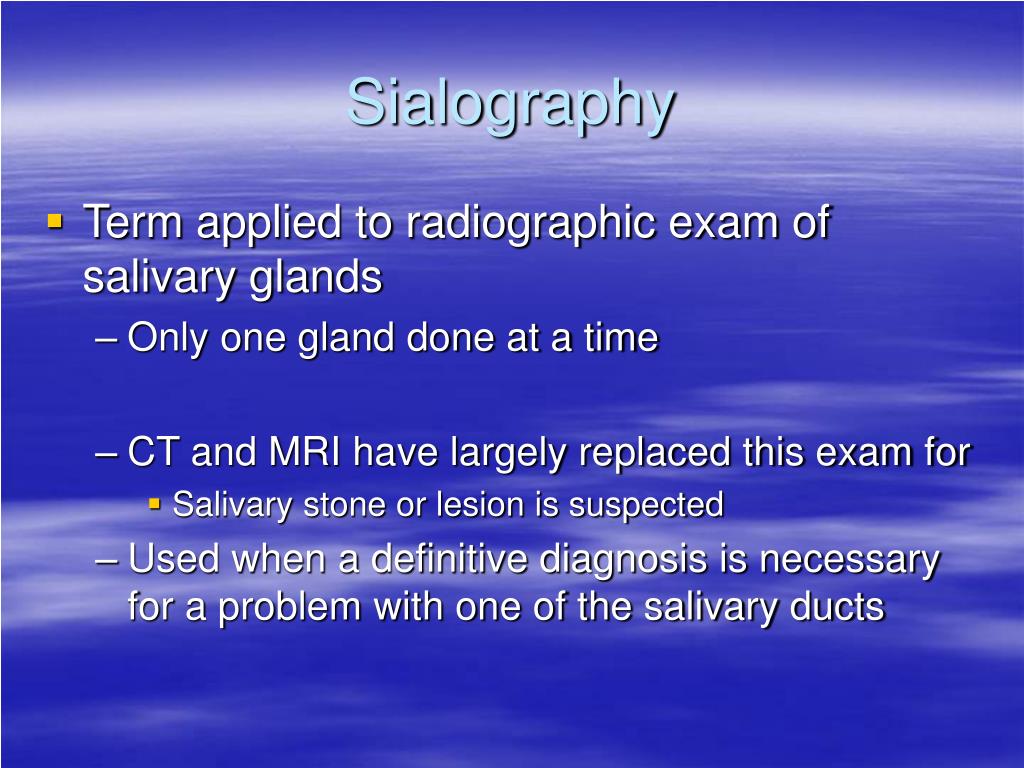

Sialography
  • Term applied to radiographic exam of salivary glands
    • Only one gland done at a time
    • CT and MRI have largely replaced this exam for
      • Salivary stone or lesion is suspected
    • Used when a definitive diagnosis is necessary for a problem with one of the salivary ducts

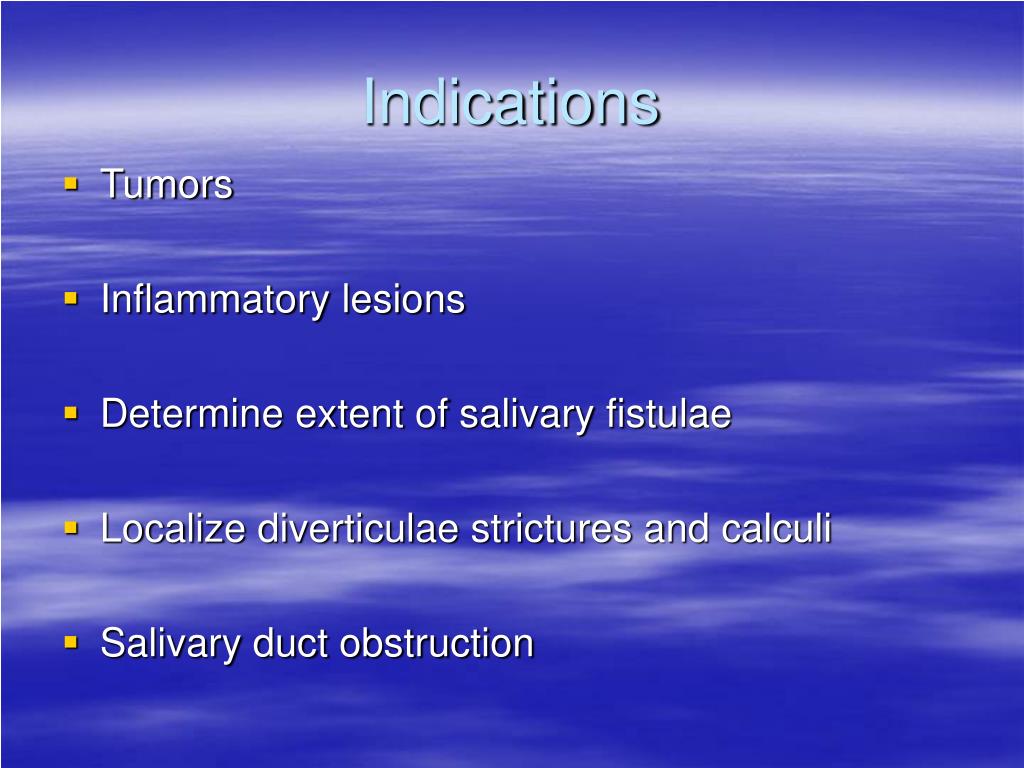

indications
Indications
  • Tumors
  • Inflammatory lesions
  • Determine extent of salivary fistulae
  • Localize diverticulae strictures and calculi
  • Salivary duct obstruction
procedure

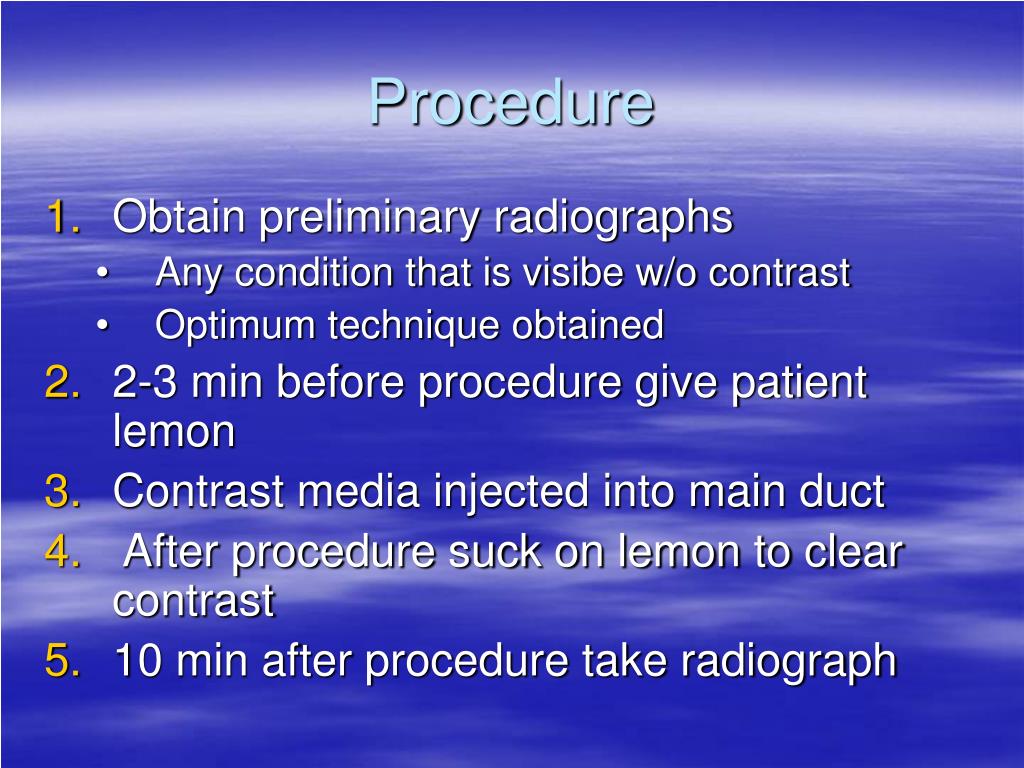

Procedure
  • Obtain preliminary radiographs
    • Any condition that is visibe w/o contrast
    • Optimum technique obtained
  • 2-3 min before procedure give patient lemon
  • Contrast media injected into main duct
  • After procedure suck on lemon to clear contrast
  • 10 min after procedure take radiograph

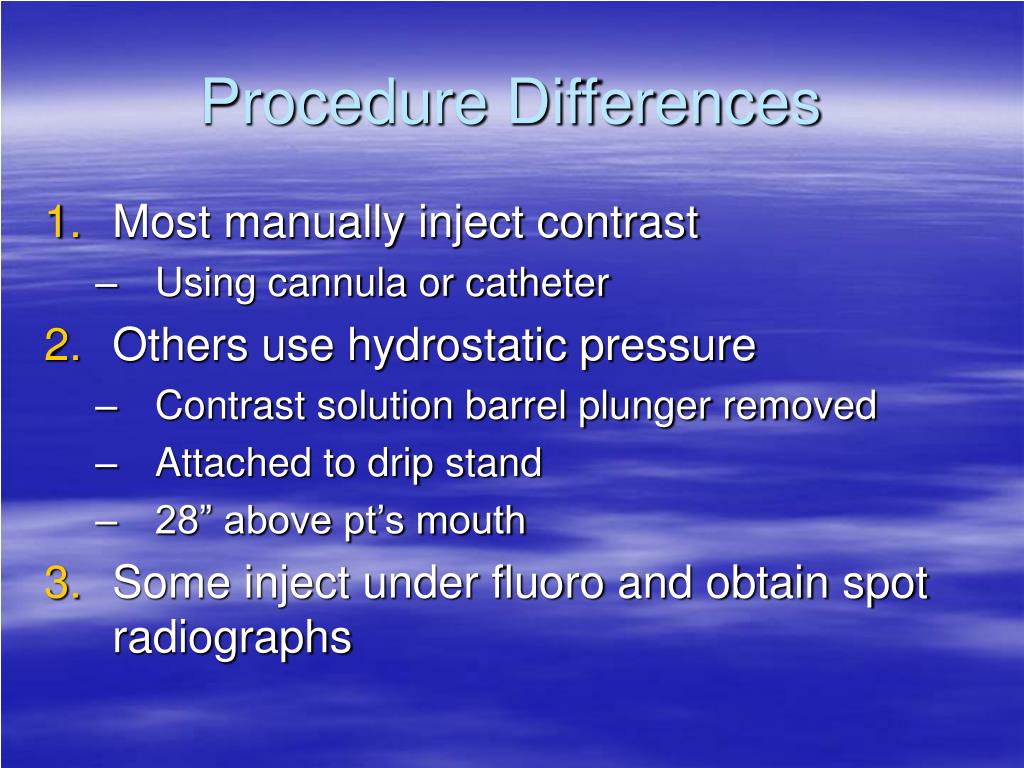

procedure differences
Procedure Differences
  • Most manually inject contrast
    • Using cannula or catheter
  • Others use hydrostatic pressure
    • Contrast solution barrel plunger removed
    • Attached to drip stand
    • 28” above pt’s mouth
  • Some inject under fluoro and obtain spot radiographs
radiation safety
Radiation Safety
  • Have shields for PT’s, DR and yourself
  • Question LMP and the possibility of being pregnant
  • Use cardinal rules
    • Time
    • Distance
    • Shielding
  • ALARA
    • Use pulse if possible
    • Save the last image on screen when possible
tangential supine
Tangential Supine
  • Rotate pt head toward side being examined so that parotid gland is perp to plane of IR
  • Rest head on occipitus
  • Center IR to parotid area
  • Mandibular ramus parallel with longitudinal axis of the IR
  • Fill mouth with air and puff cheeks
  • CR perp to plane of IR along lateral surface of the ramus

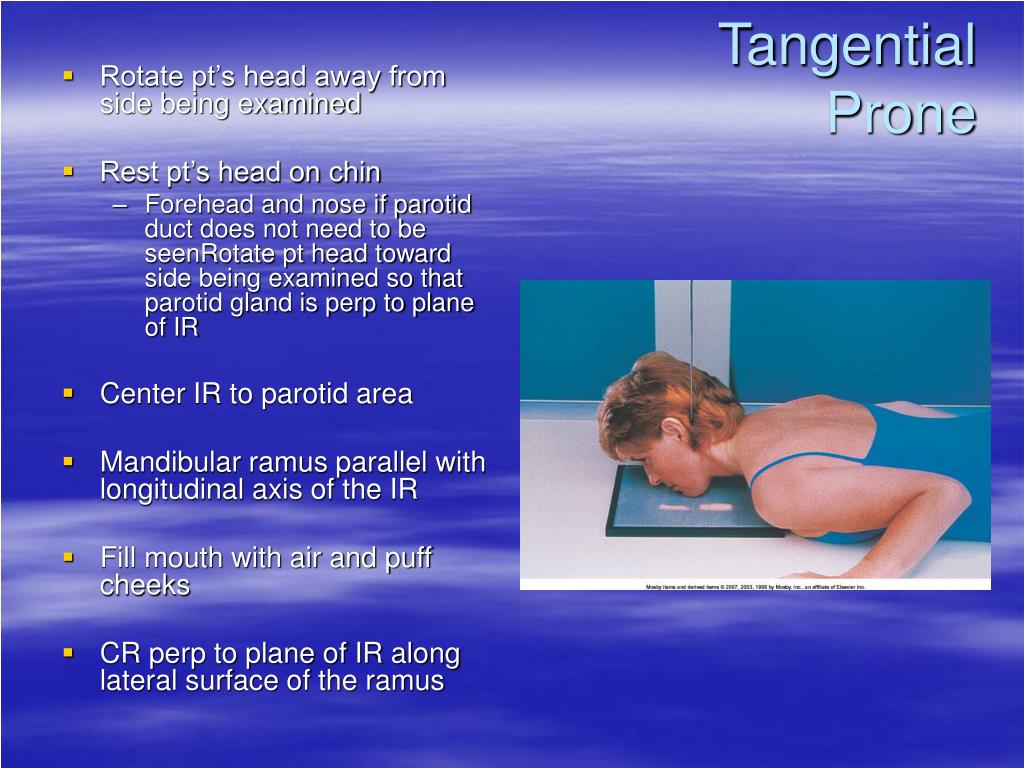

tangential prone
Tangential Prone
  • Rotate pt’s head away from side being examined
  • Rest pt’s head on chin
    • Forehead and nose if parotid duct does not need to be seenRotate pt head toward side being examined so that parotid gland is perp to plane of IR
  • Center IR to parotid area
  • Mandibular ramus parallel with longitudinal axis of the IR
  • Fill mouth with air and puff cheeks
  • CR perp to plane of IR along lateral surface of the ramus
tangential radiograph

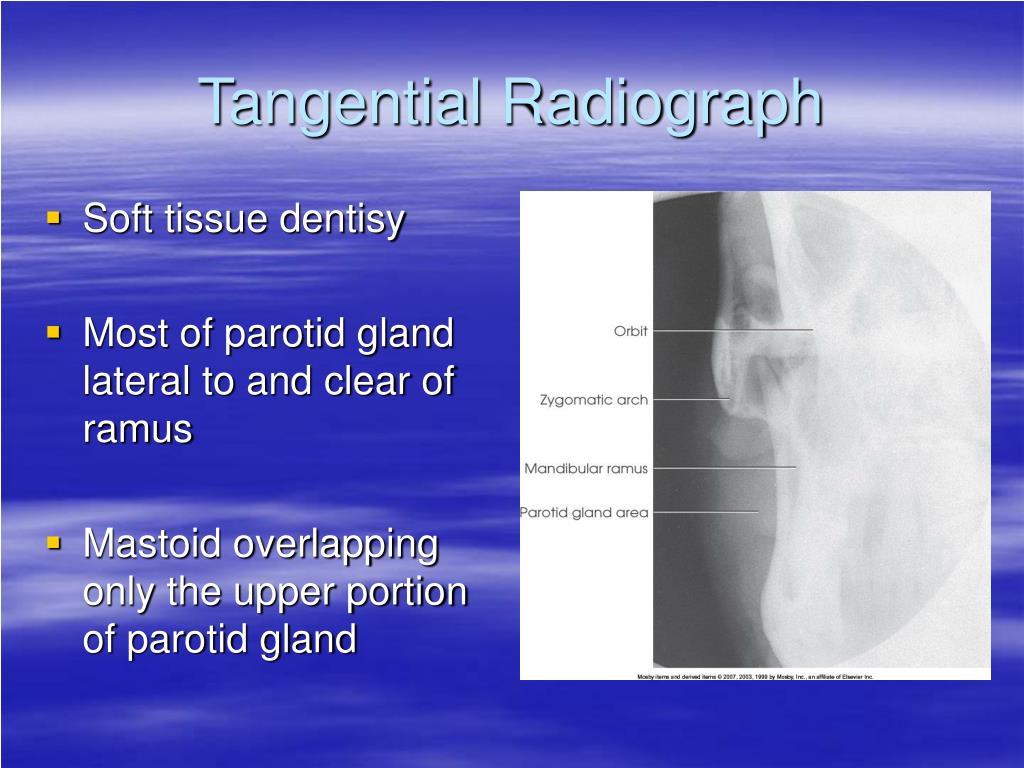

Tangential Radiograph
  • Soft tissue dentisy
  • Most of parotid gland lateral to and clear of ramus
  • Mastoid overlapping only the upper portion of parotid gland
lateral parotid

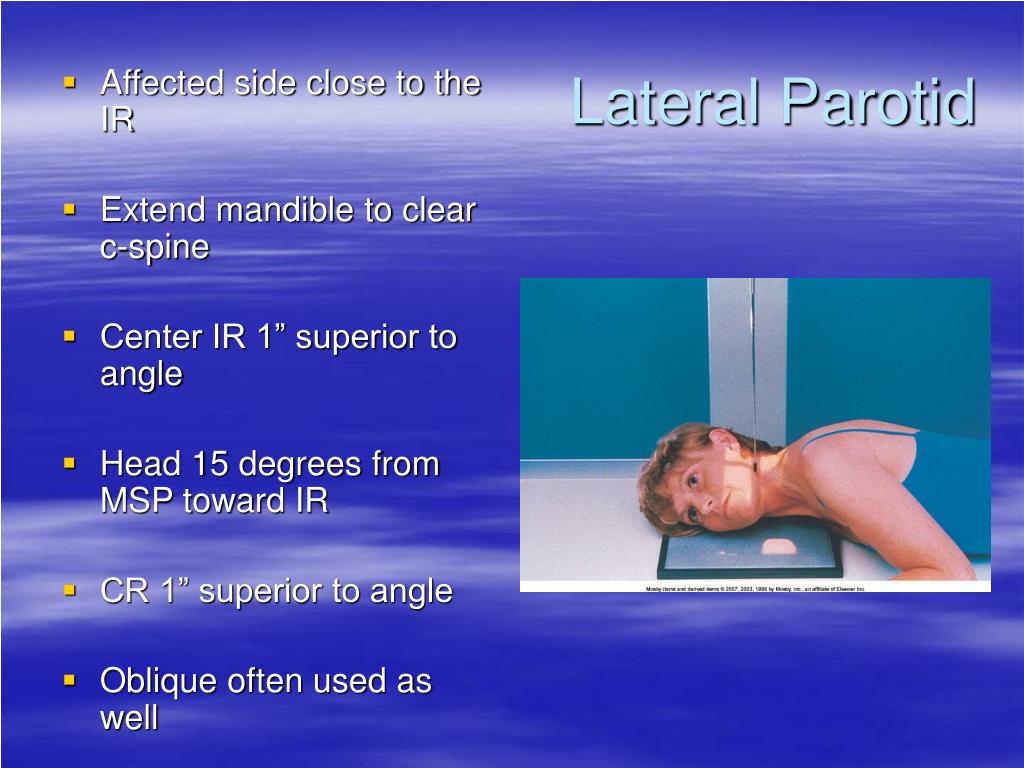

Lateral Parotid
  • Affected side close to the IR
  • Extend mandible to clear c-spine
  • Center IR 1” superior to angle
  • Head 15 degrees from MSP toward IR
  • CR 1” superior to angle
  • Oblique often used as well

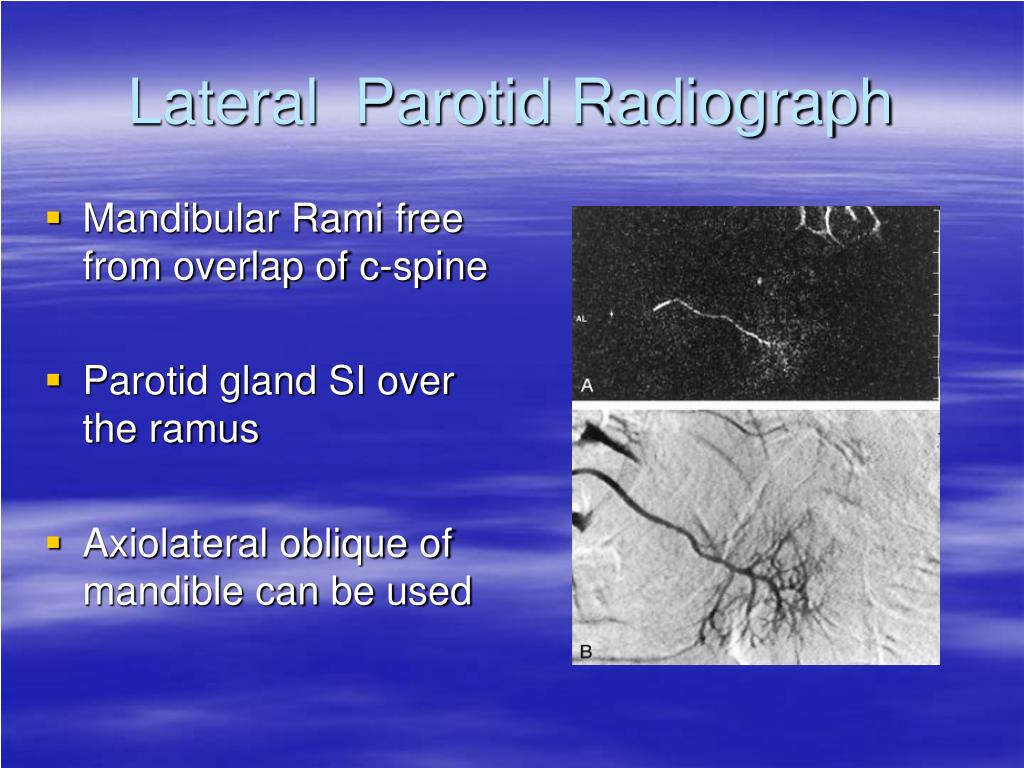

lateral parotid radiograph
Lateral Parotid Radiograph
  • Mandibular Rami free from overlap of c-spine
  • Parotid gland SI over the ramus
  • Axiolateral oblique of mandible can be used
lateral submandibular
LateralSubmandibular
  • Center IR to inferior margin of angle
  • PT head in true lateral
  • CR at inferior margin of angle
lateral submandibular radiograph and lateral oblique

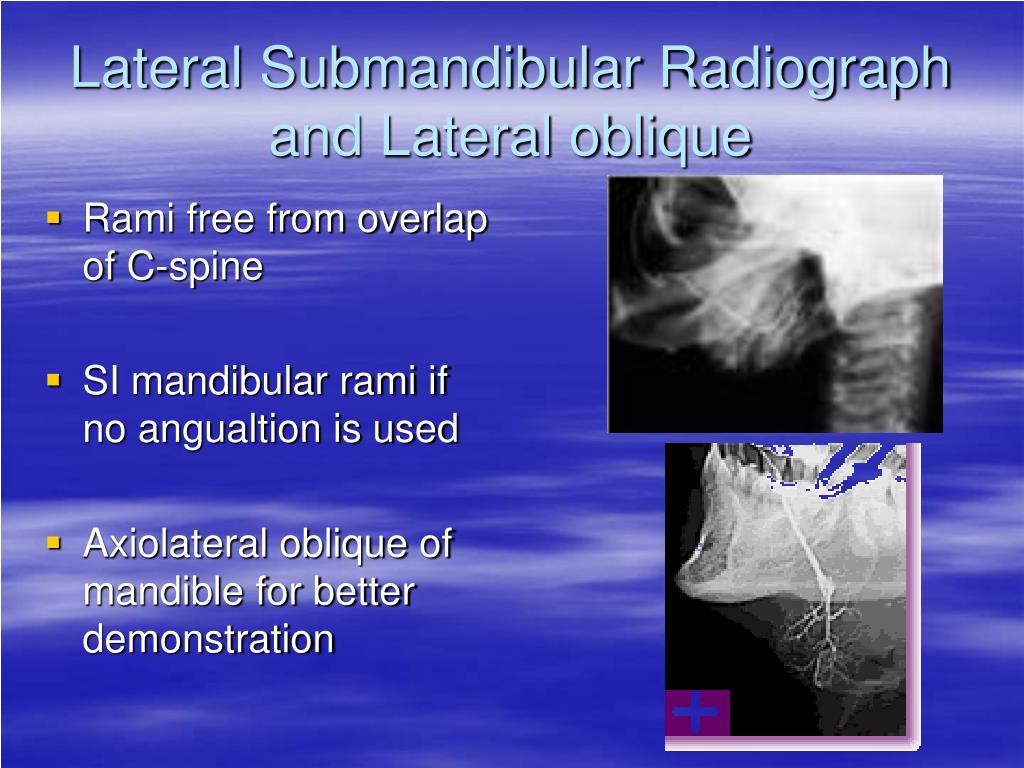

Lateral Submandibular Radiograph and Lateral oblique
  • Rami free from overlap of C-spine
  • SI mandibular rami if no angualtion is used
  • Axiolateral oblique of mandible for better demonstration
review

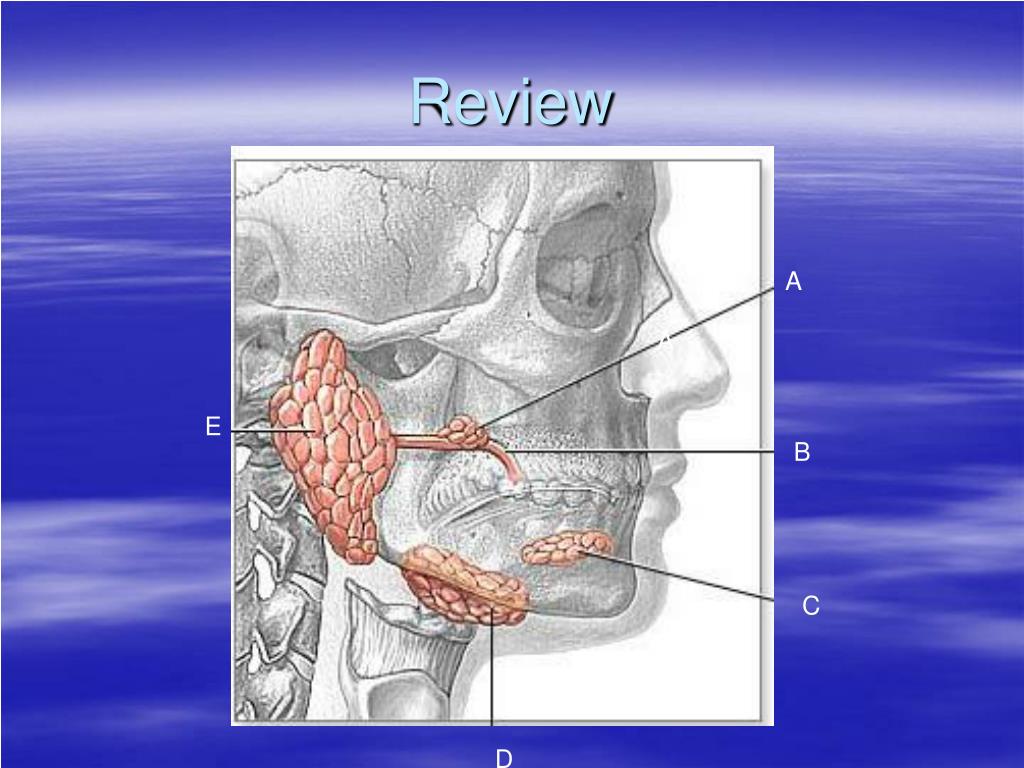

Review

A

A

E

B

C

D

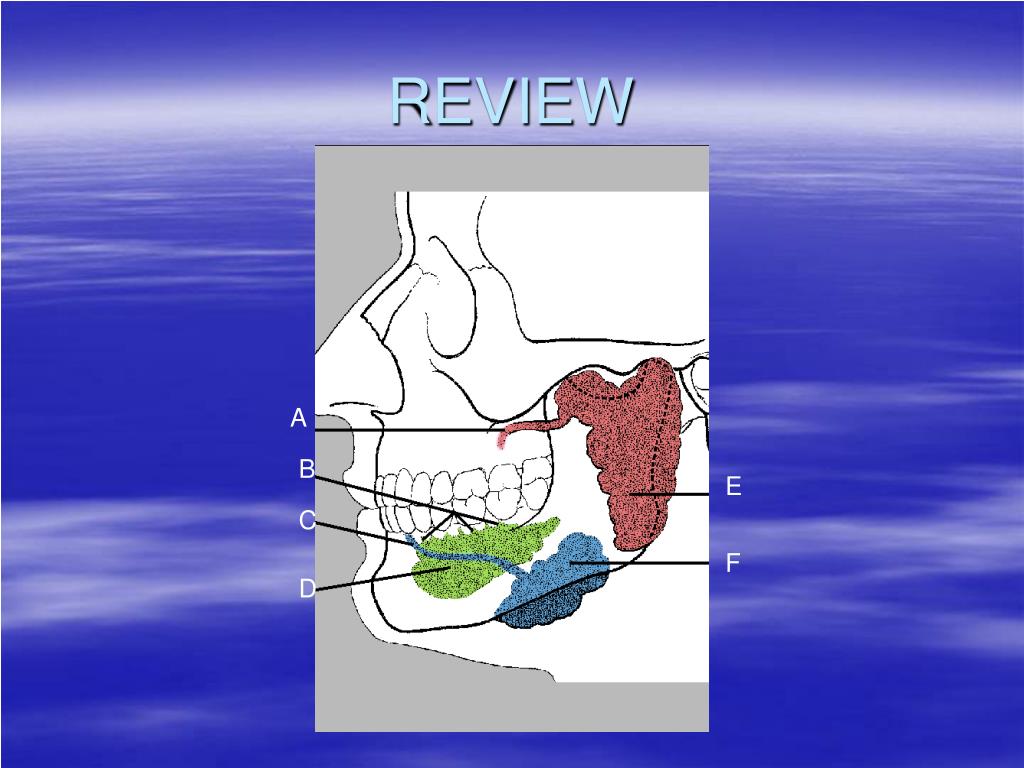

review23
REVIEW

A

B

E

C

F

D
