  1. Chapter 4 Working with the Web

  2. Chapter Objectives • Describe some basic Perl Functions • Describe the basic functions within the CGI.pm library that can generate HTML tags • Learn the different formats of the CGI.pm function syntax • Understand how to use forms to send data and receive data to/in CGI/Perl programs

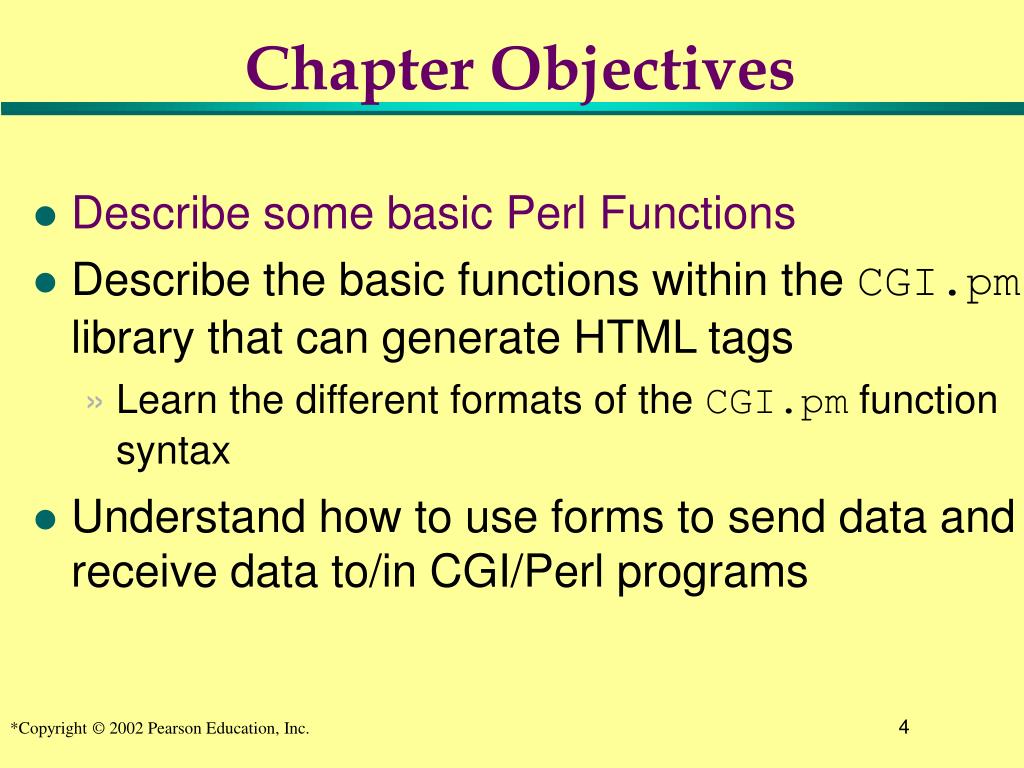

  3. Chapter Objectives • Describe some basic Perl Functions • Describe the basic functions within the CGI.pm library that can generate HTML tags • Learn the different formats of the CGI.pm function syntax • Understand how to use forms to send data and receive data to/in CGI/Perl programs

  4. Will Cover 3 Sets of Functions • Will discuss several functions • Some basic Perl functions—the square root, absolute value, string, and random number generation functions. • The print function—more details about the capabilities of the print function. • The param function—use of this function to receive input into your programs.

  5. Using Perl Functions • Perl includes built-in functions that provide powerful additional capabilities to enhance your programs. • Work much like operators, except that most (but not all) accept one or more arguments (I.e., input values into functions).

  6. Will Cover 3 Sets of Functions • Will discuss several functions • Some basic Perl functions—the square root, absolute value, string functions, and random number generation functions • The print function—more details about the capabilities of the print function. • The param function—use of this function to receive input into your programs.

  7. Some Basic Perl Functions • Here are a few functions within Perl • sqrt() –a single numerical argument as input & returns the square root of the argument passed in.For example, $x=25; $y=sqrt($x); print “x=$x y=$y and finally ”, sqrt(144); would output the following: x=25 y=5 and finally 12

  8. Some Basic Perl Functions - abs() • Absolute Value - • abs() – accepts a single numerical argument & returns the absolute value of this argument. For example, $x=-5; $y=42; print abs($x), “ “, abs($y); • would output the following output: 5 42 • The extra space in the print line (“ ”) provides a space between the output values.

  9. Some Basic Perl Functions -rand() • rand() – generates arandom number from 0 to the number passed into it. • Example use: simulating a roll of a die or displaying a random image in a document. • When int() is used with rand(), it forces rand() to return whole numbers instead of its default fractional numbers. • For example, $numb = int( rand(3) ); • returns a random number that is either a 0, 1, or 2.

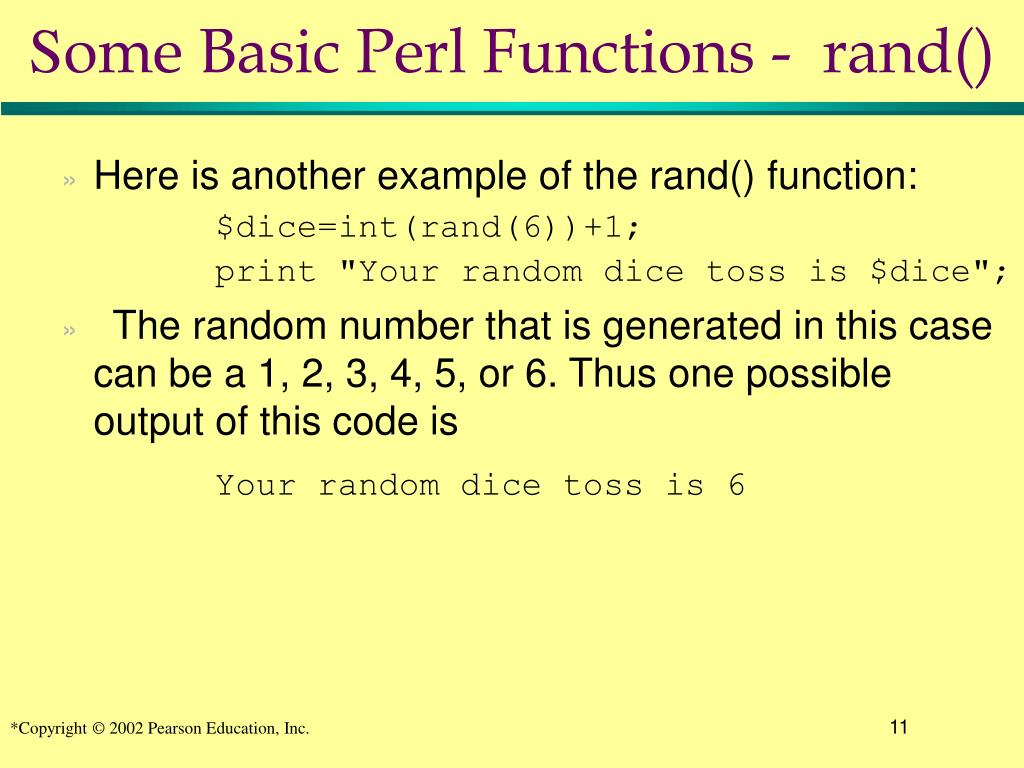

  10. Some Basic Perl Functions - rand() • Here is another example of the rand() function: $dice=int(rand(6))+1; print "Your random dice toss is $dice"; • The random number that is generated in this case can be a 1, 2, 3, 4, 5, or 6. Thus one possible output of this code is Your random dice toss is 6

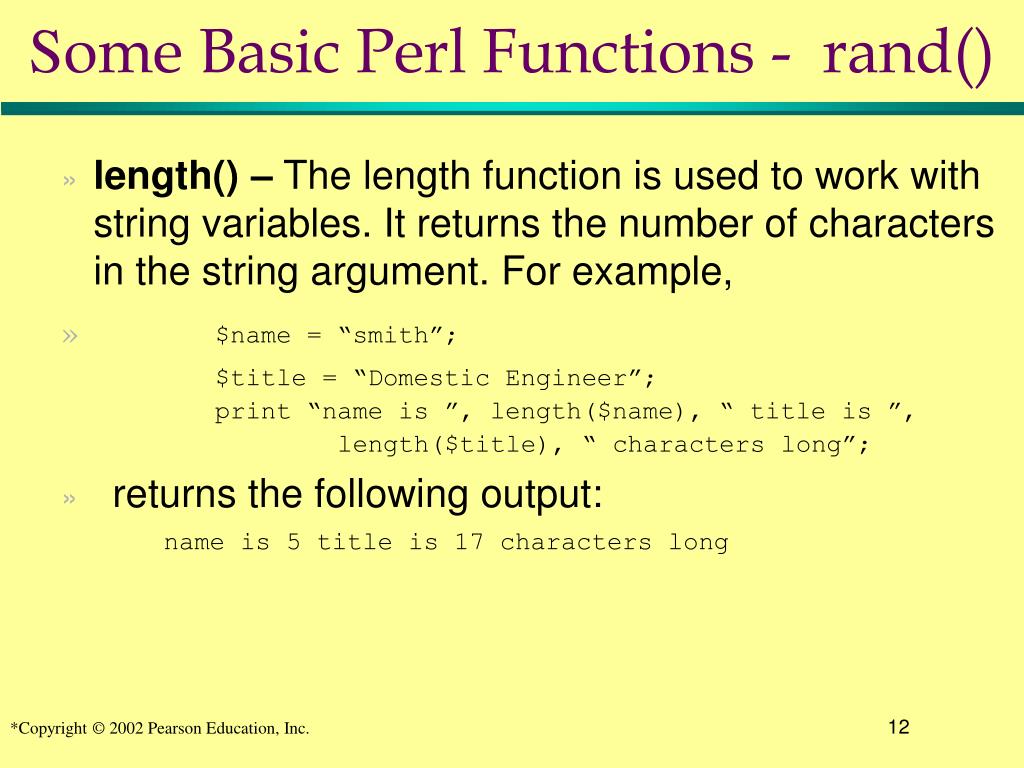

  11. Some Basic Perl Functions - rand() • length() – The length function is used to work with string variables. It returns the number of characters in the string argument. For example, • $name = “smith”; $title = “Domestic Engineer”; print “name is ”, length($name), “ title is ”, length($title), “ characters long”; • returns the following output: name is 5 title is 17 characters long

  12. Some Basic Perl Functions - rand() • localtime() – The localtime function is typically used with the time() function to determine the current date and time while your program is executing. • time returns the number of seconds since January 1, 1970. • When time() is used as an argument to the localtime() function, the output will be a set of scalar variables that provide the current date and time information. • For example,

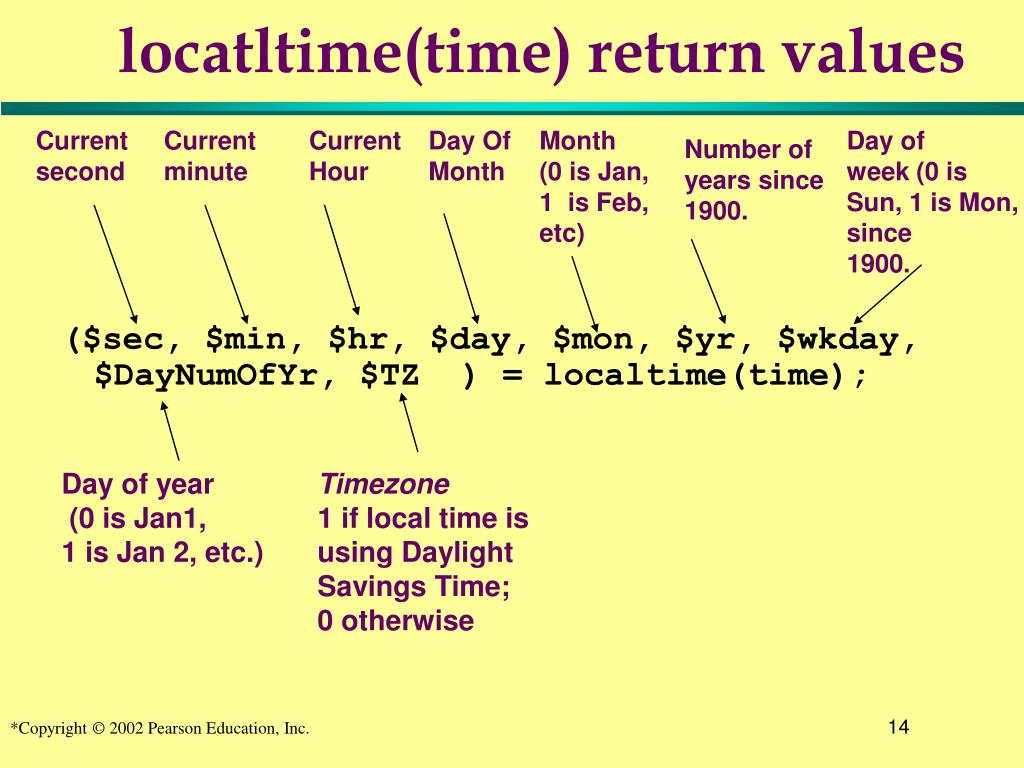

  13. locatltime(time) return values ($sec, $min, $hr, $day, $mon, $yr, $wkday, $DayNumOfYr, $TZ ) = localtime(time); Current second Current minute Current Hour Day Of Month Month (0 is Jan, 1 is Feb, etc) Day of week (0 is Sun, 1 is Mon, since 1900. Number of years since 1900. Day of year (0 is Jan1, 1 is Jan 2, etc.) Timezone 1 if local time is using Daylight Savings Time; 0 otherwise

  14. Using localtime(time) ($sec, $min, $hr, $day, $mon, $yr, $wkday, $DayNumOfYr, $TZ ) = localtime(time); print "Time is $hr:$min:$sec Date=$mon/$day/$yr ";\ print "Wkday=$wkday DayNumbOfYear=$DayNumOfYr $TZ=$TZ”; Would produce the following example output: • Time is 21:12:58 Date=7/15/101 Wkday=3 DayNumbOfYear=226 1=1

  15. More Common Localtime Use • The following code shows a common use of localtime() to get date information: ($sec, $min, $hr, $day, $mon, $yr, $wkday, $DayNumOfYr, $TZ ) = localtime(time); $yr=$yr+1900; $mon = $mon + 1; print "Time is $hr:$min:$sec Date=$mon/$day/$yr "; print "Wkday=$wkday DayNumbOfYear=$DayNumOfYr $TZ=$TZ"; The output would look like the following: Time is 21:29:58 Date=8/15/2001 Wkday=3 DayNumbOfYear=226 1=1

  16. Will Cover 3 Sets of Functions • Will discuss several functions • Some basic Perl functions—the square root, absolute value, string, and random number generation functions. • The print function—more details about the capabilities of the print function. • The param function—use of this function to receive input into your programs.

  17. The print Function • You can enclose output in parentheses or not. • When use double quotation marks, Perl outputs the value of any variables. For example, $x = 10; print ("Mom, please send $x dollars"); • Output the following message: Mom, please send 10 dollars

  18. More On print() • If want to output the actual variable name (and not its value), then use single quotation marks. $x = 10; print ( 'Mom, please send $x dollars'); • Would output the following message: Mom, please send $x dollars

  19. Still More On print() • Can also comma separate several arguments to print(). For example, $x=5; print ('Send $bucks', " need $x. No make that ", 5*$x); This print statement request would output the following message: Send $bucks need 5. No make that 25

  20. Generating HTML with print() • Can use single quotes when output some HTML tags: print ‘<FONT COLOR=”BLUE”>’; • Can use backslash (“\”) to signal that double quotation marks themselves should be output: $color=”BLUE”; print “<FONT COLOR=\”$color\”>”;

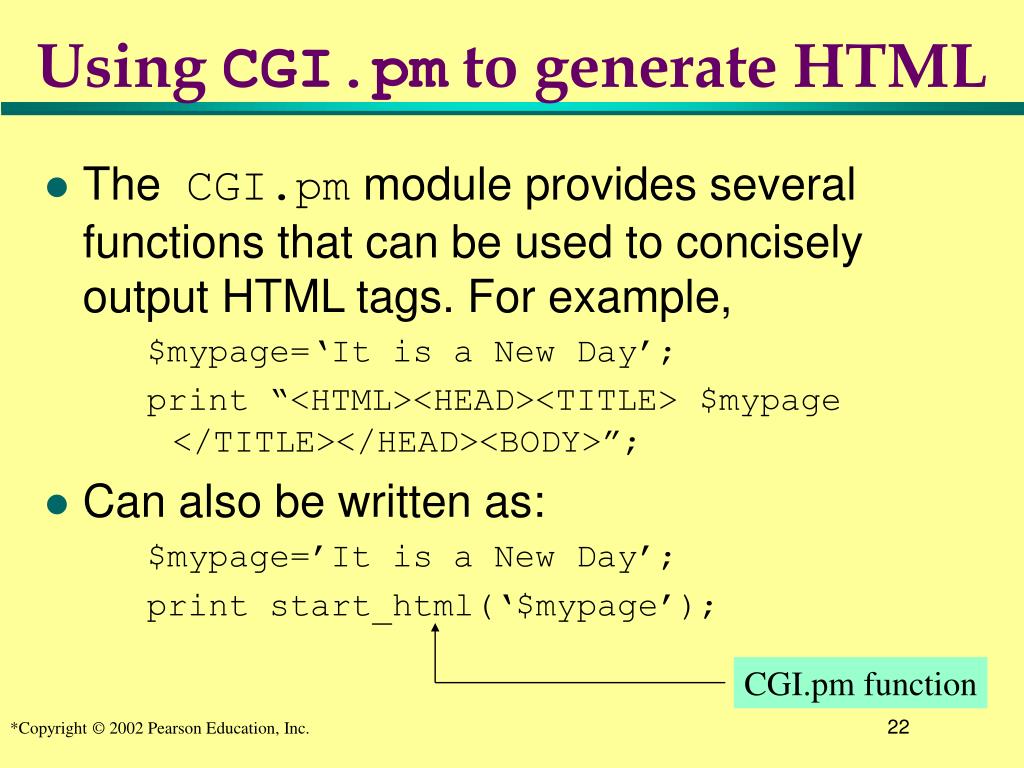

  21. Using CGI.pm to generate HTML • The CGI.pm module provides several functions that can be used to concisely output HTML tags. For example, $mypage=‘It is a New Day’; print “<HTML><HEAD><TITLE> $mypage </TITLE></HEAD><BODY>”; • Can also be written as: $mypage=’It is a New Day’; print start_html(‘$mypage’); CGI.pm function

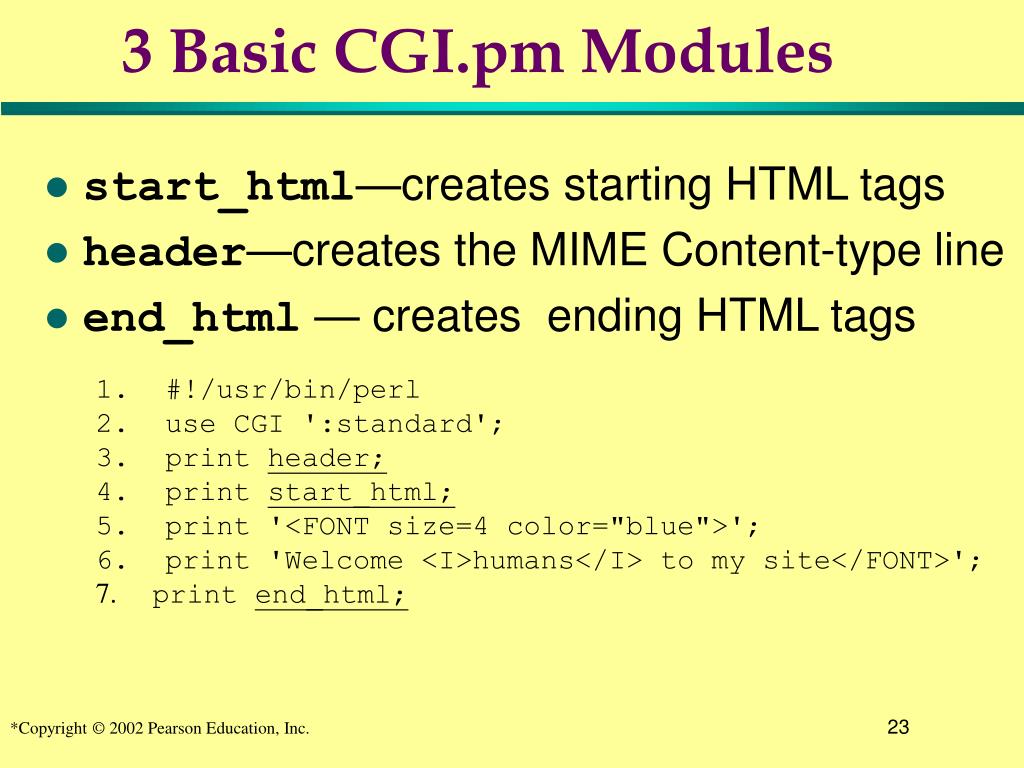

  22. 3 Basic CGI.pm Modules • start_html—creates starting HTML tags • header—creates the MIME Content-type line • end_html — creates ending HTML tags 1.#!/usr/bin/perl 2.use CGI ':standard'; 3.print header; 4.print start_html; 5.print '<FONT size=4 color="blue">'; 6.print 'Welcome <I>humans</I> to my site</FONT>'; 7. print end_html;

  23. Would output the following …

  24. Chapter Objectives • Describe some basic Perl Functions • Describe the basic functions within the CGI.pm library that can generate HTML tags • Learn the different formats of the CGI.pm function syntax • Understand how to use forms to send data and receive data to/in CGI/Perl programs

  25. CGI.pm Basic Functions The various CGI/PM function accept 3 basic syntactic formats: • No argument format—functions that can be used without any arguments • Positional argument format—functions that can accept comma-separated arguments within parentheses • Name-value argument format—functions that accept parameters submitted as name-and-value pairs

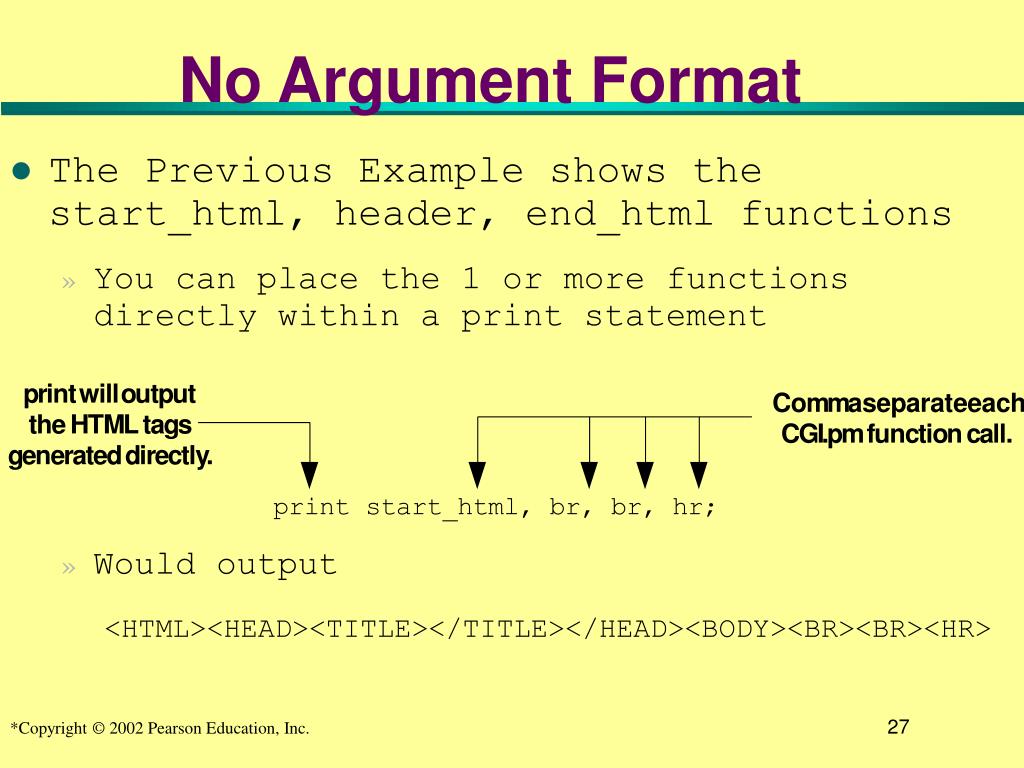

  26. No Argument Format • The Previous Example shows the start_html, header, end_html functions • You can place the 1 or more functions directly within a print statement • Would output <HTML><HEAD><TITLE></TITLE></HEAD><BODY><BR><BR><HR>

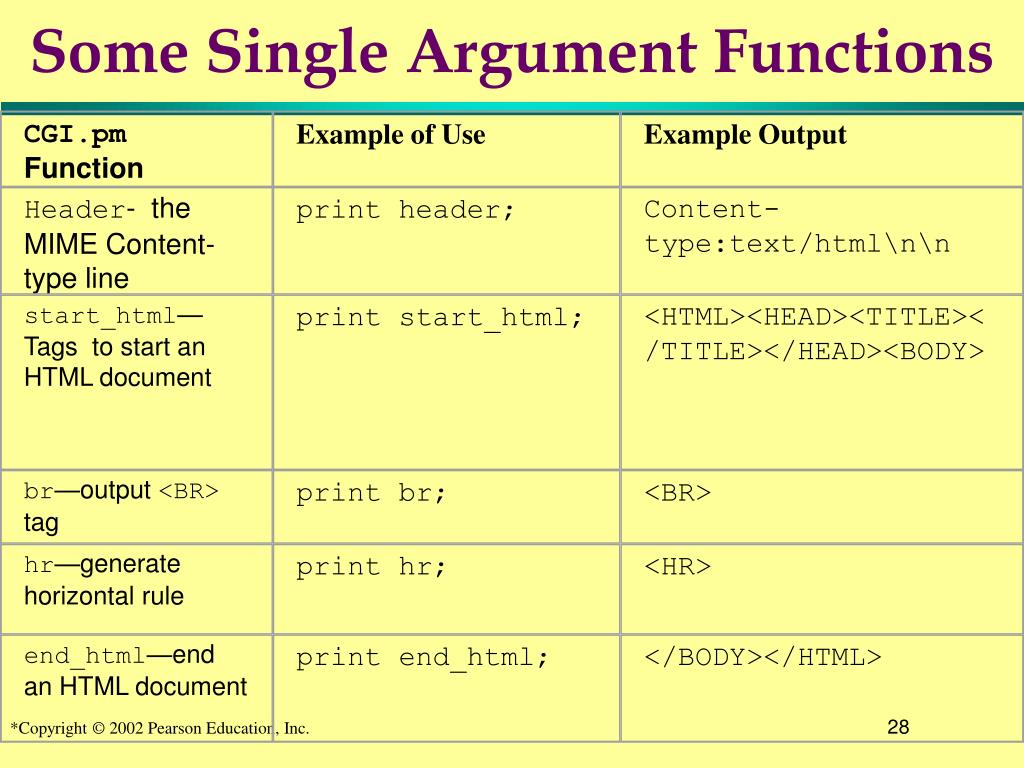

  27. CGI.pm Function Example of Use Example Output Header- the MIME Content-type line print header; Content-type:text/html\n\n start_html—Tags to start an HTML document print start_html; <HTML><HEAD><TITLE></TITLE></HEAD><BODY> br—output <BR> tag print br; <BR> hr—generate horizontal rule print hr; <HR> end_html—end an HTML document print end_html; </BODY></HTML> Some Single Argument Functions

  28. Positional Argument Format • Specify multiple arguments based on the position of the argument • For example

  29. CGI.pmFunctions Example of Use Example Output start_html()—tags needed to start an HTML document. start_html(‘My Page’); <HTML><HEAD><TITLE> My Page </TITLE></HEAD><BODY> h1()—header level 1 tags. (also h2(), h3(), and h4() ) print h1(‘Hello There’); <H1>Hello There </H1> strong() – output argument in strong. print strong('Now'); <STRONG>Now</STRONG> p()—creates a paragraph. print p(‘Time to move’); <P>Time to move </P> b()—prints the argument in bold. print b('Exit'); <B>Exit</B> i()—prints the argument in italics. print i('Quickly'); <I>Quickly</I> Some Positional Functions

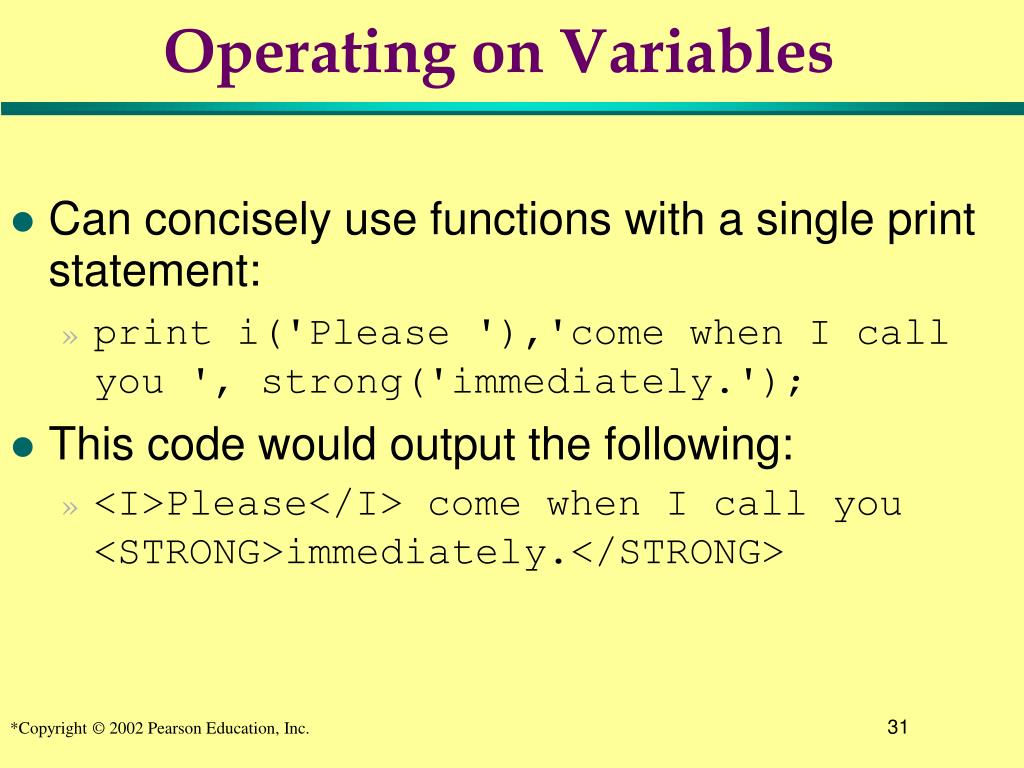

  30. Operating on Variables • Can concisely use functions with a single print statement: • print i('Please '),'come when I call you ', strong('immediately.'); • This code would output the following: • <I>Please</I> come when I call you <STRONG>immediately.</STRONG>

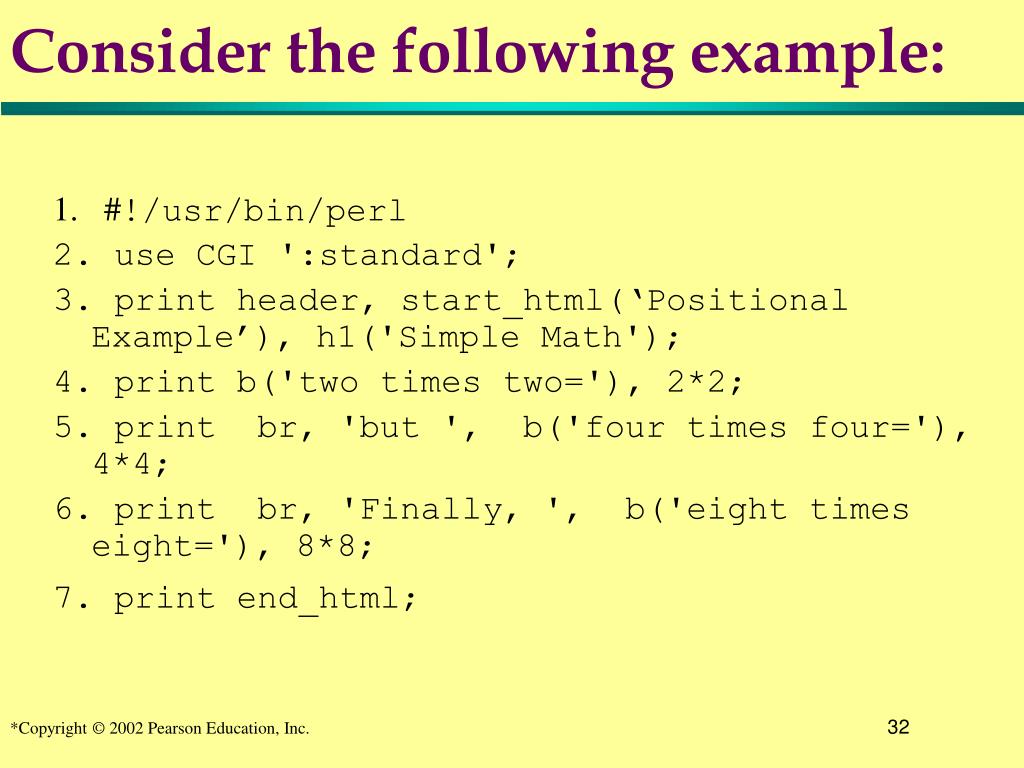

  31. Consider the following example: 1. #!/usr/bin/perl 2. use CGI ':standard'; 3. print header, start_html(‘Positional Example’), h1('Simple Math'); 4. print b('two times two='), 2*2; 5. print br, 'but ', b('four times four='), 4*4; 6. print br, 'Finally, ', b('eight times eight='), 8*8; 7. print end_html;

  32. Would output The following 1. #!/usr/bin/perl 2. use CGI ':standard'; 3. print header, start_html(‘Positional Example’), h1('Simple Math'); 4. print b('two times two='), 2*2; 5. print br, 'but ', b('four times four='), 4*4; 6. print br, 'Finally, ', b('eight times eight='), 8*8; 7. print end_html;

  33. Name-Value Argument Format • Can specify names and values as follows: • Would output the following: <HTML><TITLE>My Title</TITLE></HEAD><BODY BGCOLOR=”yellow”>

  34. CGI.pmFunction Example Usage Example Output start_html start HTML document print start_html({ -title=>‘my title’, –bgcolor=>’red’ }); <HTML><HEAD><TITLE>my title</TITLE></HEAD> <BODY BGCOLOR=”RED”> img—inserts an image print img({-src=>'myfile.gif', -alt=>’picture’}); <IMG SRC="myfile.gif” alt=”picture”> a—establishes links print a( { -href=>'http://www.mysite.com'}, 'Click Here'); <A HREF="http://www.mysite.com"> Click Here </A> font()— creates <FONT> … </FONT> tags print font( { -color=>‘BLUE’, –size=>’4’}, ‘Lean, and mean.’); <FONT SIZE=”4” COLOR=”BLUE”> Lean, and mean. </FONT> Some name/value functions

  35. Example Name/Value Program 1.#!/usr/bin/perl 2.use CGI ':standard'; 3.print header; 4.print start_html({-title=>'New Day ', -bgcolor=>'yellow'}); 5.print 'Welcome One And ', i('All'); 6. print end_html; Set background color and title

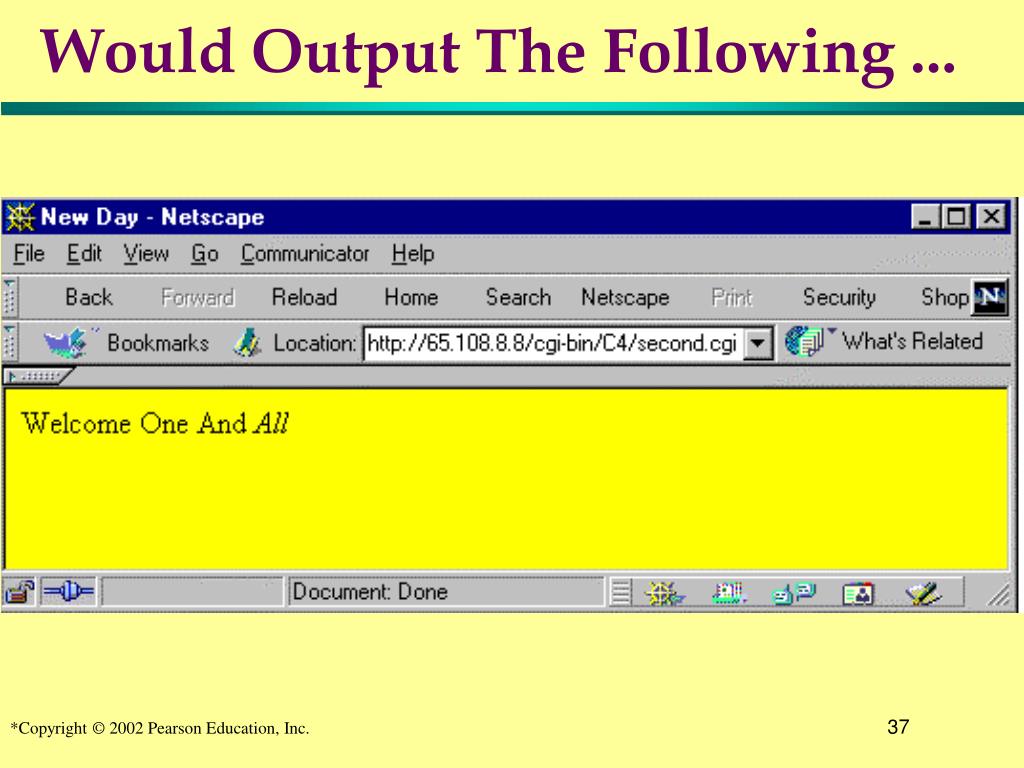

  36. Would Output The Following ...

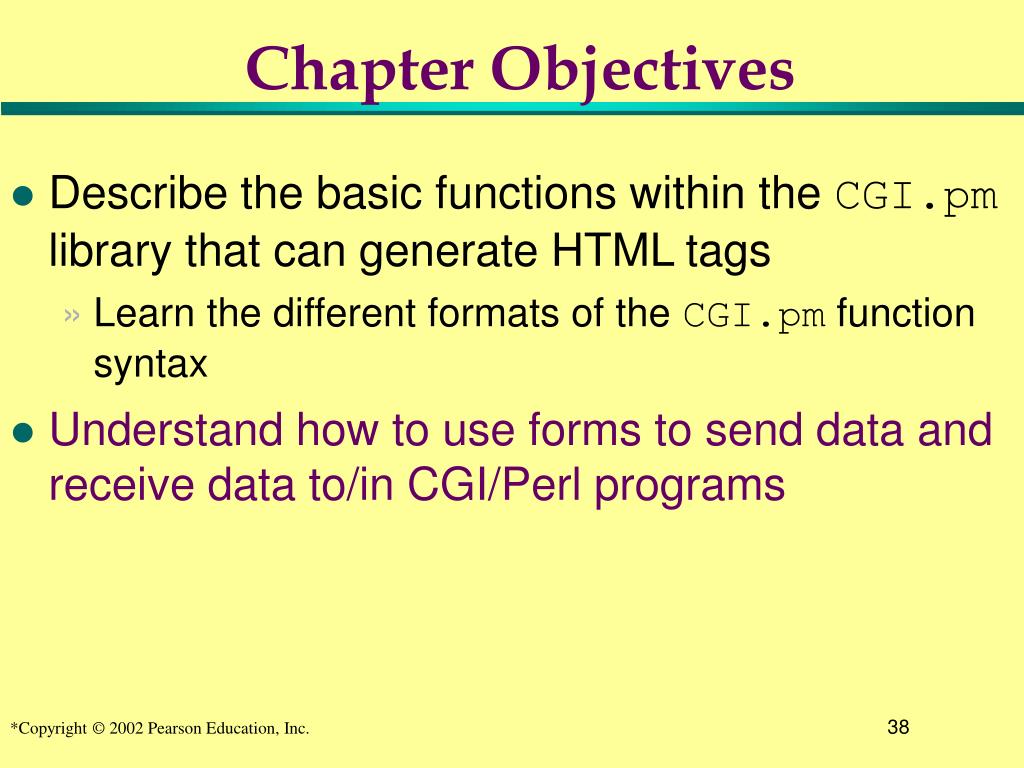

  37. Chapter Objectives • Describe the basic functions within the CGI.pm library that can generate HTML tags • Learn the different formats of the CGI.pm function syntax • Understand how to use forms to send data and receive data to/in CGI/Perl programs

  38. Input Data from HTML Forms • A common method to start CGI/Perl programs and pass them arguments. • Use form elements such as: • text areas, • check boxes, • selection lists, and • radio buttons • There are CGI.pm functions for each of these will describe the long-hand (not using CGI.pm)

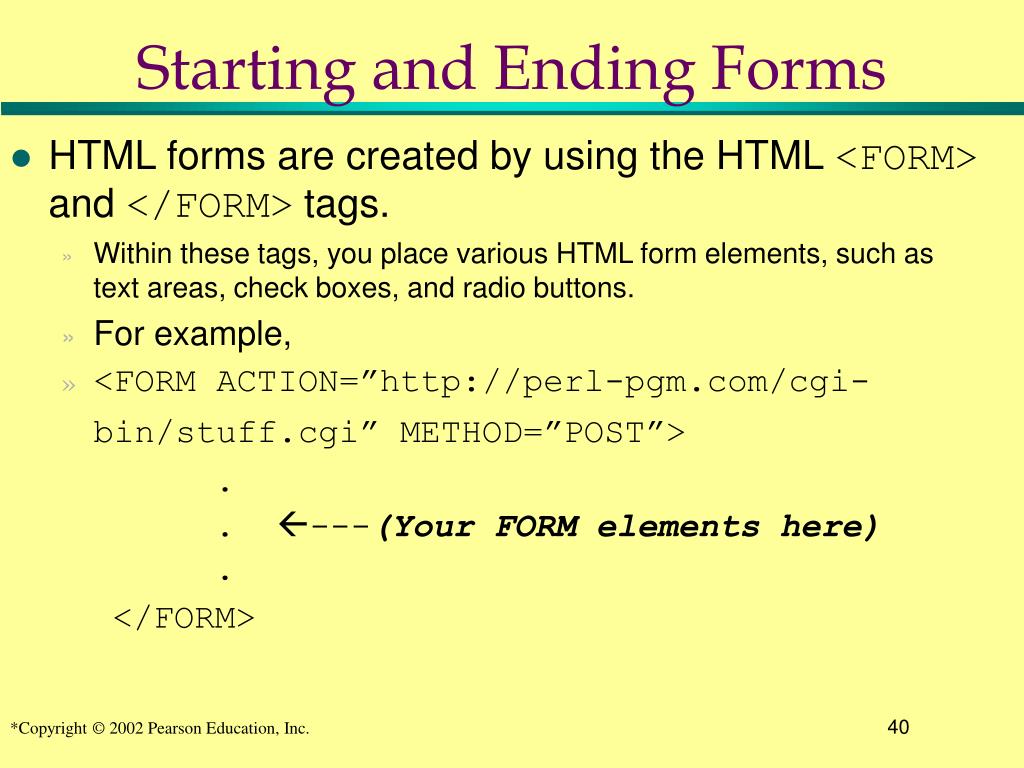

  39. Starting and Ending Forms • HTML forms are created by using the HTML <FORM> and </FORM> tags. • Within these tags, you place various HTML form elements, such as text areas, check boxes, and radio buttons. • For example, • <FORM ACTION=”http://perl-pgm.com/cgi-bin/stuff.cgi” METHOD=”POST”> . . ß---(Your FORM elements here) . </FORM>

  40. Two primary <FORM> arguments • <FORM ACTION=”http://perl-pgm.com/cgi-bin/stuff.cgi” METHOD=”POST”> • get appends the form arguments to the end of the Web address. • post sends the data as part of the body of the HTML document. • Will use post since get method may limit the amount of data you can send. ACTION= - Specifies the URL of the CGI program to start when the form is submitted METHOD= - Defines the argument format that will be used to send data to the CGI/Perl program.

  41. Output Form Tags From Perl Example #!/usr/bin/perl use CGI ':standard'; print header, start_html(‘Sample Form’); print ‘<FORM ACTION=” http://perl-pgm.com/cgi-bin/stuff.cgi” METHOD=”POST”>’; . . ß---- (Perl statements that output FORM . elements go here) print ‘</FORM>’;

  42. Form Submit/Reset Buttons • 2 types of buttons: Submit form or erases input. • On submit, data is sent to the location specified in the ACTION= argument of the <FORM> tag. • HTML for submit/reset <INPUT TYPE=”SUBMIT” VALUE=”Click To Submit”> <INPUT TYPE=”RESET” VALUE=”Clear and Restart”> • Output from Perl program as follows: print ‘<INPUT TYPE=”SUBMIT” VALUE=”Click To Submit”>’; print ‘<INPUT TYPE=”RESET” VALUE=”Clear and Restart”>’; Label on button Type of button

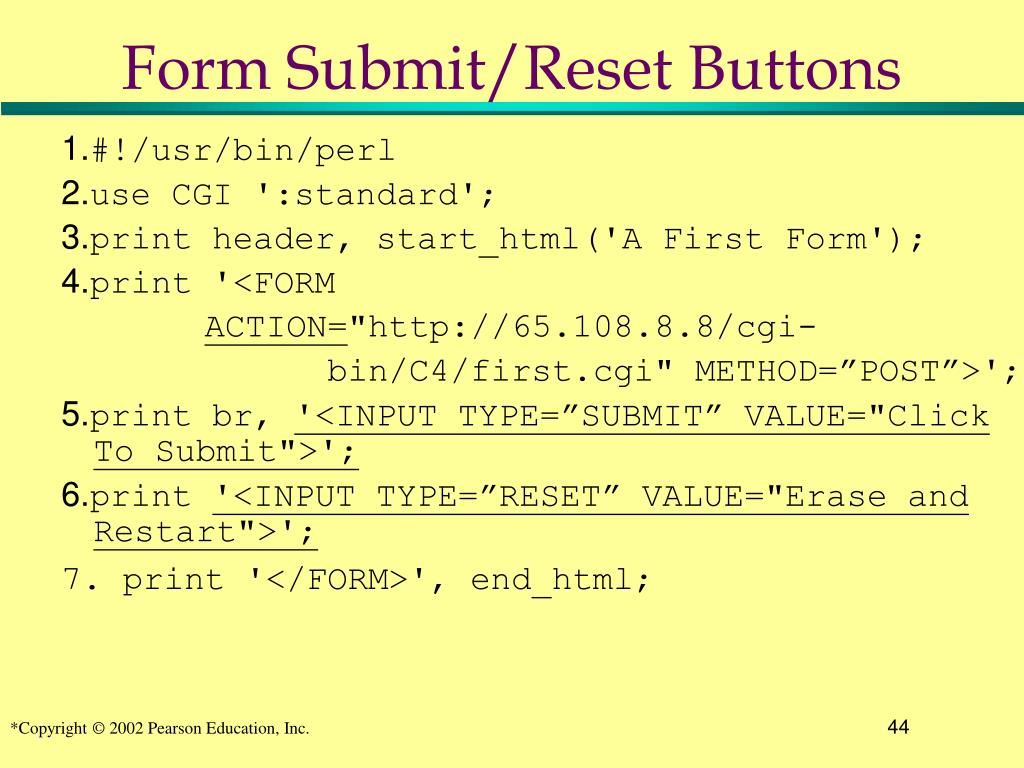

  43. Form Submit/Reset Buttons 1.#!/usr/bin/perl 2.use CGI ':standard'; 3.print header, start_html('A First Form'); 4.print '<FORM ACTION="http://65.108.8.8/cgi- bin/C4/first.cgi" METHOD=”POST”>'; 5.print br, '<INPUT TYPE=”SUBMIT” VALUE="Click To Submit">'; 6.print '<INPUT TYPE=”RESET” VALUE="Erase and Restart">'; 7. print '</FORM>', end_html;

  44. Would output the following ...

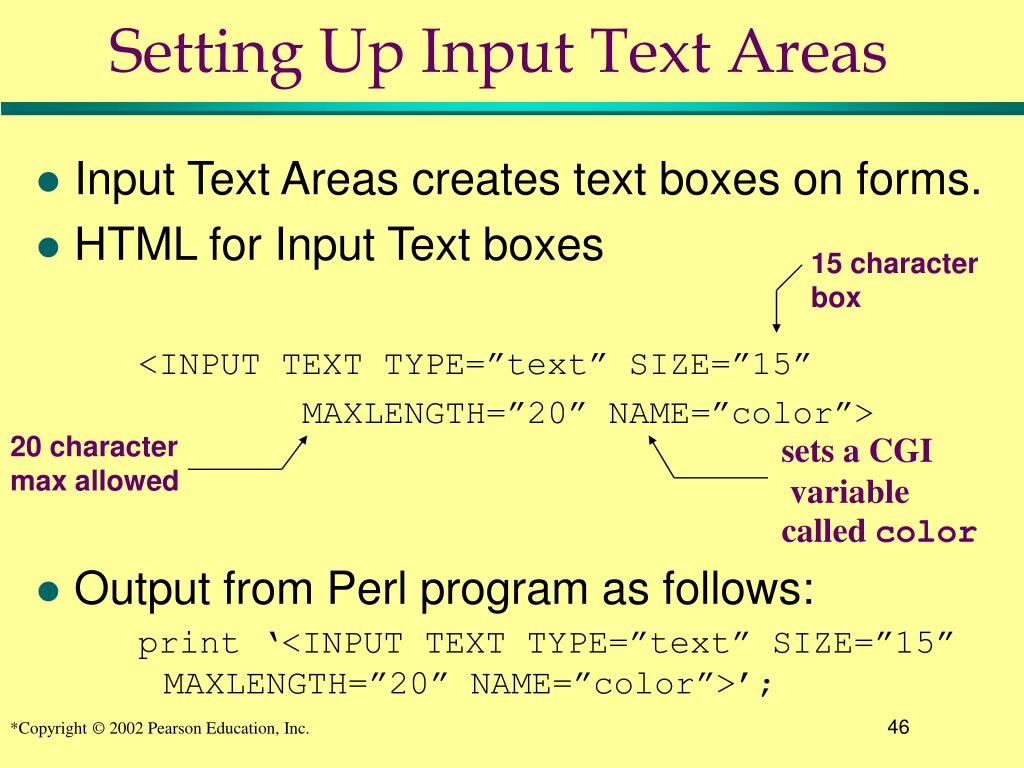

  45. Setting Up Input Text Areas • Input Text Areas creates text boxes on forms. • HTML for Input Text boxes <INPUT TEXT TYPE=”text” SIZE=”15” MAXLENGTH=”20” NAME=”color”> • Output from Perl program as follows: print ‘<INPUT TEXT TYPE=”text” SIZE=”15” MAXLENGTH=”20” NAME=”color”>’; 15 character box 20 character max allowed sets a CGI variable called color

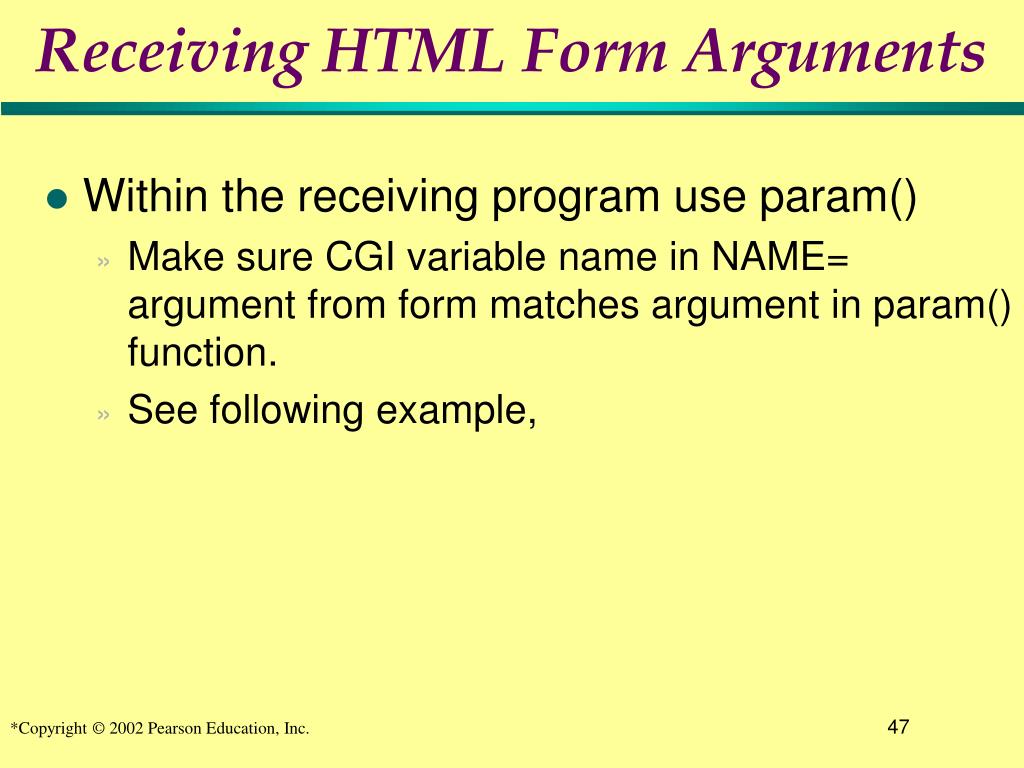

  46. Receiving HTML Form Arguments • Within the receiving program use param() • Make sure CGI variable name in NAME= argument from form matches argument in param() function. • See following example,

  47. Receiving HTML Form Arguments

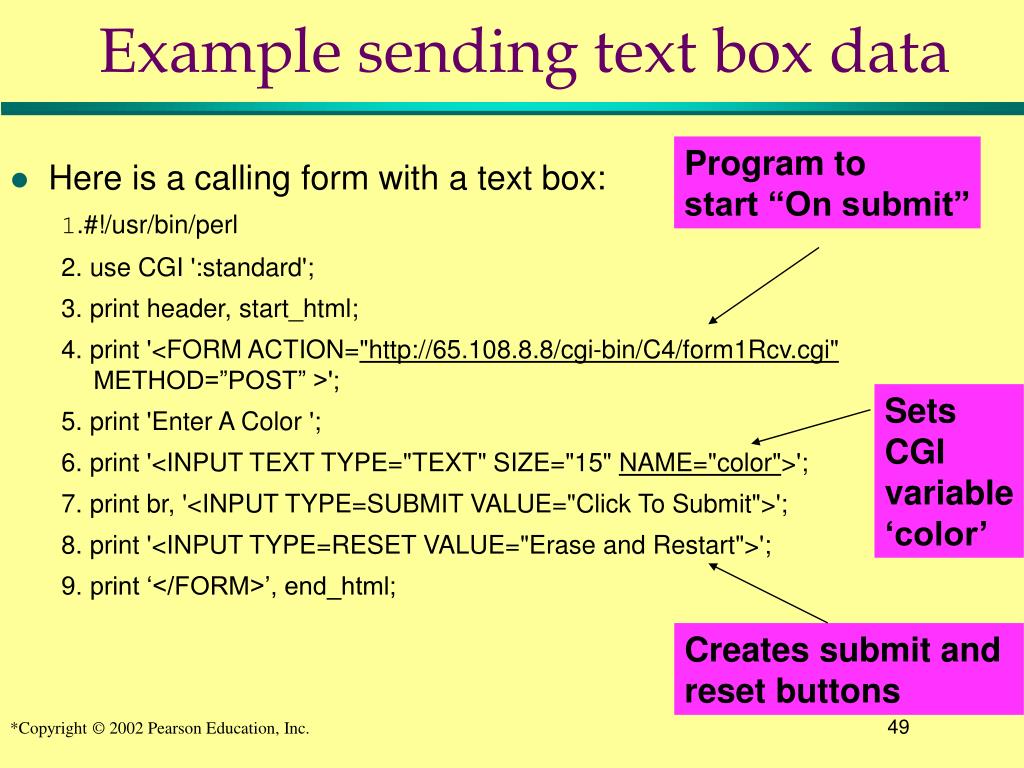

  48. Example sending text box data • Here is a calling form with a text box: 1.#!/usr/bin/perl 2. use CGI ':standard'; 3. print header, start_html; 4. print '<FORM ACTION="http://65.108.8.8/cgi-bin/C4/form1Rcv.cgi" METHOD=”POST” >'; 5. print 'Enter A Color '; 6. print '<INPUT TEXT TYPE="TEXT" SIZE="15" NAME="color">'; 7. print br, '<INPUT TYPE=SUBMIT VALUE="Click To Submit">'; 8. print '<INPUT TYPE=RESET VALUE="Erase and Restart">'; 9. print ‘</FORM>’, end_html; Program to start “On submit” Sets CGI variable ‘color’ Creates submit and reset buttons

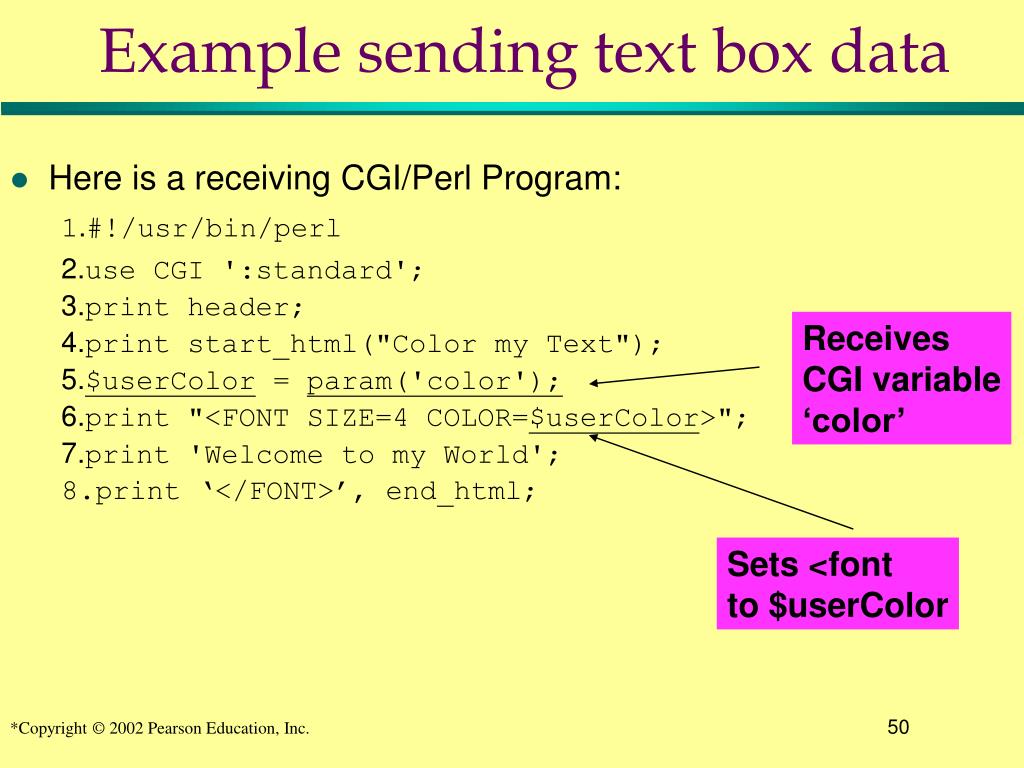

  49. Example sending text box data • Here is a receiving CGI/Perl Program: 1.#!/usr/bin/perl 2.use CGI ':standard'; 3.print header; 4.print start_html("Color my Text"); 5.$userColor = param('color'); 6.print "<FONT SIZE=4 COLOR=$userColor>"; 7.print 'Welcome to my World'; 8.print ‘</FONT>’, end_html; Receives CGI variable ‘color’ Sets <font to $userColor
