Matter and Particles of Light: Quantum Theory

Matter and Particles of Light: Quantum Theory. Light (energy) and matter in motion behave both as waves and particles Wave-Particle Duality - Quantum Theory Particles of light are called photons: E = hf = hc/ l

sbarr
Download Presentation

Matter and Particles of Light: Quantum Theory

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

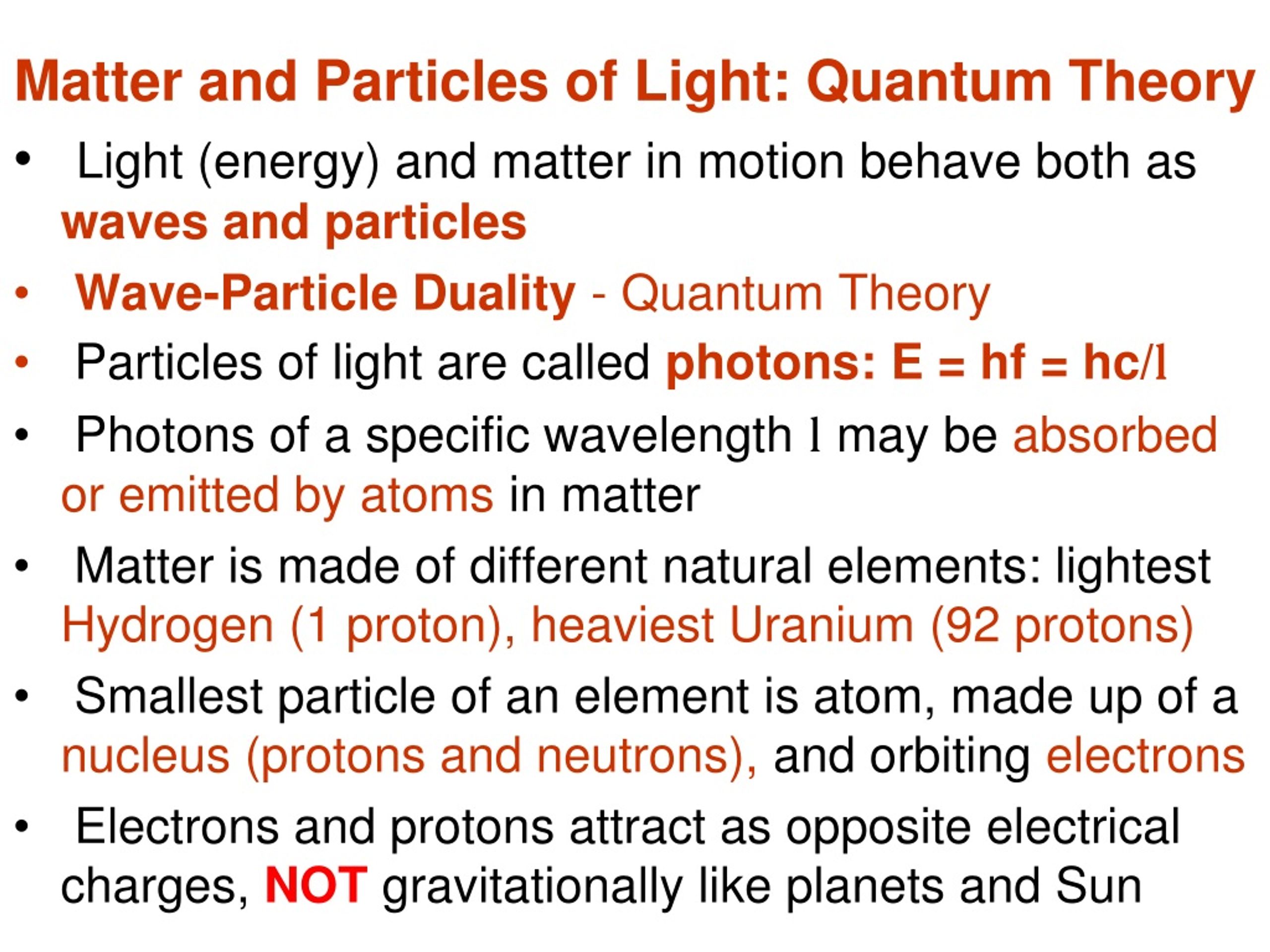

  1. Matter and Particles of Light: Quantum Theory • Light (energy) and matter in motion behave both aswaves and particles • Wave-Particle Duality - Quantum Theory • Particles of light are calledphotons: E = hf = hc/l • Photons of a specific wavelength l may be absorbed or emitted by atoms in matter • Matter is made of different natural elements: lightest Hydrogen (1 proton), heaviest Uranium (92 protons) • Smallest particle of an element is atom, made up of a nucleus (protons and neutrons), and orbiting electrons • Electrons and protons attract as opposite electrical charges, NOT gravitationally like planets and Sun

  2. The simplest atom: Ordinary Hydrogen Resemblance to planets orbiting the Sun is superficial ! Electrons also move both as particles and waves p – positively charged e – negatively “ One proton in the center (nucleus) and one electron in orbits of definite energy; Ordinary H has no neutrons, but ‘heavy hydrogen’ has one neutron in the nucleus

  3. Absorption and emission of photons by H-atom An electron may absorb or emit light photons at specific wavelength Wavelength (n = 3  n = 2): 6562 Angstroms (RED Color) Energy of the photon must be exactly equal to the energy difference between the two ‘orbits’

  4. file:///E:/Univ7e/content/ch05/0503002.html

  5. Continuum n= n=1 (Ground State) n=3 (2nd excited state) n=2 (1st excited state) n=4 n=5 Energy Level Diagram of 1H

  6. 26 25 24 n=23 n=6 n=1 (Ground State) n=3 (2nd excited state) n=2 (1st excited state) n=4 n=5 Photons of all other energies (wavelengths) are ignored and pass on by unabsorbed.

  7. 62 52 42 n=32 n=6 n=1 (Ground State) n=3 (2nd excited state) n=2 (1st excited state) n=4 n=5 Larger Jump = More Energy = Bluer Wavelength

  8. Energy, Frequency, Wavelength • Light particles ‘photons’ have a unique wavelength • The more ‘energetic’ a wave, the higher its frequency, or lower its wavelength • Planck’s Law: Photon energy (‘quantum’) is E = h f = h / l • ‘h’ is the Planck’s constant • This ‘quantum’ of energy must be equal to the difference in energies between two electron orbits, for either absorption or emission by an atom

  9. Mercury Spectrum of a Fluorescent Light

  10. Characteristic spectra of elements Each element has a unique set of spectral lines, thus enabling its identification in the source. Observations of spectra of different elements in a source (planet, star, galaxy etc.) yields its chemical composition

  11. Continuous, Absorption, and Emission spectra of a source Continuous spectrum covers wavelengths in a given range; absorption or emission spectrum consists of dark or bright lines respectively at definite wavelengths
