Presentation Transcript
windows mobile today

Windows Mobile Today

David Goon

Consultant

Microsoft Limited

agenda
Agenda
  • Compact Framework 2.0 SP1
  • Windows Mobile 5.0
  • Windows Mobile 6
  • Summary

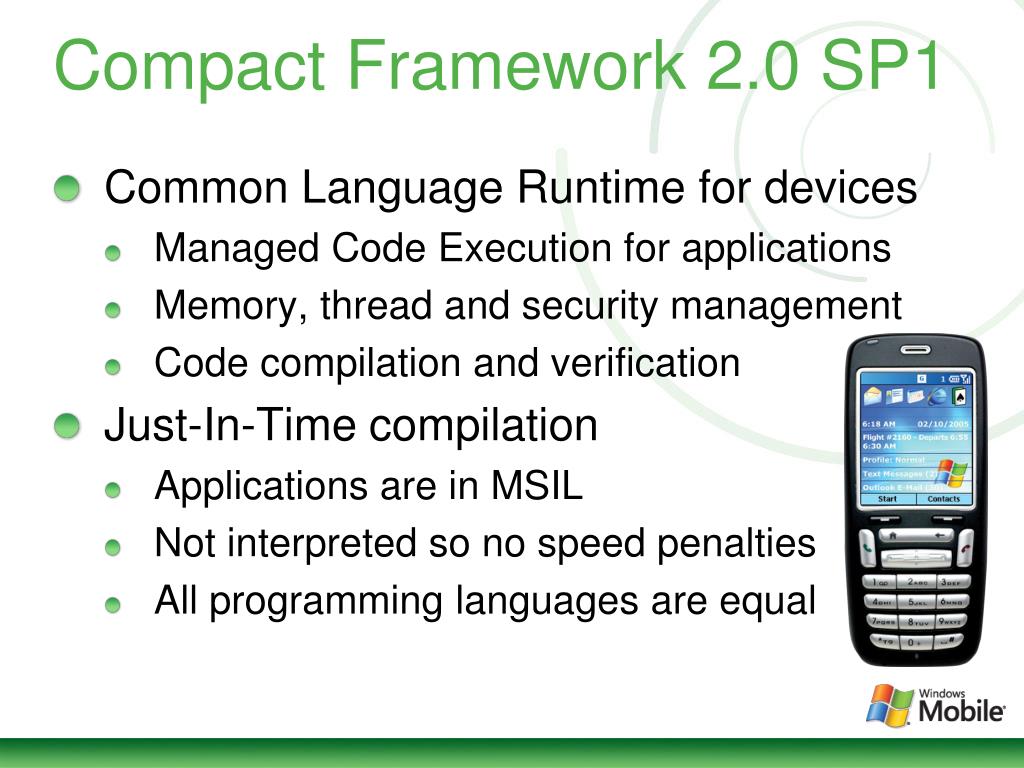

compact framework 2 0 sp1
Compact Framework 2.0 SP1
  • Common Language Runtime for devices
    • Managed Code Execution for applications
    • Memory, thread and security management
    • Code compilation and verification
  • Just-In-Time compilation
    • Applications are in MSIL
    • Not interpreted so no speed penalties
    • All programming languages are equal
framework for devices

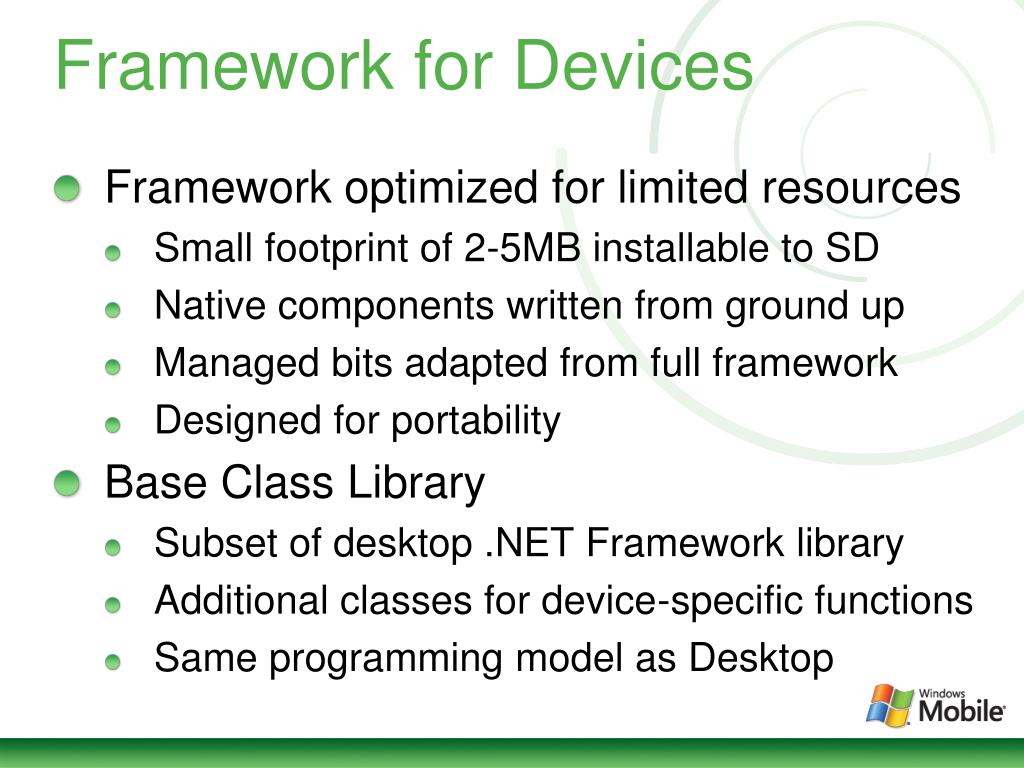

Framework for Devices
  • Framework optimized for limited resources
    • Small footprint of 2-5MB installable to SD
    • Native components written from ground up
    • Managed bits adapted from full framework
    • Designed for portability
  • Base Class Library
    • Subset of desktop .NET Framework library
    • Additional classes for device-specific functions
    • Same programming model as Desktop
technology examples
Technology Examples
  • Web Services
  • Database Access
  • XML Documents
  • Message Queuing
  • Serial Port Programming
  • Much, much more

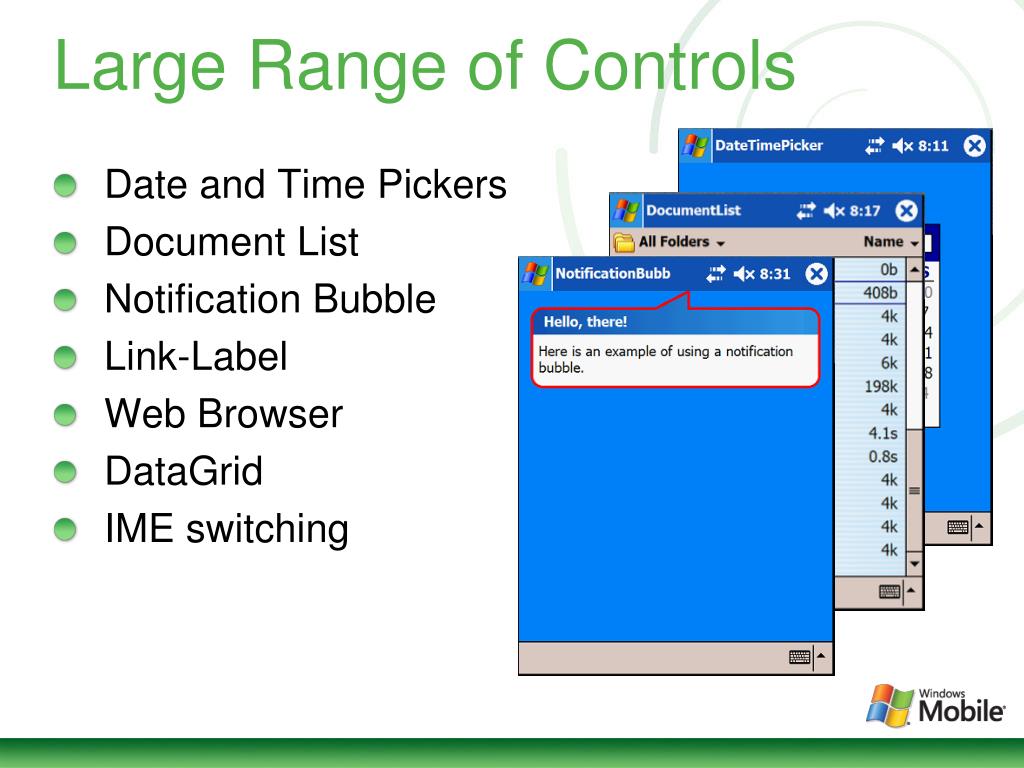

large range of controls
Large Range of Controls
  • Date and Time Pickers
  • Document List
  • Notification Bubble
  • Link-Label
  • Web Browser
  • DataGrid
  • IME switching

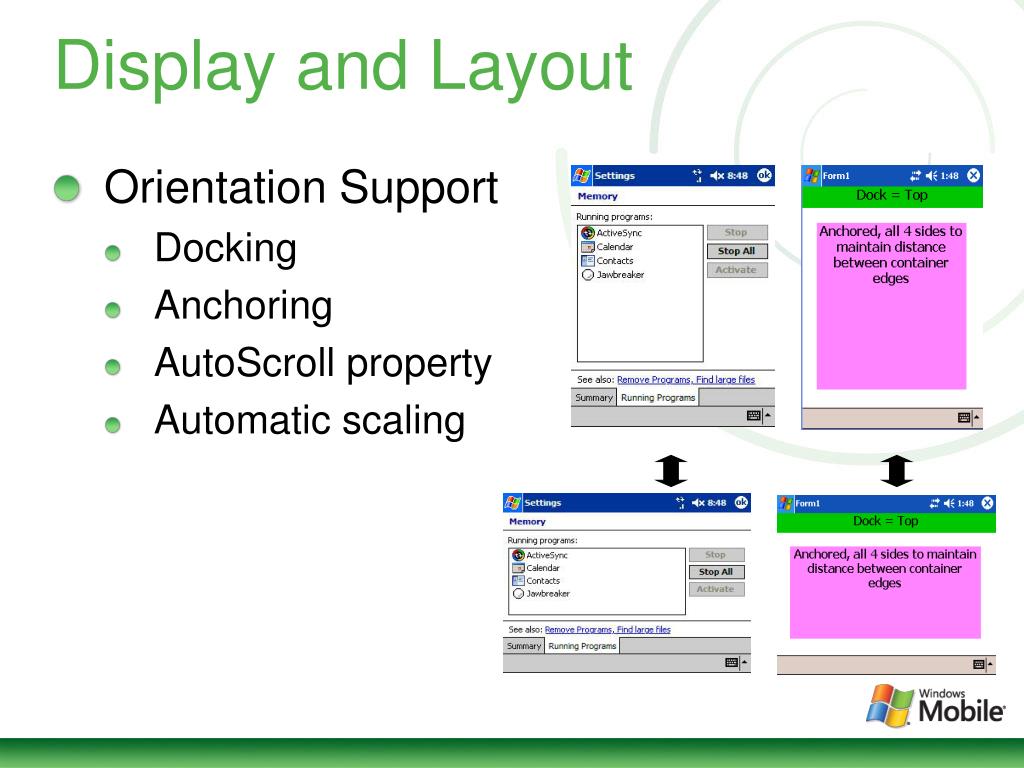

display and layout
Display and Layout
  • Orientation Support
    • Docking
    • Anchoring
    • AutoScroll property
    • Automatic scaling
direct 3d mobile
Direct 3D Mobile
  • Managed APIs DX9 inspired
security enhancements

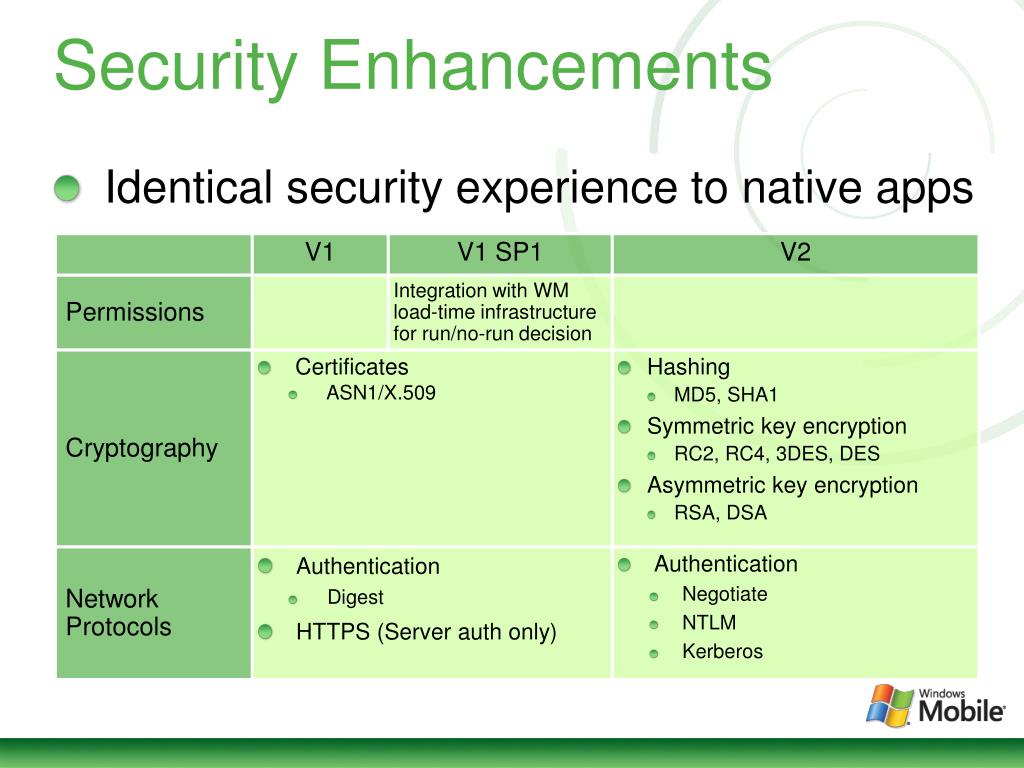

Security Enhancements
  • Identical security experience to native apps
native interop
Native Interop
  • Enhanced P/Invoke Type Marshalling
    • Additional types – arrays, strings, structures
    • Embedded arrays – structs with char[], array[]
    • MarshalAs – type hinting
  • Use COM objects in your managed code
    • Call from managed applications into COM
    • Callbacks from native to managed code
    • Support for late-bound and early-bound calls
performance
Performance

Biggeris better

Smalleris better

performance measurement
Performance Measurement
  • <My App>.stat
  • Enable through Device registry setting
    • HKLM\SOFTWARE\Microsoft\ .NETCompactFramework\ PerfMonitor
    • Counters (DWORD) = 1
  • Remote Performance Monitor
performance1

Performance

David Goon

Consultant

Microsoft Limited

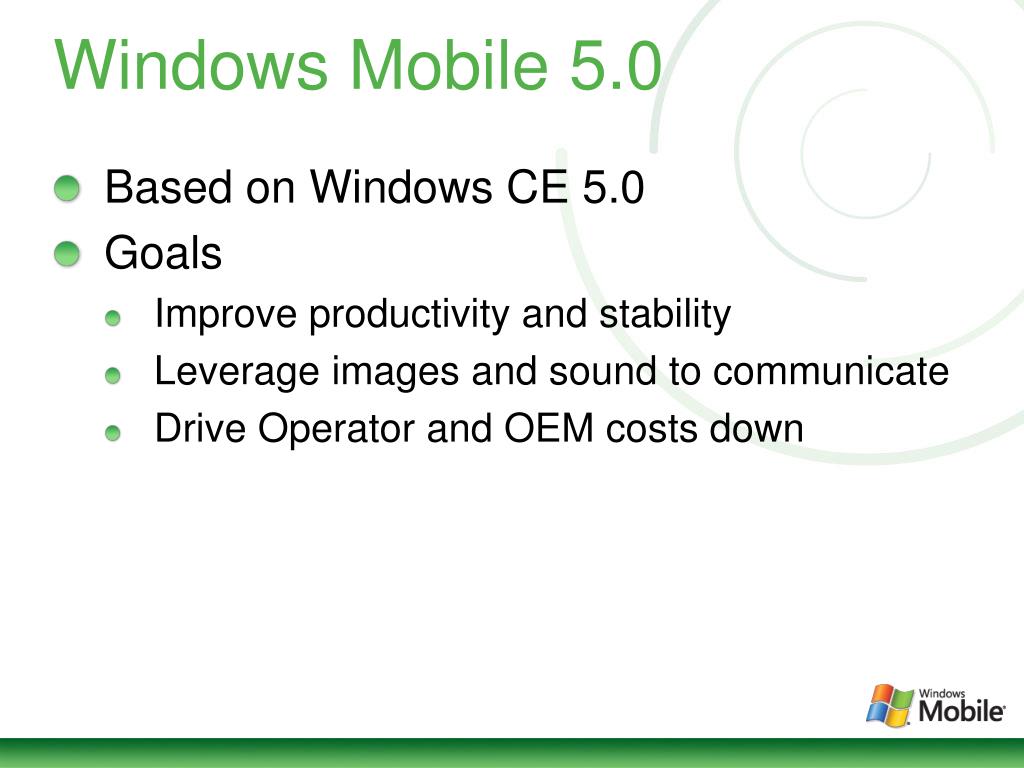

windows mobile 5 0
Windows Mobile 5.0
  • Based on Windows CE 5.0
  • Goals
    • Improve productivity and stability
    • Leverage images and sound to communicate
    • Drive Operator and OEM costs down

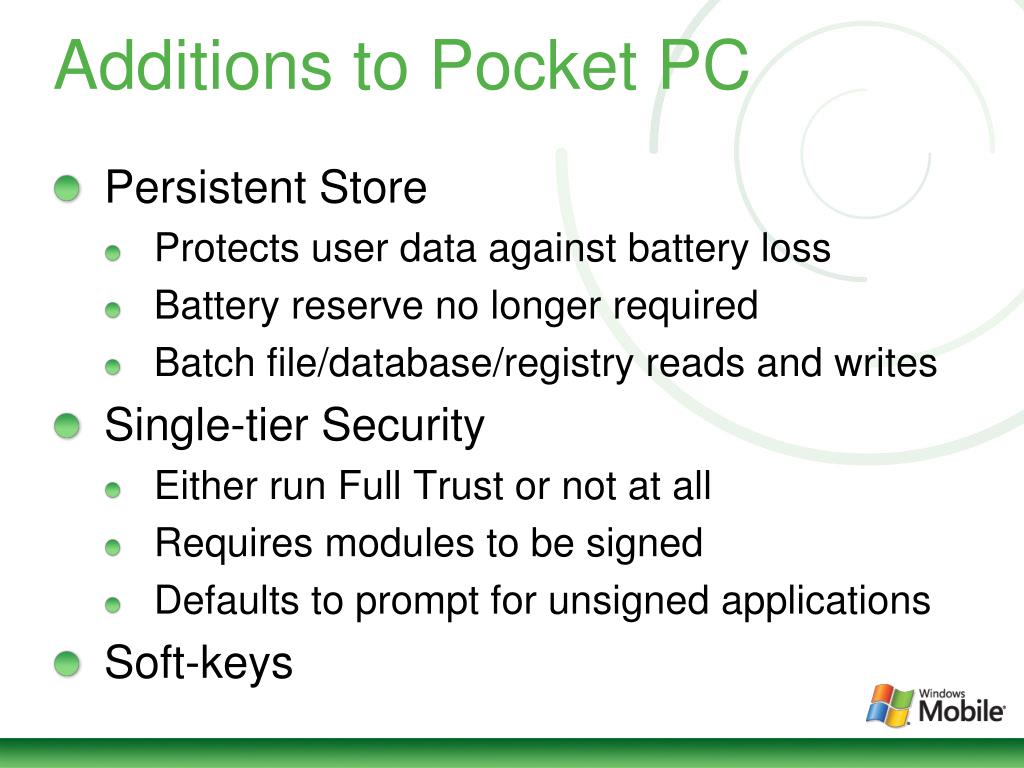

additions to pocket pc
Additions to Pocket PC
  • Persistent Store
    • Protects user data against battery loss
    • Battery reserve no longer required
    • Batch file/database/registry reads and writes

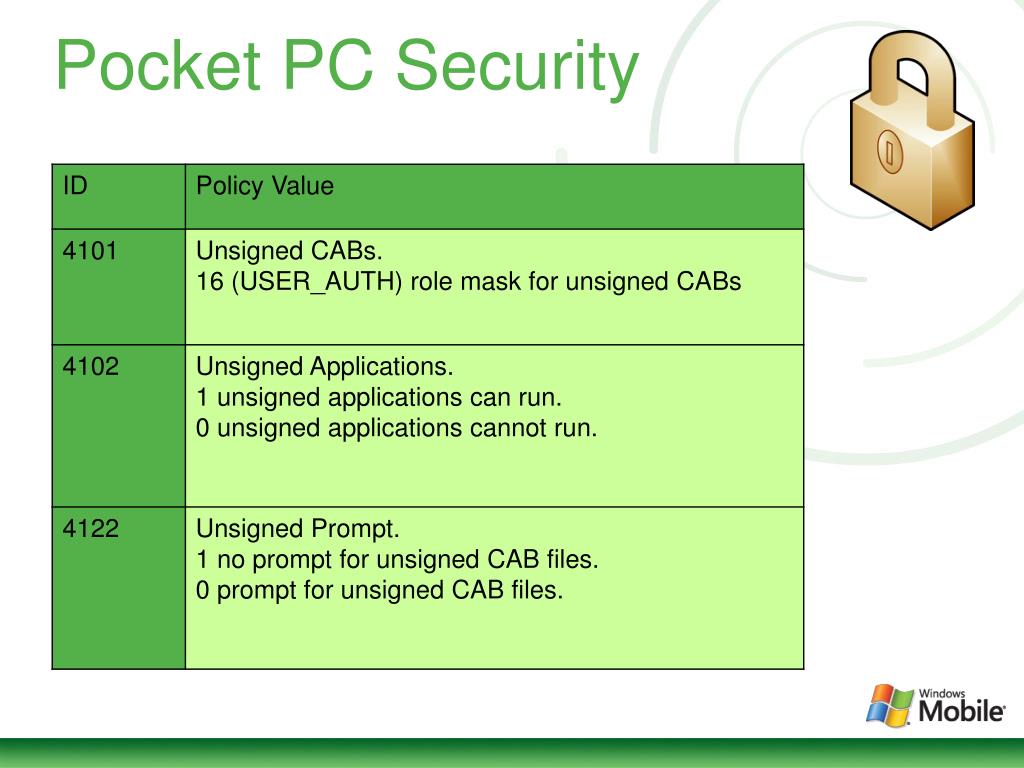

  • Single-tier Security
    • Either run Full Trust or not at all
    • Requires modules to be signed
    • Defaults to prompt for unsigned applications
  • Soft-keys
pocket pc soft keys
Pocket PC Soft-keys
  • Designer menu support
    • Soft-keys if two items
    • Menu for three items above
  • Left button is default action
    • Menu restriction removed
  • Right button for menu
windows mobile 5 0 apis

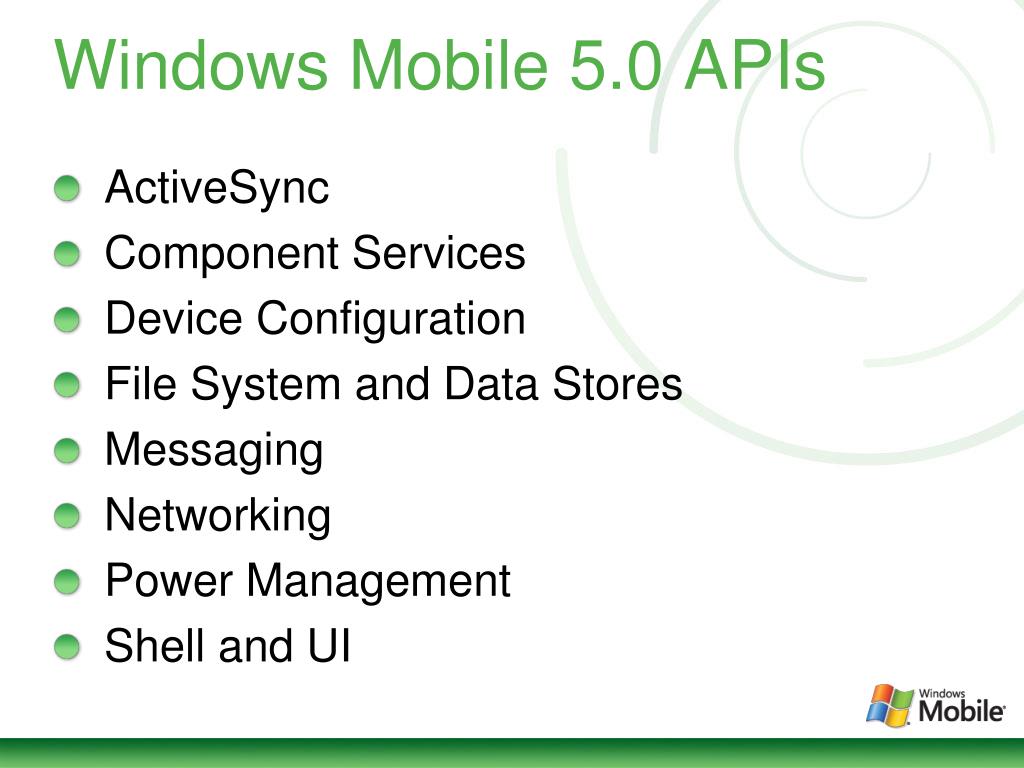

Windows Mobile 5.0 APIs
  • ActiveSync
  • Component Services
  • Device Configuration
  • File System and Data Stores
  • Messaging
  • Networking
  • Power Management
  • Shell and UI
common dialogs

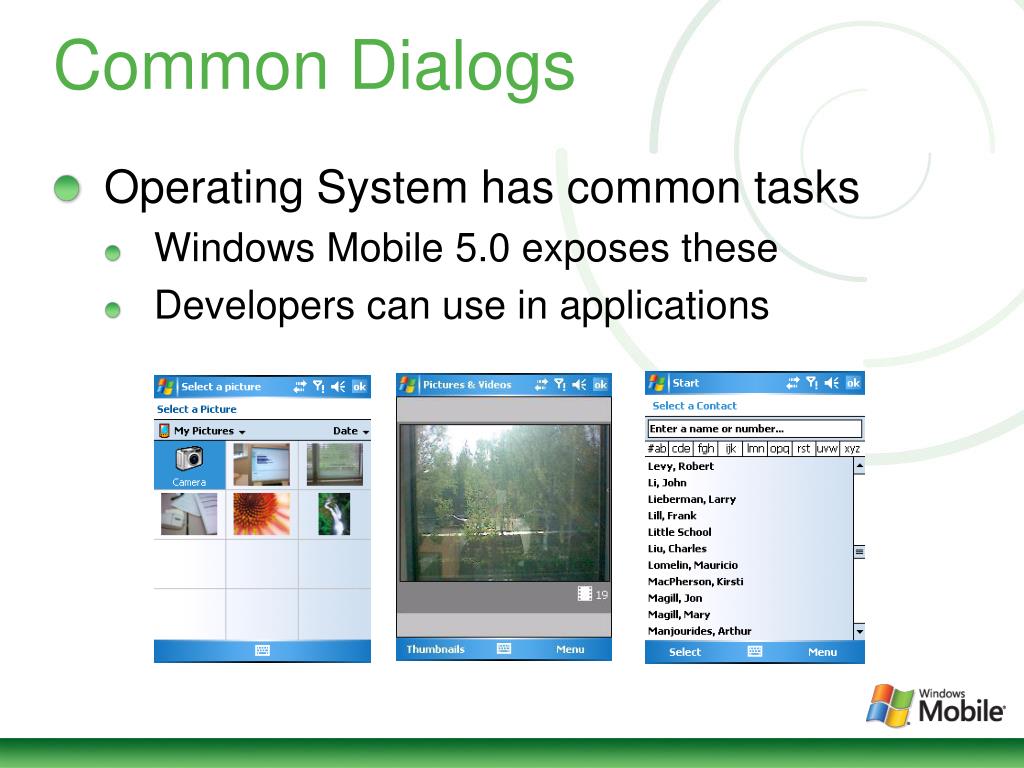

Common Dialogs
  • Operating System has common tasks
    • Windows Mobile 5.0 exposes these
    • Developers can use in applications

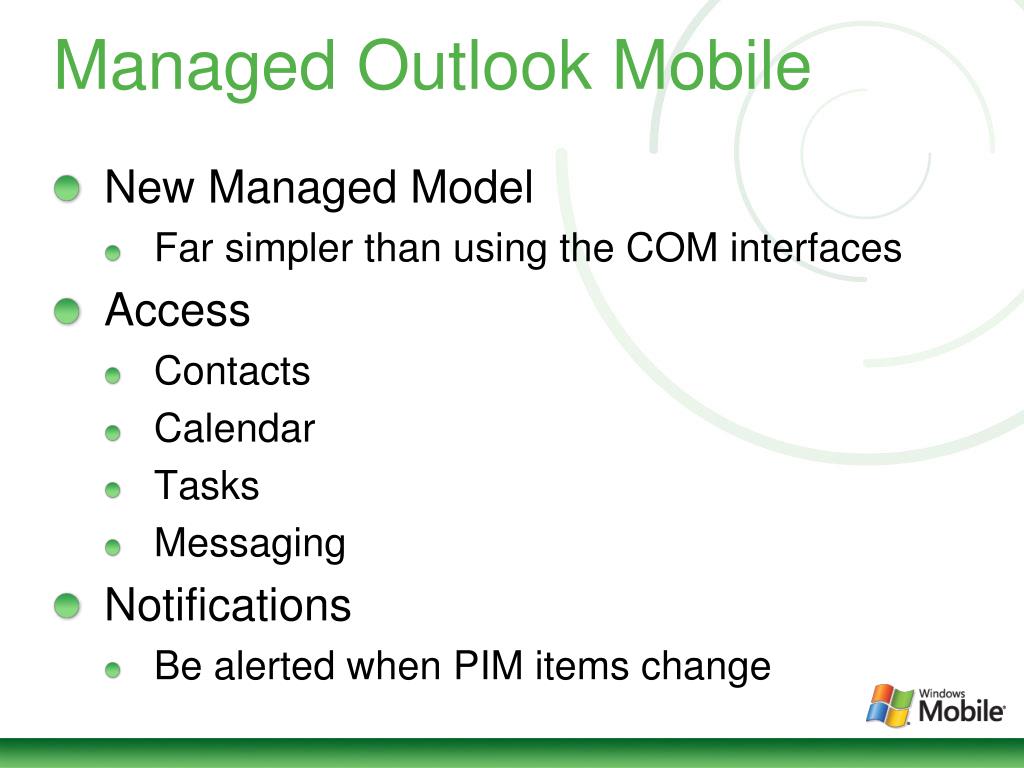

managed outlook mobile
Managed Outlook Mobile
  • New Managed Model
    • Far simpler than using the COM interfaces
  • Access
    • Contacts
    • Calendar
    • Tasks
    • Messaging
  • Notifications
    • Be alerted when PIM items change
state notification broker

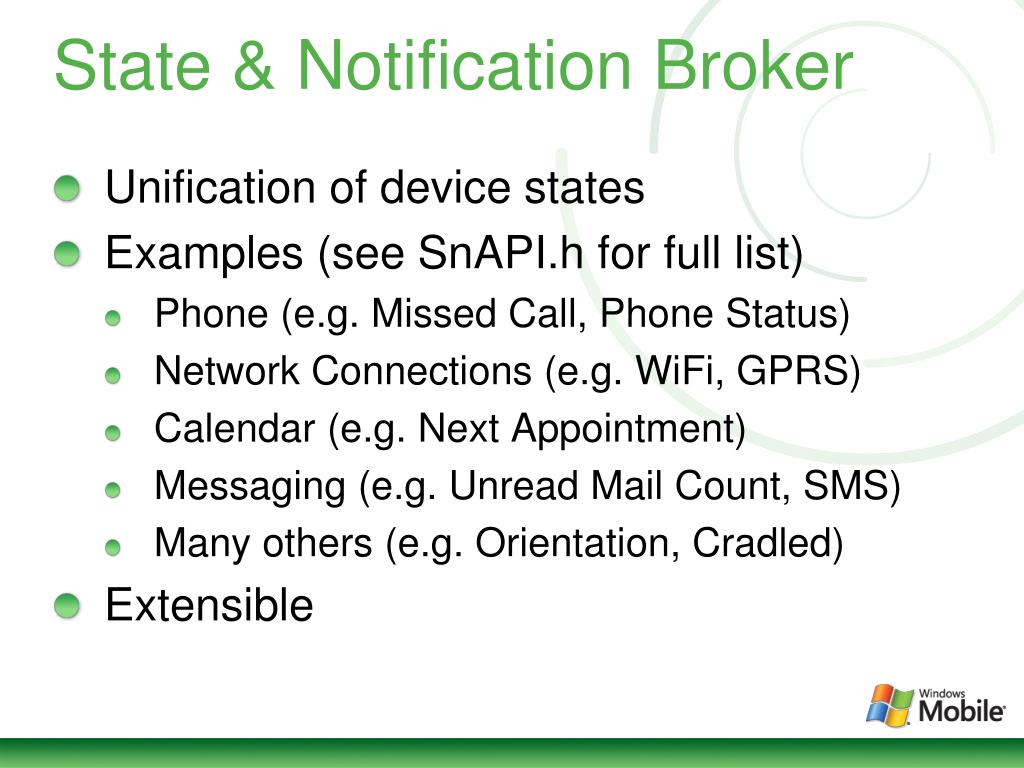

State & Notification Broker
  • Unification of device states
  • Examples (see SnAPI.h for full list)
    • Phone (e.g. Missed Call, Phone Status)
    • Network Connections (e.g. WiFi, GPRS)
    • Calendar (e.g. Next Appointment)
    • Messaging (e.g. Unread Mail Count, SMS)
    • Many others (e.g. Orientation, Cradled)
  • Extensible
notification types
Notification Types
  • Transient Notifications
    • Application notified only while running
    • Notification methods
      • Window Message, CE Message Queue, Callback
  • Persistent Notifications
    • Application launched if not already running
    • Notification methods
      • Command line, Window Message
    • Persists across reboot
global positioning systems
Global Positioning Systems
  • Access through GpsApi.h
  • Parses, multiplexes, notifies
  • API Examples
    • GPSOpenDevice()
    • GPSCloseDevice()
    • GPSGetPosition()
    • GPSGetDeviceState()

#include <GpsApi.h>

HANDLE h;

GPS_POSITION pos;

h = GPSOpenDevice(

heventNewPos,

heventDeviceStateChange,

NULL,

0);

GPSGetPosition(h, &pos, 60000, 0);

// Get back pos.dblLongitude,

// pos.dblLatitude

sample walkthrough
Sample Walkthrough
  • Business Requirement
    • Company employs field sales personnel to pursue leads
      • Customer calls Sales Office
      • Office obtains details and locates sales person
      • Sales person needs to be alerted with accurate information
sample solution tasks
Sample Solution Tasks
  • Sending an SMS message to the device.
  • Intercepting the SMS message.
  • Creating the Contact and Appointment entries
  • Alert the application on next Appointment
  • Do something special when alerted.
sample walkthrough1

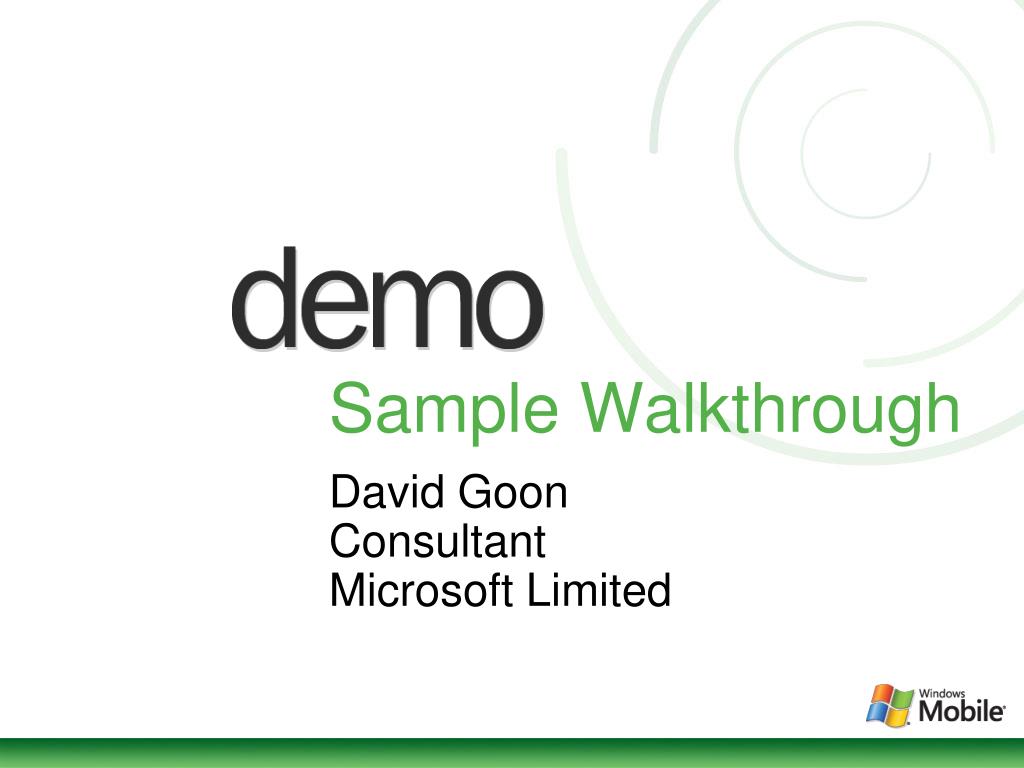

Sample Walkthrough

David GoonConsultant

Microsoft Limited

windows mobile 6
Windows Mobile 6
  • Also based on Windows CE 5.0
  • Goals
    • Advanced Mobile Communication
    • Improved Productivity
    • Integrated Business Performance
  • Evolution of Windows Mobile 5.0
    • Better Email experience with IRM and Fetch
    • Office Mobile now on Standard (Smartphone)
    • Increased security e.g. SD encrypt and wipe

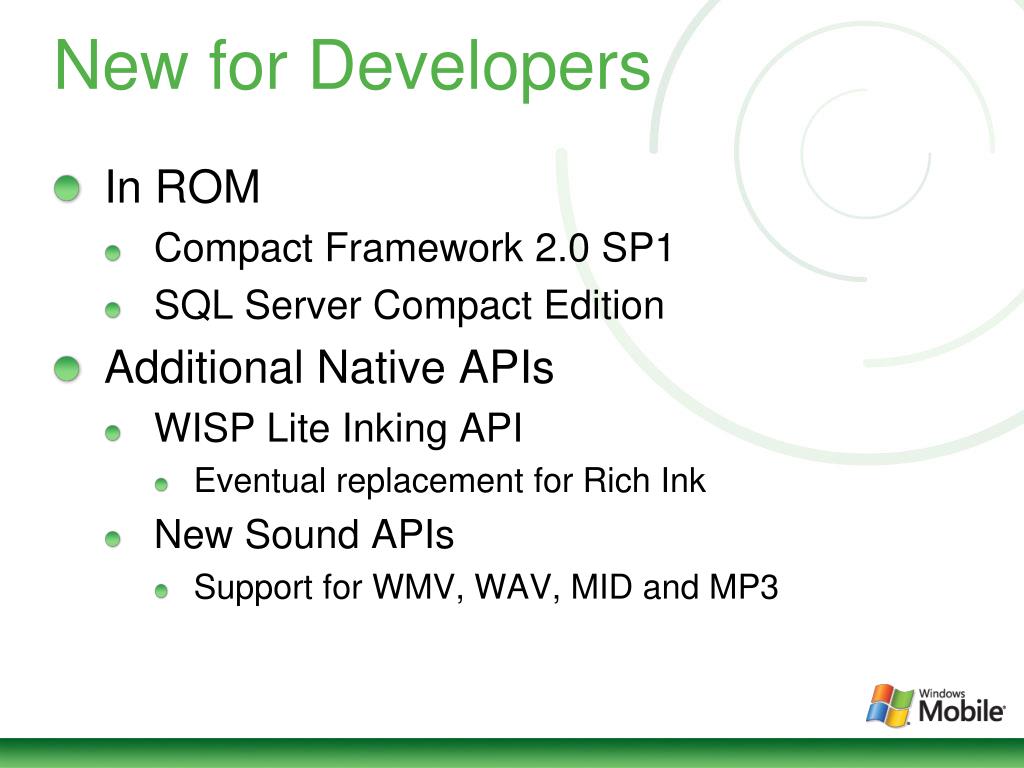

new for developers
New for Developers
  • In ROM
    • Compact Framework 2.0 SP1
    • SQL Server Compact Edition
  • Additional Native APIs
    • WISP Lite Inking API
      • Eventual replacement for Rich Ink
    • New Sound APIs
      • Support for WMV, WAV, MID and MP3
summary
Summary
  • Compact Framework 2.0 SP1
    • Powerful Runtime
    • Easy-to-use Base Class Libraries
  • Windows Mobile 5.0 and 6
    • Great Platform Features
    • Managed Code Access
  • Combined
    • Flexible and Productive Solutions
    • Rapid Application Development
questions

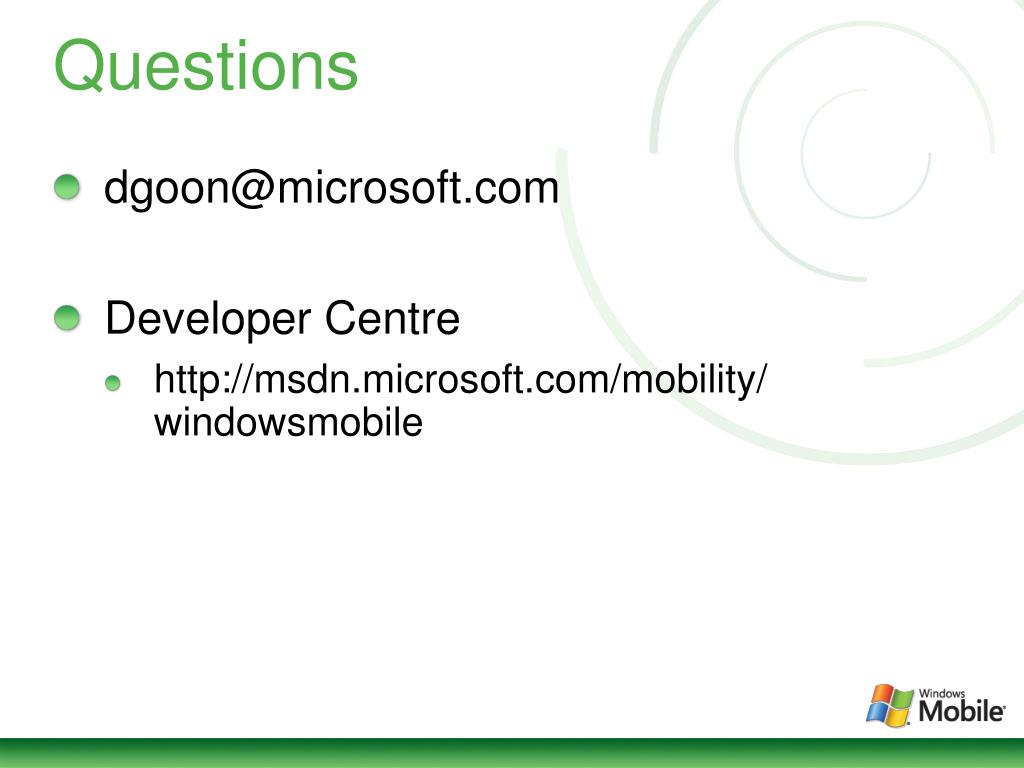

Questions
  • dgoon@microsoft.com
  • Developer Centre
    • http://msdn.microsoft.com/mobility/ windowsmobile
slide33

© 2005 Microsoft Corporation. All rights reserved.

This presentation is for informational purposes only. Microsoft makes no warranties, express or implied, in this summary.
