intermediate unix

Intermediate Unix

Presented July 29th, 2001 by:

“Robin” R. Battey (zanfur@cs.washington.edu)

Evgeny Roubinchtein (evgenyr@cs.washington.edu)

with tips, suggestions, and corrections by:Hannah Tang (hctang@cs.washington.edu)

http://www.cs.washington.edu/people/acm/tutorials/

the file system
The “File System”
  • Under UNIX, (almost) everything is a “file”:
    • Normal files
    • Directories
    • Hardware
    • Sockets
    • Pipes
  • Things that are not files:
    • Users
    • Groups
    • Processes
ownership
Ownership
  • Files have two owners
    • Every file has exactly one user owner
    • Every file has exactly one group owner
  • Everyone is a user
    • Users are in at least one group
  • Processes have owners, too (known as an “id”)
    • Every process has exactly one user id
    • Every process has at least on group id
  • Users and groups are really just numbers with names
    • Every username is mapped to a single numeric “uid”
    • Every groupname is mapped to a single numeric “gid”
who am i
Who am I?
  • Commands that tell you who you are:
    • whoamidisplays your username
    • iddisplays your username and groups
  • Commands that tell you who others are:
    • finger [<name>]displays info for <name>
    • id [<username>]displays info for <username>
  • Commands that change who you are:
    • su <username>“switch user” to <username>
    • login login as a different user
file permissions
File Permissions
  • Every file has three access levels:
    • user (the user owner of the file)
    • group (the group owner of the file)
    • other (everyone else)
  • At each level, there are three access types:
    • read (looking at the contents)
    • write (altering the contents)
    • execute (executing the contents)
strange things
Strange Things
  • There are three “strange” permissions:
    • setuid (run program as user owner)
    • setgid (run program as group owner)
    • text (stay in swap after executing)
  • Directories act differently
    • “write” (creating/deleting files)
    • “execute” (cd-ing to that directory)
    • “setuid” (ignored)
    • “setgid” (created files have same group owner)
    • “text” (deletion restricted to user owned files)
examining permissions

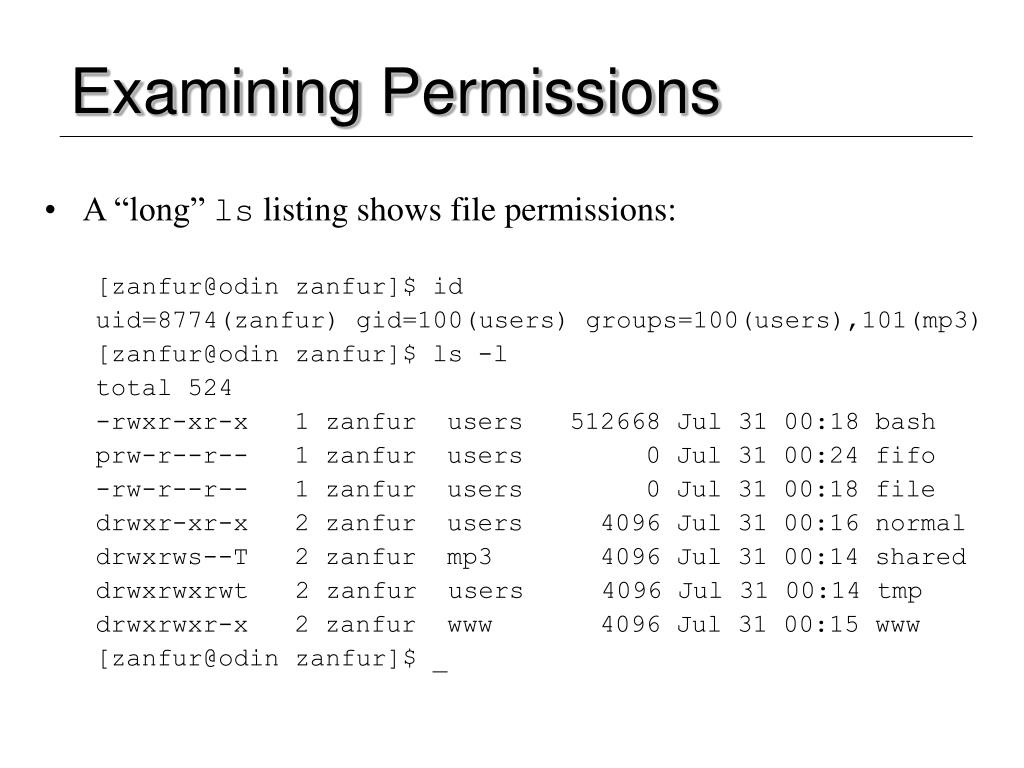

Examining Permissions
  • A “long” ls listing shows file permissions:

[zanfur@odin zanfur]$ id

uid=8774(zanfur) gid=100(users) groups=100(users),101(mp3)

[zanfur@odin zanfur]$ ls -l

total 524

-rwxr-xr-x 1 zanfur users 512668 Jul 31 00:18 bash

prw-r--r-- 1 zanfur users 0 Jul 31 00:24 fifo

-rw-r--r-- 1 zanfur users 0 Jul 31 00:18 file

drwxr-xr-x 2 zanfur users 4096 Jul 31 00:16 normal

drwxrws--T 2 zanfur mp3 4096 Jul 31 00:14 shared

drwxrwxrwt 2 zanfur users 4096 Jul 31 00:14 tmp

drwxrwxr-x 2 zanfur www 4096 Jul 31 00:15 www

[zanfur@odin zanfur]$ _

changing ownership
Changing Ownership
  • Changing user ownership:
    • The command is “change owner”:

chown <username> <filename>

    • but, you can only do it if you are root
    • so just copy it instead
  • Changing group ownership:
    • The command is “change group”:

chgrp <groupname> <filename>

    • but, you can only do it if you are in group <groupname>
    • and you must be the user owner of the file
changing permissions

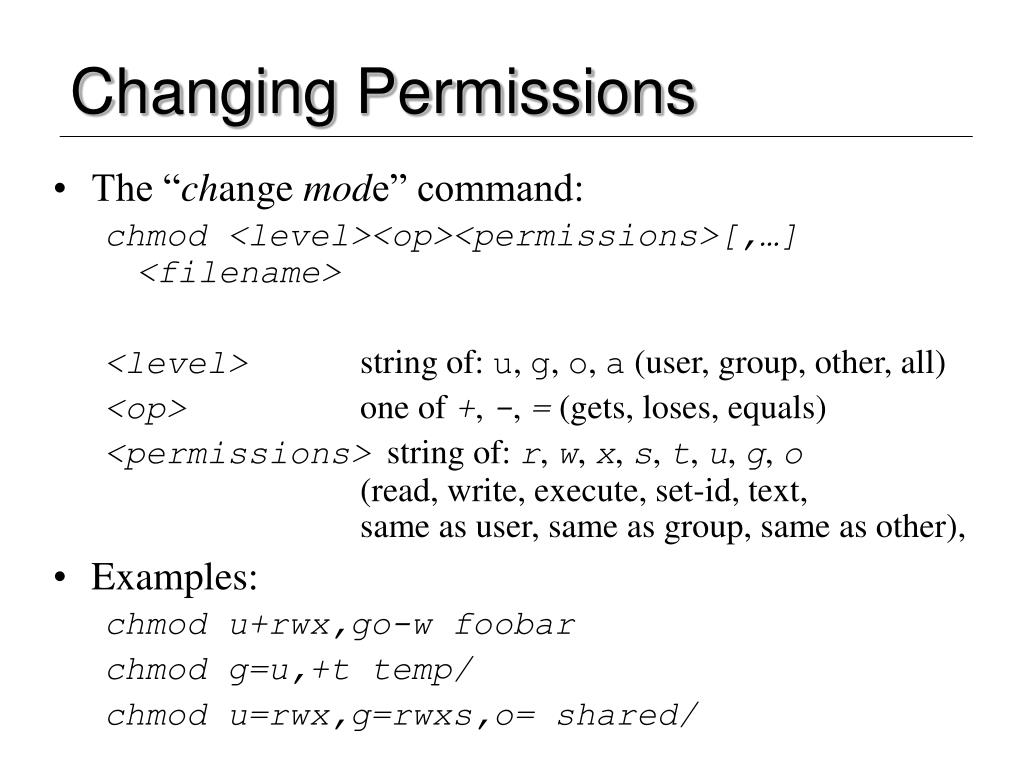

Changing Permissions
  • The “change mode” command:

chmod <level><op><permissions>[,…] <filename>

<level> string of: u, g, o, a (user, group, other, all)

<op> one of +, -, = (gets, loses, equals)

<permissions> string of: r, w, x, s, t, u, g, o (read, write, execute, set-id, text, same as user, same as group, same as other),

  • Examples:

chmod u+rwx,go-w foobar

chmod g=u,+t temp/

chmod u=rwx,g=rwxs,o= shared/

process management
Process Management
  • What can you do with it?
    • Start programs in the background
    • Run more than one program per terminal
    • Kill bad and/or crashing programs
    • Suspend programs mid-execution
    • List all jobs running in a shell
    • Move foreground jobs to the background
    • More …
three states of a process

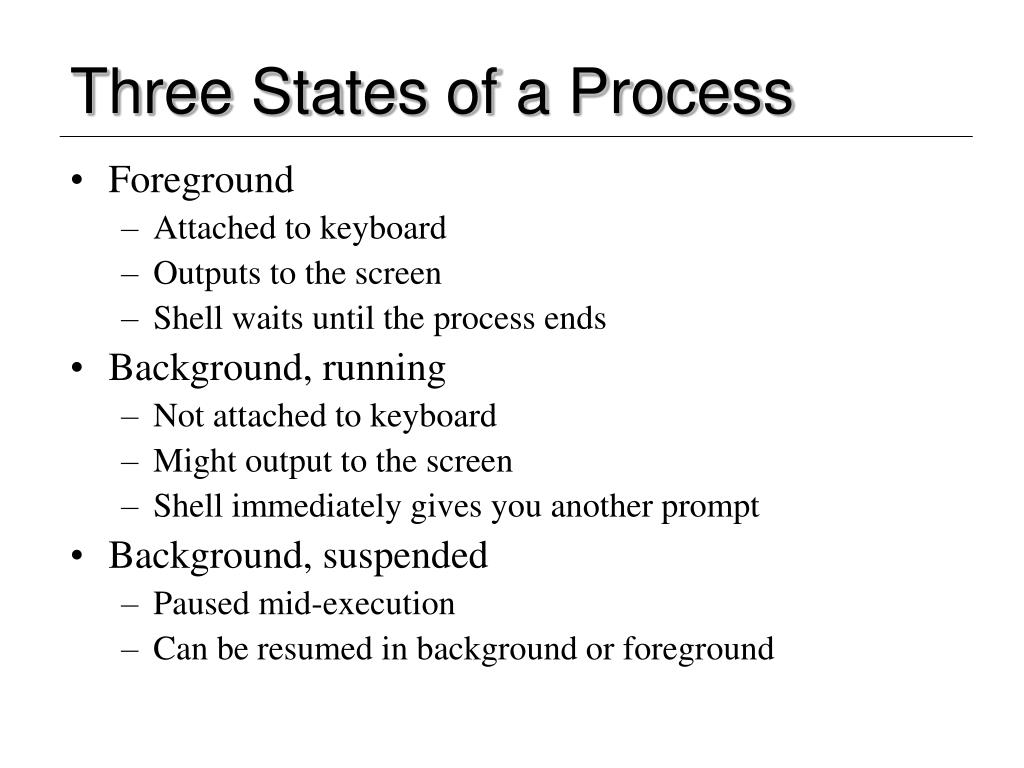

Three States of a Process
  • Foreground
    • Attached to keyboard
    • Outputs to the screen
    • Shell waits until the process ends
  • Background, running
    • Not attached to keyboard
    • Might output to the screen
    • Shell immediately gives you another prompt
  • Background, suspended
    • Paused mid-execution
    • Can be resumed in background or foreground
background processes

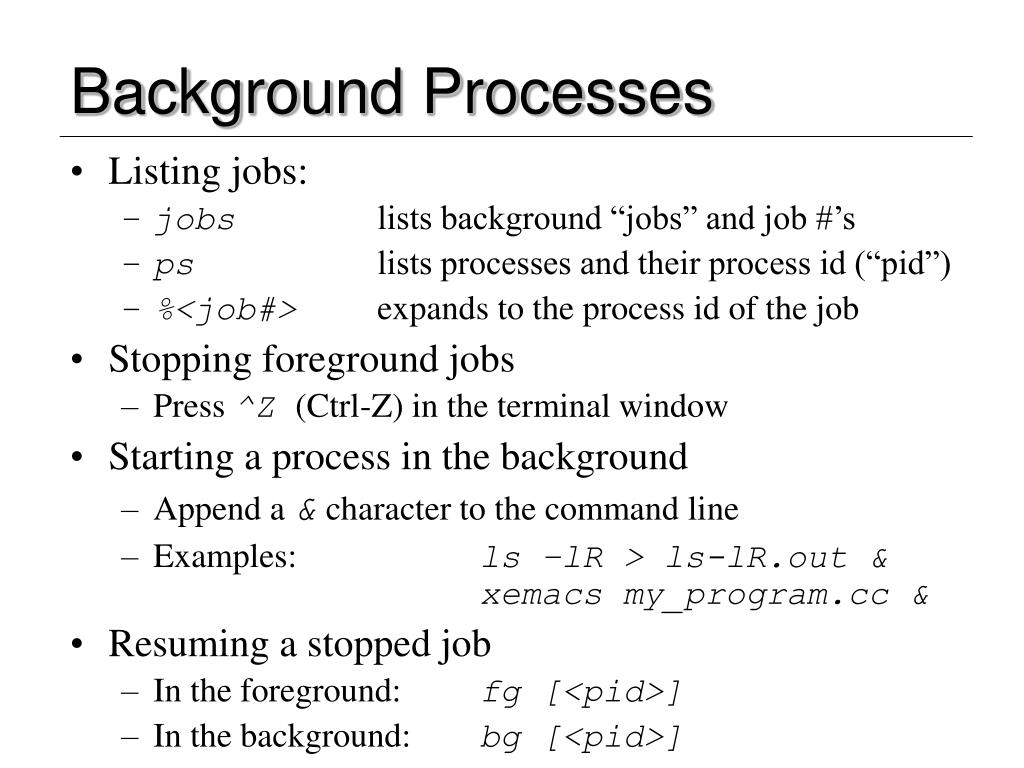

Background Processes
  • Listing jobs:
    • jobs lists background “jobs” and job #’s
    • ps lists processes and their process id (“pid”)
    • %<job#> expands to the process id of the job
  • Stopping foreground jobs
    • Press ^Z (Ctrl-Z) in the terminal window
  • Starting a process in the background
    • Append a & character to the command line
    • Examples: ls –lR > ls-lR.out & xemacs my_program.cc &
  • Resuming a stopped job
    • In the foreground: fg [<pid>]
    • In the background: bg [<pid>]
killing processes
Killing Processes
  • The “kill” command:

kill [-<signal>] <pid>

Send <signal> to process <pid>

  • The “killall” command:

killall [-<signal>] <command>

Send <signal> to all processes that start with <command>

  • Useful signals (kill –l for the complete list):

TERM the default, “terminate”, kills things nicely

KILL will kill anything, but not nicely

HUP “hangup”, used to reload configurations

STOP stops (suspends) a running process

what are environment variables

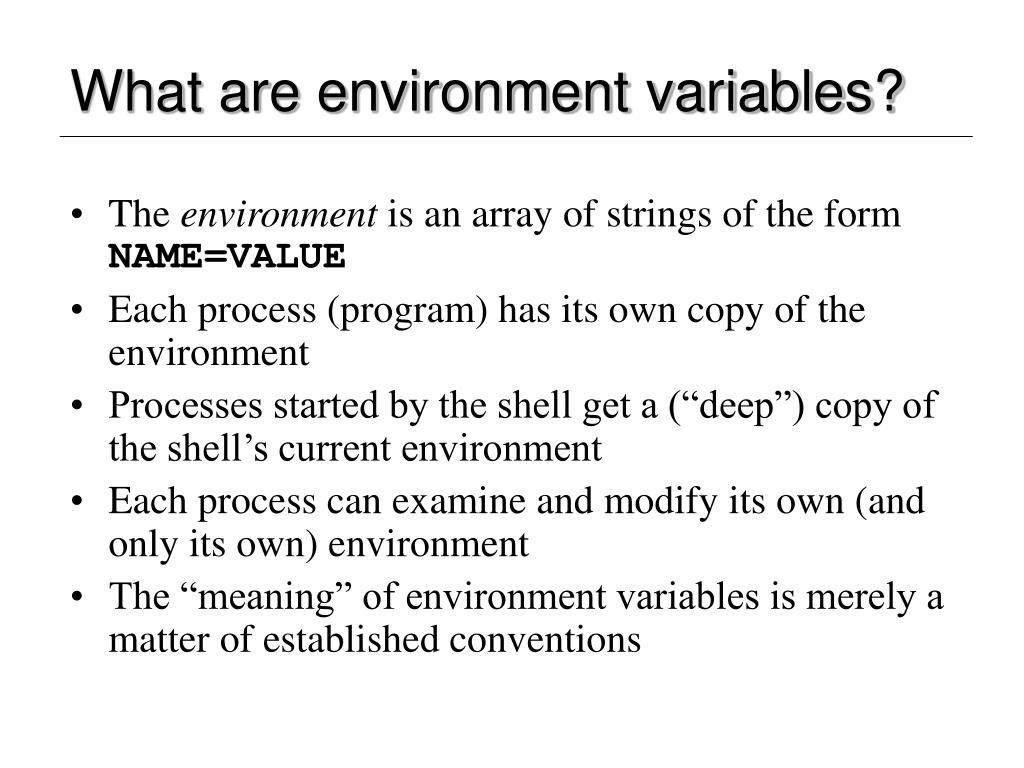

What are environment variables?
  • The environmentis an array of strings of the formNAME=VALUE
  • Each process (program) has its own copy of the environment
  • Processes started by the shell get a (“deep”) copy of the shell’s current environment
  • Each process can examine and modify its own (and only its own) environment
  • The “meaning” of environment variables is merely a matter of established conventions
viewing your shell s environment
Viewing your shell’s environment
  • To view a single environment variable’s value:echo $<name>
  • For example:echo $HOMEwill display/homes/iws/evgenyr
  • To view all environment variables at once:
    • tcsh/csh/bash: printenv
    • sh/ksh: set
setting environment variables

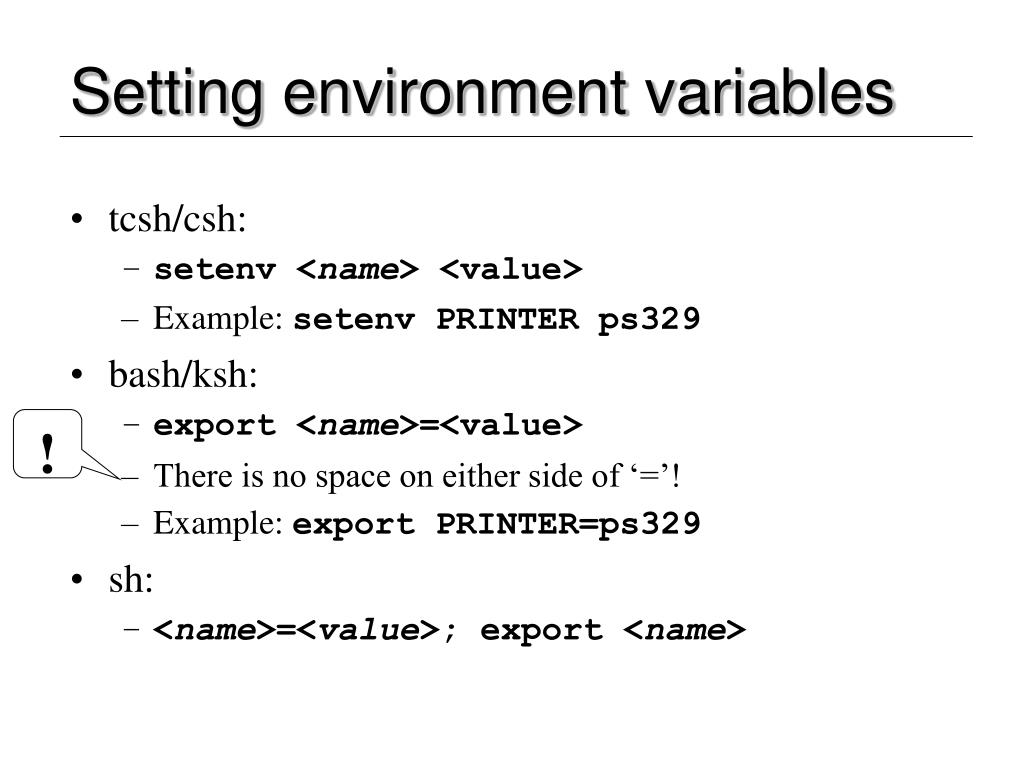

Setting environment variables
  • tcsh/csh:
    • setenv <name> <value>
    • Example: setenv PRINTER ps329
  • bash/ksh:
    • export <name>=<value>
    • There is no space on either side of ‘=’!
    • Example: export PRINTER=ps329
  • sh:
    • <name>=<value>; export <name>

!

appending to environment variables

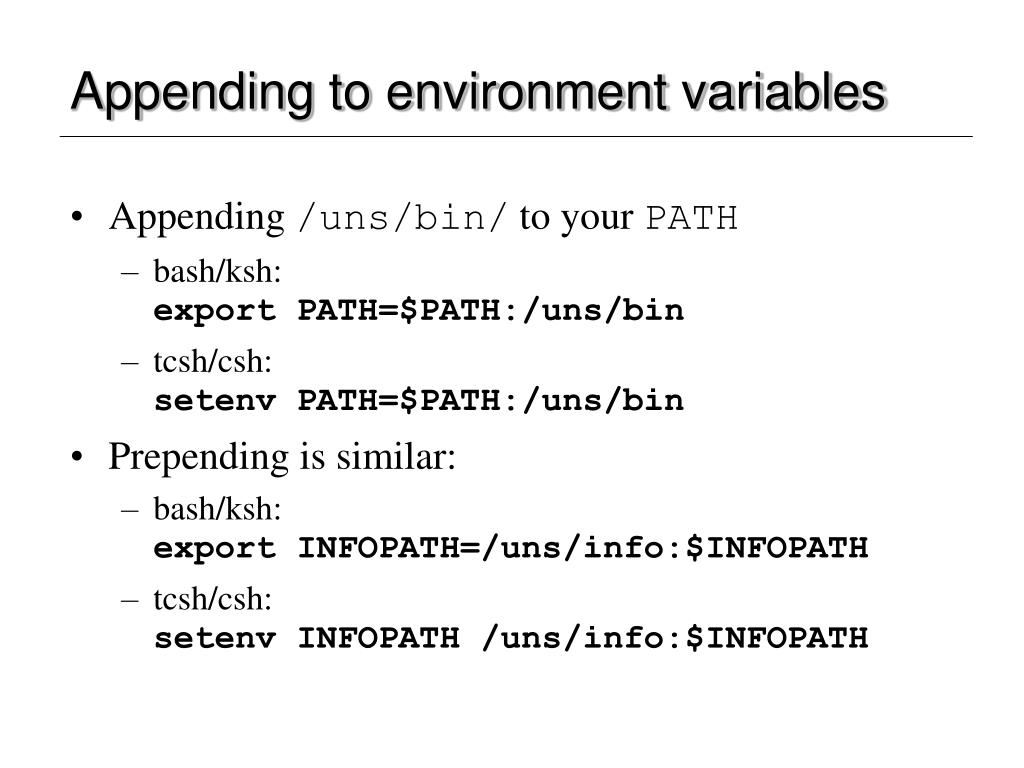

Appending to environment variables
  • Appending /uns/bin/ to your PATH
    • bash/ksh: export PATH=$PATH:/uns/bin
    • tcsh/csh: setenv PATH=$PATH:/uns/bin
  • Prepending is similar:
    • bash/ksh: export INFOPATH=/uns/info:$INFOPATH
    • tcsh/csh: setenv INFOPATH /uns/info:$INFOPATH
common environment variables
Common environment variables
  • The “meaning” of environment variables is purely a matter of convention.
  • However, these environment variables are quite common:
    • PATH, INFOPATH, MANPATH, EDITOR, VISUAL, PAGER, HOME, MAIL, USER
  • The man page for a program will usually list the environment variables the program pays attention to.
useful shell features a preview of upcoming attractions
Useful shell features (a preview of upcoming attractions)
  • Aliases
  • Redirecting input and output

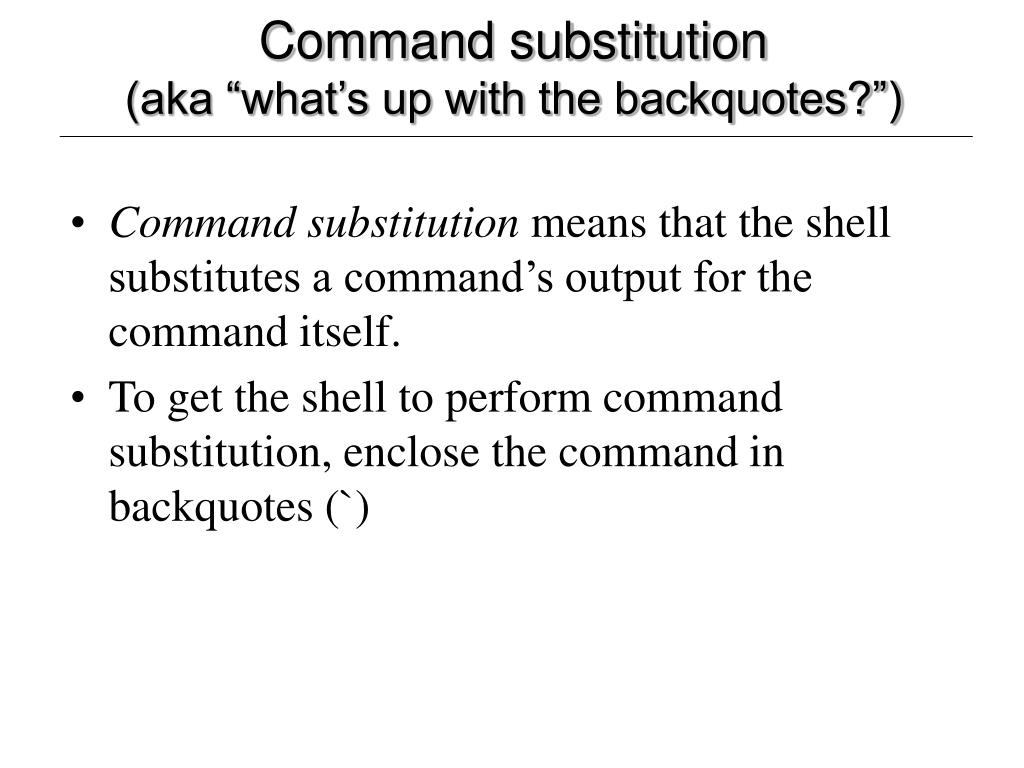

  • Command substitution
  • Scripts
shell as a work saver aliases
Shell as a work-saver: aliases
  • Aliases: textual substitution, similar to C-preprocessor macros.
  • Syntax:
    • bash/ksh: alias <text>=’<replacement>’
    • tcsh/cshalias <text> ’<replacement>’
  • When you type <text>, the shell “substitutes” <replacement>
  • Typing alias by itself lists all your current aliases
  • unalias <text> removes the alias
  • Check the csh/tcsh man page for extra features
alias examples

Line continuation character, just like in C/C++!

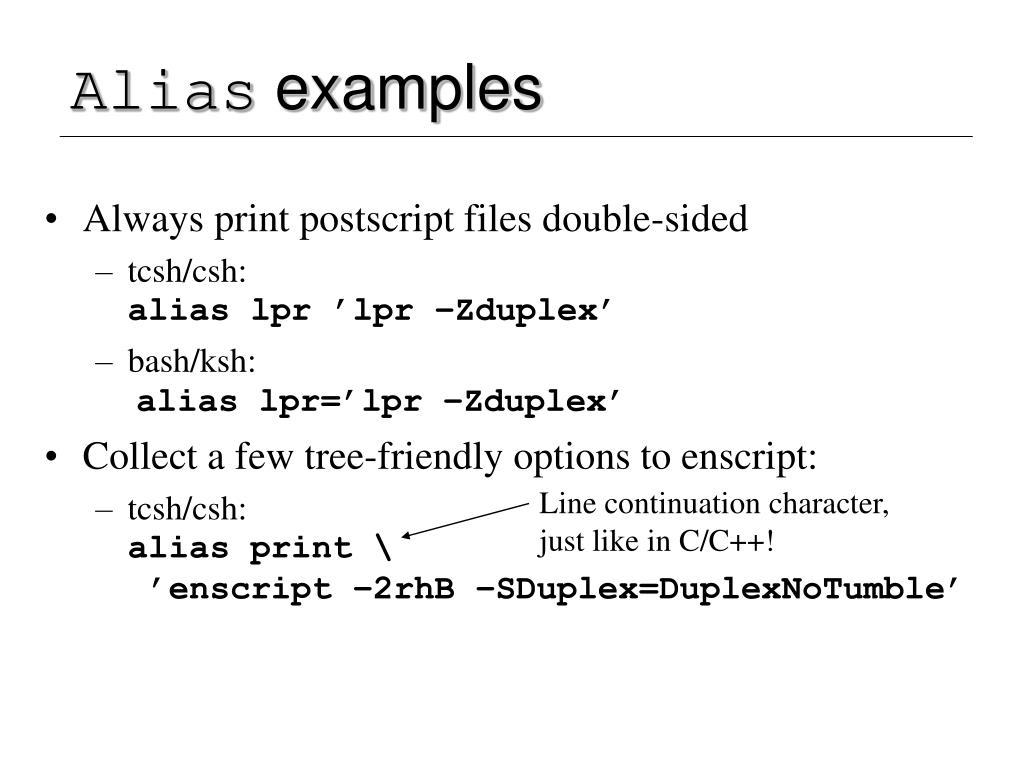

Alias examples
  • Always print postscript files double-sided
    • tcsh/csh:alias lpr ’lpr –Zduplex’
    • bash/ksh:alias lpr=’lpr –Zduplex’
  • Collect a few tree-friendly options to enscript:
    • tcsh/csh:alias print \ ’enscript –2rhB –SDuplex=DuplexNoTumble’
what is input output redirection

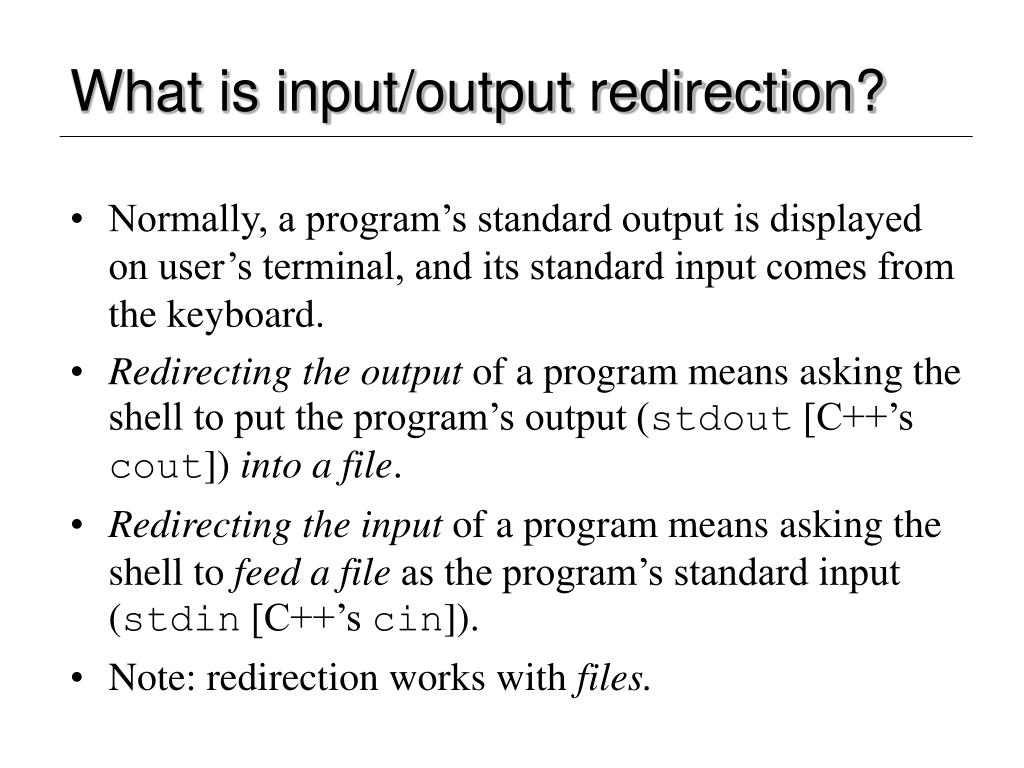

What is input/output redirection?
  • Normally, a program’s standard output is displayed on user’s terminal, and its standard input comes from the keyboard.
  • Redirecting the output of a program means asking the shell to put the program’s output (stdout [C++’s cout]) into a file.
  • Redirecting the input of a program means asking the shell to feed a file as the program’s standard input (stdin [C++’s cin]).
  • Note: redirection works with files.
why redirect program s output
Why redirect program’s output?
  • You may want to save output and examine it at your leisure:
    • if the program generates a lot of output
    • if the program takes a long time to run
  • You may want to present the output to another person
  • Having the program write to standard output may make the program simpler to write
standard output vs standard error

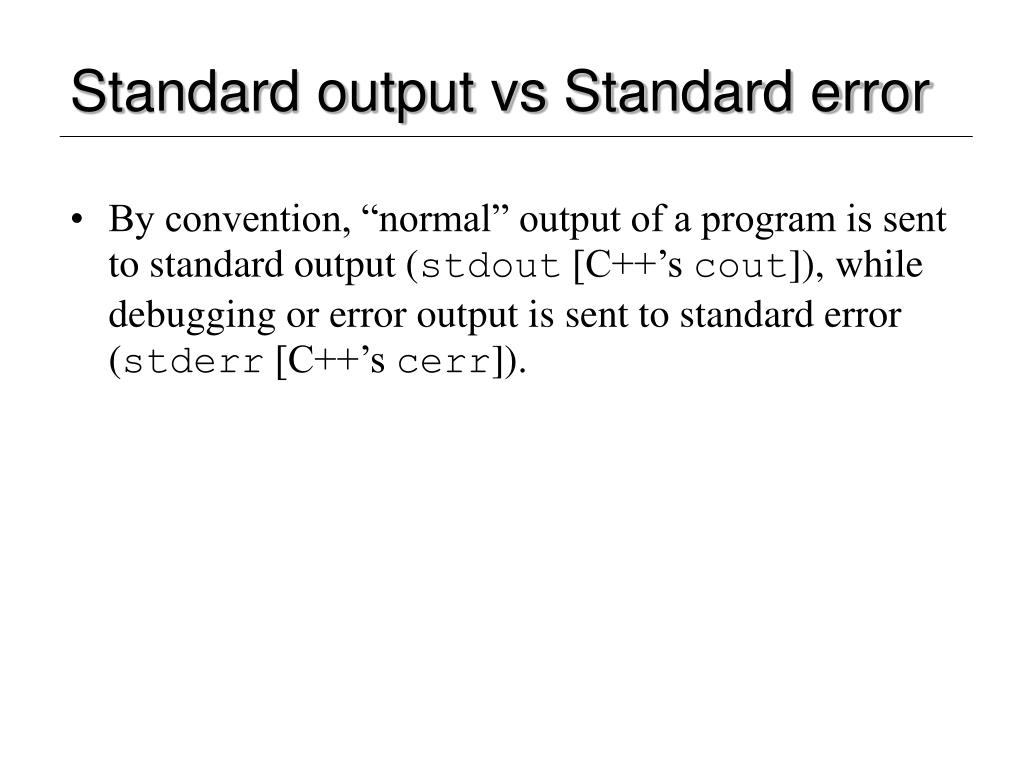

Standard output vs Standard error
  • By convention, “normal” output of a program is sent to standard output (stdout [C++’s cout]), while debugging or error output is sent to standard error (stderr [C++’s cerr]).
how to redirect program s output

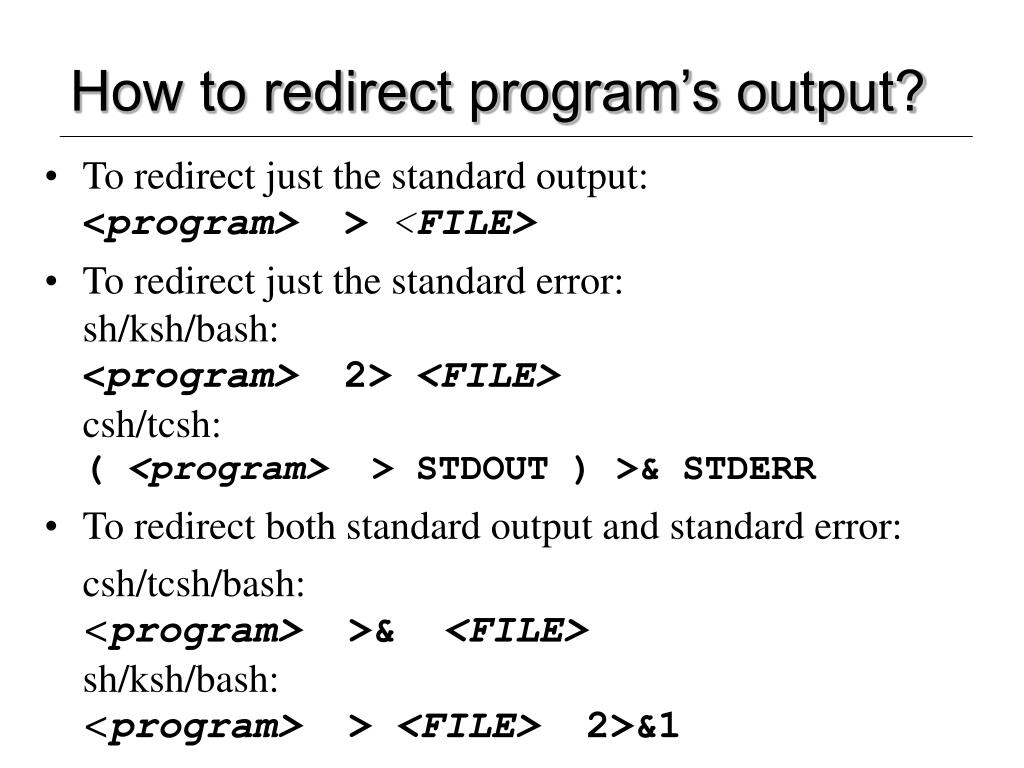

How to redirect program’s output?
  • To redirect just the standard output:<program> > <FILE>
  • To redirect just the standard error:sh/ksh/bash: <program> 2> <FILE>csh/tcsh: ( <program> > STDOUT ) >& STDERR
  • To redirect both standard output and standard error:

csh/tcsh/bash: <program> >& <FILE>sh/ksh/bash: <program> > <FILE> 2>&1

slide28
> vs. >>
  • Both > and >> will create the output file, if it doesn’t already exist
  • If the file does exist, then:
    • Using > to redirect output will overwrite the output file:
      • ls > newlisting
      • printenv > my_environment
    • Using >> to redirect output will append to the output file
      • cat ch1 ch2 ch3 > book
      • cat ch4 ch5 ch6 >> book
why redirect program s input
Why redirect program’s input?
  • To run the program repeatedly with the same (or similar input)
  • Having the program read from standard input may make the program simpler to write.
how to redirect program s input
How to redirect program’s input?
  • Simple!<program> < <FILE>
  • Examplesort < my_grades.txthead < really_long_book.txt
piping
Piping
  • Piping is connecting programs together by using the output of one program as the input to the next.
  • Syntax:<program1> | <program2> | … | <programN>
  • A simple example (view a sorted file-listing a page at a time):ls | sort | less
  • Note: piping deals with the input/output of programs (that is, stdin, stdout, stderr)
why piping
Why piping?
  • Because “the whole is bigger than the sum of its parts.
  • By combining Unix utilities in a pipeline, you can build tools “on-the-fly” as you need them.
piping examples

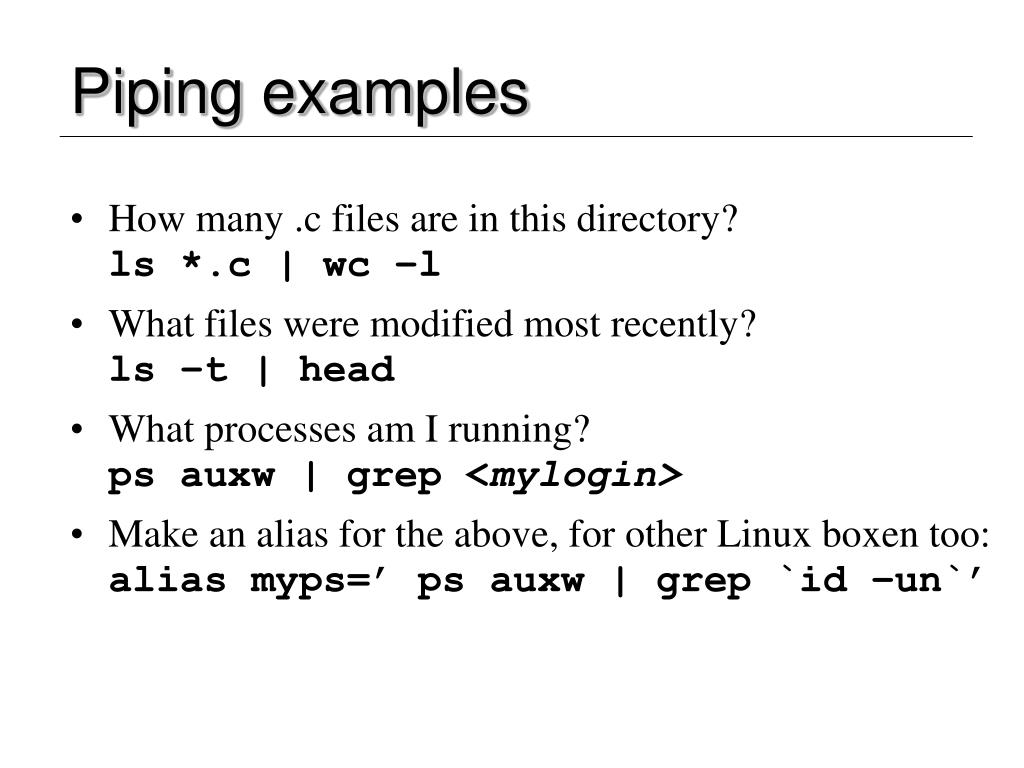

Piping examples
  • How many .c files are in this directory?ls *.c | wc –l
  • What files were modified most recently?ls –t | head
  • What processes am I running?ps auxw | grep <mylogin>
  • Make an alias for the above, for other Linux boxen too:alias myps=’ ps auxw | grep `id –un`’
the cat utility

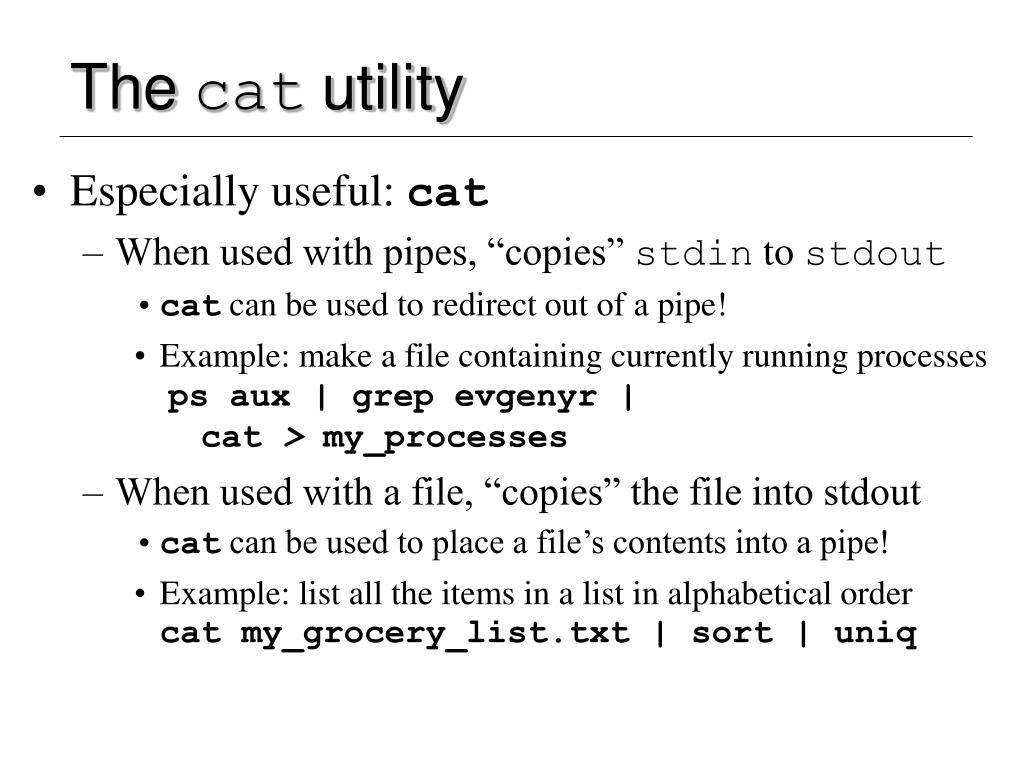

Thecatutility
  • Especially useful: cat
    • When used with pipes, “copies” stdin to stdout
      • cat can be used to redirect out of a pipe!
      • Example: make a file containing currently running processesps aux | grep evgenyr| cat > my_processes
    • When used with a file, “copies” the file into stdout
      • cat can be used to place a file’s contents into a pipe!
      • Example: list all the items in a list in alphabetical ordercat my_grocery_list.txt | sort | uniq
command substitution aka what s up with the backquotes
Command substitution(aka “what’s up with the backquotes?”)
  • Command substitution means that the shell substitutes a command’s output for the command itself.
  • To get the shell to perform command substitution, enclose the command in backquotes (`)
shell as a work saver scripts
Shell as a work-saver: scripts
  • Instead of typing the same series of commands over and over again, put them in a file and have the shell execute the (commands in the) file!
  • The file must have execute permission
  • The first line of the file should be:#! <YOURSHELL> (e.g., /bin/bash)
  • There must be no space (or any other character) between ‘#’ and ‘!’.
  • Whether to put space after ‘!’ is a matter of style
  • Shell also has control flow, tests, etc. The shell tutorial on the ACM web page goes into much more detail.
intermezzo quoting
Intermezzo: quoting
  • Problem: some characters are special to the shell (*, ?), but you would like to pass those characters to the programs the shell runs as-is.
  • So you quote the character(s):
    • A single character: by prefixing it with a \ (backslash)
    • A string of characters: by enclosing them in
      • Single quotes: no characters are special. None
      • Double quotes: some characters (notably $ and `) are still special. You’ll need to prefix those with a backslash to pass to the program as-is.
quoting examples

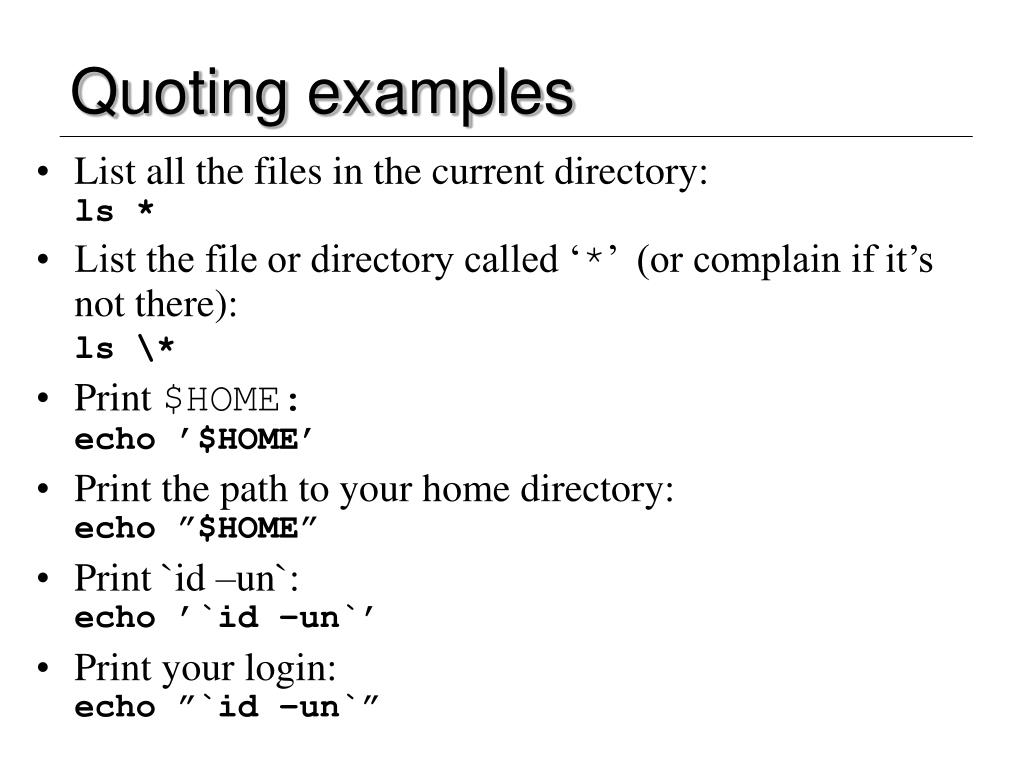

Quoting examples
  • List all the files in the current directory:ls *
  • List the file or directory called ‘*’ (or complain if it’s not there):ls \*
  • Print $HOME:echo ’$HOME’
  • Print the path to your home directory:echo ”$HOME”
  • Print `id –un`: echo ’`id –un`’
  • Print your login:echo ”`id –un`”
next stop utilities
Next stop: utilities
  • (No, not electricity, water, and sewer)
  • diff and patch
  • grep
  • find and xargs
diff and patch
diff and patch
  • You have two versions of a file; how do you see what’s changed between the two versions?
    • diff shows the differences between two files; you’ll want to use the –u or –c option to diff to produce output in human-friendly format:diff –u my_file my_file.orig | less
    • patch applies differences to a filediff –u my_file my_file.orig > my_patchpatch my_file < mypatchmy_file is now the same as my_file.orig
grep search for patterns

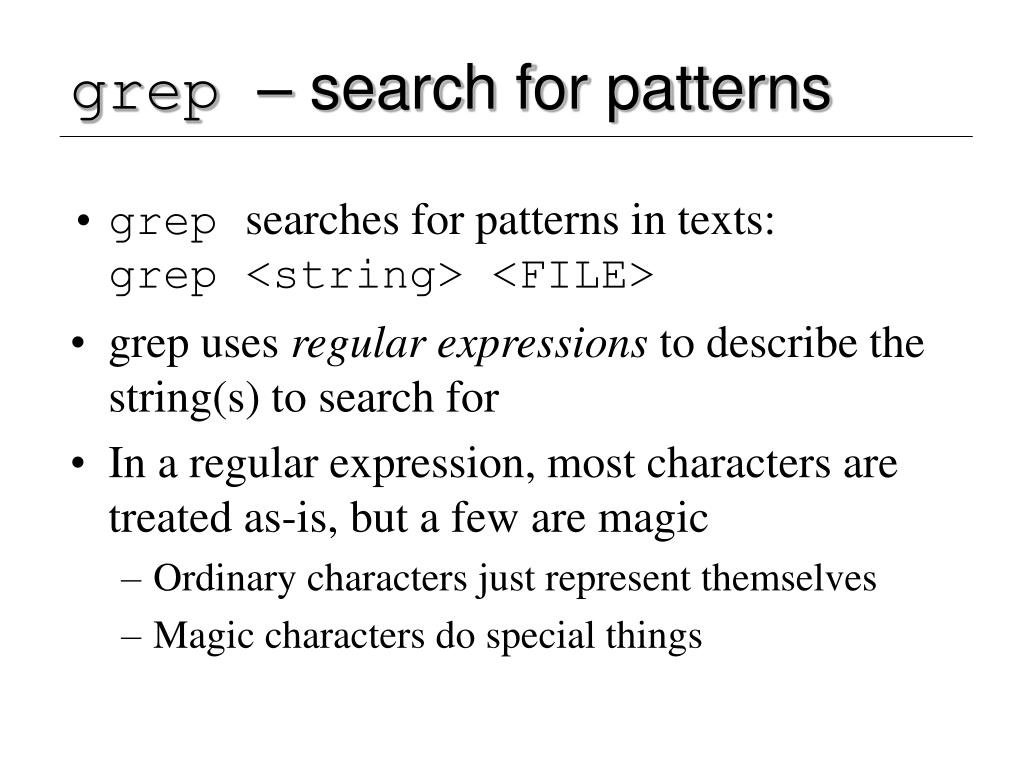

grep – search for patterns
  • grep searches for patterns in texts:grep <string> <FILE>
  • grep uses regular expressions to describe the string(s) to search for
  • In a regular expression, most characters are treated as-is, but a few are magic
    • Ordinary characters just represent themselves
    • Magic characters do special things
grep s magic characters
grep’s magic characters
  • A few different kinds of magic characters:
    • Some characters “anchor” (parts of) a regular expressions to specific places in the string:^ - The beginning of a line$ - The end of a line
    • A dot (.) matches “any one character whasoever” (except for newline)
    • [ ]form a character class:
      • [aeiou] – any single vowel
      • [a-zA-z0-9] – Any single letter or digit
      • [^0-9] – Any single character that isn’t a digit

Here, ‘^’means “not”

even more of grep s magic characters
Even more of grep’s magic characters
  • Quantifiers say how many times the preceeding “thing” should be repeated:
    • * means “zero or more times”
    • ? Means “zero or one time”
frequently used grep options
Frequently used grep options

-i : do case-insensitive search

-n : print line numbers

-v : print lines that do not match

-l : only list the files from which output would have been printed

grep examples

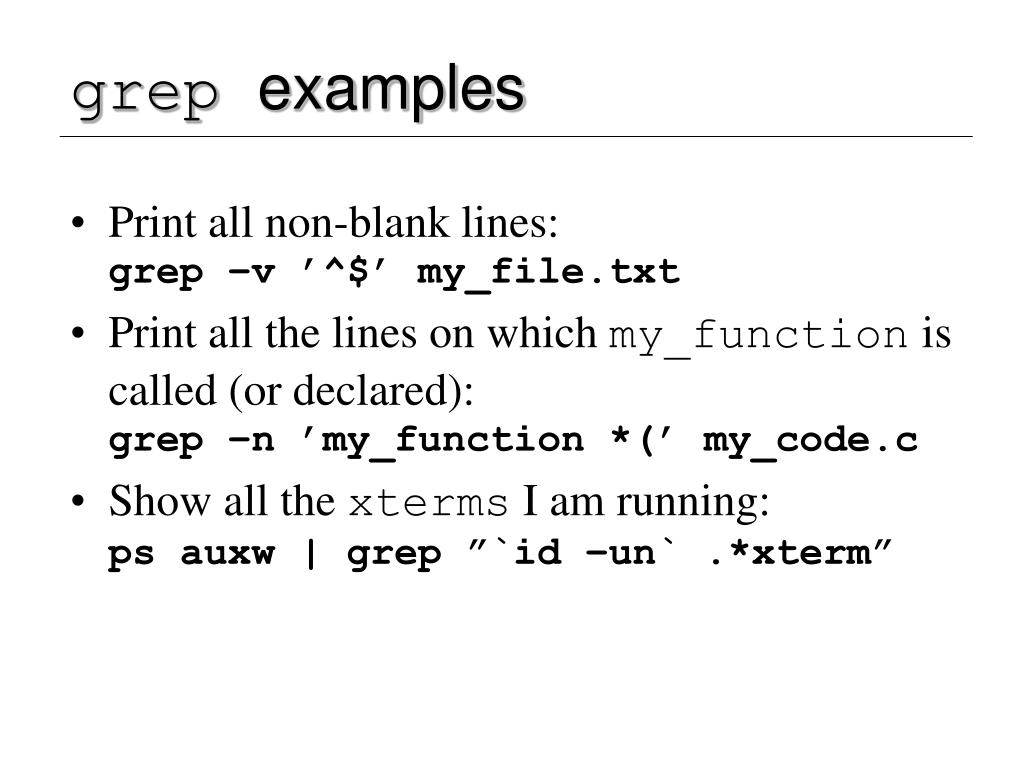

grep examples
  • Print all non-blank lines:grep –v ’^$’ my_file.txt
  • Print all the lines on which my_function is called (or declared):grep –n ’my_function *(’ my_code.c
  • Show all the xterms I am running:ps auxw | grep ”`id –un` .*xterm”
slide46
find

find <PATHS> <OPTIONS> <EXPRESSION>

  • Traverse the tree(s) rooted at <PATHs>, and for each “thing” found, evaluate the <EXPRESSION> until the result of <EXPRESSION> is known.
  • The evaluation of <EXPRESSION> “short-circuits”, just like expressions in C/C++.
    • false && some_expression can never be true
  • Options apply to the entire find command, not the individual expression
components of a find expression

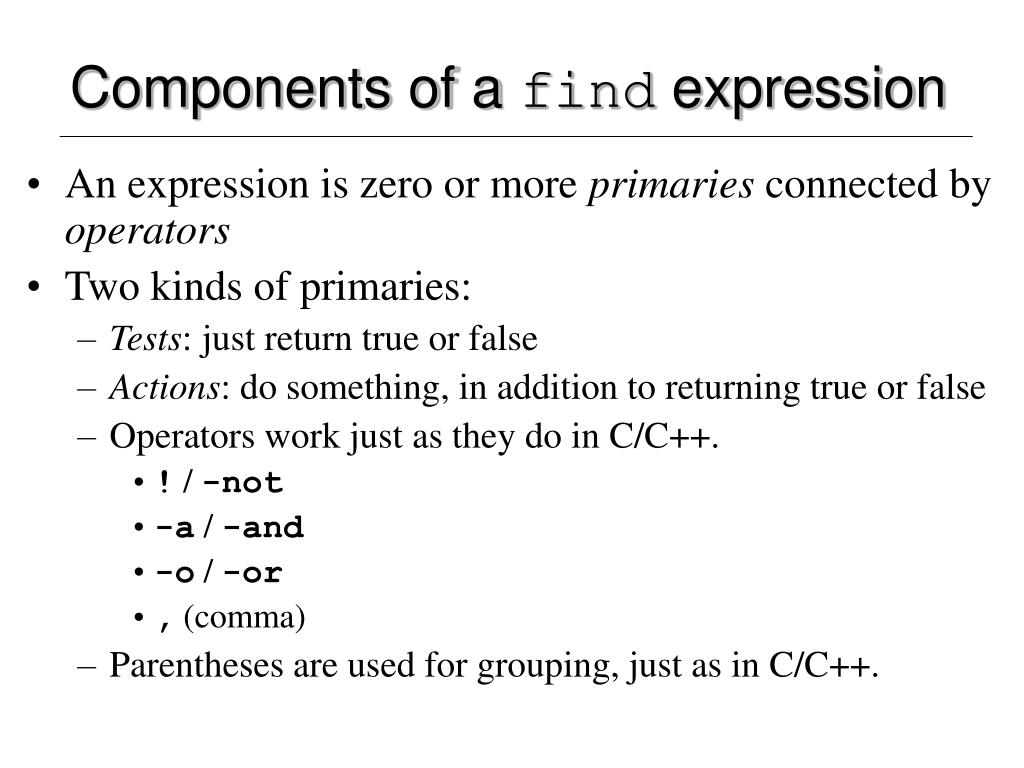

Components of a find expression
  • An expression is zero or more primaries connected by operators
  • Two kinds of primaries:
    • Tests: just return true or false
    • Actions: do something, in addition to returning true or false
    • Operators work just as they do in C/C++.
      • ! / -not
      • -a / -and
      • -o / -or
      • , (comma)
    • Parentheses are used for grouping, just as in C/C++.
find examples

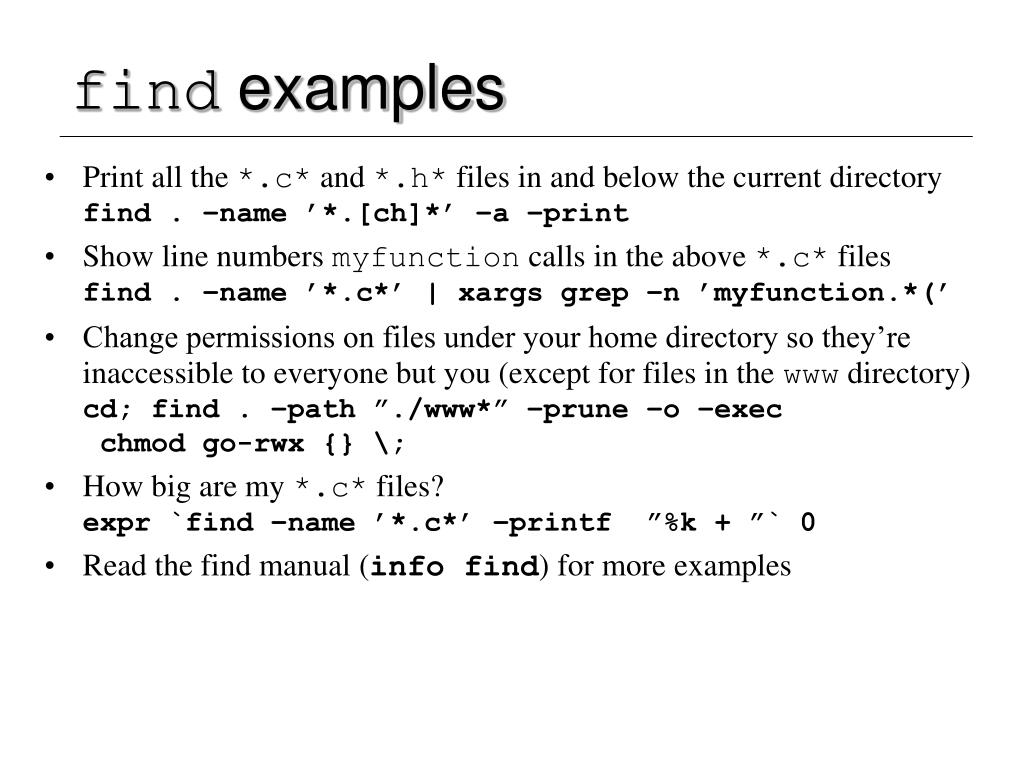

find examples
  • Print all the *.c* and *.h* files in and below the current directoryfind . –name ’*.[ch]*’ –a –print
  • Show line numbers myfunction calls in the above *.c* filesfind . –name ’*.c*’ | xargs grep –n ’myfunction.*(’
  • Change permissions on files under your home directory so they’re inaccessible to everyone but you (except for files in the www directory)cd; find . –path ”./www*” –prune –o –exec chmod go-rwx {} \;
  • How big are my *.c* files?expr `find –name ’*.c*’ –printf ”%k + ”` 0
  • Read the find manual (info find) for more examples
xargs combine arguments

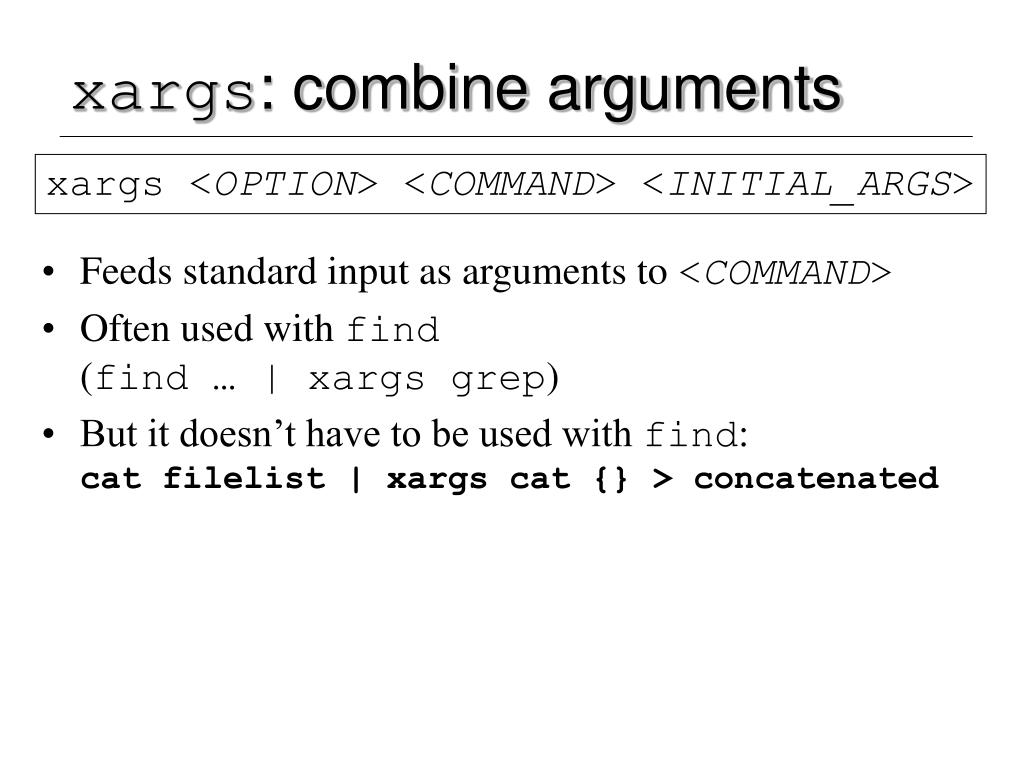

xargs: combine arguments

xargs <OPTION> <COMMAND> <INITIAL_ARGS>

  • Feeds standard input as arguments to <COMMAND>
  • Often used with find(find … | xargs grep)
  • But it doesn’t have to be used with find:cat filelist | xargs cat {} > concatenated
finding more information at cse

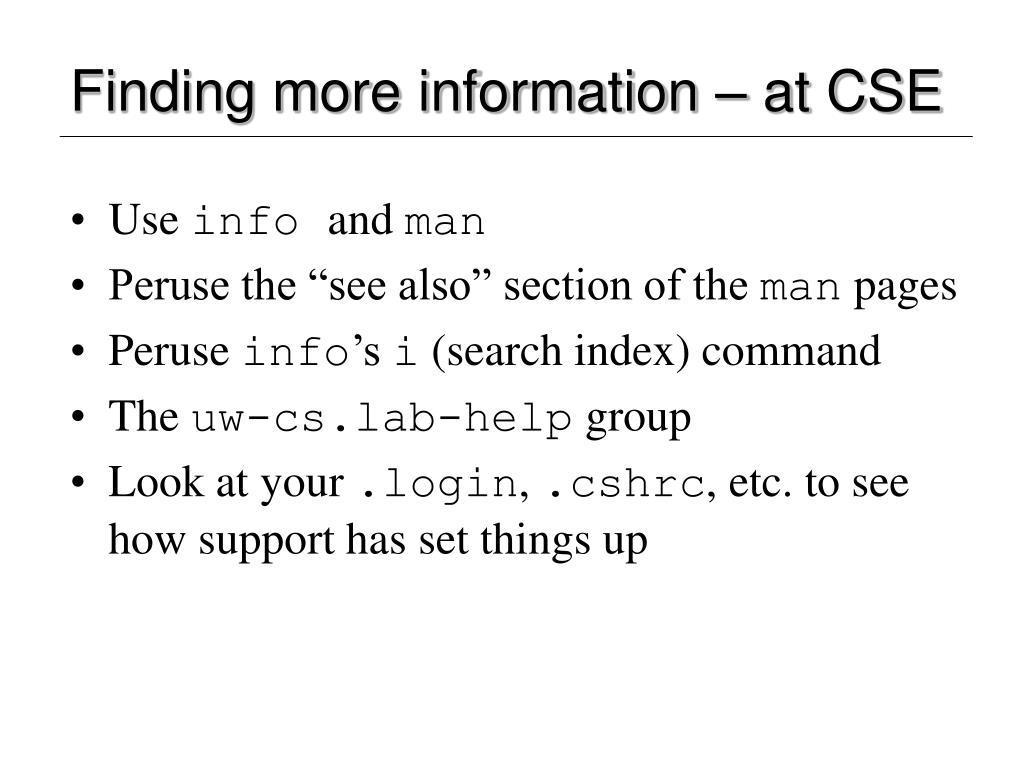

Finding more information – at CSE
  • Use info and man
  • Peruse the “see also” section of the man pages
  • Peruse info’s i (search index) command
  • The uw-cs.lab-help group
  • Look at your .login, .cshrc, etc. to see how support has set things up
finding more info on the web
Finding more info – on the web
  • http://www.faqs.org (comp.unix questions FAQ)
  • http://www.google.com
  • http://www.deja.com
  • The support web page:http://www.cs.washington.edu/lab/about/ugradcomputing.html
  • (Shameless plug) the ACM tutorials page:http://www.cs.washington.edu/people/acm/tutorials/
