Properties of Liquids Pre-Lab

Properties of Liquids Pre-Lab. Surface Tension = resistance of a liquid to an increase in its surface area Surface molecules are not involved in all possible intermolecular bonding Requires energy to go the surface, so liquid resists increases in surface area

sawyer-summers
Download Presentation

Properties of Liquids Pre-Lab

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Properties of Liquids Pre-Lab

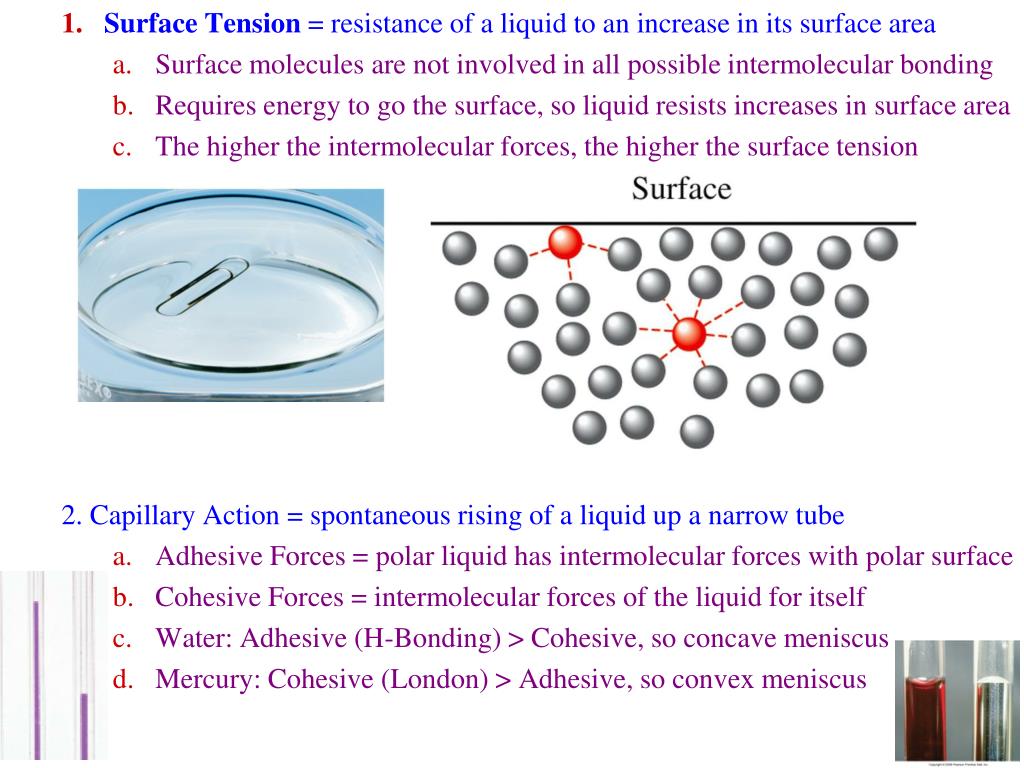

  2. Surface Tension = resistance of a liquid to an increase in its surface area • Surface molecules are not involved in all possible intermolecular bonding • Requires energy to go the surface, so liquid resists increases in surface area • The higher the intermolecular forces, the higher the surface tension 2. Capillary Action = spontaneous rising of a liquid up a narrow tube • Adhesive Forces = polar liquid has intermolecular forces with polar surface • Cohesive Forces = intermolecular forces of the liquid for itself • Water: Adhesive (H-Bonding) > Cohesive, so concave meniscus • Mercury: Cohesive (London) > Adhesive, so convex meniscus

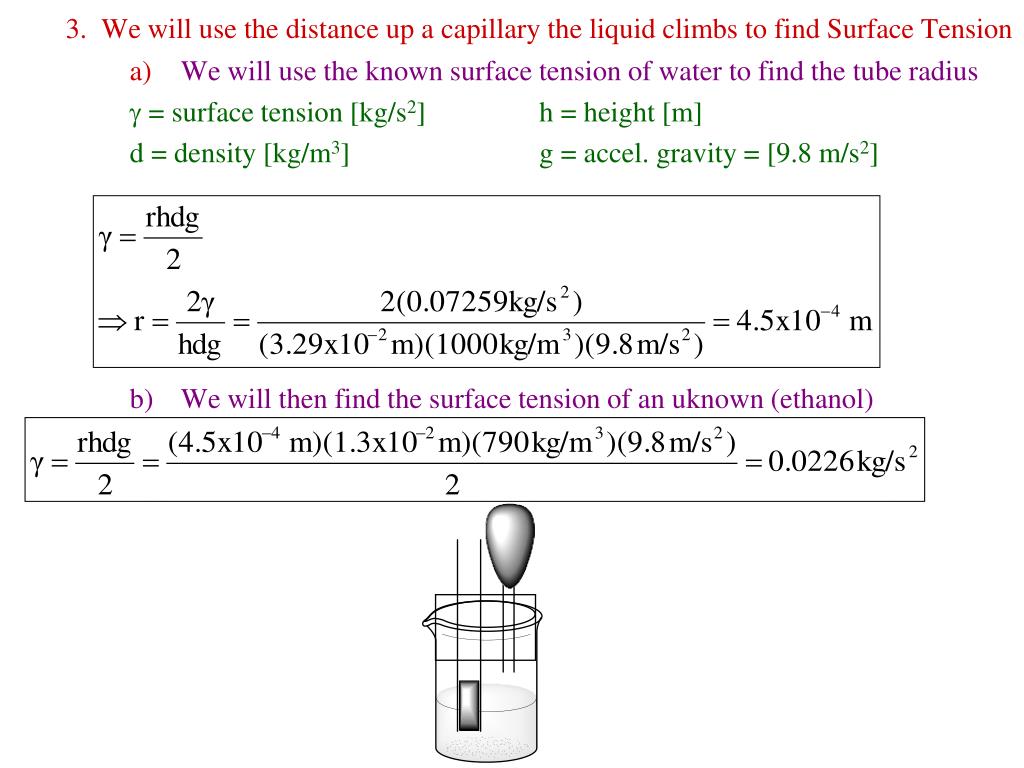

  3. 3. We will use the distance up a capillary the liquid climbs to find Surface Tension • We will use the known surface tension of water to find the tube radius g = surface tension [kg/s2] h = height [m] d = density [kg/m3] g = accel. gravity = [9.8 m/s2] b) We will then find the surface tension of an uknown (ethanol)

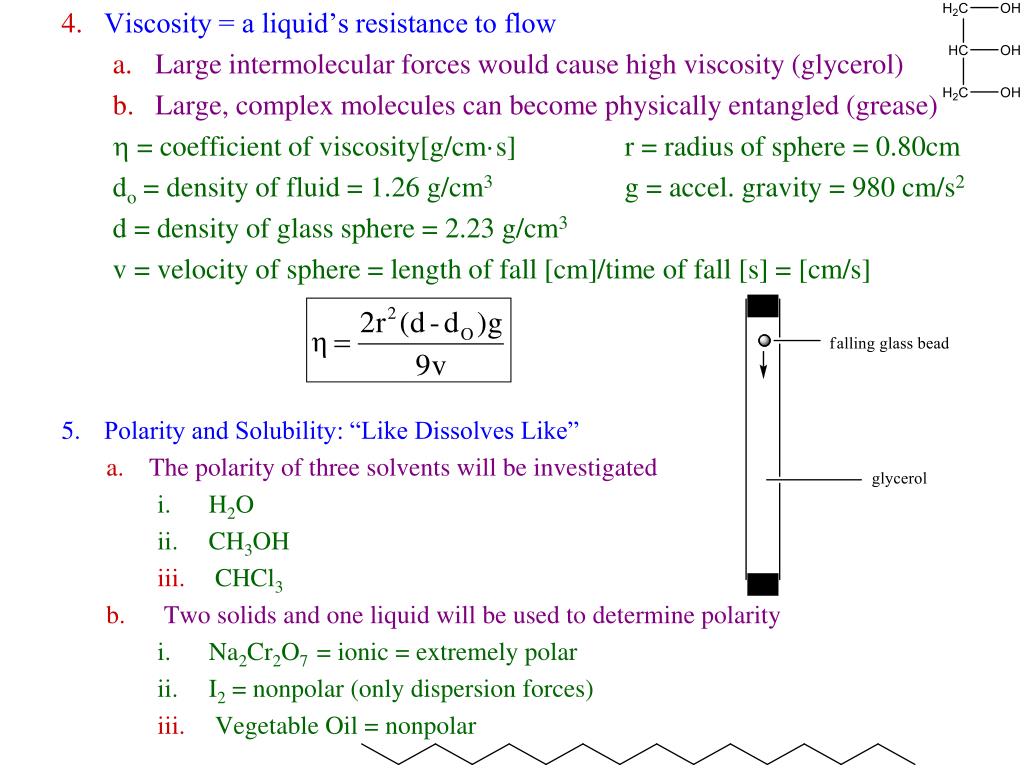

  4. Viscosity = a liquid’s resistance to flow • Large intermolecular forces would cause high viscosity (glycerol) • Large, complex molecules can become physically entangled (grease) h = coefficient of viscosity[g/cm·s] r = radius of sphere = 0.80cm do = density of fluid = 1.26 g/cm3 g = accel. gravity = 980 cm/s2 d = density of glass sphere = 2.23 g/cm3 v = velocity of sphere = length of fall [cm]/time of fall [s] = [cm/s] 5. Polarity and Solubility: “Like Dissolves Like” • The polarity of three solvents will be investigated i. H2O ii. CH3OH • CHCl3 • Two solids and one liquid will be used to determine polarity i. Na2Cr2O7 = ionic = extremely polar ii. I2 = nonpolar (only dispersion forces) • Vegetable Oil = nonpolar

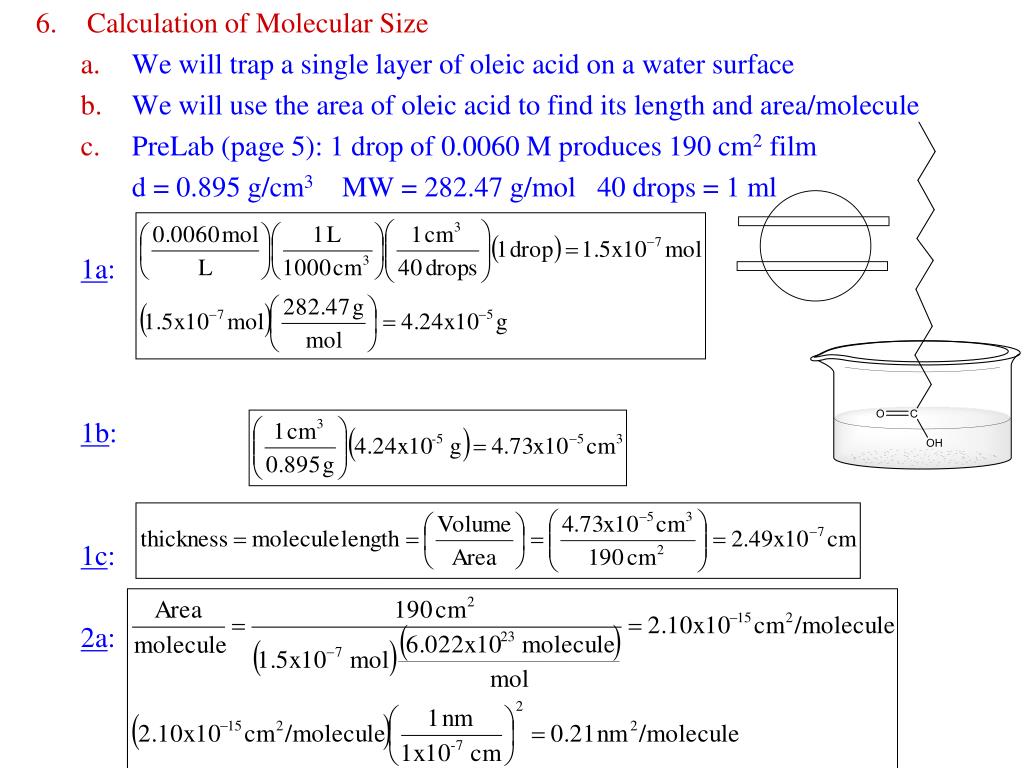

  5. Calculation of Molecular Size • We will trap a single layer of oleic acid on a water surface • We will use the area of oleic acid to find its length and area/molecule • PreLab (page 5): 1 drop of 0.0060 M produces 190 cm2 film d = 0.895 g/cm3 MW = 282.47 g/mol 40 drops = 1 ml 1a: 1b: 1c: 2a:
