1 / 10

Launch mySQL server

Launch mySQL server. Login with user/passwd Cp /etc/my.cnf ~/. Change my.cnf [mysqld_safe] datadir=/home/externals/sc10008/data socket=/home/externals/sc10008/mysql.sock log-error=/home/externals/sc10008/mysqld.log pid-file=/home/externals/sc10008/mysqld.pid

savannah-brady
Download Presentation

Launch mySQL server

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

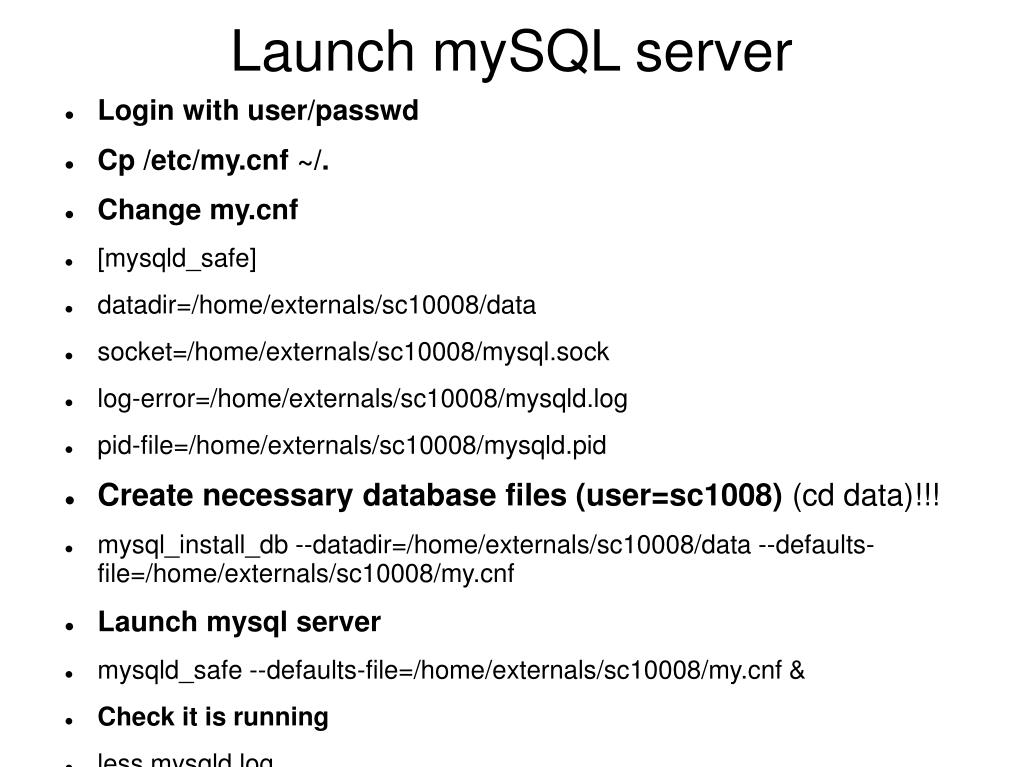

  1. Launch mySQL server • Login with user/passwd • Cp /etc/my.cnf ~/. • Change my.cnf • [mysqld_safe] • datadir=/home/externals/sc10008/data • socket=/home/externals/sc10008/mysql.sock • log-error=/home/externals/sc10008/mysqld.log • pid-file=/home/externals/sc10008/mysqld.pid • Create necessary database files (user=sc1008) (cd data)!!! • mysql_install_db --datadir=/home/externals/sc10008/data --defaults-file=/home/externals/sc10008/my.cnf • Launch mysql server • mysqld_safe --defaults-file=/home/externals/sc10008/my.cnf & • Check it is running • less mysqld.log

  2. Create database prob Connect to MySQL with CLI mysql --socket=/home/externals/sc10008/mysql.sock -u root Create database prob create database prob\g show databases \g use prob \g

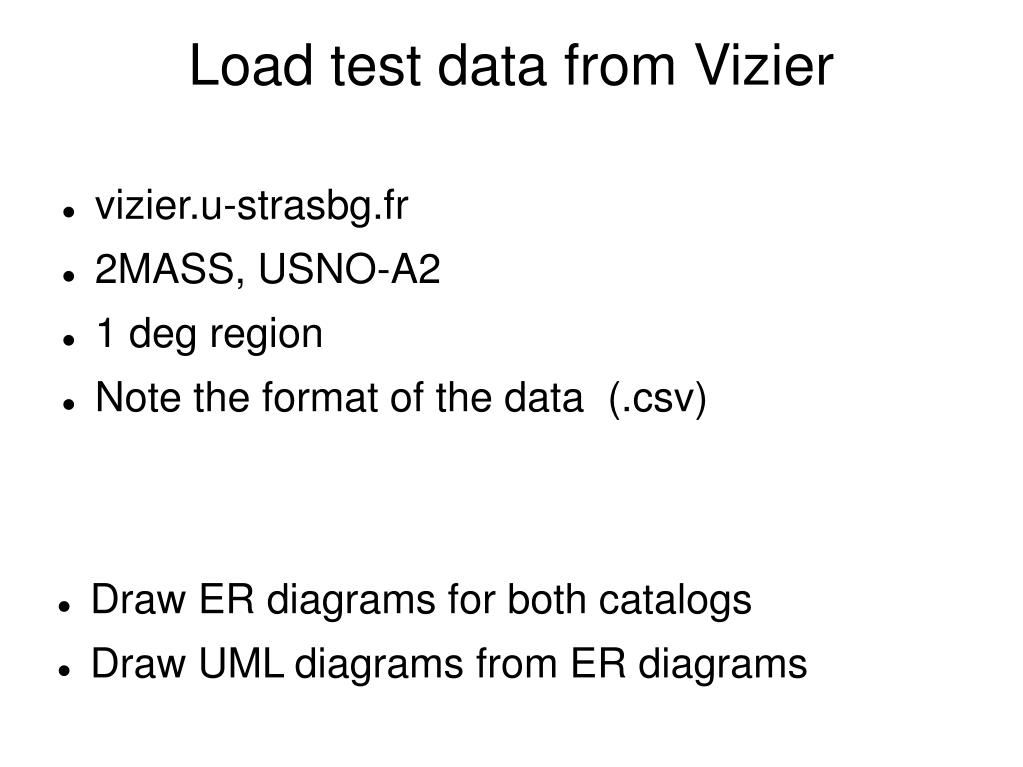

  3. Load test data from Vizier • vizier.u-strasbg.fr • 2MASS, USNO-A2 • 1 deg region • Note the format of the data (.csv)‏ • Draw ER diagrams for both catalogs • Draw UML diagrams from ER diagrams

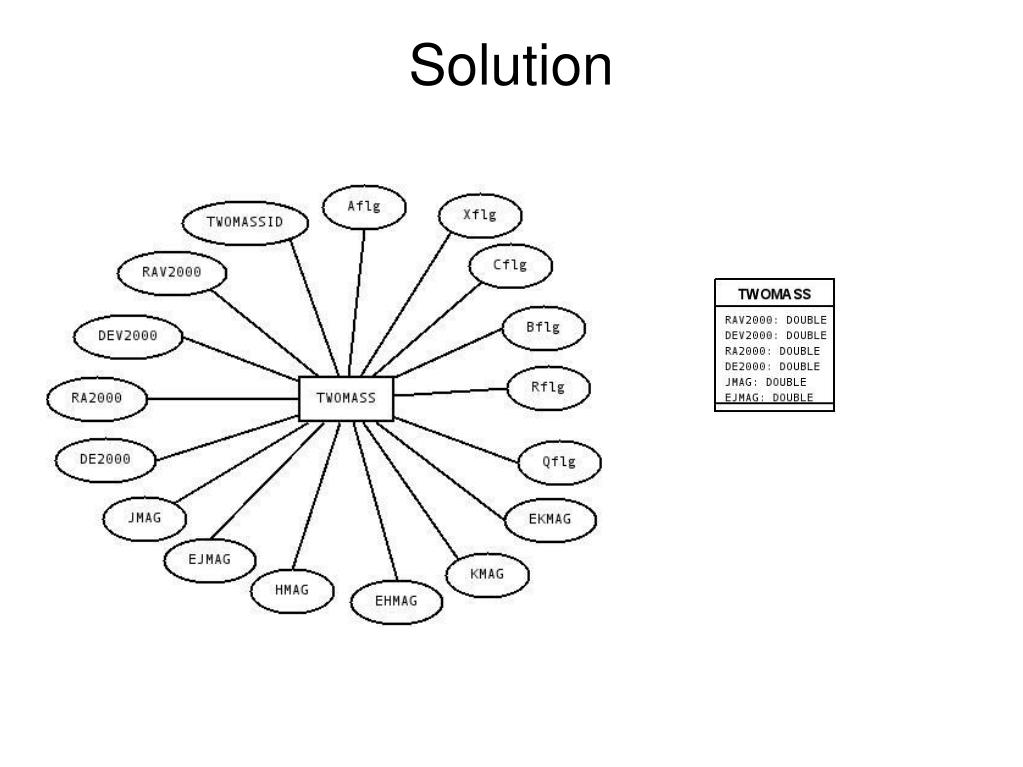

  4. Solution

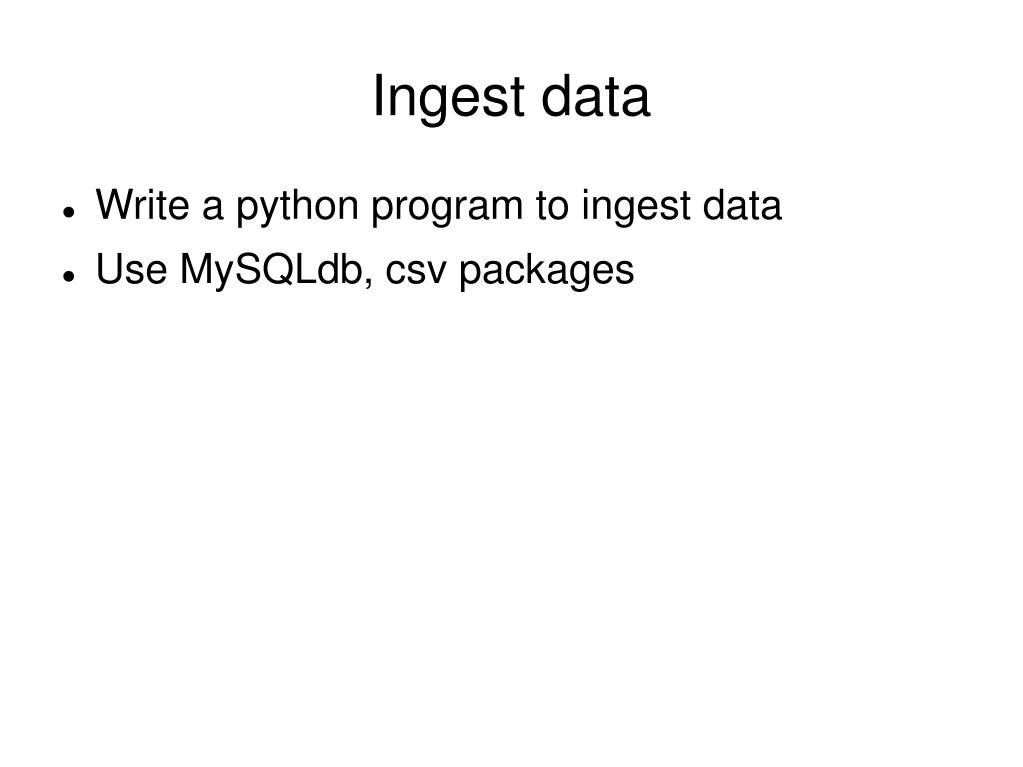

  5. Ingest data • Write a python program to ingest data • Use MySQLdb, csv packages

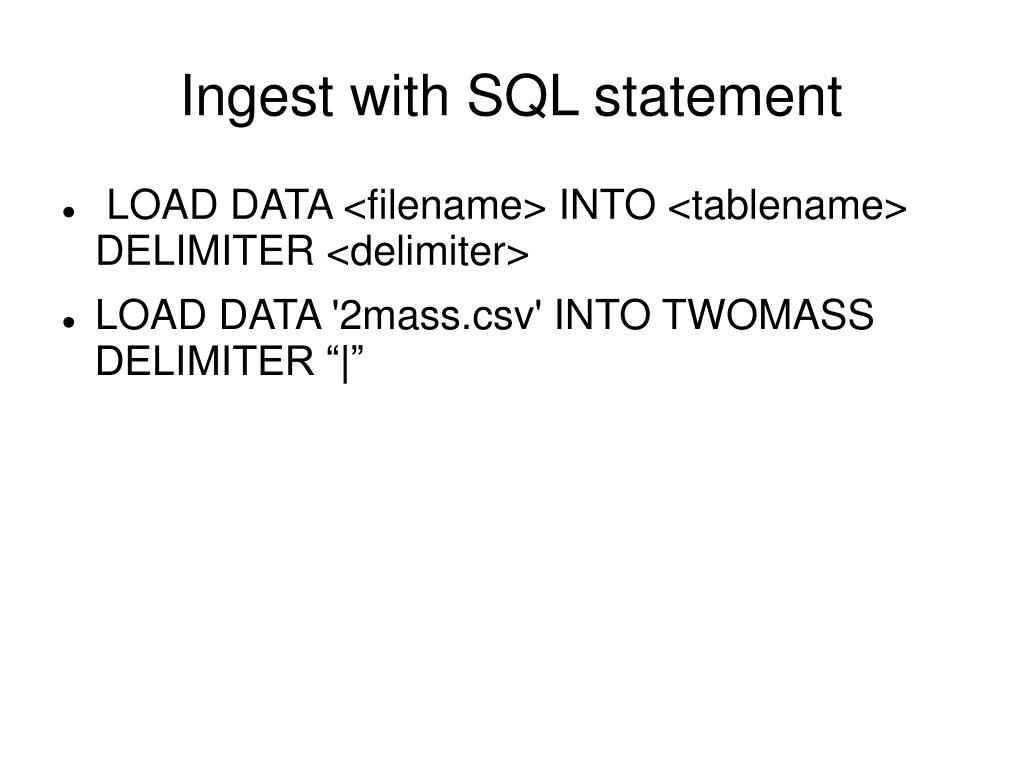

  6. Ingest with SQL statement • LOAD DATA <filename> INTO <tablename> DELIMITER <delimiter> • LOAD DATA '2mass.csv' INTO TWOMASS DELIMITER “|”

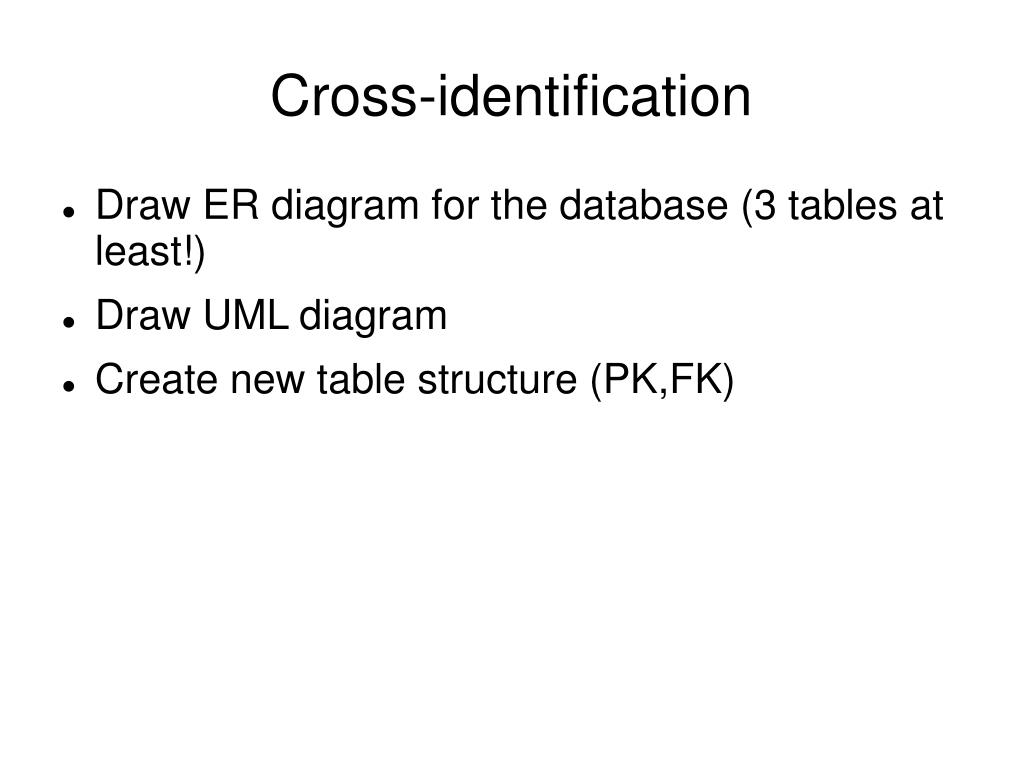

  7. Cross-identification • Draw ER diagram for the database (3 tables at least!) • Draw UML diagram • Create new table structure (PK,FK)

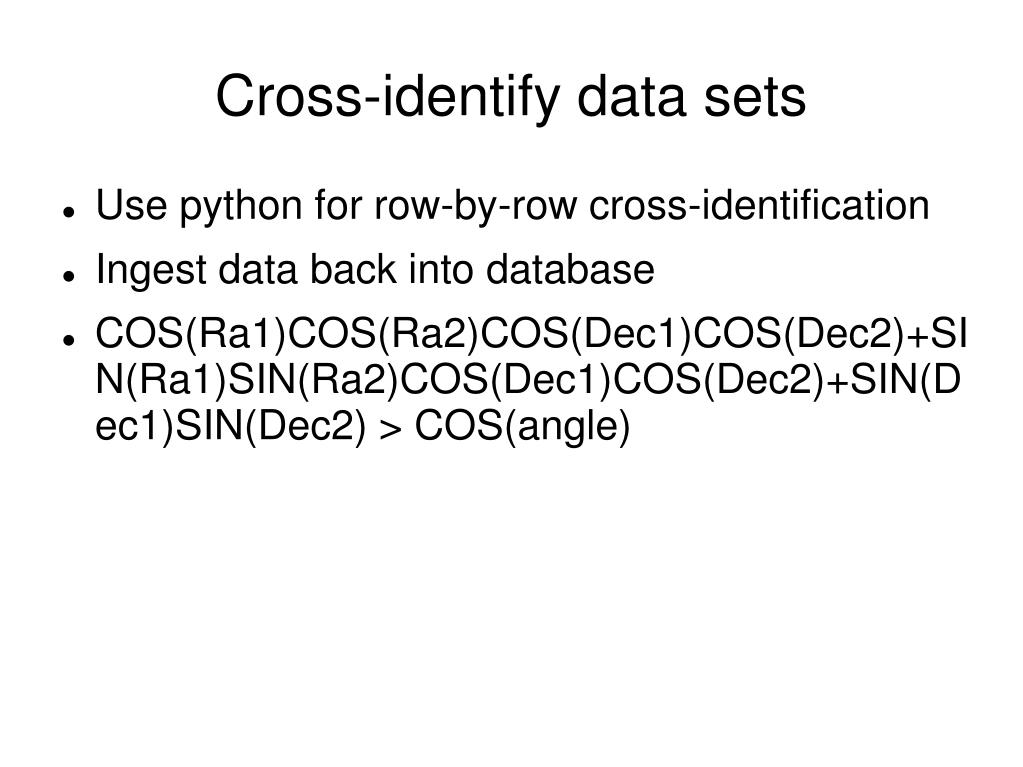

  8. Cross-identify data sets • Use python for row-by-row cross-identification • Ingest data back into database • COS(Ra1)COS(Ra2)COS(Dec1)COS(Dec2)+SIN(Ra1)SIN(Ra2)COS(Dec1)COS(Dec2)+SIN(Dec1)SIN(Dec2) > COS(angle)

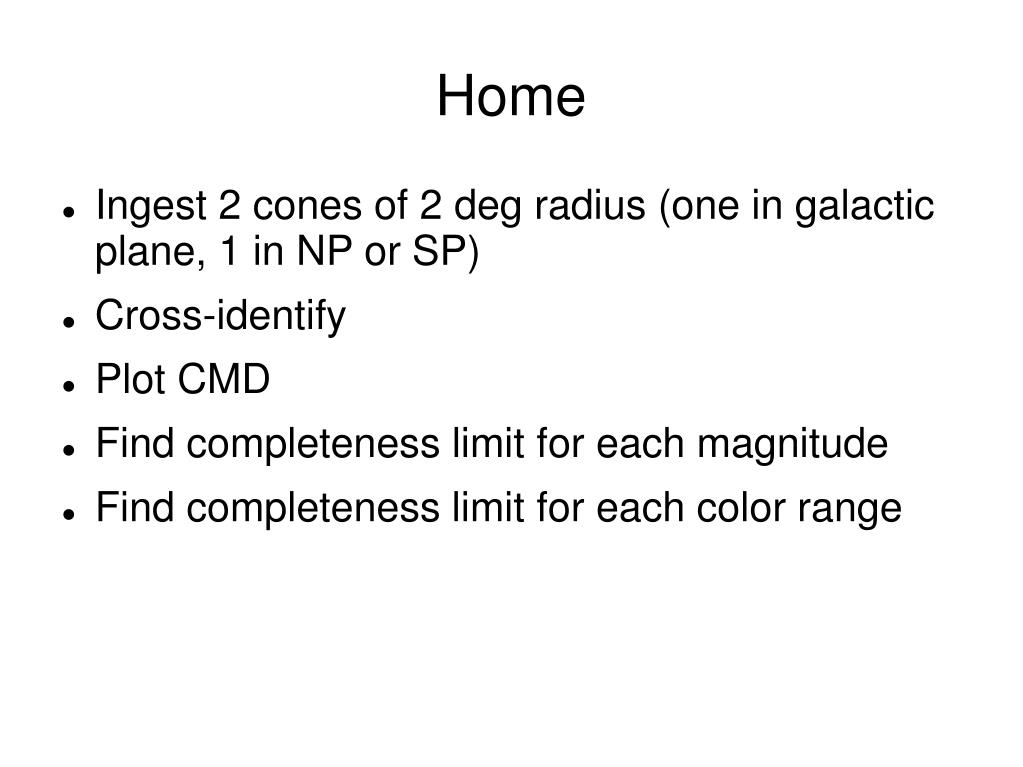

  9. Home • Ingest 2 cones of 2 deg radius (one in galactic plane, 1 in NP or SP) • Cross-identify • Plot CMD • Find completeness limit for each magnitude • Find completeness limit for each color range
