1 / 24

第六章 氣體的恆定

第六章 氣體的恆定. 6-1  植物怎樣與外界交換氣體 6-2  動物如何進行氣體交換 6-3  人體如何進行呼吸運動 6-4  人體血液如何運輸、交換氣體. 回總目錄. 氣孔的構成 氣孔如何分布 影響氣孔開放和關閉 皮孔的構造、功能. 植物和外界交換氣體. 資料來源: Wallace, R. A., G. P. Sanders, R.J. Ferl. 1996. Biology. Happer Collins College Publisher, p.641. Fig. 30-8. 氣 孔. 各種植物葉面氣孔分布. 光直接影響氣孔開閉

saskia
Download Presentation

第六章 氣體的恆定

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

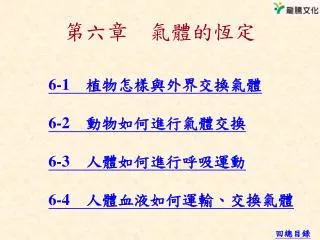

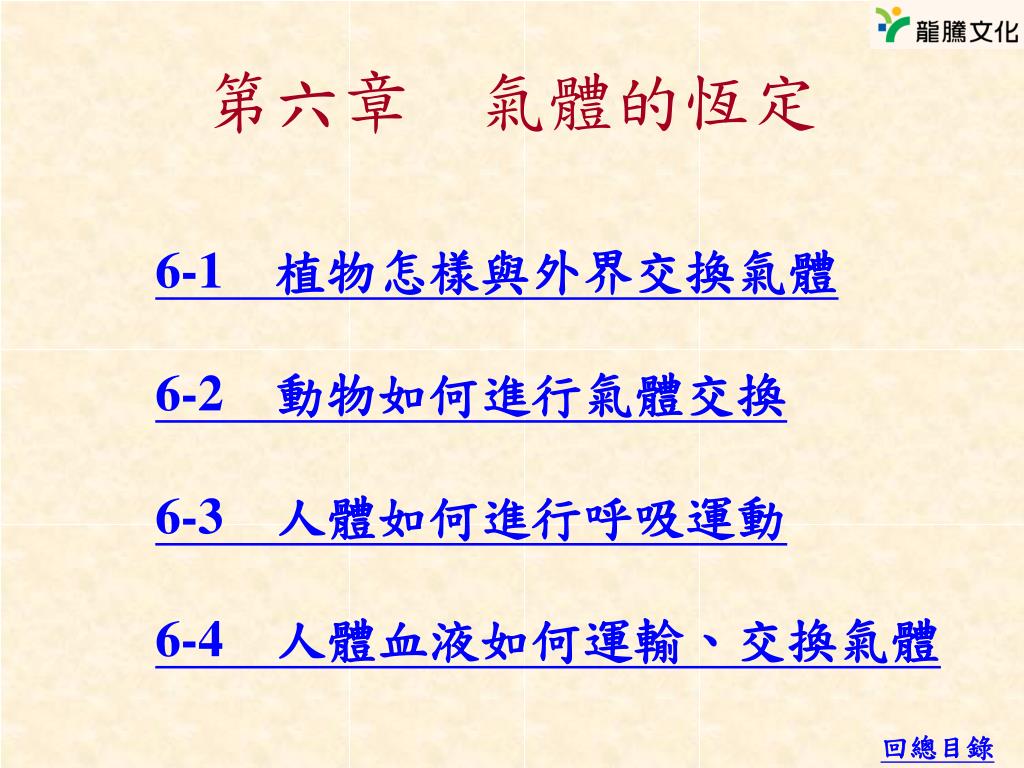

  1. 第六章 氣體的恆定 6-1 植物怎樣與外界交換氣體 6-2 動物如何進行氣體交換 6-3 人體如何進行呼吸運動 6-4 人體血液如何運輸、交換氣體 回總目錄

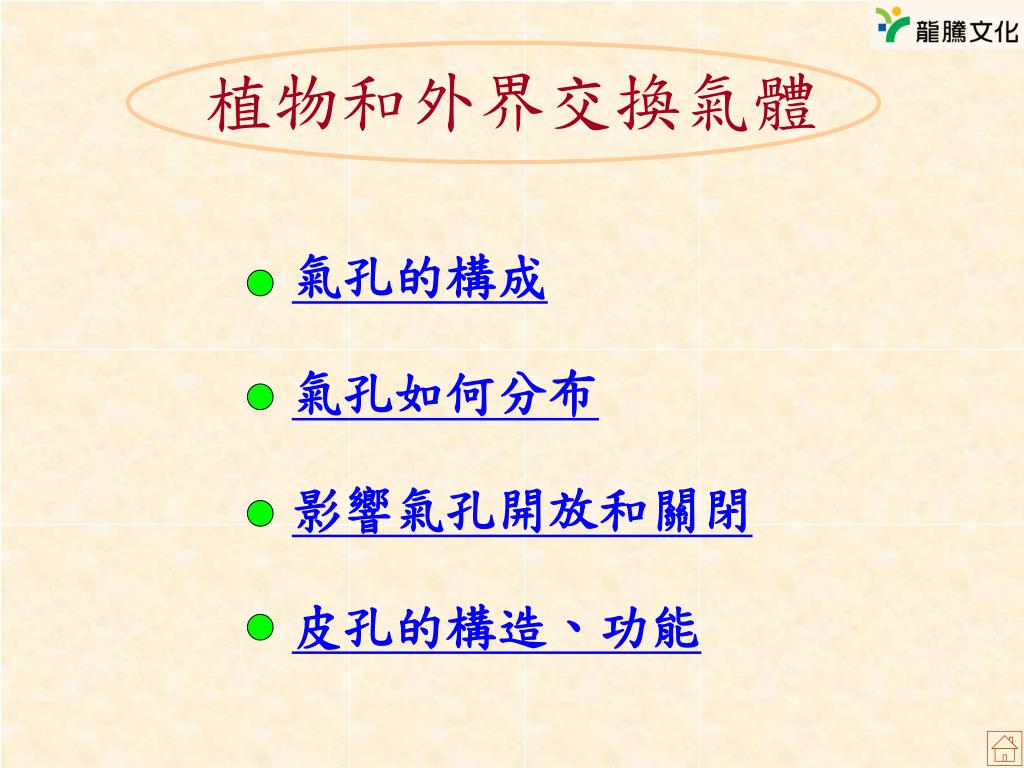

  2. 氣孔的構成 氣孔如何分布 影響氣孔開放和關閉 皮孔的構造、功能 植物和外界交換氣體

  3. 資料來源:Wallace, R. A., G. P. Sanders, R.J. Ferl. 1996. Biology. Happer Collins College Publisher, p.641. Fig. 30-8 氣 孔

  4. 各種植物葉面氣孔分布

  5. 光直接影響氣孔開閉 離素和CO2影響氣孔開閉 影響氣孔開閉

  6. (B)保衛細胞溶質增加,水分子滲透進入,液胞飽滿,氣孔開放。(B)保衛細胞溶質增加,水分子滲透進入,液胞飽滿,氣孔開放。 (C)光消失,K+離子自保衛細胞擴散至周邊細胞,水分隨著流出,保衛細胞萎縮,氣孔關閉。 (A)光受體受光刺激,引發K+ 離子進入保衛細胞。 資料來源:Wallace, R. A., G. P. Sanders, R.J. Ferl. 1996. Biology. Happer Collins College Publisher, p.642. Fig. 30-10 鉀離子與氣孔的開閉

  7. 資料來源:(A) Fahn, A. 1982. Plant Anatomy. Pergamon Press, Inc., p.369. Fig. 209-1(B) Fahn, A. 1982. Plant Anatomy. Pergamon Press, Inc., p.370. Fig. 210 皮孔的構造

  8. 蚯蚓體表 昆蟲氣管 水生動物鰓 動物進行氣體交換

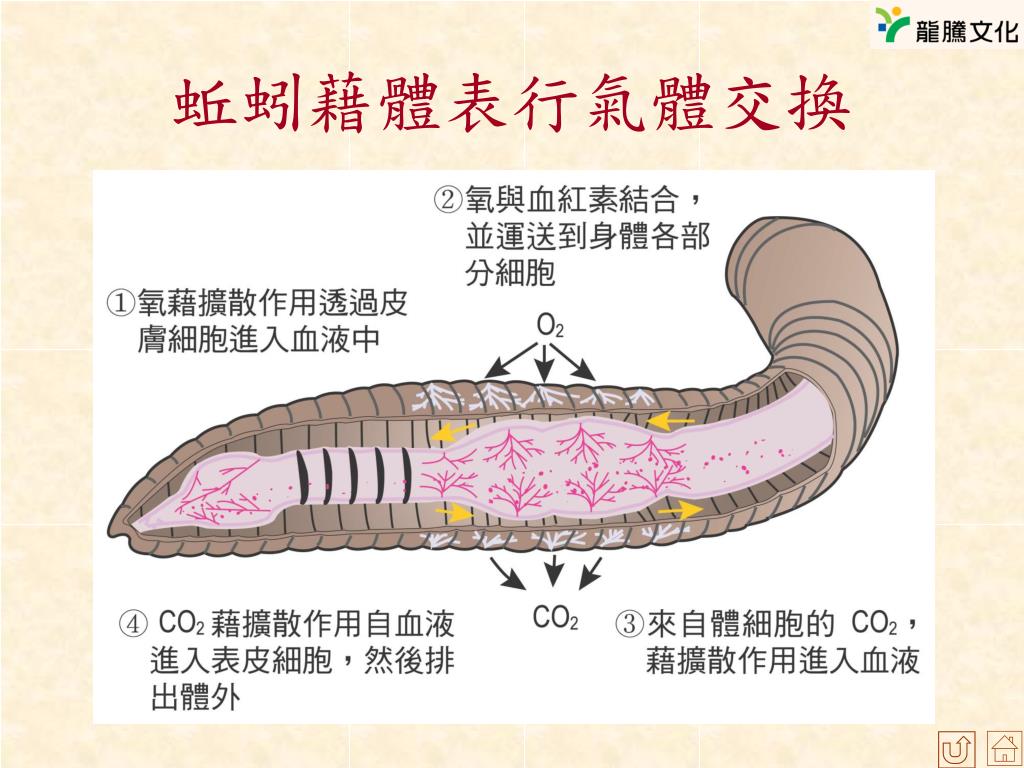

  9. 蚯蚓藉體表行氣體交換

  10. 資料來源:Wallace, R. A., G. P. Sanders, R. J. Ferl. 1996. Biology. Happer Collins College Publishers, p.837. Fig. 34-9 昆蟲藉氣管行氣體交換

  11. 資料來源:Campbell, N.A. 1993. Biology. The Benyamin/Cummings Publishing, p.837. Fig. 38-19 魚類鰓部的構造、功能

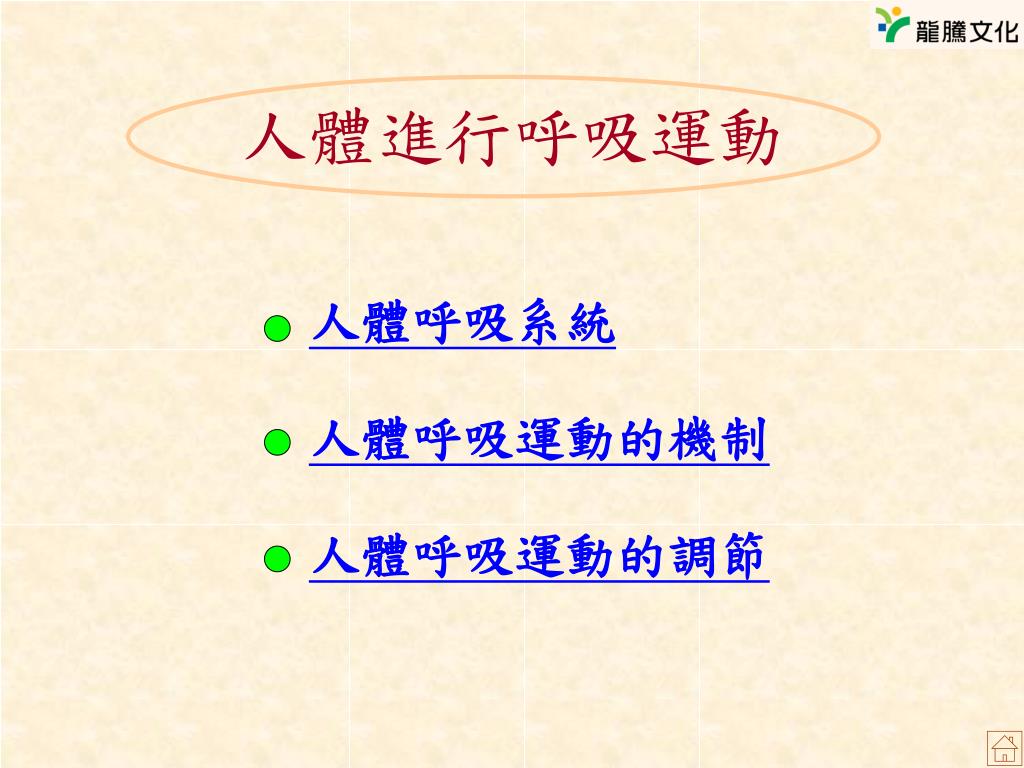

  12. 人體呼吸系統 人體呼吸運動的機制 人體呼吸運動的調節 人體進行呼吸運動

  13. 資料來源:(A) Campbell, N. A., J. B. Reece, L.G. Mitchell. 1999. Biology. Addison Wesley Longman, Inc., p.831. Fig. 42-22(a) (B) Tobin, A. J. and J. Dusheck, 1998. Asking About Life. Saunders College Publishing. p.834. Fig. 38-8 (C) Campbell, N. A., J. B. Reece, L. G. Mitchell. 1999. Biology. Addison Wesley Longman, Inc., p.831. Fig. 42-22(c) 人體的呼吸系統

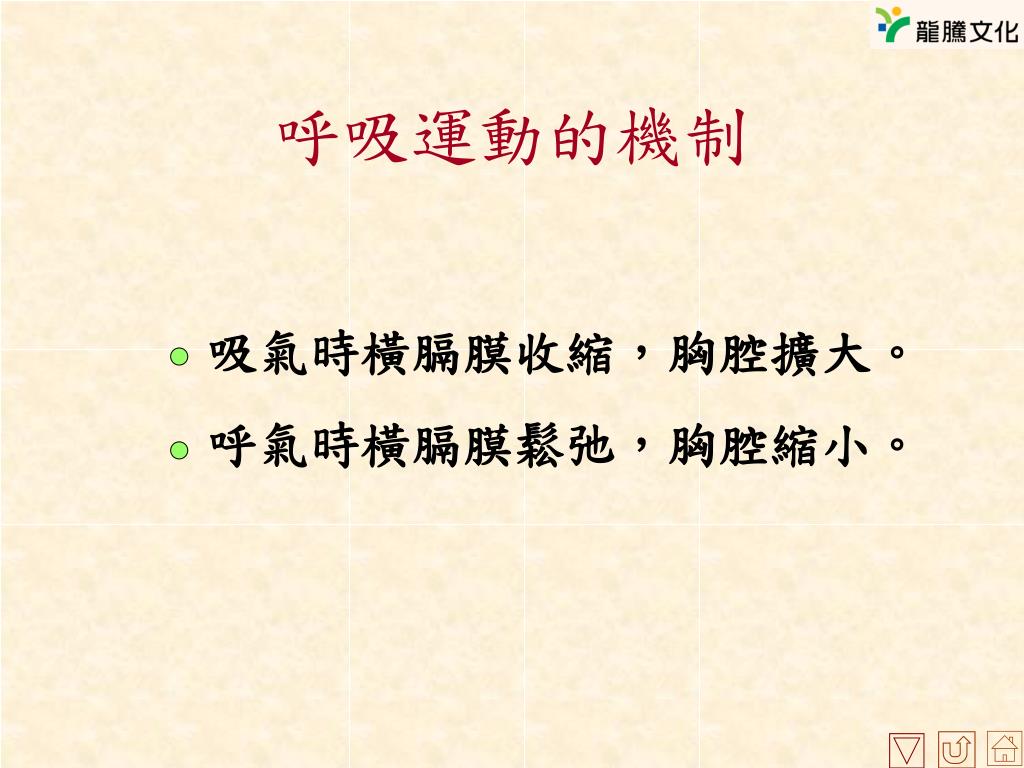

  14. 吸氣時橫膈膜收縮,胸腔擴大。 呼氣時橫膈膜鬆弛,胸腔縮小。 呼吸運動的機制

  15. 吸氣 呼氣 資料來源:Mader, S. S. 1994. Inquiry into Life. Wm. C. Brown Publishers, p.246. Fig. 14-7 人體的呼吸運動

  16. 呼吸調節中樞 化學接受器偵側pH值和O2濃度 呼吸運動的調節

  17. 資料來源:Campbell, N. A., J.B. Reece, L. G. Mitchell. 1999. Biology. Addison Wesley Longman, Inc., p.833. Fig. 42-25 呼吸的調節

  18. 血液運輸氣體 血液交換氣體 人體血液運輸、交換氣體

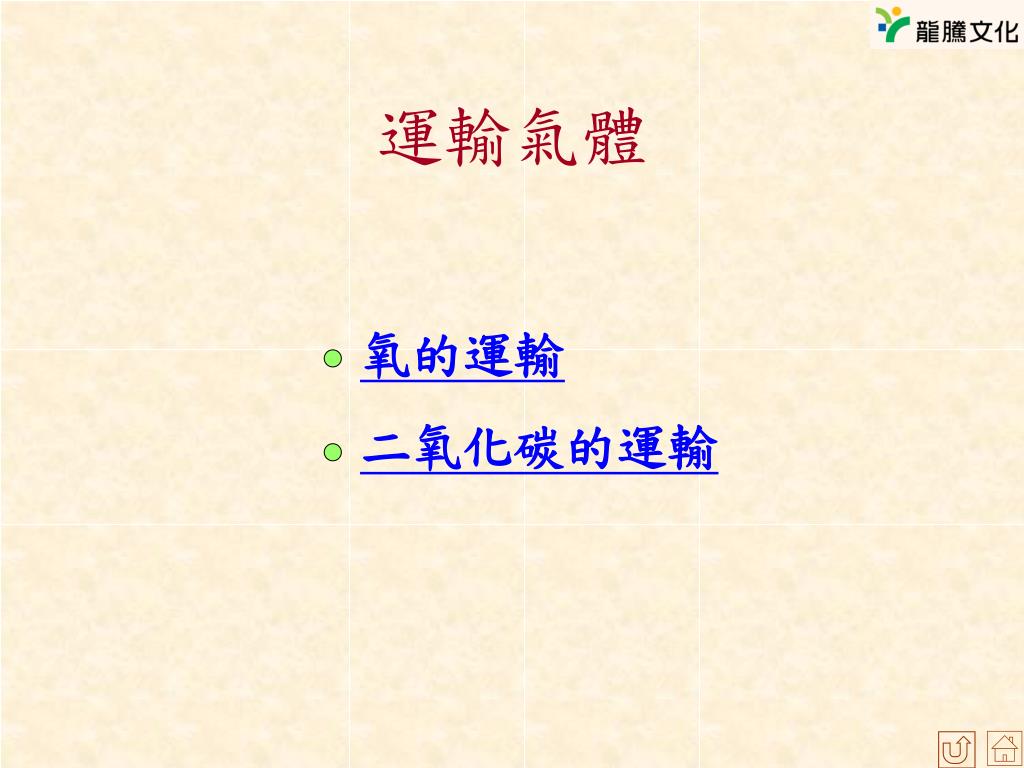

  19. 氧的運輸 二氧化碳的運輸 運輸氣體

  20. 資料來源:Tobin, A. J. and J. Dusheck, 1998. Asking About Life. Saunders College Publishing. p.837. Fig. 38-12 氧的運輸

  21. 資料來源:Campbell, N. A., J. B. Reece, L. G. Mitchell. 1999. Biology. Addison Wesley Longman, Inc., p.836. Fig. 42-26 血液運輸CO2

  22. 氣體依壓力差異擴散 肺部氣體交換 組織細胞氣體交換 交換氣體

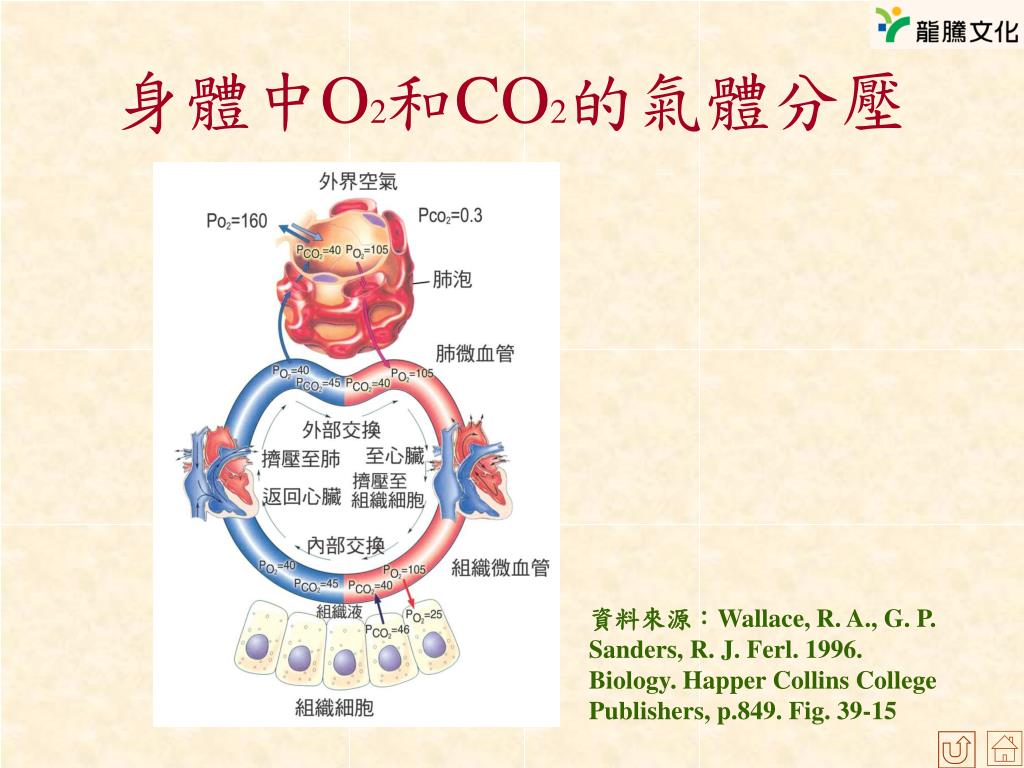

  23. 資料來源:Wallace, R. A., G. P. Sanders, R. J. Ferl. 1996. Biology. Happer Collins College Publishers, p.849. Fig. 39-15 身體中O2和CO2的氣體分壓

  24. 生物(上)總目錄 第一章 緒論 第二章 生物的基本構造與功能 第三章 維持生命現象的能量 第四章 養分的攝取 第五章 物質的運輸 第六章 氣體的恆定 第七章 生物體內體液的恆定
