Presentation Transcript

  1. mettere il titanio di provenienza

  2. Patent Method for the application of nanostructural material on tiles, floor tiles, and glasses and Plant for the application of nanostructural material on tiles, floor tiles, and glasses

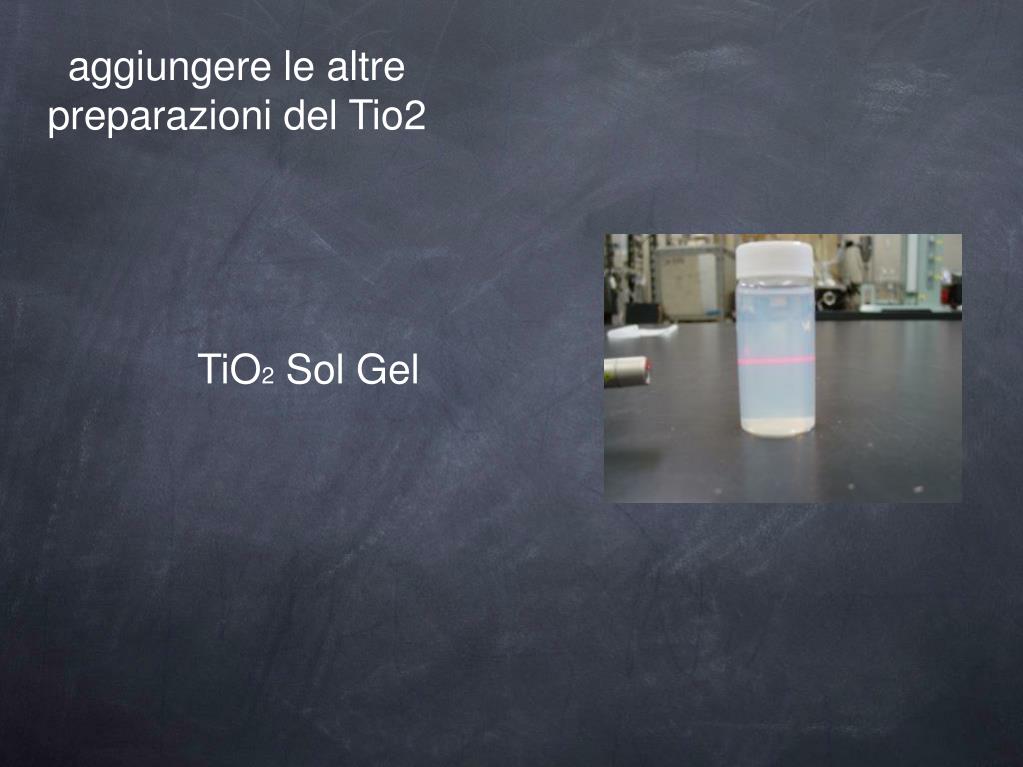

  3. aggiungere le altre preparazioni del Tio2 TiO2 Sol Gel

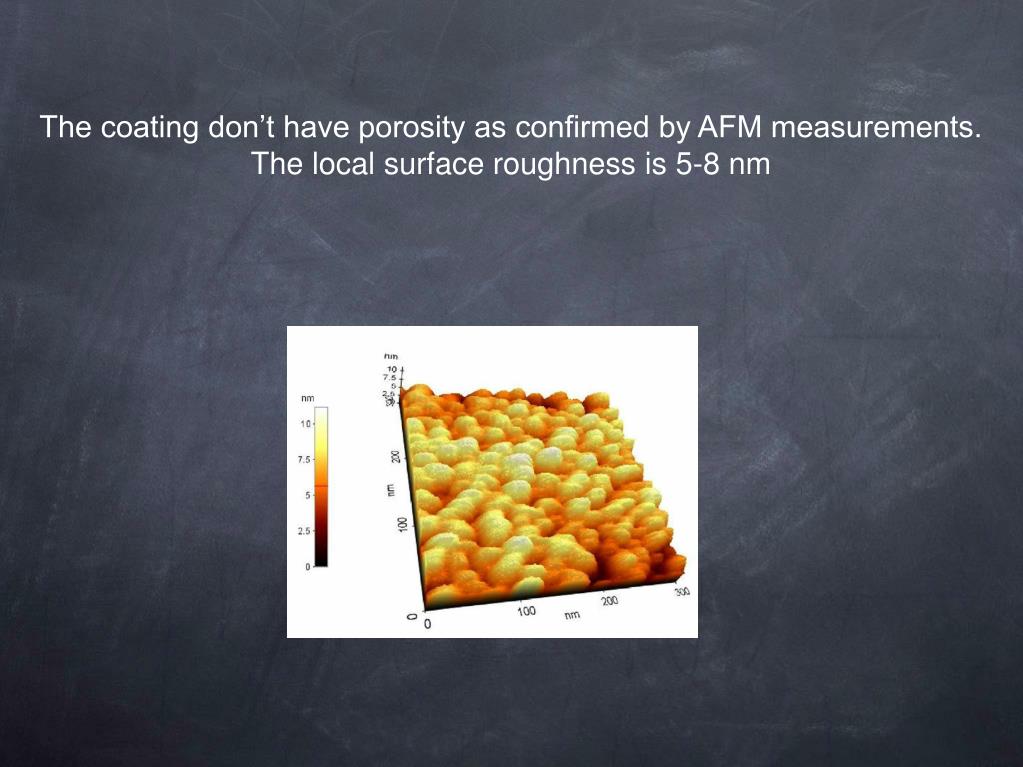

  4. The coating don’t have porosity as confirmed by AFM measurements. The local surface roughness is 5-8 nm

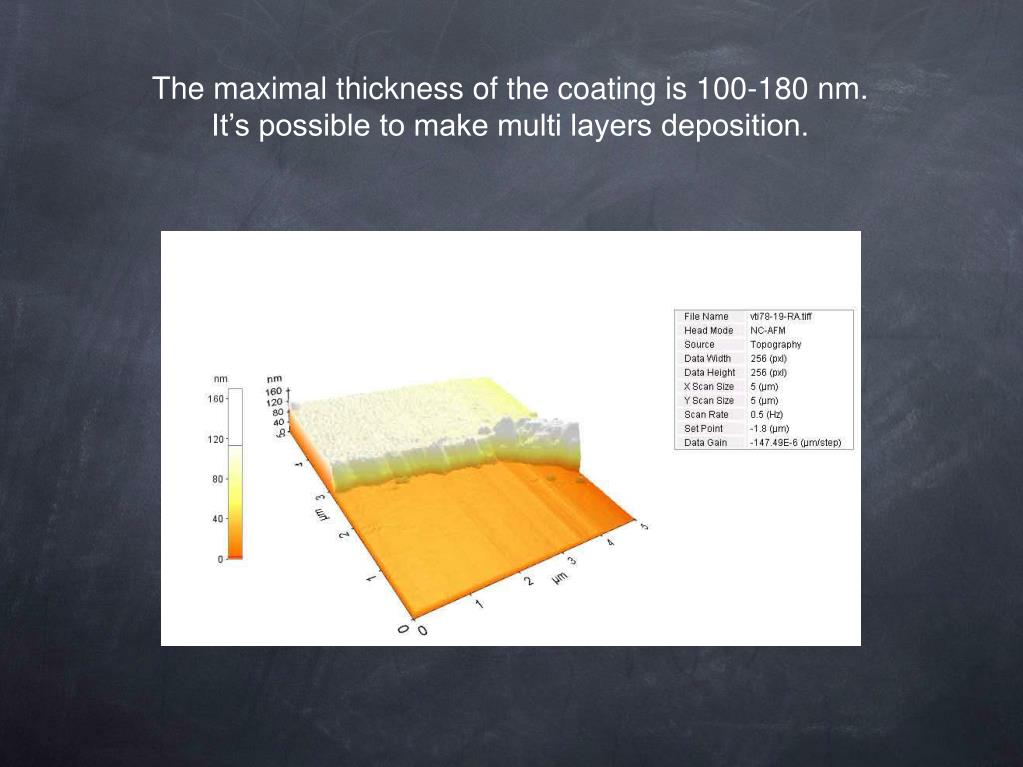

  5. The maximal thickness of the coating is 100-180 nm. It’s possible to make multi layers deposition.

  6. The TiO2 property

  7. Heat treatment for TiOx and ZrOx. The Range is from 5 minutes at 650° to 10 minutes at 550° The material has been tried with the ISO 10545-14; based on this test the class of the coating is 1. For thick film there is no risk of delamination

  8. The coating illuminated becomes fotocatalytic and superhydrophilic for 24-48 hours (the contact angle with water becomes 0) Hydrophobic Drop Superhydrophilic

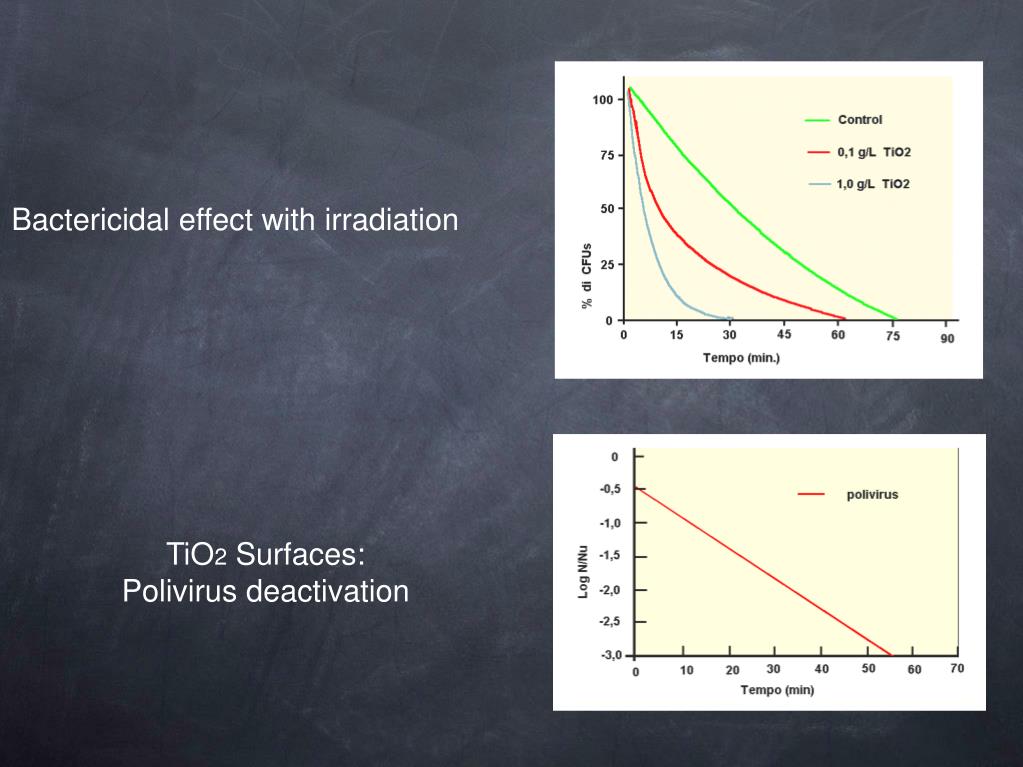

  9. Bactericidal effect with irradiation TiO2 Surfaces: Polivirus deactivation

  10. TiO2 surfaces: Coli Deactivation Coli deactivation in surfaces of TiO2: comparison between obscurity and light

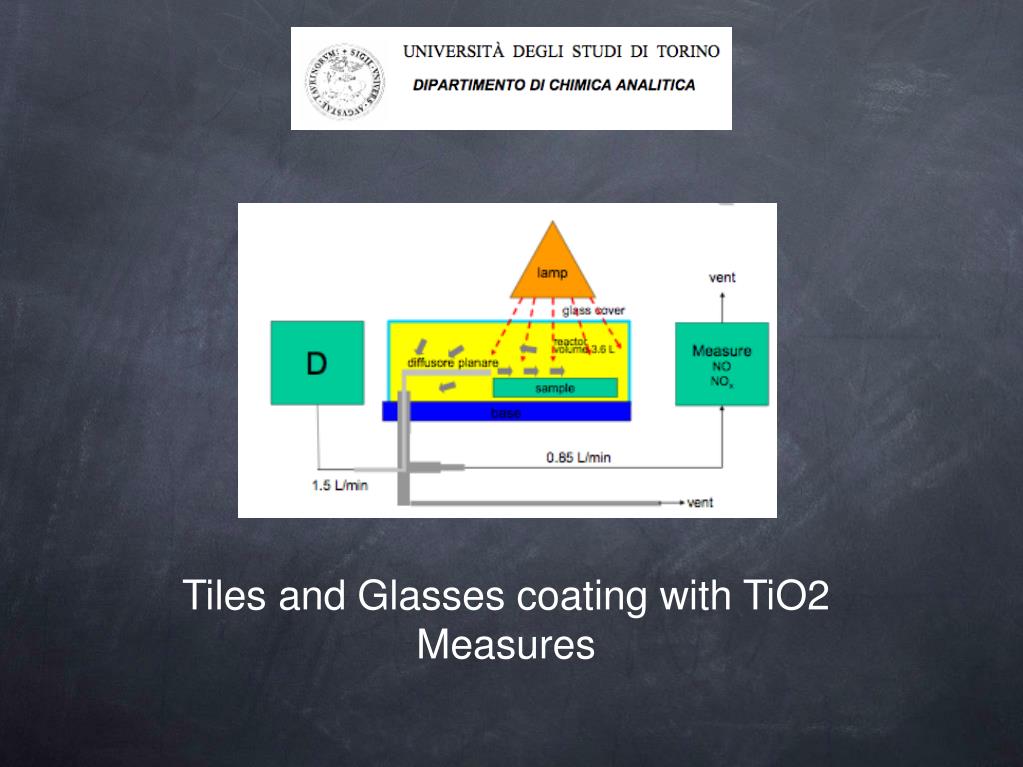

  11. Tiles and Glasses coating with TiO2 Measures

  12. Tiles with TiO2: NO, NO2 and NOx conversion. During irradiation the tile become super hydrophilic

  13. Drawing-room Windows Surfaces Air-conditioning Unit Floor tiles

  14. kitchen Windows Purified air vent Tables Furnitures Tiles

  15. Bath Paint Wall Tiles Purified water supply

  16. Swimming pool Paving Stones Purified water
