Presentation Transcript


  1. http://vimeo.com/24784020

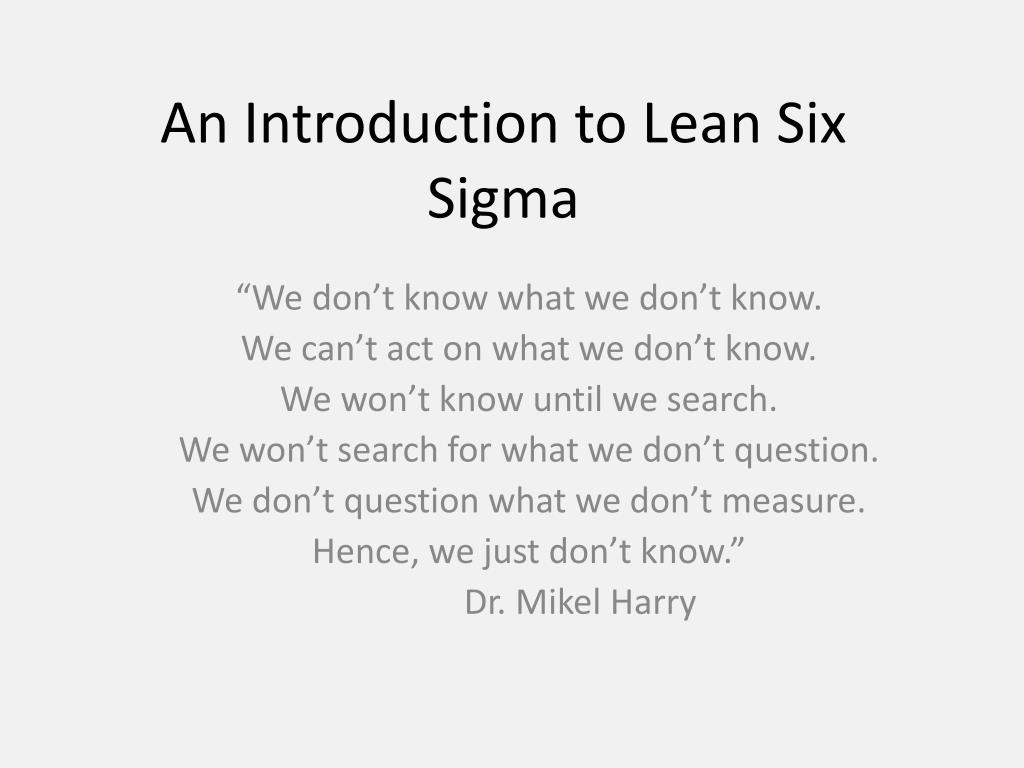

  2. An Introduction to Lean Six Sigma “We don’t know what we don’t know. We can’t act on what we don’t know. We won’t know until we search. We won’t search for what we don’t question. We don’t question what we don’t measure. Hence, we just don’t know.” Dr. Mikel Harry

  3. Process Improvement

  4. Lean Six Sigma Process Improvement • Lean Six Sigma Seeks to improve the quality of manufacturing and business process by: • identifying and removing the causes of defects (errors) and variation. • Identifying and removing sources of waste within the process • Focusing on outputs that are critical to customers

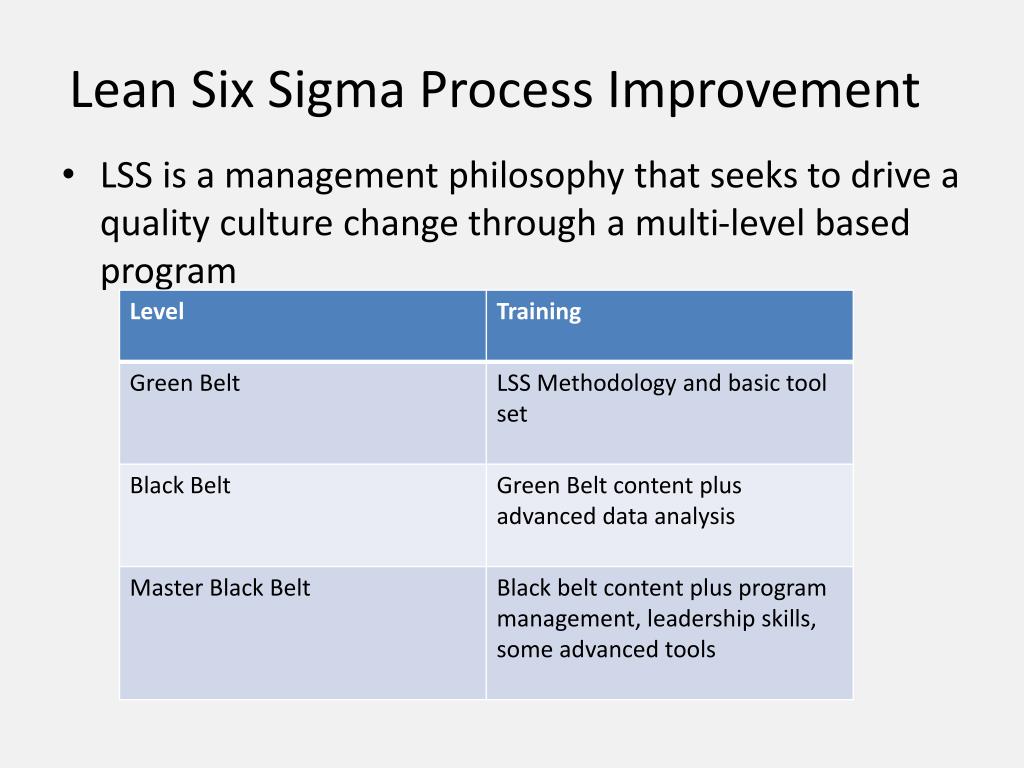

  5. Lean Six Sigma Process Improvement • LSS is a management philosophy that seeks to drive a quality culture change through a multi-level based program

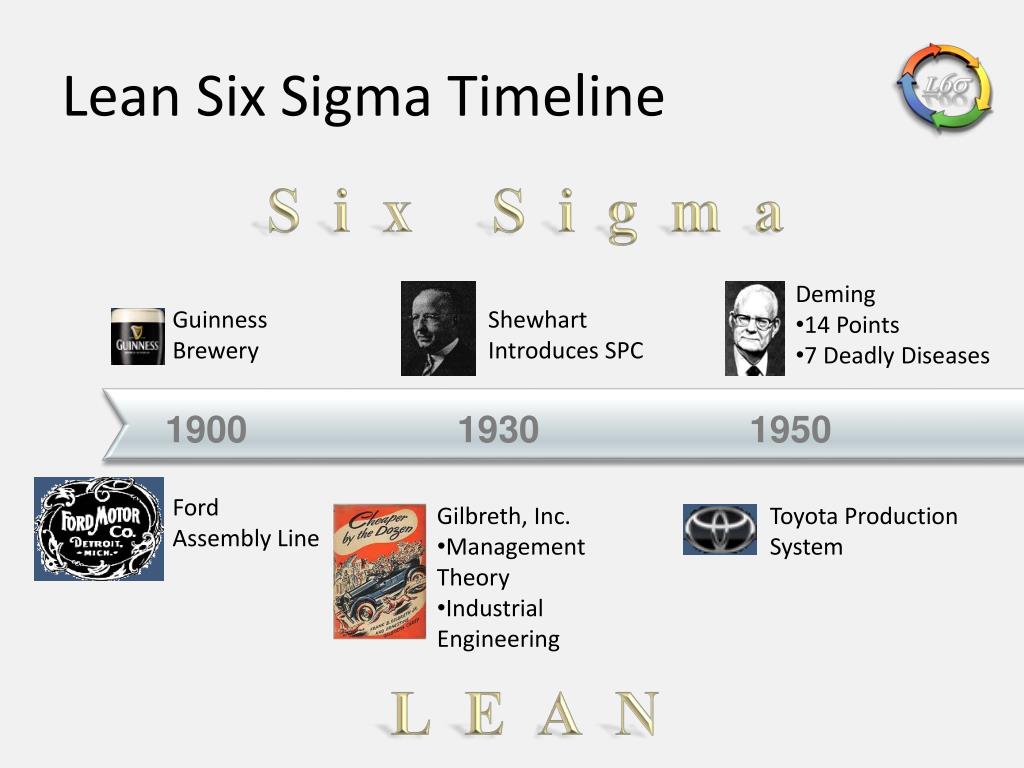

  6. Lean Six Sigma Timeline Six Sigma • Deming • 14 Points • 7 Deadly Diseases Guinness Brewery Shewhart Introduces SPC 1900 1930 1950 Ford Assembly Line • Gilbreth, Inc. • Management Theory • Industrial Engineering Toyota Production System LEAN

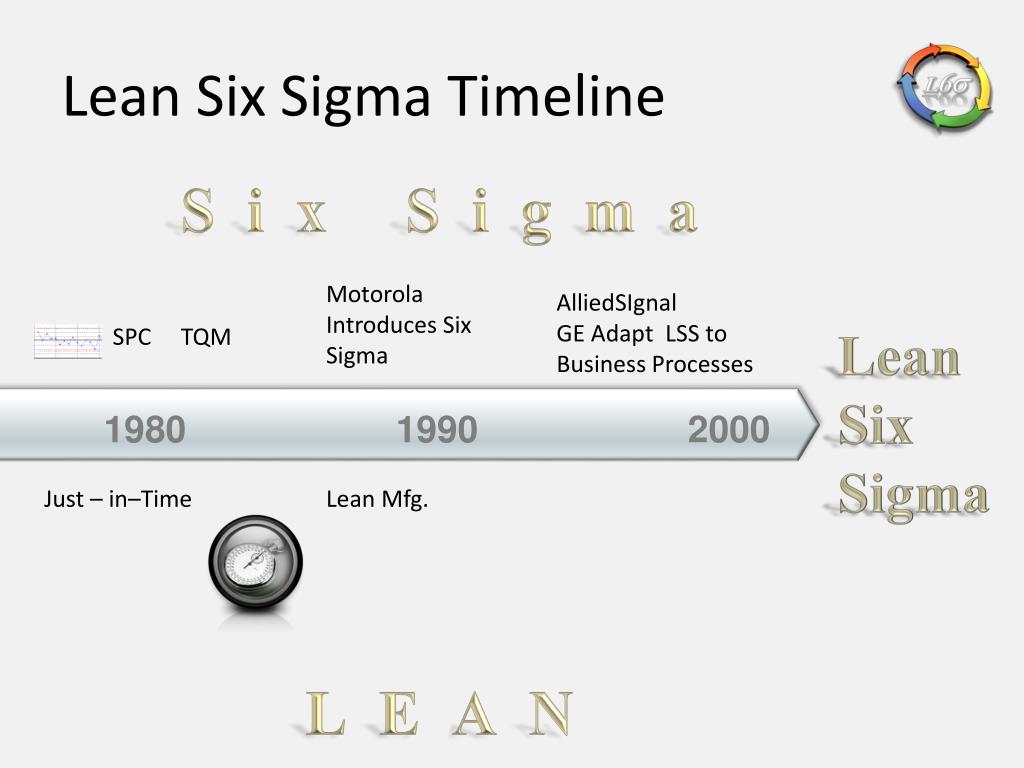

  7. Lean Six Sigma Timeline Six Sigma Motorola Introduces Six Sigma AlliedSIgnalGE Adapt LSS to Business Processes SPC TQM LeanSix Sigma 1980 1990 2000 Just – in–Time Lean Mfg. LEAN

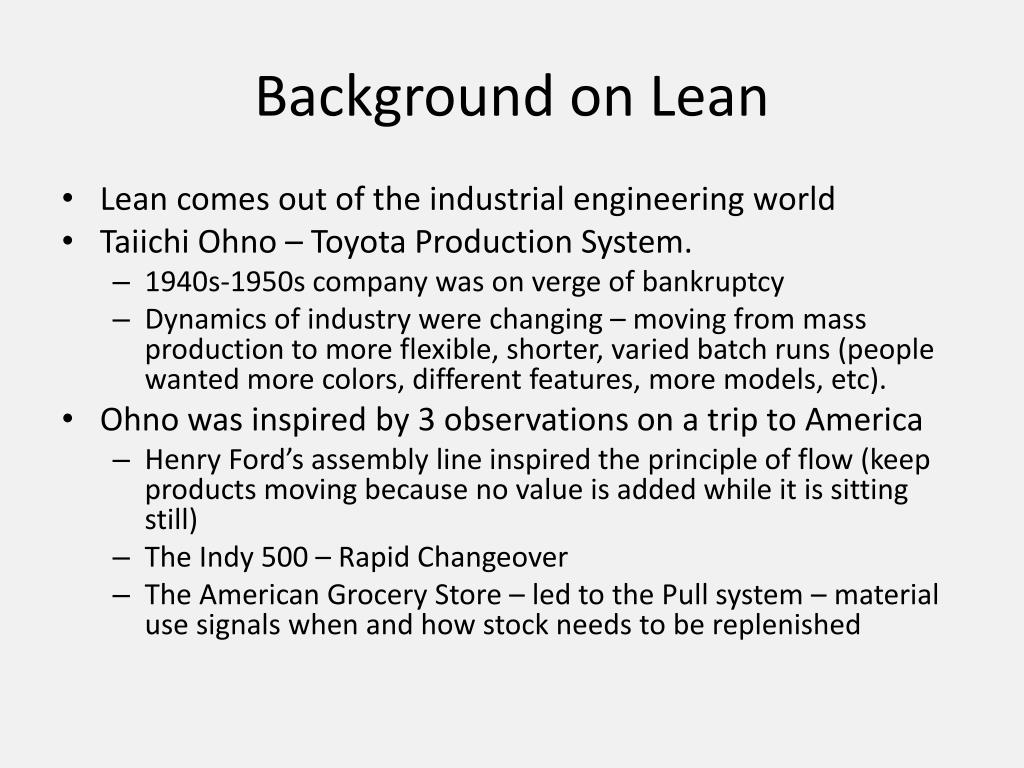

  8. Background on Lean • Lean comes out of the industrial engineering world • TaiichiOhno – Toyota Production System. • 1940s-1950s company was on verge of bankruptcy • Dynamics of industry were changing – moving from mass production to more flexible, shorter, varied batch runs (people wanted more colors, different features, more models, etc). • Ohno was inspired by 3 observations on a trip to America • Henry Ford’s assembly line inspired the principle of flow (keep products moving because no value is added while it is sitting still) • The Indy 500 – Rapid Changeover • The American Grocery Store – led to the Pull system – material use signals when and how stock needs to be replenished

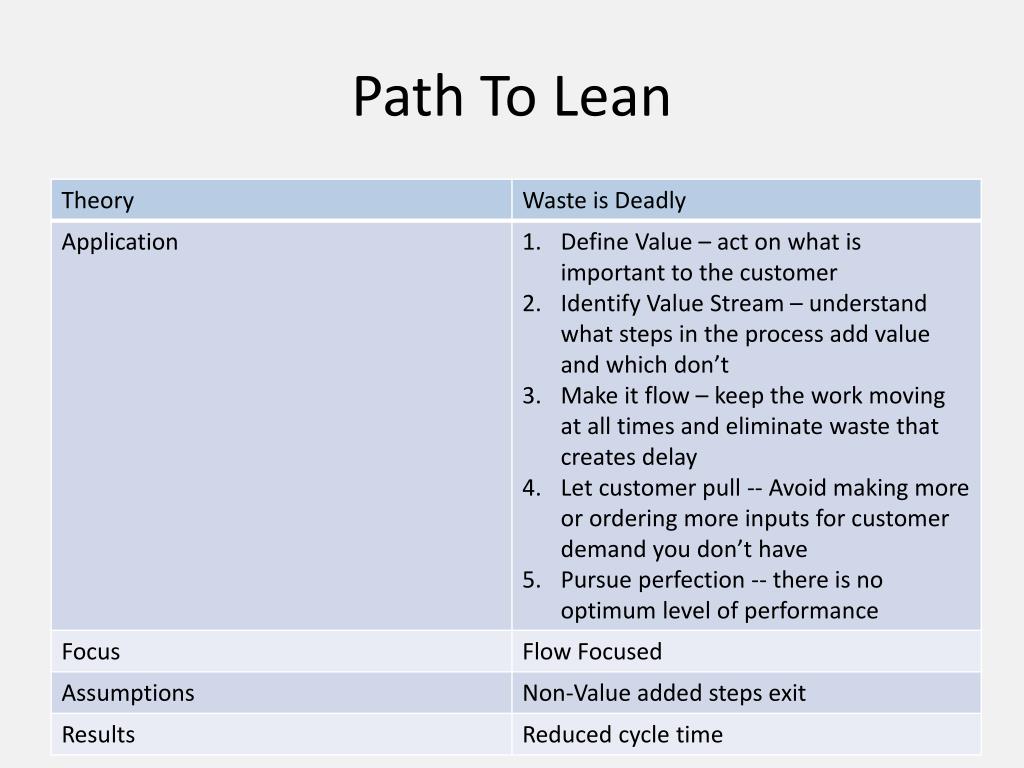

  9. Path To Lean

  10. Waste Defined

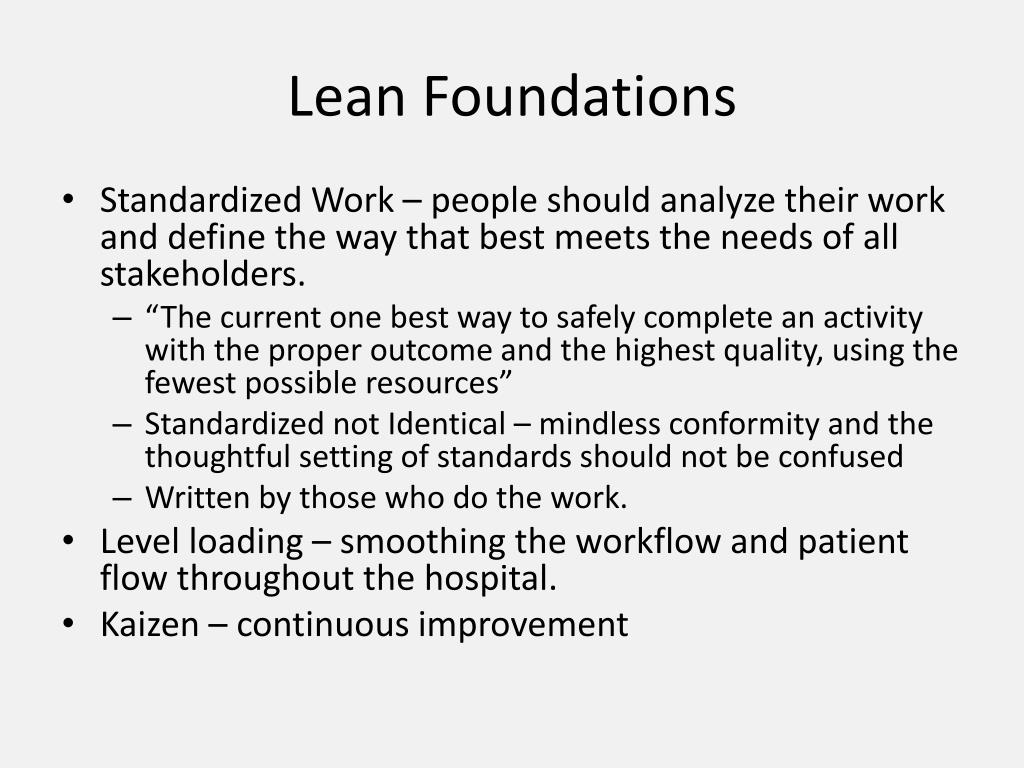

  11. Lean Foundations • Standardized Work – people should analyze their work and define the way that best meets the needs of all stakeholders. • “The current one best way to safely complete an activity with the proper outcome and the highest quality, using the fewest possible resources” • Standardized not Identical – mindless conformity and the thoughtful setting of standards should not be confused • Written by those who do the work. • Level loading – smoothing the workflow and patient flow throughout the hospital. • Kaizen – continuous improvement

  12. Lean Methods • Kaizen Events (or SCORE events) • Planned and structured process that enables a small group of people to improve some aspect of their business in a quick, focused manner. • Select • Clarify • Organize • Run • Evaluate • 5S – this methodology reduces waste through improved workplace organization and visual management • Sort, Store, Shine, Standardize and Sustain • Kanban – a Japanese term that can be translated as “signal,” “card,” or “sign.” • Most often a physical signal (paper card of plastic bin), that indicates when it is time to order more, from whom, and in what quantity.

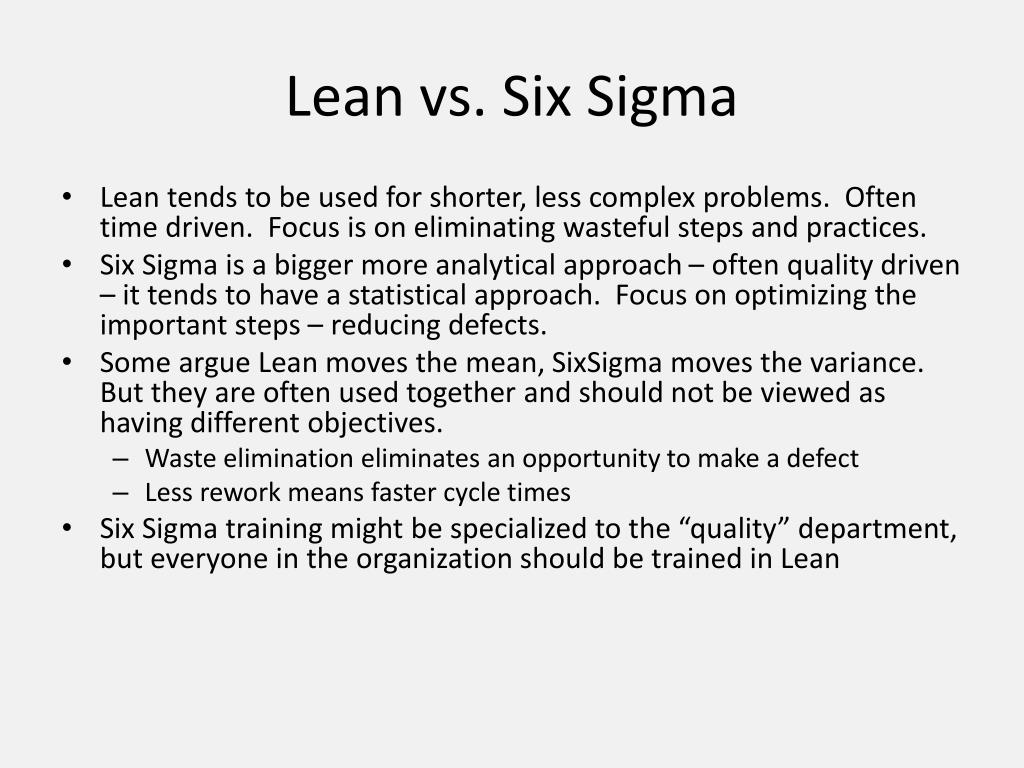

  13. Lean vs. Six Sigma • Lean tends to be used for shorter, less complex problems. Often time driven. Focus is on eliminating wasteful steps and practices. • Six Sigma is a bigger more analytical approach – often quality driven – it tends to have a statistical approach. Focus on optimizing the important steps – reducing defects. • Some argue Lean moves the mean, SixSigma moves the variance. But they are often used together and should not be viewed as having different objectives. • Waste elimination eliminates an opportunity to make a defect • Less rework means faster cycle times • Six Sigma training might be specialized to the “quality” department, but everyone in the organization should be trained in Lean

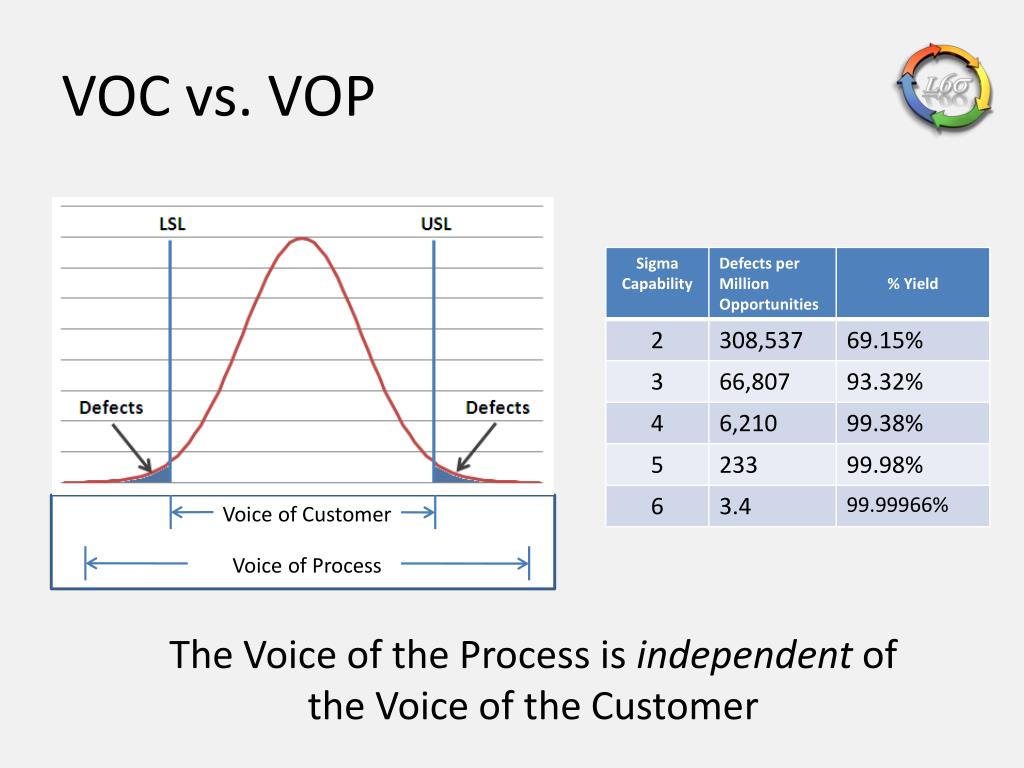

  14. VOC vs. VOP Voice of Customer Voice of Process The Voice of the Process is independent of the Voice of the Customer

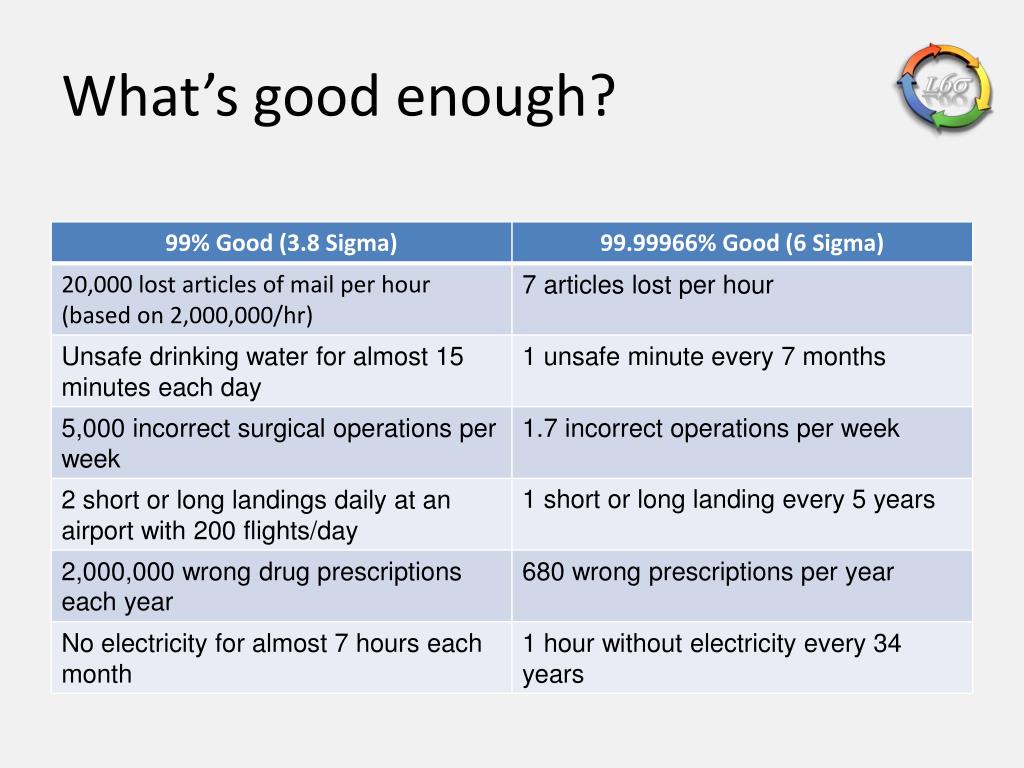

  15. What’s good enough?

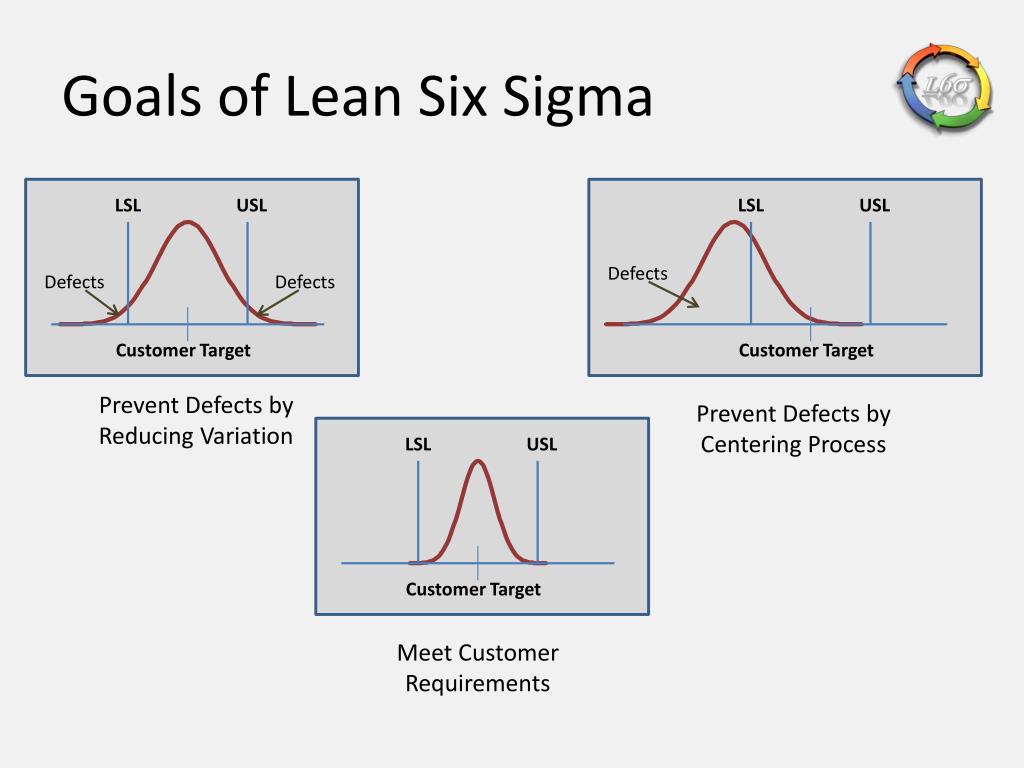

  16. Goals of Lean Six Sigma LSL USL LSL USL Defects Defects Defects Customer Target Customer Target Prevent Defects byReducing Variation Prevent Defects byCentering Process LSL USL Customer Target Meet Customer Requirements

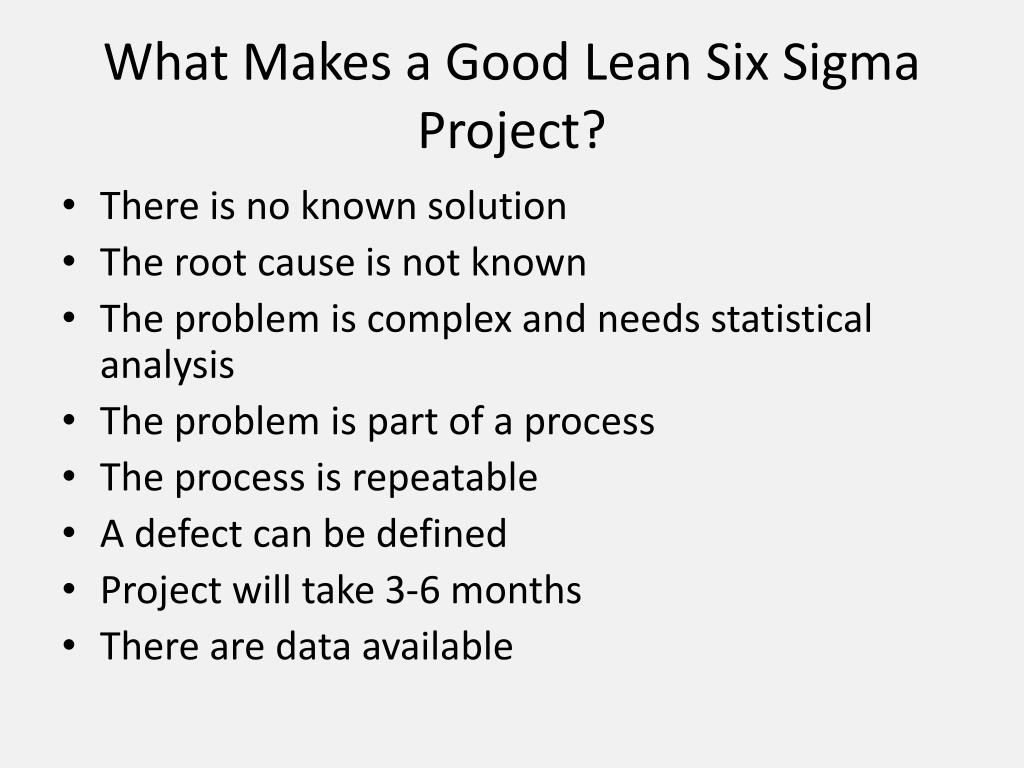

  17. What Makes a Good Lean Six Sigma Project? • There is no known solution • The root cause is not known • The problem is complex and needs statistical analysis • The problem is part of a process • The process is repeatable • A defect can be defined • Project will take 3-6 months • There are data available

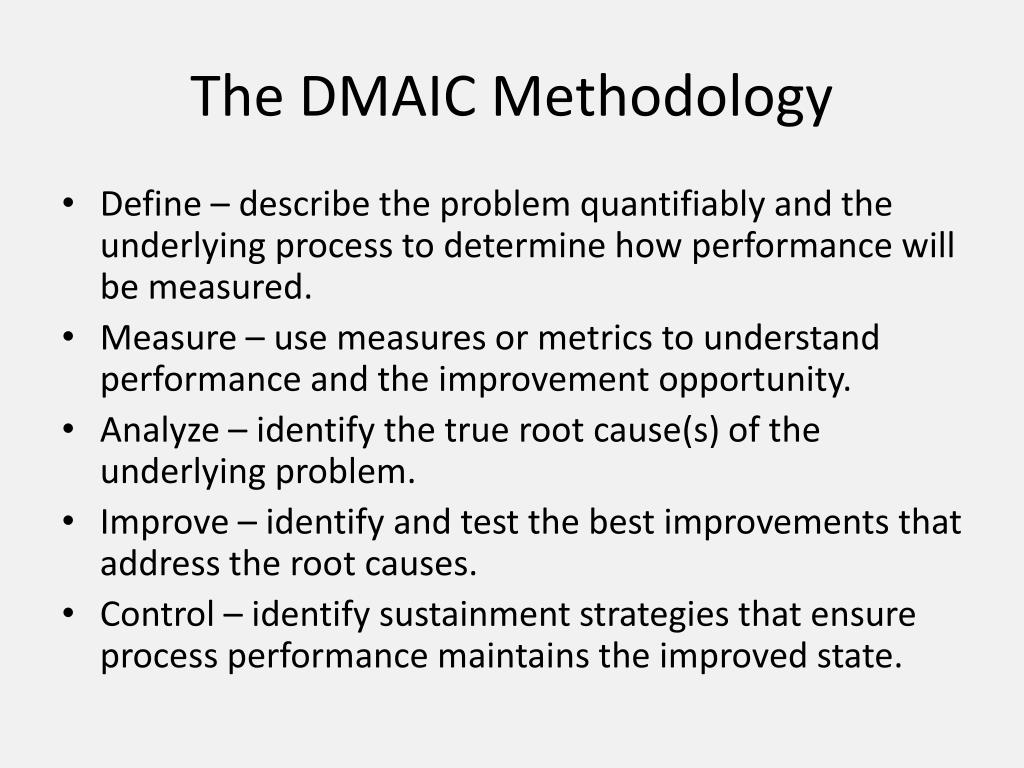

  18. The DMAIC Methodology • Define – describe the problem quantifiably and the underlying process to determine how performance will be measured. • Measure – use measures or metrics to understand performance and the improvement opportunity. • Analyze – identify the true root cause(s) of the underlying problem. • Improve – identify and test the best improvements that address the root causes. • Control – identify sustainment strategies that ensure process performance maintains the improved state.

  19. Define • Define Scope of the Problem • Document the Process • Collect and Translate the Voice of the Customer • Determine Project Objective and Benefits • Define Metrics and Defects • Establish Preliminary Baseline • Develop Problem & Objective Statements • Estimate Financial Benefit

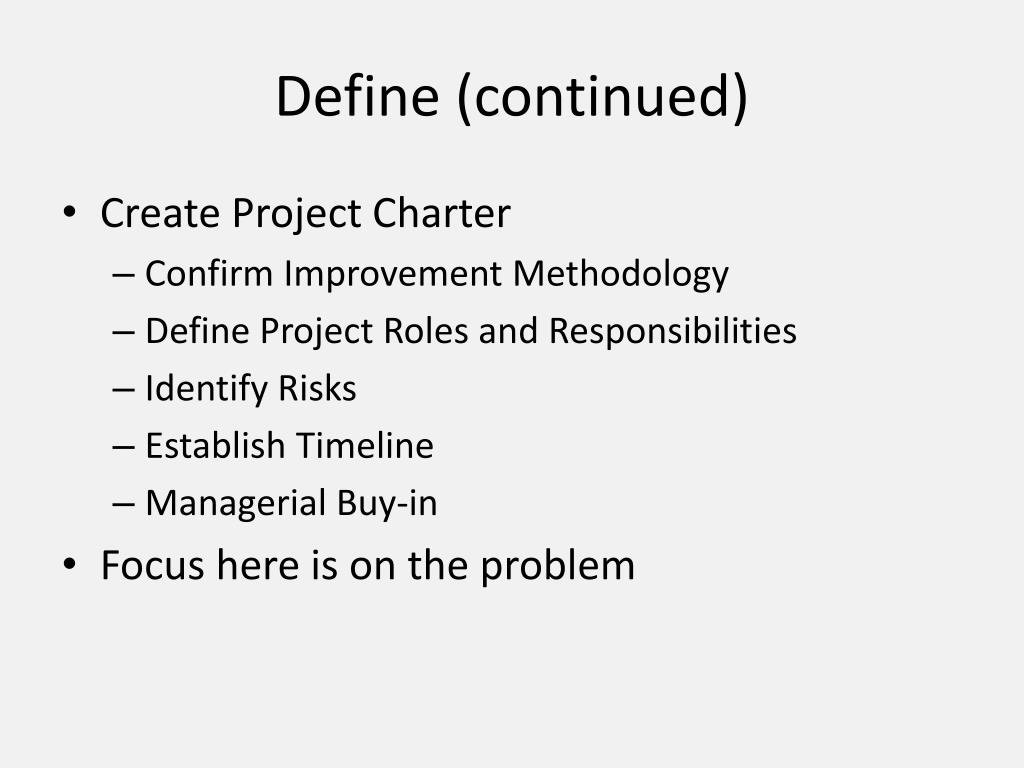

  20. Define (continued) • Create Project Charter • Confirm Improvement Methodology • Define Project Roles and Responsibilities • Identify Risks • Establish Timeline • Managerial Buy-in • Focus here is on the problem

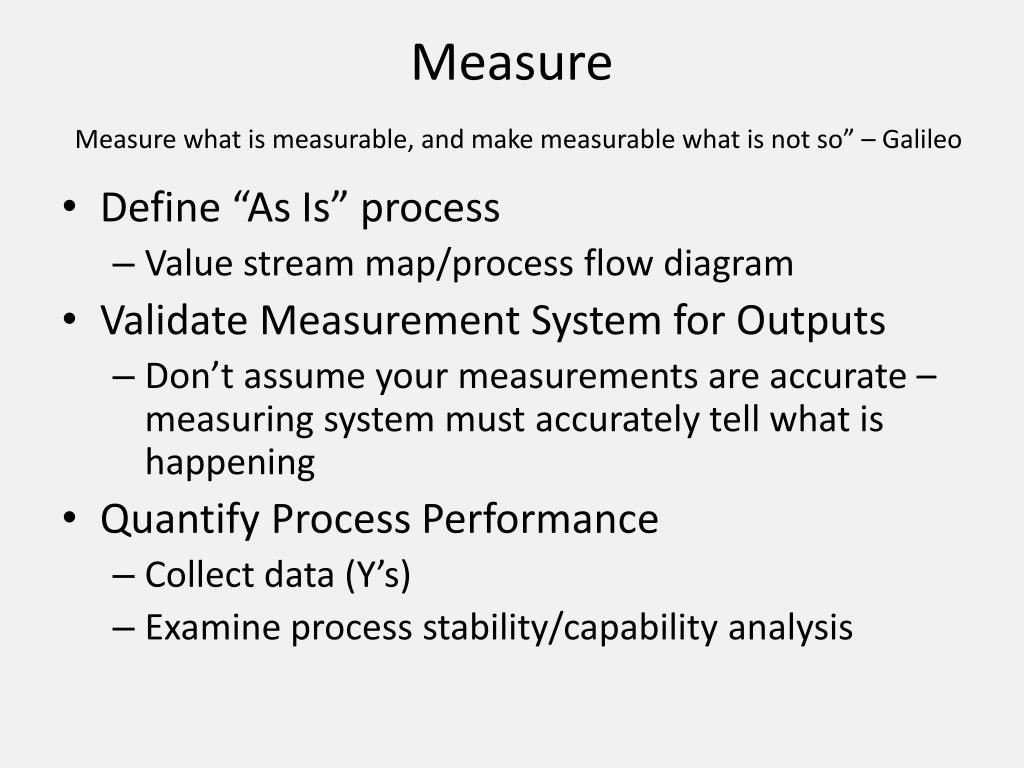

  21. MeasureMeasure what is measurable, and make measurable what is not so” – Galileo • Define “As Is” process • Value stream map/process flow diagram • Validate Measurement System for Outputs • Don’t assume your measurements are accurate – measuring system must accurately tell what is happening • Quantify Process Performance • Collect data (Y’s) • Examine process stability/capability analysis

  22. Analyze • Identify Potential Causes (X’s) • Investigate Significance of X’s • Collect data on x’s • Graphical/Quantitative analysis • Pareto Chart • Fishbone Diagram (cause and effect) • Chi Square Test • Regression Analysis • Failure Mode Effects Analysis • Identify Significant Causes to focus on (y=f(X)) • Evaluate the impact of x’s on y • Here you identify the critical factors of a “good” output and the root causes of defects or “bad” output.

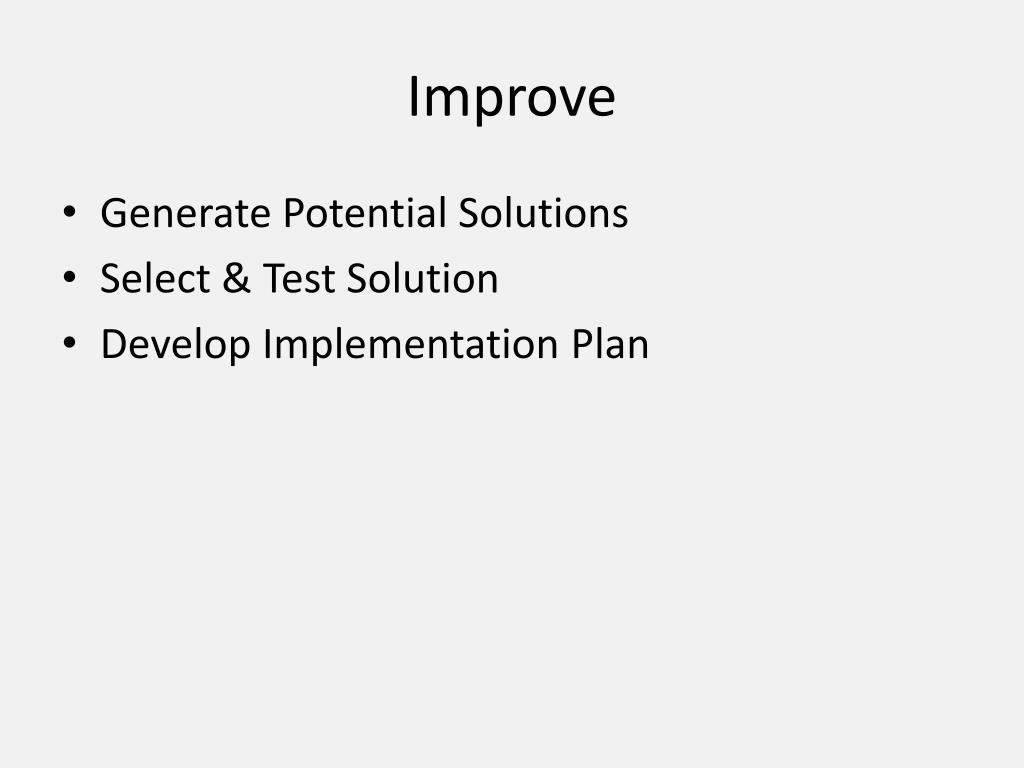

  23. Improve • Generate Potential Solutions • Select & Test Solution • Develop Implementation Plan

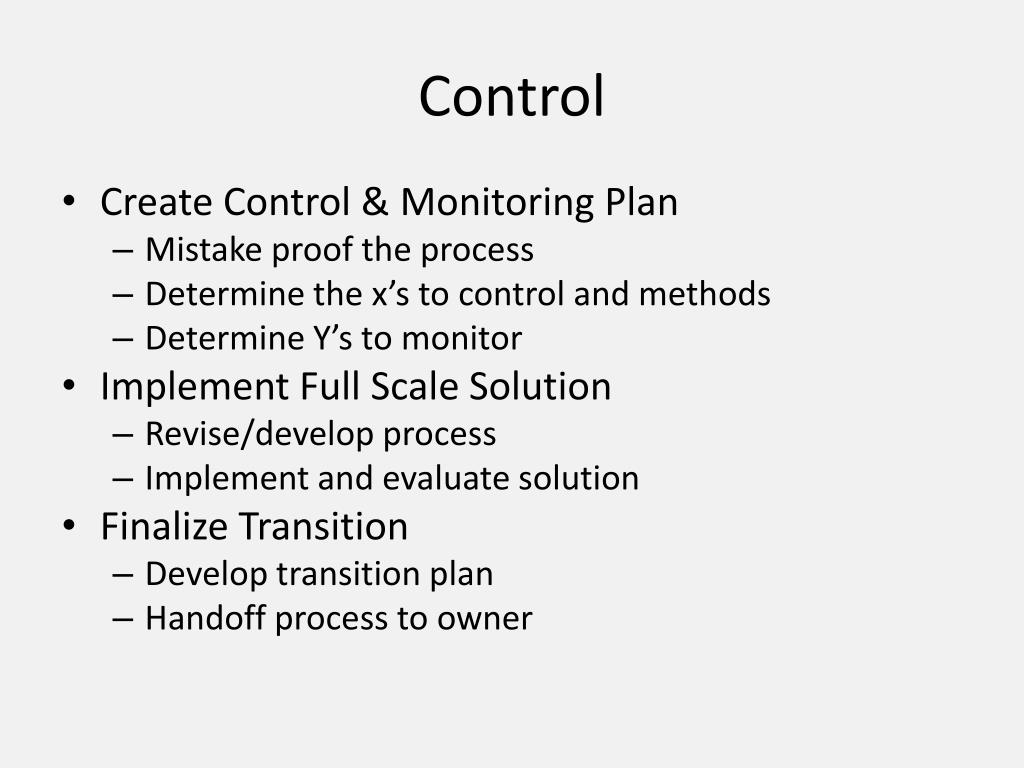

  24. Control • Create Control & Monitoring Plan • Mistake proof the process • Determine the x’s to control and methods • Determine Y’s to monitor • Implement Full Scale Solution • Revise/develop process • Implement and evaluate solution • Finalize Transition • Develop transition plan • Handoff process to owner
