  1. Leaves Chapter 7

  2. Outline • Introduction • Leaf Arrangements and Types • Internal Structure of Leaves • Stomata • Mesophyll and Veins • Specialized Leaves • Autumnal Changes in Leaf Color • Abscission • Human and Ecological Relevance of Leaves

  3. Introduction • Leaves originate as primordia in buds • At maturity, most leaves have: • Stalk = petiole • Lacking petiole = sessile • Flattened blade = lamina • Network of veins = vascular bundles • Stipulesat base of petiole • Leaves of flowering plants associated with leaf gapsand have axillary buds at base

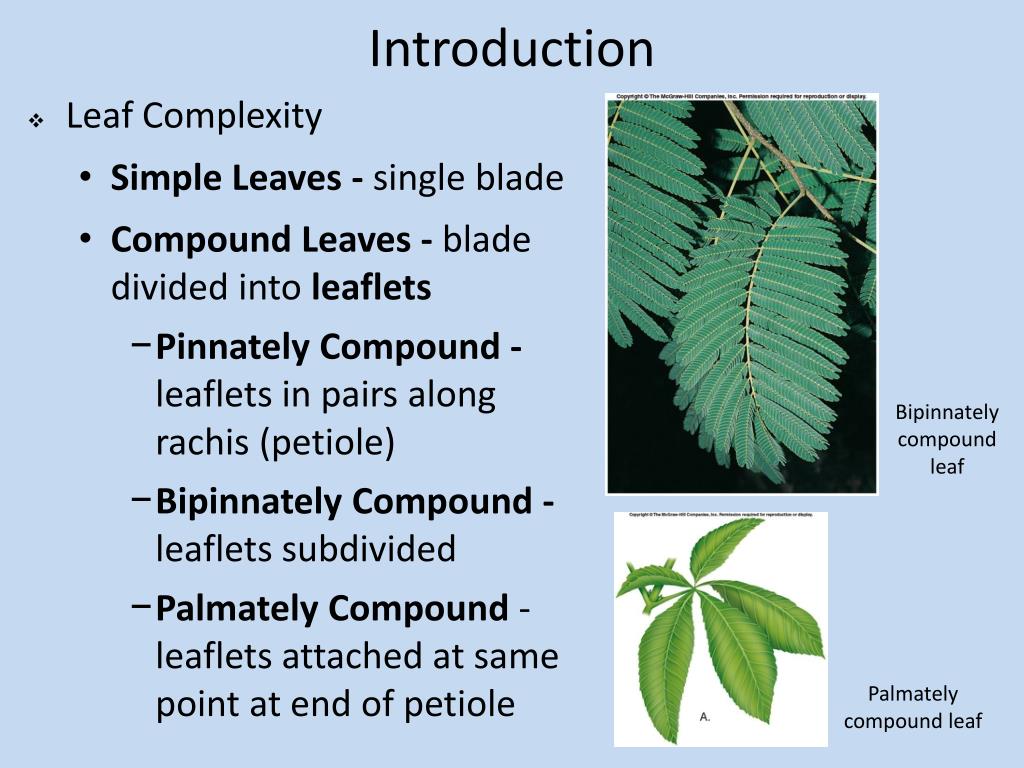

  4. Introduction • Leaf Complexity • Simple Leaves -single blade • Compound Leaves -blade divided into leaflets • Pinnately Compound - leaflets in pairs along rachis (petiole) • Bipinnately Compound -leaflets subdivided • Palmately Compound -leaflets attached at same point at end of petiole Bipinnately compound leaf Palmately compound leaf

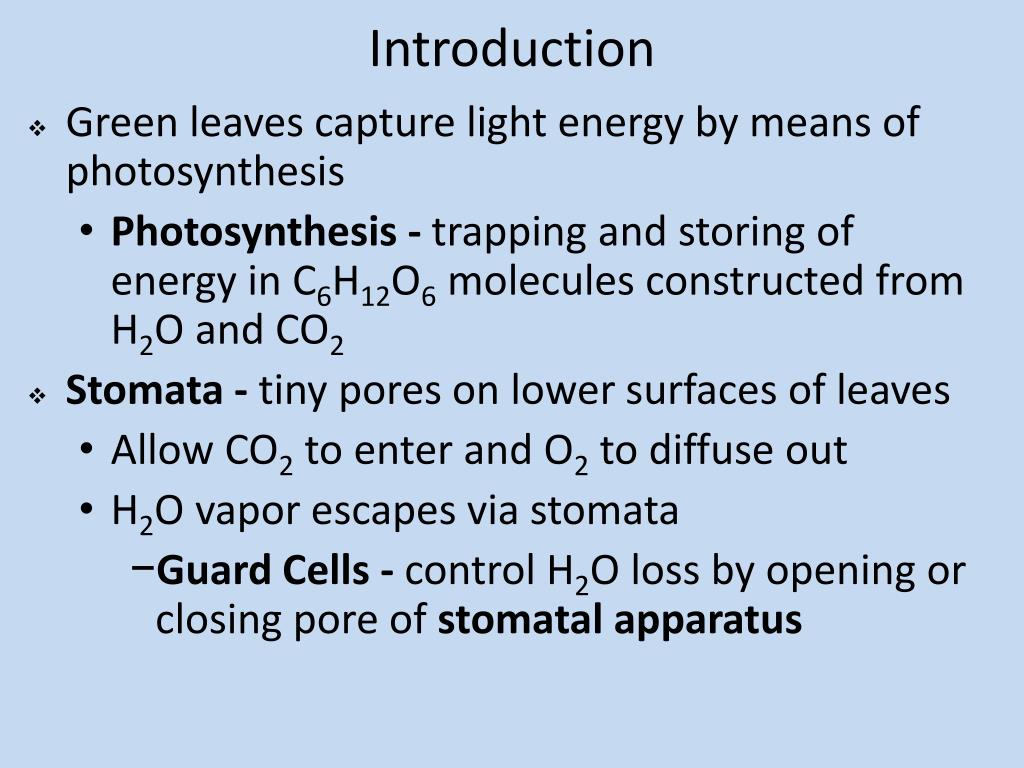

  5. Introduction • Green leaves capture light energy by means of photosynthesis • Photosynthesis -trapping and storing of energy in C6H12O6molecules constructed from H2O and CO2 • Stomata -tiny pores on lower surfaces of leaves • Allow CO2 to enter and O2to diffuse out • H2O vapor escapes via stomata • Guard Cells - control H2O loss by opening or closing pore of stomatal apparatus

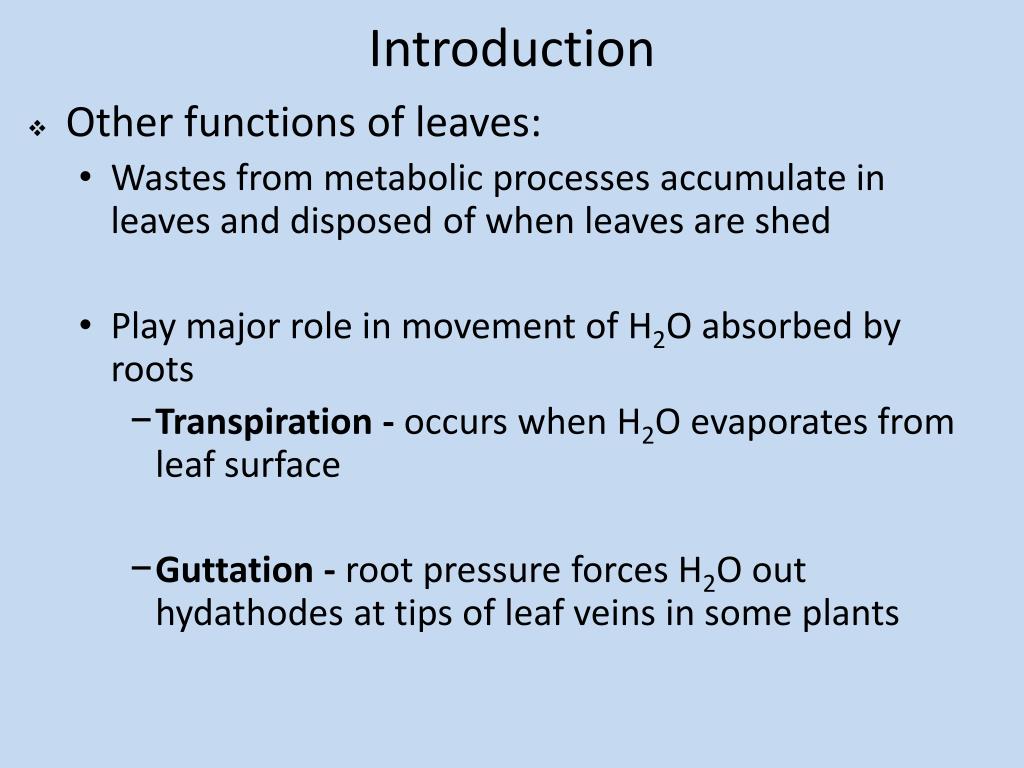

  6. Introduction • Other functions of leaves: • Wastes from metabolic processes accumulate in leaves and disposed of when leaves are shed • Play major role in movement of H2O absorbed by roots • Transpiration - occurs when H2O evaporates from leaf surface • Guttation -root pressure forces H2O out hydathodes at tips of leaf veins in some plants

  7. Leaf Arrangements and Types • Leaves attached to stems at nodes, with stem regions between known as internodes • Phyllotaxy -arrangement of leaves on stem • Alternate -1 leaf per node • Opposite -2 leaves per node • Whorled -3 of more leaves at node Alternate Opposite Whorled

  8. Leaf Arrangements and Types • Venation -arrangement of veins in leaf or leaflet blade • Pinnately Veined Leaves - main midvein included within enlarged midrib • 2° veins branch from midvein • Palmately Veined Leaves -several 1° veins fan out from base of blade Pinnate venation Palmate venation

  9. Leaf Arrangements and Types • Monocots - 1° veins parallel= Parallel Venation • Dicots - 1° veins divergent in various ways =Netted or Reticulate Venation • Dichotomous Venation -veins fork evenly and progressively from base of blade Parallel venation Dichotomous venation Reticulate venation

  10. Internal Structure of Leaves • 3 regions: Epidermis, mesophyll, veins (vascular bundles) • Epidermis -single layer of cells covering entire surface of leaf • Devoid of chloroplasts • Coated with cuticle (with cutin) • Protect tissues inside leaves • May accumulate waste materials • Glands may be present

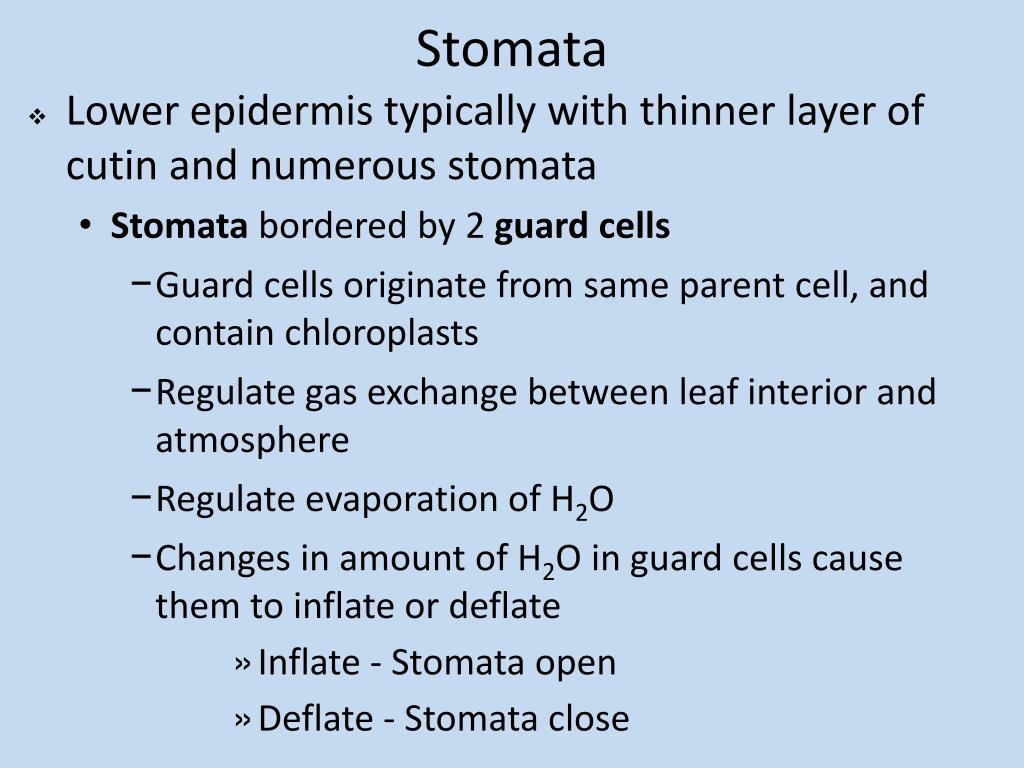

  11. Stomata • Lower epidermis typically with thinner layer of cutin and numerous stomata • Stomata bordered by 2 guard cells • Guard cells originate from same parent cell, and contain chloroplasts • Regulate gas exchange between leaf interior and atmosphere • Regulate evaporation of H2O • Changes in amount of H2O in guard cells cause them to inflate or deflate • Inflate - Stomata open • Deflate - Stomata close

  12. Mesophyll and Veins • Most photosynthesis takes place inmesophyllbetween 2 epidermal layers • Palisade Mesophyll • Compactly stacked, barrel-shaped parenchyma cells, commonly in 2 rows • Contains most leaf’s chloroplasts • Spongy Mesophyll • Loosely arranged parenchyma cells with abundant air spaces

  13. Mesophyll and Veins • Veins (vascular bundles)scattered throughout mesophyll • Consist of xylem and phloem tissues surrounded by bundle sheath of thicker-walled parenchyma Dicot leaf cross section

  14. Mesophyll and Veins • Monocots have some differences: • Usually do not have mesophyll differentiated into palisade and spongy layers • Bulliformcells on either side of main central vein • Partly collapse under dry conditions • Cause leaf to fold or roll, reducing transpiration Monocot leaf cross section

  15. Specialized Leaves • Shade Leaves • Compared to sun leaves, shade leaves: • Tend to be larger • Tend to be thinner • Have fewer well-defined mesophyll layers and fewer chloroplasts • Have fewer hairs Sun leaf Shade leaf

  16. Specialized Leaves • Leaves of Arid Regions • Arid regions = limited availability of H2O, wide temperature ranges, and high light intensities • Leaves reduce loss of H2Oby: • Thick, leathery leaves • Fewer stomata or sunken stomata • Succulent, H2O-retaining leaves, or no leaves • Dense, hairy coverings • Leaves of Aquatic Areas • Less xylem and phloem • Mesophyll not differentiated • Aerenchyma!

  17. Specialized Leaves • Tendrils • Curl around more rigid objects, helping plant to climb or to support weak stems • Garden peas Tendrils • Spines • Reduce leaf surface and H2O loss, and protect from herbivory • Cacti • Leaf tissue replaced with sclerenchyma • Photosynthesis occurs in stems Spine

  18. Specialized Leaves • Thorns -modified stems arising in axils of leaves of woody plants Thorn • Prickles -outgrowths from epidermis or cortex Prickle

  19. Specialized Leaves • Storage leaves • Succulent leaves modified for H2O storage • Have parenchyma cells with large vacuoles • Many desert plants • Fleshy leaves store carbohydrates • Onions, lily

  20. Specialized Leaves • Flower-Pot Leaves • Leaves develop into urn-like pouches that become home of ant colonies • Ants carry in soil and add nitrogenous wastes, providing good growing medium for plant’s own roots • Dischidia, an epiphyte of Australia Flower-pot leaf sliced lengthwise

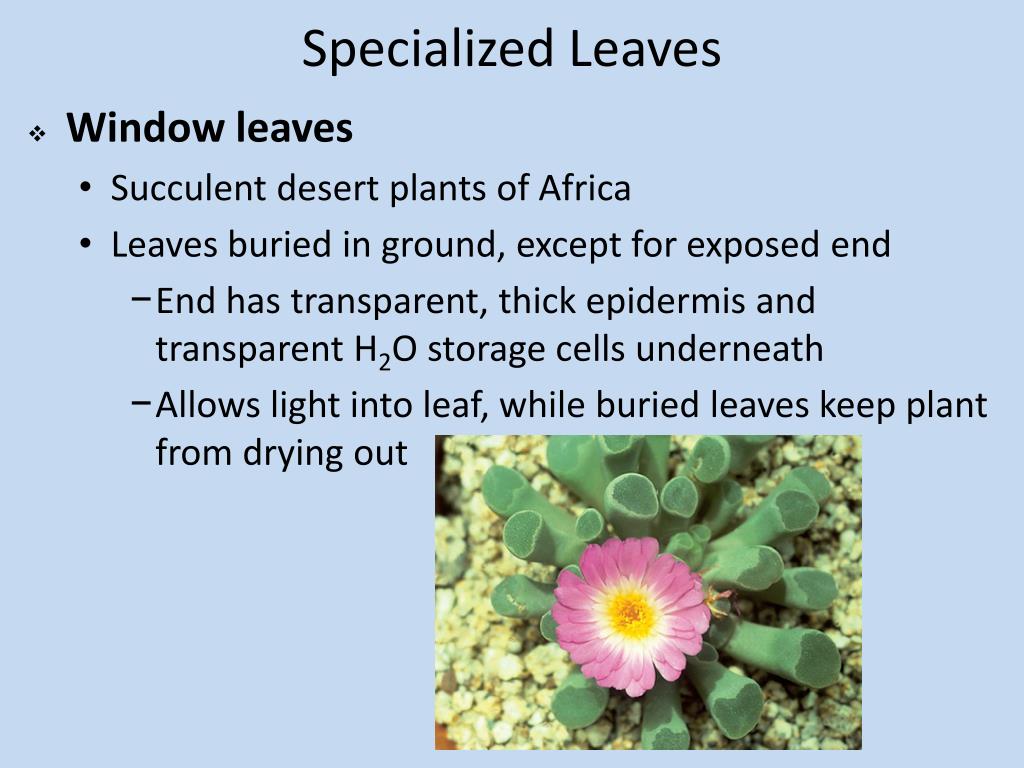

  21. Specialized Leaves • Window leaves • Succulent desert plants of Africa • Leaves buried in ground, except for exposed end • End has transparent, thick epidermis and transparent H2O storage cells underneath • Allows light into leaf, while buried leaves keep plant from drying out

  22. Specialized Leaves • Reproductive Leaves • Walking fern - new plants at leaf tips • Air plant - tiny plantlets along leaf margins Air Plant

  23. Specialized Leaves • Floral Leaves (= Bracts) • At bases of flowers or flower stalks • Poinsettia – no petals, instead brightly colored bracts surround flowers • Clary’s sage – colorful bracts at top of flowering stalks above flowers Poinsettia Clary’s sage

  24. Specialized Leaves • Insect-Trapping Leaves • Grow in swampy areas and bogs • N and other elements deficient in soil • Specialized leaves trap and digest insects • Pitcher Plants • Insects trapped and digested inside cone-shaped leaves Pitcher plant

  25. Specialized Leaves • Insect-Trapping Leaves • Sundews • Round to oval leaves covered with glandular hairs with sticky fluid of digestive enzymes at tip • Venus’s Flytraps • Only in North Carolina and South Carolina • Blade halves trap insects Sundew Venus’s Flytraps

  26. Specialized Leaves • Insect-Trapping Leaves • Bladderworts • Submerged or floating in shallow water • Tiny bladders on leaves have trap doors that trap insects inside bladders Bladder of bladderwort

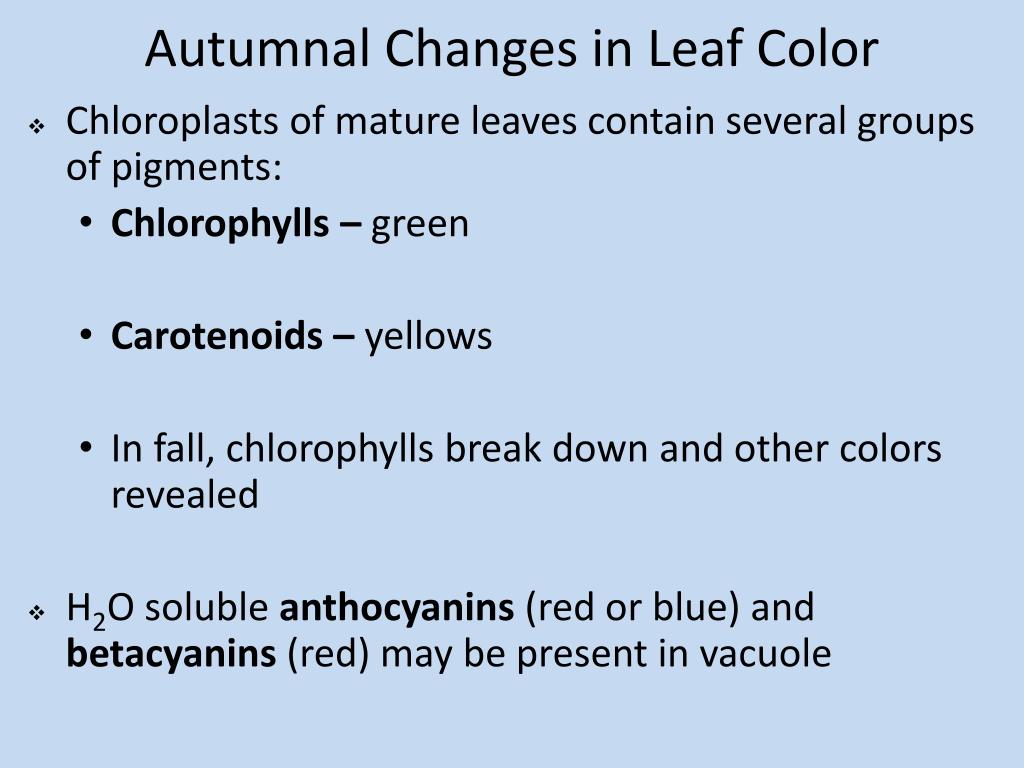

  27. Autumnal Changes in Leaf Color • Chloroplasts of mature leaves contain several groups of pigments: • Chlorophylls– green • Carotenoids – yellows • In fall, chlorophylls break down and other colorsrevealed • H2O soluble anthocyanins (red or blue) and betacyanins(red) may be present in vacuole

  28. Abscission • Deciduous plants drop leaves seasonally • Abscission - process by which leaves are shed • Result of changes in abscission zone near base of petiole • ProtectiveLayer - cells coated and impregnated with suberin • SeparationLayer- pectinsin middle lamella of cells broken down by enzymes

  29. Human and Ecological Relevance of Leaves • Landscaping - shade trees • Food - cabbage, lettuce, celery petioles, spices • Dyes • Perfumes - oils of orange tree, lavender • Ropes and Twine - Agave, hemp fibers • Drugs - narcotics, tobacco, marijuana • Beverages - tea, tequila (agave leaves) • Insecticides - rotenone • Waxes - carnauba and caussu waxes • Aesthetics - floral arrangements, gardens

  30. Review • Introduction • Leaf Arrangements and Types • Internal Structure of Leaves • Stomata • Mesophyll and Veins • Specialized Leaves • Autumnal Changes in Leaf Color • Abscission • Human and Ecological Relevance of Leaves
